Beiben Truck V3 31T 8X4(12 wheels) 5.8m electric dump truck 281.91kWh
EXW
Export quote
Beiben V3 heavy truck electric dump truck
Main model photos
279 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Beiben Truck V3 31T 8X4(12 wheels) 5.8m electric dump truck 281.91kWh | 8x4 | ||
| Beiben Truck V3 31T 8X4(12 wheels) 6.5m battery-swap pure electric dump truck | 8x4 | ||
| Beiben Truck V3 8X4(12 wheels) 9.7m Cab-over Chassis Pure Electric Dump Truck 234kWh | 8x4 |

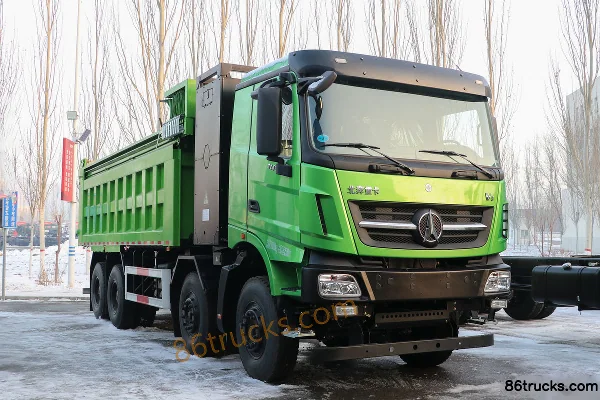

Beiben Truck V3 31T 8X4(12 wheels) 6.5m battery-swap pure electric dump truck
EXW
Export quote

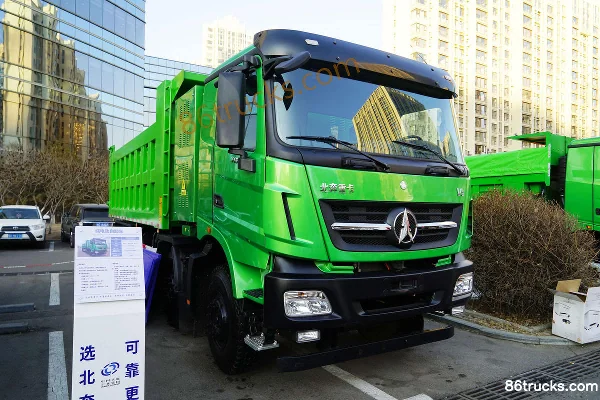

Beiben Truck V3 8X4(12 wheels) 9.7m Cab-over Chassis Pure Electric Dump Truck 234kWh
EXW
Export quote
Series Specs
Basic Info
Model code (announced): ND3310DBXJ7Z01BEV / ND3310DBXJ7Z02BEV
Drive type: 8X4
Wheelbase: 1950+3100+1450 / 1950+3700+1450mm
Cab length: 9.82 / 10.5 / 9.7m
Cab width: 2.55m
Cab height: 3.515m
CLTC range: 210km
Curb Weight: 20.97 / 21.7 / 21.6ton
Rated payload: 9.9 / 9.17ton
GVWR: 31 / 50ton
Max. speed: 80km/h
Origin: Baotou, Inner Mongolia
tonnage class: Heavy truck
Energy Type: Electric
electric motor
Motor 1 Brand: Tebest
Motor 1 Model: TZ400XSTPG06
Motor Type: Permanent magnet synchronous motor
total rated power: 250kW
Peak power: 360 / 365kW
total peak torque: 1800N·m
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 281.91 / 234kWh
Battery Model: L228H01
Transmission Parameters
Number of gears: 8Gear
shift type: AT automatic
Transmission Model: 8-speed automatic
Cargo box parameters
Cargo box type: Dump type
Cargo box length: 5.8 / 6.5m
Cargo box width: 2.35m
Cargo box height: 1.5m
Cab parameters
Cab: V3 medium-long cab flat roof
seating capacity: 2 / 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 6500/6500kg
rear axle description: 13t dual reduction
rear axle allowable load: 18000 (tandem axle group)kg
Tire
Tire Size: 12.00R20 18PR / 12.22R20
Number of tires: 12pcs
Control configuration
ABS:
FAQ
What kind of truck is Beiben Truck Beiben V3 heavy truck electric dump truck?
Beiben Truck Beiben V3 heavy truck is an export-oriented electric dump truck lineup with about 3 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Beiben V3 heavy truck electric dump truck cover?
Beiben V3 heavy truck electric dump truck mainly covers: Drive: 8x4. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Beiben V3 heavy truck electric dump truck?
For Beiben V3 heavy truck electric dump truck: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is electric dump truck typically used for?
electric dump truck is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Beiben V3 heavy truck electric dump truck include?
Beiben V3 heavy truck electric dump truck currently lists about 3 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Beiben V3 heavy truck electric dump truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
