Beiben Truck V3 8X4(12 wheels) 9.7m Cab-over Chassis Pure Electric Dump Truck 234kWh

Export reference
MSRP N/A
Wheelbase:: 1950+3100+1450mm
Cargo box type:: Dump type
Cab length:: 9.7m
GVWR:: 50ton
Max. speed:: 80km/h
Origin:: Baotou, Inner Mongolia
Drive 8X4 (12 wheels)
CLTC range: 210km
Motor Type: Permanent magnet synchronous motor
Curb Weight: 21.6ton

Overview

The Beiben Truck V3 8X4(12 wheels) 9.7m Cab-over Chassis Pure Electric Dump Truck 234kWh is a Heavy truck featuring 210km battery/range, Permanent magnet synchronous motor motor, 8X4 (12 wheels) drive and Dump type cargo length.

8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Drive type: 8X4
Wheelbase: 1950+3100+1450mm
Cab length: 9.7m
Cab width: 2.55m
Cab height: 3.515m
CLTC range: 210km
Curb Weight: 21.6ton
GVWR: 50ton
Max. speed: 80km/h
Origin: Baotou, Inner Mongolia
tonnage class: Heavy truck
Energy Type: Electric
electric motor
Motor Type: Permanent magnet synchronous motor
Peak power: 365kW
total peak torque: 1800N·m
Battery/Charging
Battery capacity: 234kWh
Transmission Parameters
Number of gears: 8Gear
shift type: AT automatic
Transmission Model: 8-speed automatic
Cargo box parameters
Cargo box type: Dump type
Cab parameters
Cab: V3 medium-long cab flat roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
rear axle description: 13t dual reduction
Tire
Tire Size: 12.22R20
Number of tires: 12pcs
Control configuration
ABS:

Photos

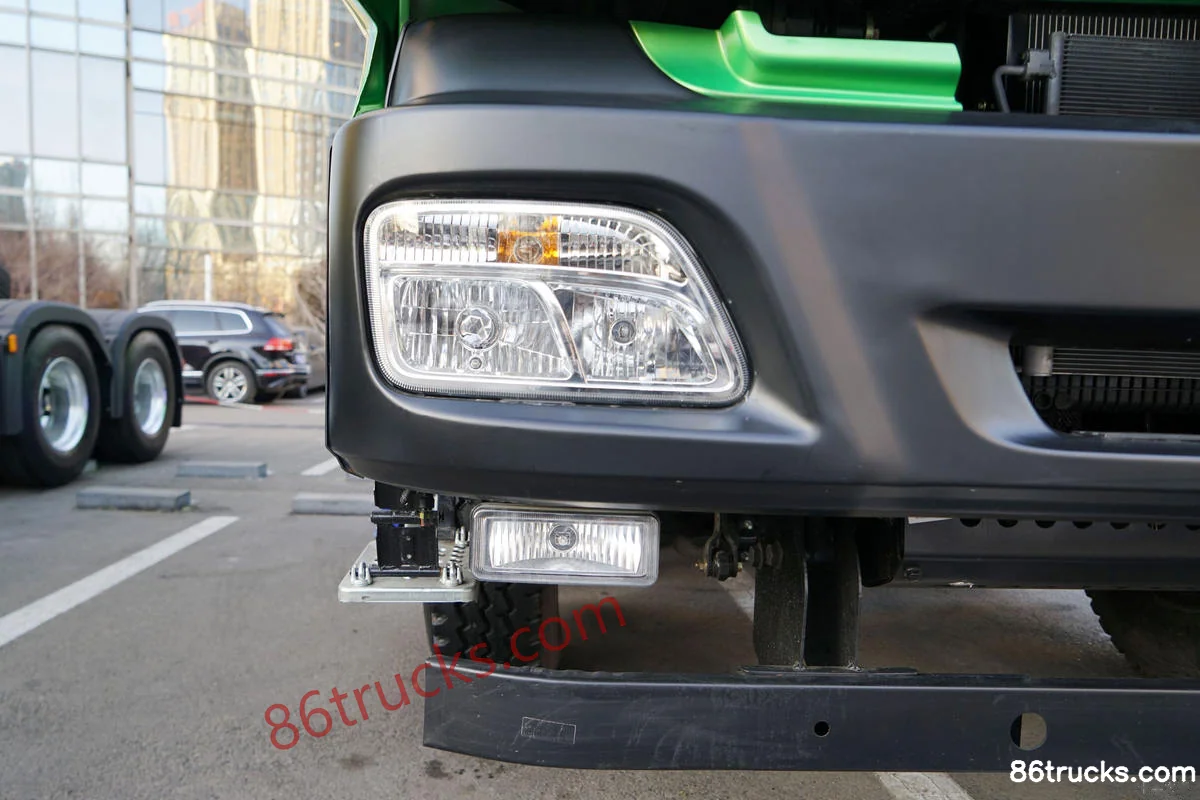

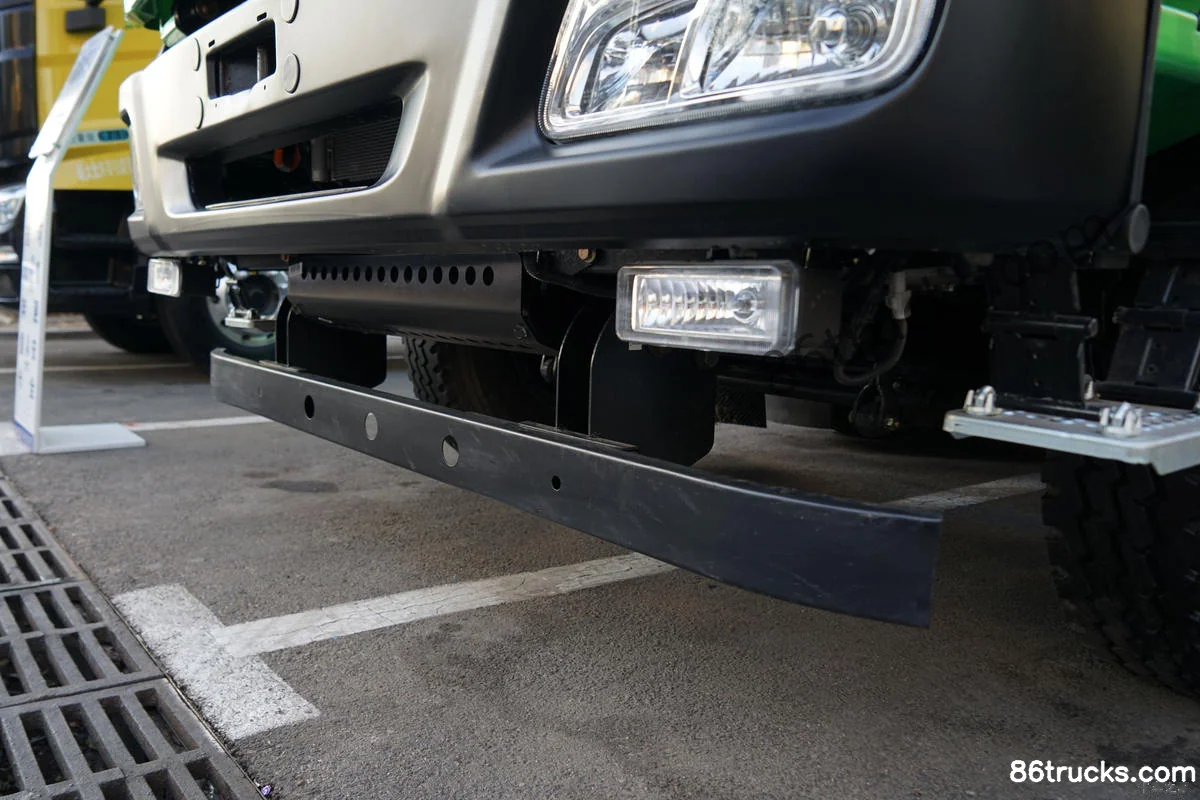

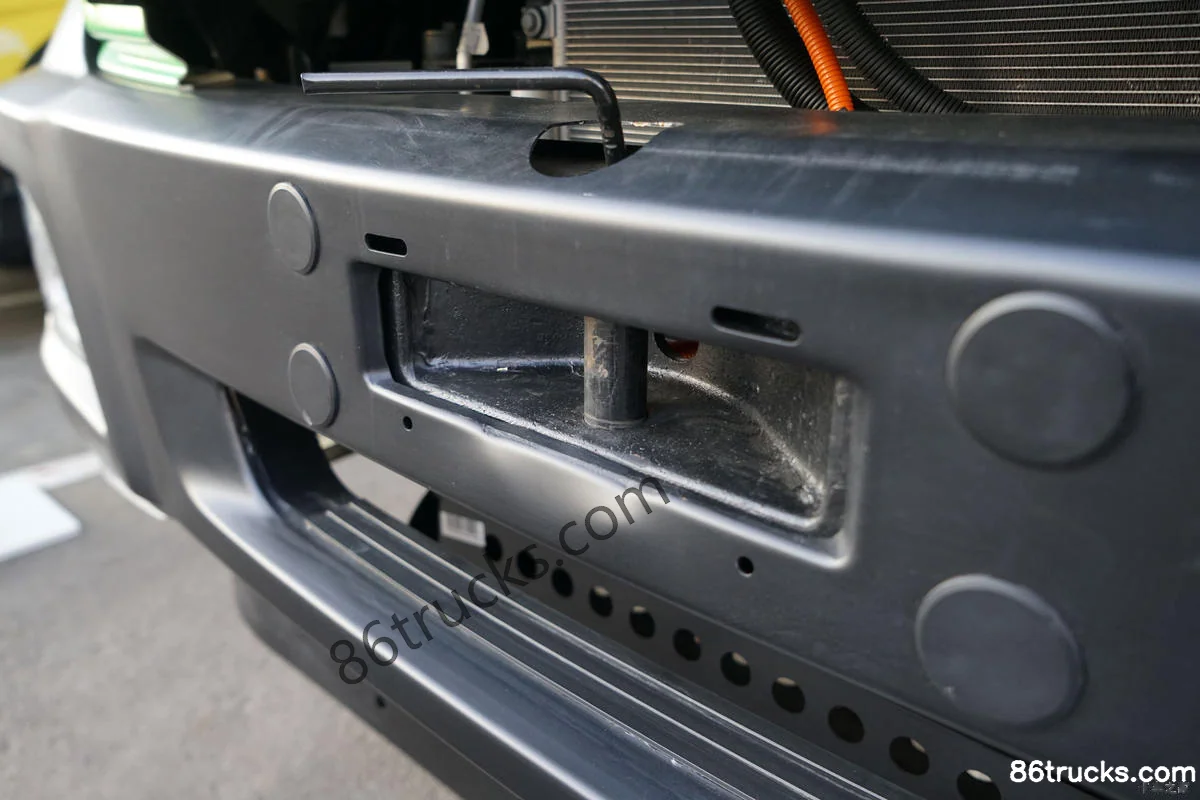

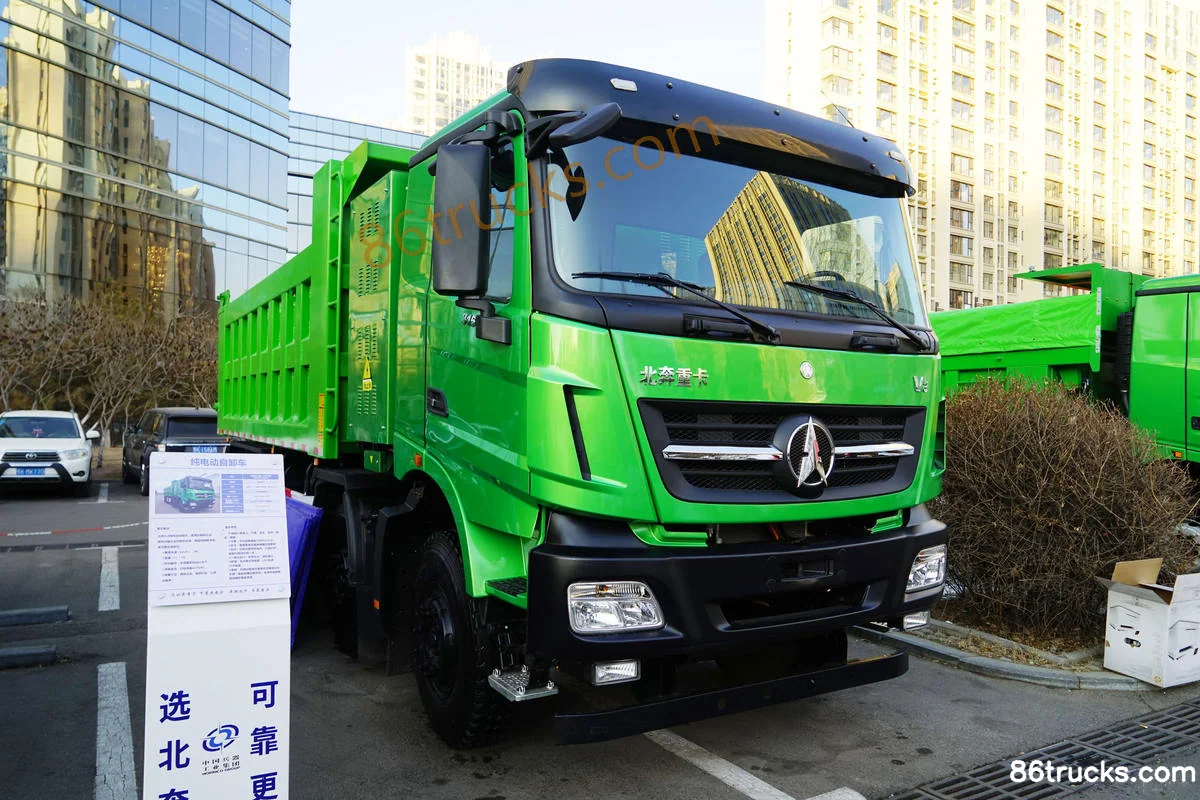

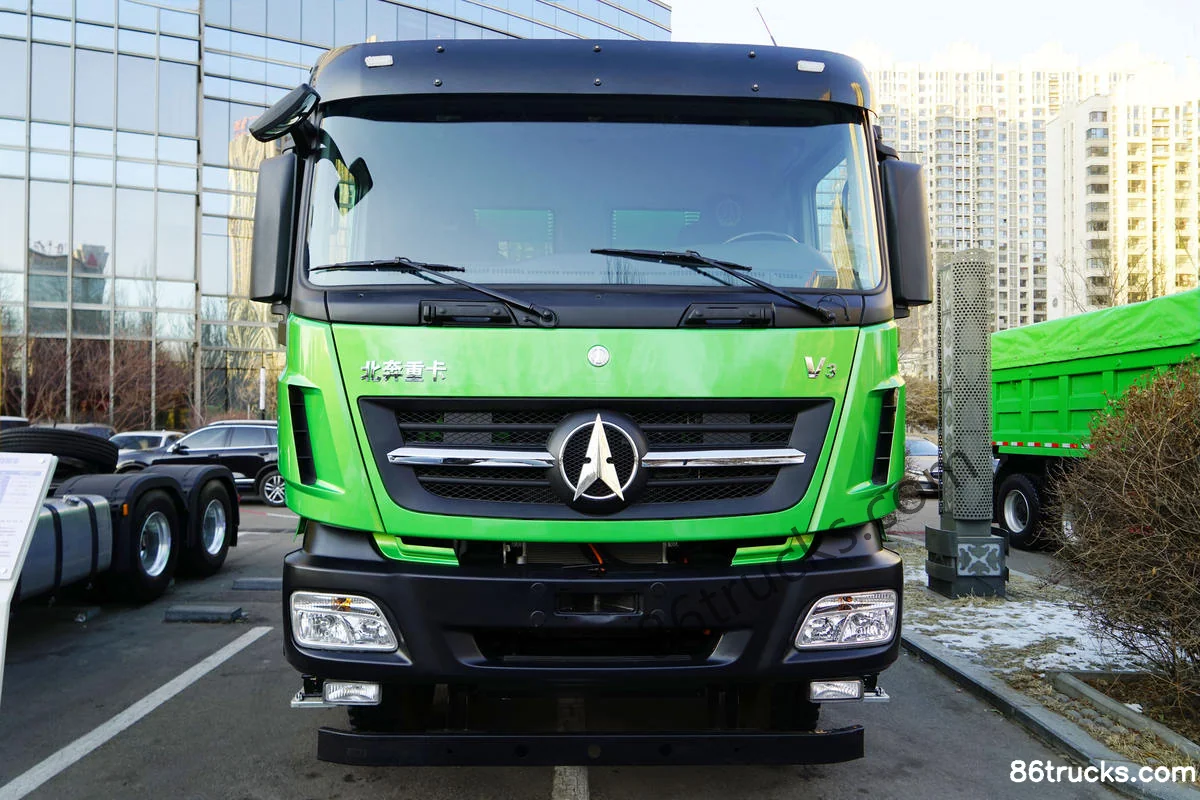

Exterior3

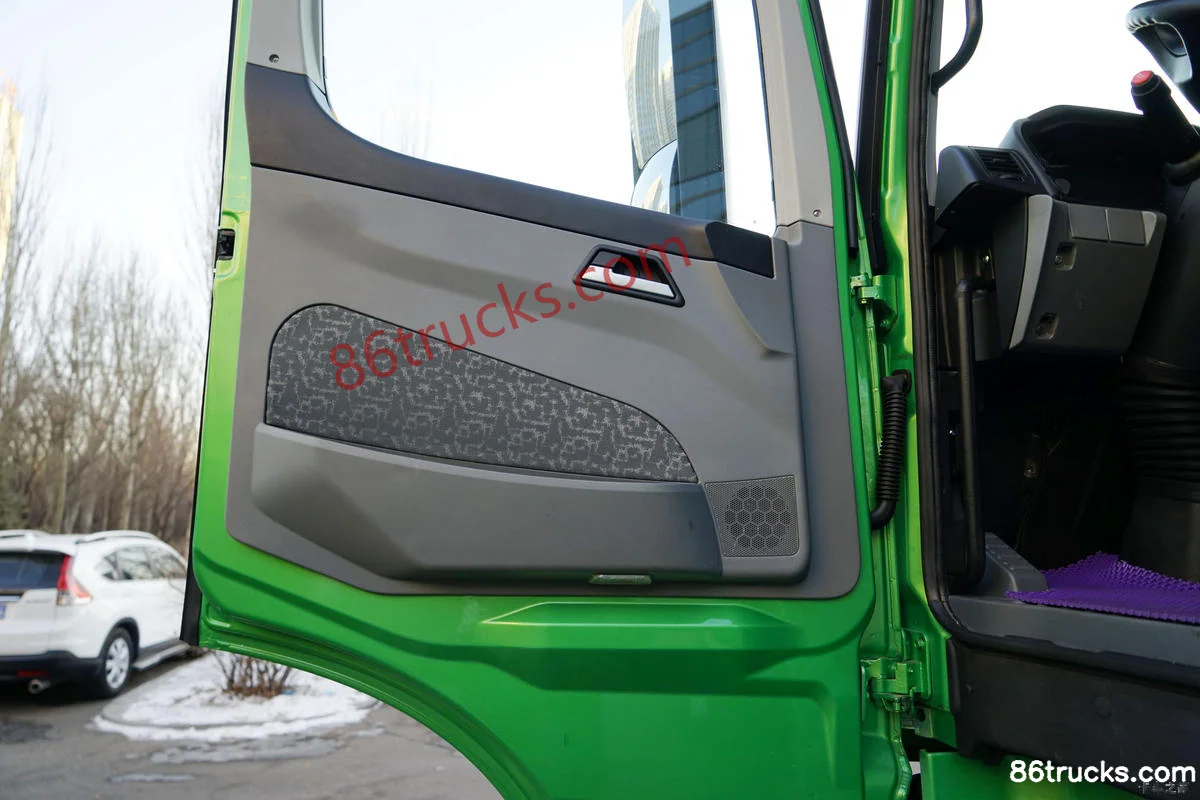

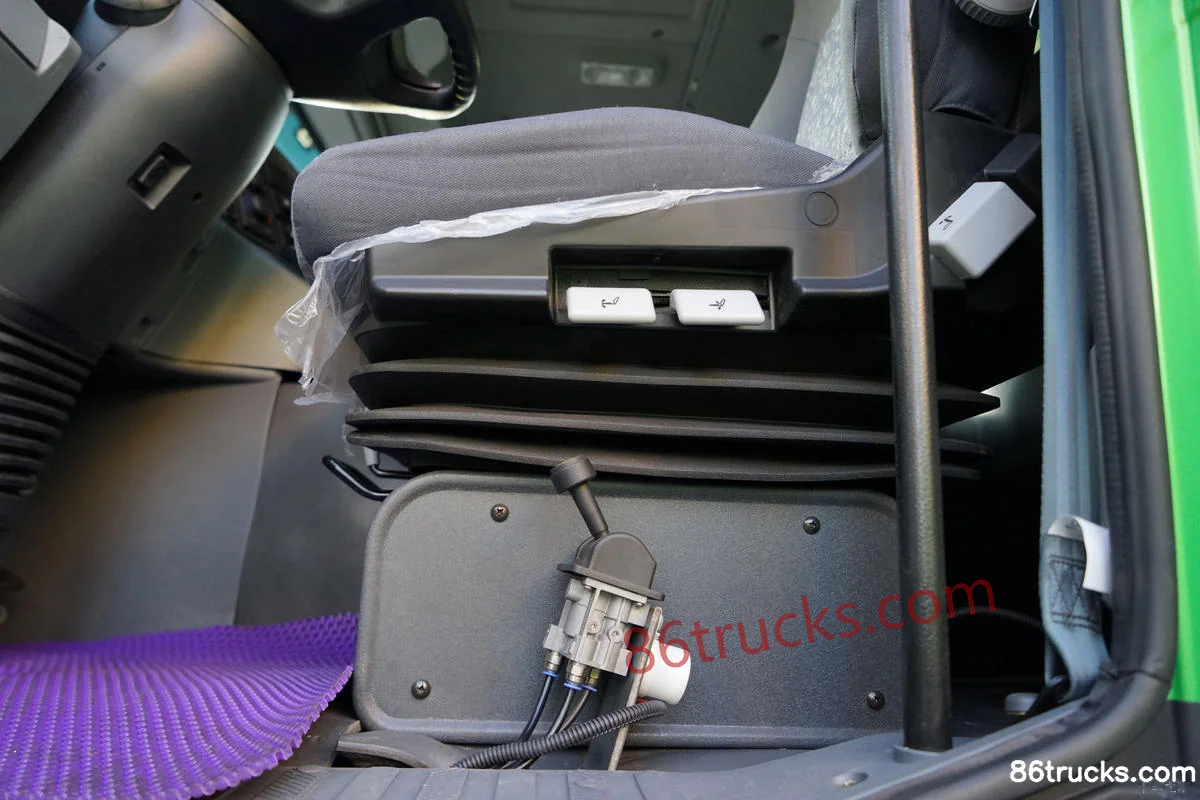

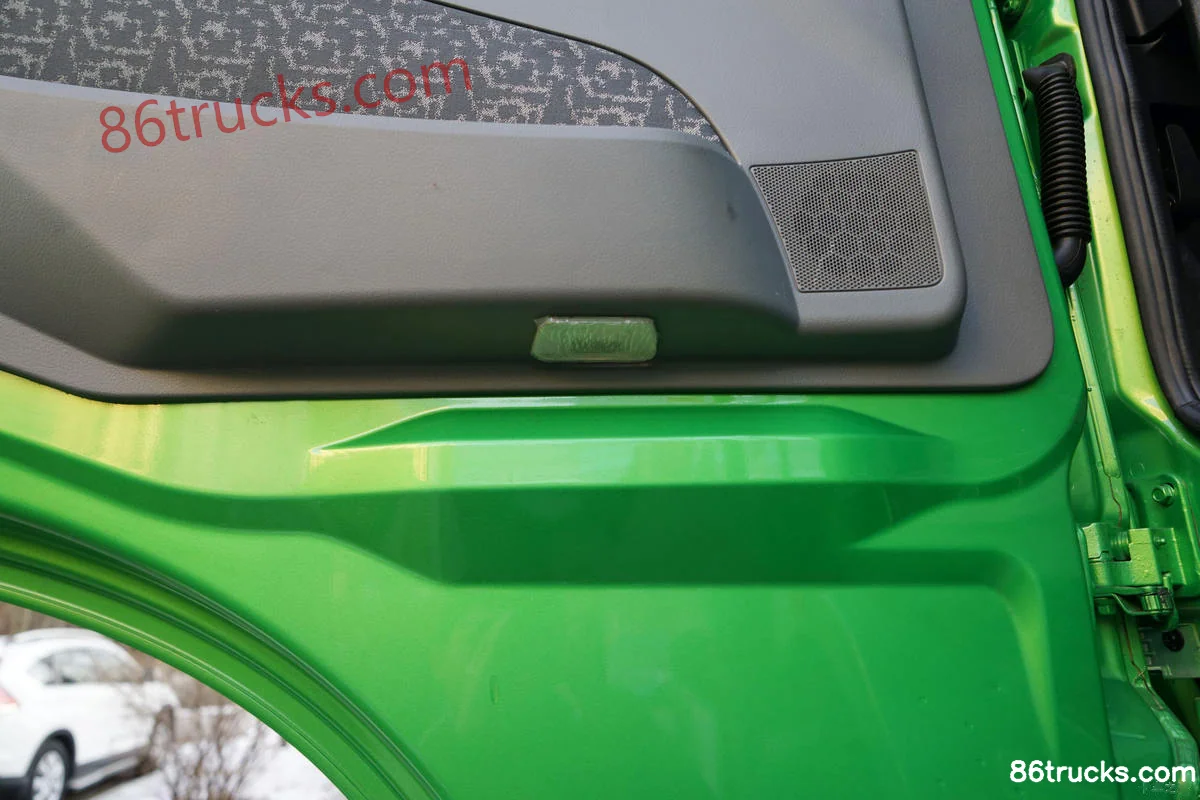

Cab3

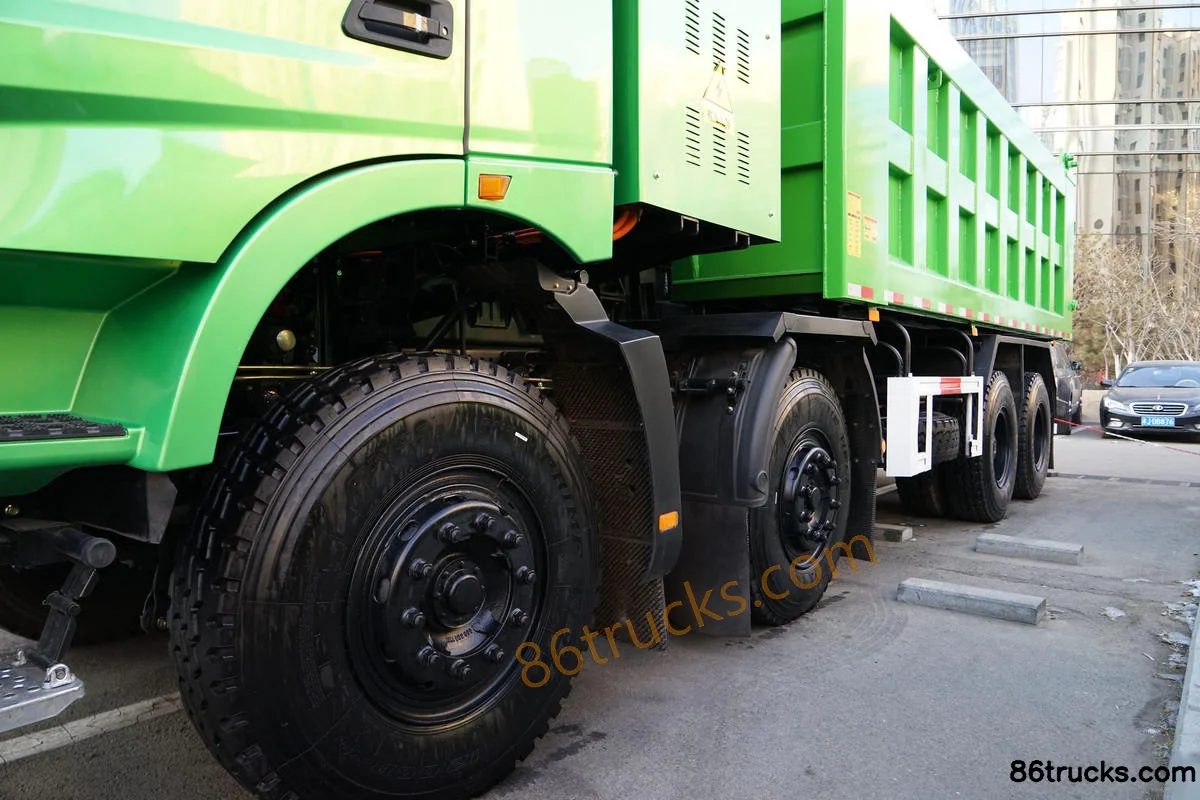

Chassis3

9 photos

FAQ

What are the key specs of Beiben Truck V3 8X4(12 wheels) 9.7m Cab-over Chassis Pure Electric Dump Truck 234kWh?

Key specs of Beiben Truck V3 8X4(12 wheels) 9.7m Cab-over Chassis Pure Electric Dump Truck 234kWh: Drive: 8x4. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Beiben Truck V3 8X4(12 wheels) 9.7m Cab-over Chassis Pure Electric Dump Truck 234kWh suited for?

Beiben Truck V3 8X4(12 wheels) 9.7m Cab-over Chassis Pure Electric Dump Truck 234kWh is a electric dump truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Beiben Truck V3 8X4(12 wheels) 9.7m Cab-over Chassis Pure Electric Dump Truck 234kWh differ from other variants in the same series?

Beiben Truck V3 8X4(12 wheels) 9.7m Cab-over Chassis Pure Electric Dump Truck 234kWh belongs to Beiben V3 heavy truck (electric dump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Beiben Truck V3 8X4(12 wheels) 9.7m Cab-over Chassis Pure Electric Dump Truck 234kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Beiben Truck V3 8X4(12 wheels) 9.7m Cab-over Chassis Pure Electric Dump Truck 234kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
