JMC Kaiyun Medium Body 122hp 4X2(6 wheels) 3.16m Double-row Flatbed Light Truck (China VI)

Export reference
From $14,833
MSRP ¥10.68M CNY
Horsepower: 122
Emission: China VI
Fuel: Diesel
Engine: JMC493
Transmission: GETRAG
Curb Weight:: 2.51ton
seating capacity: 6Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The JMC Kaiyun Medium Body 122hp 4X2(6 wheels) 3.16m Double-row Flatbed Light Truck (China VI) is a Light Truck featuring 3.16m cargo length, stake body cargo body, 6Personnel volume and 1.495t payload. On the powertrain side, it comes with a JMC493 engine, 122 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 122 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): JX1043TSGB26
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 3.2m
engine: JMCJX493ZLQ6D
transmission: Getrag 5MTI280S
Cab length: 5.985m
Cab width: 2.03m
Cab height: 2.34m
Front track width: 1565mm
rear track: 1508mm
Curb Weight: 2.51ton
Rated payload: 1.495ton
GVWR: 4.395ton
Max. speed: 100km/h
Origin: Nanchang, Jiangxi
tonnage class: Light Truck
Approach angle: 18°
departure angle: 19°
Remarks: Driver seat fore/aft adjustment (backrest and slide rail).
Front/rear suspension: 1.125/1.5m
Version: mid-body
Energy Type: Diesel
Engine parameters
Engine Brand: JMC
Engine Model: JMCJX493ZLQ6D
Engine info: JMC493
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.499L
Emission standard: China VI
Max output power: 90kW
Max hp: 122Horsepower
Transmission Parameters
Transmission Model: Getrag 5MTI280S
Transmission Brand: GETRAG
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.16m
Cargo box width: 1.94m
Cargo box height: 0.44m
*Cargo box interior width: 1.9400000572205
Cab parameters
Cab width: 1880mm
seating capacity: 6Personnel
Seat rows: Double cab
Chassis Specs
Front axle allowable load: 1760kg
rear axle allowable load: 2635kg
Leaf spring count: 7/5+6
Aluminum wheels:
Tire
Tire Size: 7.00R16LT 10PR
Number of tires: 6pcs
Control configuration
ABS:
Stability control system:
Brake assist (EBA/BAS/BA etc.):
Power steering:
EBS electronic braking system:
clutch booster:
automatic slack adjuster:
interior configuration
Steering Wheel Material: Plastic
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Power interface:
Reverse Radar:
Seat material: Fabric
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Aluminum air tank:
Wiper type: Frameless
Multimedia features
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:
standard instrument cluster:
LCD instrument cluster: none
lighting configuration
Front fog lamp:
daytime running lights:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Exhaust brake:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:
Cruise control (CCS):

Photos

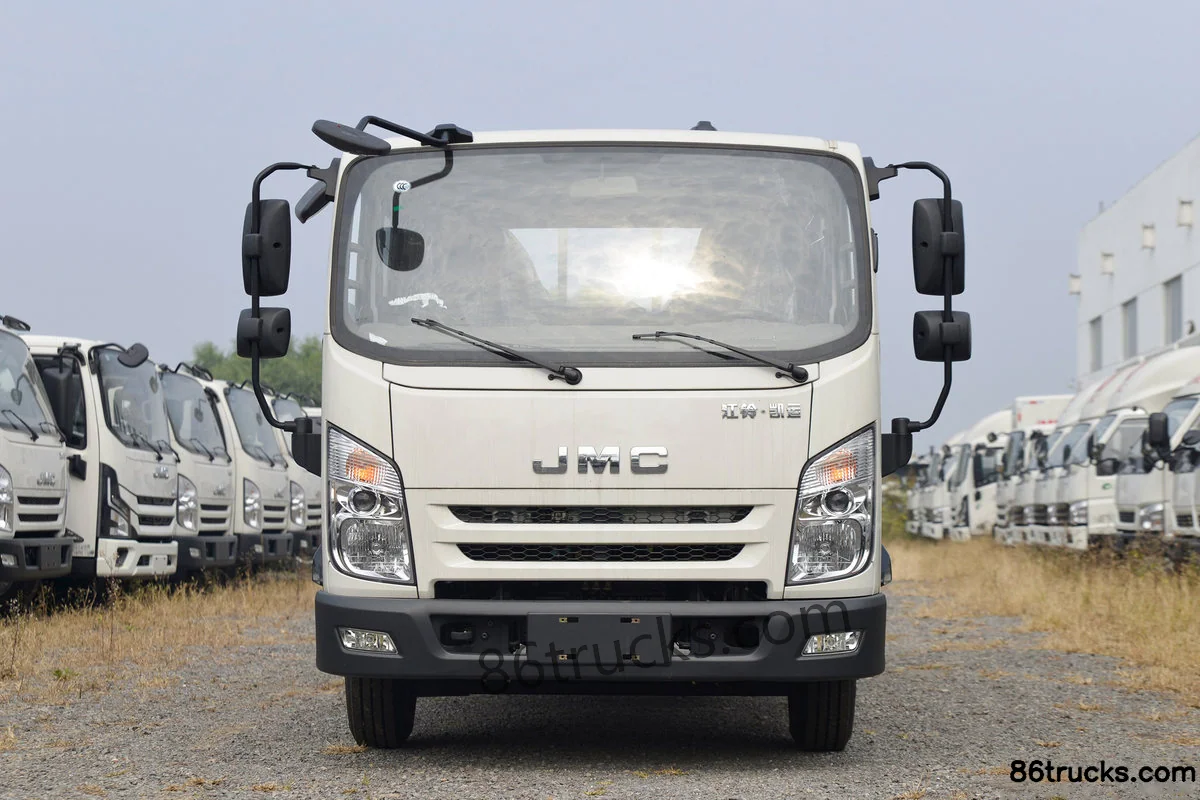

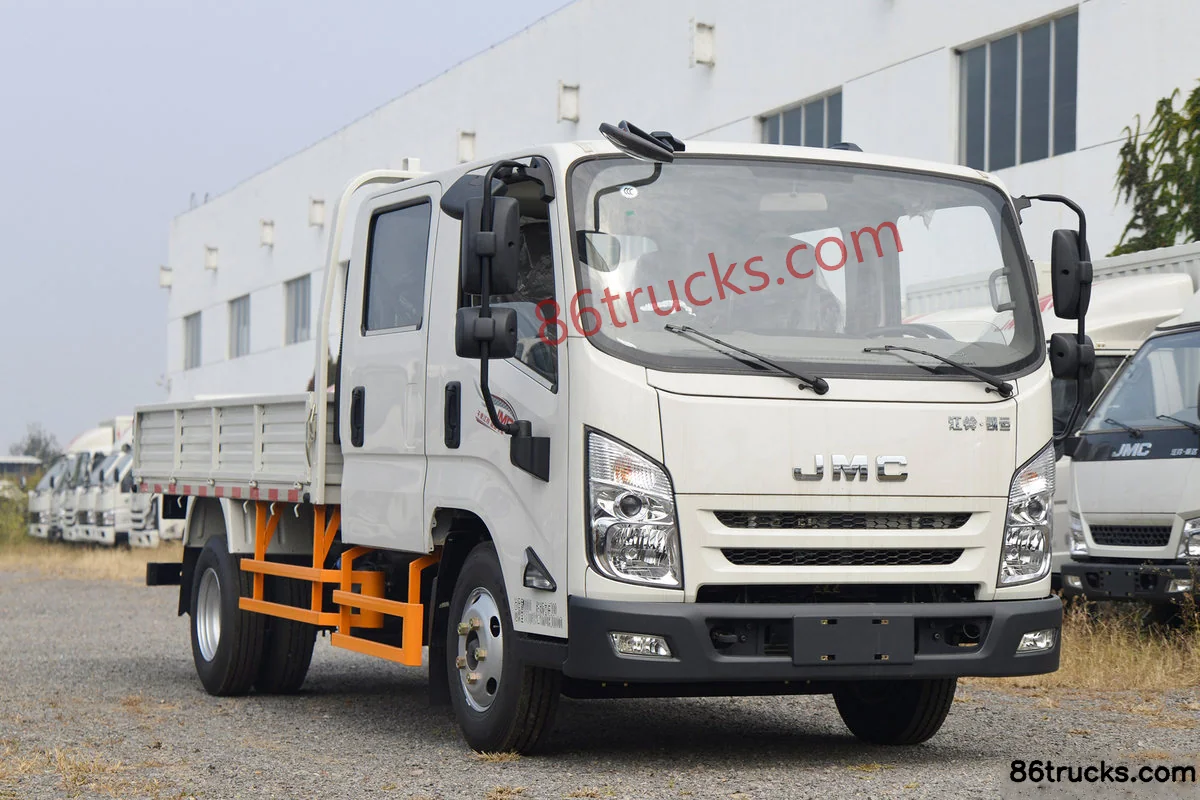

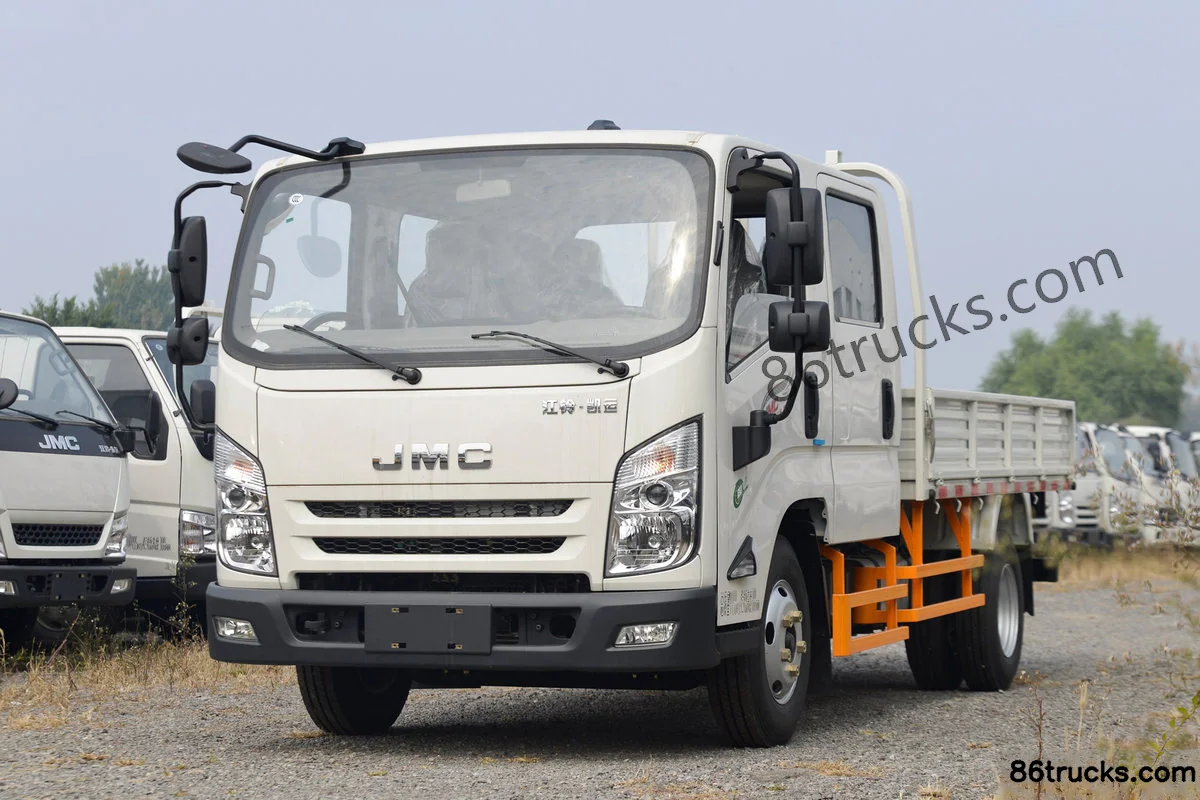

Exterior3

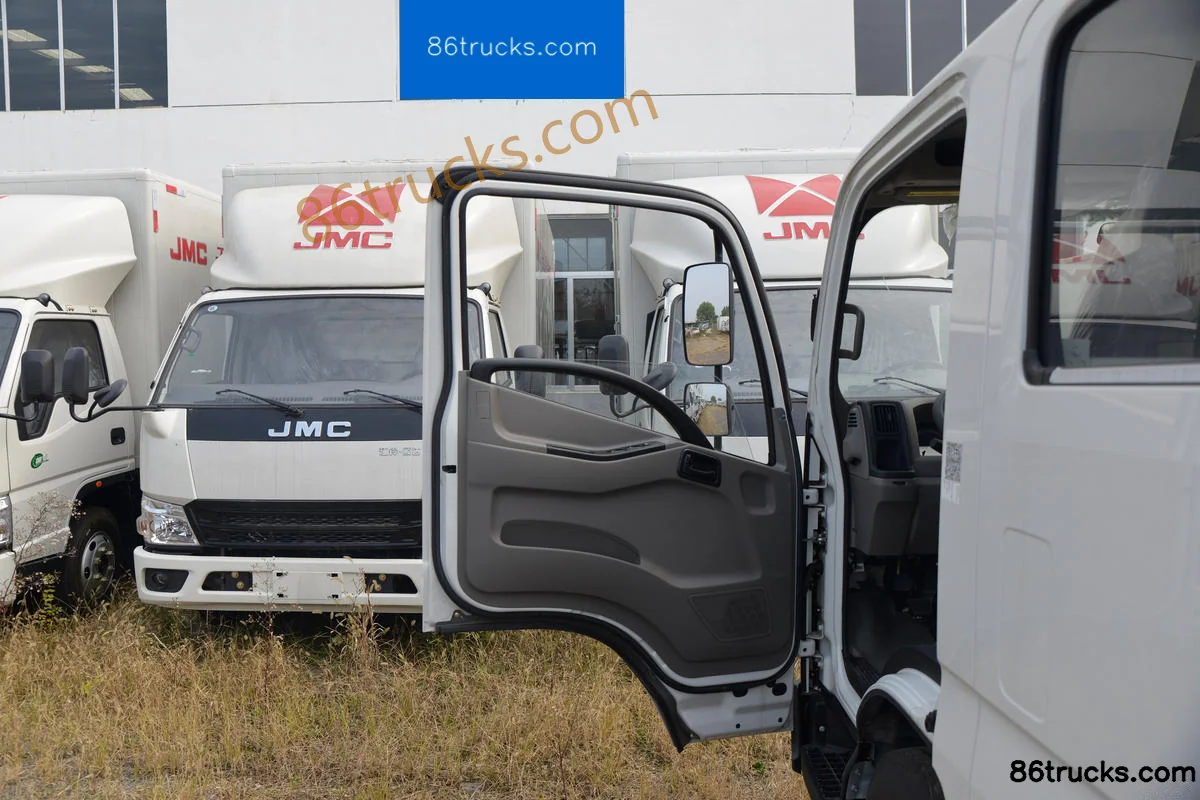

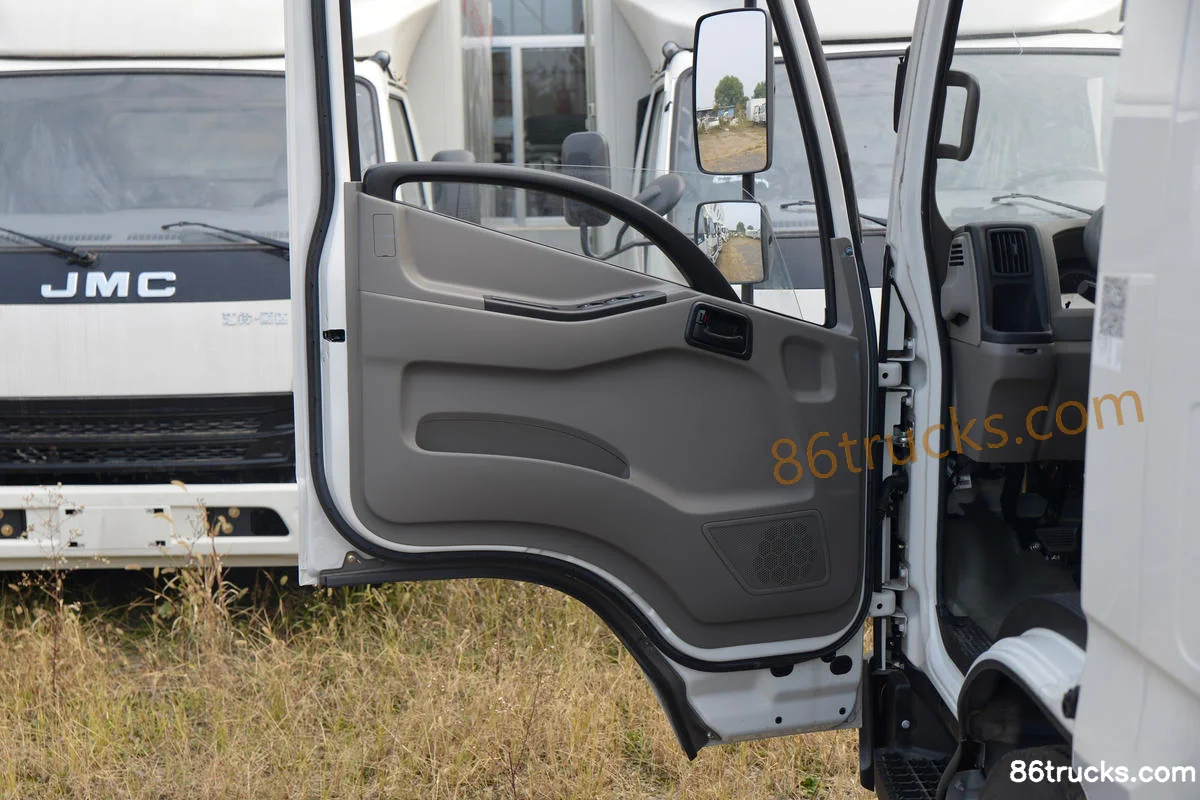

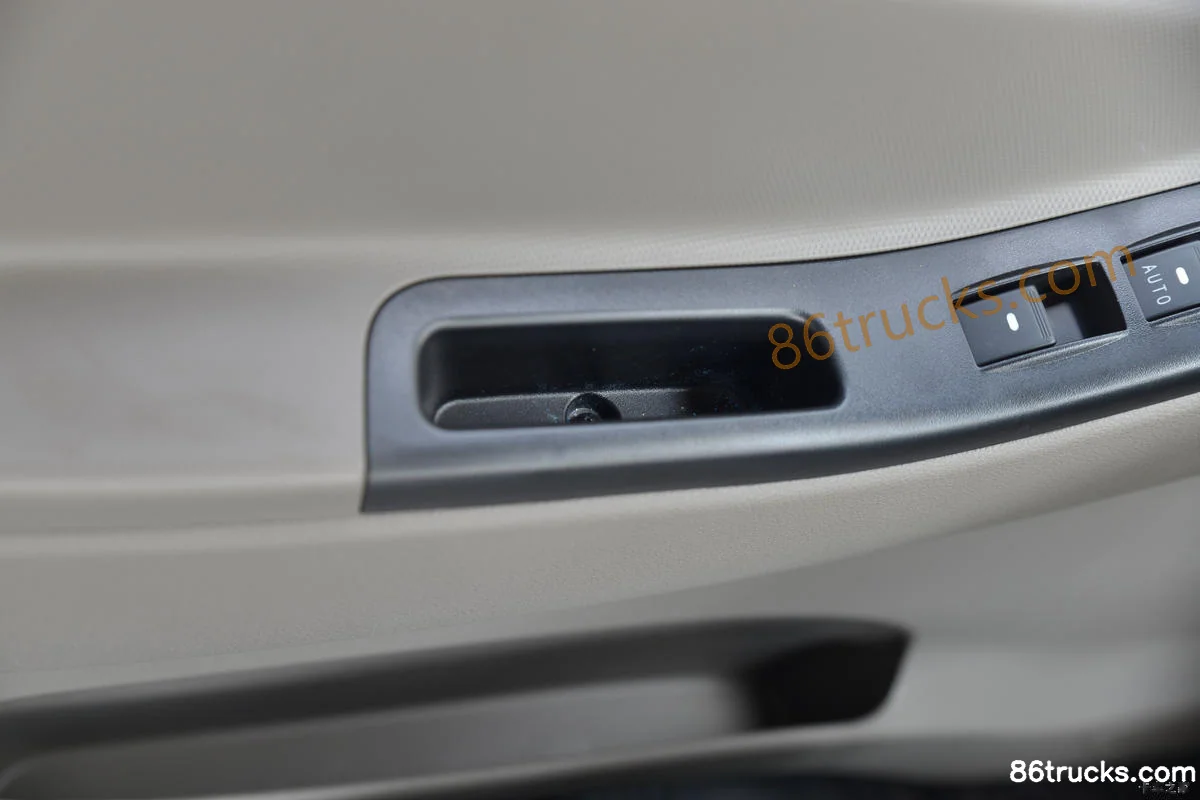

Cab3

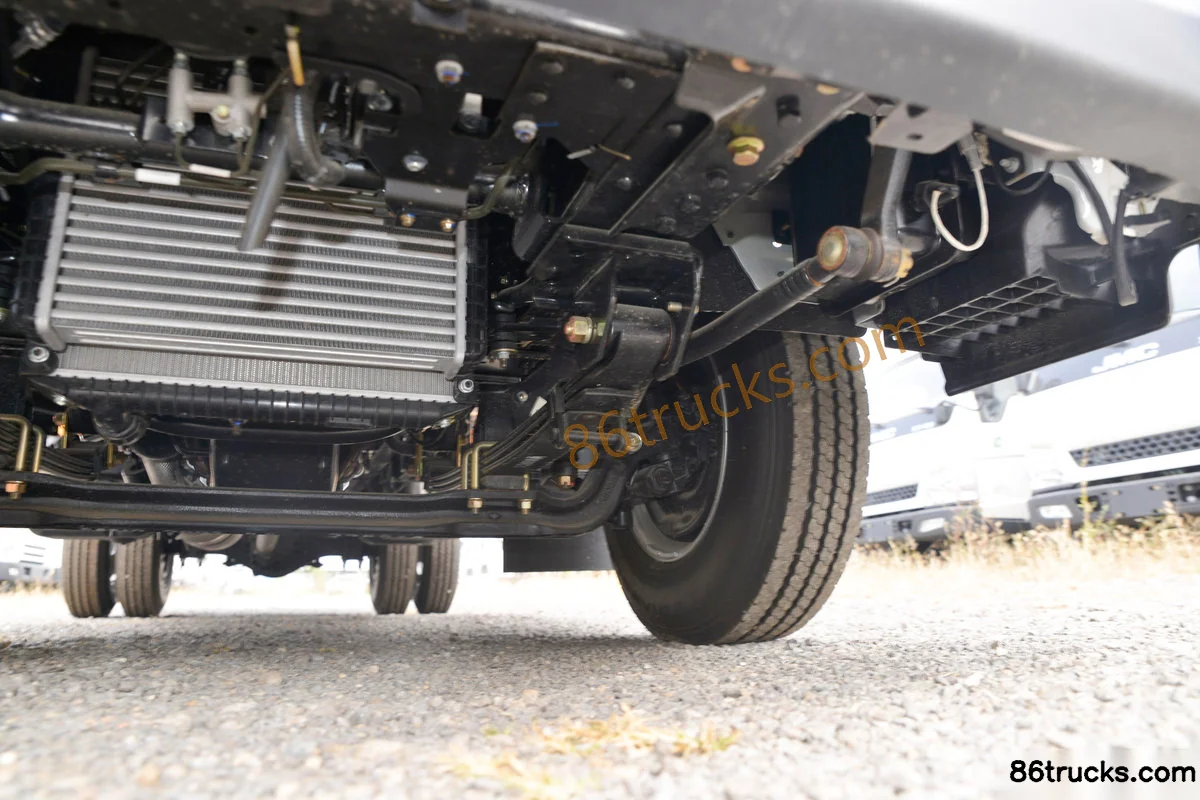

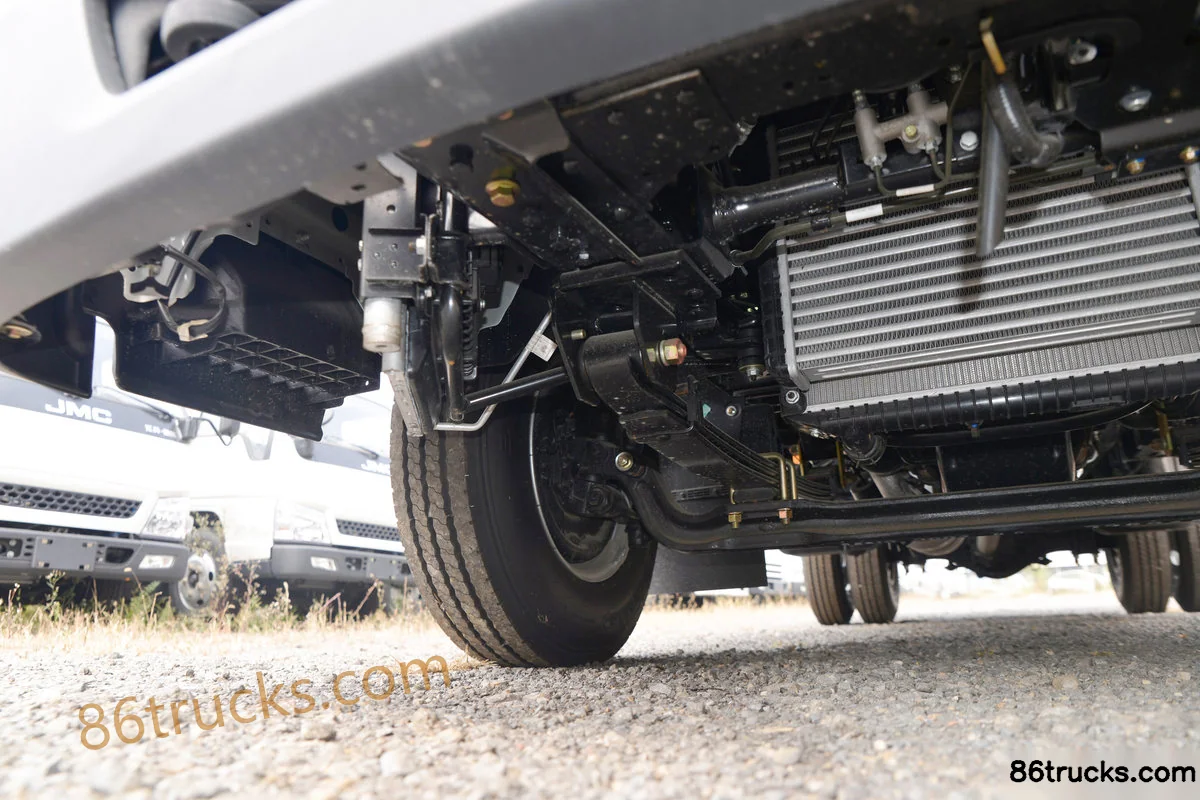

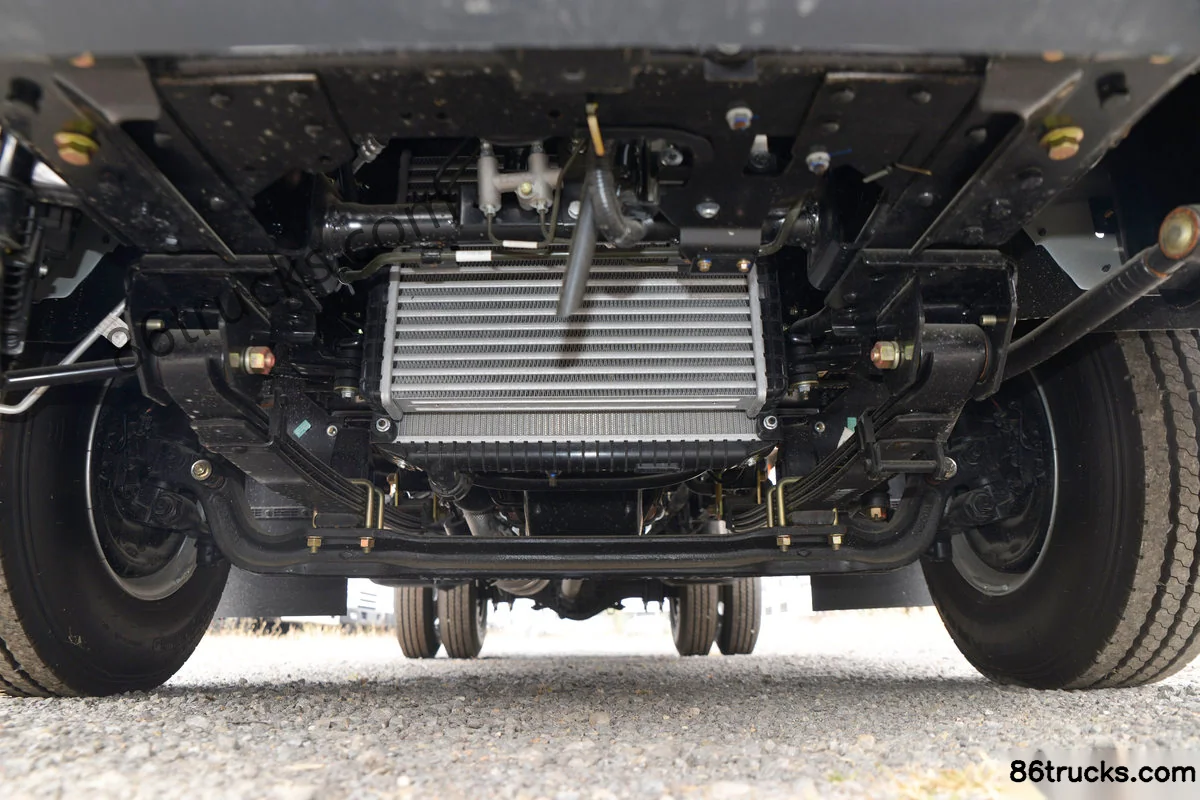

Chassis3

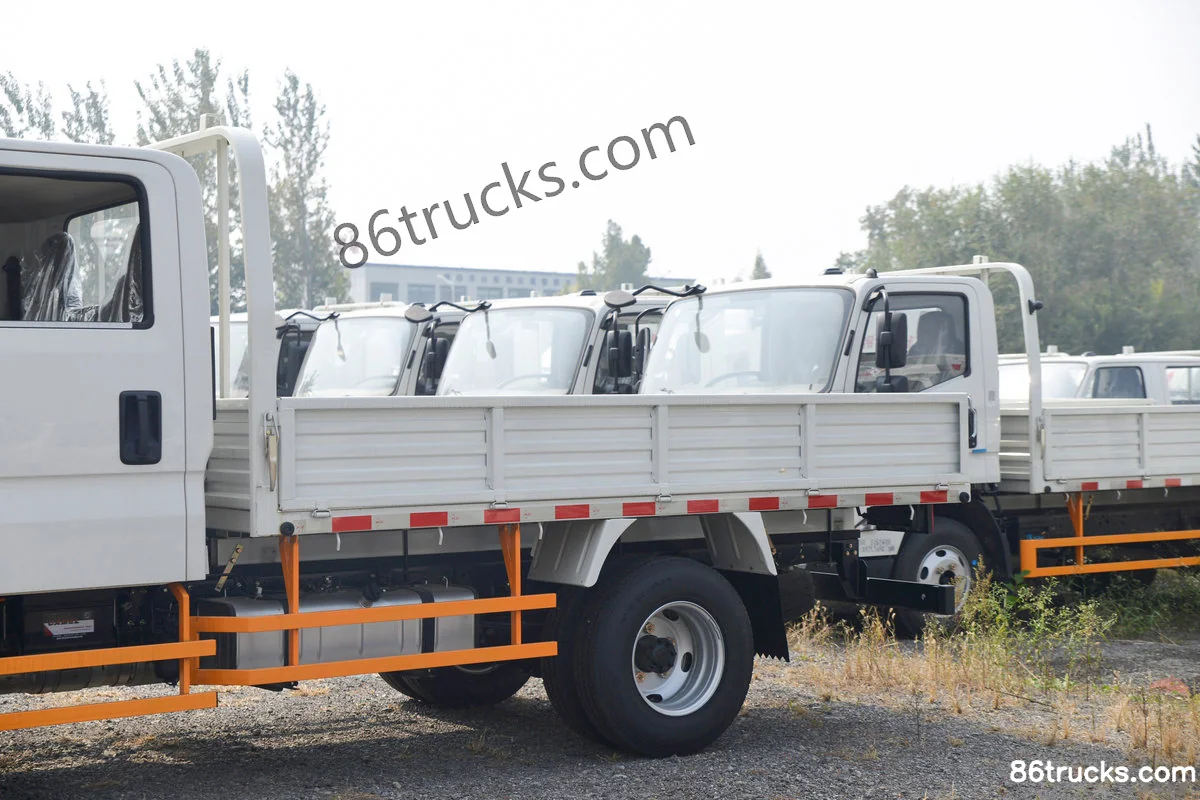

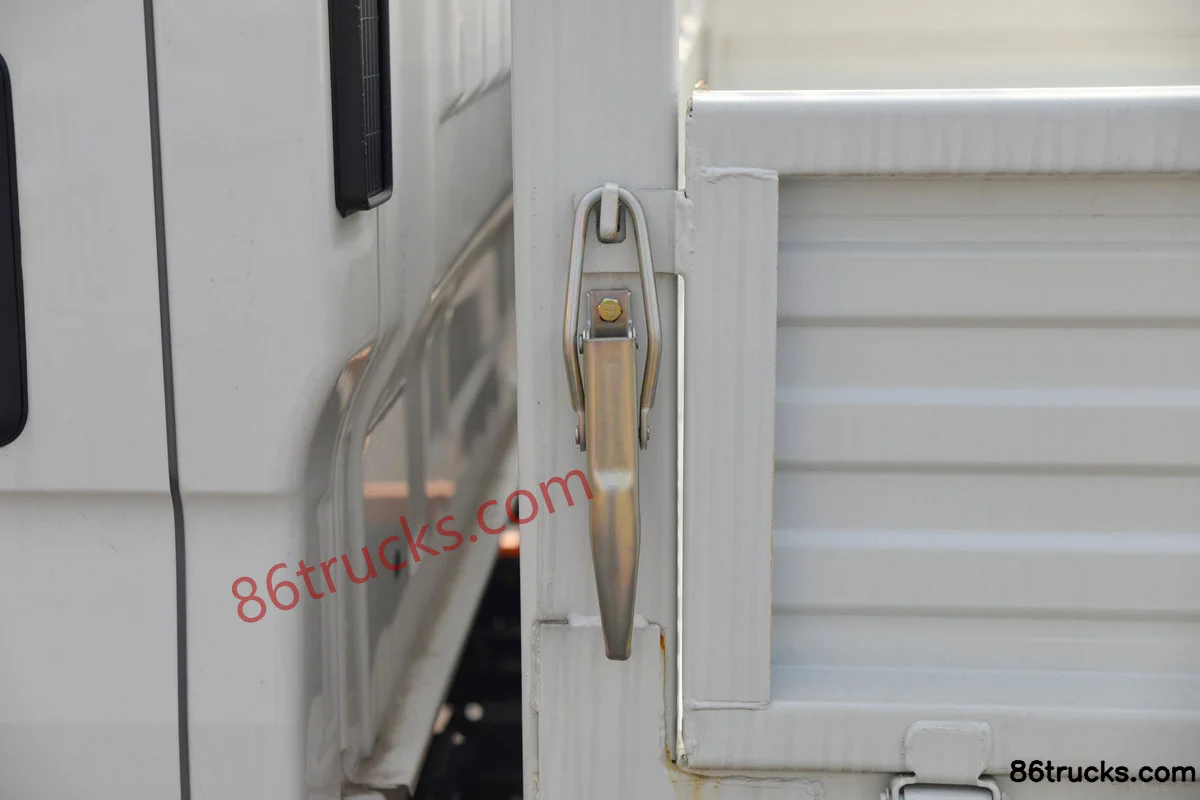

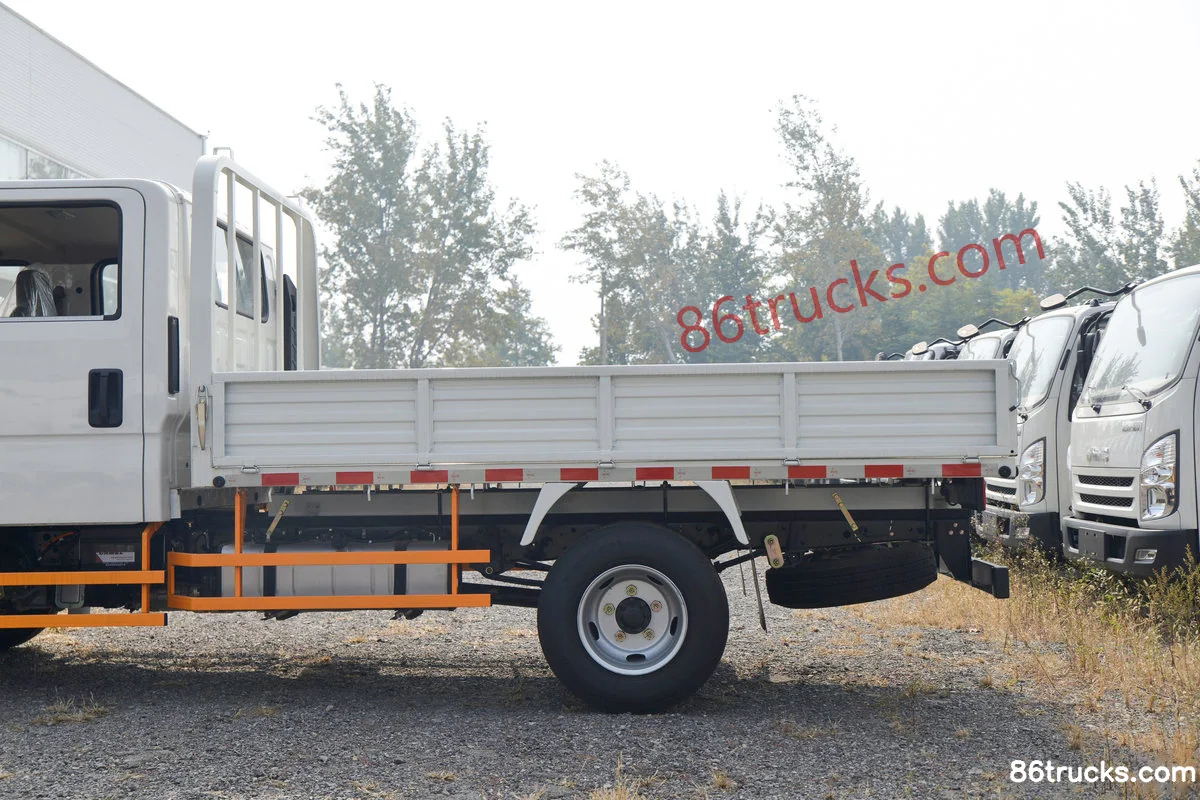

Body3

12 photos

FAQ

What is the export price of JMC Kaiyun Medium Body 122hp 4X2(6 wheels) 3.16m Double-row Flatbed Light Truck (China VI), and what does it include?

JMC Kaiyun Medium Body 122hp 4X2(6 wheels) 3.16m Double-row Flatbed Light Truck (China VI) export reference is about From $14,833; MSRP is ¥10.68M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JMC Kaiyun Medium Body 122hp 4X2(6 wheels) 3.16m Double-row Flatbed Light Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JMC Kaiyun Medium Body 122hp 4X2(6 wheels) 3.16m Double-row Flatbed Light Truck (China VI)?

Key specs of JMC Kaiyun Medium Body 122hp 4X2(6 wheels) 3.16m Double-row Flatbed Light Truck (China VI): Drive: 4x2; Horsepower: 122 hp; Emission: China VI; Fuel: Diesel; Engine: JMC493; Transmission: GETRAG. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JMC Kaiyun Medium Body 122hp 4X2(6 wheels) 3.16m Double-row Flatbed Light Truck (China VI) suited for?

JMC Kaiyun Medium Body 122hp 4X2(6 wheels) 3.16m Double-row Flatbed Light Truck (China VI) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JMC Kaiyun Medium Body 122hp 4X2(6 wheels) 3.16m Double-row Flatbed Light Truck (China VI) differ from other variants in the same series?

JMC Kaiyun Medium Body 122hp 4X2(6 wheels) 3.16m Double-row Flatbed Light Truck (China VI) belongs to JMC Classic Kaiyun Cargo Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JMC Kaiyun Medium Body 122hp 4X2(6 wheels) 3.16m Double-row Flatbed Light Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JMC Kaiyun Medium Body 122hp 4X2(6 wheels) 3.16m Double-row Flatbed Light Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
