FAW Jiefang J6P 350 hp 6X4(10 wheels) Truck Mounted Crane

Export reference
MSRP N/A
Wheelbase:: 4050+1350mm
Cab dimensions:: 7.87×2.49×3.5m
Type:: truck-mounted crane
GVWR:: 2.5ton
Vehicle certification code:: CA5250JQQP66K2L1T1E4
Body Brand:: FAW Jiefang
Lifting capacity: 3.698ton
Drive 6X4 (10 wheels)
Horsepower 350
Emission China IV

Overview

The FAW Jiefang J6P 350 hp 6X4(10 wheels) Truck Mounted Crane is a truck-mounted crane featuring 3.698ton tank capacity, 2.5t GVW and 6X4 (10 wheels) drive. On the powertrain side, it comes with a XichaiCA6DL2-35E4(R) engine, 350 hp and China IV emissions.

China IV 350 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 7.87×2.49×3.5m
Type: truck-mounted crane
Drive type: 6X4
Wheelbase: 4050+1350mm
GVWR: 2.5ton
Body Parameters
Lifting capacity: 3.698ton
Vehicle certification code: CA5250JQQP66K2L1T1E4
Body Brand: FAW Jiefang
Engine parameters
Engine Model: XichaiCA6DL2-35E4(R)
Displacement: 8.75L
Emission standard: China IV
Max output power: 261kW
Max hp: 350Horsepower
Chassis Specs
Chassis Brand: FAW Jiefang
Chassis Series: FAW JiefangJ6P
rear axle description: Tandem axle
Leaf spring count: 10/11
Transmission Parameters
Number of gears: 10Gear
Transmission Model: FAW CA10TA160M
Tire
Tire Size: 11.00-20 16PR
Number of tires: 10pcs

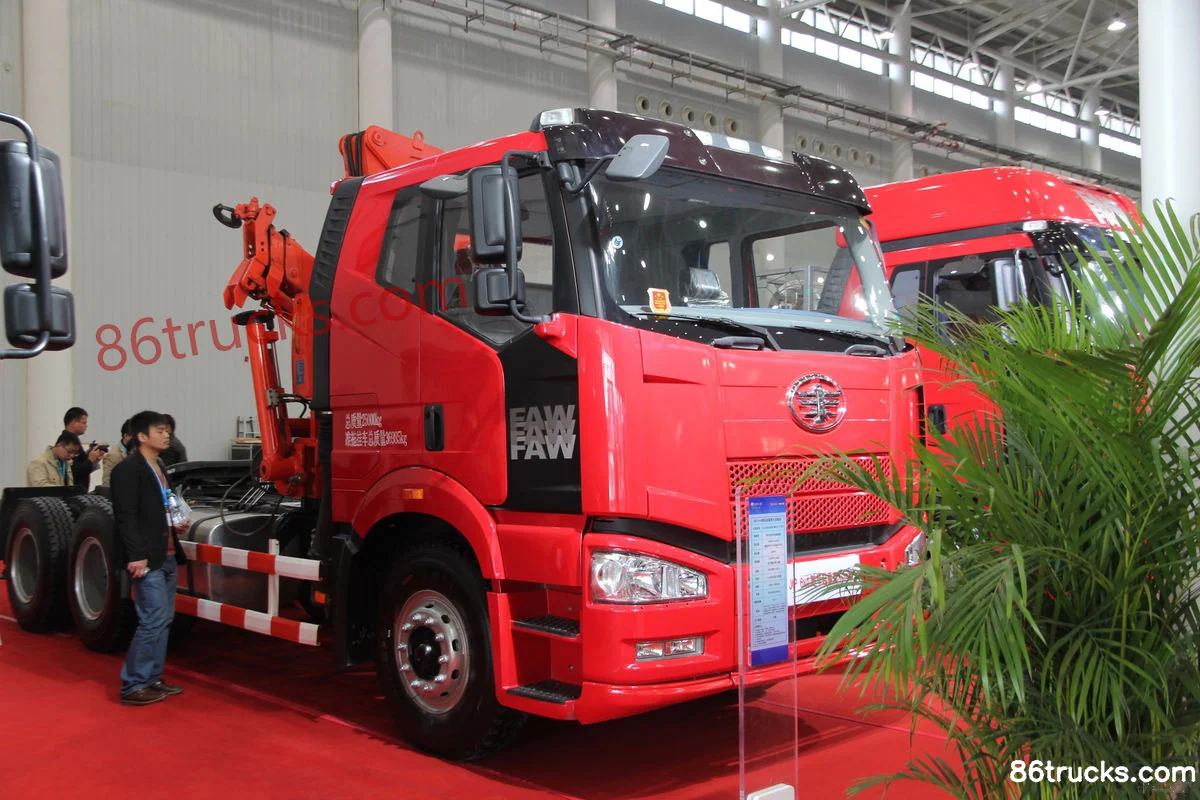

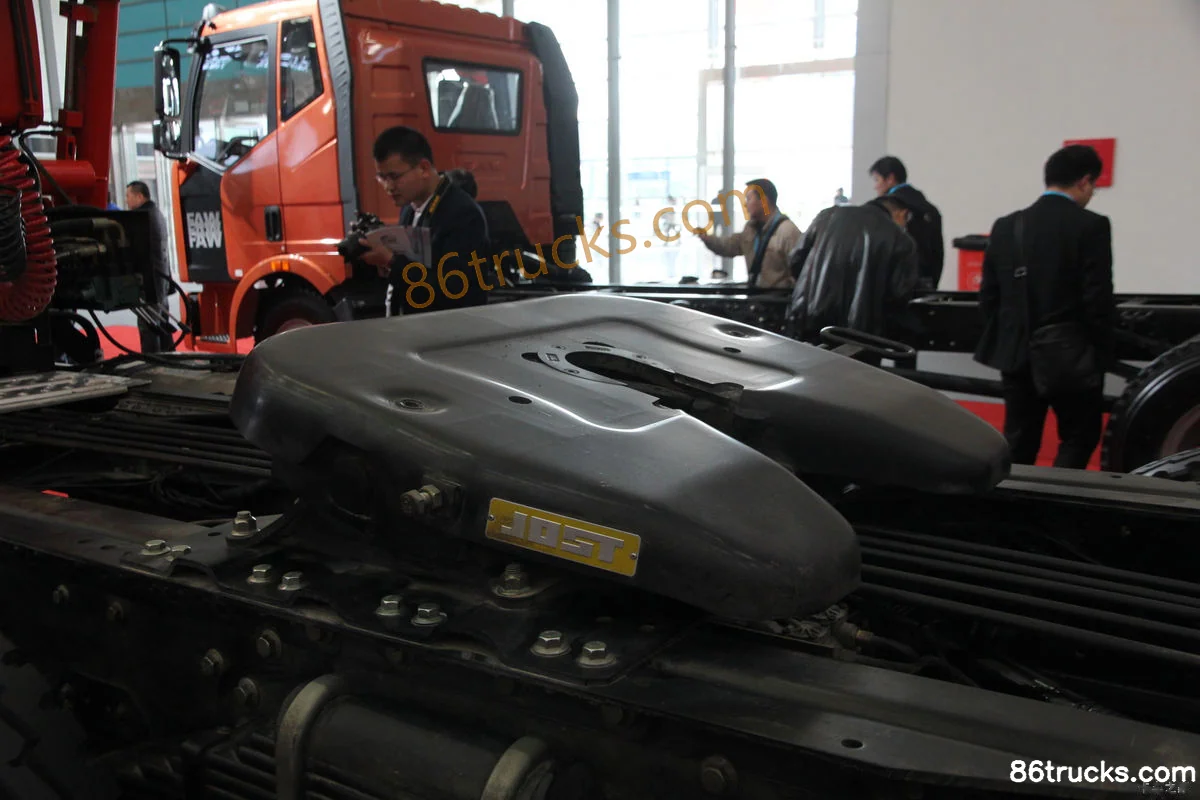

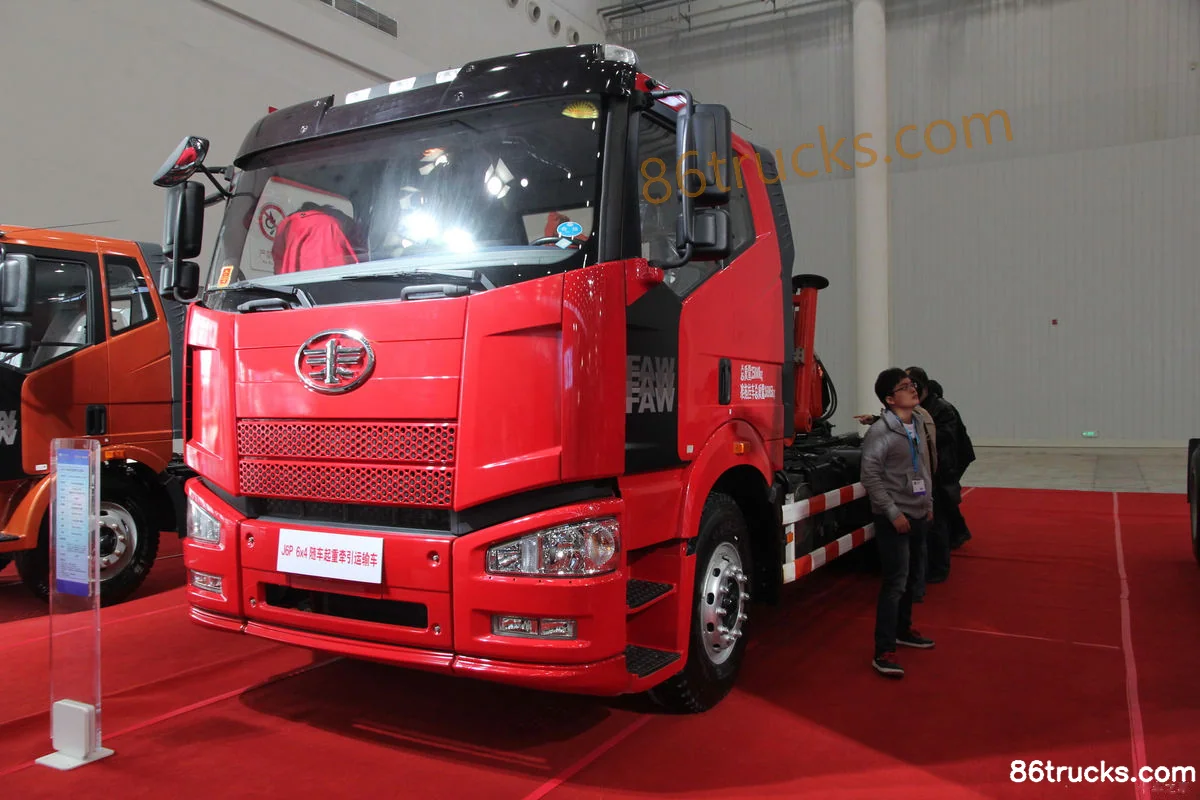

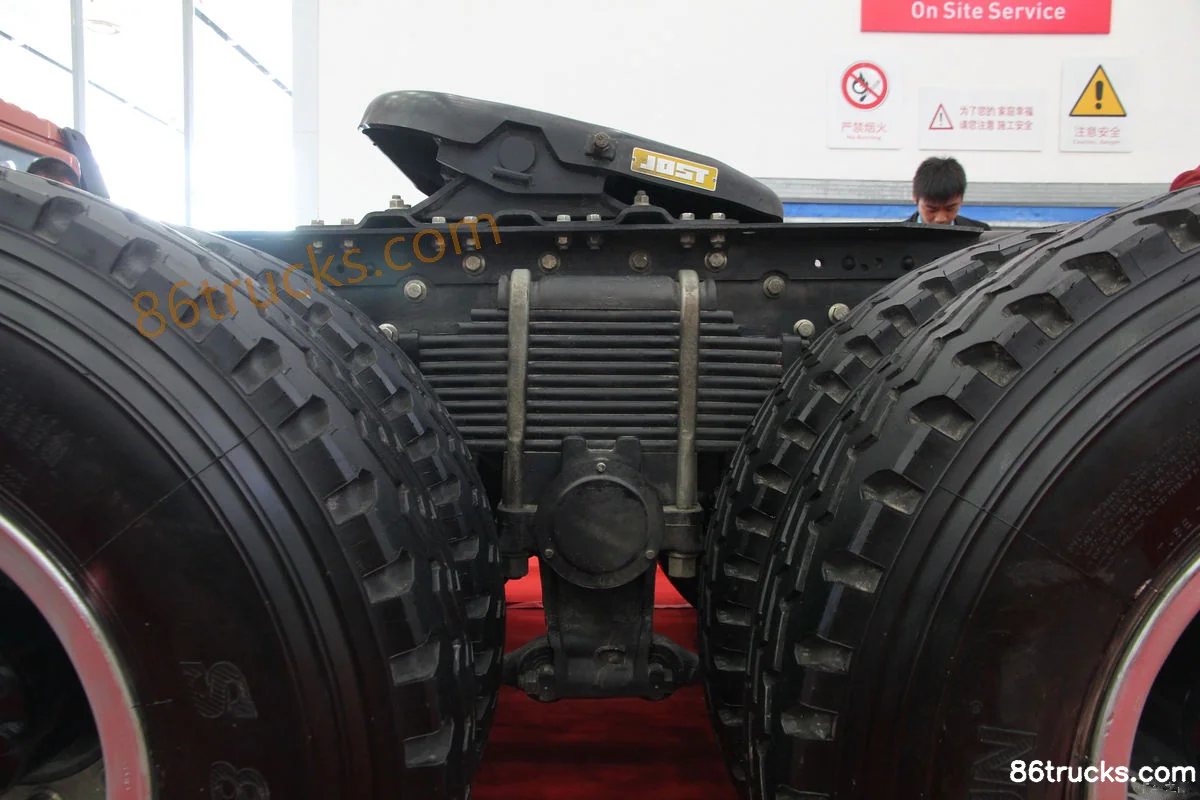

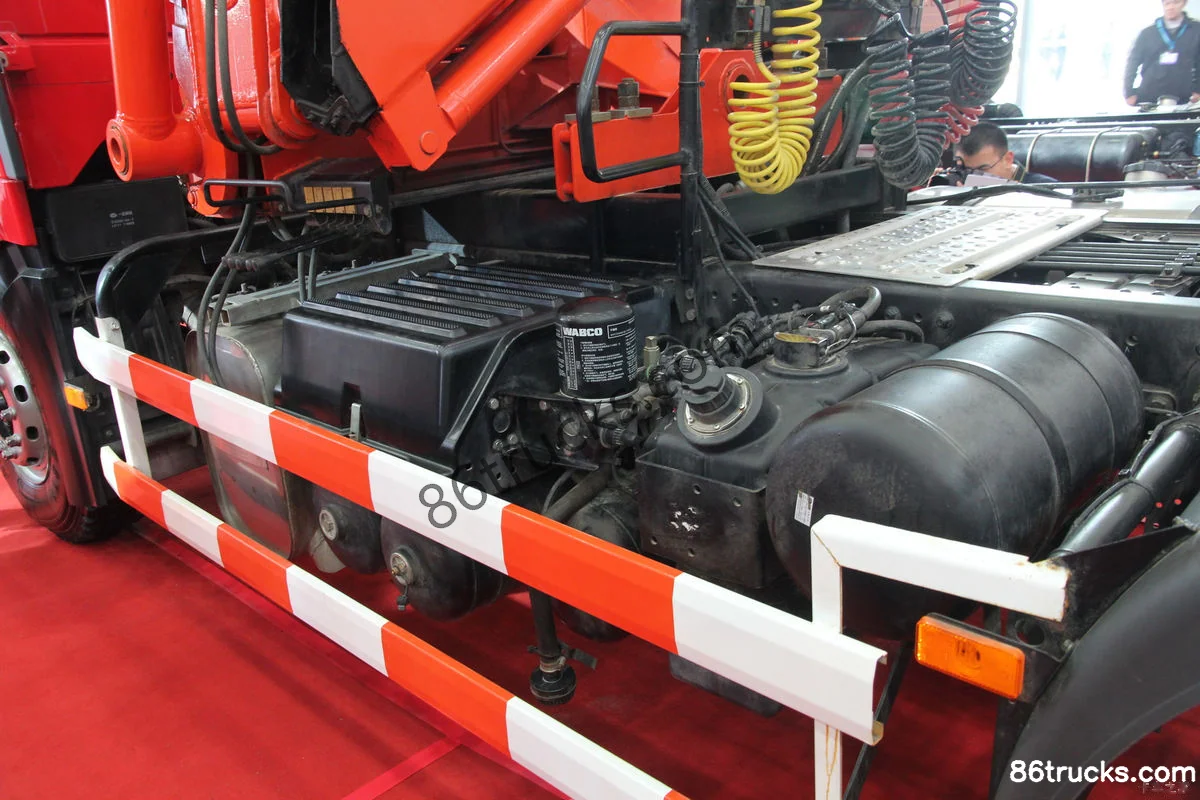

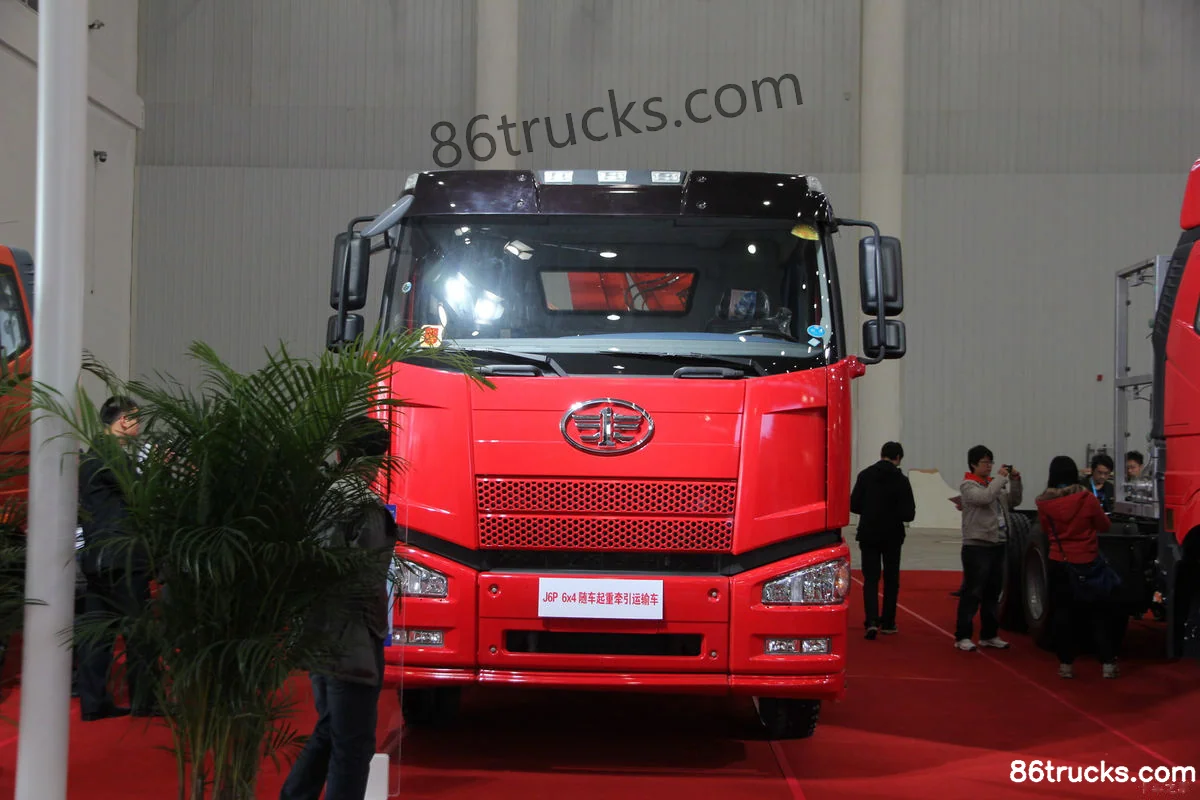

Photos

Exterior3

Cab3

6 photos

FAQ

What emission standard does FAW Jiefang J6P 350 hp 6X4(10 wheels) Truck Mounted Crane use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang J6P 350 hp 6X4(10 wheels) Truck Mounted Crane?

Key specs of FAW Jiefang J6P 350 hp 6X4(10 wheels) Truck Mounted Crane: Drive: 6x4; Horsepower: 350 hp; Emission: China IV. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang J6P 350 hp 6X4(10 wheels) Truck Mounted Crane suited for?

FAW Jiefang J6P 350 hp 6X4(10 wheels) Truck Mounted Crane is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does FAW Jiefang J6P 350 hp 6X4(10 wheels) Truck Mounted Crane differ from other variants in the same series?

FAW Jiefang J6P 350 hp 6X4(10 wheels) Truck Mounted Crane belongs to FAW Jiefang J6P Heavy Truck (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang J6P 350 hp 6X4(10 wheels) Truck Mounted Crane?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang J6P 350 hp 6X4(10 wheels) Truck Mounted Crane?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
