XCMG Truck-mounted Concrete Pump Truck (Sinotruk HOWO Chassis) 4X2(6 wheels)

Export reference
MSRP N/A
Fuel: Diesel
Drive: 4X2 (6 wheels)
Wheelbase:: 4700mm
Model code (announced):: XZJ5155THB
Pumping displacement:: 110m³/h
Overall Dimensions: L×W×H:: 9.35x2.48x2.97m
Curb Weight: 14.87ton
Horsepower 310
Max output power: 228kW
Emission China V

Overview

The XCMG Truck-mounted Concrete Pump Truck (Sinotruk HOWO Chassis) 4X2(6 wheels) is a concrete pump truck featuring 14.87ton GVW, 310 hp, 228kW power and 4X2 (6 wheels) drive. On the powertrain side, it comes with China V emissions and Diesel fuel.

China V 310 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): XZJ5155THB
Pumping displacement: 110m³/h
Drive type: 4X2
Wheelbase: 4700mm
Overall Dimensions: L×W×H: 9.35x2.48x2.97m
Curb Weight: 14.87ton
Chassis Specs
Axle Count: 2
Chassis Series: HOWOT5G
Chassis Model: ZZ1167N501GE1
Pumping system
Pumping pressure (low/high): 18
Engine parameters
Engine Model: SinotrukMC07.31-50
fuel type: Diesel
Displacement: 6.87L
Emission standard: China V
Max output power: 228kW
Max hp: 310Horsepower
Rated speed: 2300rpm
Tire
Tire Size: 10.00R20 18PR

Photos

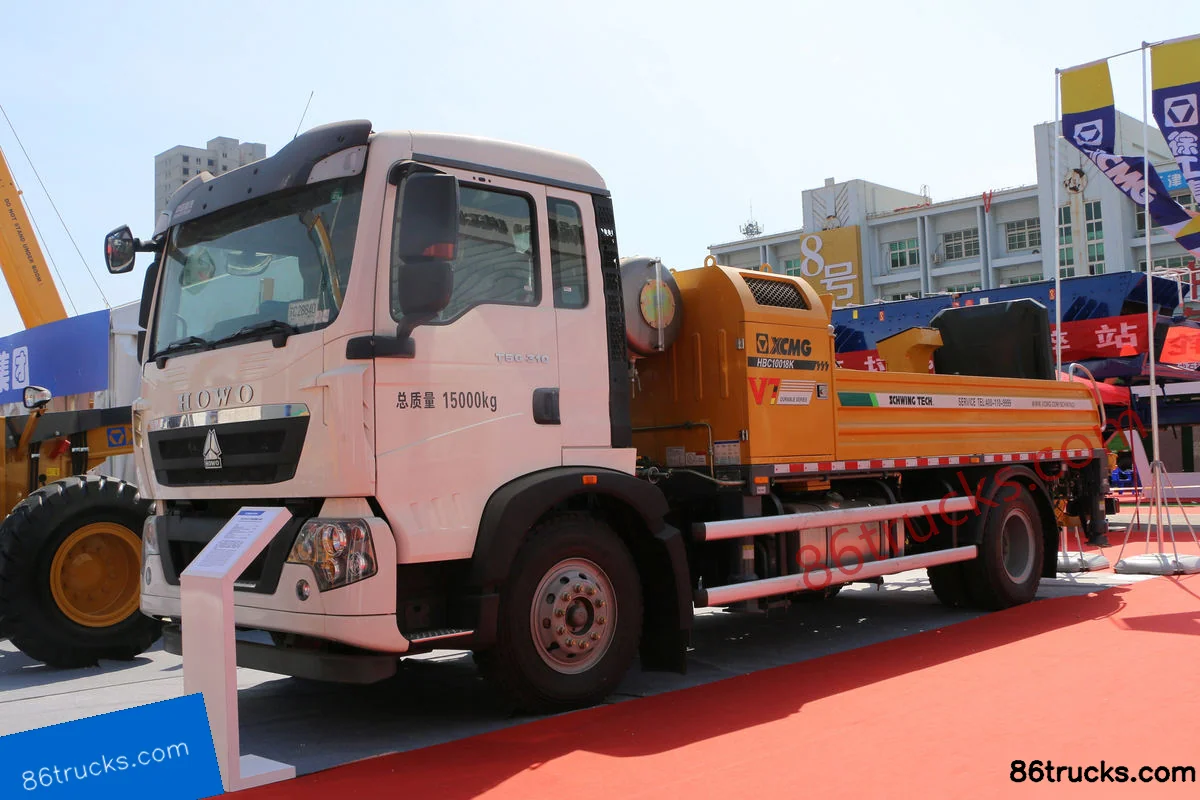

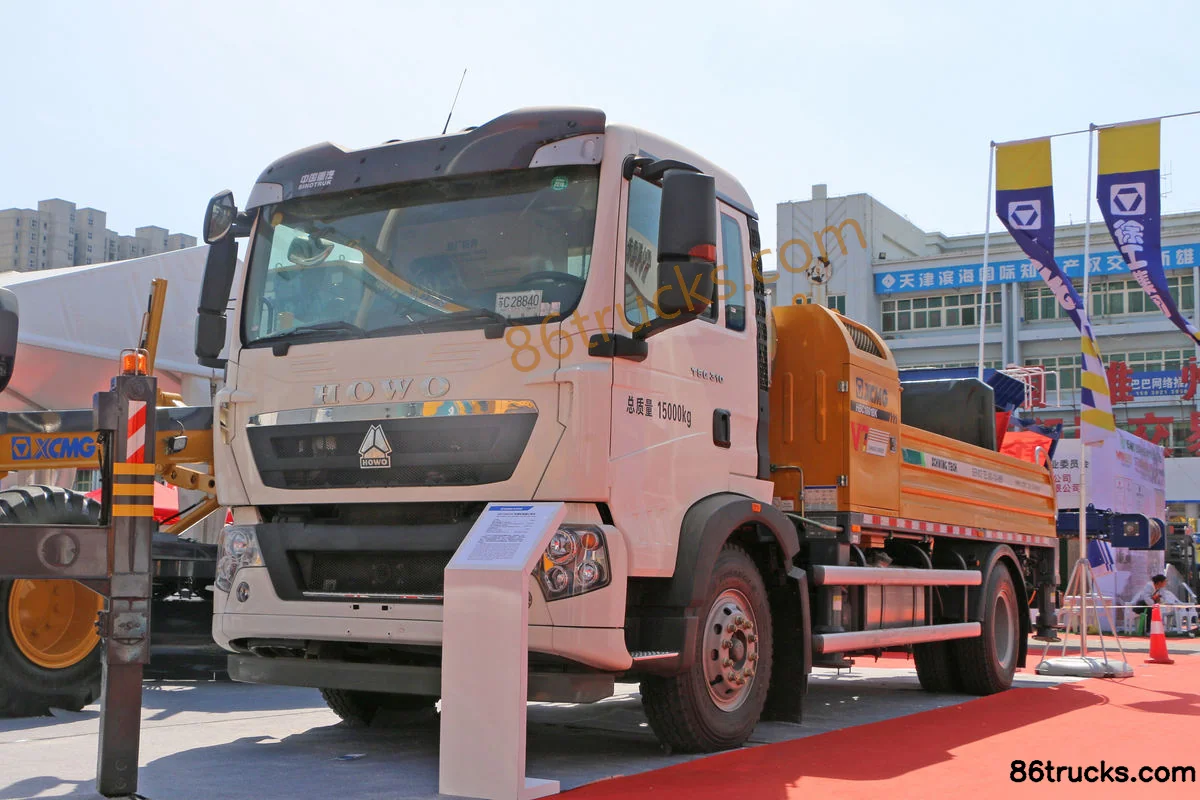

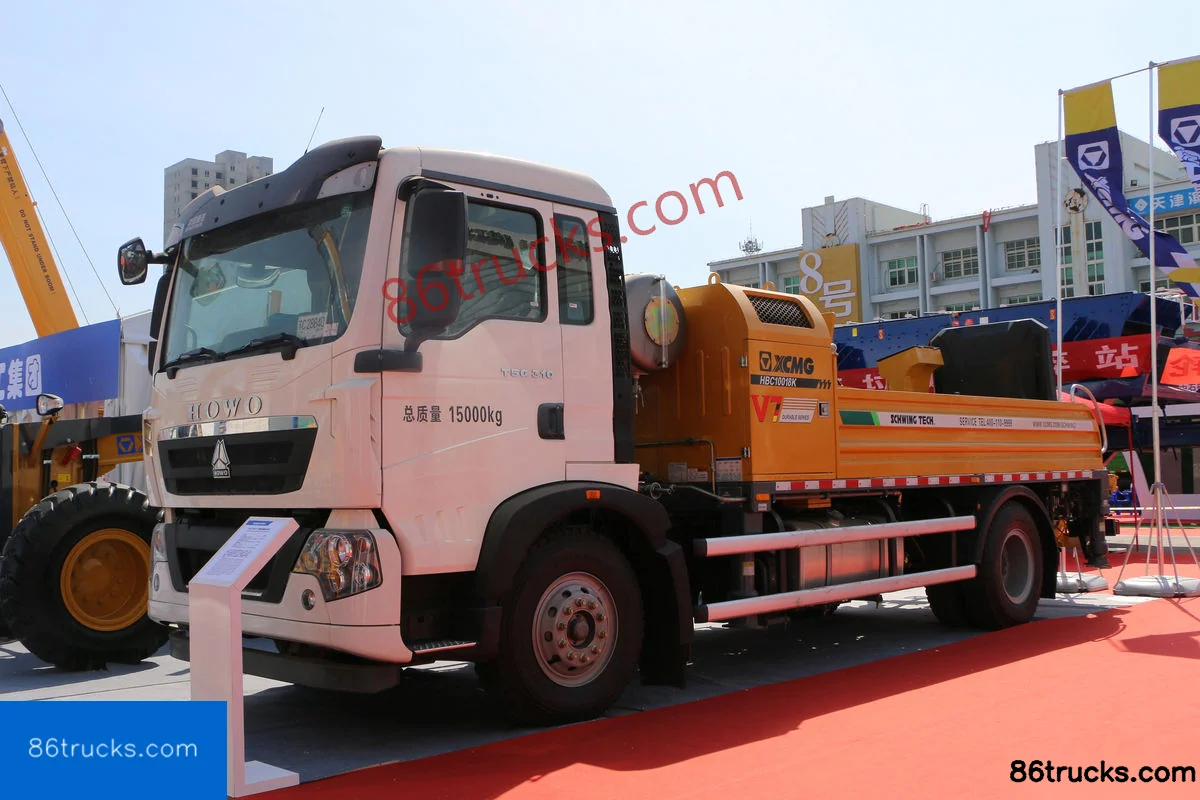

Exterior3

3 photos

FAQ

What emission standard does XCMG Truck-mounted Concrete Pump Truck (Sinotruk HOWO Chassis) 4X2(6 wheels) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of XCMG Truck-mounted Concrete Pump Truck (Sinotruk HOWO Chassis) 4X2(6 wheels)?

Key specs of XCMG Truck-mounted Concrete Pump Truck (Sinotruk HOWO Chassis) 4X2(6 wheels): Drive: 4x2; Horsepower: 310 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is XCMG Truck-mounted Concrete Pump Truck (Sinotruk HOWO Chassis) 4X2(6 wheels) suited for?

XCMG Truck-mounted Concrete Pump Truck (Sinotruk HOWO Chassis) 4X2(6 wheels) is a concrete pump truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does XCMG Truck-mounted Concrete Pump Truck (Sinotruk HOWO Chassis) 4X2(6 wheels) differ from other variants in the same series?

XCMG Truck-mounted Concrete Pump Truck (Sinotruk HOWO Chassis) 4X2(6 wheels) belongs to XCMG Truck Sinotruk HOWO Chassis Pump Truck (concrete pump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for XCMG Truck-mounted Concrete Pump Truck (Sinotruk HOWO Chassis) 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export XCMG Truck-mounted Concrete Pump Truck (Sinotruk HOWO Chassis) 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
