JAC Lanmao M1 2023 Guoxuan Flagship Edition 2.7T 2-Seat 4.745m Pure Electric Van Truck 40.55kWh

Export reference
From $22,194
MSRP ¥15.98M CNY
Wheelbase:: 3050mm
Cargo box volume:: 6
Model code (announced):: HFC5030XXYEV1W
Cab length:: 4.745m
GVWR:: 2.68ton
Max. speed:: 80km/h
JAC Lanmao M1 2023 Guoxuan Flagship Edition 2.7T 2-Seat 4.745m Pure Electric Van Truck 40.55kWh exterior
View more photos (12)
CLTC range: 276km
Motor 1 Brand: Inovance
Curb Weight: 1.52ton
Rated payload: 1.03ton

Overview

The JAC Lanmao M1 2023 Guoxuan Flagship Edition 2.7T 2-Seat 4.745m Pure Electric Van Truck 40.55kWh is a Electric Panel Van featuring 276km battery/range, Inovance motor, 1.03t payload and 6 cargo length.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): HFC5030XXYEV1W
Wheelbase: 3050mm
Cab length: 4.745m
Cab width: 1.76m
Cab height: 1.965m
CLTC range: 276km
Curb Weight: 1.52ton
Rated payload: 1.03ton
GVWR: 2.68ton
Max. speed: 80km/h
Version: Flagship Edition
Energy Type: Electric
electric motor
Motor 1 Brand: Inovance
Motor 1 Model: TZ180XSIN102
Max torque: 220N·m
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 30kW
Peak power: 60kW
total peak torque: 220N·m
total rated torque: 90N·m
Battery/Charging
Charging method: DC fast charge, AC slow charge
Battery Brand: Guoxuan High-Tech
Battery type: Lithium Iron Phosphate Battery
fast charge time: 0.5h
Battery rated voltage: 307.2V
Battery capacity: 40.55kWh
Battery total voltage: 307.2V
Energy Density: 130.02
Battery Model: GXB3-WM-2P96S
Body parameters
Cargo box volume: 6
Max body depth: 2.785
Max body width: 1.595
Cargo Box Height: 1.31
Chassis Specs
steering assist type: Electric power steering
Front suspension type: Independent suspension
rear suspension type: Leaf spring
Body Parameters
Cab structure: enclosed van truck
Seat count: 2Seats
Door Parameters
Number of Doors: 4
side door type: Sliding side door
Tailgate type: top-hinged door
Wheel brake
Front brake type: Disc brake
rear brake type: drum brake
Front tire specification: 185/65R15LT 12PR
Rear Wheel Specification: 185/65R15LT 12PR
Cab parameters
Seat rows:
Safety features
Remote key:
Central door lock:
Control configuration
ABS:
interior configuration
steering wheel adjustment:
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Reverse Radar:
Reverse Camera:
Multimedia features
GPS/Beidou driving recorder:
Bluetooth / hands-free calling:
lighting configuration
daytime running lights:

Photos

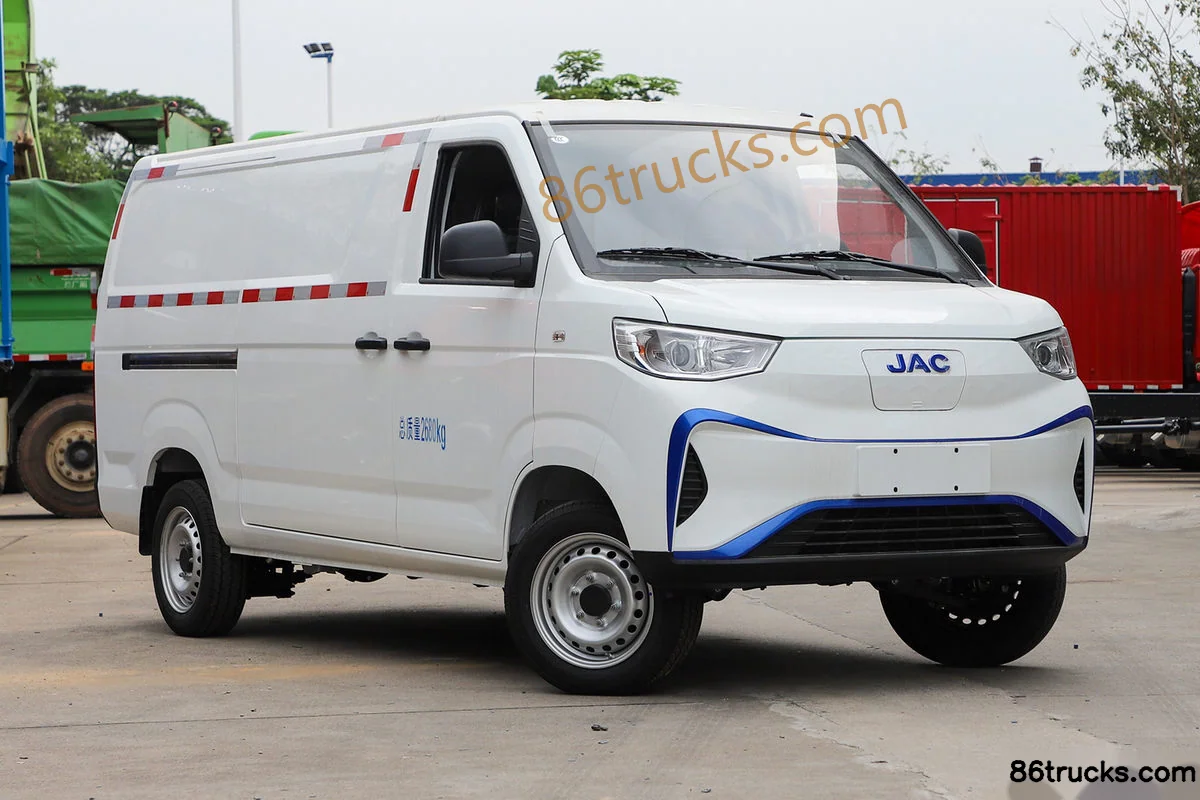

Exterior3

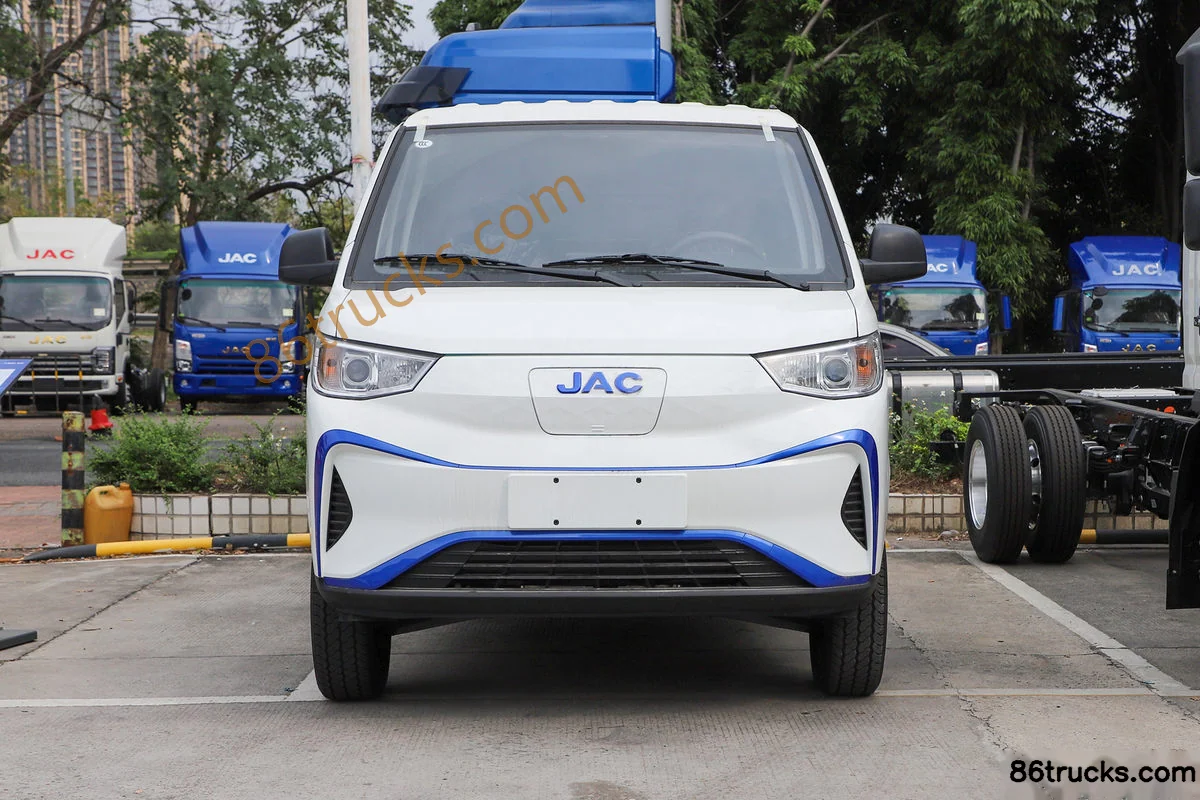

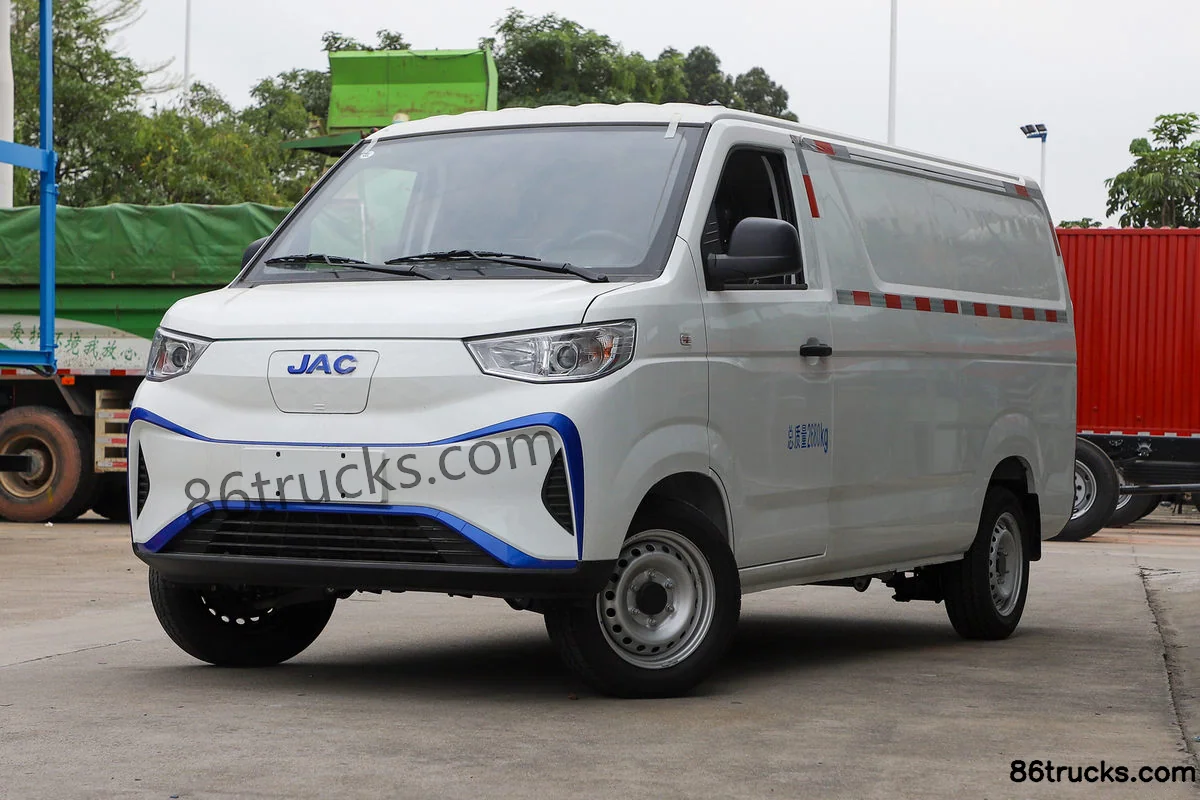

JAC Lanmao M1 2023 Guoxuan Flagship Edition 2.7T 2-Seat 4.745m Pure Electric Van Truck 40.55kWh Exterior (1) | 86Trucks JAC Lanmao M1 2023 Guoxuan Flagship Edition 2.7T 2-Seat 4.745m Pure Electric Van Truck 40.55kWh Exterior (2) | 86Trucks JAC Lanmao M1 2023 Guoxuan Flagship Edition 2.7T 2-Seat 4.745m Pure Electric Van Truck 40.55kWh Exterior (3) | 86Trucks

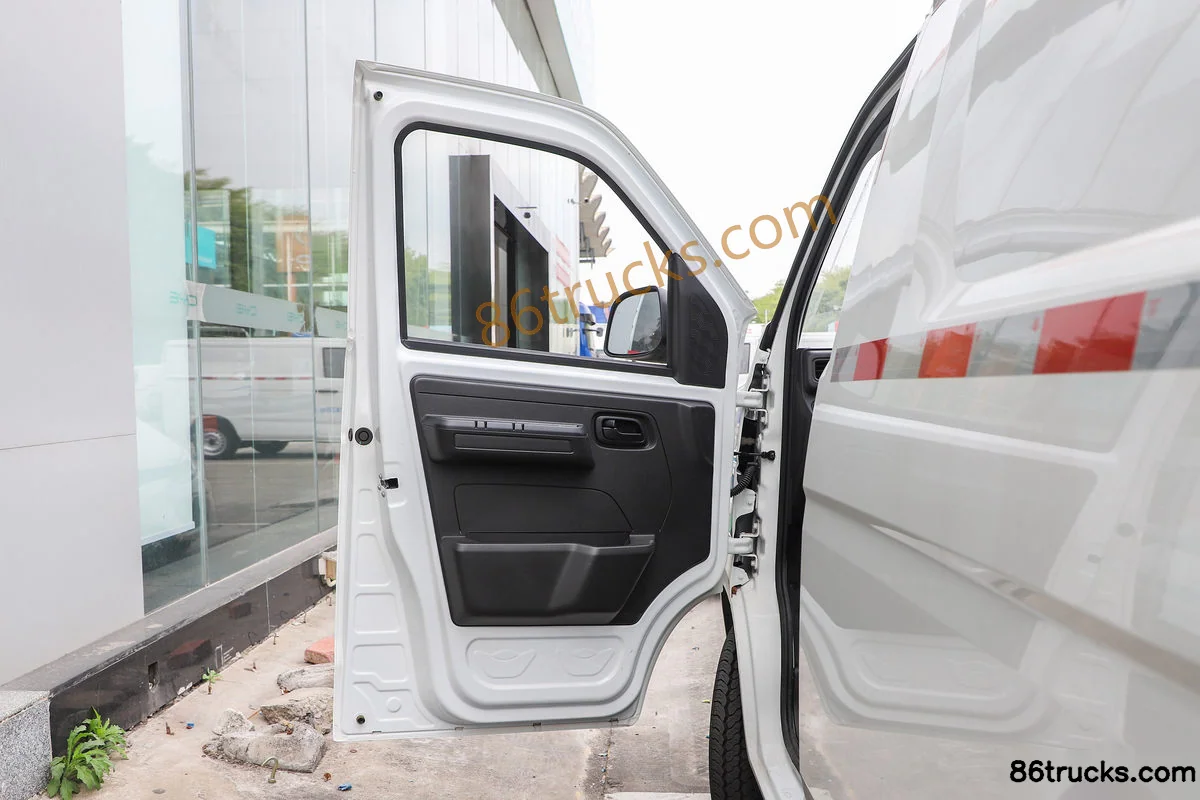

Cab3

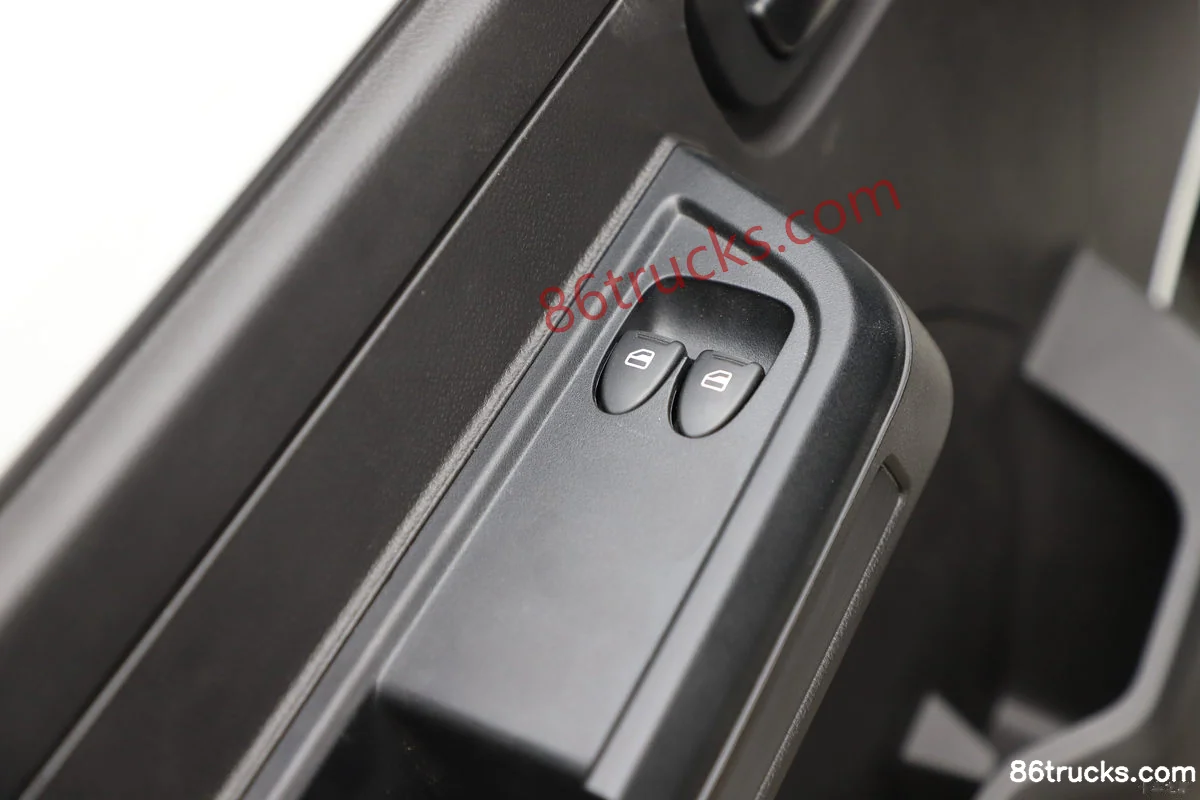

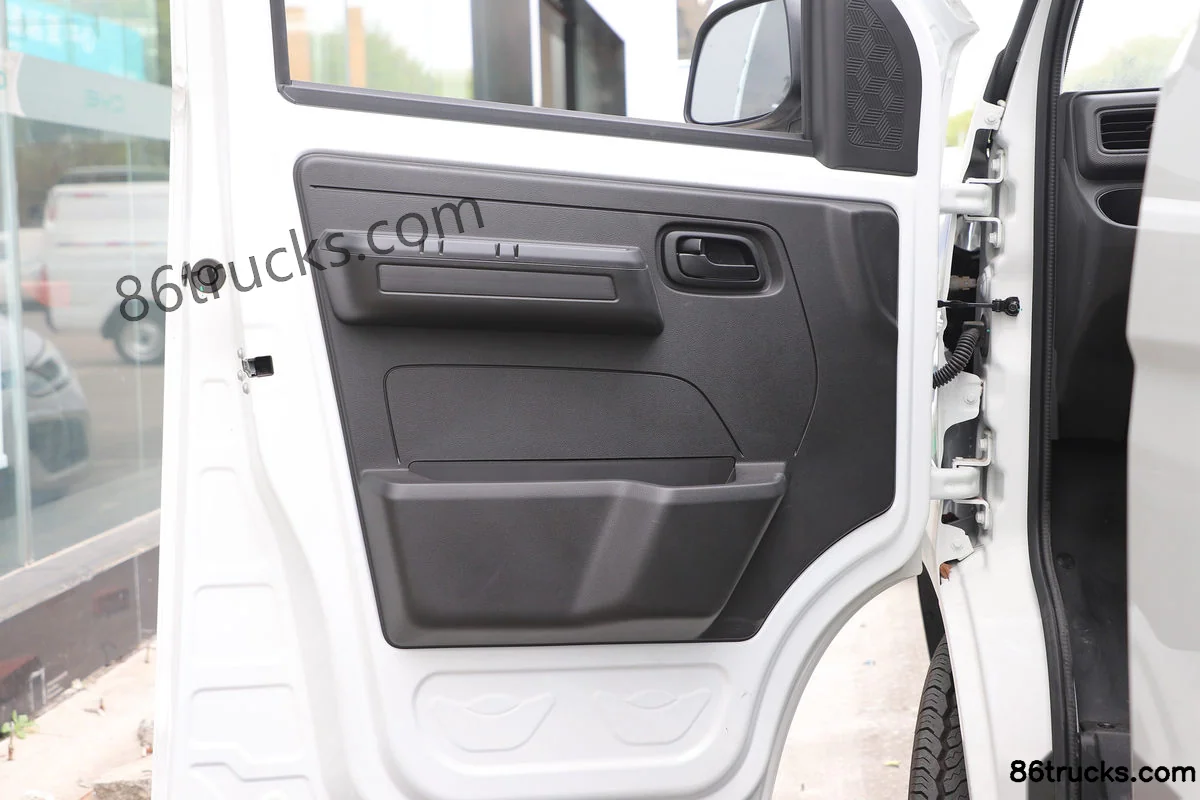

JAC Lanmao M1 2023 Guoxuan Flagship Edition 2.7T 2-Seat 4.745m Pure Electric Van Truck 40.55kWh Cab (1) | 86Trucks JAC Lanmao M1 2023 Guoxuan Flagship Edition 2.7T 2-Seat 4.745m Pure Electric Van Truck 40.55kWh Cab (2) | 86Trucks JAC Lanmao M1 2023 Guoxuan Flagship Edition 2.7T 2-Seat 4.745m Pure Electric Van Truck 40.55kWh Cab (3) | 86Trucks

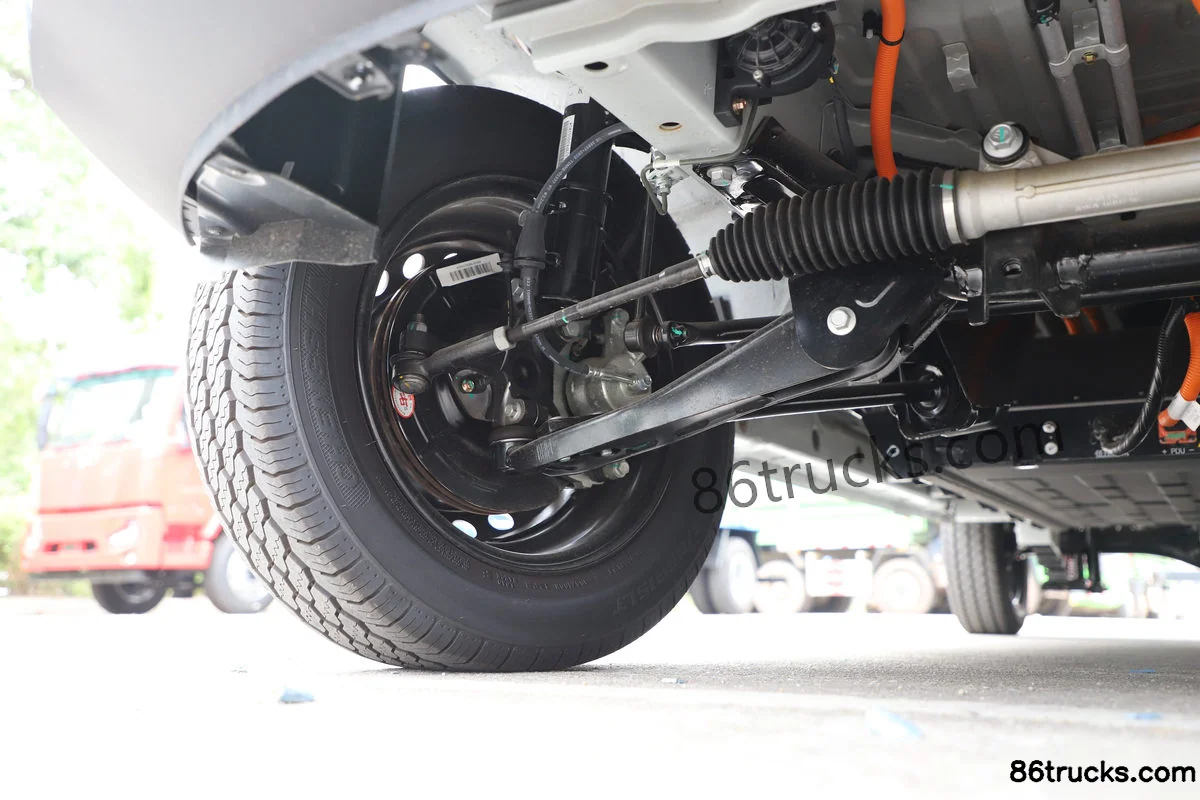

Chassis3

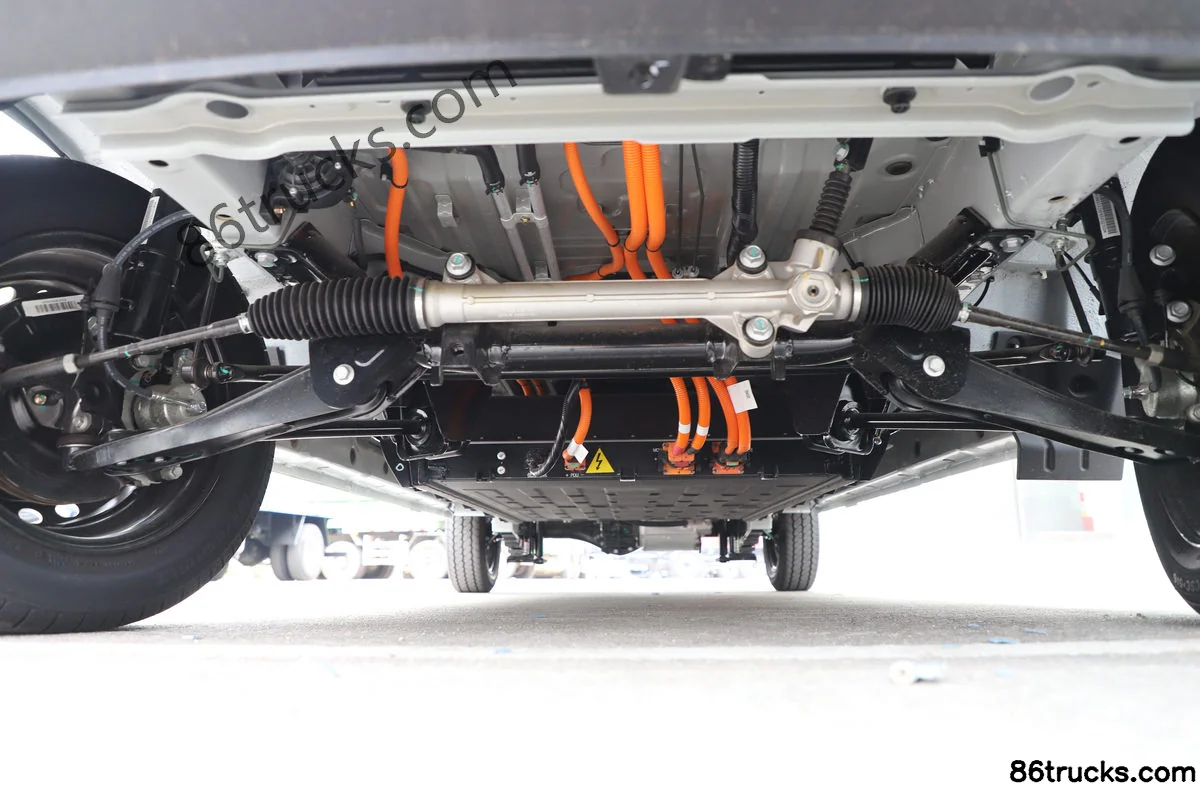

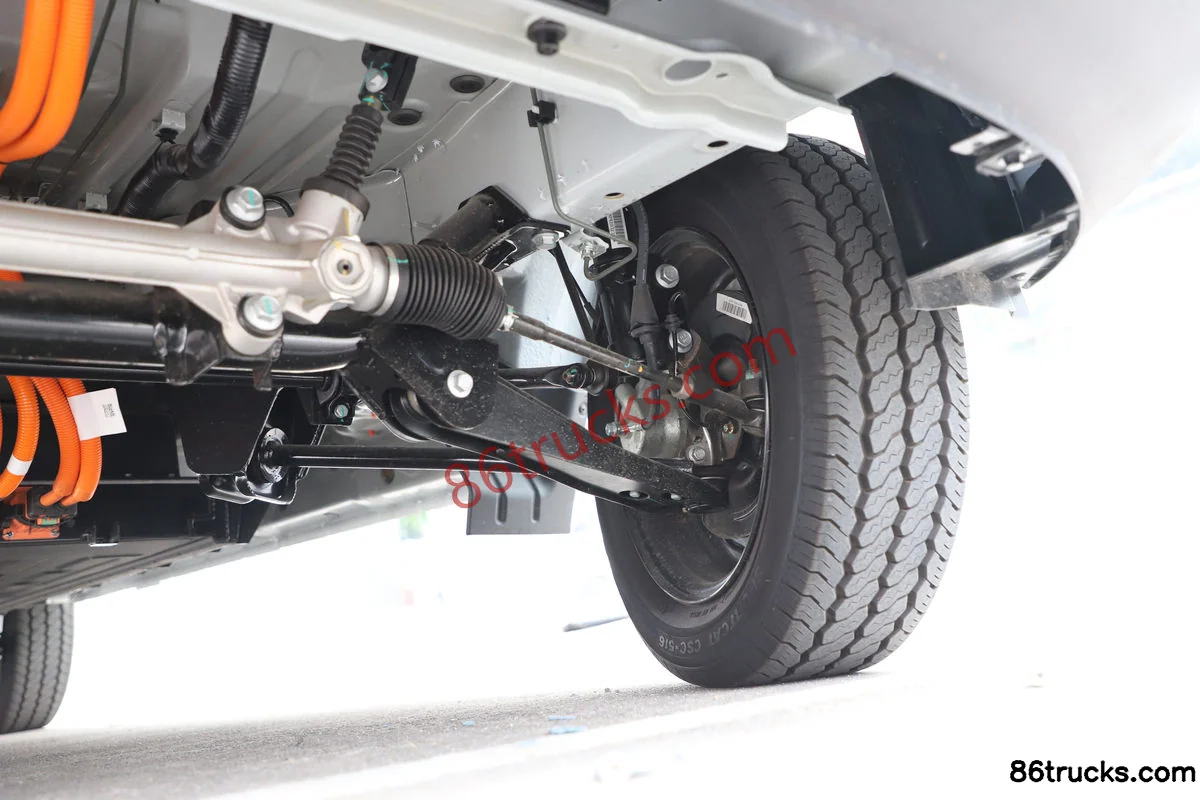

JAC Lanmao M1 2023 Guoxuan Flagship Edition 2.7T 2-Seat 4.745m Pure Electric Van Truck 40.55kWh Chassis (1) | 86Trucks JAC Lanmao M1 2023 Guoxuan Flagship Edition 2.7T 2-Seat 4.745m Pure Electric Van Truck 40.55kWh Chassis (2) | 86Trucks JAC Lanmao M1 2023 Guoxuan Flagship Edition 2.7T 2-Seat 4.745m Pure Electric Van Truck 40.55kWh Chassis (3) | 86Trucks

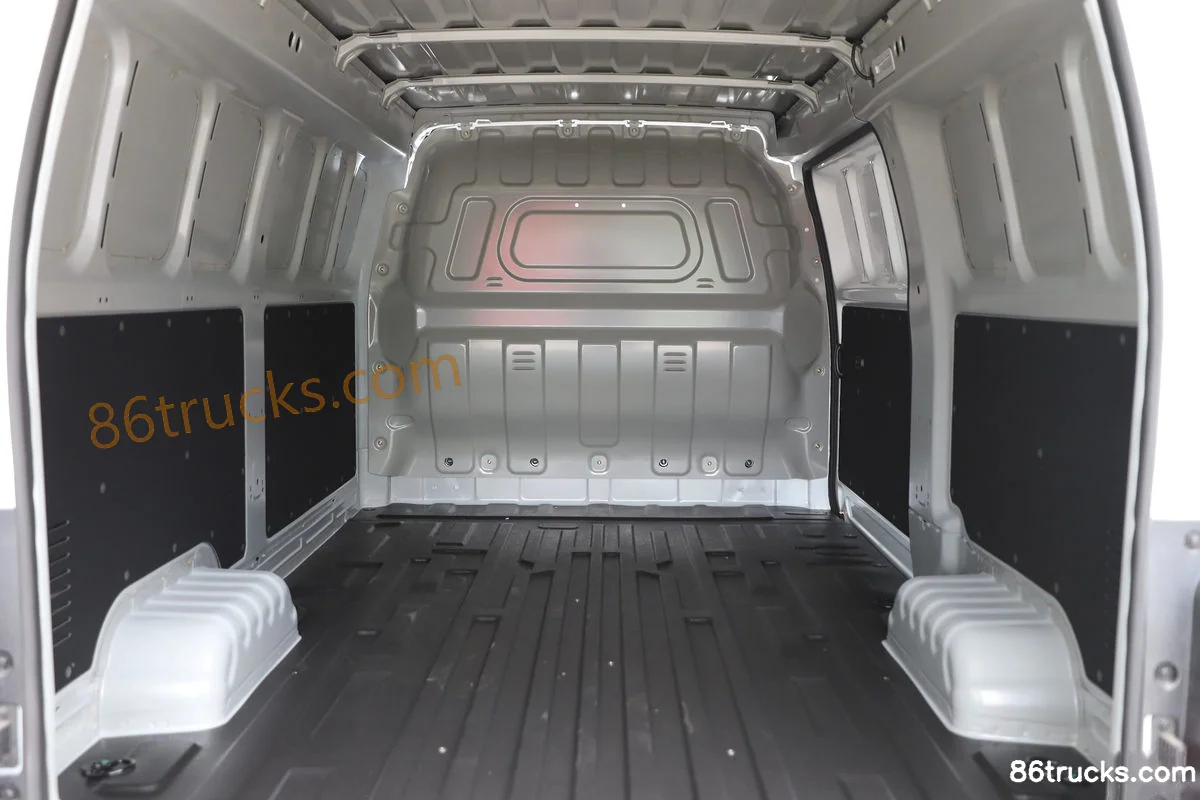

Body3

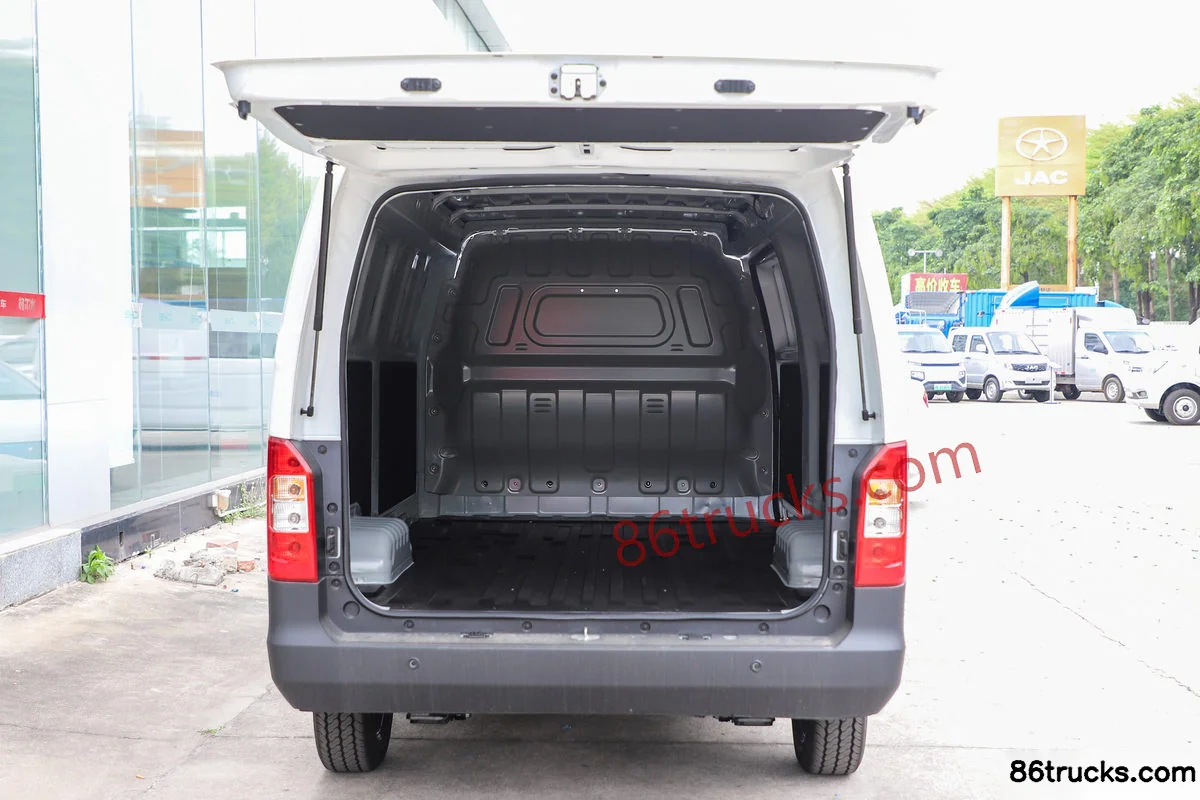

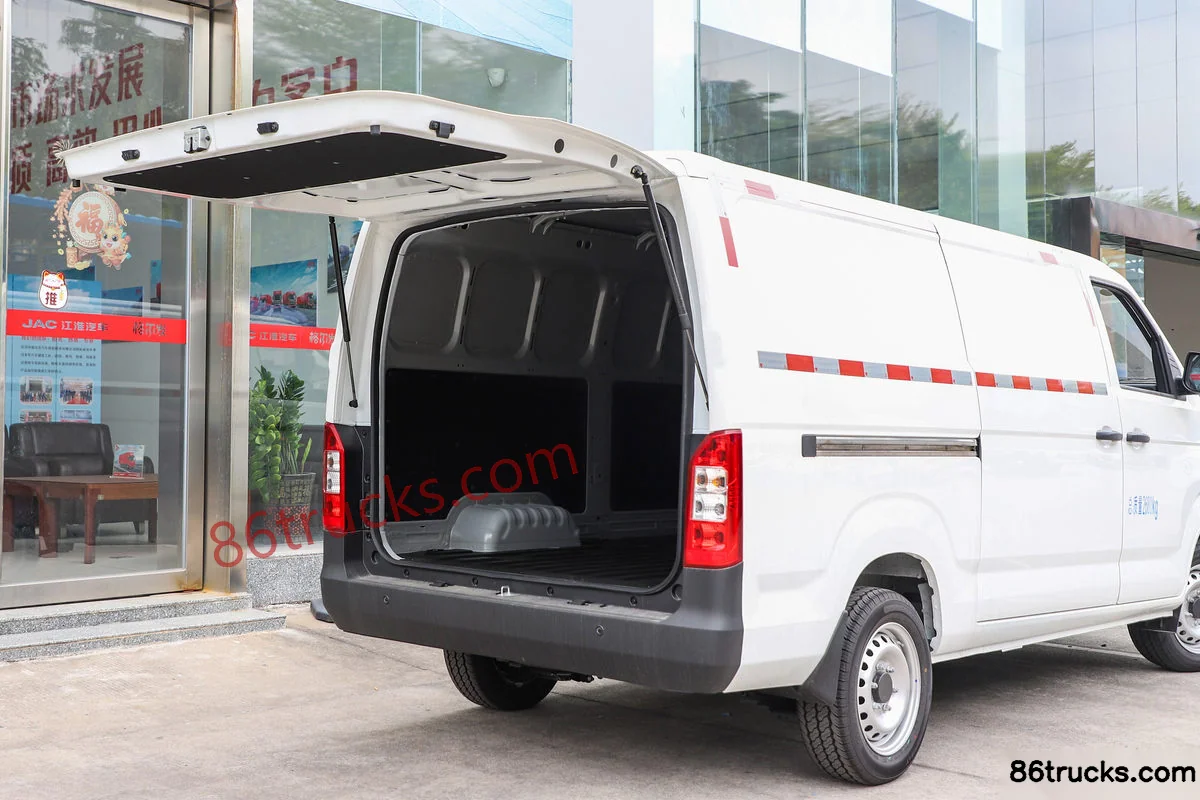

JAC Lanmao M1 2023 Guoxuan Flagship Edition 2.7T 2-Seat 4.745m Pure Electric Van Truck 40.55kWh Body (1) | 86Trucks JAC Lanmao M1 2023 Guoxuan Flagship Edition 2.7T 2-Seat 4.745m Pure Electric Van Truck 40.55kWh Body (2) | 86Trucks JAC Lanmao M1 2023 Guoxuan Flagship Edition 2.7T 2-Seat 4.745m Pure Electric Van Truck 40.55kWh Body (3) | 86Trucks

12 photos

FAQ

What is the export price of JAC Lanmao M1 2023 Guoxuan Flagship Edition 2.7T 2-Seat 4.745m Pure Electric Van Truck 40.55kWh, and what does it include?

JAC Lanmao M1 2023 Guoxuan Flagship Edition 2.7T 2-Seat 4.745m Pure Electric Van Truck 40.55kWh export reference is about From $22,194; MSRP is ¥15.98M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is JAC Lanmao M1 2023 Guoxuan Flagship Edition 2.7T 2-Seat 4.745m Pure Electric Van Truck 40.55kWh suited for?

JAC Lanmao M1 2023 Guoxuan Flagship Edition 2.7T 2-Seat 4.745m Pure Electric Van Truck 40.55kWh is a Electric Panel Van model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does JAC Lanmao M1 2023 Guoxuan Flagship Edition 2.7T 2-Seat 4.745m Pure Electric Van Truck 40.55kWh differ from other variants in the same series?

JAC Lanmao M1 2023 Guoxuan Flagship Edition 2.7T 2-Seat 4.745m Pure Electric Van Truck 40.55kWh belongs to JAC Lanmao M1 (Electric Panel Van). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Lanmao M1 2023 Guoxuan Flagship Edition 2.7T 2-Seat 4.745m Pure Electric Van Truck 40.55kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Lanmao M1 2023 Guoxuan Flagship Edition 2.7T 2-Seat 4.745m Pure Electric Van Truck 40.55kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
