FAW Jiefang Qingdao JK6 4X2(6 wheels) 9.75m Electric Van Cargo Truck CATL 246kWh

Export reference
MSRP N/A
Rated payload:: 8.205ton
Wheelbase:: 7100mm
Cargo box type:: Van body
Model code (announced):: CA5180XYKP28L5BEVA80
Type:: enclosed cargo truck
Box length class:: 9.8m
FAW Jiefang Qingdao JK6 4X2(6 wheels) 9.75m Electric Van Cargo Truck CATL 246kWh exterior
View more photos (12)
Drive 4X2 (6 wheels)
Battery Brand: CATL
Motor 1 Brand: FAW
Curb Weight: 9.6ton

Overview

The FAW Jiefang Qingdao JK6 4X2(6 wheels) 9.75m Electric Van Cargo Truck CATL 246kWh is a Medium-duty truck featuring CATL battery/range, FAW motor, 4X2 (6 wheels) drive and 8.205t payload.

4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): CA5180XYKP28L5BEVA80
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 7100mm
Box length class: 9.8m
Cab length: 12m
Cab width: 2.55m
Cab height: 3.995m
Curb Weight: 9.6ton
Rated payload: 8.205ton
GVWR: 18ton
Max. speed: 89km/h
Origin: Qingdao
tonnage class: Medium-duty truck
Energy Type: Electric
electric motor
Motor 1 Brand: FAW
Motor 1 Model: CAM365PT51
Motor Type: Permanent magnet synchronous motor
total rated power: 90kW
Peak power: 171kW
Battery/Charging
Charging method: 400A dual-gun fast charge
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
fast charge time:
Battery capacity: 246kWh
Cargo box parameters
Cargo box type: Van body
Cargo box length: 9.75m
Cargo box width: 2.45m
Cargo box height: 2.7m
Cab parameters
Cab: JK6 raised floor mid-cab
Cab tilting: Electric tilting
seating capacity: 2Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
Chassis Specs
Front axle allowable load: 6500kg
rear axle allowable load: 11500kg
Tire
Tire Size: 275/80R22.5 18PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering: Electric Power Steering
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Power Mirrors:
Reverse Radar:
Remote key:
Electronic Central Lock:
Exterior features
Aluminum air tank:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
lighting configuration
daytime running lights:
Service brake
Brake Type: Air brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:
Cruise control (CCS):
Tire Pressure Monitoring System (TPMS):

Photos

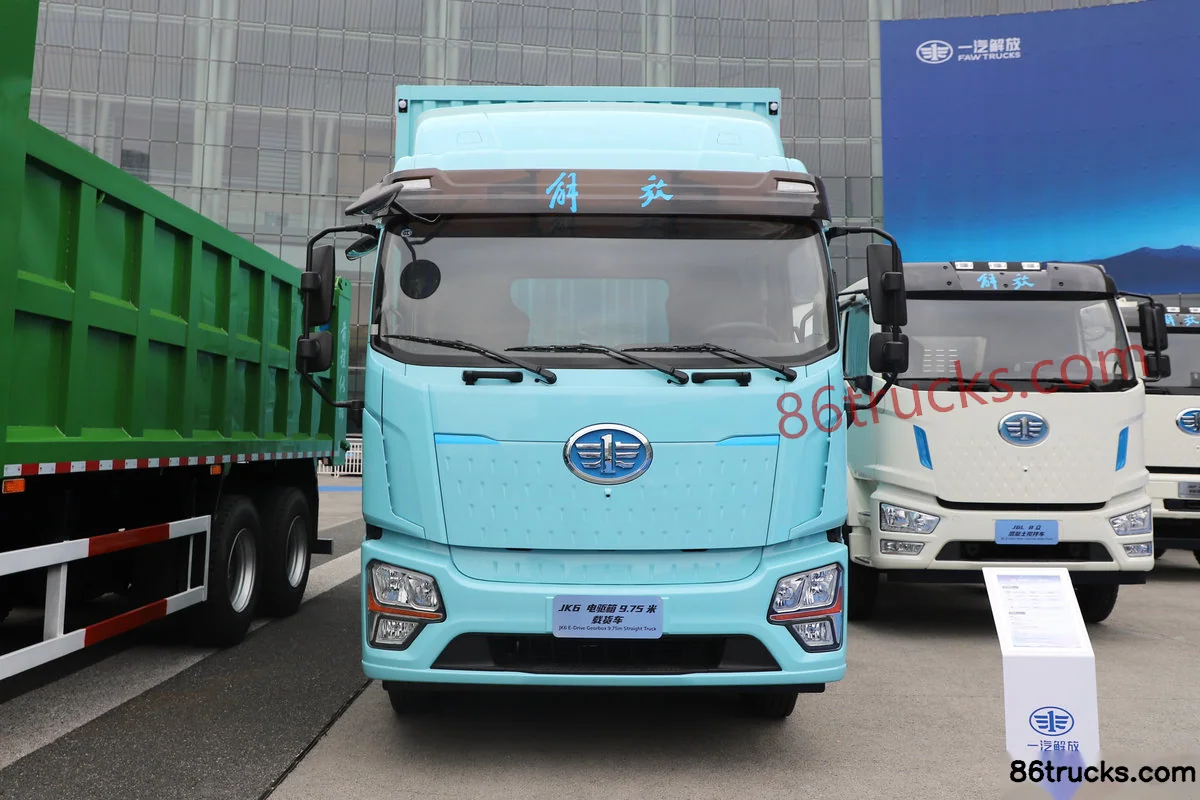

Exterior3

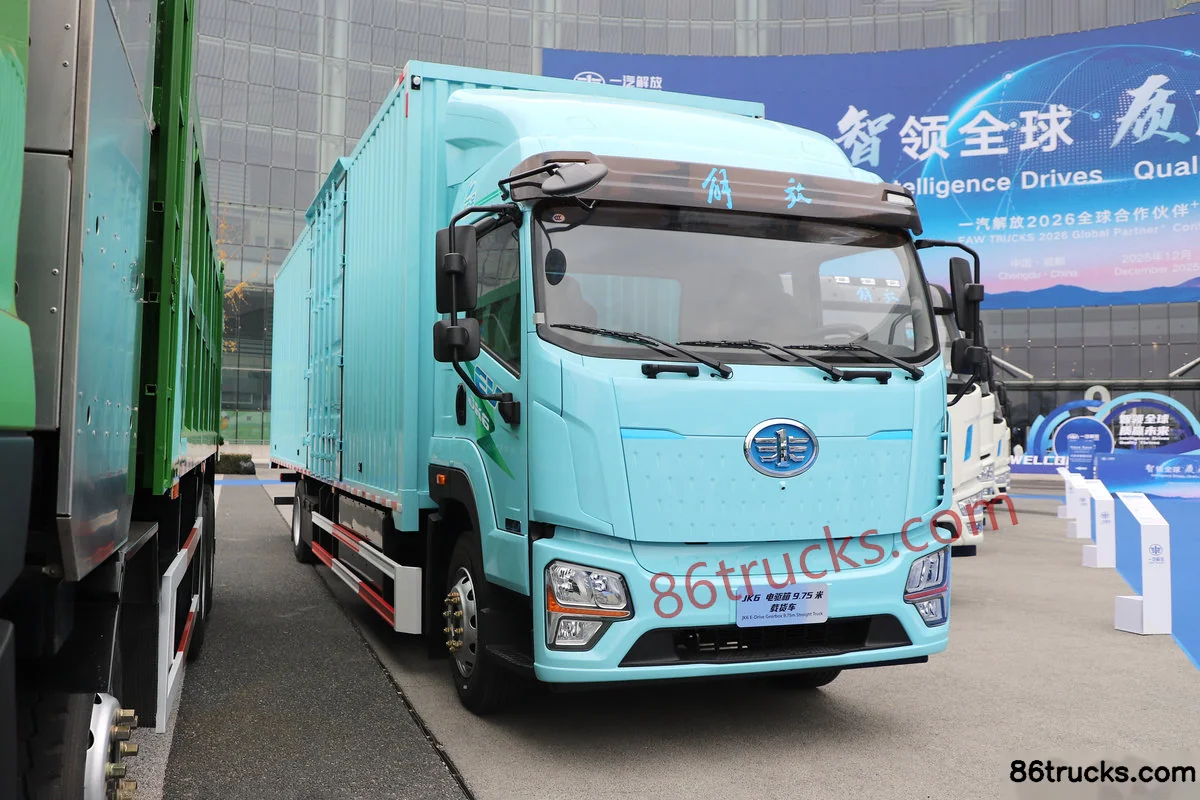

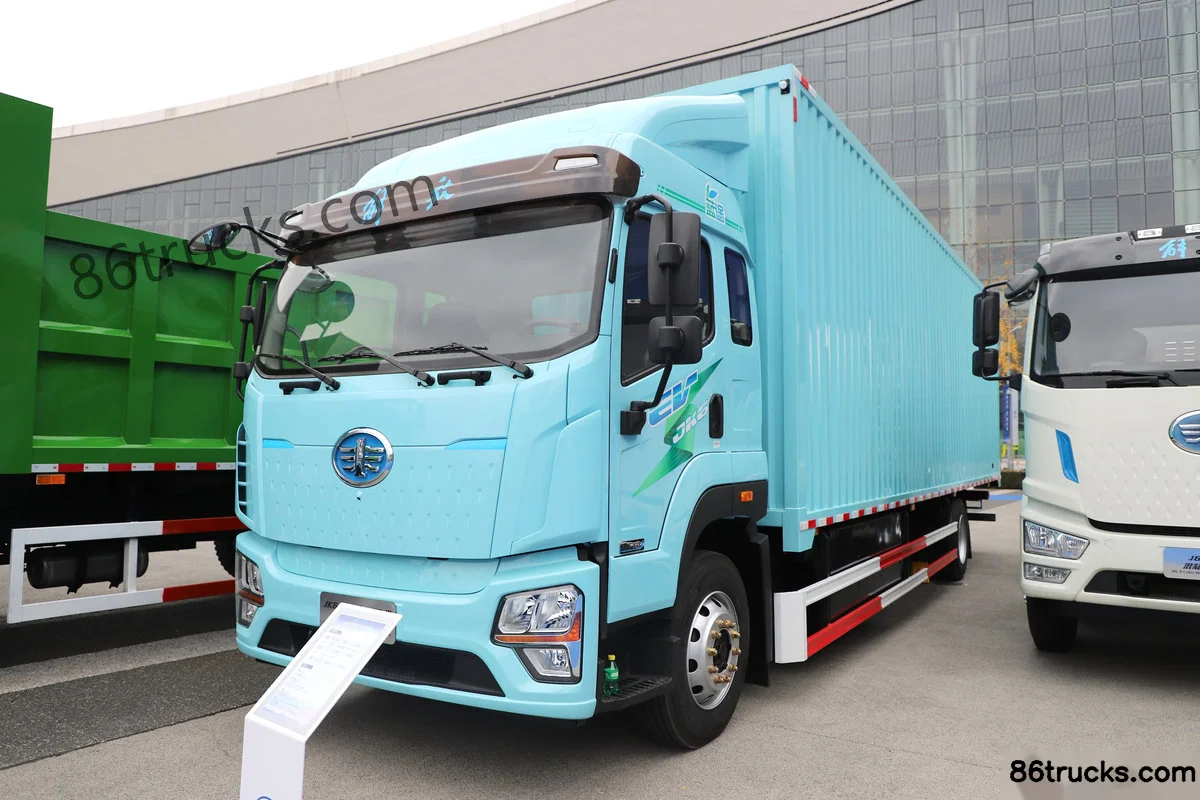

FAW Jiefang Qingdao JK6 4X2(6 wheels) 9.75m Electric Van Cargo Truck CATL 246kWh Exterior (1) | 86Trucks FAW Jiefang Qingdao JK6 4X2(6 wheels) 9.75m Electric Van Cargo Truck CATL 246kWh Exterior (2) | 86Trucks FAW Jiefang Qingdao JK6 4X2(6 wheels) 9.75m Electric Van Cargo Truck CATL 246kWh Exterior (3) | 86Trucks

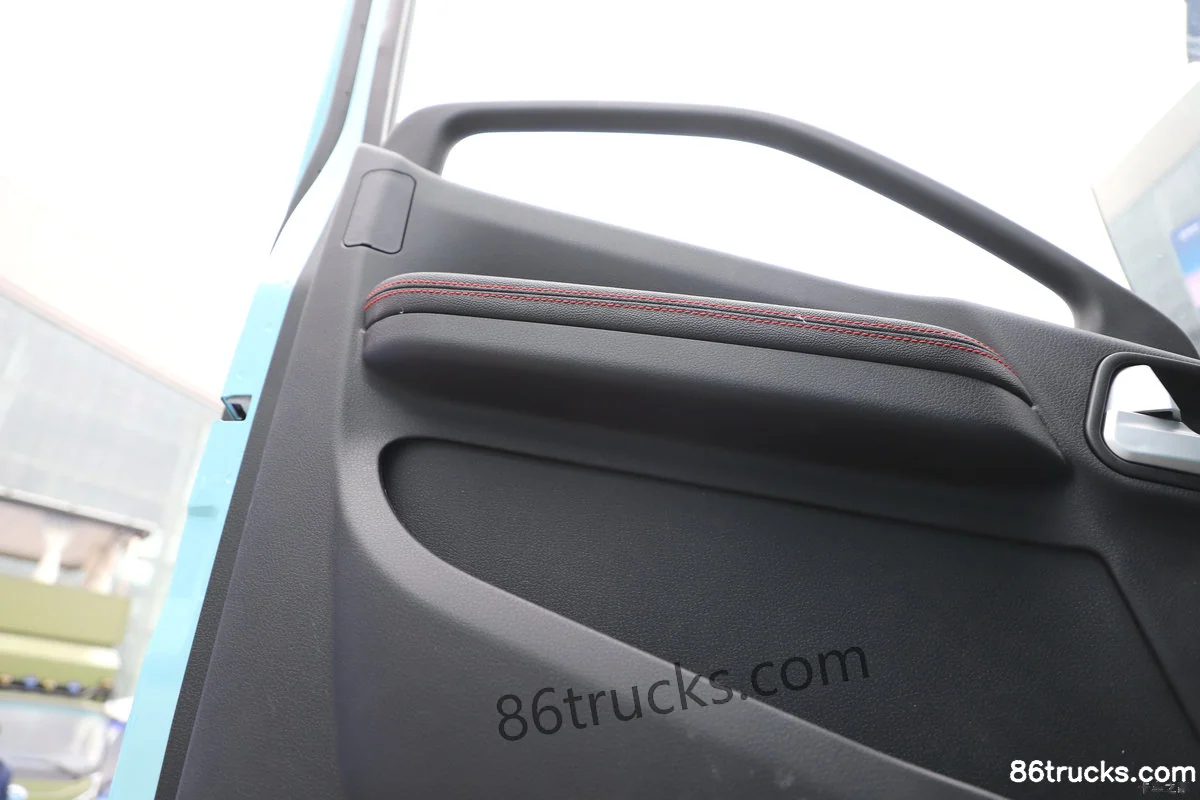

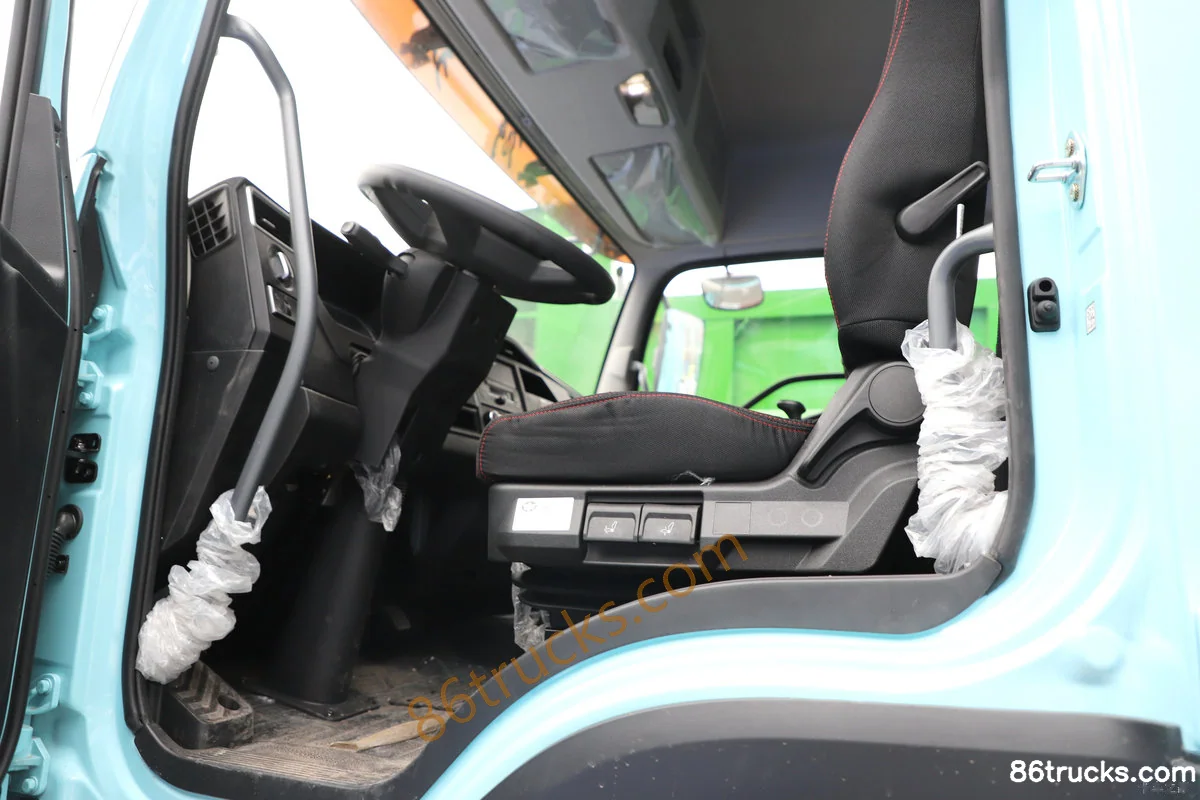

Cab3

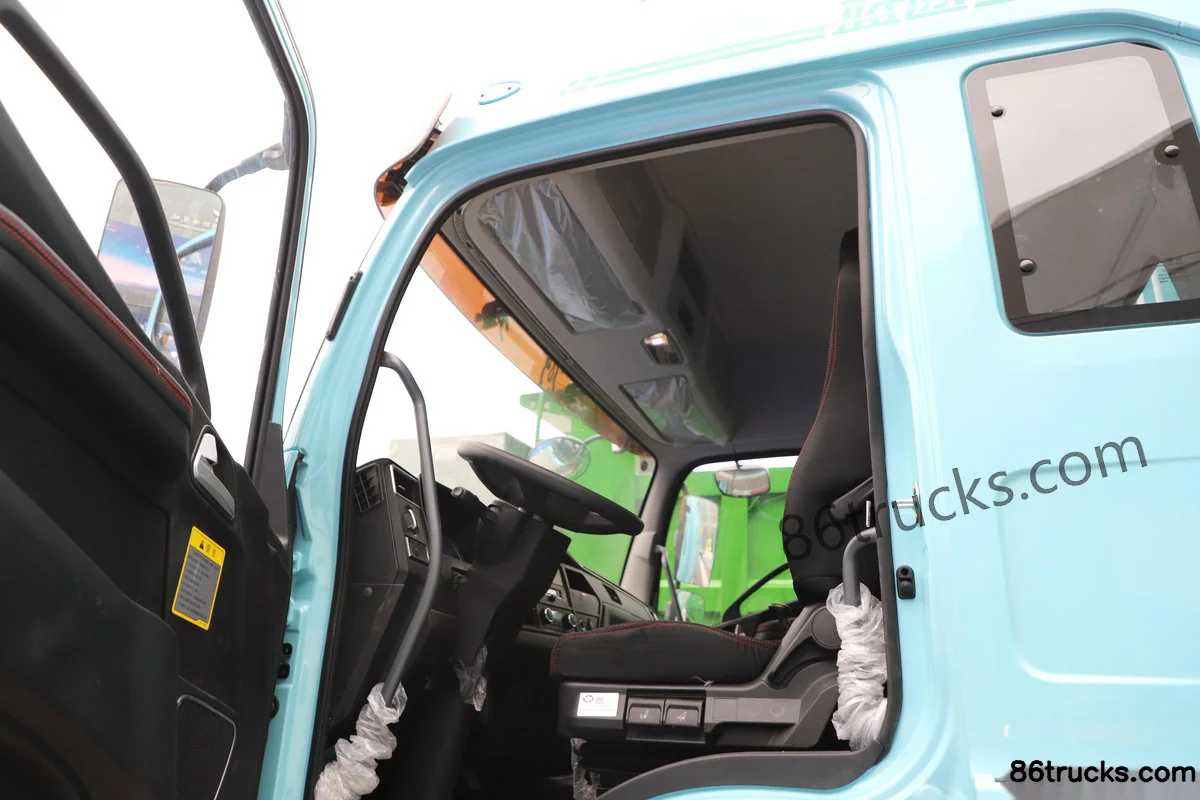

FAW Jiefang Qingdao JK6 4X2(6 wheels) 9.75m Electric Van Cargo Truck CATL 246kWh Cab (1) | 86Trucks FAW Jiefang Qingdao JK6 4X2(6 wheels) 9.75m Electric Van Cargo Truck CATL 246kWh Cab (2) | 86Trucks FAW Jiefang Qingdao JK6 4X2(6 wheels) 9.75m Electric Van Cargo Truck CATL 246kWh Cab (3) | 86Trucks

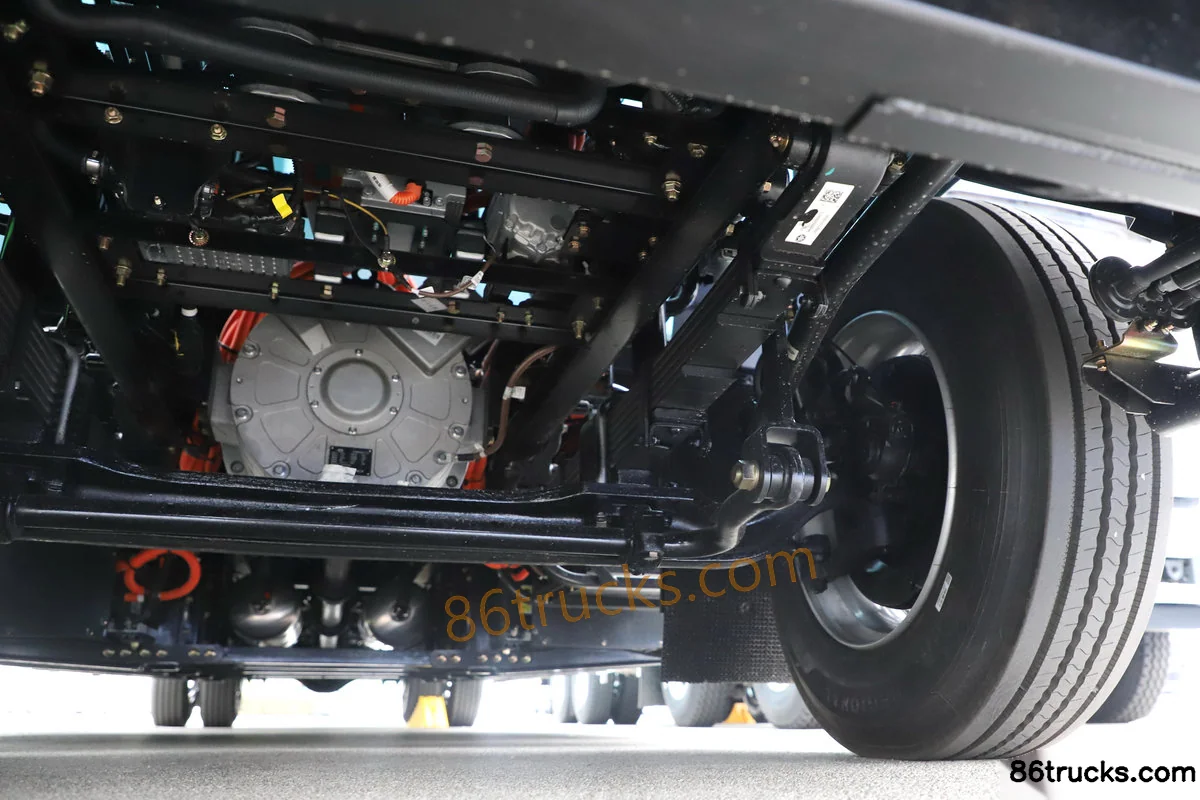

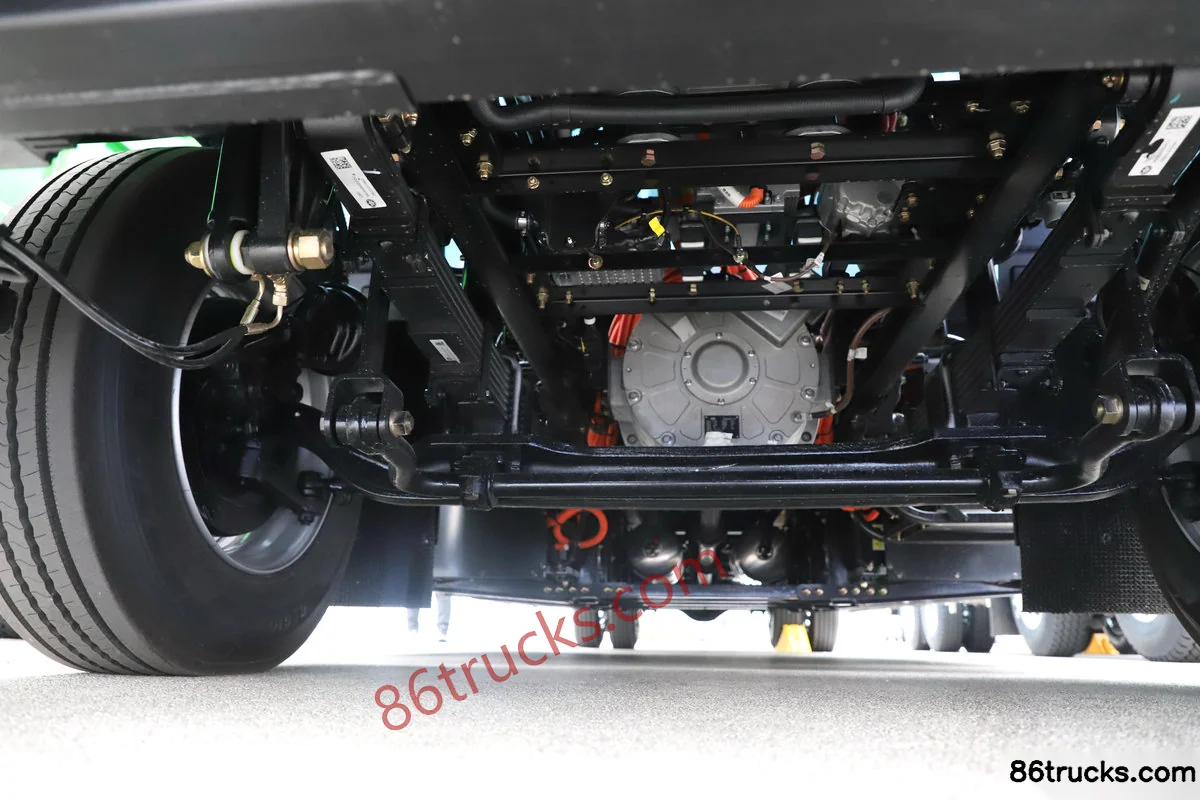

Chassis3

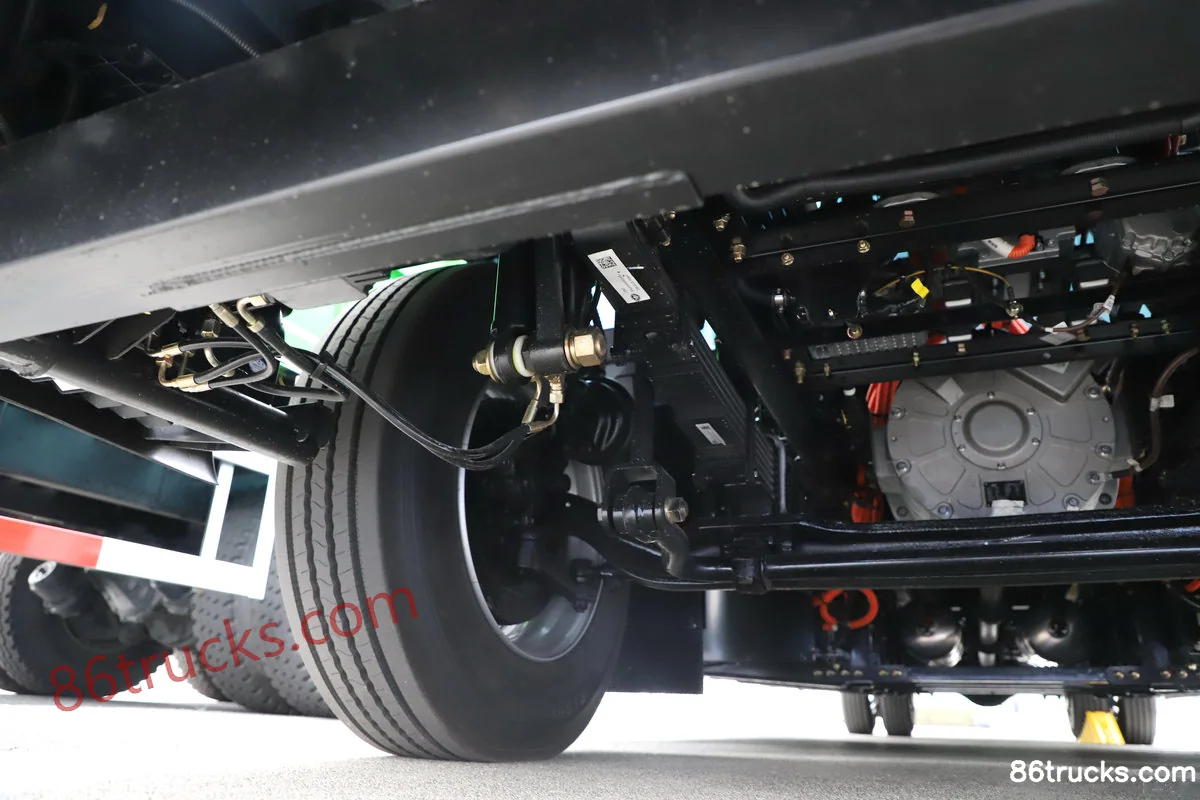

FAW Jiefang Qingdao JK6 4X2(6 wheels) 9.75m Electric Van Cargo Truck CATL 246kWh Chassis (1) | 86Trucks FAW Jiefang Qingdao JK6 4X2(6 wheels) 9.75m Electric Van Cargo Truck CATL 246kWh Chassis (2) | 86Trucks FAW Jiefang Qingdao JK6 4X2(6 wheels) 9.75m Electric Van Cargo Truck CATL 246kWh Chassis (3) | 86Trucks

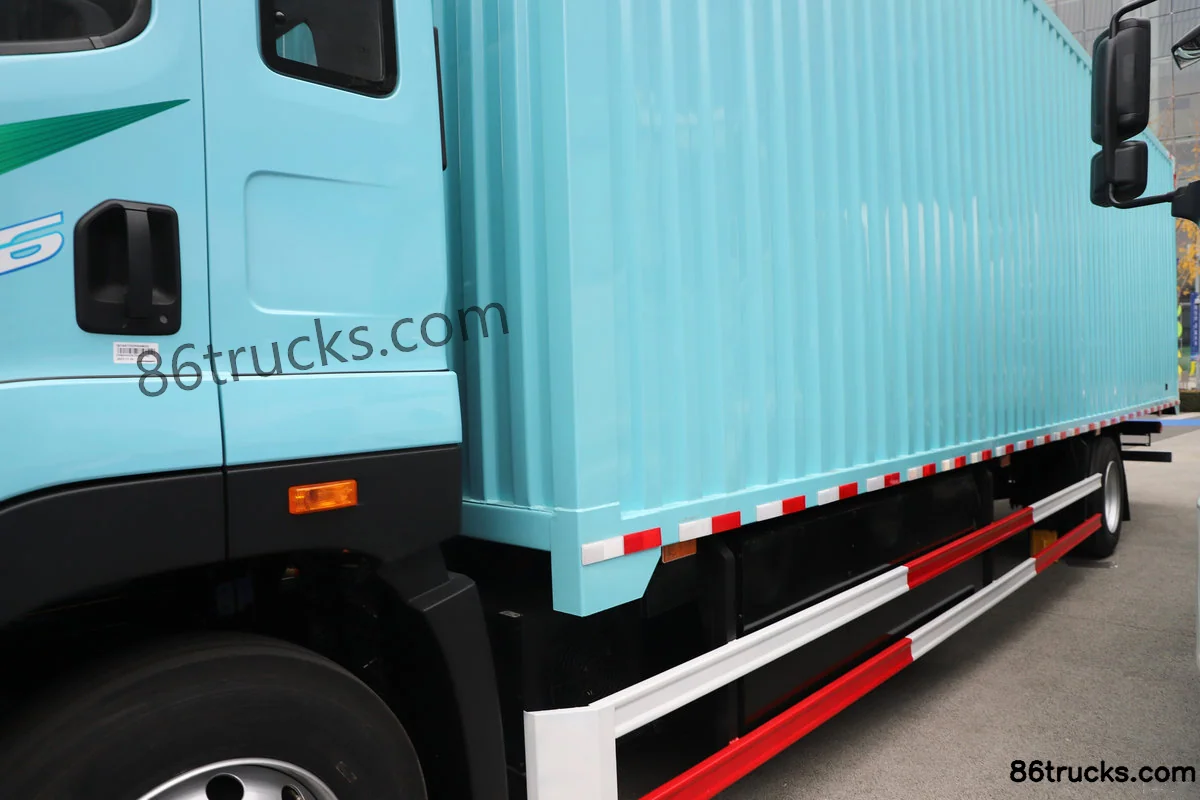

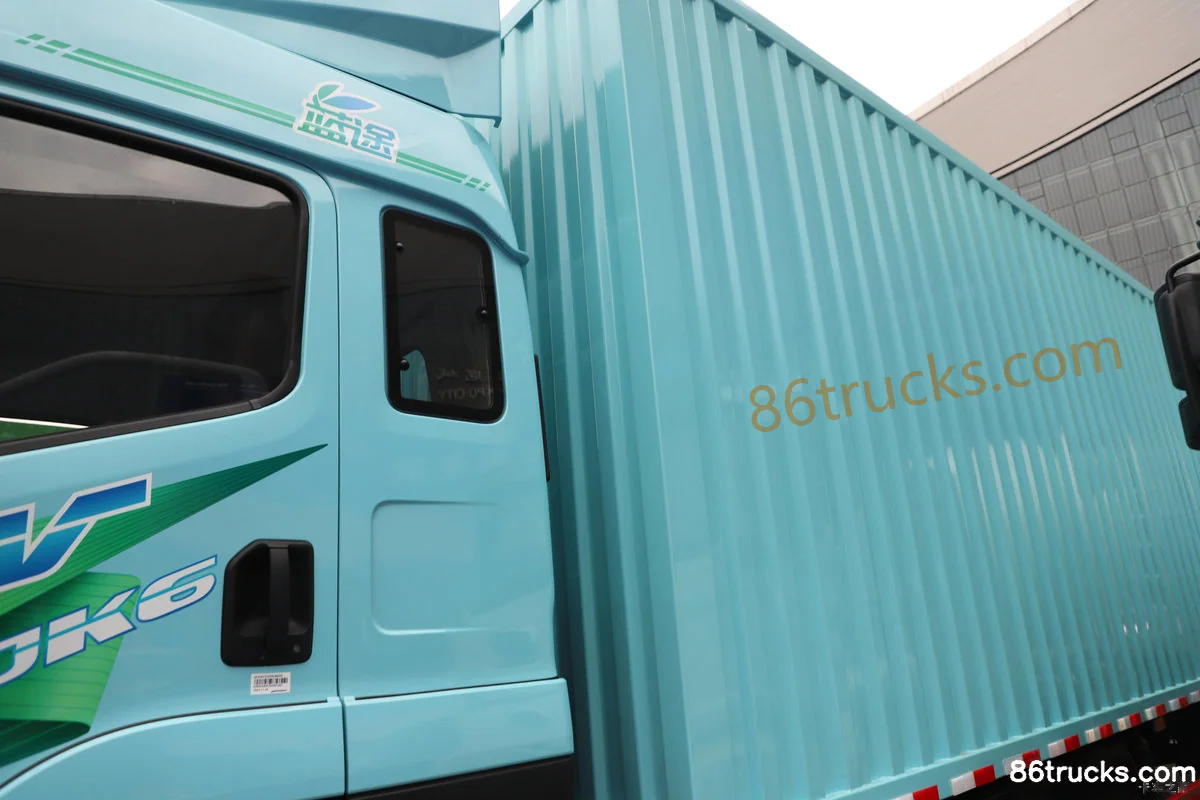

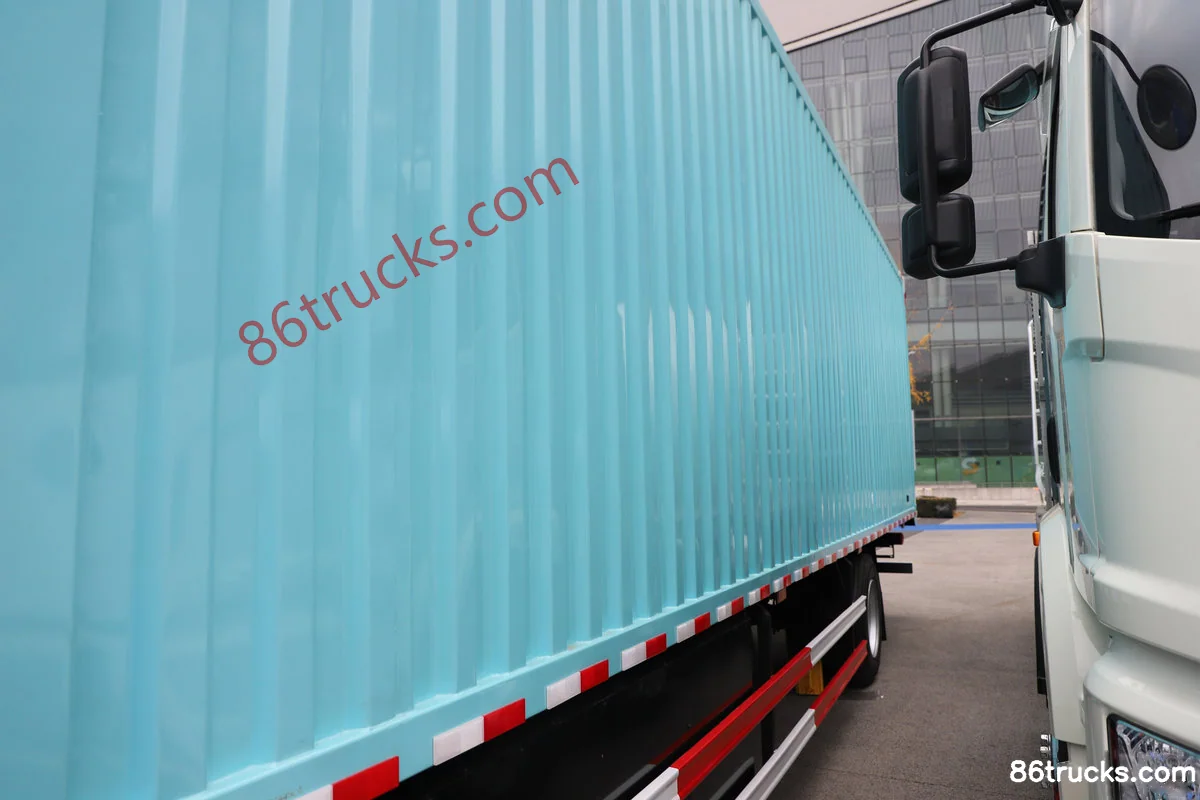

Body3

FAW Jiefang Qingdao JK6 4X2(6 wheels) 9.75m Electric Van Cargo Truck CATL 246kWh Body (1) | 86Trucks FAW Jiefang Qingdao JK6 4X2(6 wheels) 9.75m Electric Van Cargo Truck CATL 246kWh Body (2) | 86Trucks FAW Jiefang Qingdao JK6 4X2(6 wheels) 9.75m Electric Van Cargo Truck CATL 246kWh Body (3) | 86Trucks

12 photos

FAQ

What are the key specs of FAW Jiefang Qingdao JK6 4X2(6 wheels) 9.75m Electric Van Cargo Truck CATL 246kWh?

Key specs of FAW Jiefang Qingdao JK6 4X2(6 wheels) 9.75m Electric Van Cargo Truck CATL 246kWh: Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao JK6 4X2(6 wheels) 9.75m Electric Van Cargo Truck CATL 246kWh suited for?

FAW Jiefang Qingdao JK6 4X2(6 wheels) 9.75m Electric Van Cargo Truck CATL 246kWh is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does FAW Jiefang Qingdao JK6 4X2(6 wheels) 9.75m Electric Van Cargo Truck CATL 246kWh differ from other variants in the same series?

FAW Jiefang Qingdao JK6 4X2(6 wheels) 9.75m Electric Van Cargo Truck CATL 246kWh belongs to FAW Jiefang QingdaoJK6 (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao JK6 4X2(6 wheels) 9.75m Electric Van Cargo Truck CATL 246kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao JK6 4X2(6 wheels) 9.75m Electric Van Cargo Truck CATL 246kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
