Dongfeng Tuoxing D3 270 hp 8X4(12 wheels) 6m dump truck

Export reference
From $32,611
MSRP ¥23.48M CNY
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 12.17ton
Wheelbase:: 1850+2700+1300mm
Tire Size:: 10.00-20 18PR
Rated payload: 18.7ton
Drive 8X4 (12 wheels)
Horsepower 270
Cargo box type: Rear-dump body

Overview

The Dongfeng Tuoxing D3 270 hp 8X4(12 wheels) 6m dump truck is a Heavy truck featuring 18.7t payload, 31t GVW, Rear-dump body cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a YuchaiYC6A270-50 engine, 270 hp, China V emissions and Fast Gear transmission.

China V 270 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): EQ3310GZ5D4
Drive type: 8X4
Wheelbase: 1850+2700+1300mm
engine: YuchaiYC6A270-50
transmission: Fast Gear10JSD120A
Rear Axle Ratio: 5.571
Cab length: 8.95m
Cab width: 2.55m
Cab height: 2.83m
Front track width: 1965/1965mm
rear track: 1860/1860mm
Curb Weight: 12.17ton
Rated payload: 18.7ton
GVWR: 31ton
Origin: Shiyan, Hubei
tonnage class: Heavy truck
Approach angle: 28°
departure angle: 21°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6A270-50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 7.52L
Emission standard: China V
Max output power: 199kW
Max hp: 270Horsepower
Max torque: 1100N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Transmission Parameters
Transmission Model: Fast Gear10JSD120A
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 6m
Cargo box width: 2.35m
Cargo box height: 1.5m
Cab parameters
Cab suspension: Four-point air suspension
Driver seat type: air suspension seat
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 300L
Chassis Specs
Front axle description: 2*5T
Front axle allowable load: 6500/6500kg
Frame Dimensions: 280×80×7+5mm
rear axle description: 2*10T(435)
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 5.571
Leaf spring count: 9/9/9
Tire
Tire Size: 10.00-20 18PR
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Reverse Camera:
Electronic Central Lock:
Exterior features
Aluminum air tank:

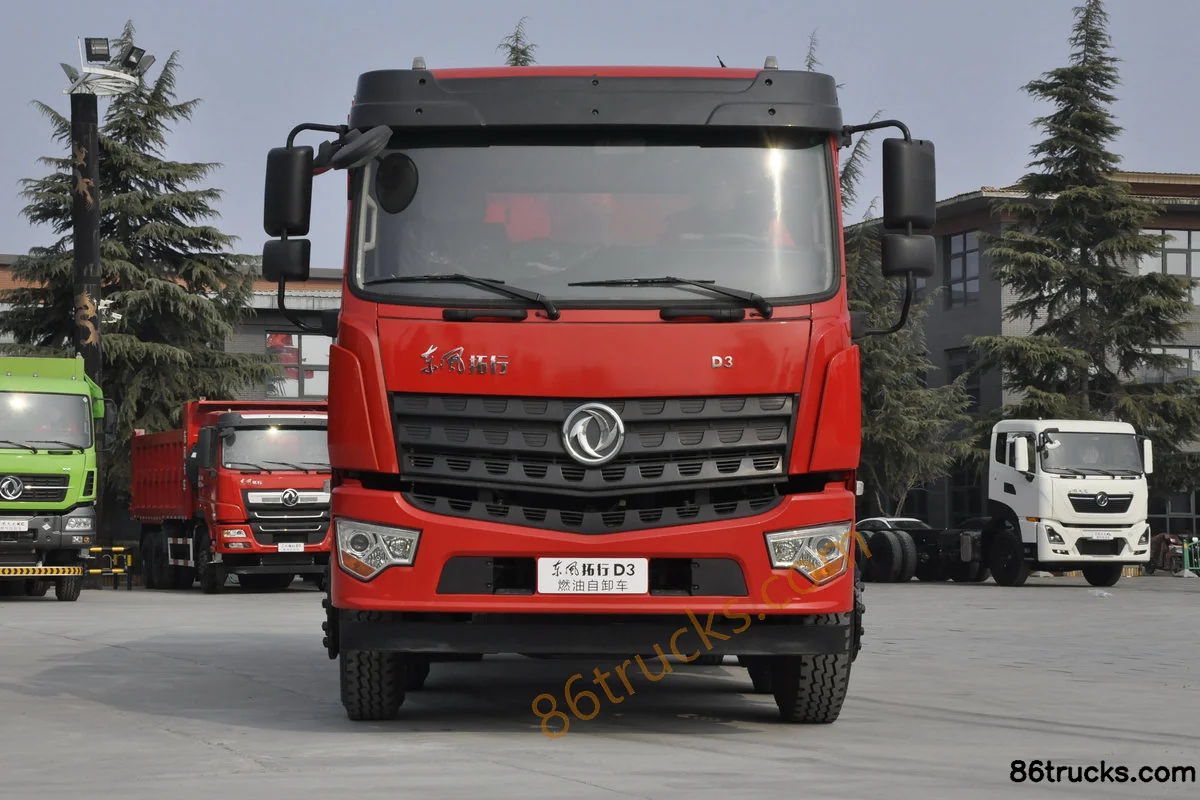

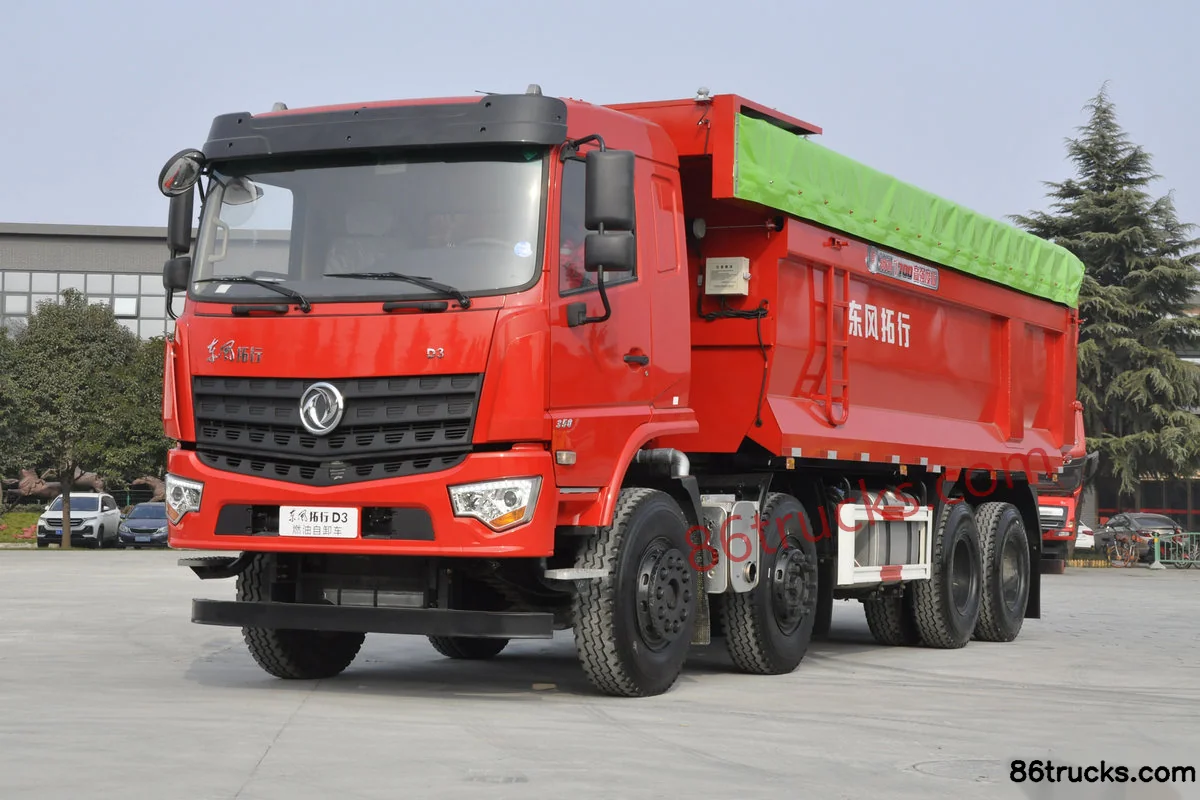

Photos

Exterior2

2 photos

FAQ

What is the export price of Dongfeng Tuoxing D3 270 hp 8X4(12 wheels) 6m dump truck, and what does it include?

Dongfeng Tuoxing D3 270 hp 8X4(12 wheels) 6m dump truck export reference is about From $32,611; MSRP is ¥23.48M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng Tuoxing D3 270 hp 8X4(12 wheels) 6m dump truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Tuoxing D3 270 hp 8X4(12 wheels) 6m dump truck?

Key specs of Dongfeng Tuoxing D3 270 hp 8X4(12 wheels) 6m dump truck: Drive: 8x4; Horsepower: 270 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Tuoxing D3 270 hp 8X4(12 wheels) 6m dump truck suited for?

Dongfeng Tuoxing D3 270 hp 8X4(12 wheels) 6m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng Tuoxing D3 270 hp 8X4(12 wheels) 6m dump truck differ from other variants in the same series?

Dongfeng Tuoxing D3 270 hp 8X4(12 wheels) 6m dump truck belongs to Dongfeng Tuoxing D3 medium truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Tuoxing D3 270 hp 8X4(12 wheels) 6m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Tuoxing D3 270 hp 8X4(12 wheels) 6m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
