BYD T31 31T 8X4(12 wheels) 7m³ Concrete Mixer Truck (CIMC Jiangmen)

Export reference
MSRP N/A
Tire Size:: 11.00R20,12R22.5
Cab dimensions:: 10.19×2.55×3.95m
Truck Type:: Concrete mixer truck
Vehicle origin:: Shenzhen Pingshan New District
Front/rear track width:: Front: 2055/2055mm; Rear: 1870/1870
Max. speed:: 85km/h

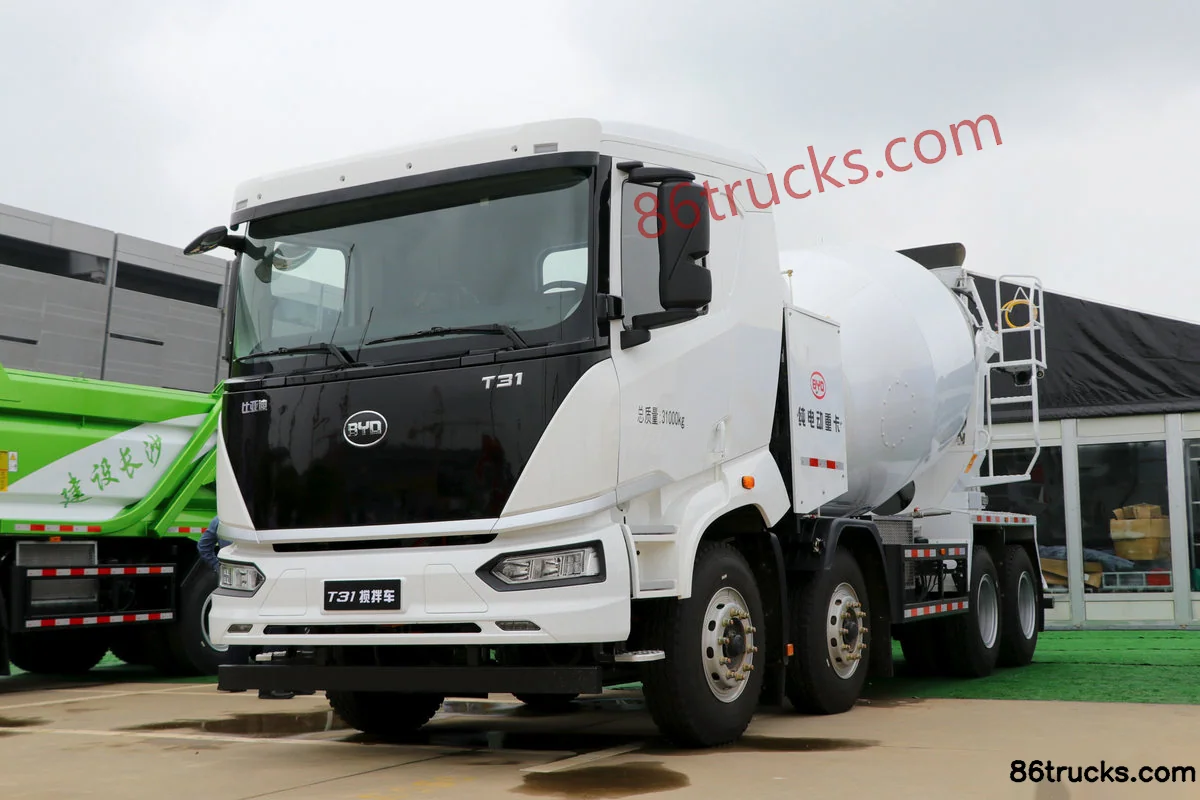

BYD T31 31T 8X4(12 wheels) 7m³ Concrete Mixer Truck (CIMC Jiangmen) exterior
View more photos (12)
Rated payload: 15.28ton
Drive 8X4 (12 wheels)
Curb Weight: 31ton
Wheelbase: 1850+3200+1350mm

Overview

The BYD T31 31T 8X4(12 wheels) 7m³ Concrete Mixer Truck (CIMC Jiangmen) is a concrete mixer truck featuring 15.28t payload, 31ton GVW, 8X4 (12 wheels) drive and BYDT31 cab.

8X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Cab dimensions: 10.19×2.55×3.95m
Drive type: 8X4
Truck Type: Concrete mixer truck
Vehicle origin: Shenzhen Pingshan New District
Front/rear track width: Front: 2055/2055mm; Rear: 1870/1870
Wheelbase: 1850+3200+1350mm
Curb Weight: 31ton
Rated payload: 15.28ton
Max. speed: 85km/h
Front/rear suspension: 1.615/2.175m
electric motor
Motor 1 Brand: BYD
Motor 1 Model: TZ365XSD
Motor Type: Permanent magnet synchronous motor
total rated power: 390kW
Body Parameters
Mixing drum capacity: 7m³
Vehicle certification code: BYD5310GJBEV1
Body Brand: CIMC Jiangmen
Chassis Specs
Chassis Series: T31
Chassis Model: BYD1310C2EVC1
Leaf spring count: 8/8/12
Cab parameters
Cab: BYDT31
Tire
Tire Size: 11.00R20,12R22.5
Number of tires: 12pcs

Photos

Exterior3

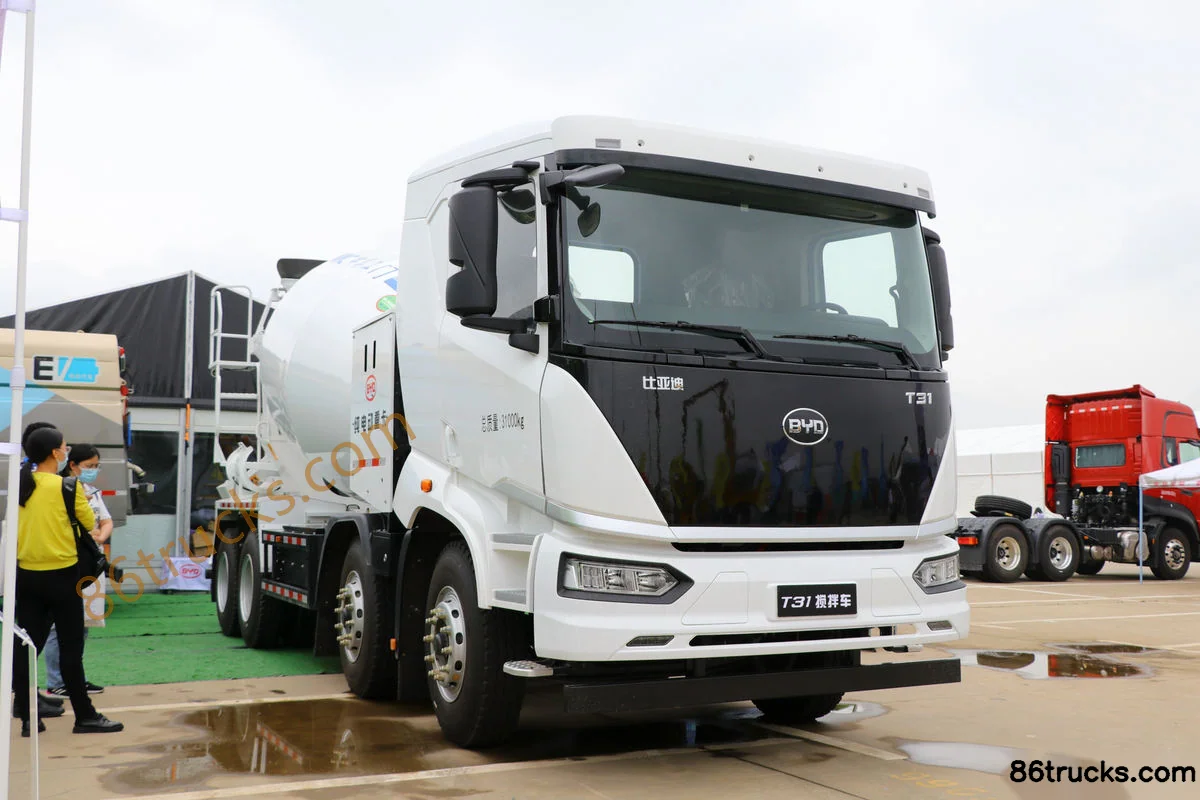

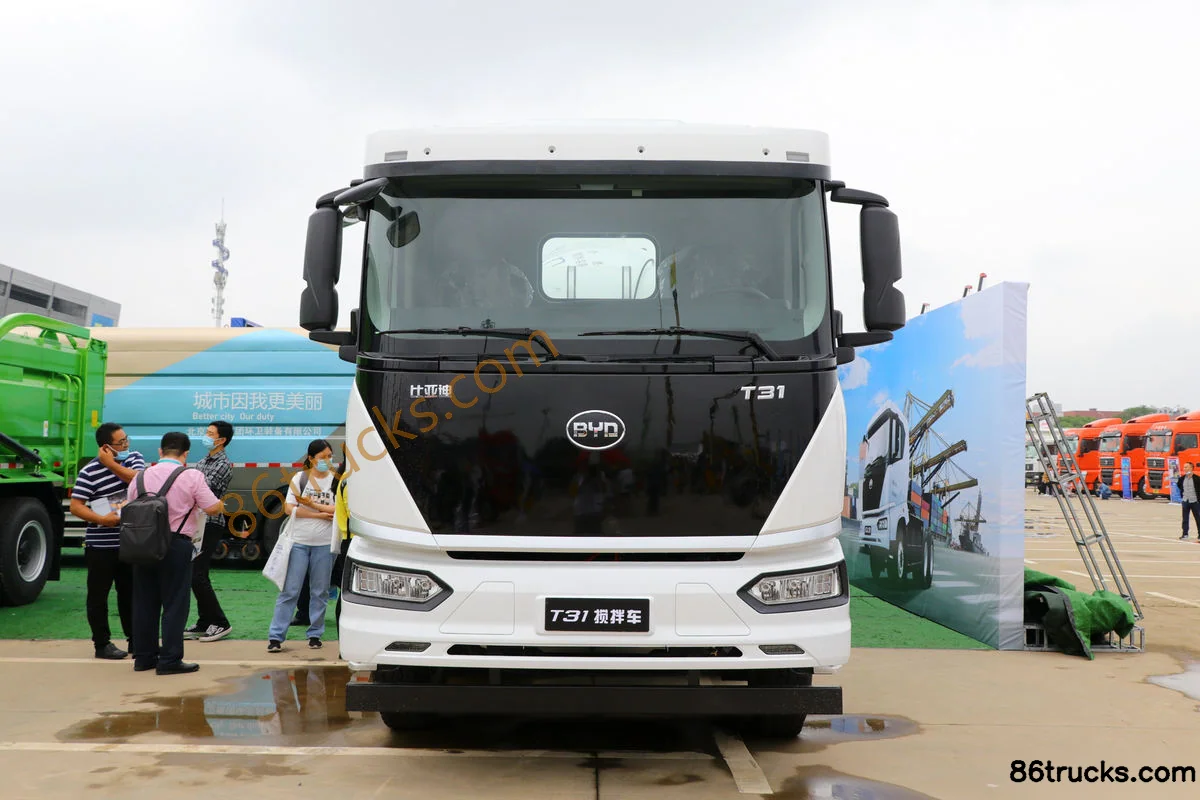

BYD T31 31T 8X4(12 wheels) 7m³ Concrete Mixer Truck (CIMC Jiangmen) Exterior (1) | 86Trucks BYD T31 31T 8X4(12 wheels) 7m³ Concrete Mixer Truck (CIMC Jiangmen) Exterior (2) | 86Trucks BYD T31 31T 8X4(12 wheels) 7m³ Concrete Mixer Truck (CIMC Jiangmen) Exterior (3) | 86Trucks

Cab3

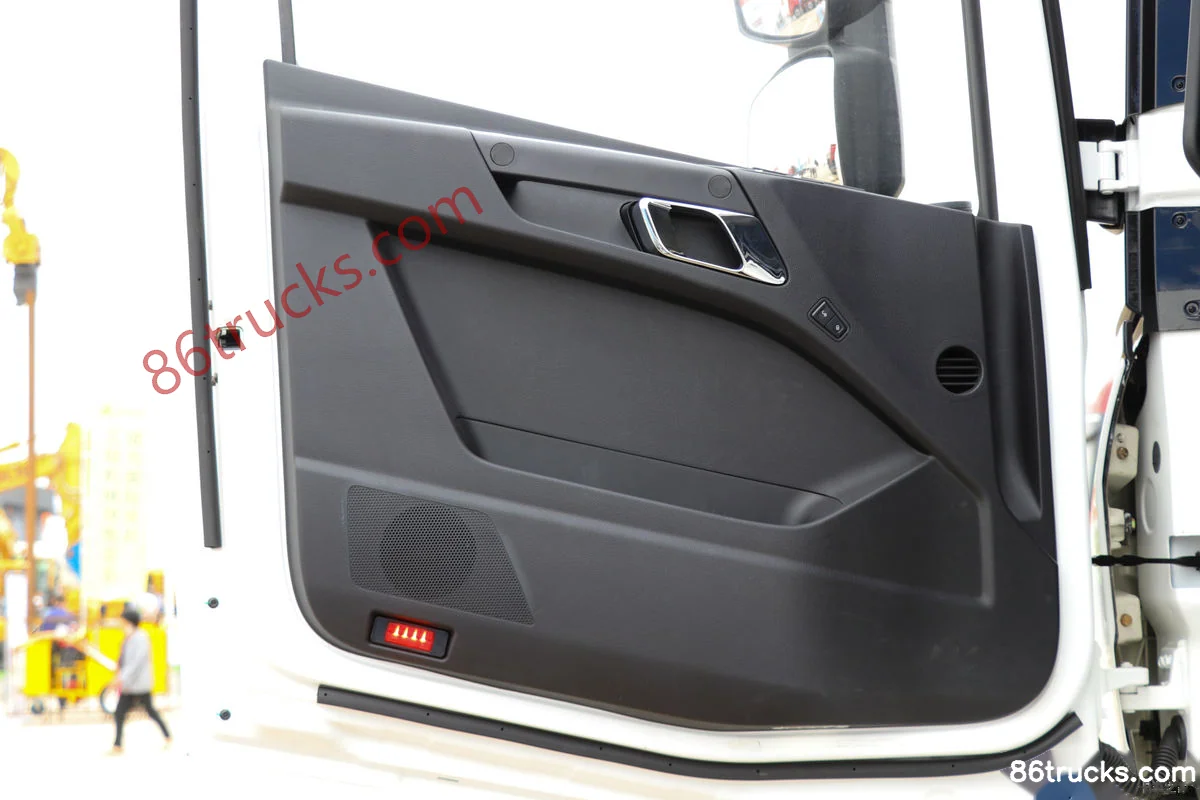

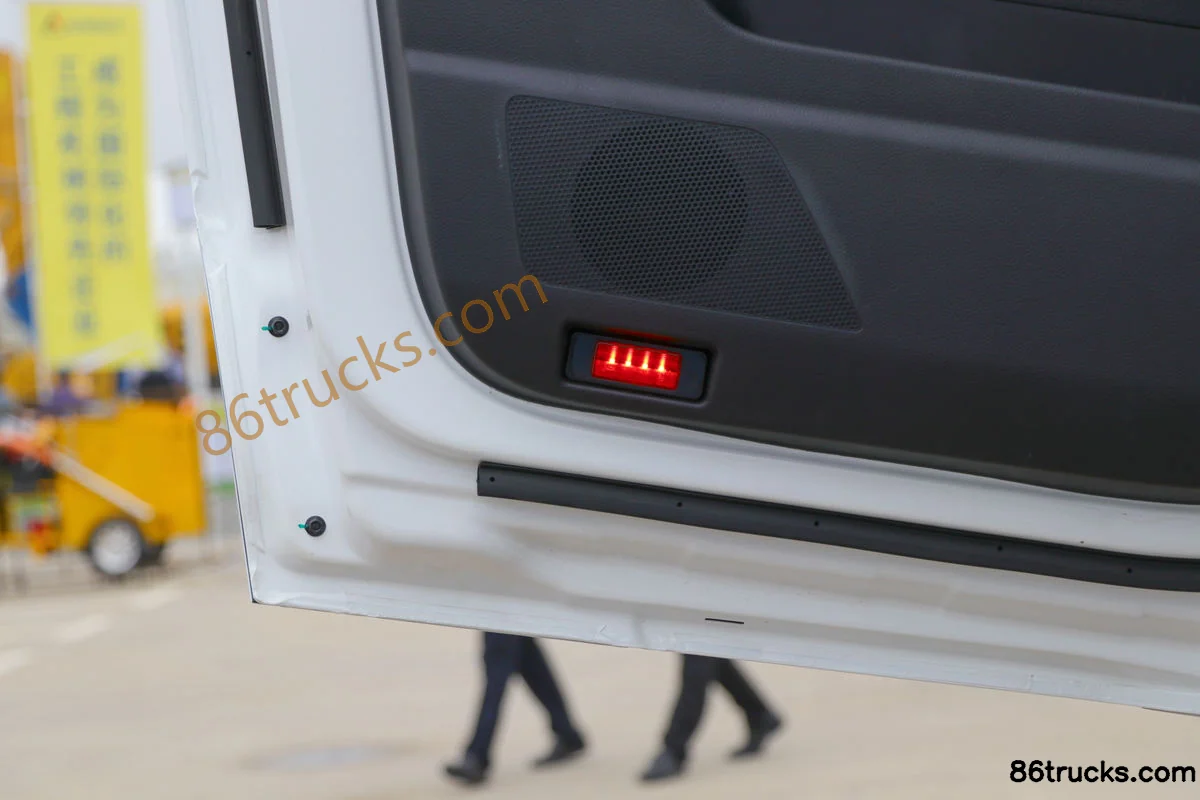

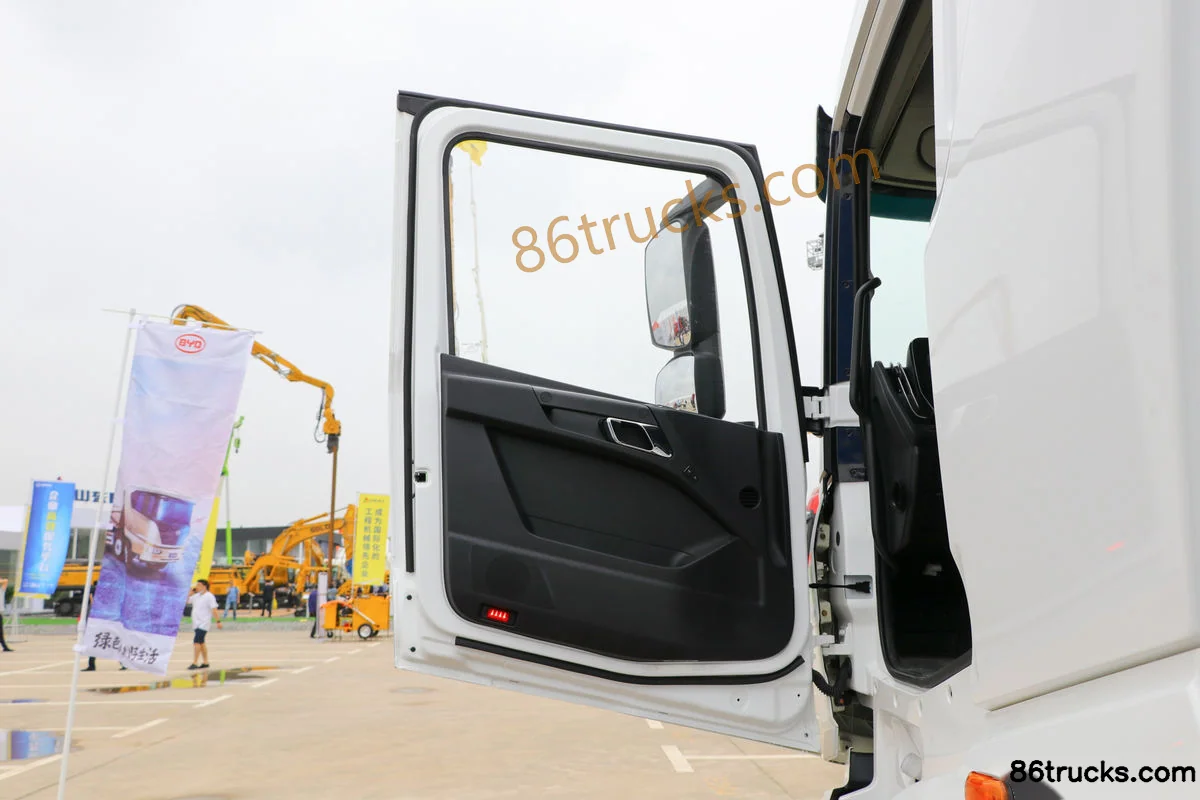

BYD T31 31T 8X4(12 wheels) 7m³ Concrete Mixer Truck (CIMC Jiangmen) Cab (1) | 86Trucks BYD T31 31T 8X4(12 wheels) 7m³ Concrete Mixer Truck (CIMC Jiangmen) Cab (2) | 86Trucks BYD T31 31T 8X4(12 wheels) 7m³ Concrete Mixer Truck (CIMC Jiangmen) Cab (3) | 86Trucks

Chassis3

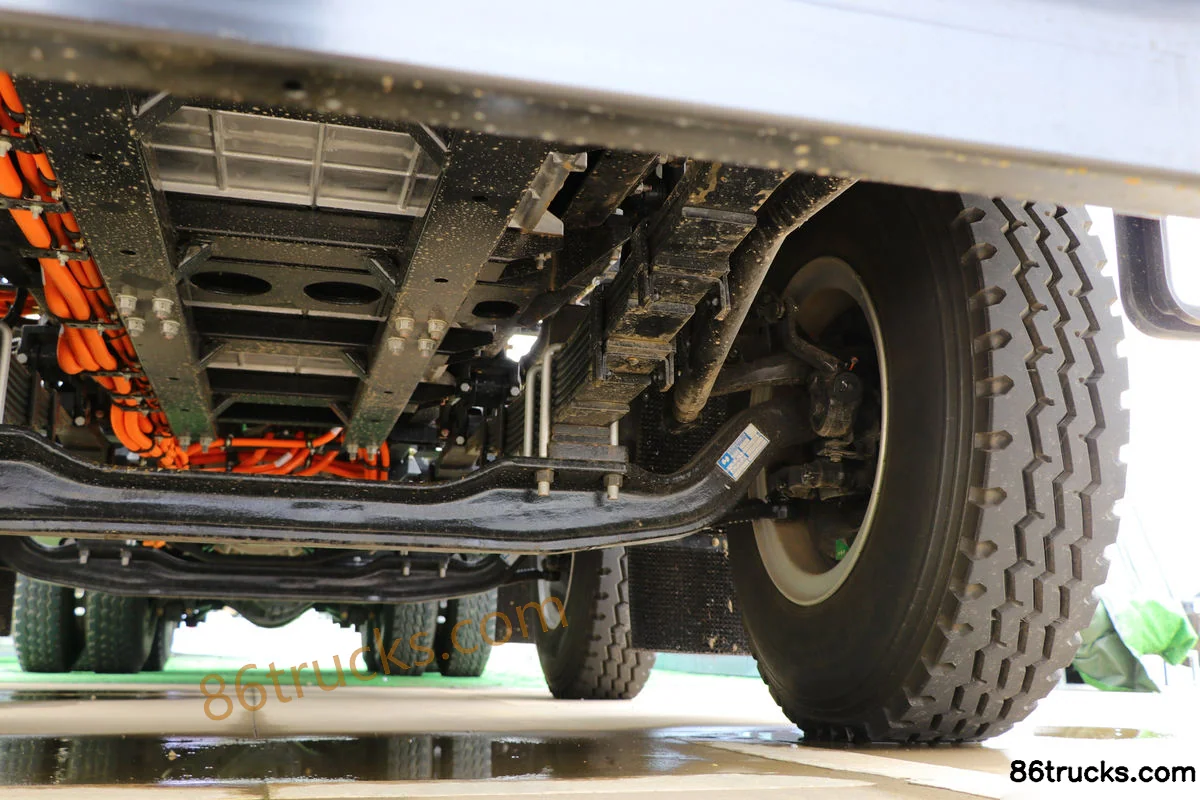

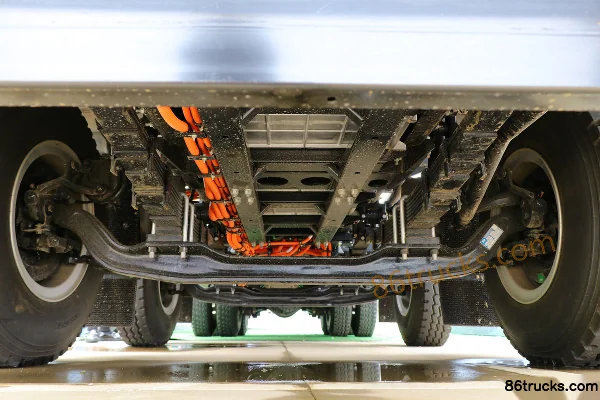

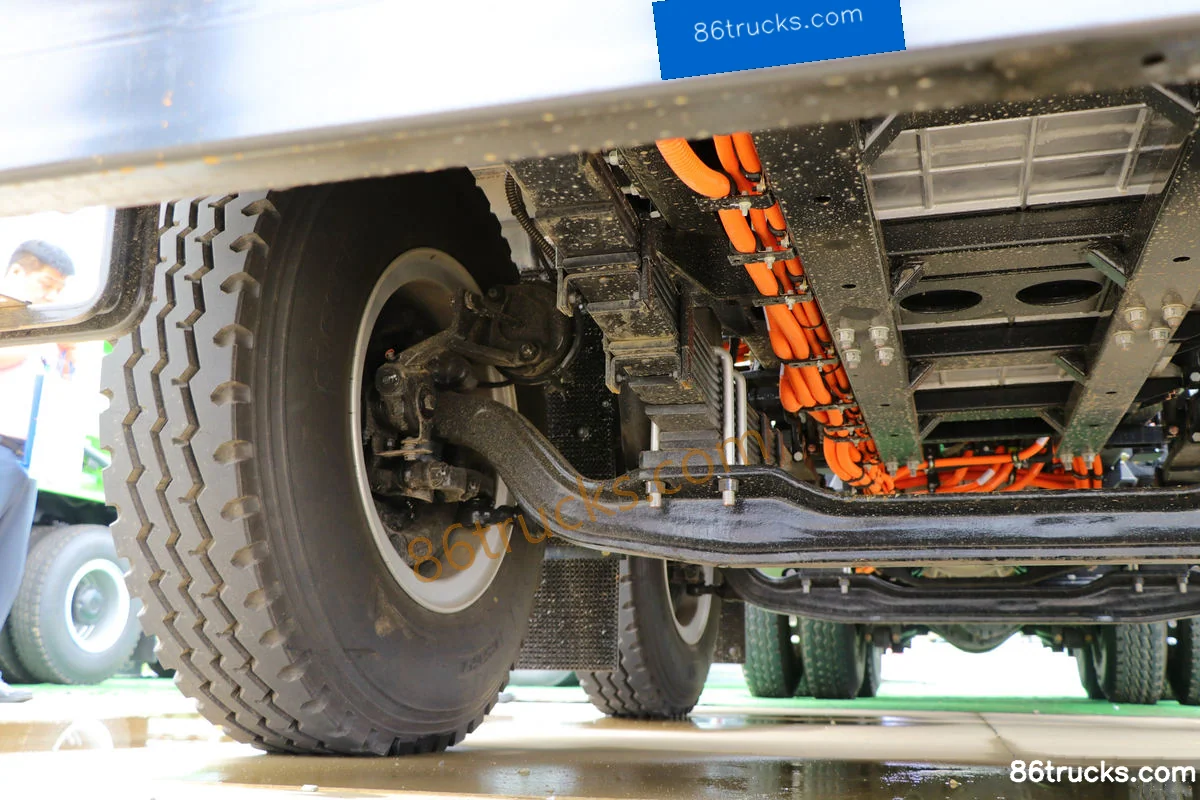

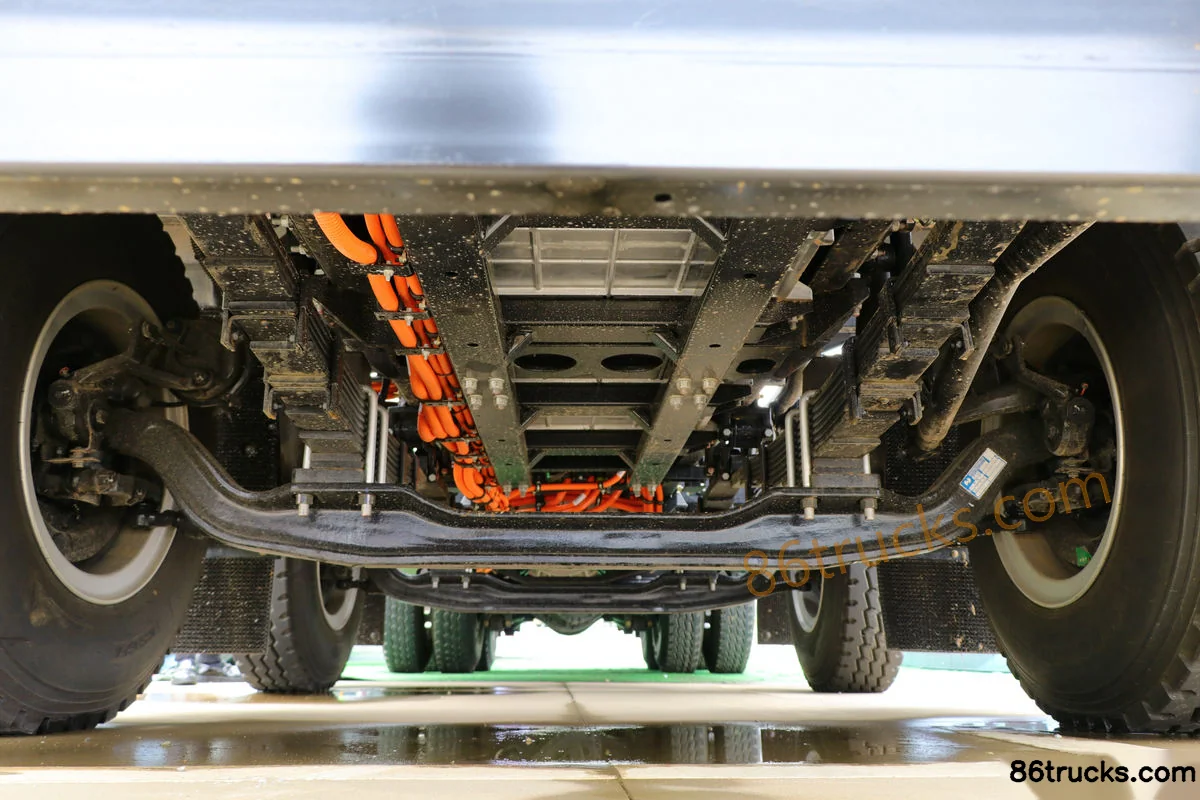

BYD T31 31T 8X4(12 wheels) 7m³ Concrete Mixer Truck (CIMC Jiangmen) Chassis (1) | 86Trucks BYD T31 31T 8X4(12 wheels) 7m³ Concrete Mixer Truck (CIMC Jiangmen) Chassis (2) | 86Trucks BYD T31 31T 8X4(12 wheels) 7m³ Concrete Mixer Truck (CIMC Jiangmen) Chassis (3) | 86Trucks

Body3

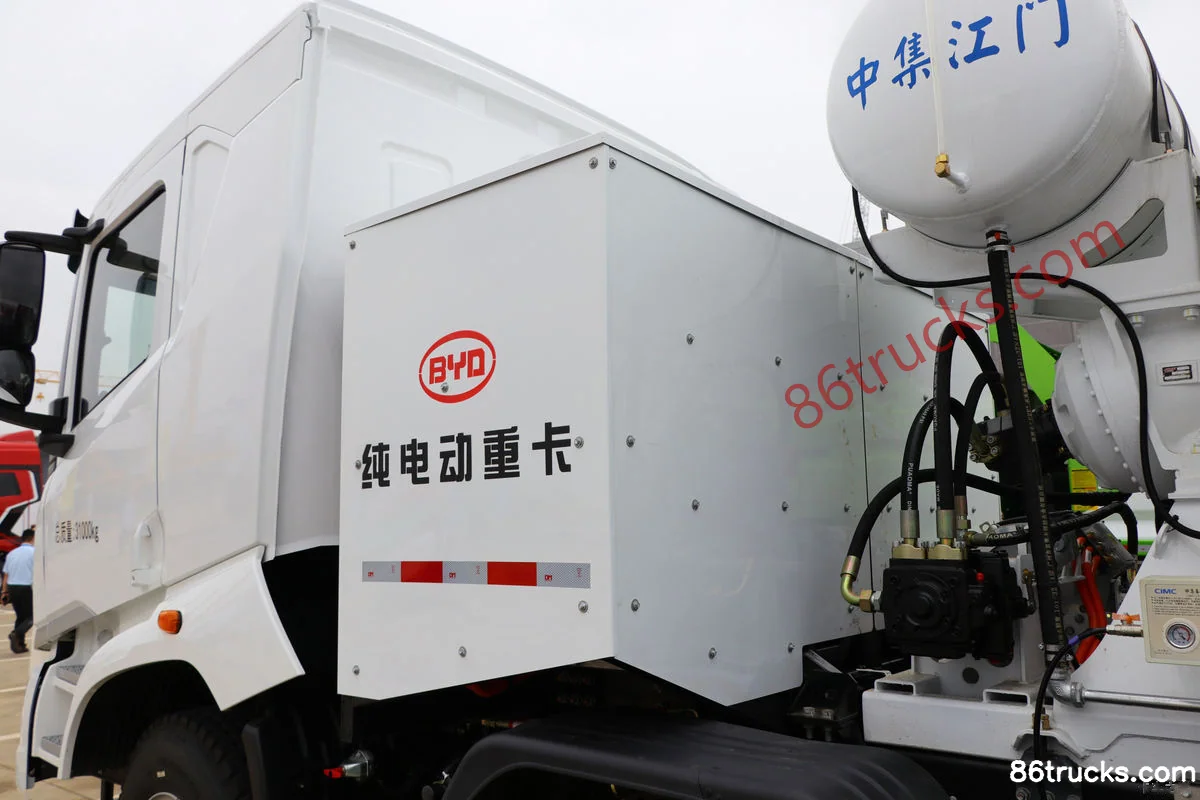

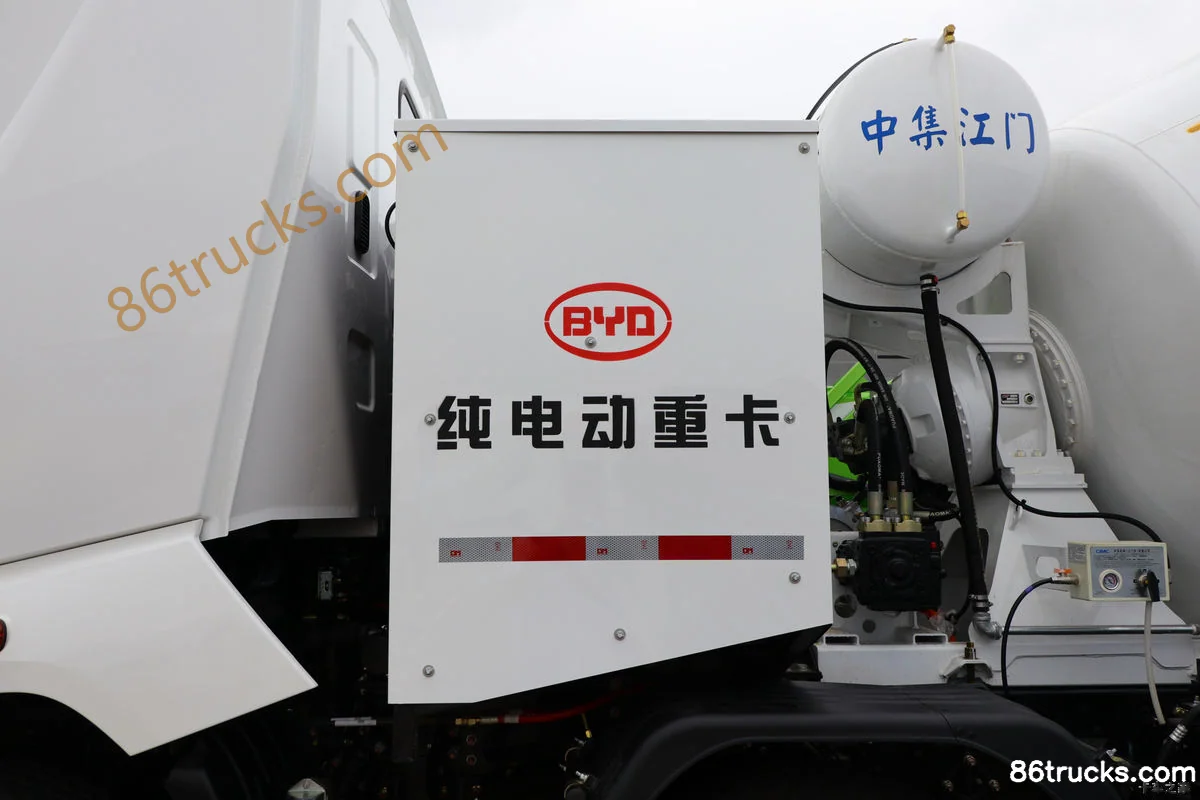

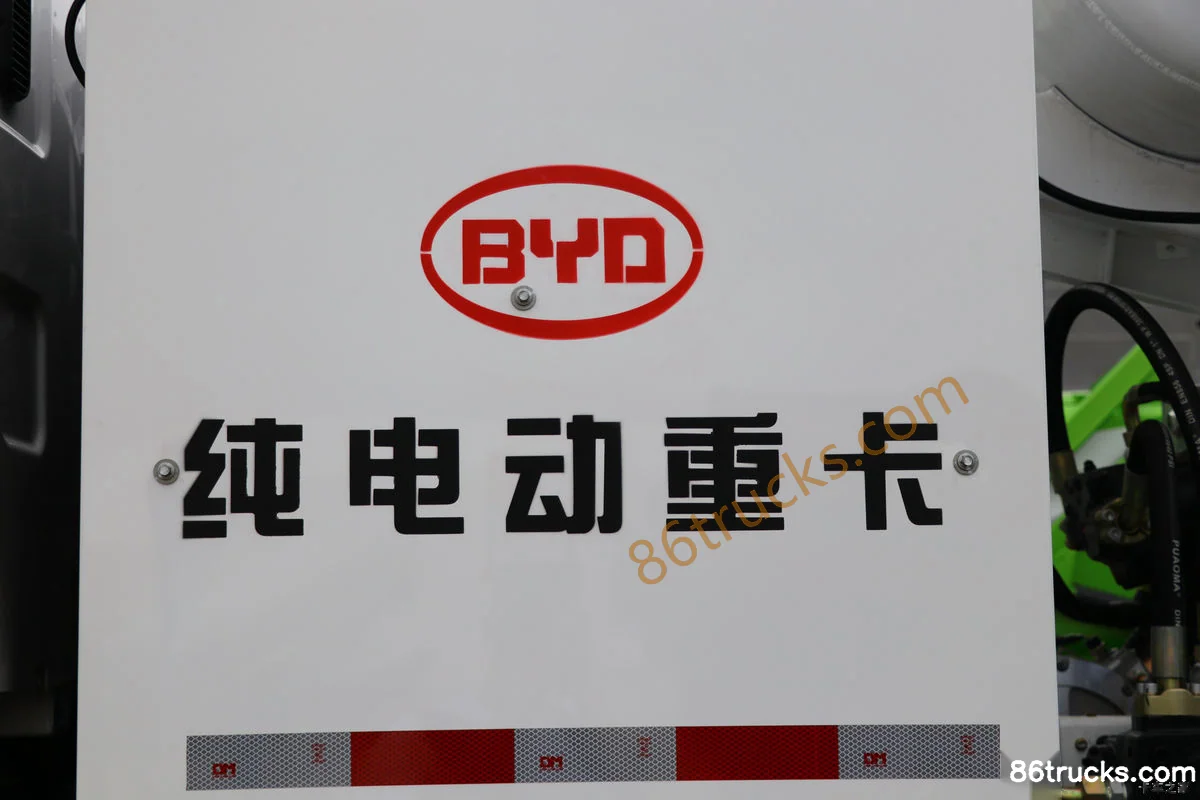

BYD T31 31T 8X4(12 wheels) 7m³ Concrete Mixer Truck (CIMC Jiangmen) Body (1) | 86Trucks BYD T31 31T 8X4(12 wheels) 7m³ Concrete Mixer Truck (CIMC Jiangmen) Body (2) | 86Trucks BYD T31 31T 8X4(12 wheels) 7m³ Concrete Mixer Truck (CIMC Jiangmen) Body (3) | 86Trucks

12 photos

FAQ

What are the key specs of BYD T31 31T 8X4(12 wheels) 7m³ Concrete Mixer Truck (CIMC Jiangmen)?

Key specs of BYD T31 31T 8X4(12 wheels) 7m³ Concrete Mixer Truck (CIMC Jiangmen): Drive: 8x4. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is BYD T31 31T 8X4(12 wheels) 7m³ Concrete Mixer Truck (CIMC Jiangmen) suited for?

BYD T31 31T 8X4(12 wheels) 7m³ Concrete Mixer Truck (CIMC Jiangmen) is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does BYD T31 31T 8X4(12 wheels) 7m³ Concrete Mixer Truck (CIMC Jiangmen) differ from other variants in the same series?

BYD T31 31T 8X4(12 wheels) 7m³ Concrete Mixer Truck (CIMC Jiangmen) belongs to BYD T31 heavy-duty truck (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for BYD T31 31T 8X4(12 wheels) 7m³ Concrete Mixer Truck (CIMC Jiangmen)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export BYD T31 31T 8X4(12 wheels) 7m³ Concrete Mixer Truck (CIMC Jiangmen)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
