Proton Auto Charging Edition 31T 8X4(12 wheels) 7.2m Electric Dump Truck 256kWh

Export reference
MSRP N/A
Rated payload:: 9.77ton
Wheelbase:: 1800+4575+1400mm
Cargo box length:: 7.2m
Model code (announced):: SX3317MF406XBEV1
Cab length:: 11m
GVWR:: 31ton
Drive 8X4 (12 wheels)
Battery Brand: Guangzhou Juwang
Motor 1 Brand: Xi'an Zhide
Curb Weight: 21.1ton

Overview

The Proton Auto Charging Edition 31T 8X4(12 wheels) 7.2m Electric Dump Truck 256kWh is a Heavy truck featuring Guangzhou Juwang battery/range, Xi'an Zhide motor, 8X4 (12 wheels) drive and 9.77t payload.

8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SX3317MF406XBEV1
Drive type: 8X4
Wheelbase: 1800+4575+1400mm
Cab length: 11m
Cab width: 2.55m
Cab height: 3.6m
Curb Weight: 21.1ton
Rated payload: 9.77ton
GVWR: 31ton
Max. speed: 89km/h
Origin: Xi'an, Shaanxi
tonnage class: Heavy truck
Energy Type: Electric
electric motor
Motor 1 Brand: Xi'an Zhide
Motor 1 Model: TZ380XS002
Motor Type: Permanent magnet synchronous motor
total rated power: 250kW
Peak power: 360kW
Battery/Charging

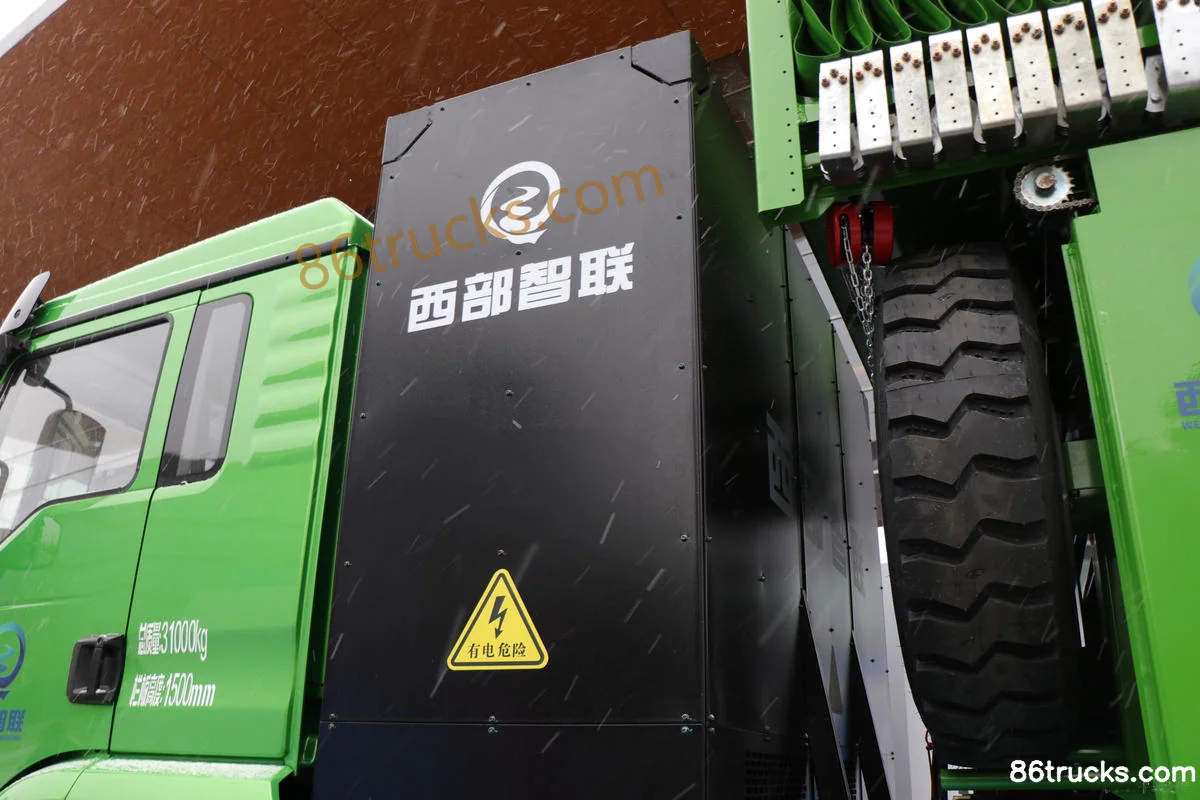

Battery Brand: Guangzhou Juwang
Battery type: NMC lithium battery pack
Battery capacity: 256kWh
Transmission Parameters
Number of gears: 4Gear
shift type: AMT manual/auto
Transmission Model: 4.0E+280
Cargo box parameters
Cargo box length: 7.2m
Cargo box width: 2.3m
Cargo box height: 1.5m
Cab parameters
Cab: E3-M Medium Long Flat Top
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
rear axle description: 16T dual-stage
Tire
Tire Size: 12.00R20 18PR
Number of tires: 12pcs
Control configuration
ABS:

Photos

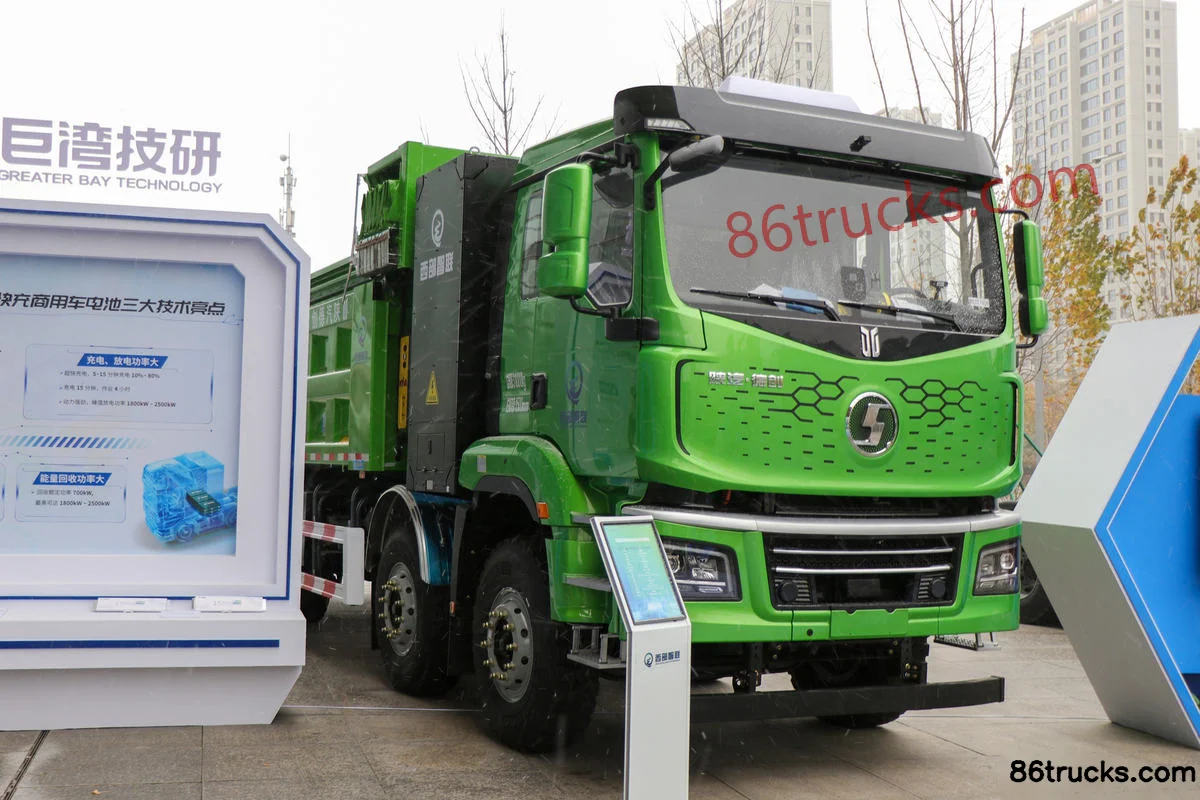

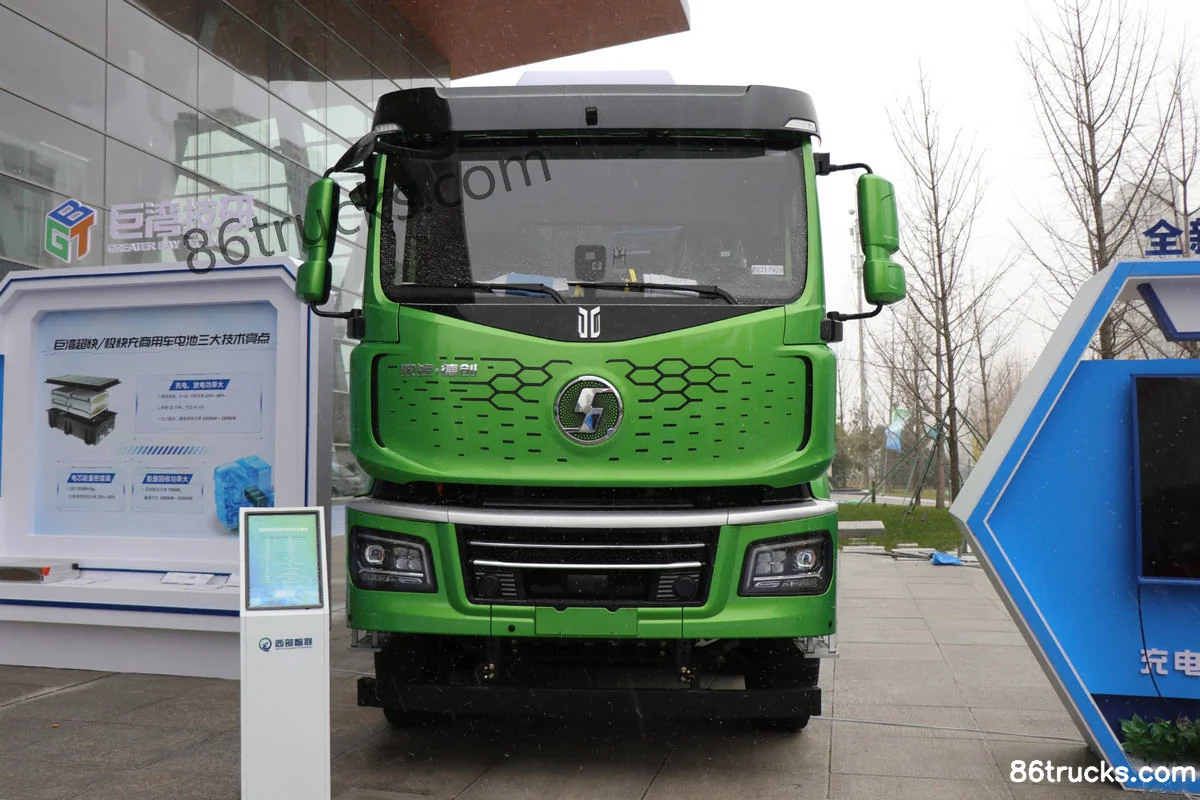

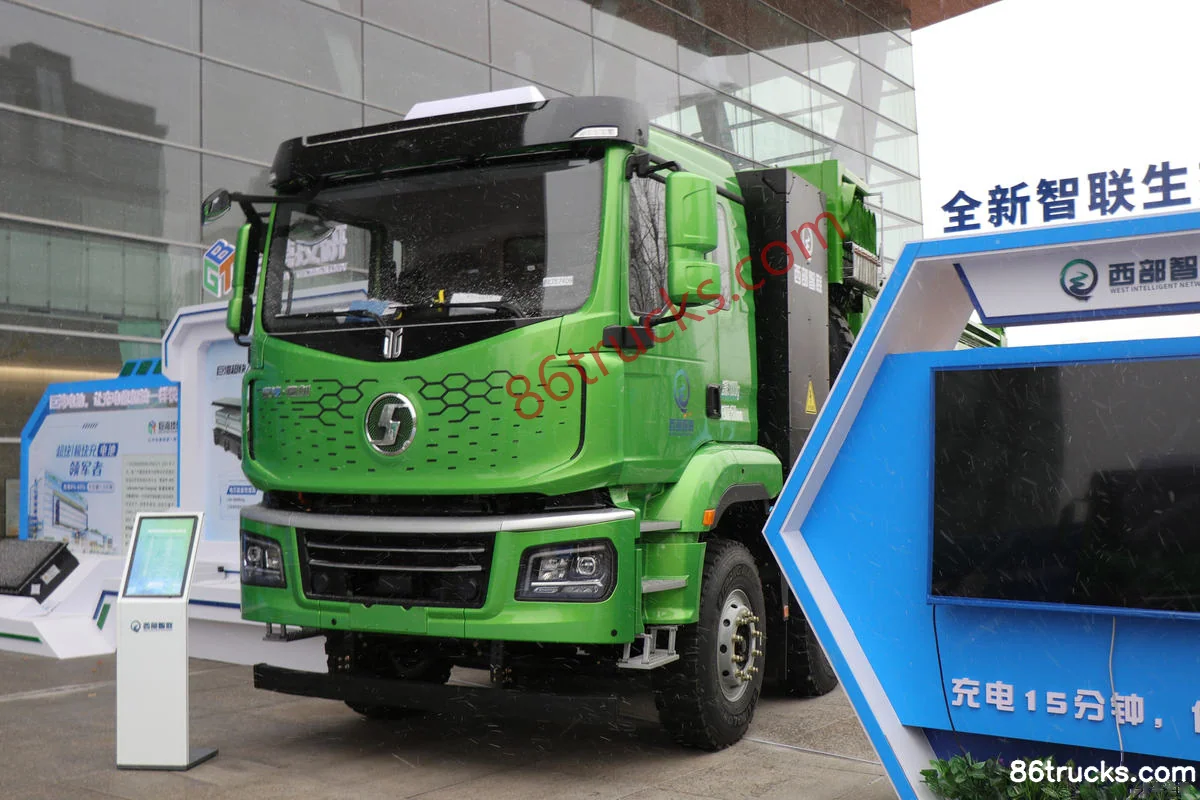

Exterior3

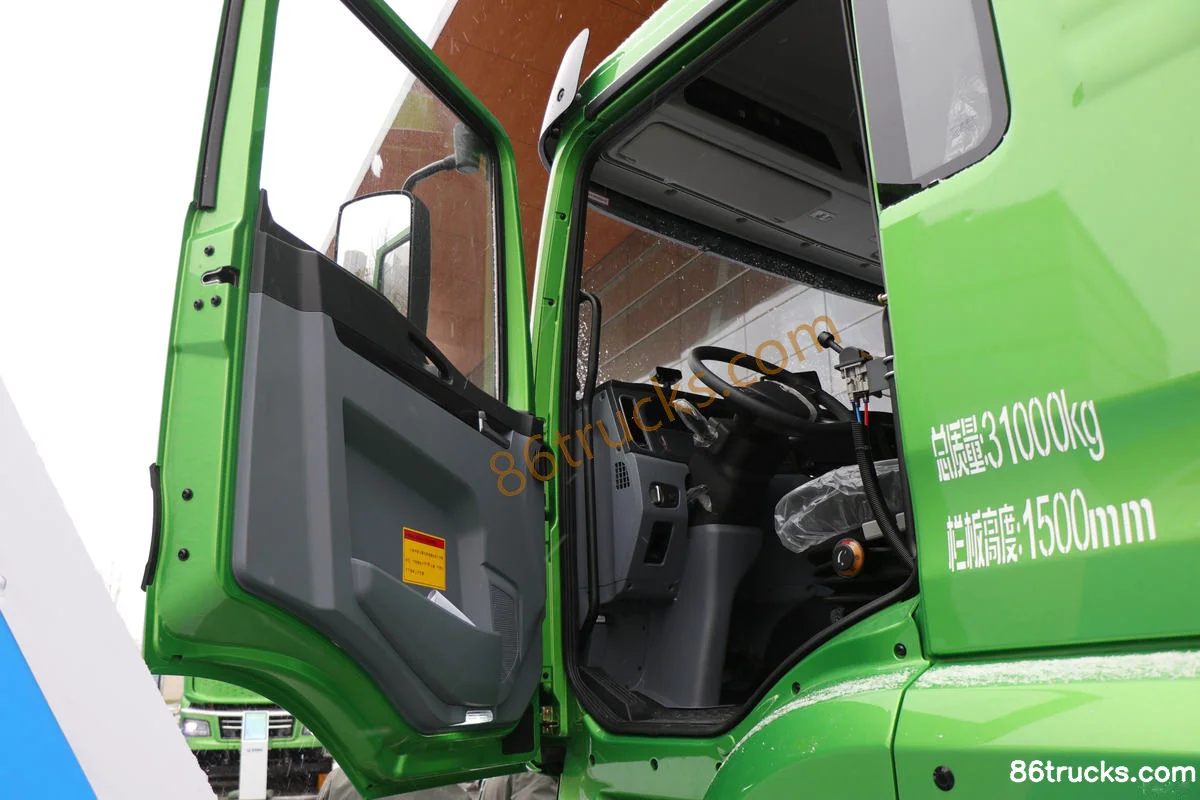

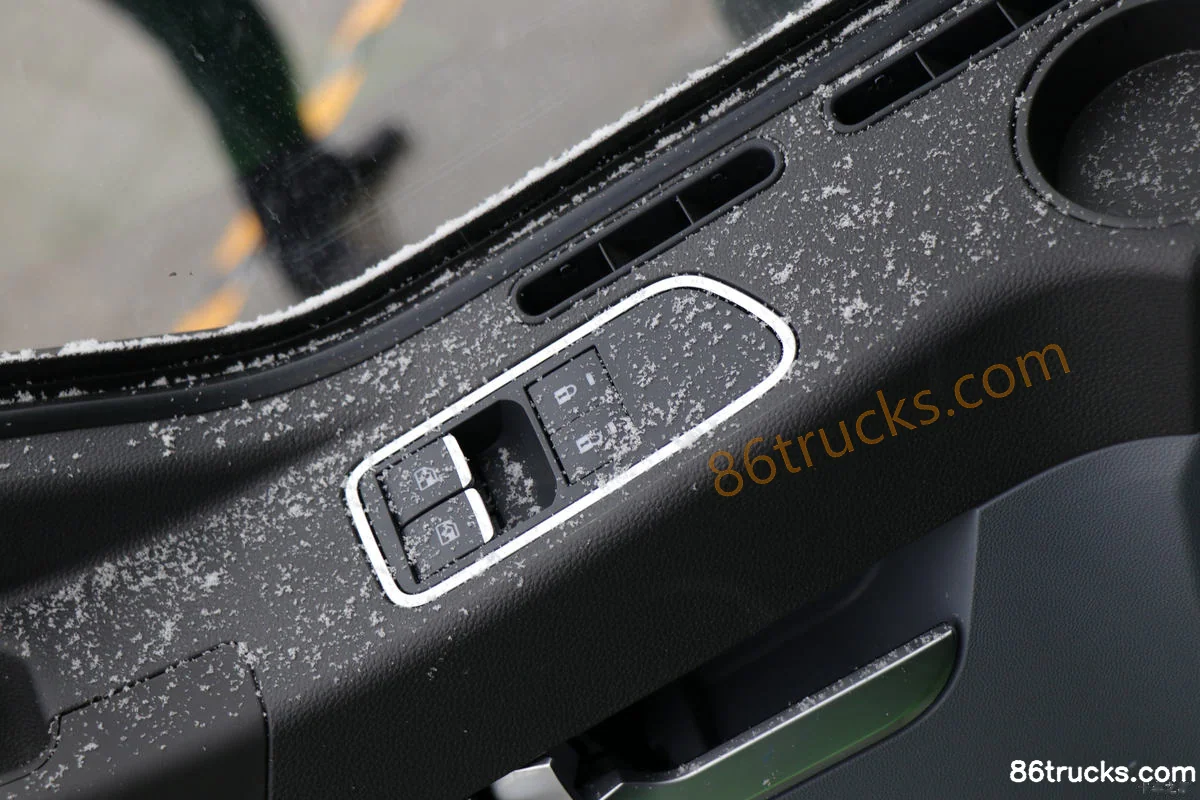

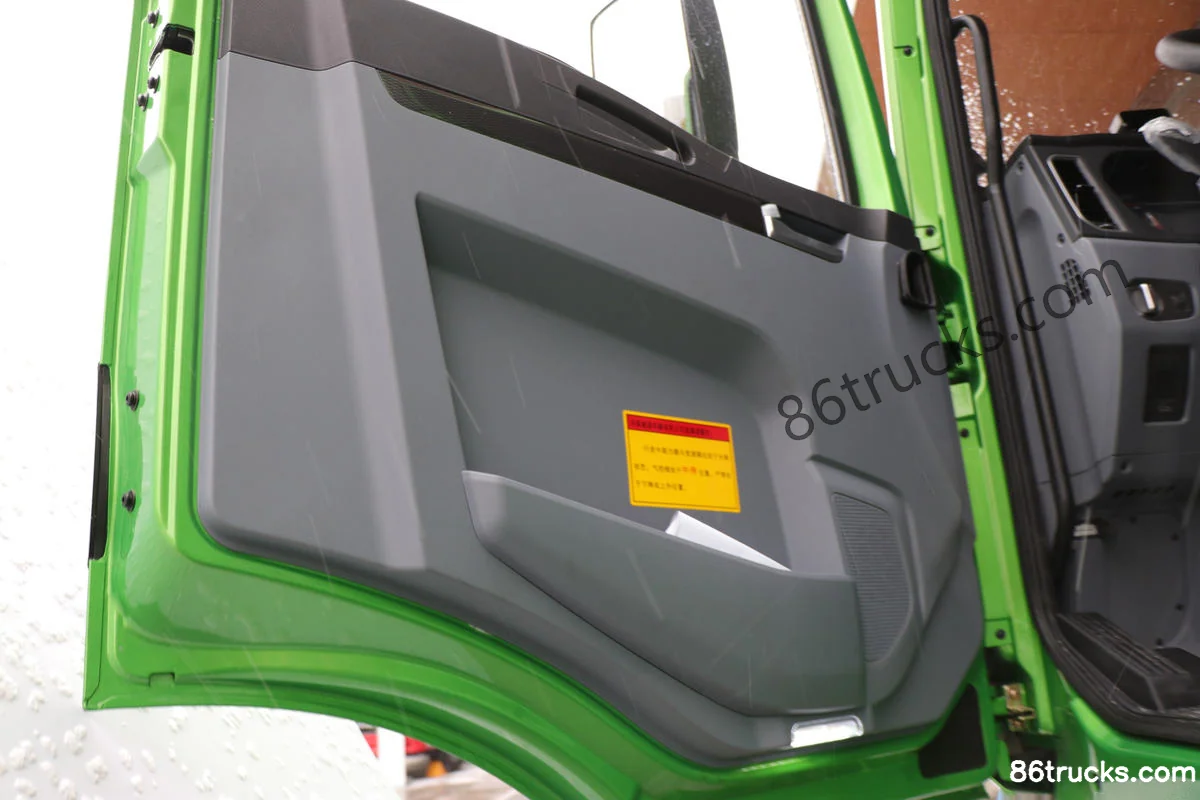

Cab3

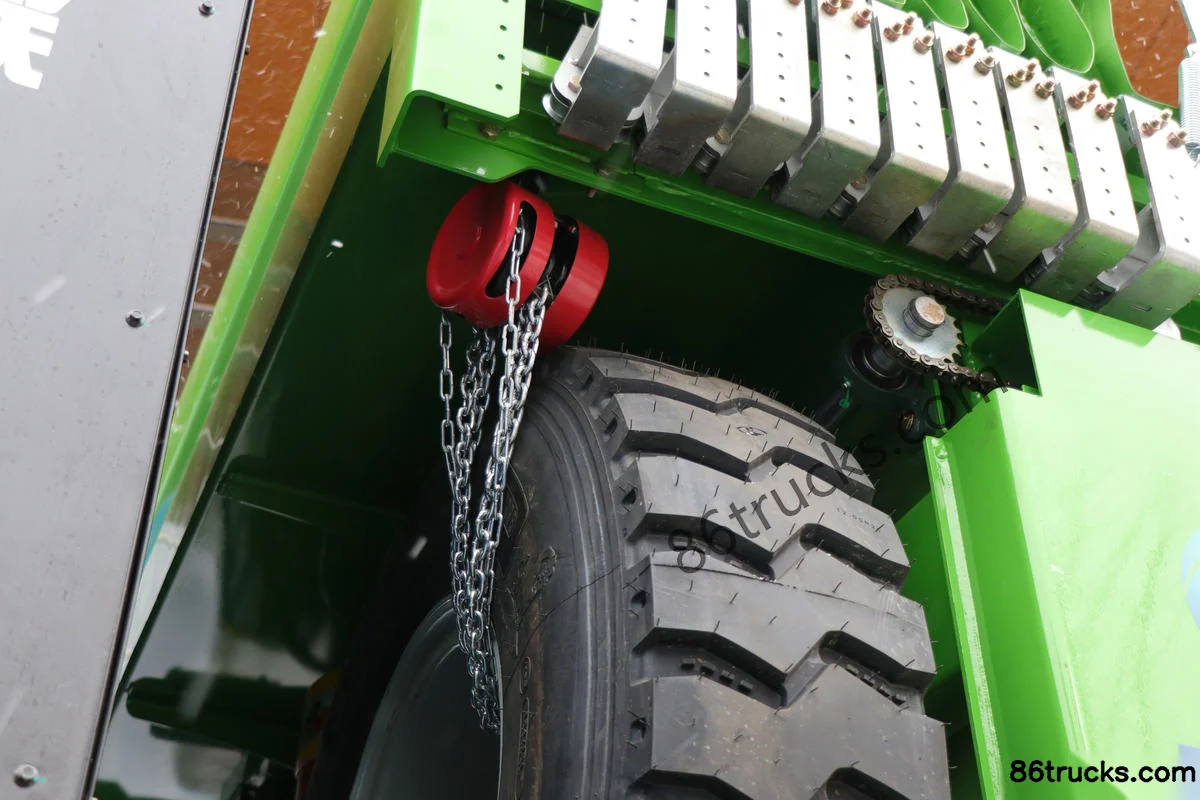

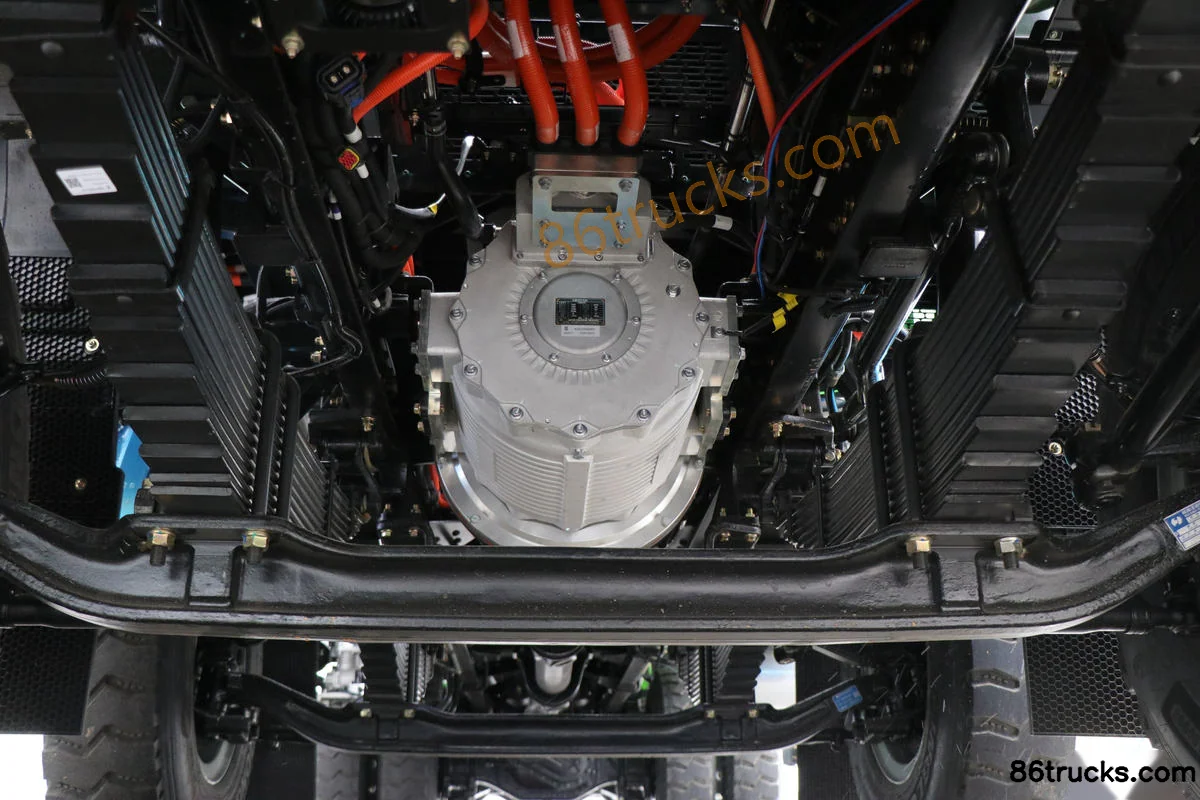

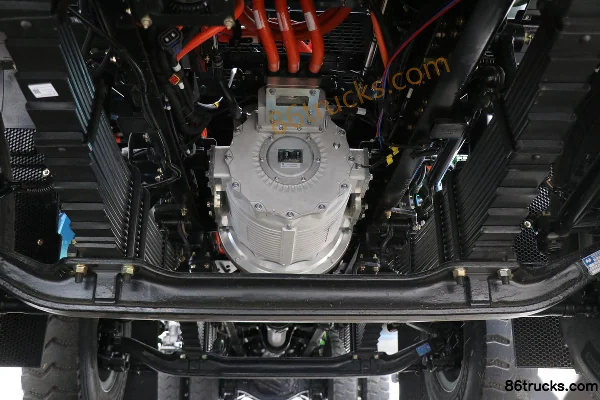

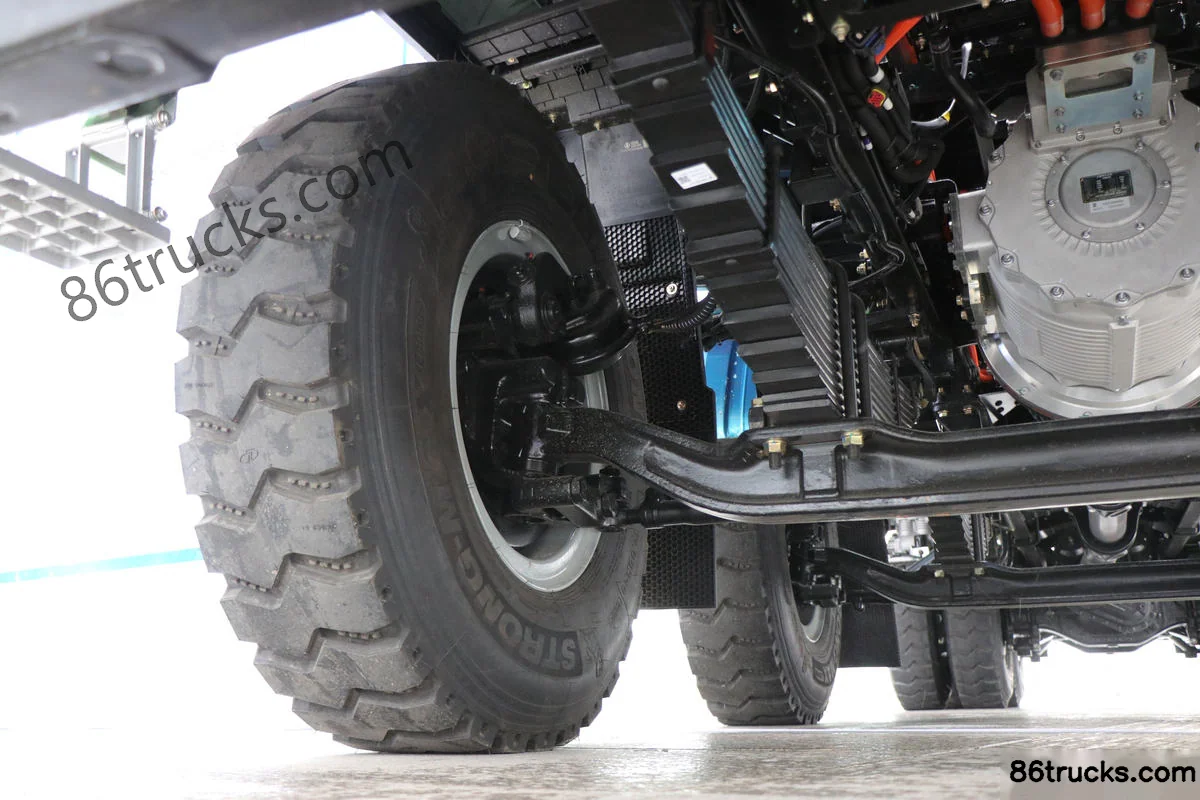

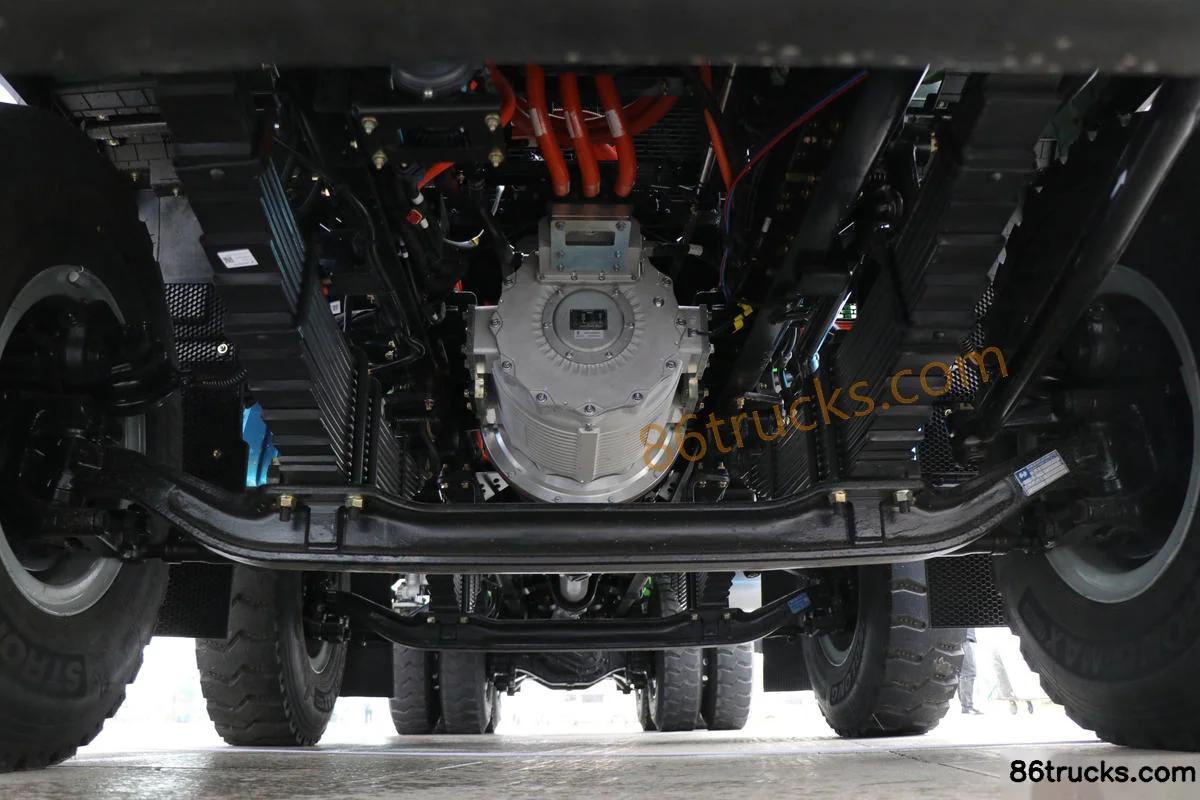

Chassis3

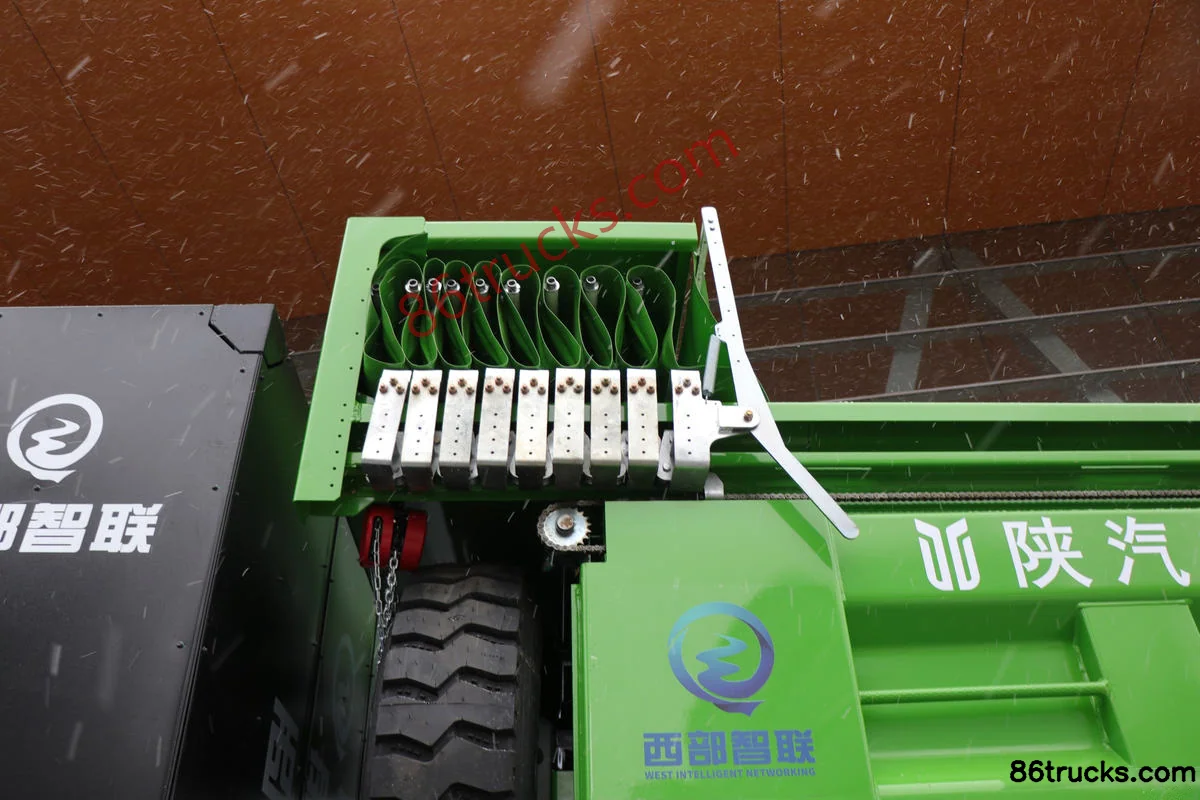

Body3

12 photos

FAQ

What are the key specs of Proton Auto Charging Edition 31T 8X4(12 wheels) 7.2m Electric Dump Truck 256kWh?

Key specs of Proton Auto Charging Edition 31T 8X4(12 wheels) 7.2m Electric Dump Truck 256kWh: Drive: 8x4. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Proton Auto Charging Edition 31T 8X4(12 wheels) 7.2m Electric Dump Truck 256kWh suited for?

Proton Auto Charging Edition 31T 8X4(12 wheels) 7.2m Electric Dump Truck 256kWh is a electric dump truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Proton Auto Charging Edition 31T 8X4(12 wheels) 7.2m Electric Dump Truck 256kWh differ from other variants in the same series?

Proton Auto Charging Edition 31T 8X4(12 wheels) 7.2m Electric Dump Truck 256kWh belongs to Dechuang Battery-Electric Truck (electric dump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Proton Auto Charging Edition 31T 8X4(12 wheels) 7.2m Electric Dump Truck 256kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Proton Auto Charging Edition 31T 8X4(12 wheels) 7.2m Electric Dump Truck 256kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
