FAW Jiefang Hu 6G H5 2.5L Diesel 170hp 4X2(6 wheels) Fast Gear 8-Speed 4.16m Single Row Stake Truck

Export reference
From $15,694
MSRP ¥11.3M CNY
Horsepower: 170
Emission: China VI
Fuel: Diesel
Engine: Yunnei Power2.5L
Transmission: Fast Gear
Curb Weight:: 2.72ton
seating capacity: 3Personnel
Rated payload: 1.58ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The FAW Jiefang Hu 6G H5 2.5L Diesel 170hp 4X2(6 wheels) Fast Gear 8-Speed 4.16m Single Row Stake Truck is a Light Truck featuring 4.16m cargo length, Stake type cargo body, 3Personnel volume and 1.58t payload. On the powertrain side, it comes with a Yunnei Power2.5L engine, 170 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 170 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA5047CCYP40K50L2E6A84
Type: stake truck
Drive type: 4X2
Wheelbase: 3300mm
Box length class: 4.2m
engine: Yunnei PowerYN25PLUS170A
transmission: Fast Gear 8-speed
Rear Axle Ratio: 4.333
Cab length: 5.995m
Cab width: 2.2m
Cab height: 3.32m
Front track width: 1704mm
rear track: 1740mm
Curb Weight: 2.72ton
Rated payload: 1.58ton
GVWR: 4.495ton
Max. speed: 105km/h
Origin: Qingdao, Shandong
tonnage class: Light Truck
Approach angle: 13°
departure angle: 14°
Remarks: Optional ratio 4.875.
Front/rear suspension: 1.115/1.58m
Version: H5
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: YN25PLUS170A
Engine info: Yunnei Power2.5L
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.499L
Emission standard: China VI
Max output power: 125kW
Max hp: 170Horsepower
Max torque: 450N·m
Transmission Parameters
Transmission Model: 8-speed
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 4.16m
Cargo box width: 2.1m
Cab parameters
Cab width: 2010mm
seating capacity: 3Personnel
Seat rows: Single Row
Driver seat type: air suspension seat
Chassis Specs
Front axle allowable load: 1950kg
rear axle allowable load: 2545kg
Axle ratio: 4.333
Leaf spring count: 3/8+7
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Electric Heated Rearview Mirror:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

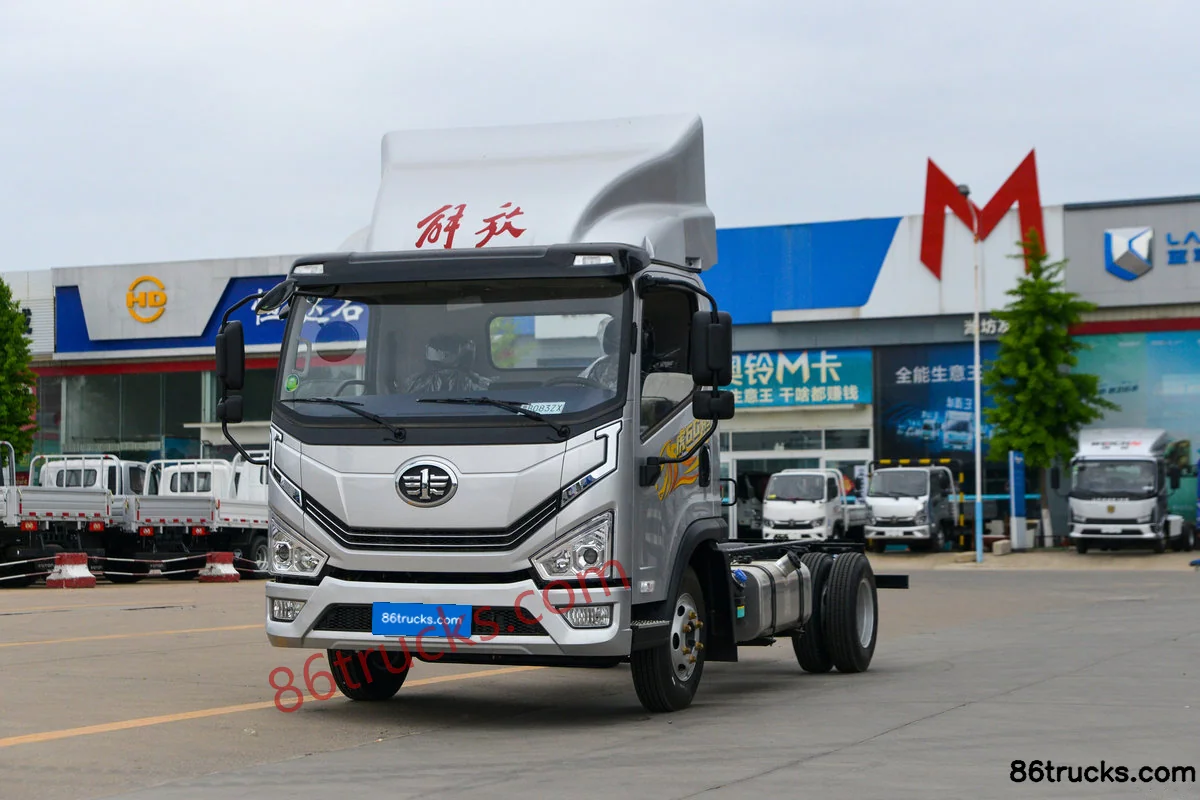

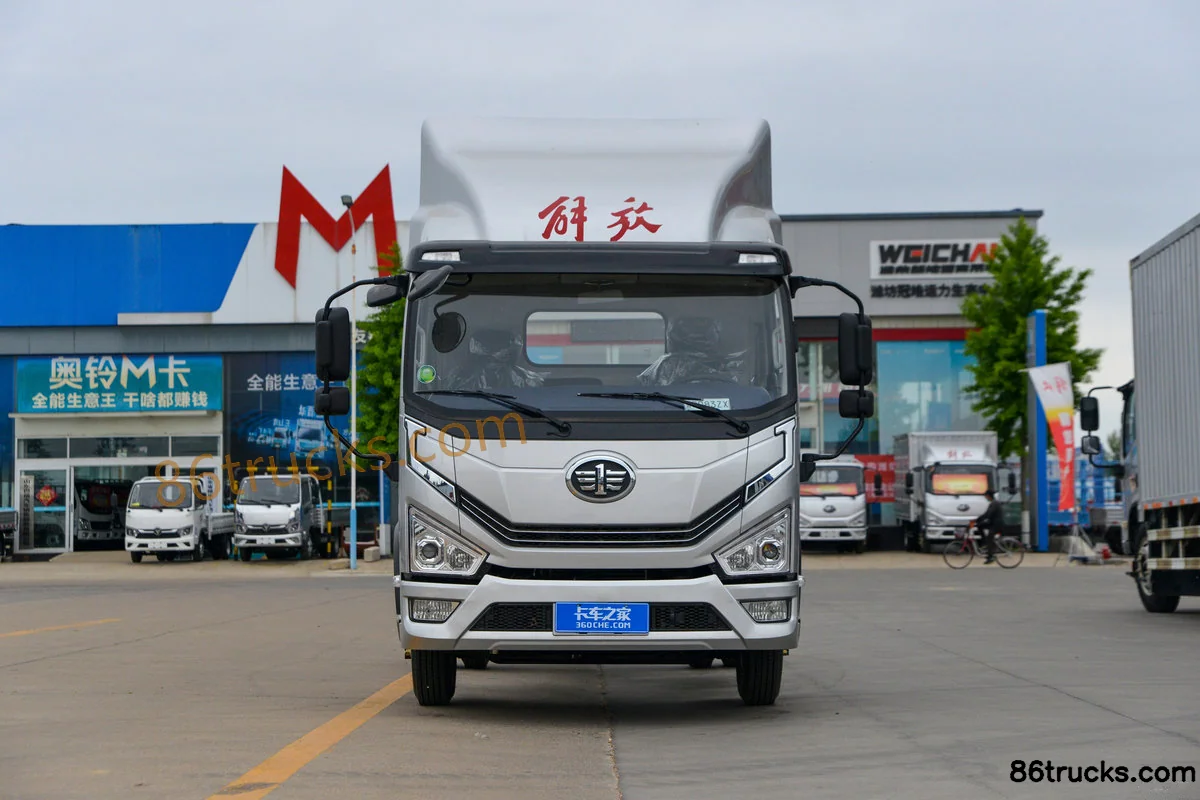

Exterior3

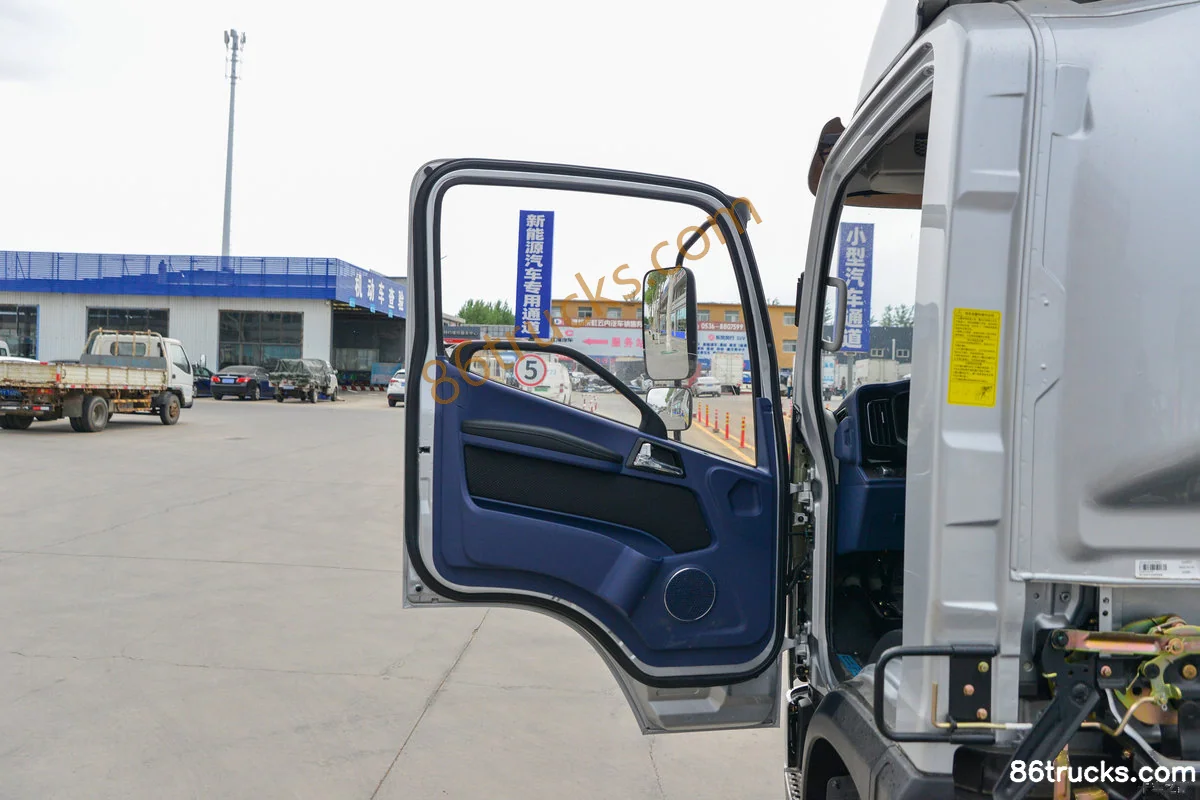

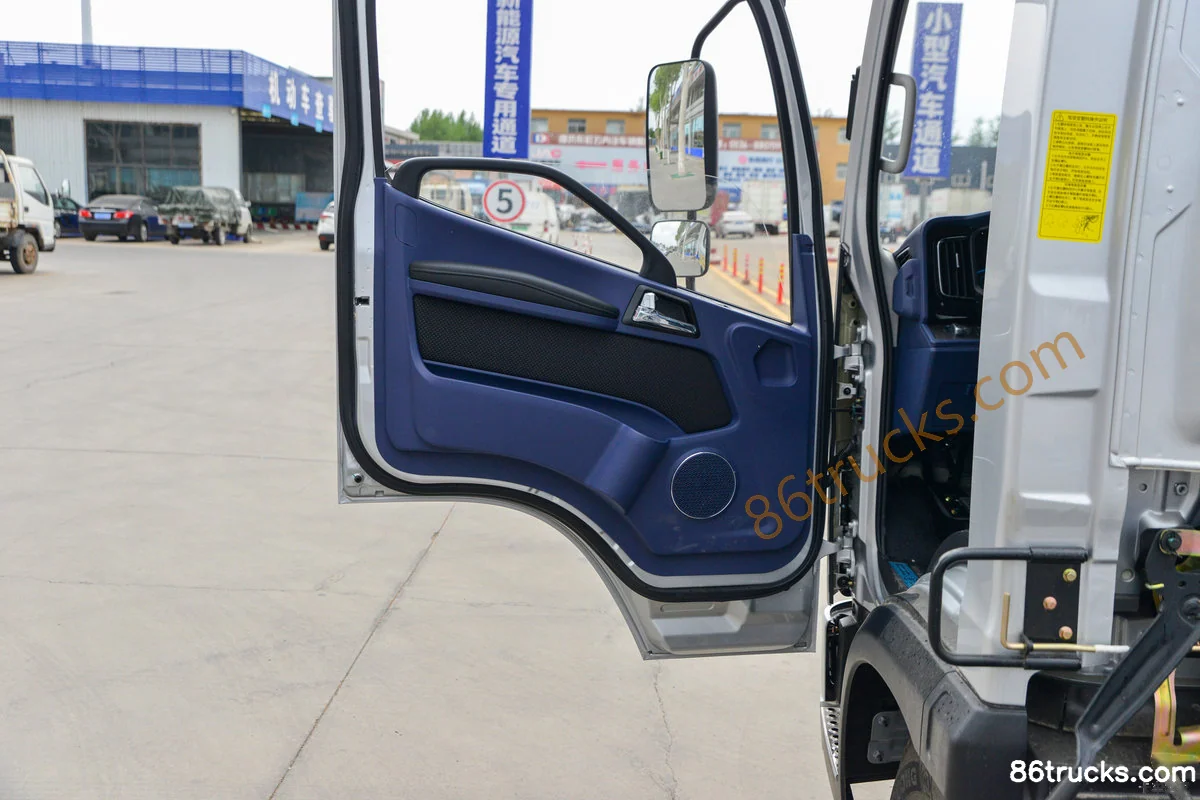

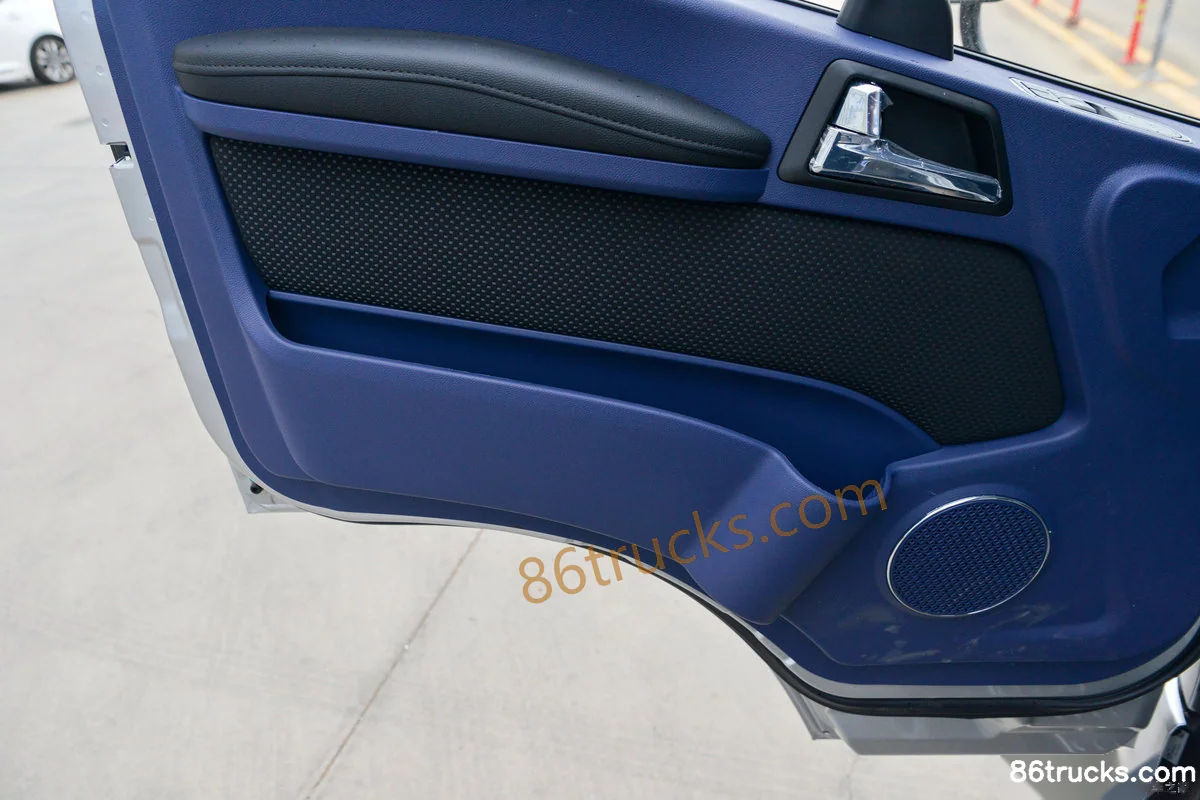

Cab3

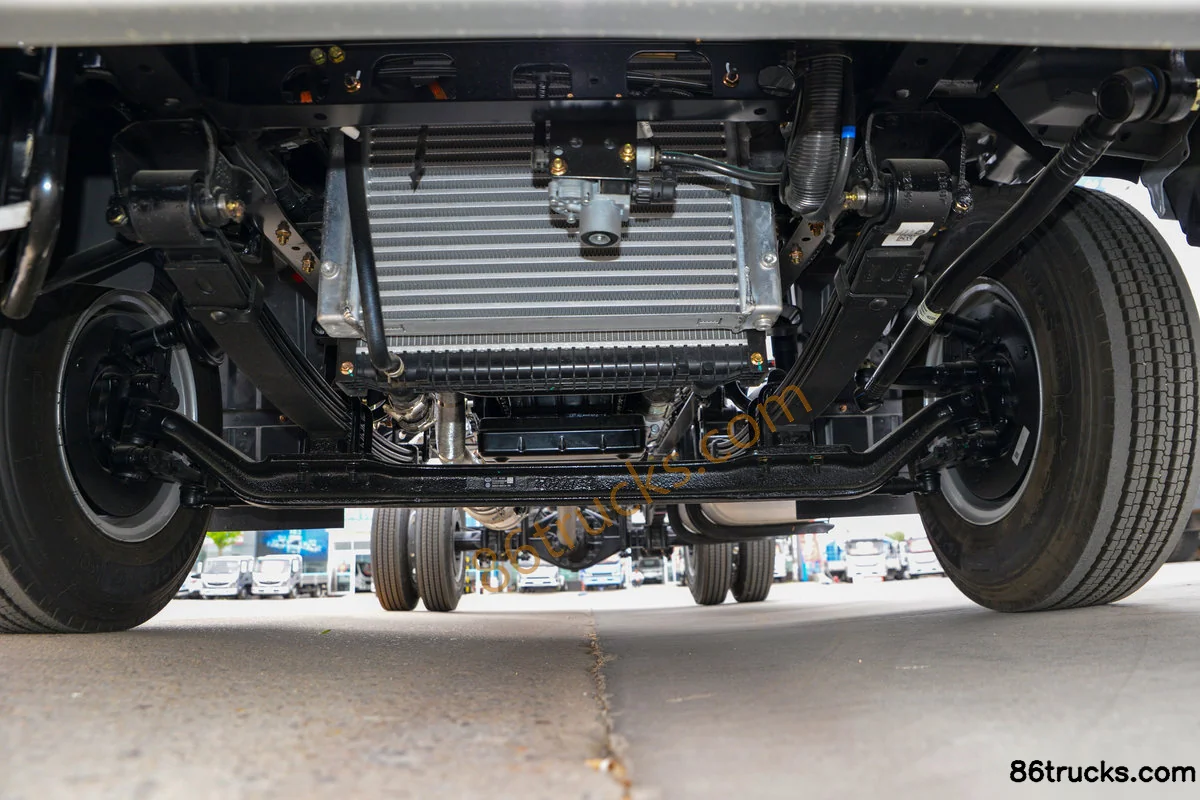

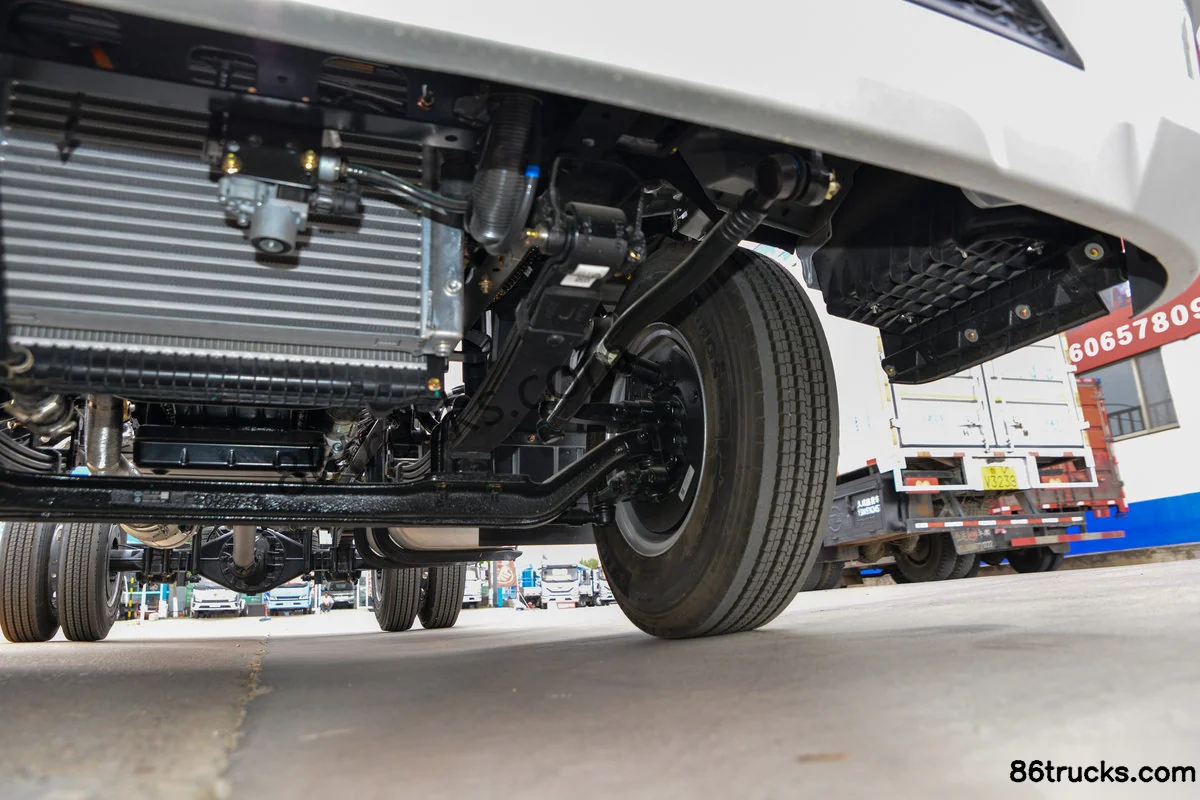

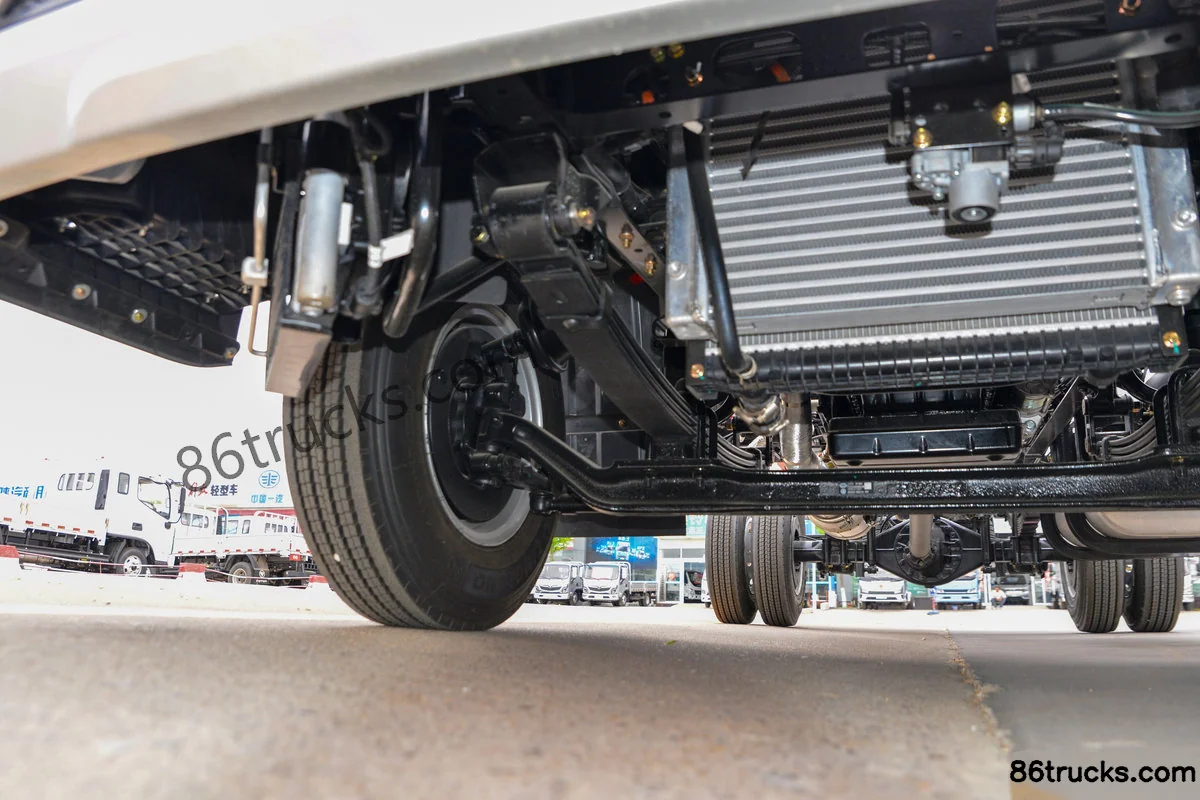

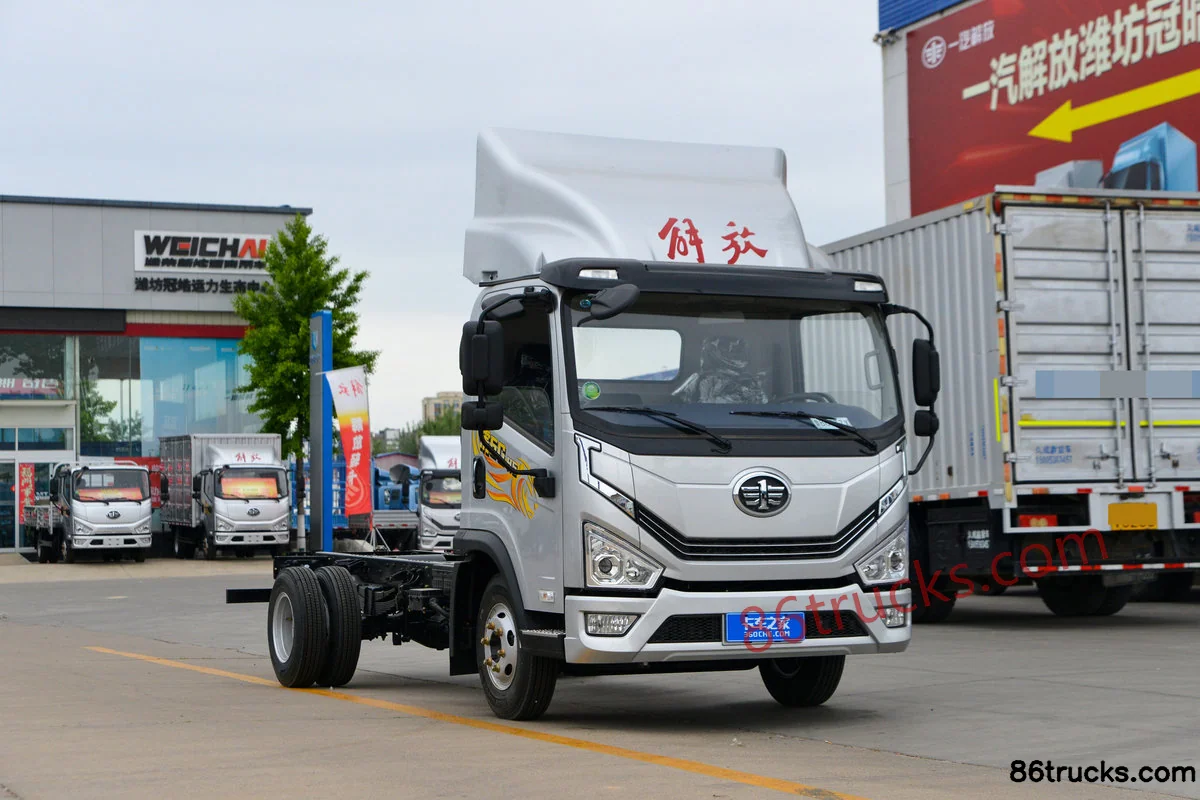

Chassis3

9 photos

FAQ

What is the export price of FAW Jiefang Hu 6G H5 2.5L Diesel 170hp 4X2(6 wheels) Fast Gear 8-Speed 4.16m Single Row Stake Truck, and what does it include?

FAW Jiefang Hu 6G H5 2.5L Diesel 170hp 4X2(6 wheels) Fast Gear 8-Speed 4.16m Single Row Stake Truck export reference is about From $15,694; MSRP is ¥11.3M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang Hu 6G H5 2.5L Diesel 170hp 4X2(6 wheels) Fast Gear 8-Speed 4.16m Single Row Stake Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Hu 6G H5 2.5L Diesel 170hp 4X2(6 wheels) Fast Gear 8-Speed 4.16m Single Row Stake Truck?

Key specs of FAW Jiefang Hu 6G H5 2.5L Diesel 170hp 4X2(6 wheels) Fast Gear 8-Speed 4.16m Single Row Stake Truck: Drive: 4x2; Horsepower: 170 hp; Emission: China VI; Fuel: Diesel; Engine: Yunnei Power2.5L; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Hu 6G H5 2.5L Diesel 170hp 4X2(6 wheels) Fast Gear 8-Speed 4.16m Single Row Stake Truck suited for?

FAW Jiefang Hu 6G H5 2.5L Diesel 170hp 4X2(6 wheels) Fast Gear 8-Speed 4.16m Single Row Stake Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang Hu 6G H5 2.5L Diesel 170hp 4X2(6 wheels) Fast Gear 8-Speed 4.16m Single Row Stake Truck differ from other variants in the same series?

FAW Jiefang Hu 6G H5 2.5L Diesel 170hp 4X2(6 wheels) Fast Gear 8-Speed 4.16m Single Row Stake Truck belongs to FAW Jiefang Hu 6G (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Hu 6G H5 2.5L Diesel 170hp 4X2(6 wheels) Fast Gear 8-Speed 4.16m Single Row Stake Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Hu 6G H5 2.5L Diesel 170hp 4X2(6 wheels) Fast Gear 8-Speed 4.16m Single Row Stake Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
