Hualing Lingma H3 245 hp 6X2(8 wheels) 7.7m Van Cargo Truck
EXW
Export quote
Hualing Lingma H3 Heavy Truck Cargo Trucks
Main model photos
60 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Hualing Lingma H3 245 hp 6X2(8 wheels) 7.7m Van Cargo Truck | 6x2 / 245hp / China V | ||
| Hualing Lingma H3 180 hp 4X2(6 wheels) 6.8m Stake Cargo Truck | 4x2 / 180hp / China V | ||
| Hualing Lingma H3 180hp 4X2(6 wheels) 7.8m Van Cargo Truck | 4x2 / 180hp / China V | From $30,556 | |
| Hualing Lingma H3 180 hp 4X2(6 wheels) 6.8m Stake Cargo Truck | 4x2 / 180hp / China V | ||
| Hualing Hanma 160 hp 4X2(6 wheels) 7.8m van cargo truck chassis | 4x2 / 160hp / China V | From $23,167 |
Hualing Lingma H3 180 hp 4X2(6 wheels) 6.8m Stake Cargo Truck
EXW
Export quote

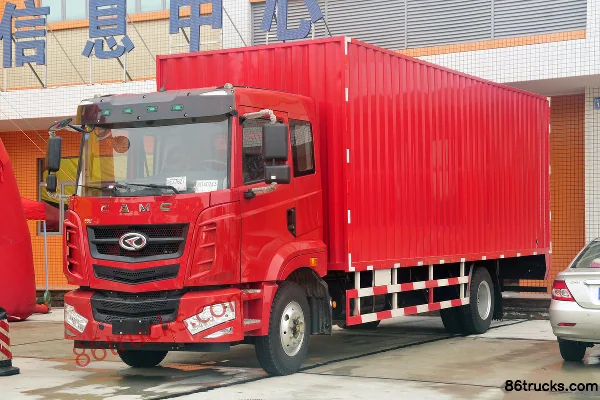

Hualing Lingma H3 180hp 4X2(6 wheels) 7.8m Van Cargo Truck
EXW
From $30,556
Export quote
Hualing Lingma H3 180 hp 4X2(6 wheels) 6.8m Stake Cargo Truck
EXW
Export quote

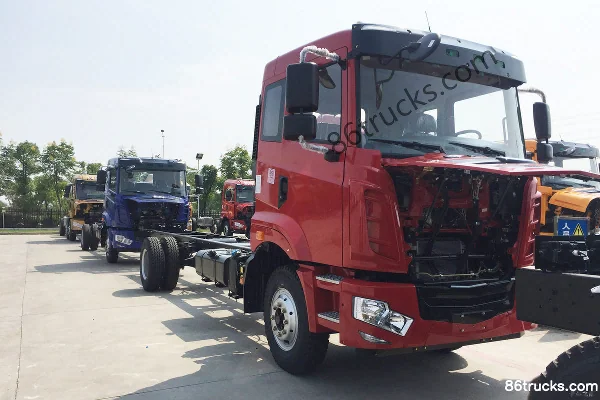

Hualing Hanma 160 hp 4X2(6 wheels) 7.8m van cargo truck chassis
EXW
From $23,167
Export quote
Series Specs
Basic Info
Model code (announced): HN5250XXYHC24E8M5 / HN5180CCYHC22E3M5 / HN5160XXYH19E6M5 / HN5160CCYH19E6M5 / HN5160CCYC16C8M4 / HN5160XXYC16C8M4 / HN1160E8M4J
Type: enclosed cargo truck / stake truck / Chassis / Cargo Trucks
Drive type: 6X2 / 4X2
Wheelbase: 1850+4250 / 5300 / 5600mm
Box length class: 7.7 / 6.8 / 7.8 / 6.7m
Engine Model: YuchaiYC6J245-52 / YuchaiYC6J180-52 / YuchaiYC6J180-50 / YuchaiYC4EG160-50 / SDECSC4H180Q4 / YuchaiYC4E160-42 / YuchaiYC6J180-46
Transmission Model: Fast Gear9JS119TA / Fast Gear8JS85E / Fast Gear8JS75C / 6-speed / Fast Gear6DS60T
Rear Axle Ratio: 4.11 / 4.875 / 4.1
Cab length: 10.2 / 9 / 10 / 8.98 / 9.1m
Cab width: 2.55 / 2.5 / 2.495m
Cab height: 4 / 3.95 / 3.85 / 3.75 / 3.56m
Front track width: 1960/1960 / 2020 / 1820,1908,1960,2040 / 1908 / 1910 / 1880mm
rear track: 1808 / 1860 / 1808,1860 / 1800mm
Curb Weight: 10.5 / 6.15 / 7.25 / 6.05 / 5.68 / 6.3ton
Rated payload: 14.37 / 9.72 / 8.62 / 9.755 / 9.76 / 9.57ton
GVWR: 25 / 16 / 15.6ton
Max. speed: 98 / 90km/h
Origin: Ma'anshan, Anhui
tonnage class: Medium-duty truck
Approach angle: 20°
departure angle: 12 / 15 / 14 / 20 / 18°
market segment: Express & parcel, daily industrial goods, agricultural products / Daily industrial goods transport, agricultural and sideline products transport, green channel / Express delivery, agricultural by-product transport, cold chain transport, LTL transport / Agricultural product transport, green channel, industrial product transport / Building materials, agricultural products / Express delivery, agricultural by-product transport, cold chain transport, LTL transport, daily industrial goods transport
Remarks: Optional fuel tank capacity: 250L; optional fuel tank material: aluminum alloy / Standard electric tilt, sun visor, LCD instrument panel, laminated front windshield / Through beam
Front/rear suspension: 1.45/2.65 / 1.45/2.25 / 1.37/3.03 / 1.37/2.33 / 1.52/2.18 / 1.45/1.95 / 1.45/2.23 / 1.52/2.28m
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai / SDEC
Engine info: Yuchai6.5L / Yuchai 6-cylinder / Yuchai 4-cylinder / SDEC 4-cylinder
Number of cylinders: 6 / 4cylinder
Cylinder arrangement: Inline
Displacement: 6.494 / 4.7 / 4.295 / 4.26 / 4.73L
Emission standard: China V / China IV
Max output power: 180 / 132 / 118kW
Max hp: 245 / 180 / 160Horsepower
Max torque: 950 / 700 / 650 / 600 / 660 / 550 / 590N·m
Max torque speed: 1200-1800 / 1200-1700 / 1300-1800 / 1200-1600 / 1300-1600rpm
Rated speed: 2300 / 2500 / 2600rpm
Engine Type: Vertical, inline 6-cylinder, water-cooled, 4-stroke, electronic direct injection / 6-cylinder, inline, 4-stroke, 4-valve, common-rail direct injection, turbocharged intercooled / Vertical, inline, water-cooled, four-stroke, high-pressure common rail / 4-cylinder inline, electronic common rail, 4-valve, dry cylinder liner, 4-stroke, water-cooled, rear gear train / Vertical, inline 4-cylinder, water-cooled, 4-stroke, electronic direct injection / Vertical, inline, water-cooled, four-stroke, direct injection
Transmission Parameters
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 9 / 8 / 6Gear
FAQ
What kind of truck is Hualing Hualing Lingma H3 Heavy Truck Cargo Trucks?
Hualing Hualing Lingma H3 Heavy Truck is an export-oriented Cargo Trucks lineup with about 13 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Hualing Lingma H3 Heavy Truck Cargo Trucks?
Hualing Lingma H3 Heavy Truck Cargo Trucks export reference is about $19,417 – $30,556. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Hualing Lingma H3 Heavy Truck Cargo Trucks cover?
Hualing Lingma H3 Heavy Truck Cargo Trucks mainly covers: Drive: 4x2 / 6x2; Horsepower: 160 hp / 180 hp / 245 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Hualing Lingma H3 Heavy Truck Cargo Trucks?
For Hualing Lingma H3 Heavy Truck Cargo Trucks: 1) set emission; 2) match body/wheelbase to cargo type; 3) pick drive and horsepower; 4) compare prices, then open a model to quote.
What is Cargo Trucks typically used for?
Cargo Trucks covers box, stake or flatbed cargo work from city delivery to regional haul. Filter by body and payload needs.
How many models does Hualing Lingma H3 Heavy Truck Cargo Trucks include?
Hualing Lingma H3 Heavy Truck Cargo Trucks currently lists about 13 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Hualing Lingma H3 Heavy Truck Cargo Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
