Hualing Lingma H3 245 hp 6X2(8 wheels) 7.7m Van Cargo Truck

Export reference
MSRP N/A
Horsepower: 245
Emission: China V
Fuel: Diesel
Engine: Yuchai6.5L
Transmission: Fast Gear
Curb Weight:: 10.5ton
seating capacity: 2Personnel
Rated payload: 14.37ton
Drive 6X2 (8 wheels)
Cargo box type: Van body

Overview

The Hualing Lingma H3 245 hp 6X2(8 wheels) 7.7m Van Cargo Truck is a Medium-duty truck featuring 7.7m cargo length, Van body cargo body, 2Personnel volume and 14.37t payload. Its segment focus covers Express & parcel, daily industrial goods and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Yuchai6.5L engine, 245 hp, 6X2 (8 wheels) drive and China V emissions.

China V 245 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HN5250XXYHC24E8M5
Type: enclosed cargo truck
Drive type: 6X2
Wheelbase: 1850+4250mm
Box length class: 7.7m
engine: YuchaiYC6J245-52
transmission: Fast Gear9JS119TA
Rear Axle Ratio: 4.11
Cab length: 10.2m
Cab width: 2.55m
Cab height: 4m
Front track width: 1960/1960mm
rear track: 1808mm
Curb Weight: 10.5ton
Rated payload: 14.37ton
GVWR: 25ton
Max. speed: 98km/h
Origin: Ma'anshan, Anhui
tonnage class: Medium-duty truck
Approach angle: 20°
departure angle: 12°
market segment: Express & parcel, daily industrial goods, agricultural products
Front/rear suspension: 1.45/2.65m
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6J245-52
Engine info: Yuchai6.5L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.494L
Emission standard: China V
Max output power: 180kW
Max hp: 245Horsepower
Max torque: 950N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Engine Type: Vertical, inline 6-cylinder, water-cooled, 4-stroke, electronic direct injection
Transmission Parameters
Transmission Model: Fast Gear9JS119TA
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 9Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 7.7m
Cargo box width: 2.42m
Cargo box height: 2.6m
*Cargo box interior width: 2.4200000762939
Cab parameters
Cab: HanmaH3
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle description: 5.5T
Front axle allowable load: 6750/6750kg
rear axle description: HL439
rear axle allowable load: 11500kg
Axle ratio: 4.11
Leaf spring count: 9/9/9+6
Tire
Tire Size: 11R22.5
Number of tires: 8pcs
Control configuration
ABS:

Photos

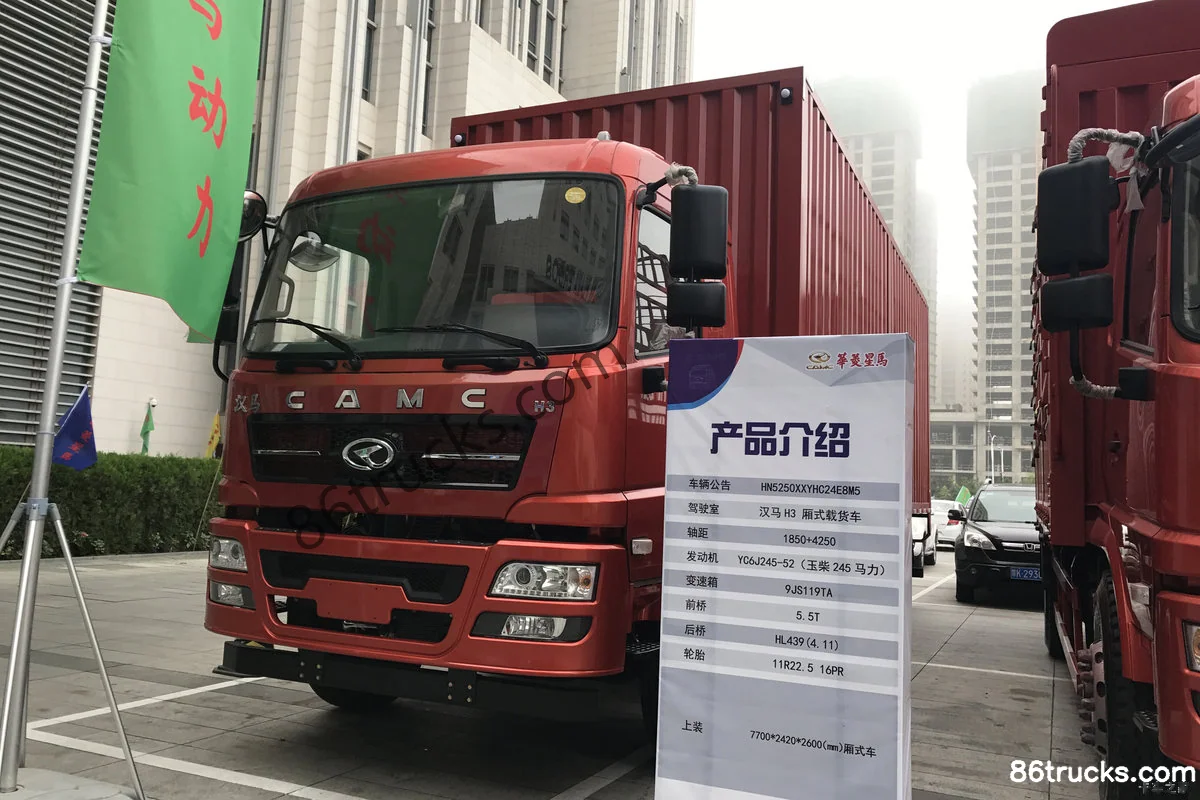

Exterior1

1 photos

FAQ

What emission standard does Hualing Lingma H3 245 hp 6X2(8 wheels) 7.7m Van Cargo Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Hualing Lingma H3 245 hp 6X2(8 wheels) 7.7m Van Cargo Truck?

Key specs of Hualing Lingma H3 245 hp 6X2(8 wheels) 7.7m Van Cargo Truck: Drive: 6x2; Horsepower: 245 hp; Emission: China V; Fuel: Diesel; Engine: Yuchai6.5L; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Hualing Lingma H3 245 hp 6X2(8 wheels) 7.7m Van Cargo Truck suited for?

Hualing Lingma H3 245 hp 6X2(8 wheels) 7.7m Van Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Hualing Lingma H3 245 hp 6X2(8 wheels) 7.7m Van Cargo Truck differ from other variants in the same series?

Hualing Lingma H3 245 hp 6X2(8 wheels) 7.7m Van Cargo Truck belongs to Hualing Lingma H3 Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Hualing Lingma H3 245 hp 6X2(8 wheels) 7.7m Van Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Hualing Lingma H3 245 hp 6X2(8 wheels) 7.7m Van Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
