Dongfeng Commercial Vehicle Tianlong KC Heavy Truck 350hp 8X4(12 wheels) 7.3m Dump Truck (5.571 Ratio)

Export reference
From $47,931
MSRP ¥34.51M CNY
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 15.5ton
Wheelbase:: 2050+3600+1350mm
Tire Size:: 12.00R2018PR
Rated payload: 15.37ton
Drive 8X4 (12 wheels)
Horsepower 350
Cargo box type: Dump type

Overview

The Dongfeng Commercial Vehicle Tianlong KC Heavy Truck 350hp 8X4(12 wheels) 7.3m Dump Truck (5.571 Ratio) is a Heavy truck featuring 15.37t payload, 31t GVW, Dump type cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a DongfengRenaultdCi350-51 engine, 350 hp, China V emissions and Fast Gear transmission.

China V 350 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): DFH3310A7
Drive type: 8X4
Wheelbase: 2050+3600+1350mm
engine: DongfengRenaultdCi350-51
transmission: Fast Gear12JSD160TA
Rear Axle Ratio: 5.571
Cab length: 10.05m
Cab width: 2.55m
Cab height: 3.45m
Front track width: 2040/2040mm
rear track: 1860/1860mm
Curb Weight: 15.5ton
Rated payload: 15.37ton
GVWR: 31ton
Origin: Shiyan, Hubei
tonnage class: Heavy truck
Approach angle: 15°
departure angle: 22°
Energy Type: Diesel
Engine parameters
Engine Brand: DongfengRenault
Engine Model: DongfengRenaultdCi350-51
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 11.12L
Emission standard: China V
Max output power: 257kW
Max hp: 350Horsepower
Max torque: 1600N·m
Max torque speed: 1100-1600rpm
Rated speed: 1900rpm
Engine Type: Inline 6-cylinder, turbocharged intercooled, liquid-cooled, high-pressure common rail, compression-ignited
Transmission Parameters
Transmission Model: Fast Gear12JSD160TA
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 7.3m
Cargo box width: 2.35m
Cargo box height: 1.5m
Cab parameters
Cab: KC Flat Roof
Driver seat type: air suspension seat
fuel tank
Fuel tank capacity: 350L
Chassis Specs
Front axle description: Dongfeng7T
Front axle allowable load: 6500/6500kg
Frame Dimensions: 300×90×(8+6)mm
rear axle description: Dongfeng485 single reduction
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 5.571
Leaf spring count: 9/9/13
Tire
Tire Size: 12.00R2018PR
Number of tires: 12pcs
Control configuration
ABS:

Photos

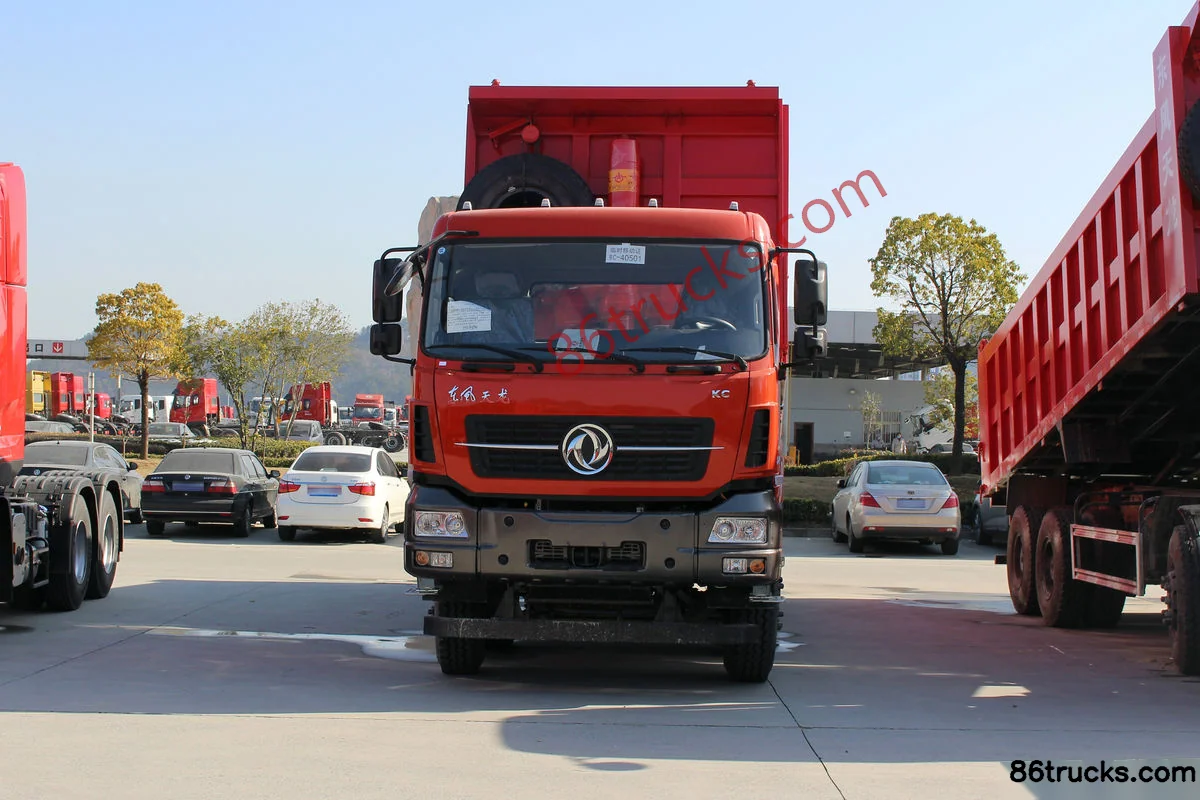

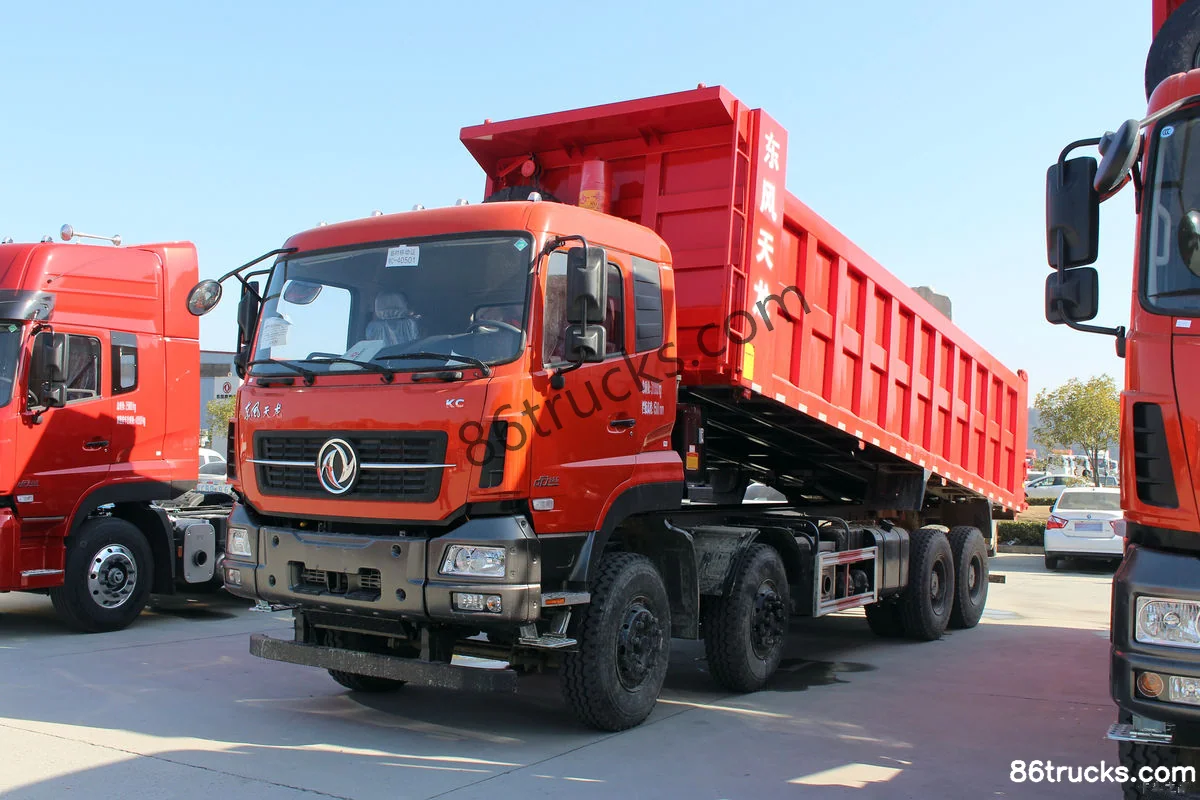

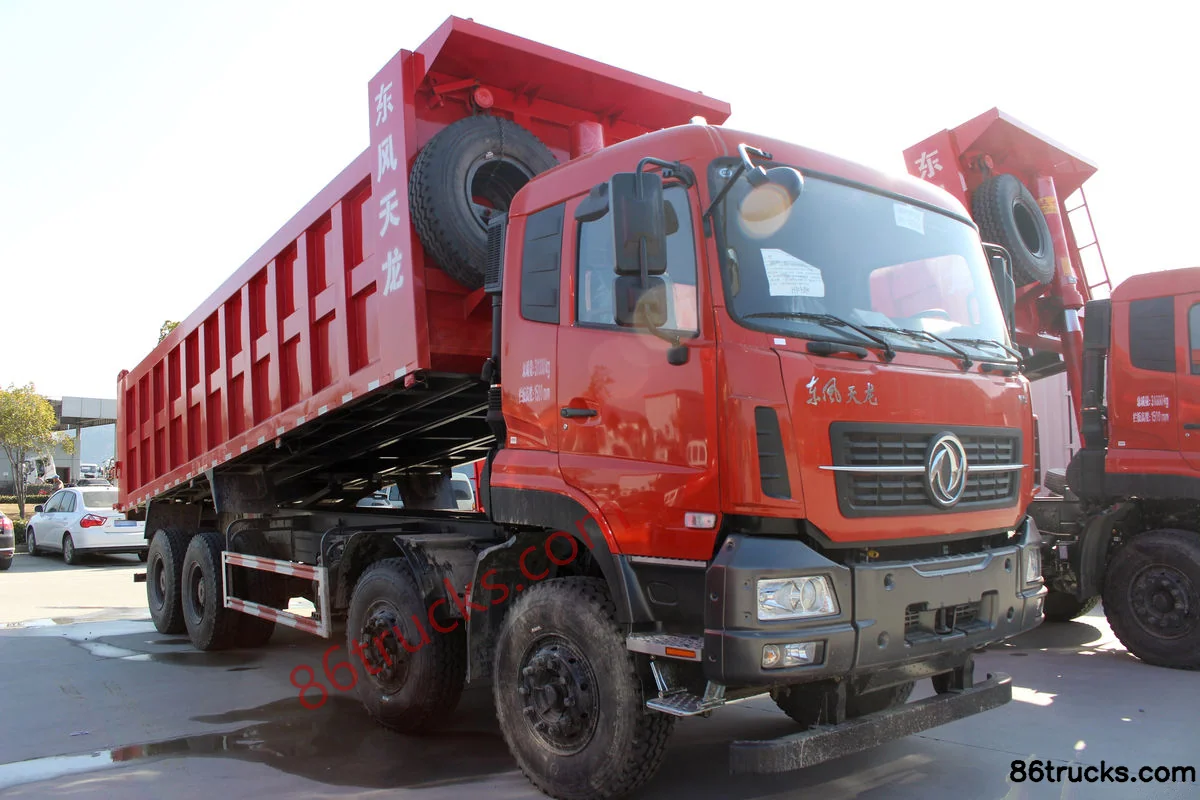

Exterior3

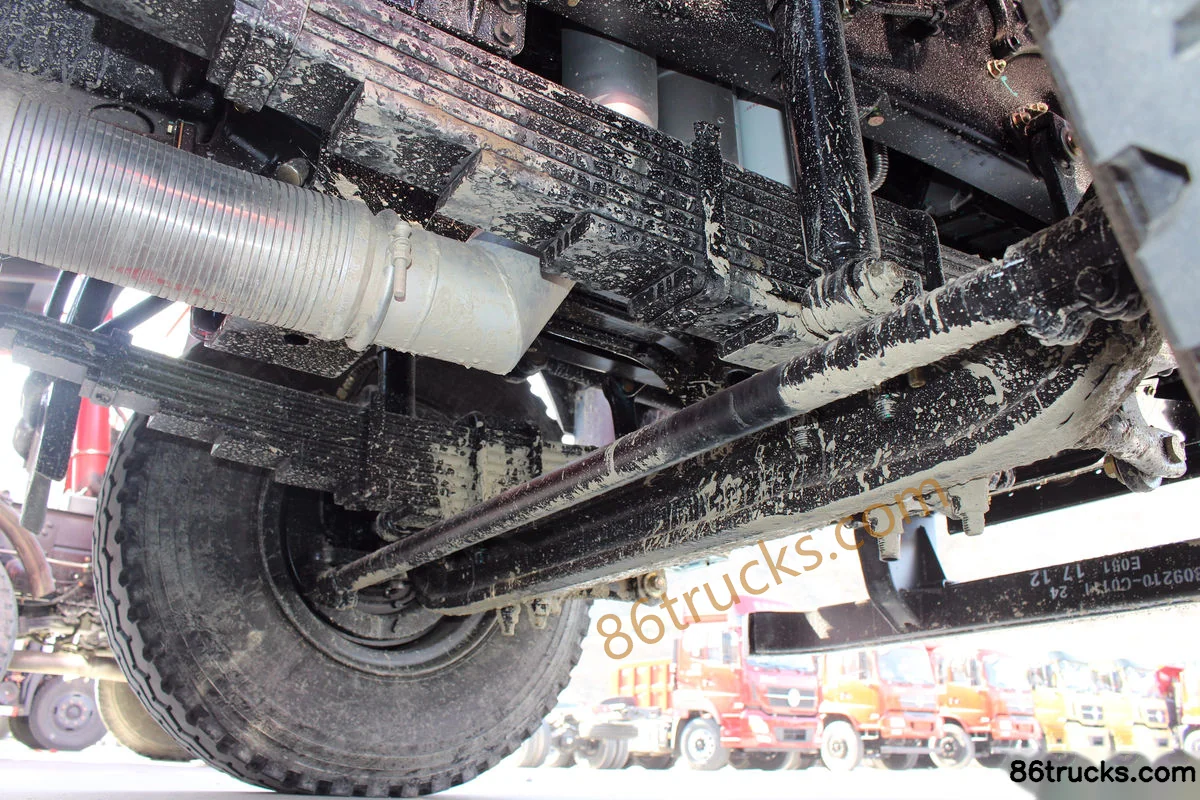

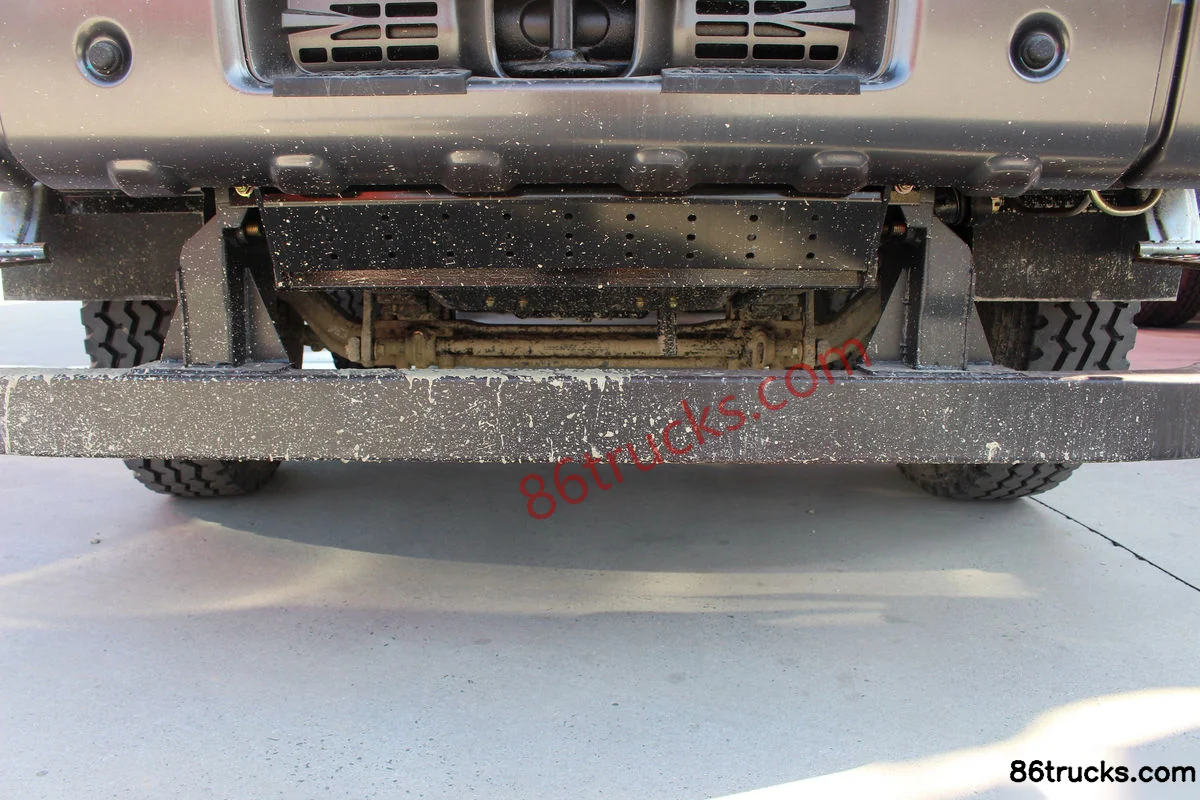

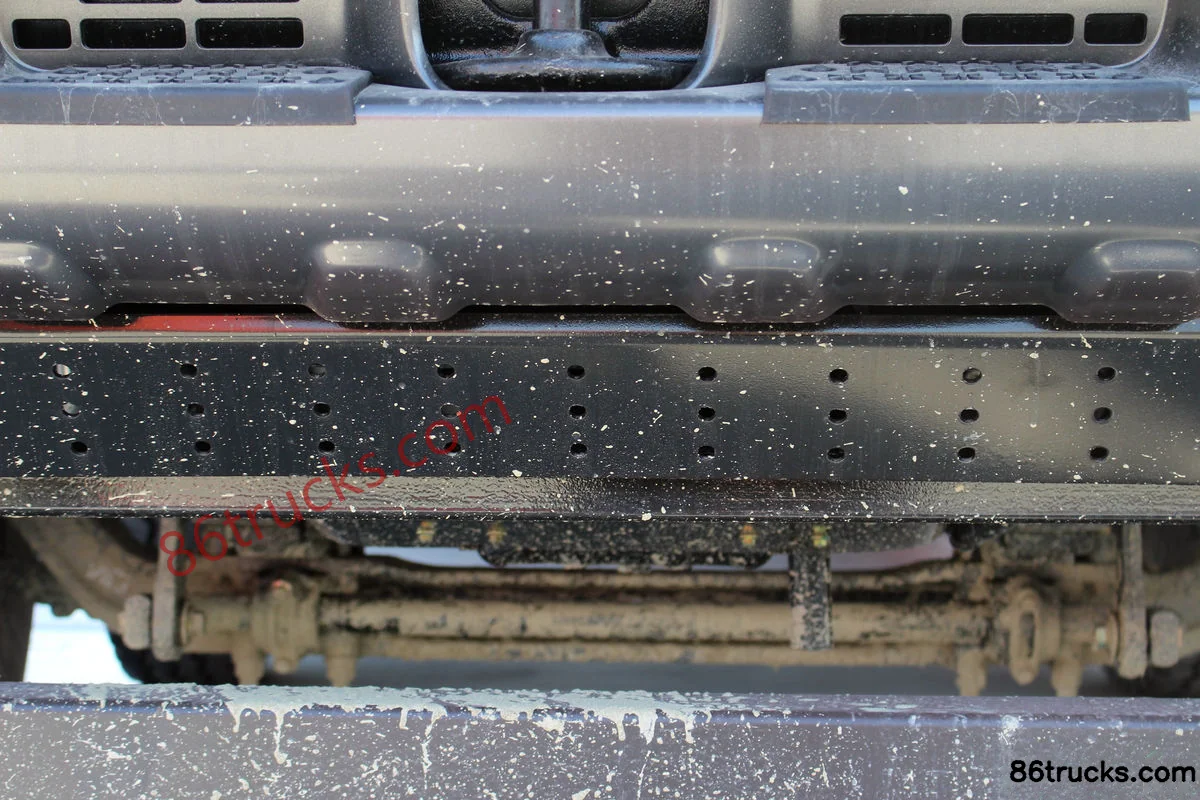

Chassis3

6 photos

FAQ

What is the export price of Dongfeng Commercial Vehicle Tianlong KC Heavy Truck 350hp 8X4(12 wheels) 7.3m Dump Truck (5.571 Ratio), and what does it include?

Dongfeng Commercial Vehicle Tianlong KC Heavy Truck 350hp 8X4(12 wheels) 7.3m Dump Truck (5.571 Ratio) export reference is about From $47,931; MSRP is ¥34.51M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng Commercial Vehicle Tianlong KC Heavy Truck 350hp 8X4(12 wheels) 7.3m Dump Truck (5.571 Ratio) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Commercial Vehicle Tianlong KC Heavy Truck 350hp 8X4(12 wheels) 7.3m Dump Truck (5.571 Ratio)?

Key specs of Dongfeng Commercial Vehicle Tianlong KC Heavy Truck 350hp 8X4(12 wheels) 7.3m Dump Truck (5.571 Ratio): Drive: 8x4; Horsepower: 350 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Commercial Vehicle Tianlong KC Heavy Truck 350hp 8X4(12 wheels) 7.3m Dump Truck (5.571 Ratio) suited for?

Dongfeng Commercial Vehicle Tianlong KC Heavy Truck 350hp 8X4(12 wheels) 7.3m Dump Truck (5.571 Ratio) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng Commercial Vehicle Tianlong KC Heavy Truck 350hp 8X4(12 wheels) 7.3m Dump Truck (5.571 Ratio) differ from other variants in the same series?

Dongfeng Commercial Vehicle Tianlong KC Heavy Truck 350hp 8X4(12 wheels) 7.3m Dump Truck (5.571 Ratio) belongs to Dongfeng Tianlong KC (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Commercial Vehicle Tianlong KC Heavy Truck 350hp 8X4(12 wheels) 7.3m Dump Truck (5.571 Ratio)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Commercial Vehicle Tianlong KC Heavy Truck 350hp 8X4(12 wheels) 7.3m Dump Truck (5.571 Ratio)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
