Tangjun Ouling Xiaojingang Basement Edition 110hp 4X2(6 wheels) 3.585m Dump Truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Curb Weight:: 2.72ton
Wheelbase:: 2850mm
Tire Size:: 7.50R16LT 6PR,7.50R16LT 8PR
Model code (announced):: ZB3040LDC2V
Rated payload: 1.645ton
Drive 4X2 (6 wheels)
Horsepower 110
Cargo box length: 3.585m

Overview

The Tangjun Ouling Xiaojingang Basement Edition 110hp 4X2(6 wheels) 3.585m Dump Truck is a Light Truck featuring 1.645t payload, 4.495t GVW, 3.585m cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a WeichaiWP2.3Q110E50 engine, 110 hp, China V emissions and 5-speed transmission.

China V 110 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZB3040LDC2V
Drive type: 4X2
Wheelbase: 2850mm
engine: WeichaiWP2.3Q110E50
transmission: 5-speed
Rear Axle Ratio: 5.375
Cab length: 5.49m
Cab width: 2.1m
Cab height: 2.1m
Front track width: 1520mm
rear track: 1535mm
Curb Weight: 2.72ton
Rated payload: 1.645ton
GVWR: 4.495ton
Origin: Zichuan, Shandong
tonnage class: Light Truck
Approach angle: 18°
departure angle: 19°
Version: Underground Garage Version
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP2.3Q110E50
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.29L
Emission standard: China V
Max output power: 81kW
Max hp: 110Horsepower
Max torque: 280N·m
Max torque speed: 1700-2300rpm
Rated speed: 3200rpm
Engine Type: Common Rail+SCR
Transmission Parameters
Transmission Model: 5-speed
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box length: 3.585m
Cargo box width: 1.81m
Cargo box height: 0.45m
Chassis Specs
Front axle allowable load: 1850kg
rear axle allowable load: 2645kg
Axle ratio: 5.375
Leaf spring count: 3/5+5
Tire
Tire Size: 7.50R16LT 6PR,7.50R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

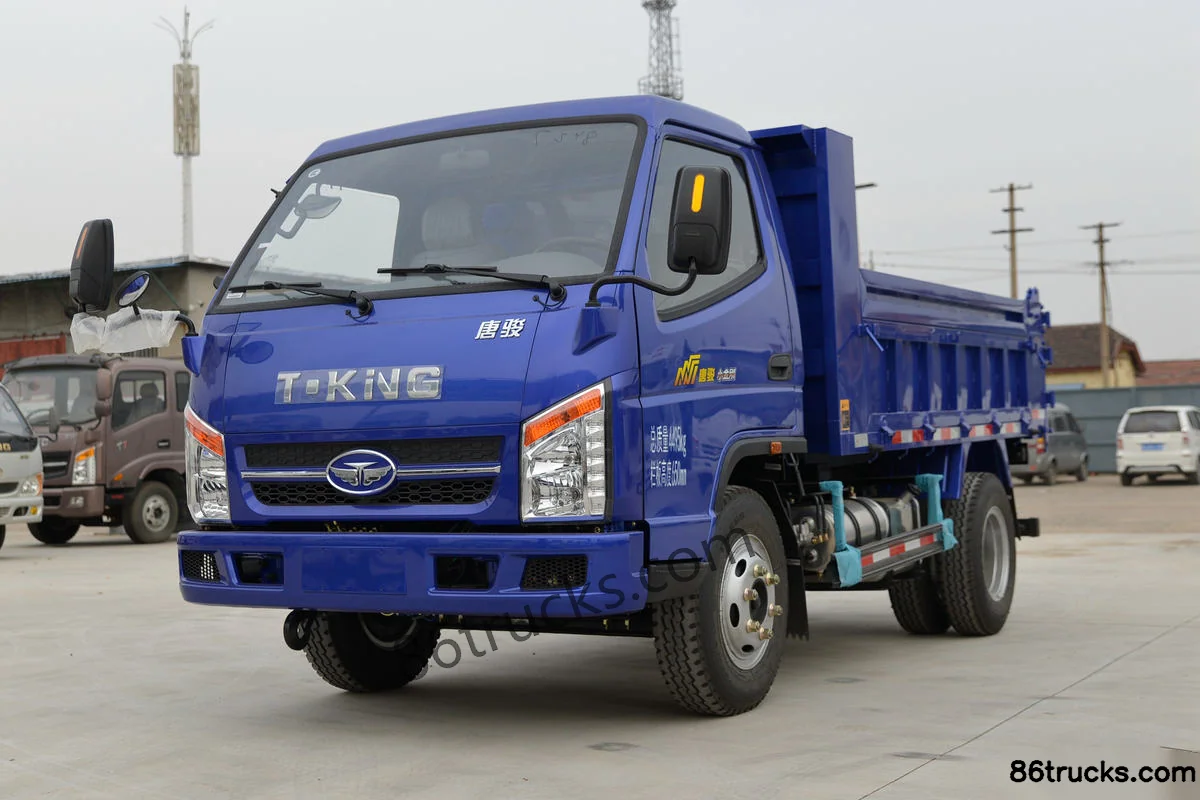

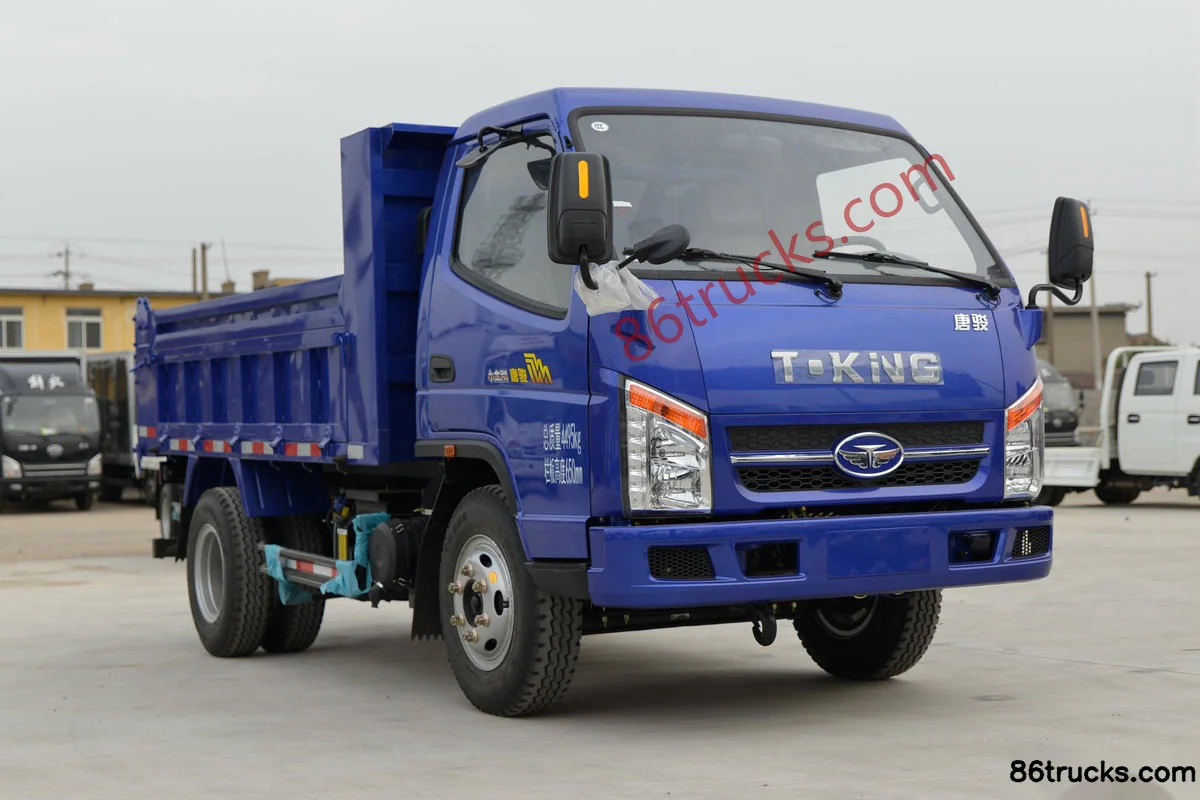

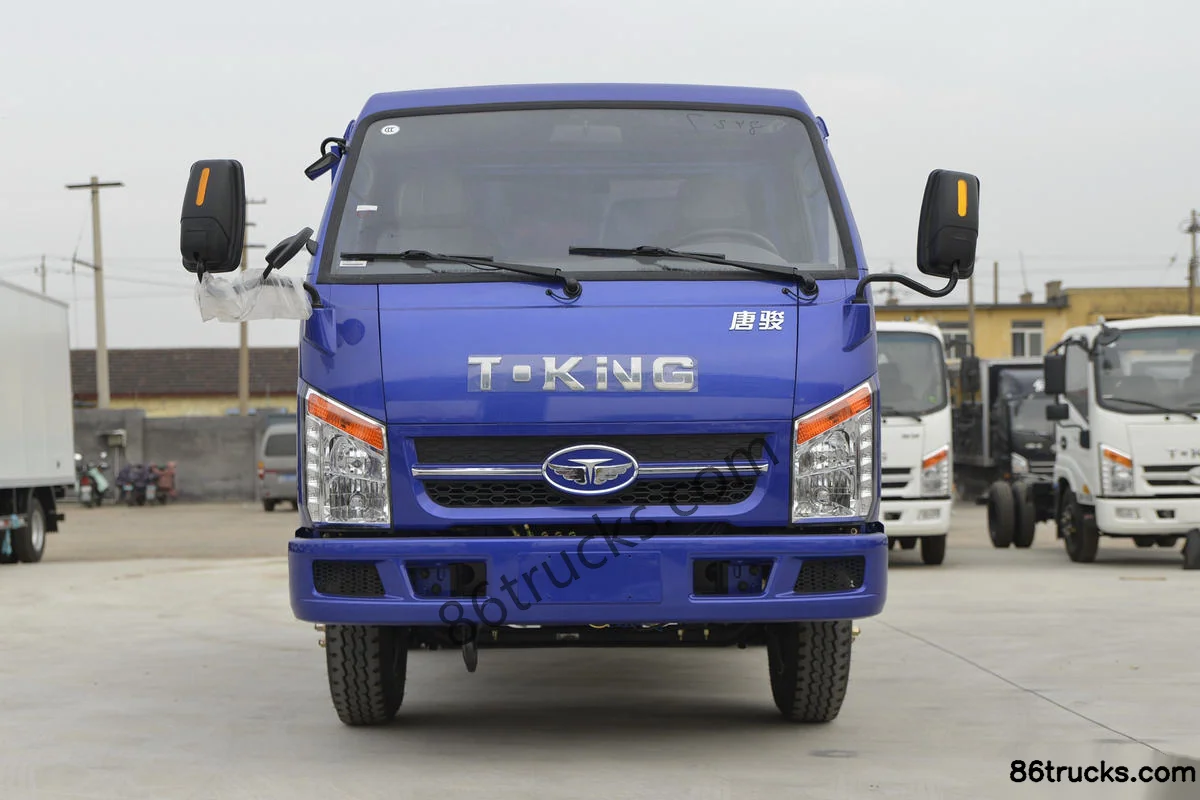

Exterior3

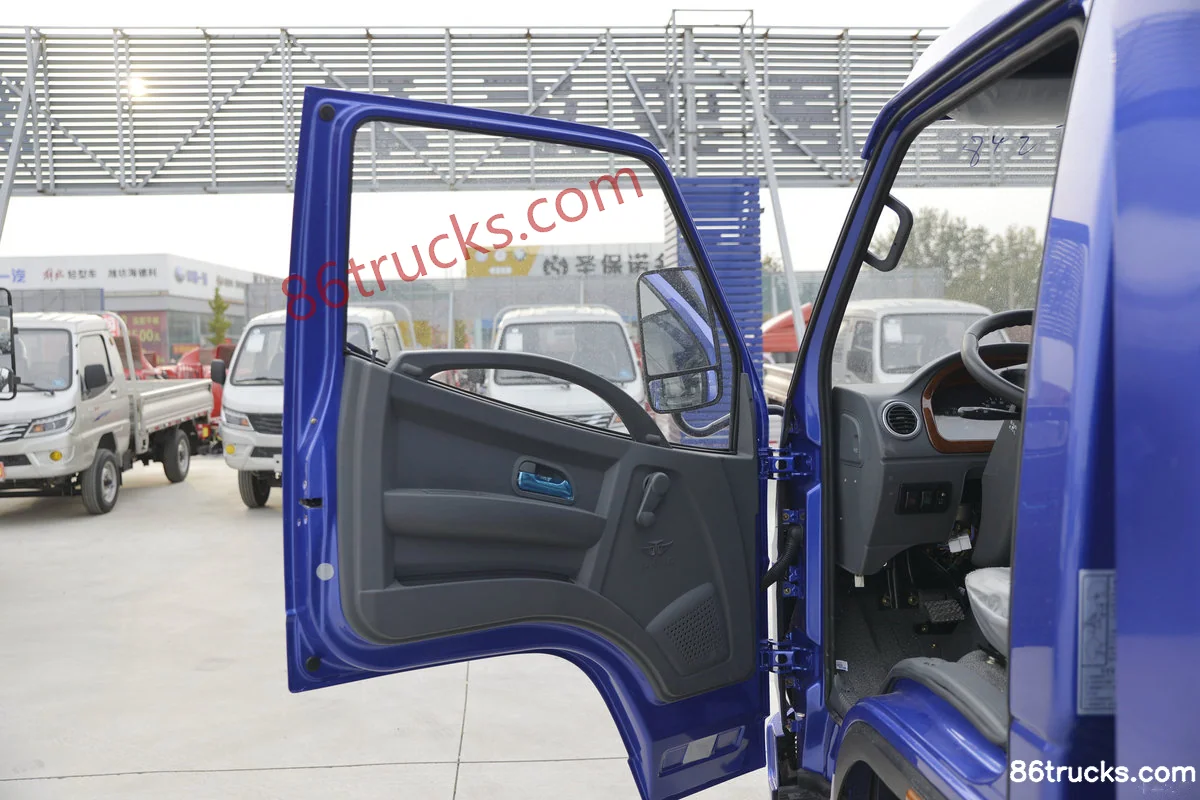

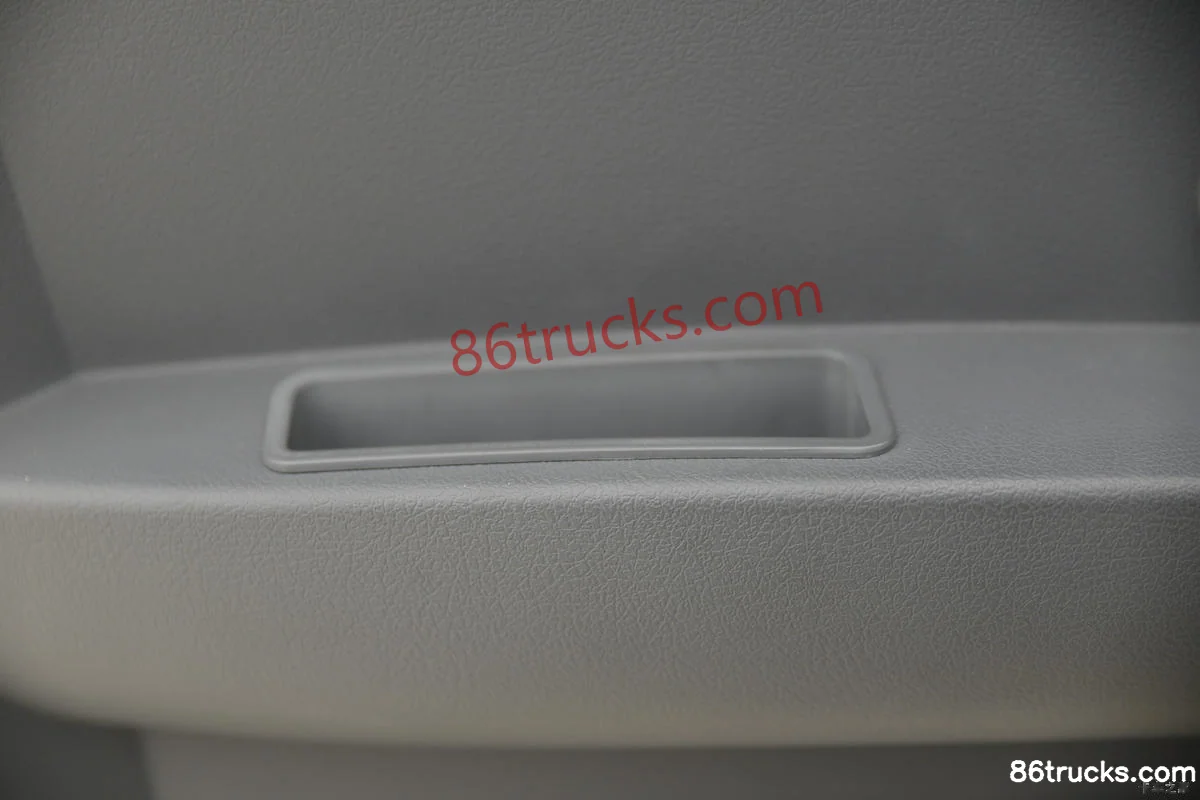

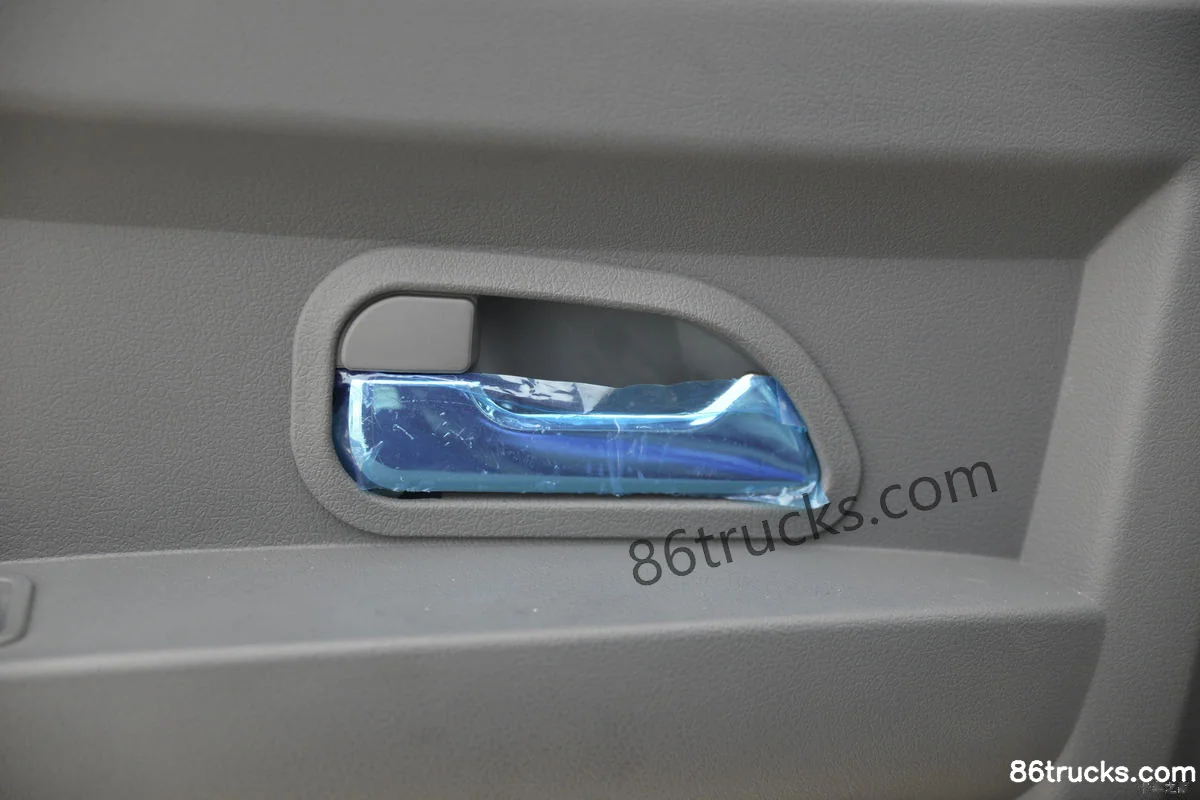

Cab3

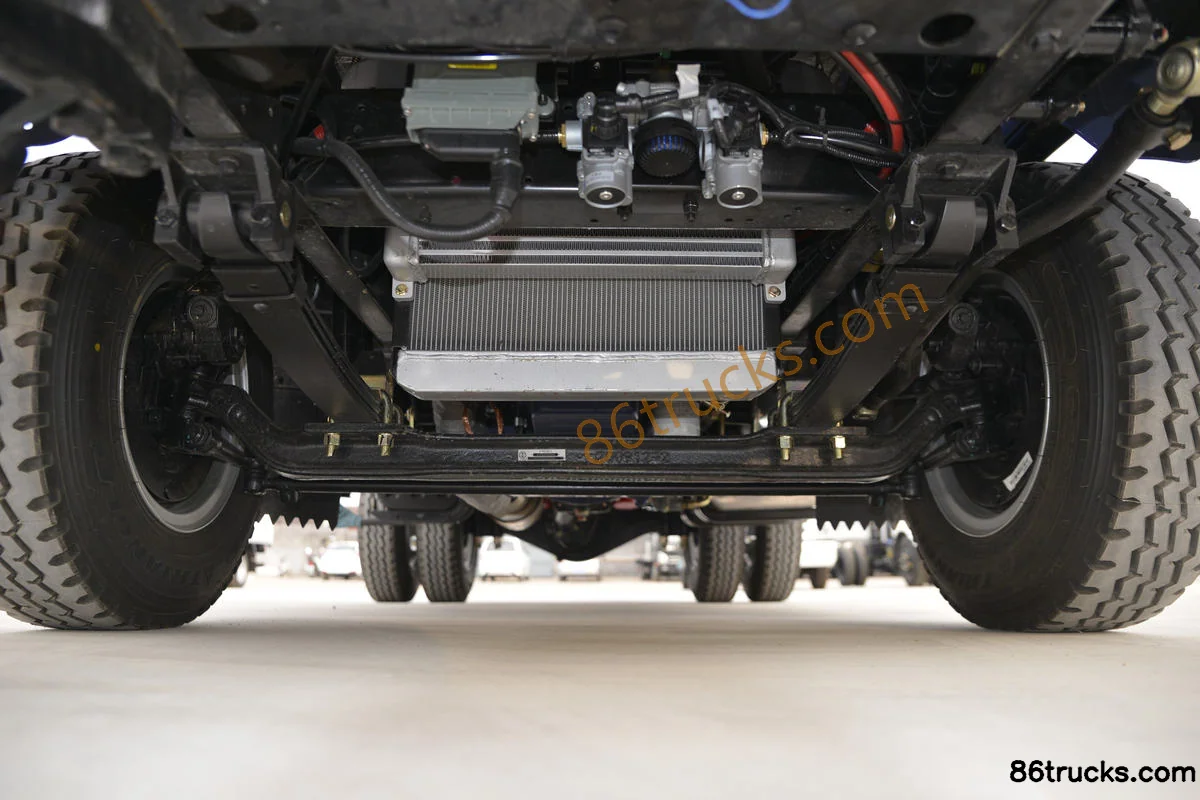

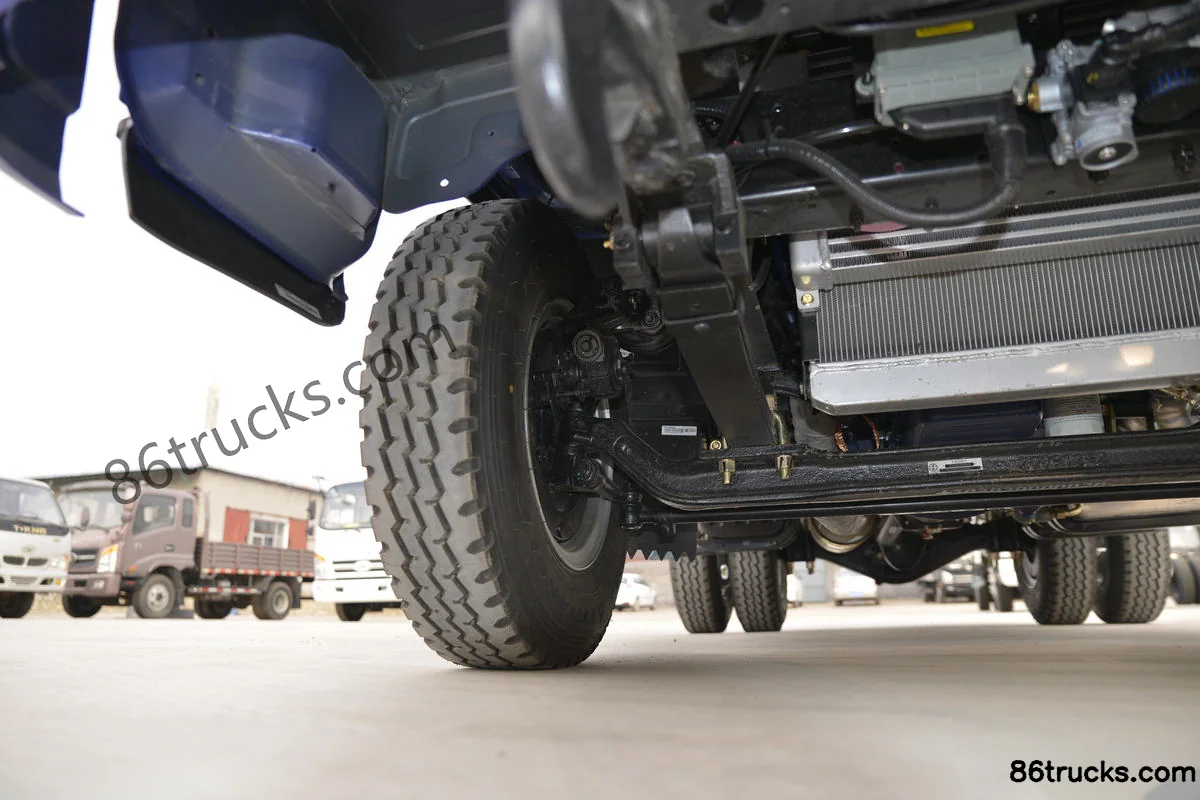

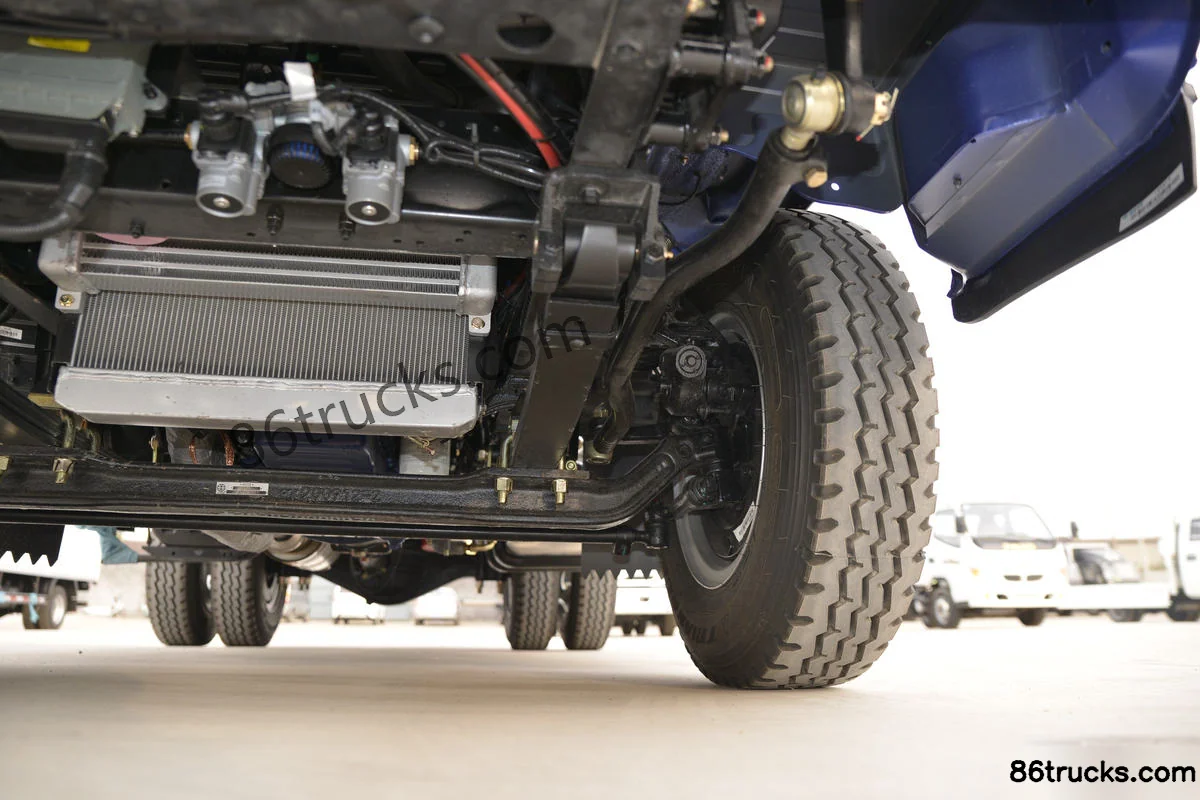

Chassis3

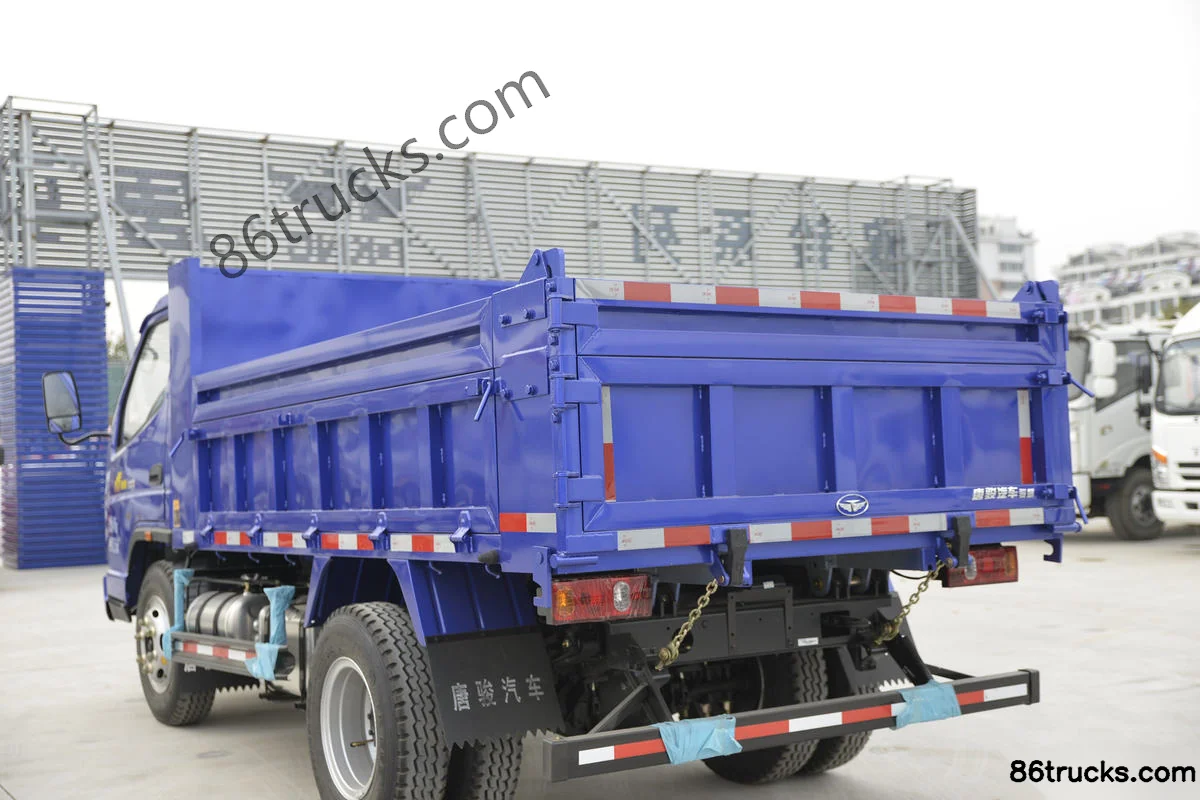

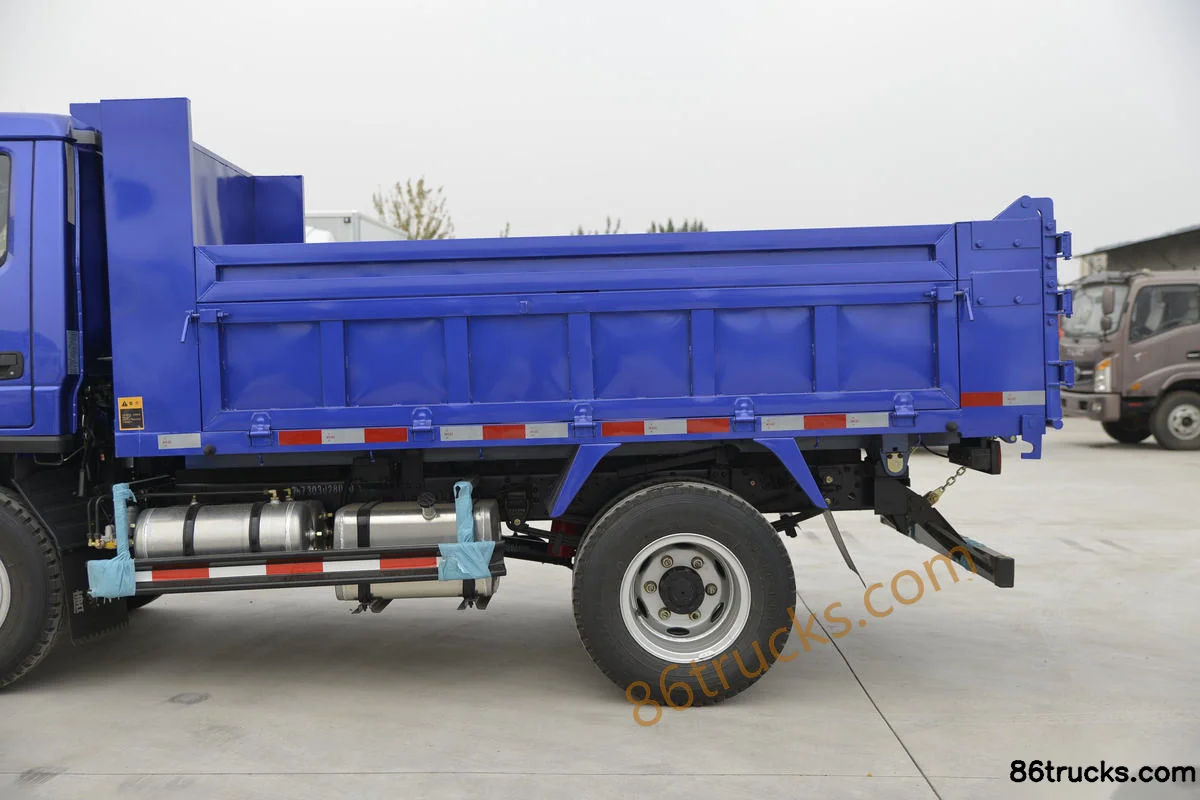

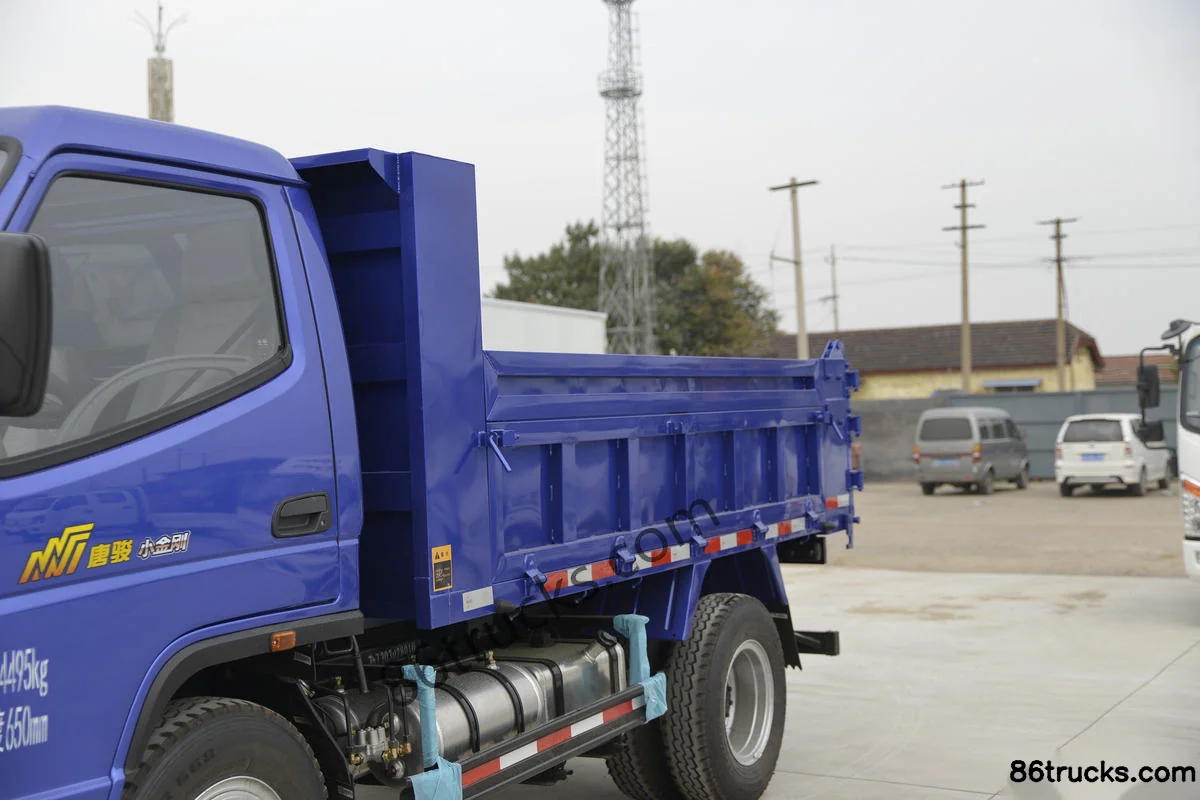

Body3

12 photos

FAQ

What emission standard does Tangjun Ouling Xiaojingang Basement Edition 110hp 4X2(6 wheels) 3.585m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Tangjun Ouling Xiaojingang Basement Edition 110hp 4X2(6 wheels) 3.585m Dump Truck?

Key specs of Tangjun Ouling Xiaojingang Basement Edition 110hp 4X2(6 wheels) 3.585m Dump Truck: Drive: 4x2; Horsepower: 110 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Tangjun Ouling Xiaojingang Basement Edition 110hp 4X2(6 wheels) 3.585m Dump Truck suited for?

Tangjun Ouling Xiaojingang Basement Edition 110hp 4X2(6 wheels) 3.585m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Tangjun Ouling Xiaojingang Basement Edition 110hp 4X2(6 wheels) 3.585m Dump Truck differ from other variants in the same series?

Tangjun Ouling Xiaojingang Basement Edition 110hp 4X2(6 wheels) 3.585m Dump Truck belongs to Tangjun New Little King Kong Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Tangjun Ouling Xiaojingang Basement Edition 110hp 4X2(6 wheels) 3.585m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Tangjun Ouling Xiaojingang Basement Edition 110hp 4X2(6 wheels) 3.585m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
