JMC New Kaiyun 109 hp 4X2(6 wheels) 3.7m Single Row Van Light Truck (Narrow Body)

Export reference
MSRP N/A
Horsepower: 109
Emission: China IV
Fuel: Diesel
Engine: JMC493
Transmission: JMC
Curb Weight:: 2.48ton
seating capacity: 2Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The JMC New Kaiyun 109 hp 4X2(6 wheels) 3.7m Single Row Van Light Truck (Narrow Body) is a Light Truck featuring 3.7m cargo length, Van body cargo body, 2Personnel volume and 1.495t payload. Its segment focus covers Urban Distribution, matching those duty cycles. On the powertrain side, it comes with a JMC493 engine, 109 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 109 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): JX5044XXYXC2
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 2800mm
Box length class: 3.7m
engine: Nanchang JMC JX493ZLQ4
transmission: JMCJC528T8
Cab length: 5.51m
Cab width: 2.018m
Cab height: 2.97m
Front track width: 1385mm
rear track: 1425mm
Curb Weight: 2.48ton
Rated payload: 1.495ton
GVWR: 4.105ton
Max. speed: 100km/h
Origin: Nanchang, Jiangxi
tonnage class: Light Truck
Approach angle: 27°
departure angle: 14.5°
market segment: Urban Distribution
Remarks: CD, Titanium Silver Interior, Bamboo Plywood Side Panel Cargo Box
Front/rear suspension: 1.065/1.645m
Energy Type: Diesel
Engine parameters
Engine Brand: JMC
Engine Model: JMCJX493ZLQ4
Engine info: JMC493
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.771L
Emission standard: China IV
Max output power: 80kW
Max hp: 109Horsepower
Max torque: 260N·m
Max torque speed: 1800-2000rpm
Rated speed: 3800rpm
Engine Type: Inline, high-pressure common rail
Transmission Parameters
Transmission Model: JMCJC528T8
Transmission Brand: JMC
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 3.7m
Cargo box width: 1.85m
Cargo box height: 1.81m
*Cargo box interior width: 1.8500000238419
Cab parameters
Cab: Tilt cab
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1505kg
rear axle allowable load: 2600kg
Leaf spring count: 7/4+5
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
Power steering:
interior configuration
AC control type: Manual
Power Windows:
Reverse Camera:
Electronic Central Lock:
Multimedia features
Radio:
lighting configuration
Front fog lamp:

Photos

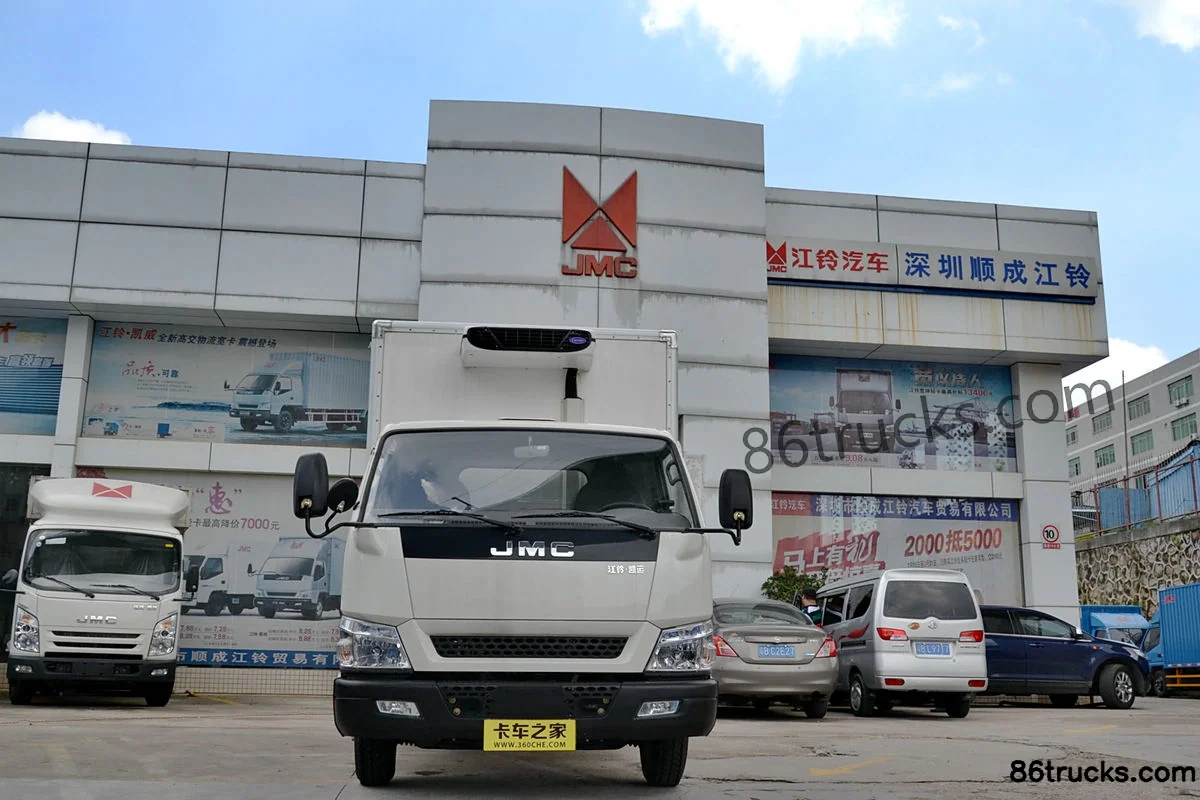

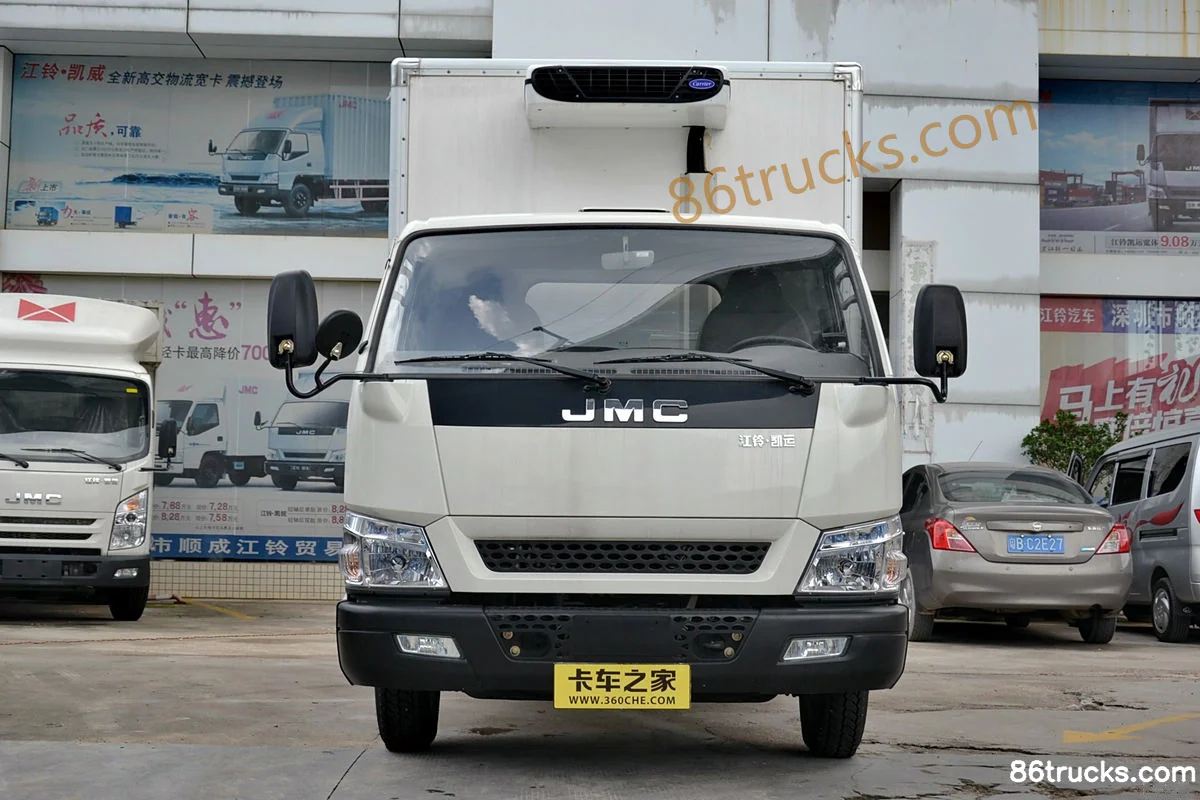

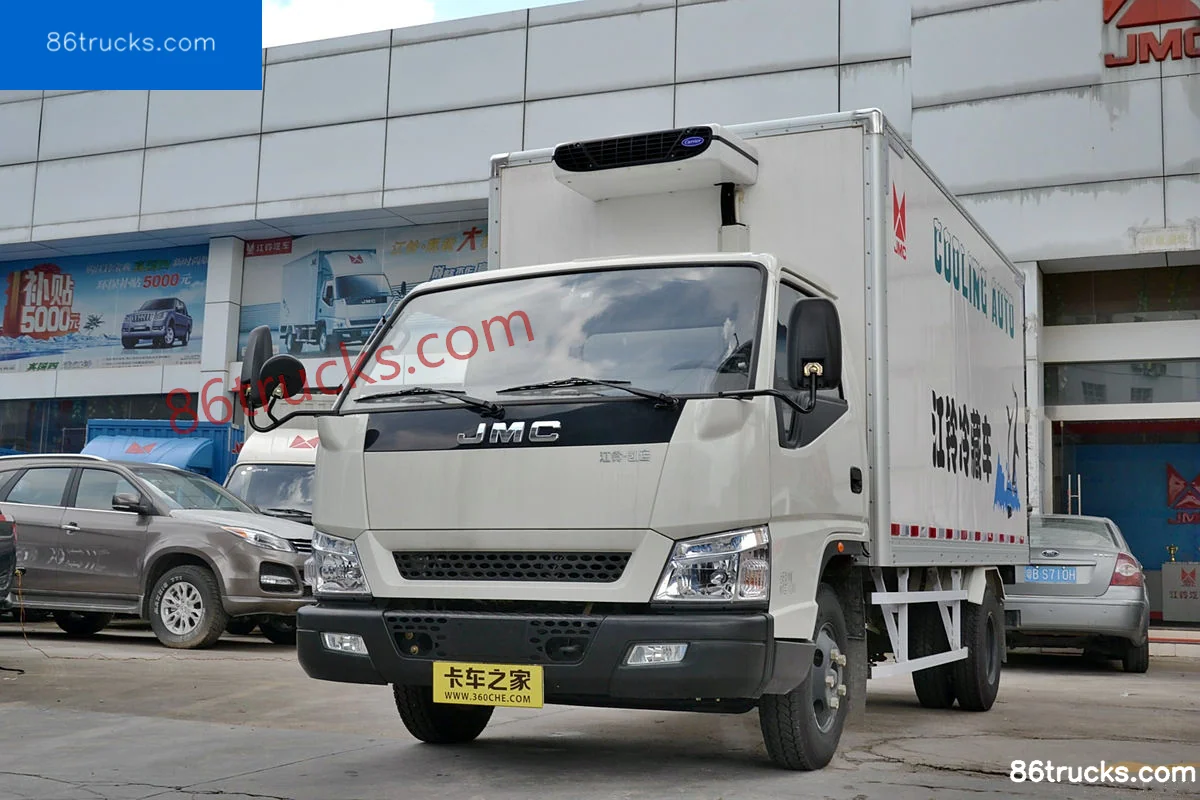

Exterior3

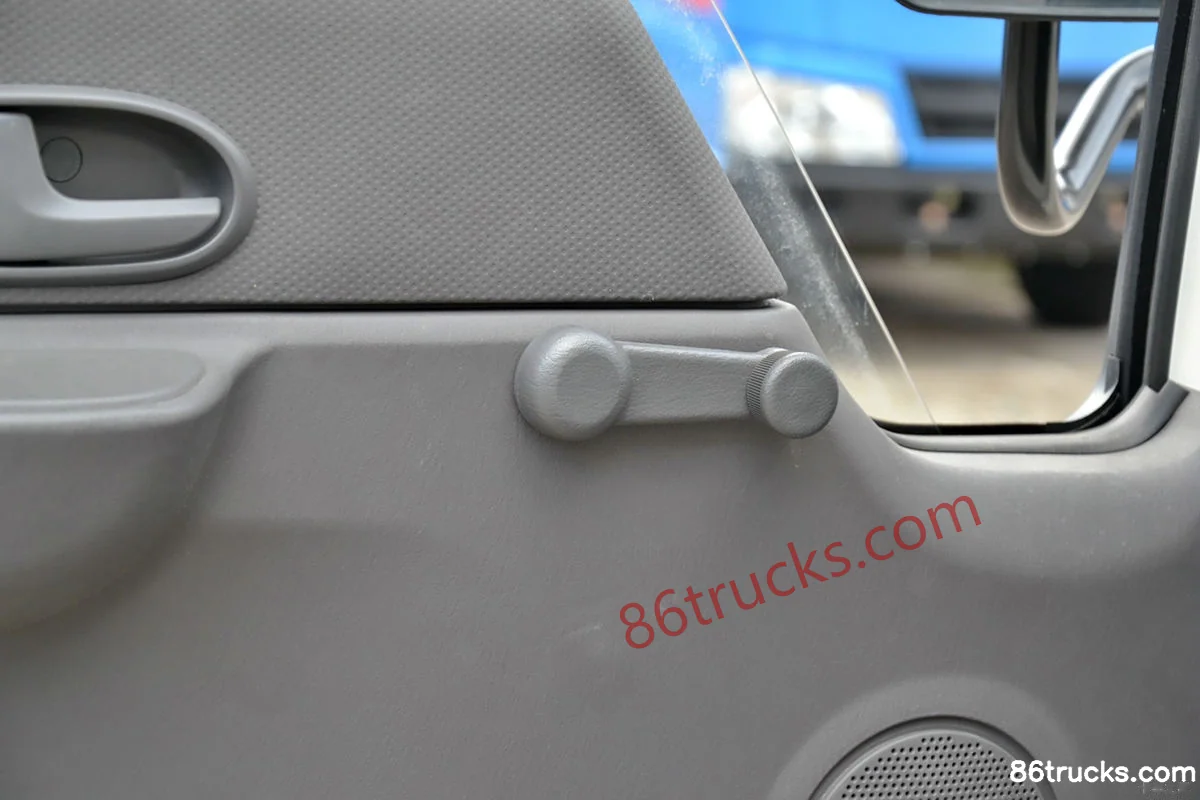

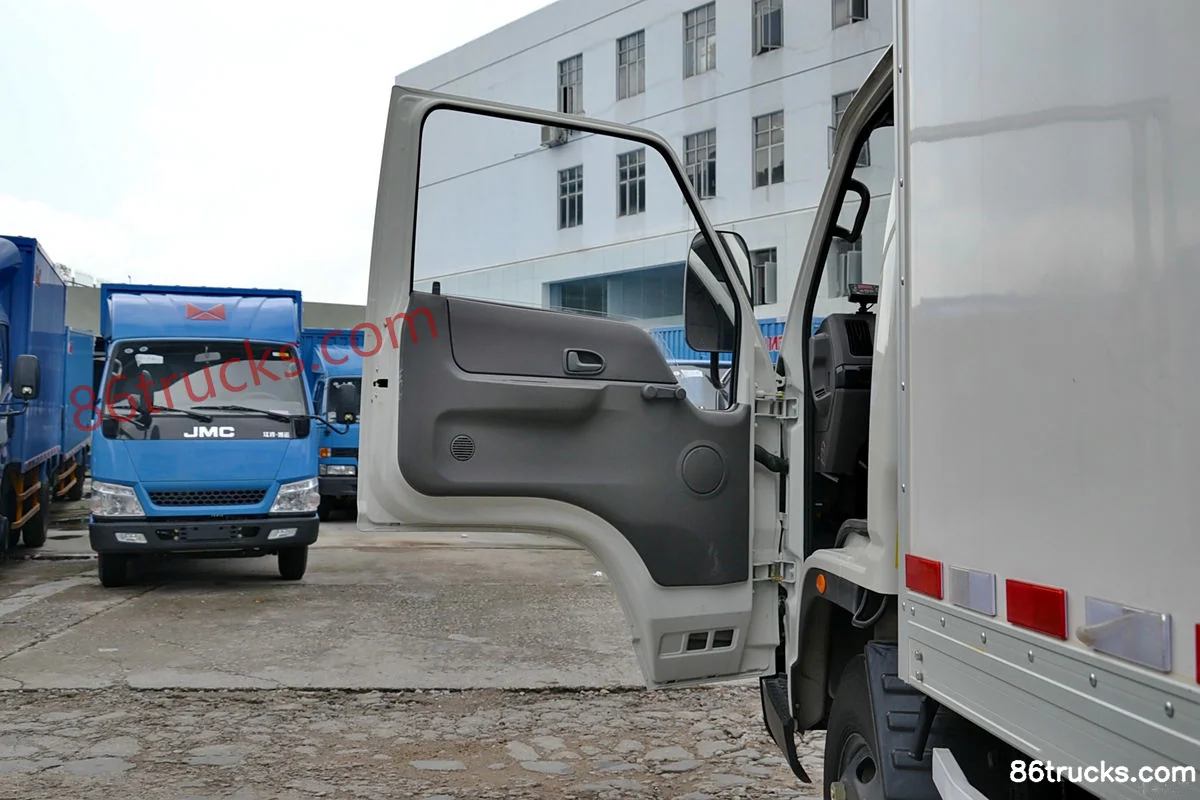

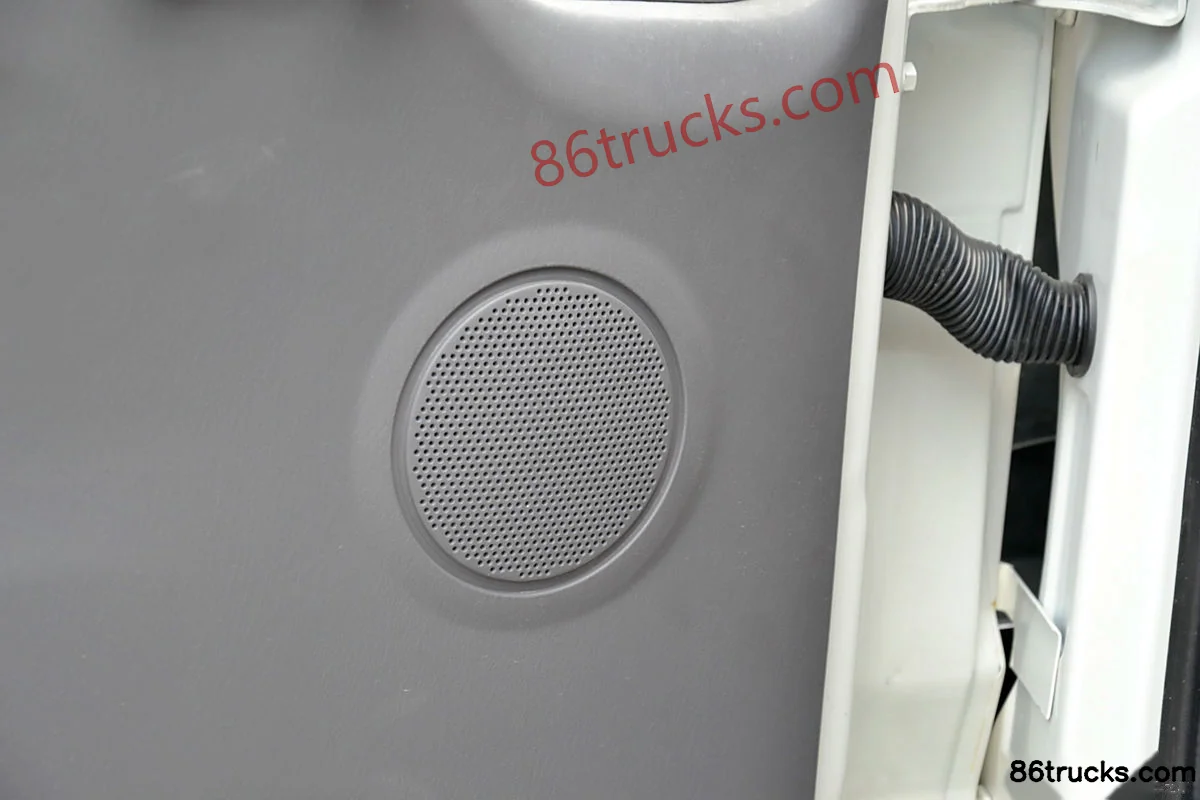

Cab3

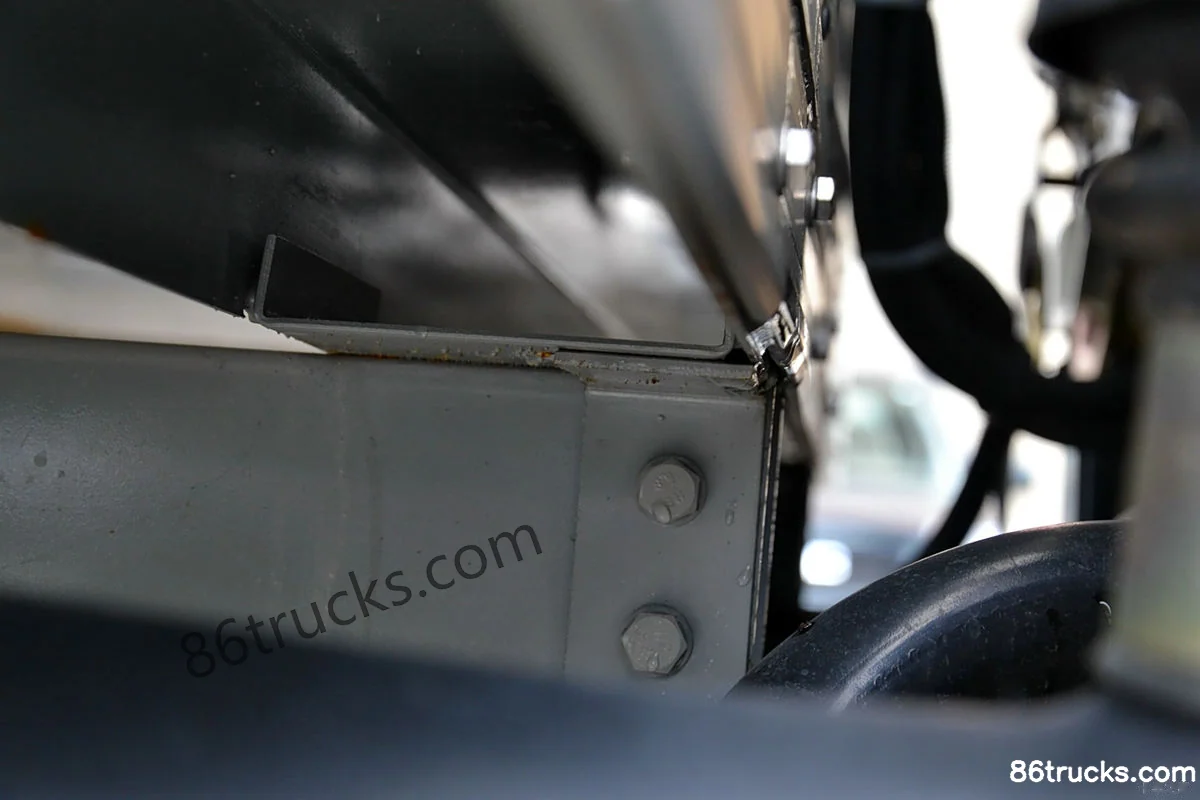

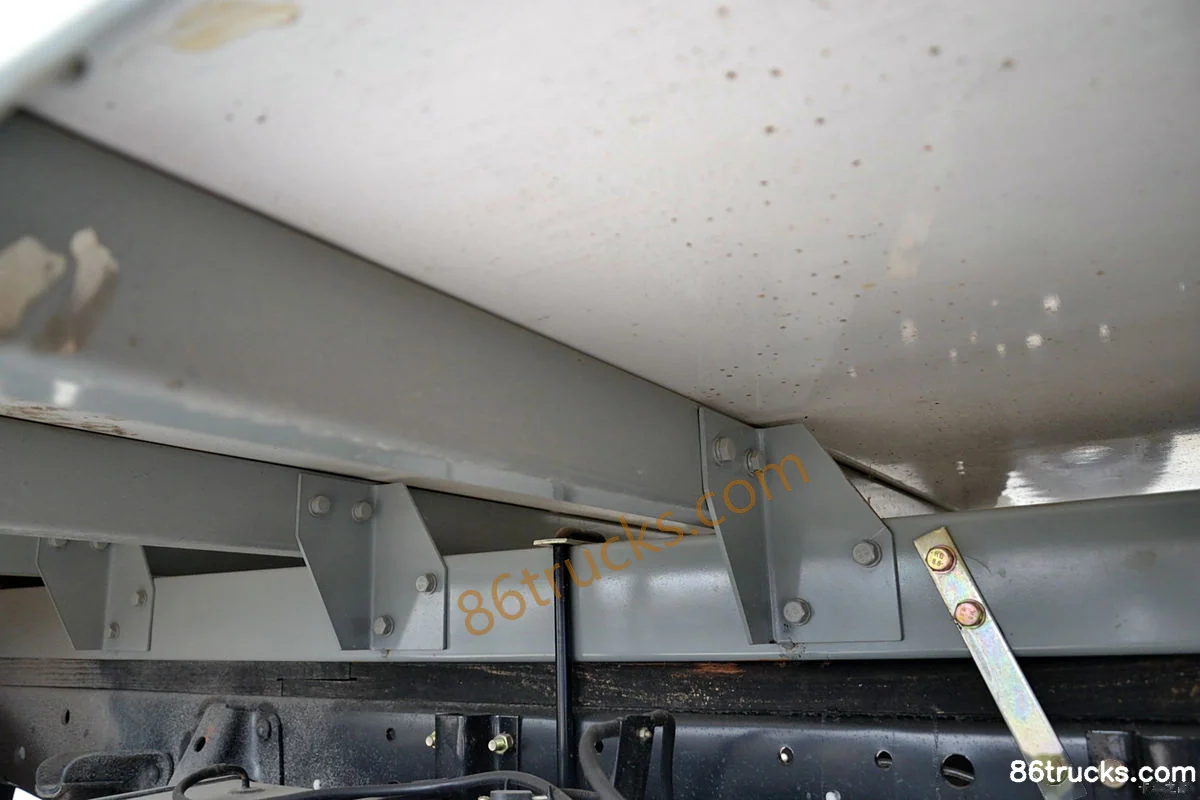

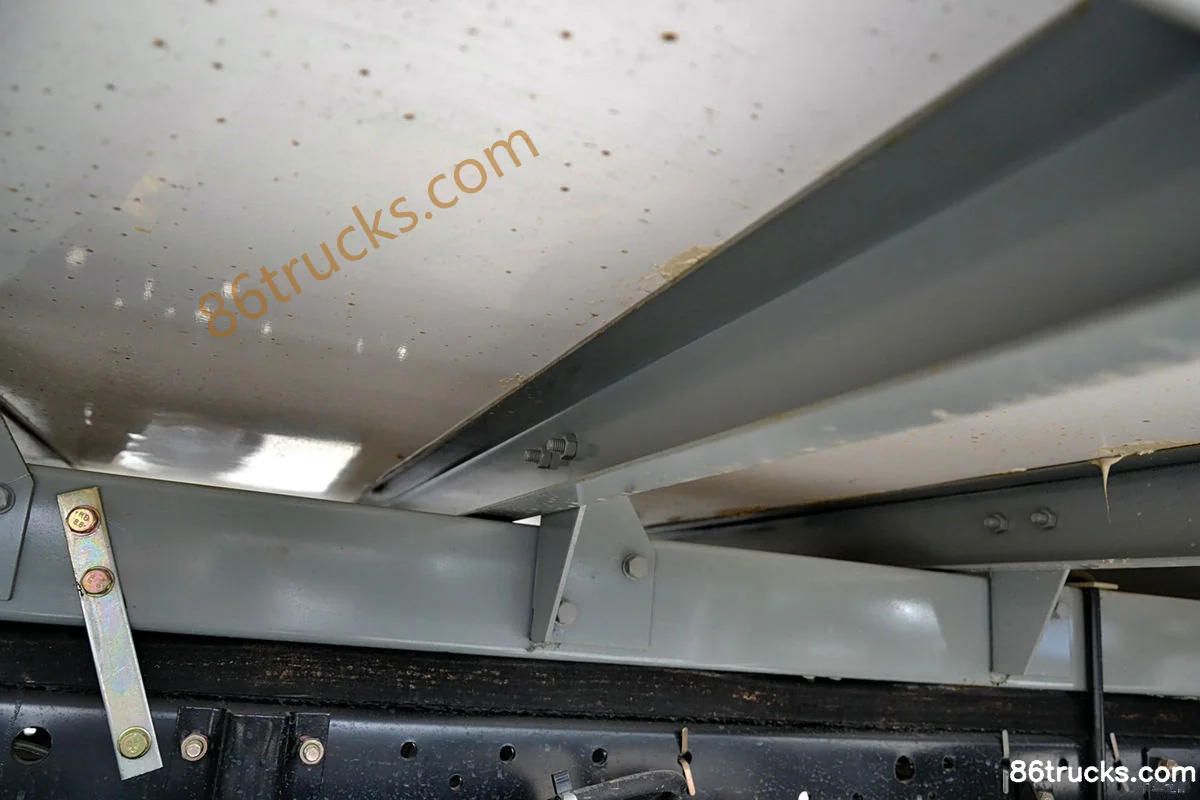

Chassis3

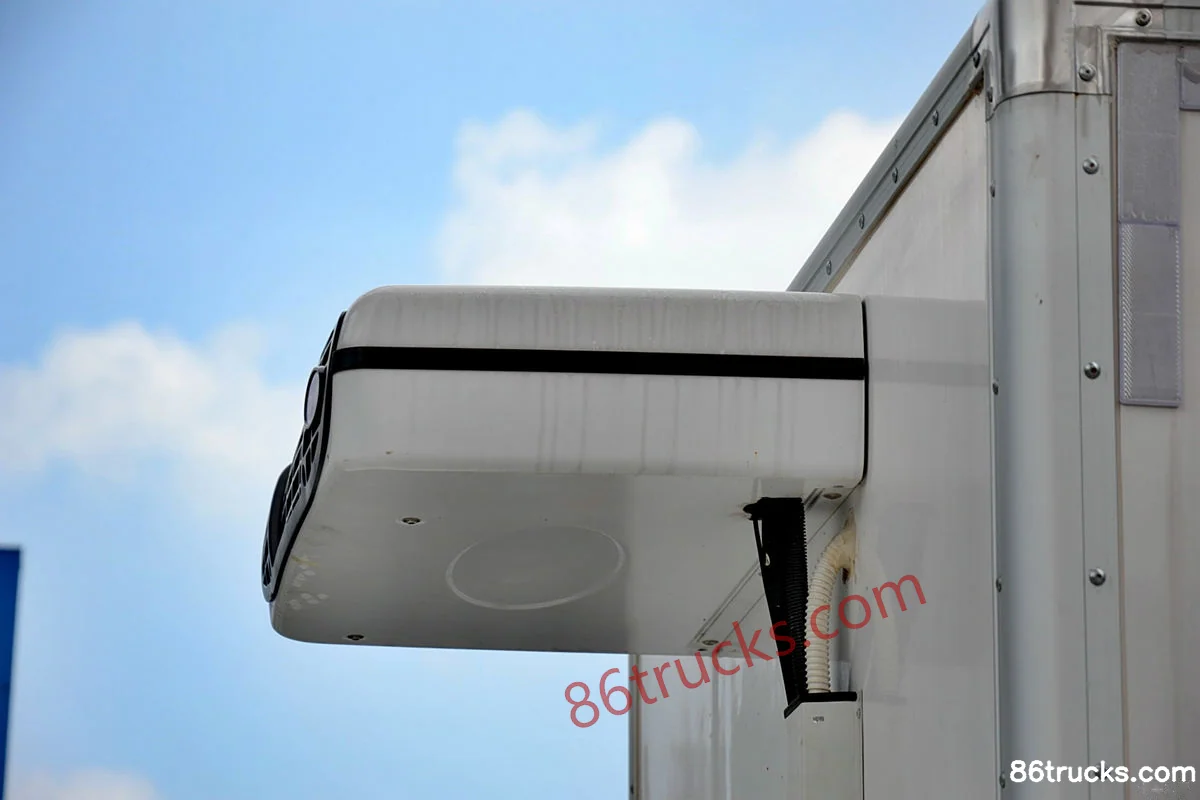

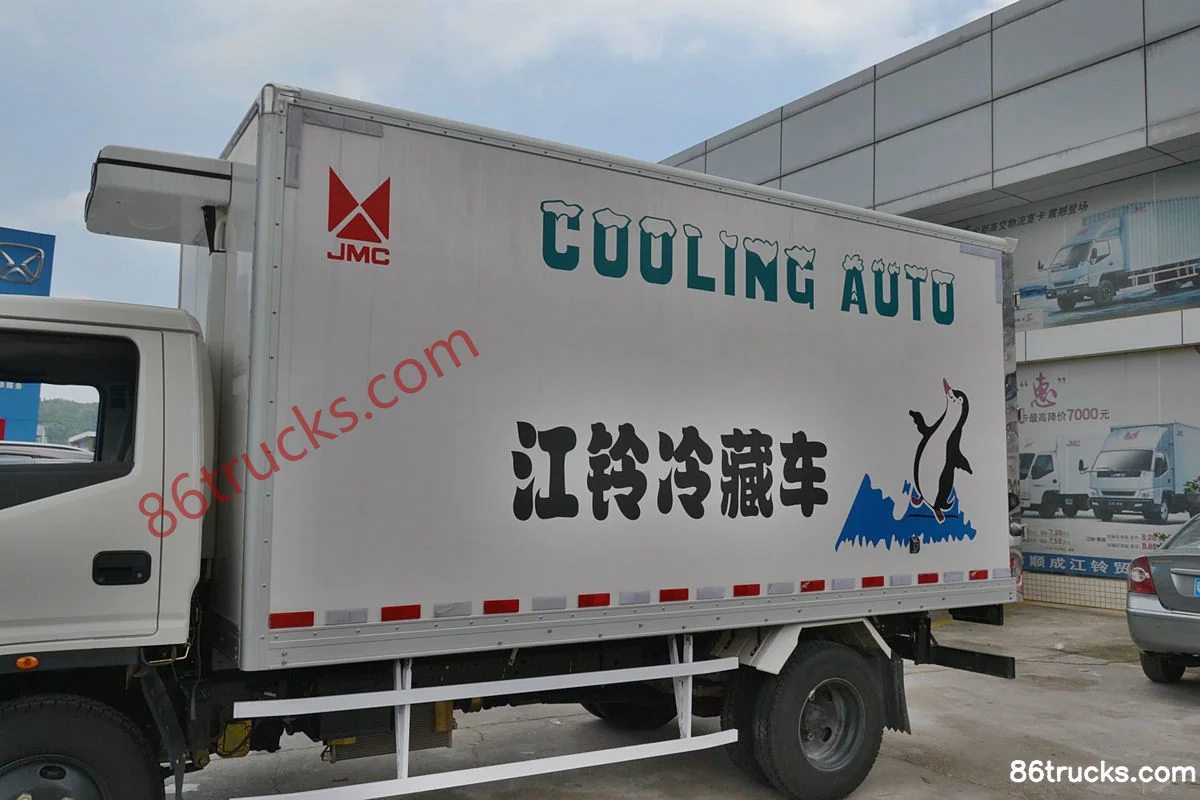

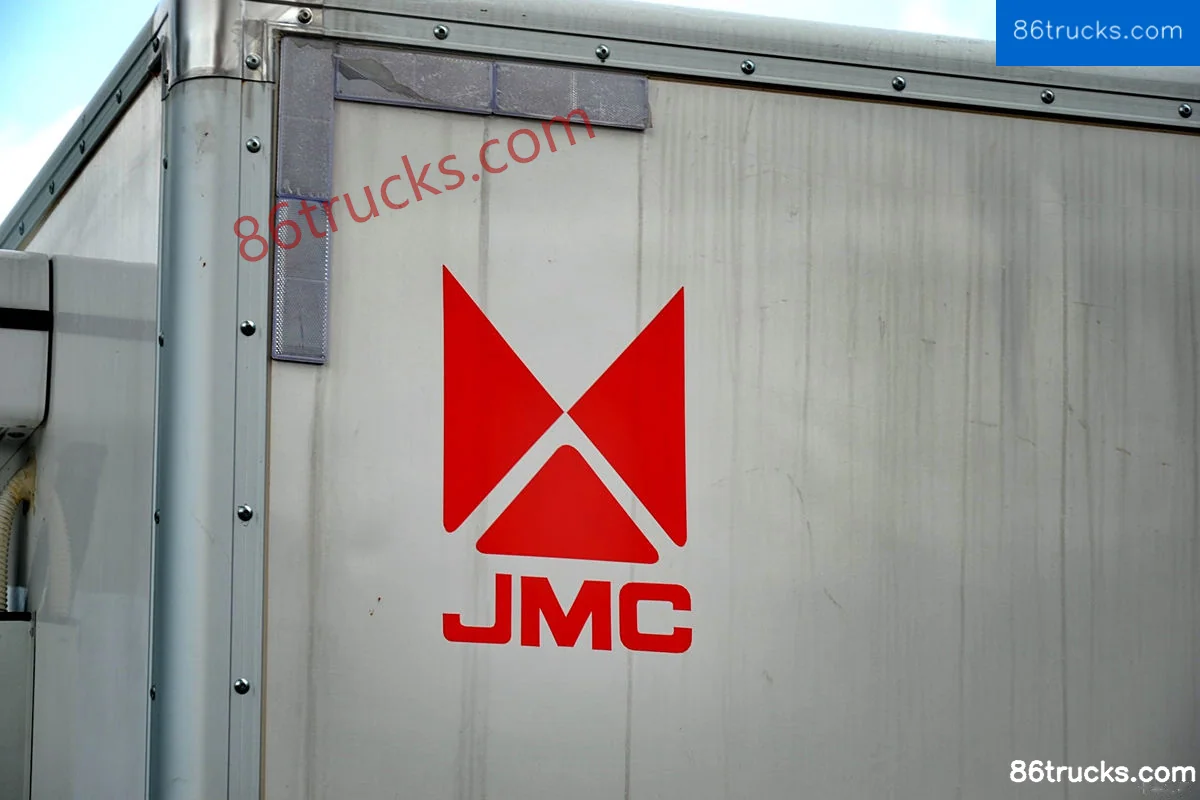

Body3

12 photos

FAQ

What emission standard does JMC New Kaiyun 109 hp 4X2(6 wheels) 3.7m Single Row Van Light Truck (Narrow Body) use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JMC New Kaiyun 109 hp 4X2(6 wheels) 3.7m Single Row Van Light Truck (Narrow Body)?

Key specs of JMC New Kaiyun 109 hp 4X2(6 wheels) 3.7m Single Row Van Light Truck (Narrow Body): Drive: 4x2; Horsepower: 109 hp; Emission: China IV; Fuel: Diesel; Engine: JMC493; Transmission: JMC. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JMC New Kaiyun 109 hp 4X2(6 wheels) 3.7m Single Row Van Light Truck (Narrow Body) suited for?

JMC New Kaiyun 109 hp 4X2(6 wheels) 3.7m Single Row Van Light Truck (Narrow Body) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JMC New Kaiyun 109 hp 4X2(6 wheels) 3.7m Single Row Van Light Truck (Narrow Body) differ from other variants in the same series?

JMC New Kaiyun 109 hp 4X2(6 wheels) 3.7m Single Row Van Light Truck (Narrow Body) belongs to JMC New Kaiyun Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JMC New Kaiyun 109 hp 4X2(6 wheels) 3.7m Single Row Van Light Truck (Narrow Body)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JMC New Kaiyun 109 hp 4X2(6 wheels) 3.7m Single Row Van Light Truck (Narrow Body)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
