JAC Gallop K3L medium truck 180 hp 4X2(6 wheels) 6.2m semi-sleeper flatbed cargo truck (axle ratio: 4.55)

Export reference
From $22,917
MSRP ¥16.5M CNY
Horsepower: 180
Emission: China V
Fuel: Diesel
Engine: Xichai 6-cylinder
Transmission: Fast Gear
Curb Weight:: 6.005ton
seating capacity: 3Personnel
Rated payload: 9.8ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The JAC Gallop K3L medium truck 180 hp 4X2(6 wheels) 6.2m semi-sleeper flatbed cargo truck (axle ratio: 4.55) is a Medium-duty truck featuring 6.2m cargo length, stake body cargo body, 3Personnel volume and 9.8t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Xichai 6-cylinder engine, 180 hp, 4X2 (6 wheels) drive and China V emissions.

China V 180 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC1161P3K2A47S1V
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 4700mm
Box length class: 6.2m
engine: XichaiCA6DLD-18E5
transmission: Fast Gear8JS75C
Rear Axle Ratio: 4.55
Cab length: 8.44m
Cab width: 2.5m
Cab height: 3.14m
Front track width: 1800mm
rear track: 1810mm
Curb Weight: 6.005ton
Rated payload: 9.8ton
GVWR: 16ton
Max. speed: 100km/h
Origin: Hefei, Anhui
tonnage class: Medium-duty truck
Approach angle: 18°
departure angle: 12°
market segment: Building materials, agricultural products
Remarks: Operating conditions: at full load 16t, 4.55 ratio: max speed 100 km/h, economic speed 82 km/h, this configuration offers strong power, recommended for mountainous roads.
Front/rear suspension: 1.4/2.34m
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA6DLD-18E5
Engine info: Xichai 6-cylinder
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.6L
Emission standard: China V
Max output power: 134kW
Max hp: 180Horsepower
Max torque: 680N·m
Max torque speed: 1300-1700rpm
Rated speed: 2300rpm
Transmission Parameters
Transmission Model: Fast Gear8JS75C
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: stake body
Cargo box length: 6.2m
Cargo box width: 2.4m
Cargo box height: 0.6m
*Cargo box interior width: 2.4000000953674
Cab parameters
Cab: K3L Semi-High Roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: Iron
Fuel tank capacity: 200L
Chassis Specs
Front axle allowable load: 5600kg
Frame Dimensions: 245X75X7mm
rear axle description: 9t
rear axle allowable load: 10400kg
Axle ratio: 4.55
Leaf spring count: 9/9+7,3/9+7
Tire
Tire Size: 9.00R20 16PR,10R22.5 16PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

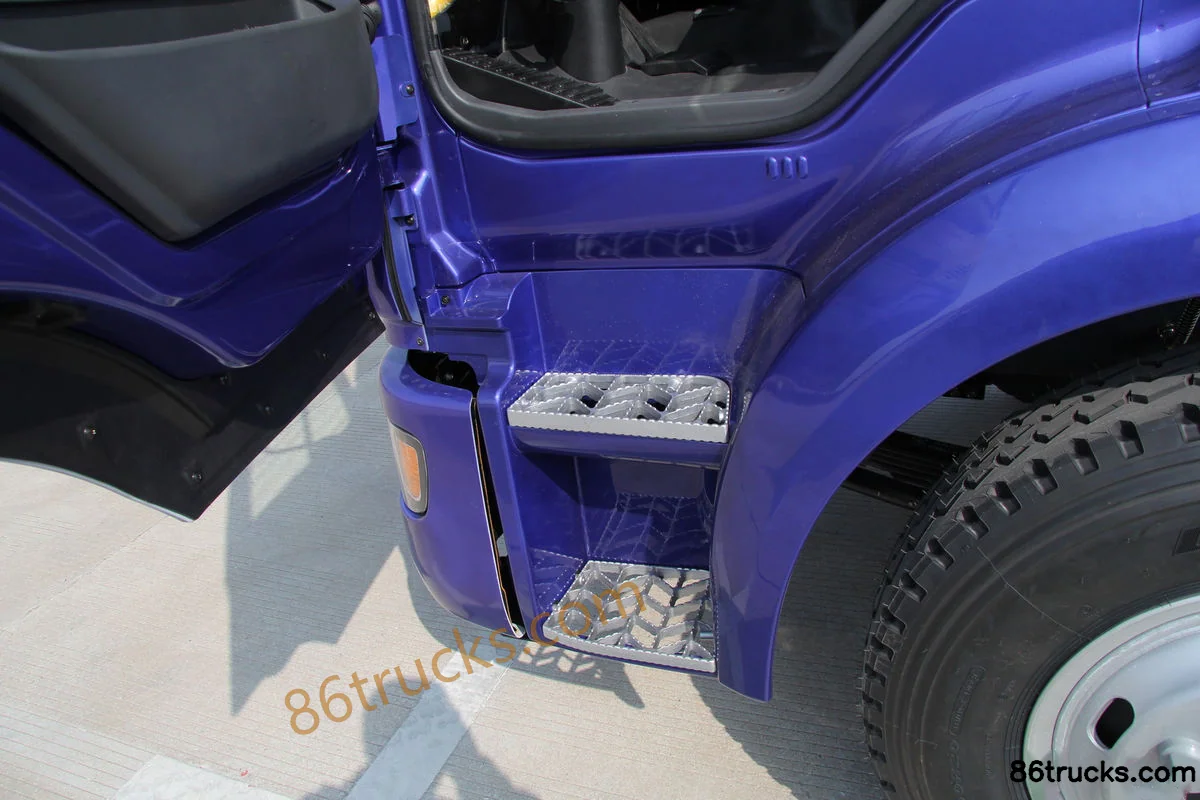

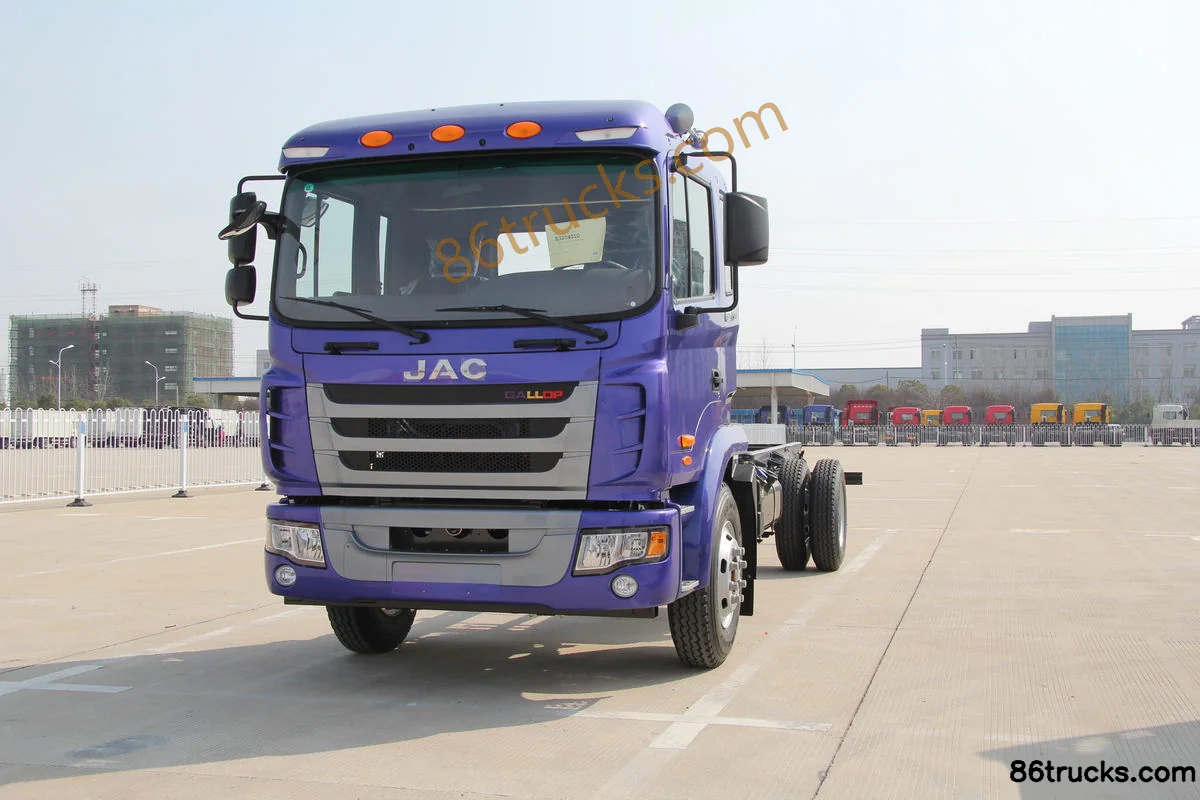

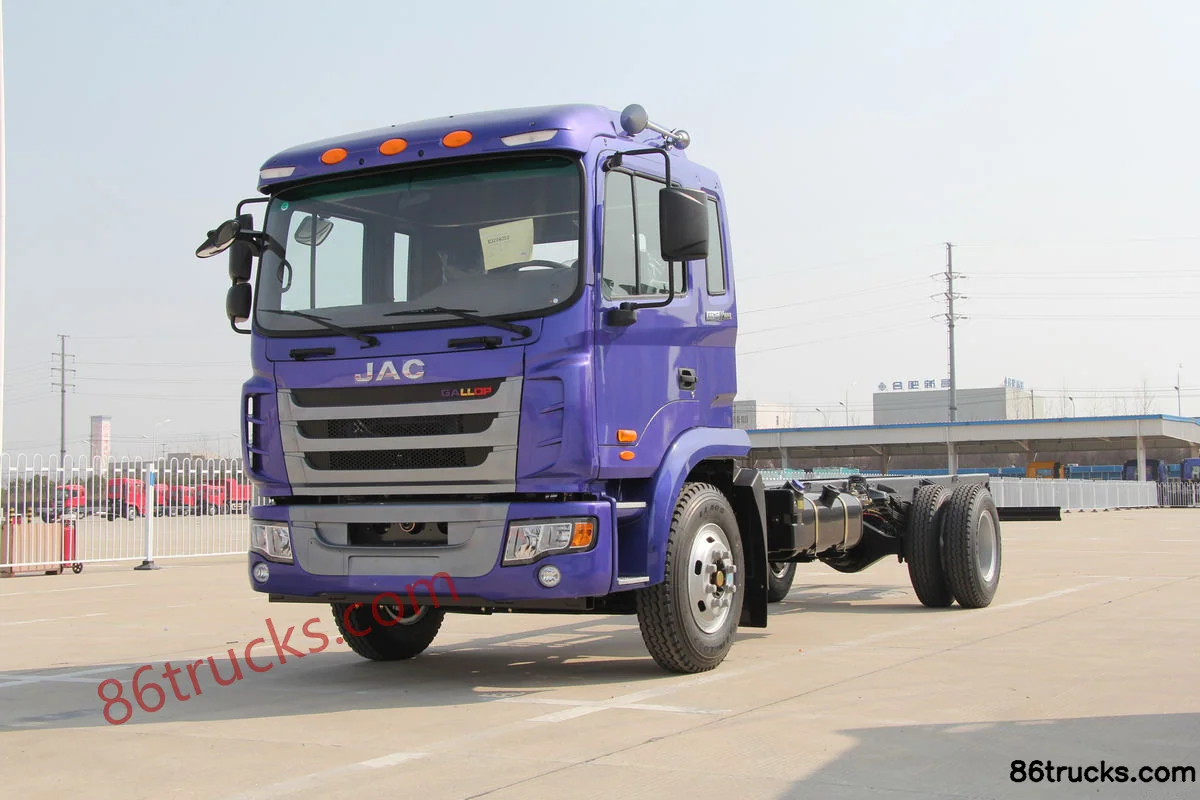

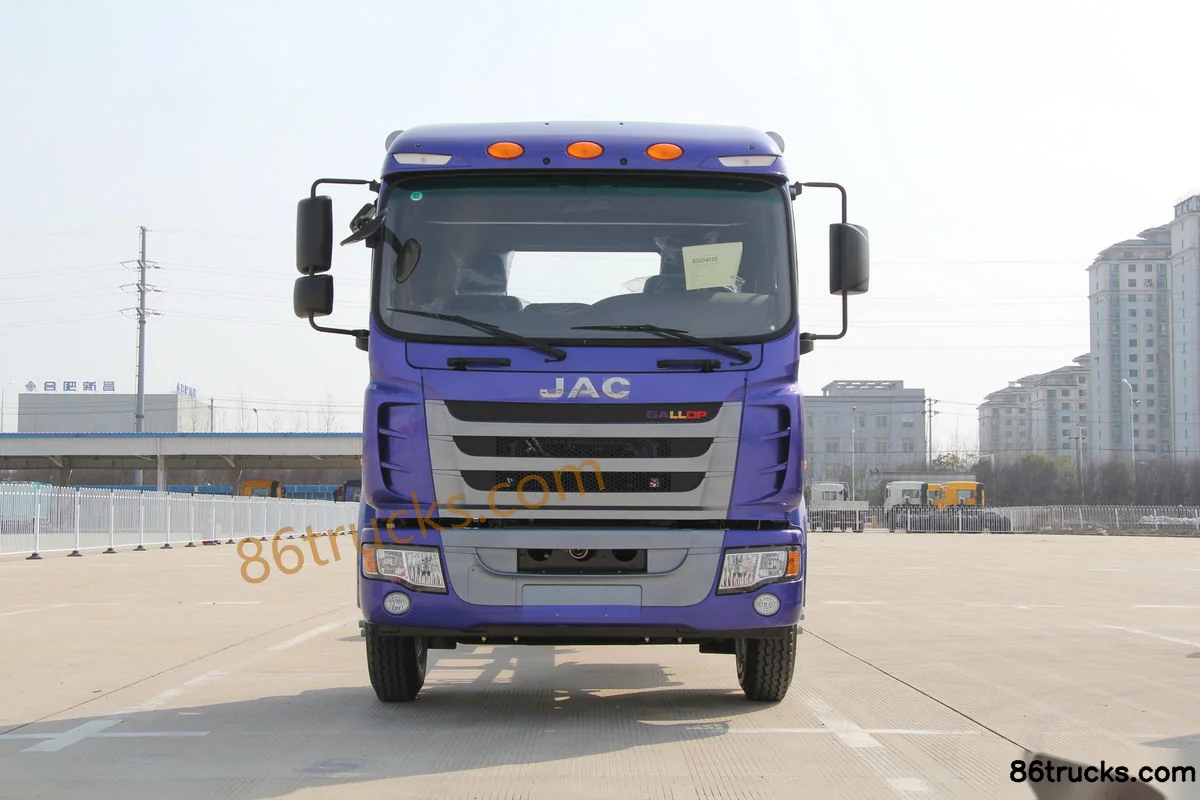

Exterior3

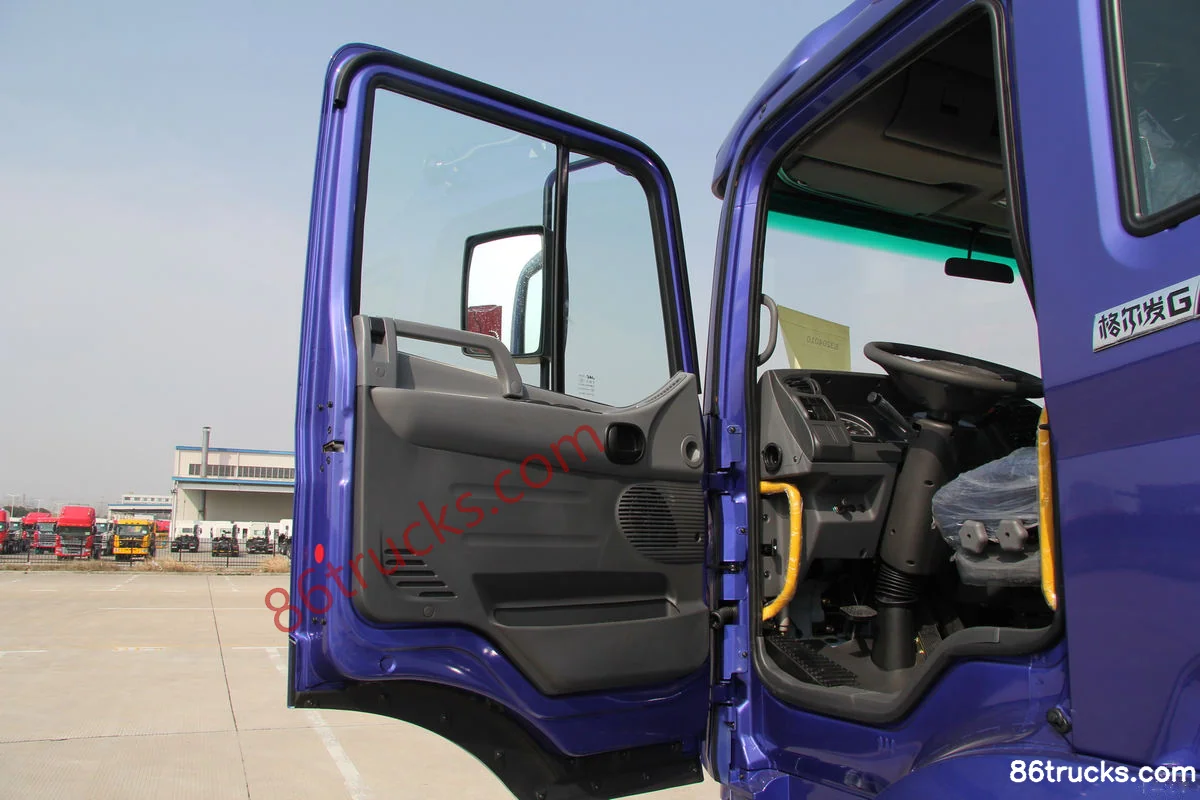

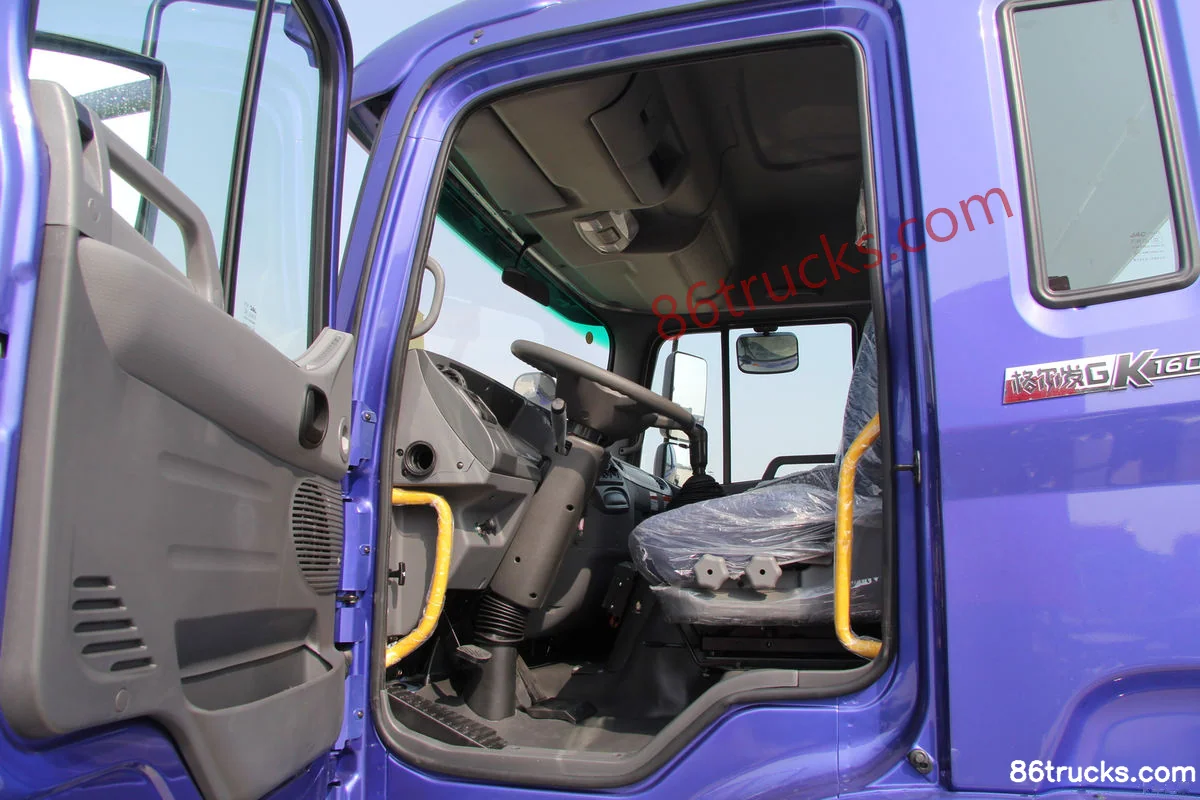

Cab3

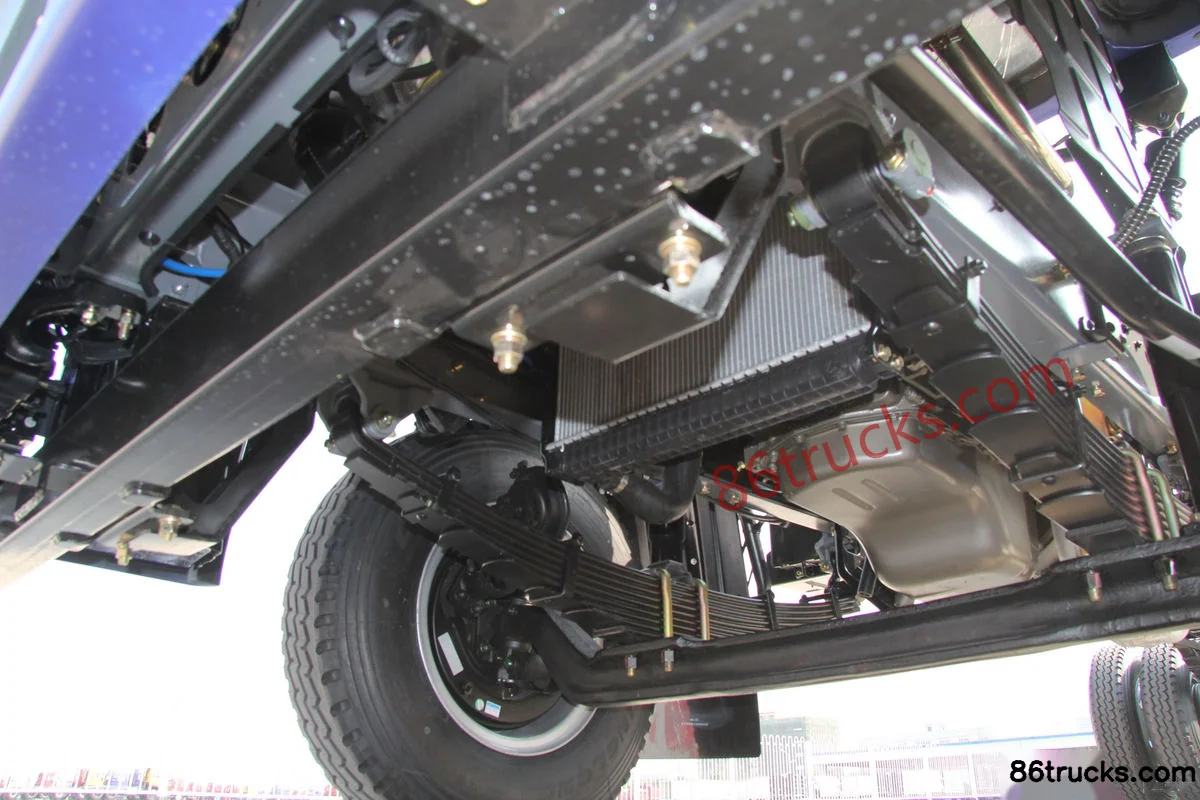

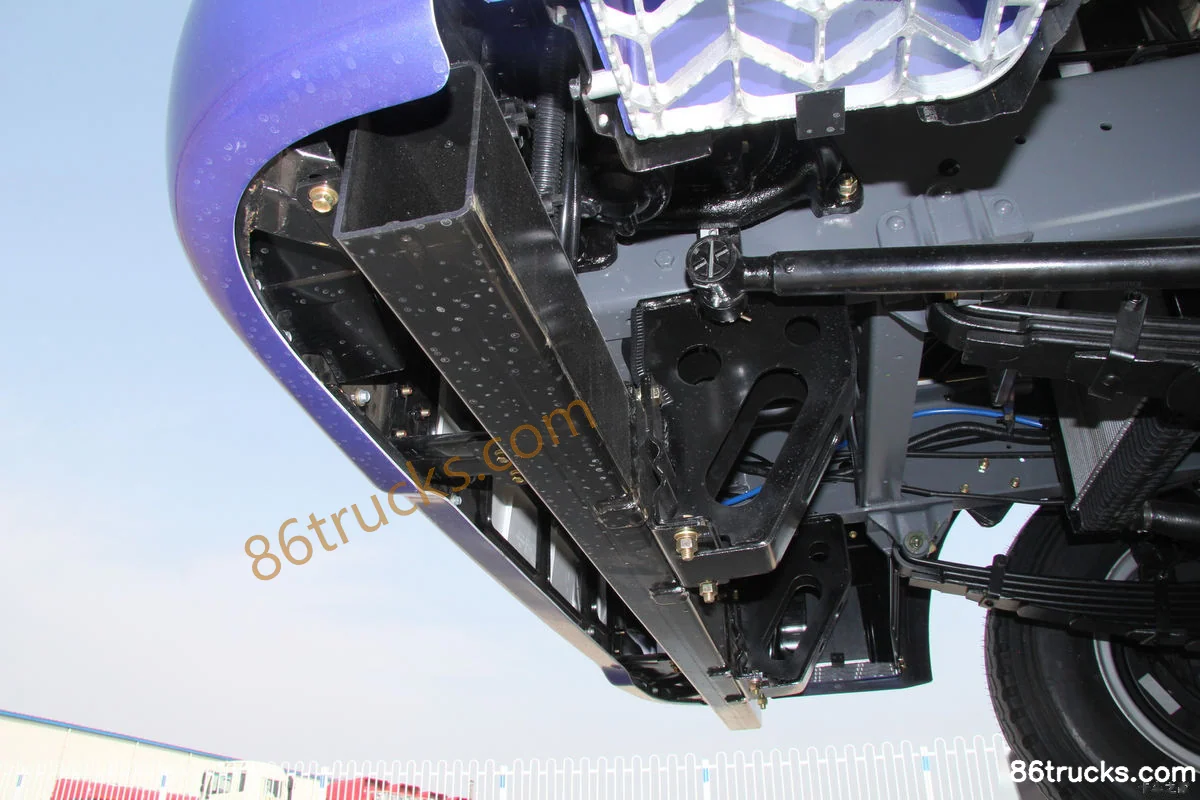

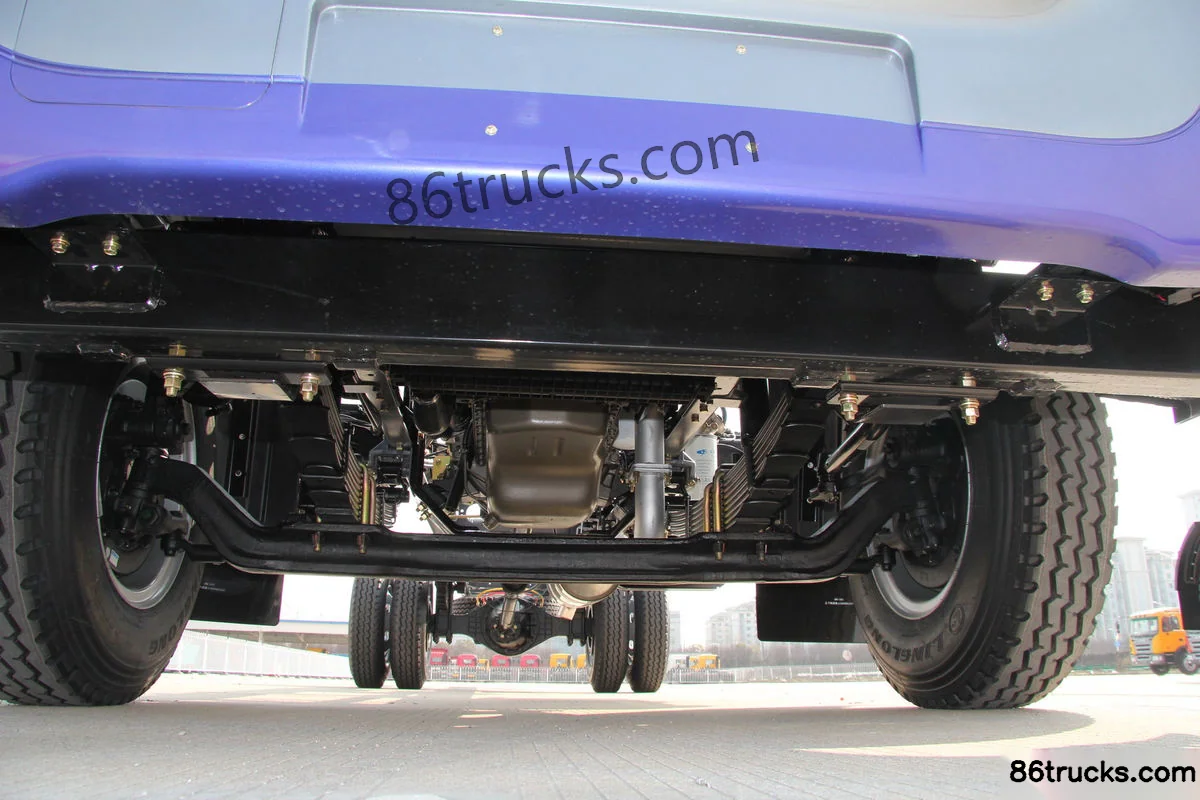

Chassis3

9 photos
