Dayun New N8E Heavy Truck 350hp 8X4(12 wheels) 9.6m Stake Cargo Truck Chassis

Export reference
From $42,361
MSRP ¥30.5M CNY
Horsepower: 350
Emission: China IV
Fuel: Diesel
Engine: WeichaiWP10
Transmission: Fast Gear
Curb Weight:: 11.5ton
seating capacity: 3Personnel
Rated payload: 19.37ton
Drive 8X4 (12 wheels)
Cargo box type: stake body

Overview

The Dayun New N8E Heavy Truck 350hp 8X4(12 wheels) 9.6m Stake Cargo Truck Chassis is a Heavy-duty cargo trucks featuring 9.6m cargo length, stake body cargo body, 3Personnel volume and 19.37t payload. On the powertrain side, it comes with a WeichaiWP10 engine, 350 hp, 8X4 (12 wheels) drive and China IV emissions.

China IV 350 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CGC1312D4XD
Type: Chassis
Drive type: 8X4
Wheelbase: 1800+4600+1350mm
Box length class: 9.6m
engine: WeichaiWP10.350E42
transmission: Fast Gear12JSD160TA
Rear Axle Ratio: 4.11
Cab length: 12m
Cab width: 2.5m
Cab height: 3.85m
Front track width: 2060/2060mm
rear track: 1860/1860mm
Curb Weight: 11.5ton
Rated payload: 19.37ton
GVWR: 31ton
Max. speed: 90km/h
Origin: Shanxi Yuncheng
tonnage class: Heavy-duty cargo trucks
Approach angle: 20°
departure angle: 21°
Front/rear suspension: 1.535/2.715m
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP10.350E42
Engine info: WeichaiWP10
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 9.726L
Emission standard: China IV
Max output power: 257kW
Max hp: 350Horsepower
Max torque: 1550N·m
Max torque speed: 1200-1600rpm
Rated speed: 2200rpm
Engine Type: Electronic high-pressure common rail + SCR
Transmission Parameters
Transmission Model: Fast Gear12JSD160TA
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: stake body
Cargo box length: 9.6m
Cargo box width: 2.4m
Cargo box height: 0.8m
*Cargo box interior width: 2.4000000953674
Cab parameters
Cab: High roof cab
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 450L
Chassis Specs
Front axle allowable load: 6500/6500kg
rear axle description: 457 axle
rear axle allowable load: 18000 (twin axle)kg
Axle ratio: 4.11
Leaf spring count: 3/3/5
Tire
Tire Size: 11.00-20 16PR
Number of tires: 12pcs
Control configuration
ABS:

Photos

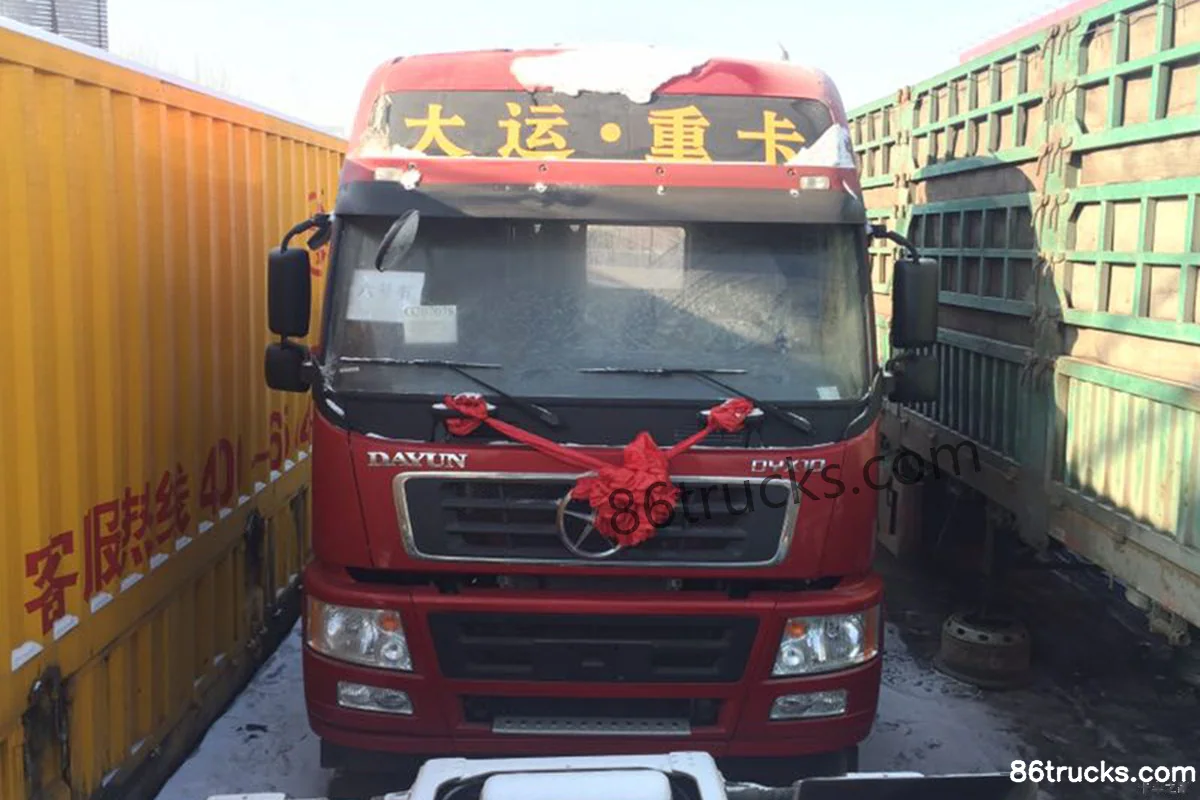

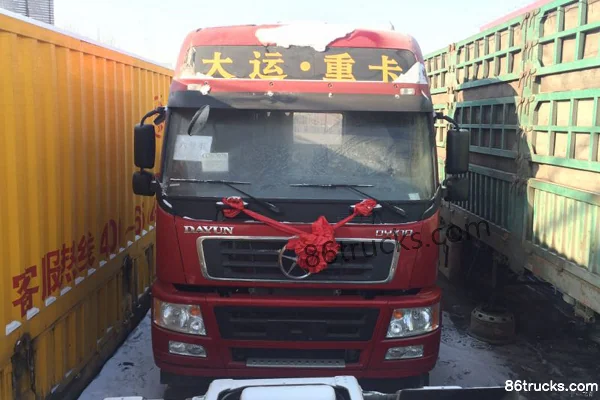

Exterior2

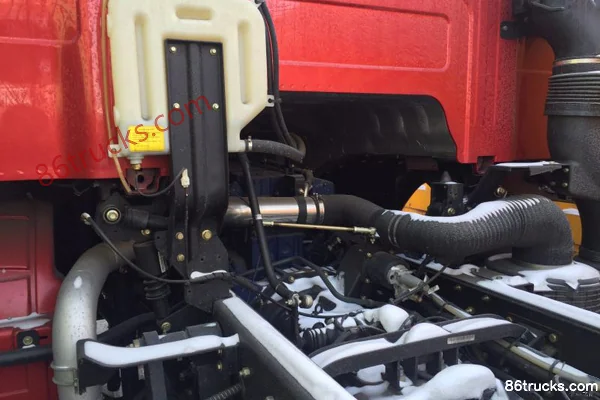

Cab2

4 photos

FAQ

What is the export price of Dayun New N8E Heavy Truck 350hp 8X4(12 wheels) 9.6m Stake Cargo Truck Chassis, and what does it include?

Dayun New N8E Heavy Truck 350hp 8X4(12 wheels) 9.6m Stake Cargo Truck Chassis export reference is about From $42,361; MSRP is ¥30.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dayun New N8E Heavy Truck 350hp 8X4(12 wheels) 9.6m Stake Cargo Truck Chassis use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dayun New N8E Heavy Truck 350hp 8X4(12 wheels) 9.6m Stake Cargo Truck Chassis?

Key specs of Dayun New N8E Heavy Truck 350hp 8X4(12 wheels) 9.6m Stake Cargo Truck Chassis: Drive: 8x4; Horsepower: 350 hp; Emission: China IV; Fuel: Diesel; Engine: WeichaiWP10; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dayun New N8E Heavy Truck 350hp 8X4(12 wheels) 9.6m Stake Cargo Truck Chassis suited for?

Dayun New N8E Heavy Truck 350hp 8X4(12 wheels) 9.6m Stake Cargo Truck Chassis is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Dayun New N8E Heavy Truck 350hp 8X4(12 wheels) 9.6m Stake Cargo Truck Chassis differ from other variants in the same series?

Dayun New N8E Heavy Truck 350hp 8X4(12 wheels) 9.6m Stake Cargo Truck Chassis belongs to Dayun New N8E quasi-heavy truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dayun New N8E Heavy Truck 350hp 8X4(12 wheels) 9.6m Stake Cargo Truck Chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dayun New N8E Heavy Truck 350hp 8X4(12 wheels) 9.6m Stake Cargo Truck Chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
