Sinotruk SITRAK C7H heavy truck 400 hp 8X4(12 wheels) concrete mixer truck

Export reference
MSRP N/A
Fuel: Diesel
Curb Weight:: 16.55ton
Wheelbase:: 1950+3625+1350mm
Tire Size:: 12.00R20
Cab dimensions:: 10.97×2.496×3.98m
Truck Type:: concrete mixer truck
Rated payload: 14.32ton
Drive 8X4 (12 wheels)
Horsepower 400
Emission China IV

Overview

The Sinotruk SITRAK C7H heavy truck 400 hp 8X4(12 wheels) concrete mixer truck is a concrete mixer truck featuring 14.32t payload, 16.55ton GVW, 8X4 (12 wheels) drive and 10.97×2.496×3.98m cab. On the powertrain side, it comes with 400 hp, China IV emissions and Diesel fuel.

China IV 400 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 10.97×2.496×3.98m
Drive type: 8X4
Truck Type: concrete mixer truck
Wheelbase: 1950+3625+1350mm
Vehicle origin: Jinan, Shandong
Front/rear track width: Front track: 2022mm; Rear track: 1830mm
Curb Weight: 16.55ton
Rated payload: 14.32ton
Max. speed: 78km/h
Engine parameters
Engine Model: MC11.40-40
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 10.518L
Emission standard: China IV
Max output power: 294kW
Max hp: 400Horsepower
Rated speed: 1900rpm
Engine Type: Inline
Body Parameters
Vehicle certification code: ZZ5316GJBV366MD1
Body Brand: Sitrak
Chassis Specs
Chassis Series: SITRAK C7H
Chassis Model: ZZ1316V366MD1
Leaf spring count: 4/4/-,4/4/5,11/11/12
Transmission Parameters
Number of gears: 16Gear
Transmission Model: ZF 16S1950
Tire
Tire Size: 12.00R20
Number of tires: 12pcs

Photos

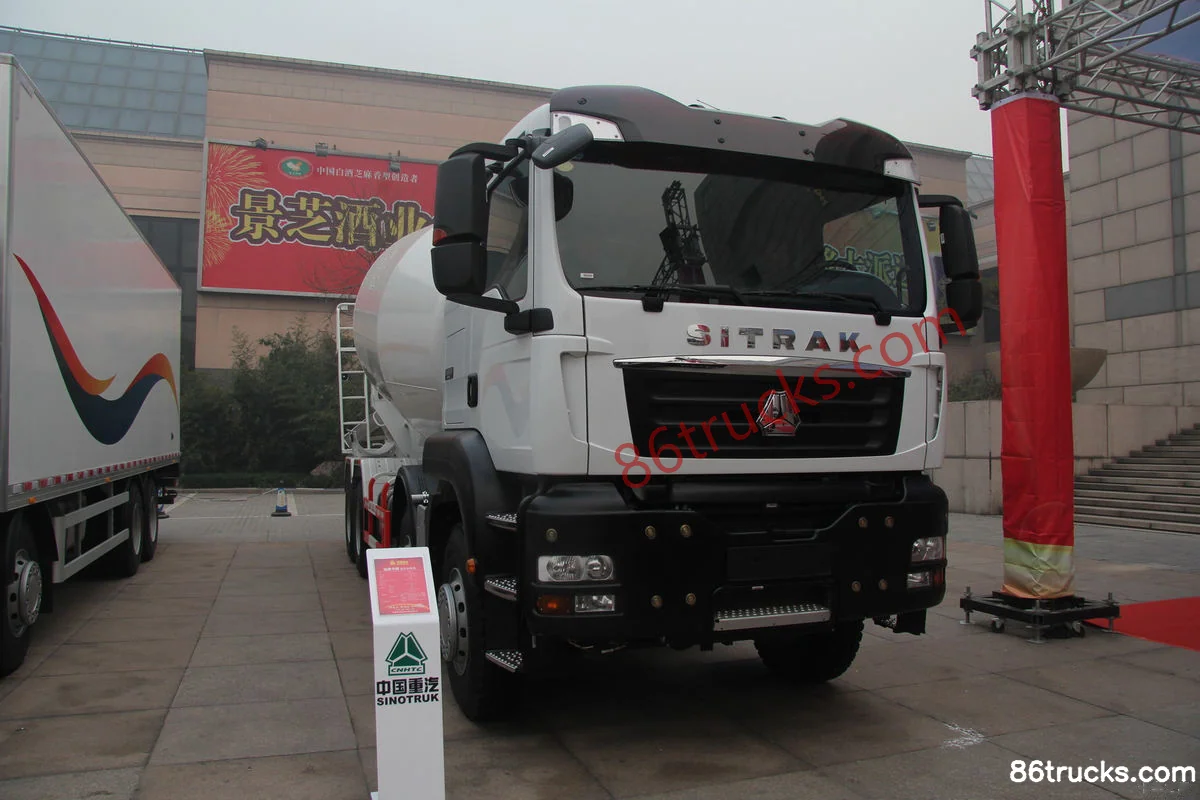

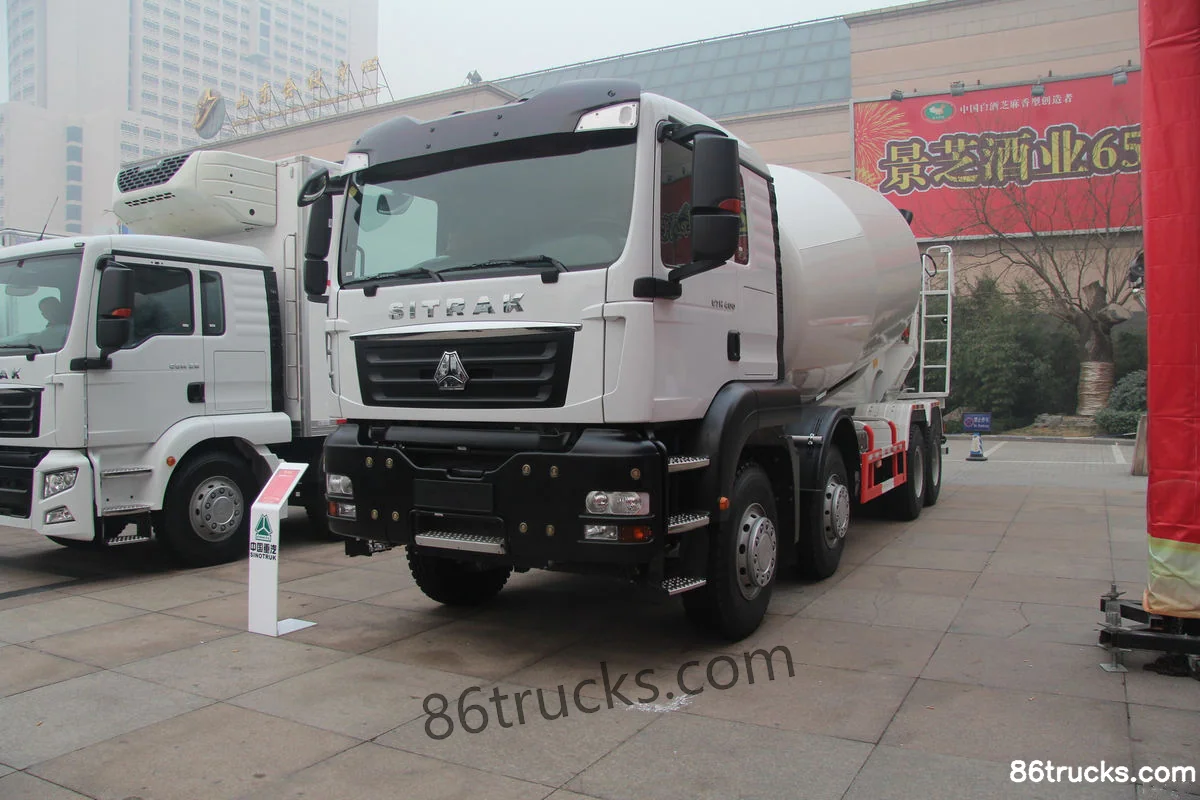

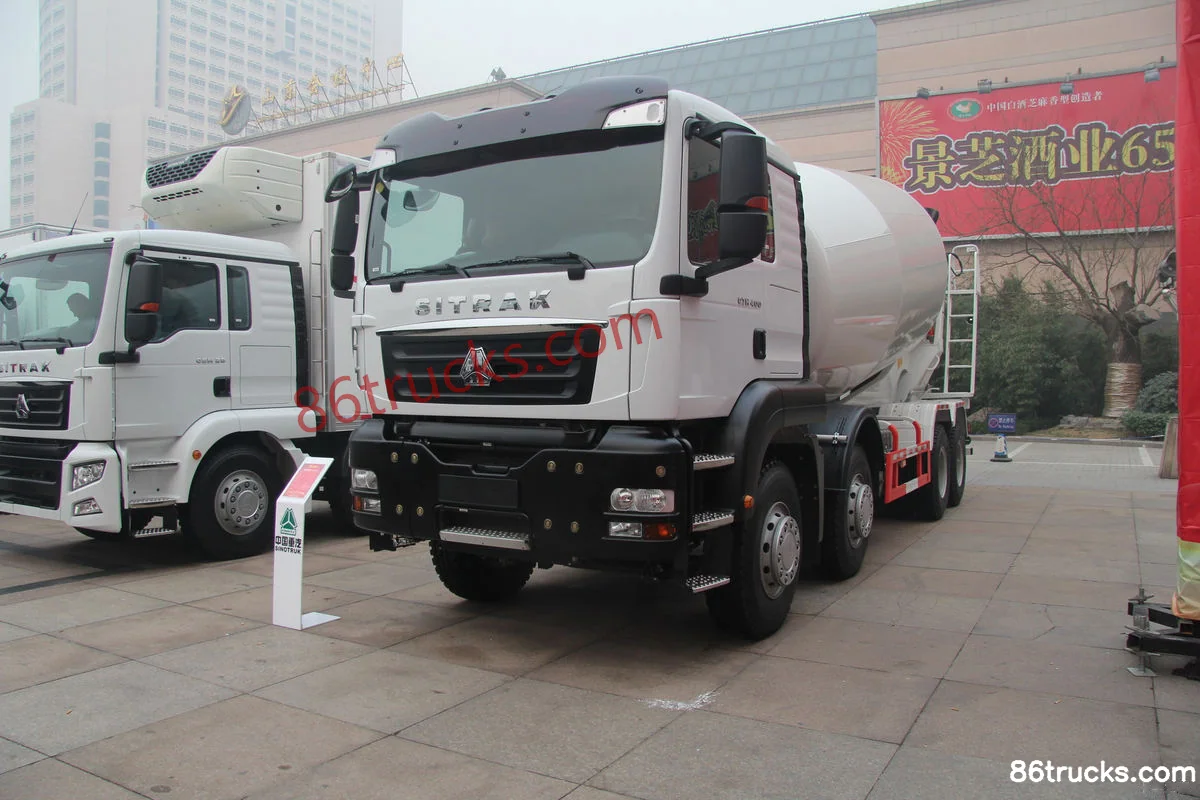

Exterior3

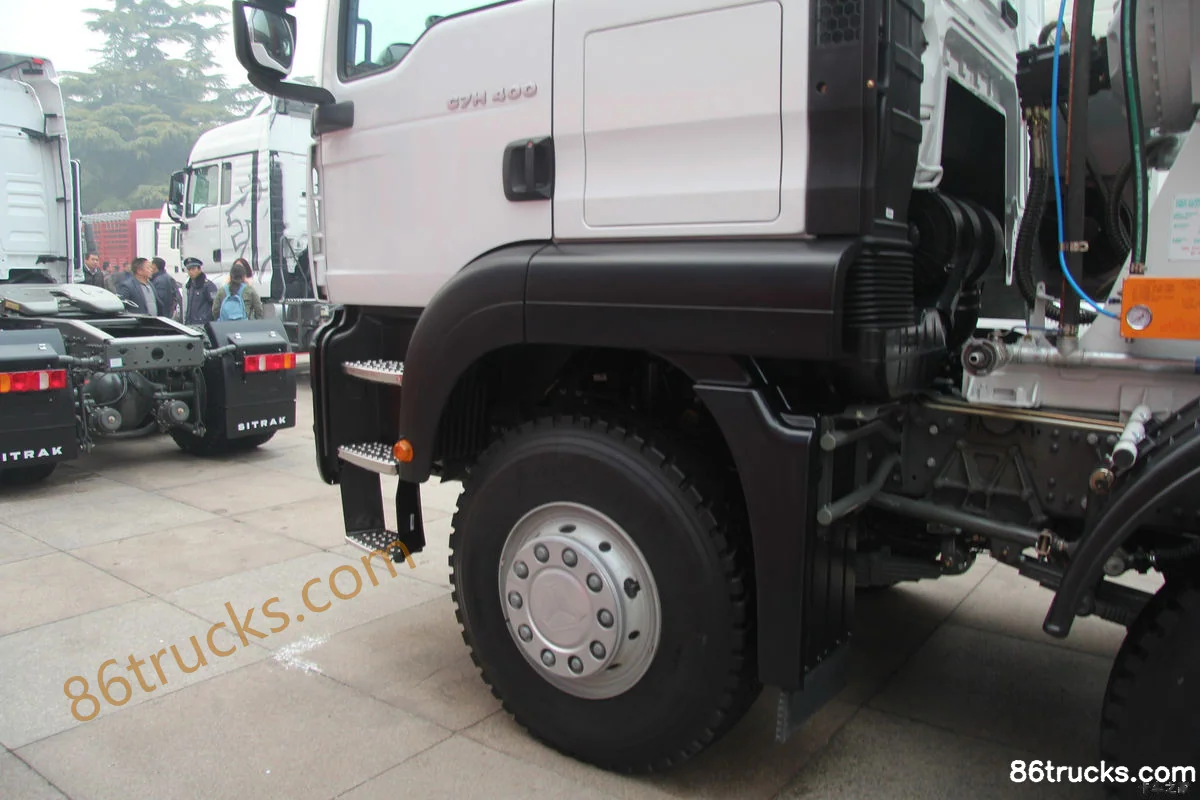

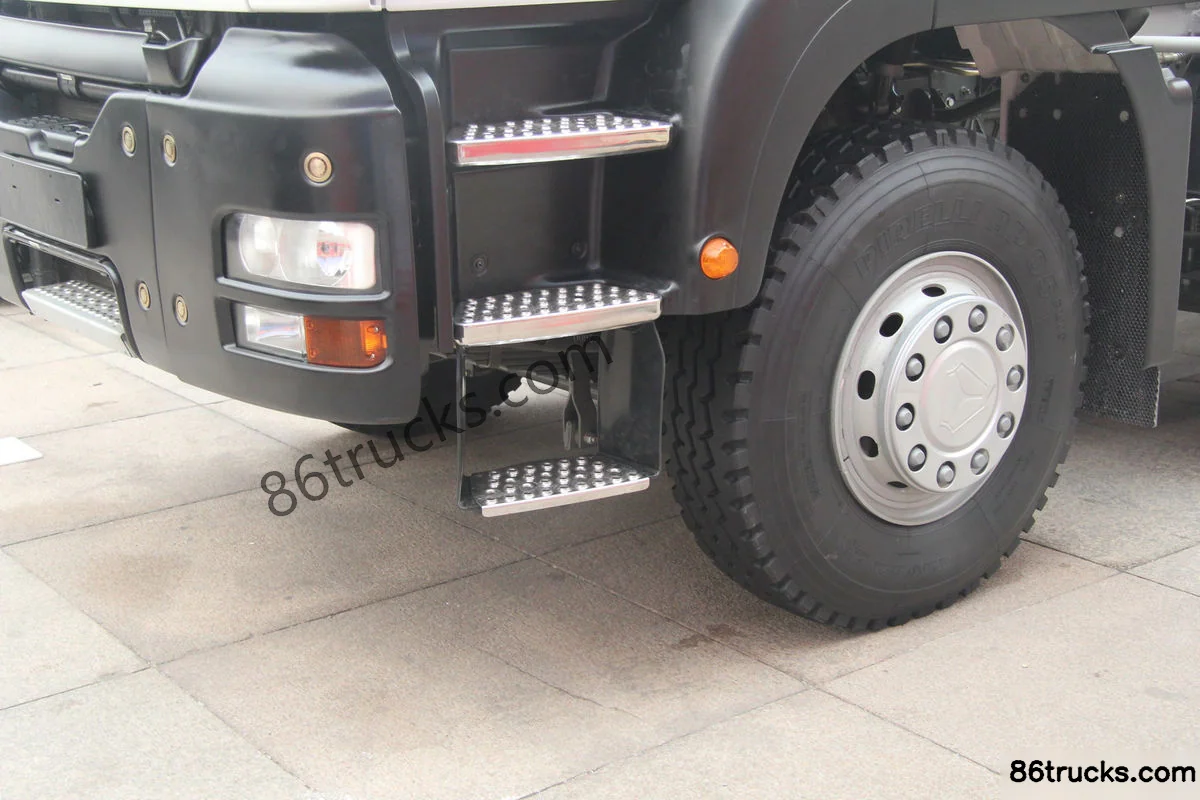

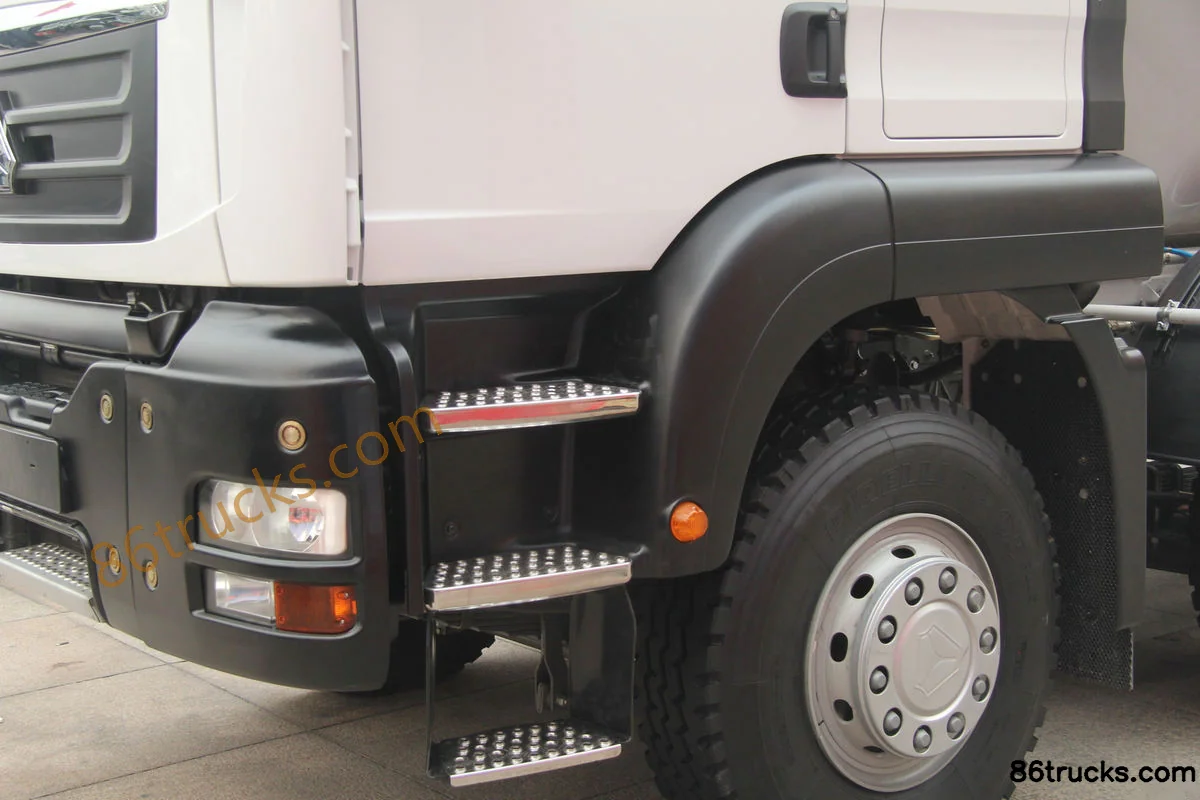

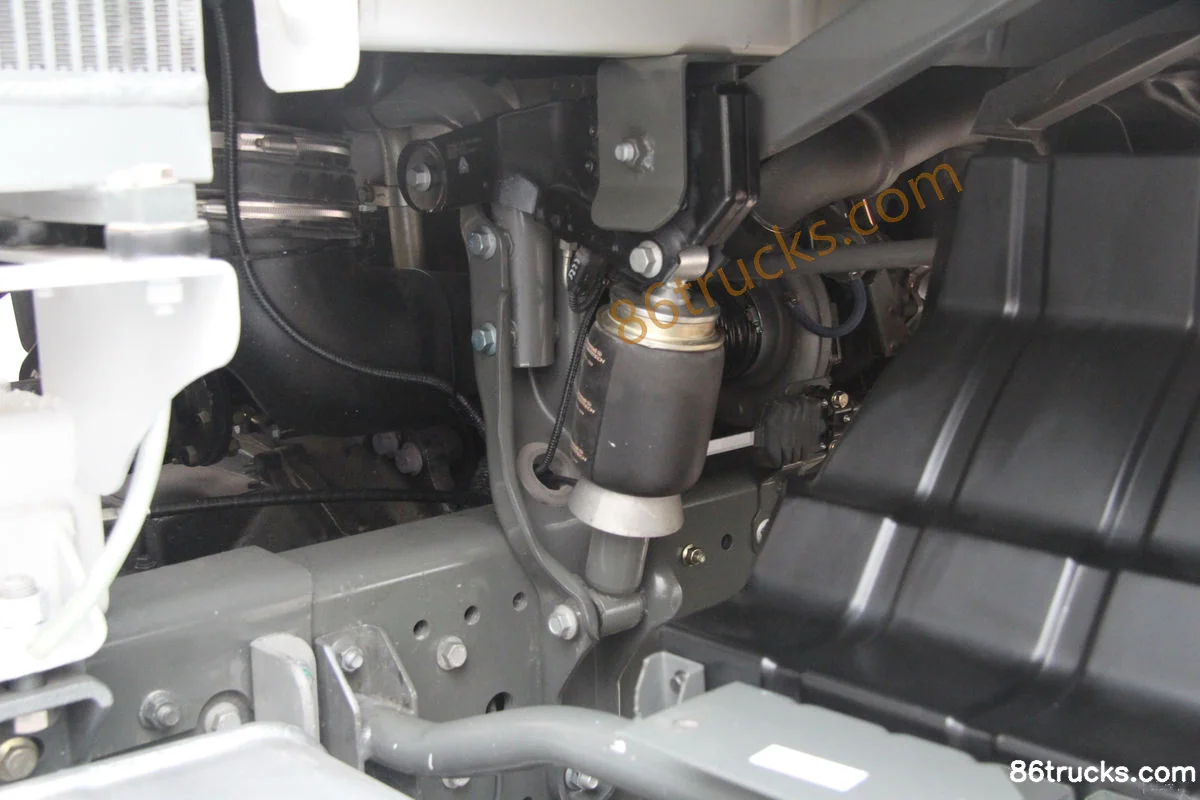

Chassis3

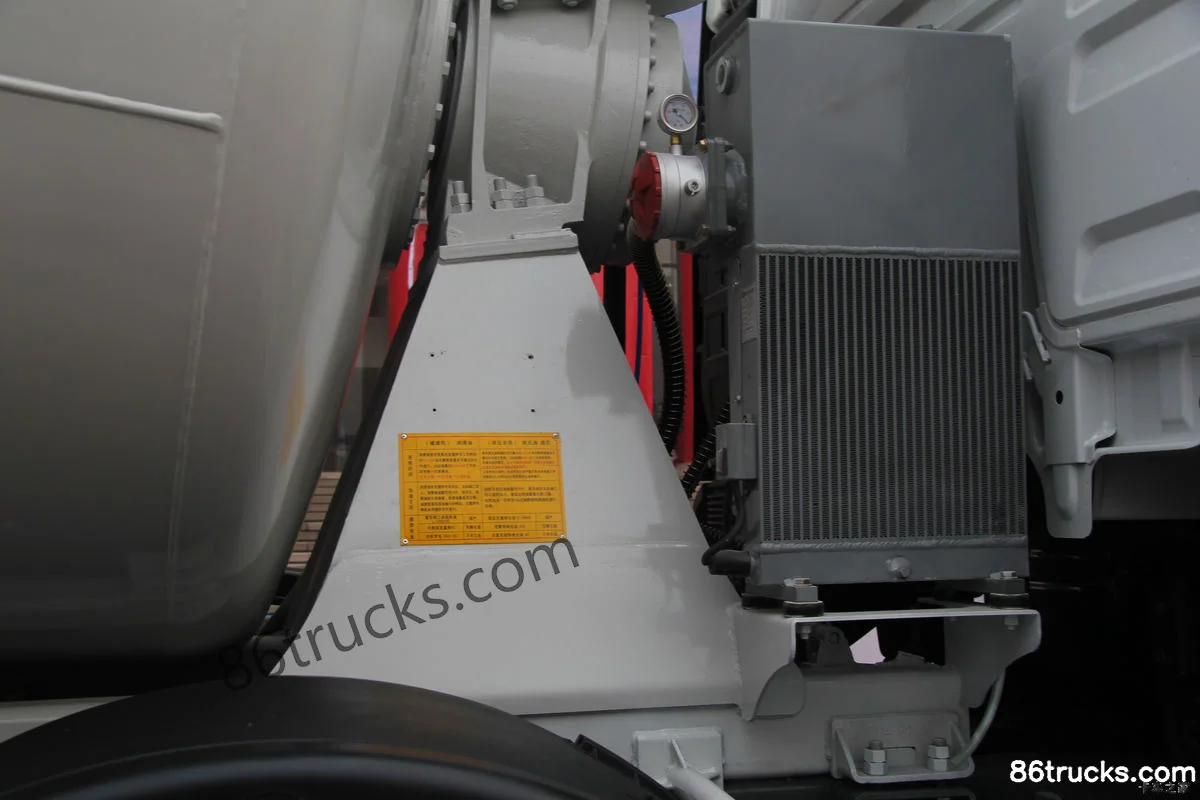

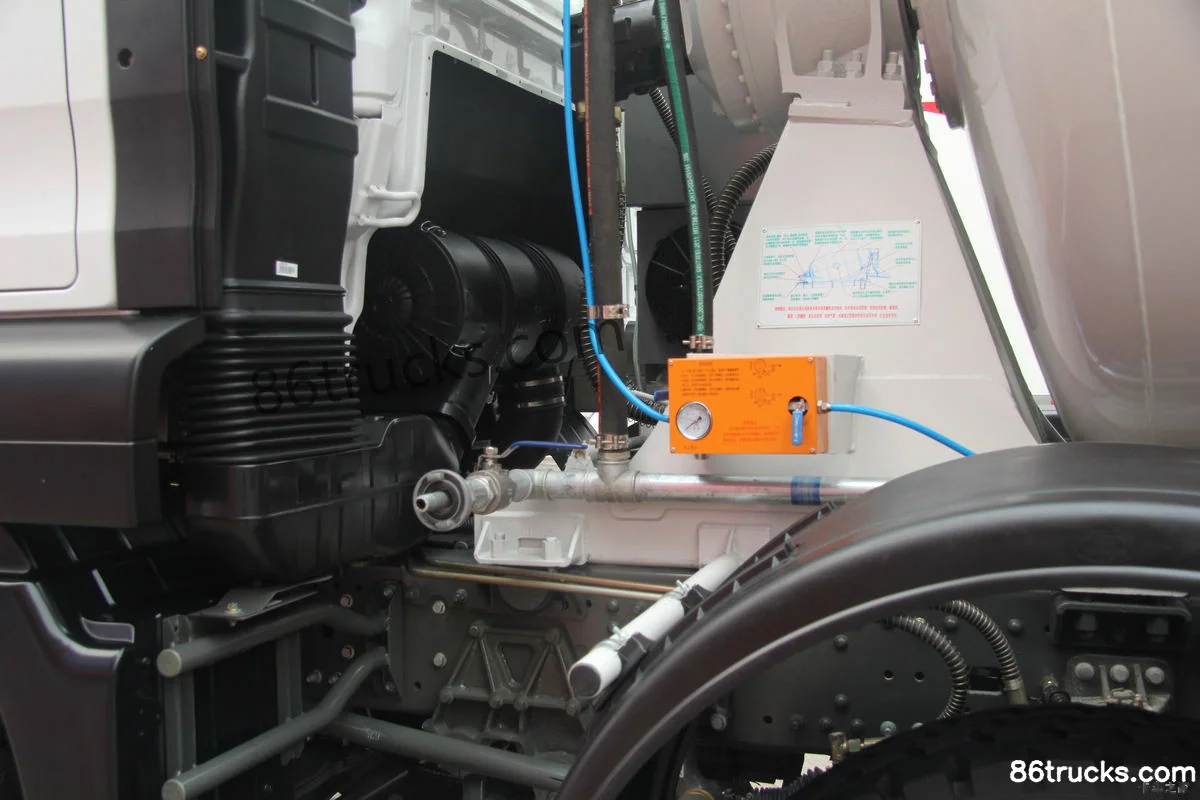

Body3

9 photos

FAQ

What emission standard does Sinotruk SITRAK C7H heavy truck 400 hp 8X4(12 wheels) concrete mixer truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk SITRAK C7H heavy truck 400 hp 8X4(12 wheels) concrete mixer truck?

Key specs of Sinotruk SITRAK C7H heavy truck 400 hp 8X4(12 wheels) concrete mixer truck: Drive: 8x4; Horsepower: 400 hp; Emission: China IV; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk SITRAK C7H heavy truck 400 hp 8X4(12 wheels) concrete mixer truck suited for?

Sinotruk SITRAK C7H heavy truck 400 hp 8X4(12 wheels) concrete mixer truck is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk SITRAK C7H heavy truck 400 hp 8X4(12 wheels) concrete mixer truck differ from other variants in the same series?

Sinotruk SITRAK C7H heavy truck 400 hp 8X4(12 wheels) concrete mixer truck belongs to Sitrak SITRAK C7H heavy truck (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk SITRAK C7H heavy truck 400 hp 8X4(12 wheels) concrete mixer truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk SITRAK C7H heavy truck 400 hp 8X4(12 wheels) concrete mixer truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
