JMC Shunda Narrow Body 122 hp 4X2(6 wheels) 3.21m dump truck

Export reference
From $15,833
MSRP ¥11.4M CNY
Emission: China VI
Fuel: Diesel
Transmission: GETRAG
Curb Weight:: 2.49ton
Wheelbase:: 2800mm
Tire Size:: 7.00R16LT 14PR
Rated payload: 1.875ton
Drive 4X2 (6 wheels)
Horsepower 122
Cargo box type: Dump type

Overview

The JMC Shunda Narrow Body 122 hp 4X2(6 wheels) 3.21m dump truck is a Light Truck featuring 1.875t payload, 4.495t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a JMCJX493ZLQ6D engine, 122 hp, China VI emissions and GETRAG transmission.

China VI 122 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): JX3041TCF6
Drive type: 4X2
Wheelbase: 2800mm
engine: JMCJX493ZLQ6D
transmission: Getrag 5-speed
Cab length: 4.99m
Cab width: 1.895m
Cab height: 2.08m
Front track width: 1370mm
rear track: 1520mm
Curb Weight: 2.49ton
Rated payload: 1.875ton
GVWR: 4.495ton
Origin: Nanchang, Jiangxi
tonnage class: Light Truck
Approach angle: 19°
departure angle: 25°
Energy Type: Diesel
Engine parameters
Engine Brand: JMC
Engine Model: JMCJX493ZLQ6D
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.499L
Emission standard: China VI
Max output power: 90kW
Max hp: 122Horsepower
Transmission Parameters
Transmission Model: Getrag 5-speed
Transmission Brand: GETRAG
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.21m
Cargo box width: 1.8m
Cargo box height: 0.4m
Cab parameters
seating capacity: 2Personnel
Chassis Specs
Front axle allowable load: 1895kg
rear axle allowable load: 2600kg
Leaf spring count: 6/4+3
Tire
Tire Size: 7.00R16LT 14PR
Number of tires: 4pcs
Control configuration
ABS:

Photos

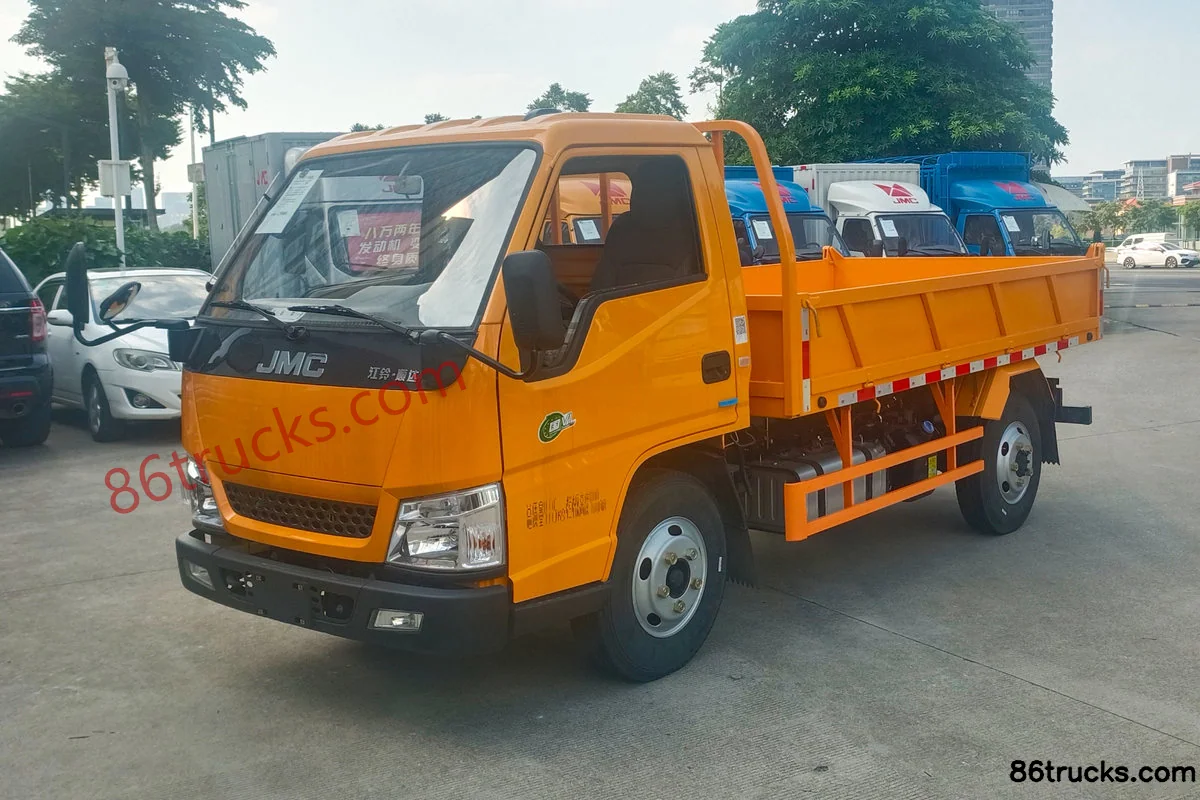

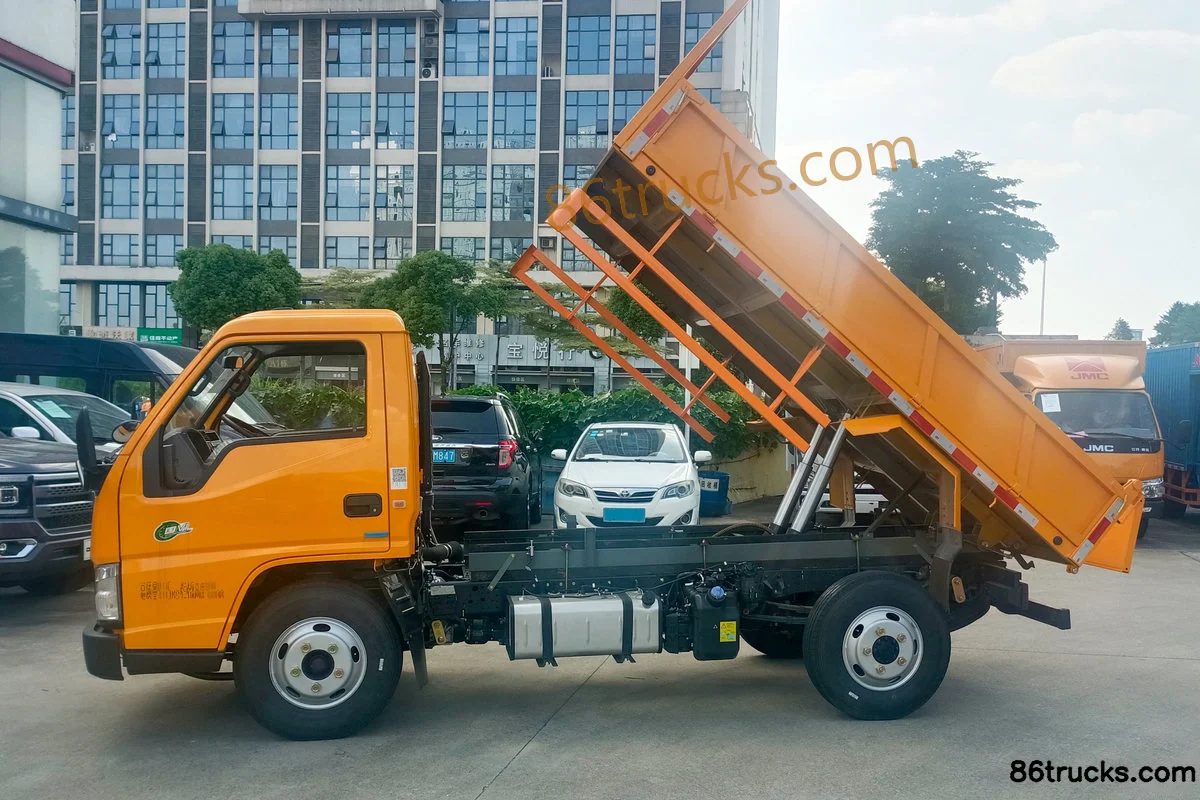

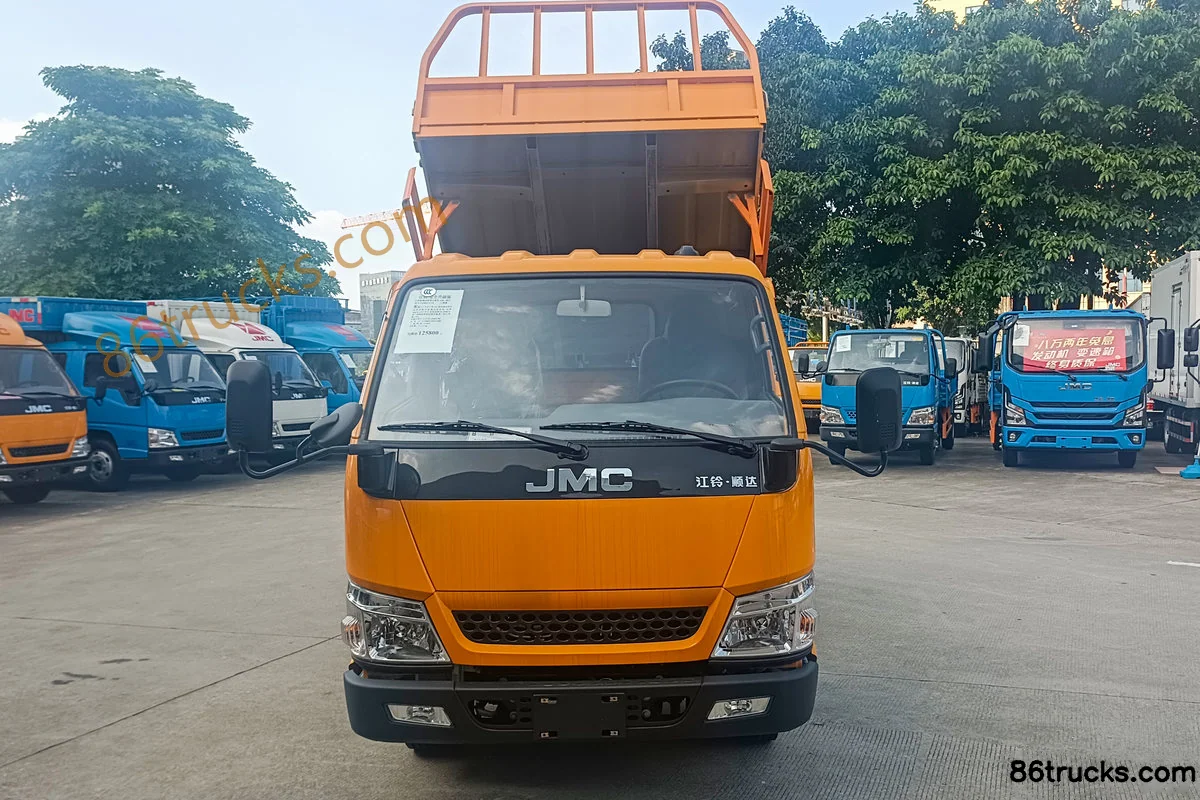

Exterior3

3 photos

FAQ

What is the export price of JMC Shunda Narrow Body 122 hp 4X2(6 wheels) 3.21m dump truck, and what does it include?

JMC Shunda Narrow Body 122 hp 4X2(6 wheels) 3.21m dump truck export reference is about From $15,833; MSRP is ¥11.4M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JMC Shunda Narrow Body 122 hp 4X2(6 wheels) 3.21m dump truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JMC Shunda Narrow Body 122 hp 4X2(6 wheels) 3.21m dump truck?

Key specs of JMC Shunda Narrow Body 122 hp 4X2(6 wheels) 3.21m dump truck: Drive: 4x2; Horsepower: 122 hp; Emission: China VI; Fuel: Diesel; Transmission: GETRAG. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JMC Shunda Narrow Body 122 hp 4X2(6 wheels) 3.21m dump truck suited for?

JMC Shunda Narrow Body 122 hp 4X2(6 wheels) 3.21m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does JMC Shunda Narrow Body 122 hp 4X2(6 wheels) 3.21m dump truck differ from other variants in the same series?

JMC Shunda Narrow Body 122 hp 4X2(6 wheels) 3.21m dump truck belongs to JMC Shunda narrow-body light truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JMC Shunda Narrow Body 122 hp 4X2(6 wheels) 3.21m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JMC Shunda Narrow Body 122 hp 4X2(6 wheels) 3.21m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
