Sinotruk MCY11 Dual Rear Axle

Export reference
MSRP N/A
Application Scope:: Suitable for highway vehicles.
Front/rear track width:: 1848mm
Brake:: drum brake / disc brake
Axle Model: MCY11
Brake size: Φ410×180
Axle Type: Drive axle

Overview

The Sinotruk MCY11 Dual Rear Axle is a parts product with spec MCY11 and Φ410×180 size.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Axle Model: MCY11
Axle Type: Drive axle
Application Scope: Suitable for highway vehicles.
Rated axle load: 2×11000ton
Front/rear track width: 1848mm
Brake: drum brake / disc brake
Transmission Ratio: 3.08/3.36/3.7/4.11/4.63/5.29
Brake size: Φ410×180
curb weight: Intermediate axle 720kg / Rear axle 630
Wheel Bolts: Φ285.75-10×M22×1.5/Φ335-10×M22×1.5mm
Remarks: Single reduction, stamped welded axle housing; leaf spring seat center distance: 950/1010/1025mm

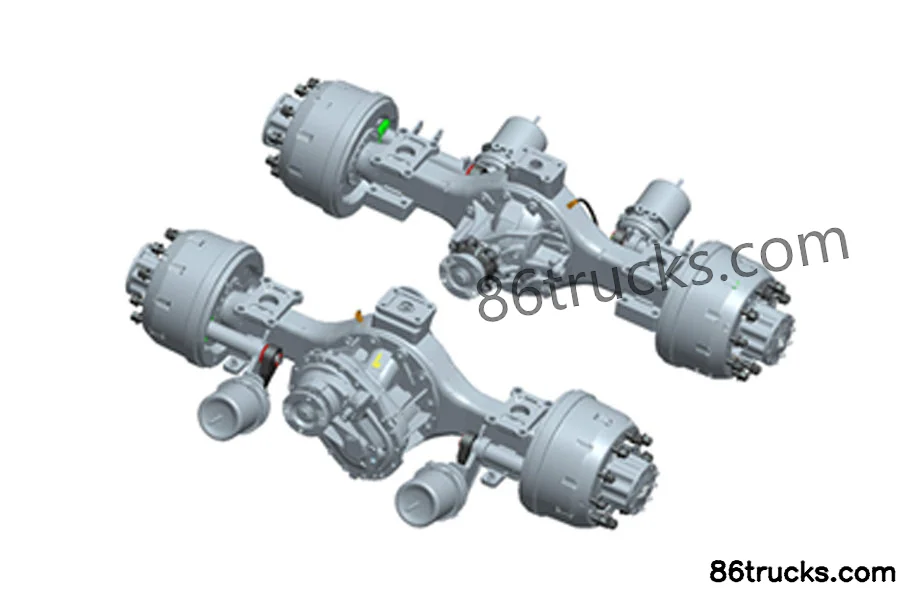

Photos

Exterior1

1 photos

FAQ

What transport jobs is Sinotruk MCY11 Dual Rear Axle suited for?

Match Sinotruk MCY11 Dual Rear Axle to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does Sinotruk MCY11 Dual Rear Axle differ from other variants in the same series?

Sinotruk MCY11 Dual Rear Axle belongs to Sinotruk Drive Axle (axle). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk MCY11 Dual Rear Axle?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk MCY11 Dual Rear Axle?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
