MAN(MAN) TGM series heavy truck 290 hp 4X2(6 wheels) cargo truck (China V eco type) (model 18.290)

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: ZF
Tire Size:: 11R22.5
Type:: Cargo Trucks
Box length class:: 8.2m
MAN(MAN) TGM series heavy truck 290 hp 4X2(6 wheels) cargo truck (China V eco type) (model 18.290) exterior
View more photos (8)
seating capacity: 3Personnel
Drive 4X2 (6 wheels)
Cargo box type: stake body
Horsepower 290

Overview

The MAN(MAN) TGM series heavy truck 290 hp 4X2(6 wheels) cargo truck (China V eco type) (model 18.290) is a Heavy-duty cargo trucks featuring stake body cargo body, 3Personnel volume and 2.5m cab. On the powertrain side, it comes with 290 hp, 4X2 (6 wheels) drive, China V emissions and ZF transmission.

China V 290 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Type: Cargo Trucks
Drive type: 4X2
Box length class: 8.2m
transmission: ZFZF9S1310 OD
Cab width: 2.5m
Cab height: 2.995m
GVWR: 18ton
Max. speed: 140km/h
Origin: Germany
tonnage class: Heavy-duty cargo trucks
Remarks: MAN Euro V EGR direct injection turbocharged electronic common rail diesel engine
Energy Type: Diesel
Engine parameters
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.871L
Emission standard: China V
Max output power: 213kW
Max hp: 290Horsepower
Max torque: 1150N·m
Max torque speed: 1200-1750rpm
Rated speed: 2300rpm
Transmission Parameters
Transmission Model: ZFZF9S1310 OD
Transmission Brand: ZF
shift method: Manual
Forward gears: 9Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank capacity: 300L
Chassis Specs
Front axle allowable load: 7100kg
rear axle allowable load: 11500kg
Axle ratio: 4.11
Tire
Tire Size: 11R22.5
Number of tires: 6pcs

Photos

Exterior2

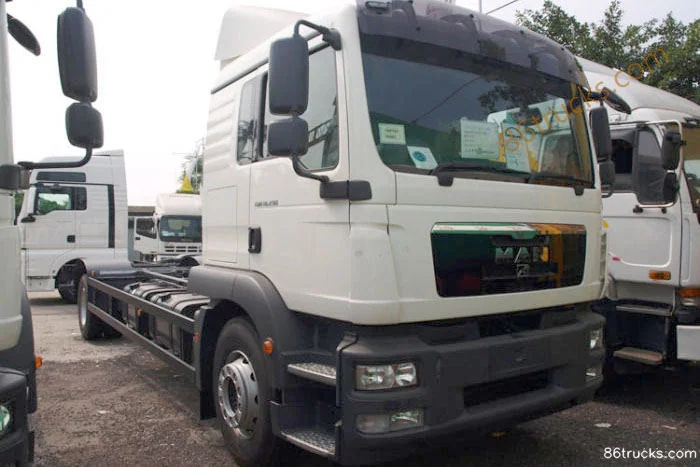

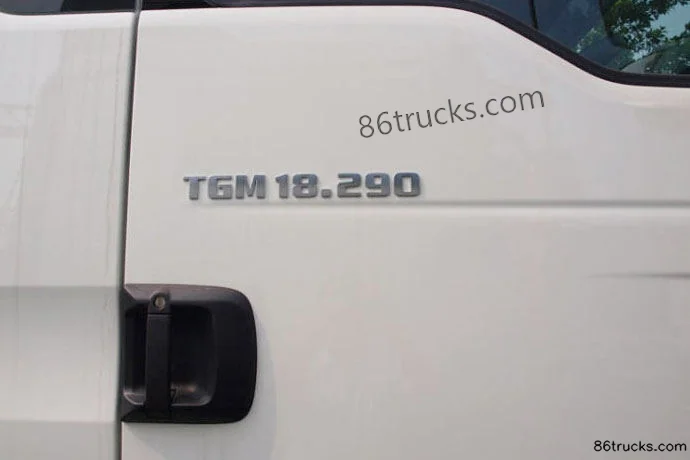

MAN(MAN) TGM series heavy truck 290 hp 4X2(6 wheels) cargo truck (China V eco type) (model 18.290) Exterior (1) | 86Trucks MAN(MAN) TGM series heavy truck 290 hp 4X2(6 wheels) cargo truck (China V eco type) (model 18.290) Exterior (2) | 86Trucks

Cab3

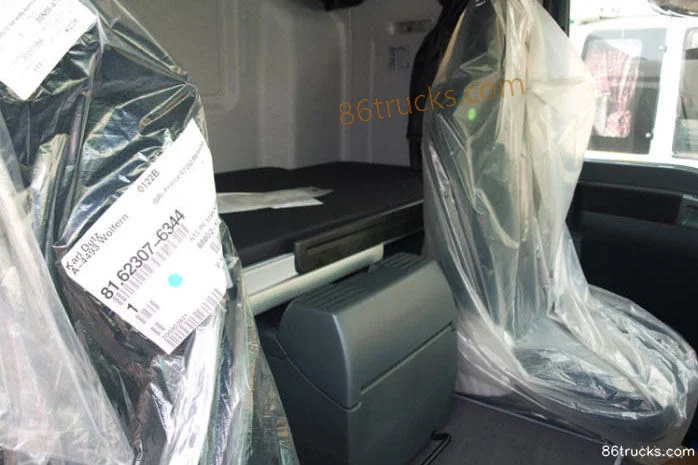

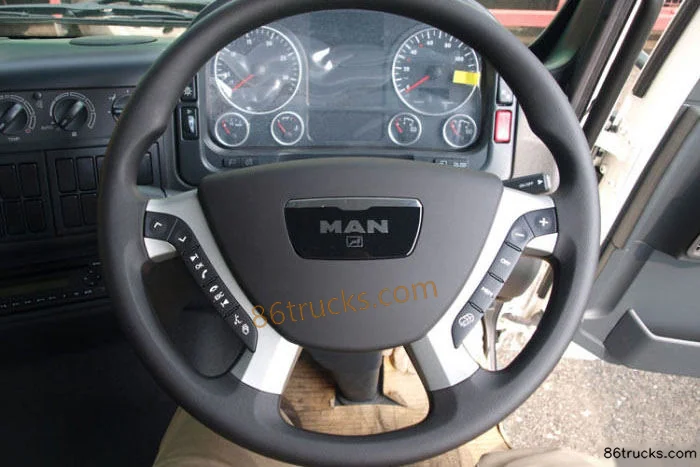

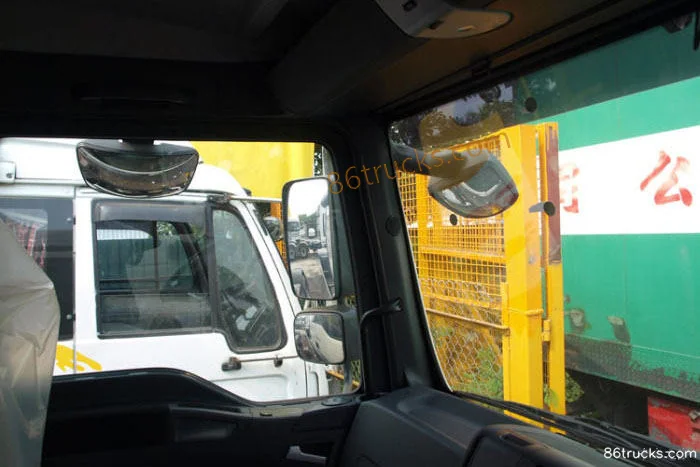

MAN(MAN) TGM series heavy truck 290 hp 4X2(6 wheels) cargo truck (China V eco type) (model 18.290) Cab (1) | 86Trucks MAN(MAN) TGM series heavy truck 290 hp 4X2(6 wheels) cargo truck (China V eco type) (model 18.290) Cab (2) | 86Trucks MAN(MAN) TGM series heavy truck 290 hp 4X2(6 wheels) cargo truck (China V eco type) (model 18.290) Cab (3) | 86Trucks

Chassis3

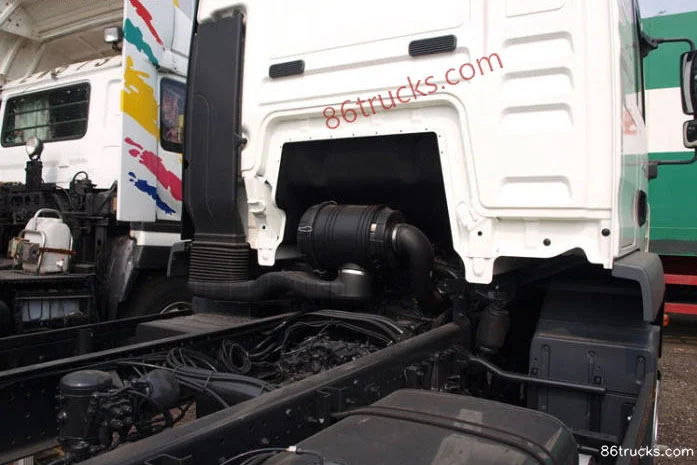

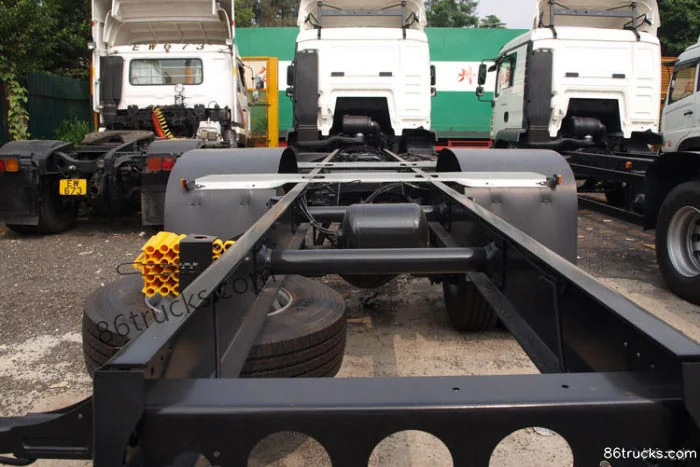

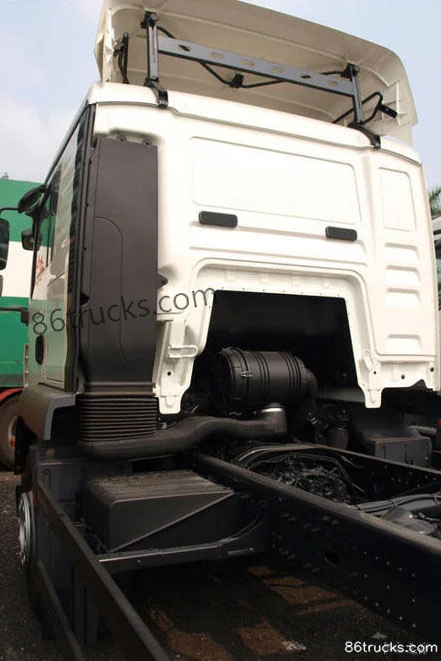

MAN(MAN) TGM series heavy truck 290 hp 4X2(6 wheels) cargo truck (China V eco type) (model 18.290) Chassis (1) | 86Trucks MAN(MAN) TGM series heavy truck 290 hp 4X2(6 wheels) cargo truck (China V eco type) (model 18.290) Chassis (2) | 86Trucks MAN(MAN) TGM series heavy truck 290 hp 4X2(6 wheels) cargo truck (China V eco type) (model 18.290) Chassis (3) | 86Trucks

8 photos

FAQ

What emission standard does MAN(MAN) TGM series heavy truck 290 hp 4X2(6 wheels) cargo truck (China V eco type) (model 18.290) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of MAN(MAN) TGM series heavy truck 290 hp 4X2(6 wheels) cargo truck (China V eco type) (model 18.290)?

Key specs of MAN(MAN) TGM series heavy truck 290 hp 4X2(6 wheels) cargo truck (China V eco type) (model 18.290): Drive: 4x2; Horsepower: 290 hp; Emission: China V; Fuel: Diesel; Transmission: ZF. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is MAN(MAN) TGM series heavy truck 290 hp 4X2(6 wheels) cargo truck (China V eco type) (model 18.290) suited for?

MAN(MAN) TGM series heavy truck 290 hp 4X2(6 wheels) cargo truck (China V eco type) (model 18.290) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does MAN(MAN) TGM series heavy truck 290 hp 4X2(6 wheels) cargo truck (China V eco type) (model 18.290) differ from other variants in the same series?

MAN(MAN) TGM series heavy truck 290 hp 4X2(6 wheels) cargo truck (China V eco type) (model 18.290) belongs to MAN TGM heavy truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for MAN(MAN) TGM series heavy truck 290 hp 4X2(6 wheels) cargo truck (China V eco type) (model 18.290)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export MAN(MAN) TGM series heavy truck 290 hp 4X2(6 wheels) cargo truck (China V eco type) (model 18.290)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
