SRM Xinyuan T5L EV Standard 4X2(6 wheels) 3.71m Single Row Pure Electric Refrigerated Truck CATL 70.47kWh

Export reference
From $27,750
MSRP ¥19.98M CNY
Rated payload:: 0.965ton
Wheelbase:: 3800mm
Cargo box width:: 1.69m
Model code (announced):: JKC5034XLCD0X3BEV
Cab length:: 5.975m
GVWR:: 3.495ton
Drive 4X2 (6 wheels)
CLTC range: 300km
Motor 1 Brand: Inovance
Curb Weight: 2.4ton

Overview

The SRM Xinyuan T5L EV Standard 4X2(6 wheels) 3.71m Single Row Pure Electric Refrigerated Truck CATL 70.47kWh is a Electric Refrigerated Truck featuring 300km battery/range, Inovance motor, 4X2 (6 wheels) drive and 0.965t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): JKC5034XLCD0X3BEV
Drive type: 4X2
Wheelbase: 3800mm
Cab length: 5.975m
Cab width: 1.85m
Cab height: 2.76m
CLTC range: 300km
Curb Weight: 2.4ton
Rated payload: 0.965ton
GVWR: 3.495ton
Max. speed: 80km/h
Origin: Chongqing Fuling
Energy Type: Electric
electric motor
Motor 1 Brand: Inovance
Motor 1 Model: TZ210XS102
Motor Type: Permanent magnet synchronous motor
total rated power: 50kW
Peak power: 105kW
Battery/Charging
Battery Brand: CATL
Charging method: Fast Charge
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 70.47kWh
Energy Density: 157.57
Cargo box parameters
Box volume: 10.7m³
Cargo box width: 1.69m
Cargo box height: 1.7m
Chassis Specs
Chassis Series: SRM T5L EV
Chassis Model: JKC1034D0X4BEV
Leaf spring count: 5/7+4
Safety features
Remote key:
Tire
Tire Size: 185R14LT 6PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Reverse Radar:
Reverse Camera:
Service brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type

Photos

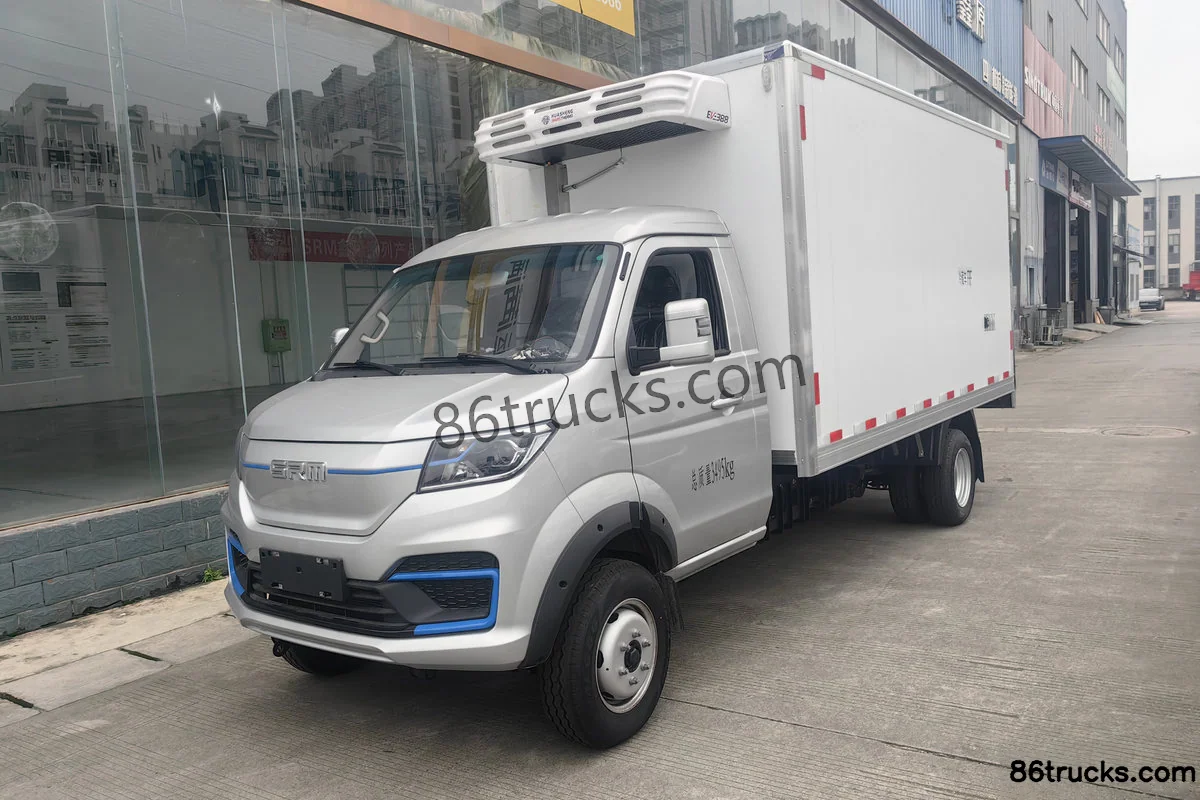

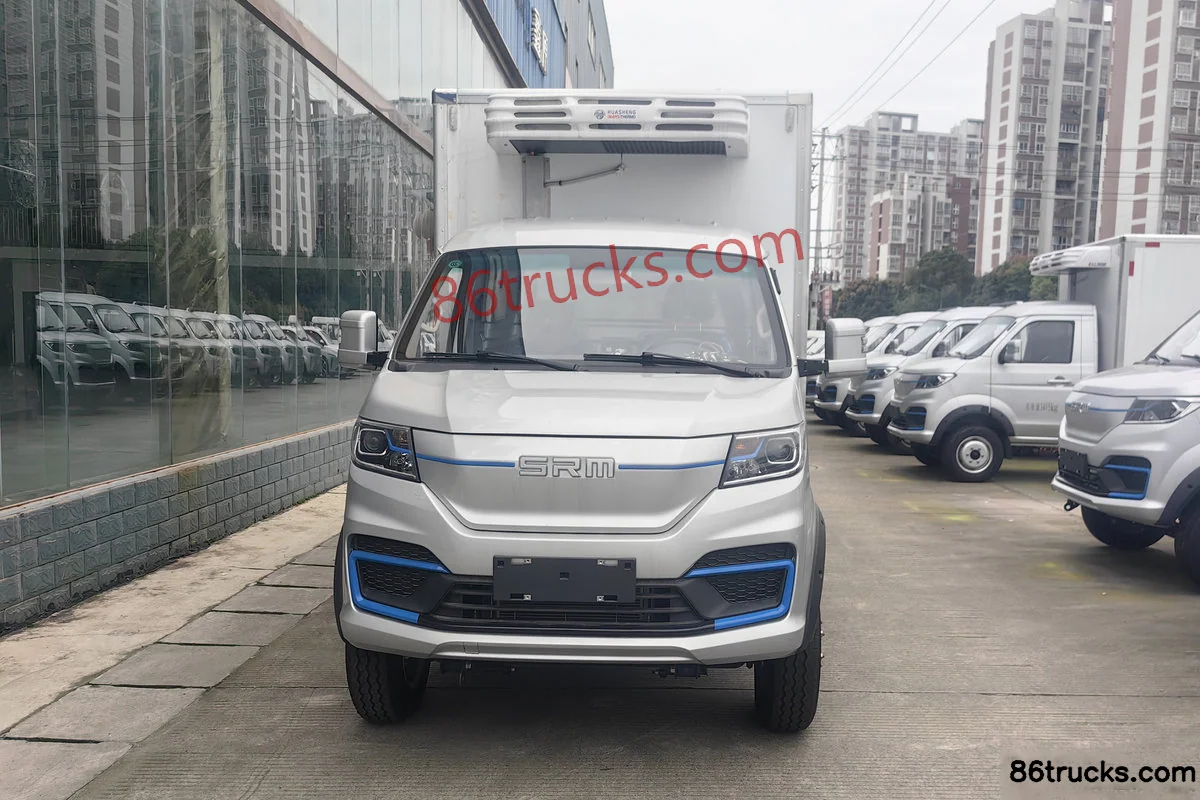

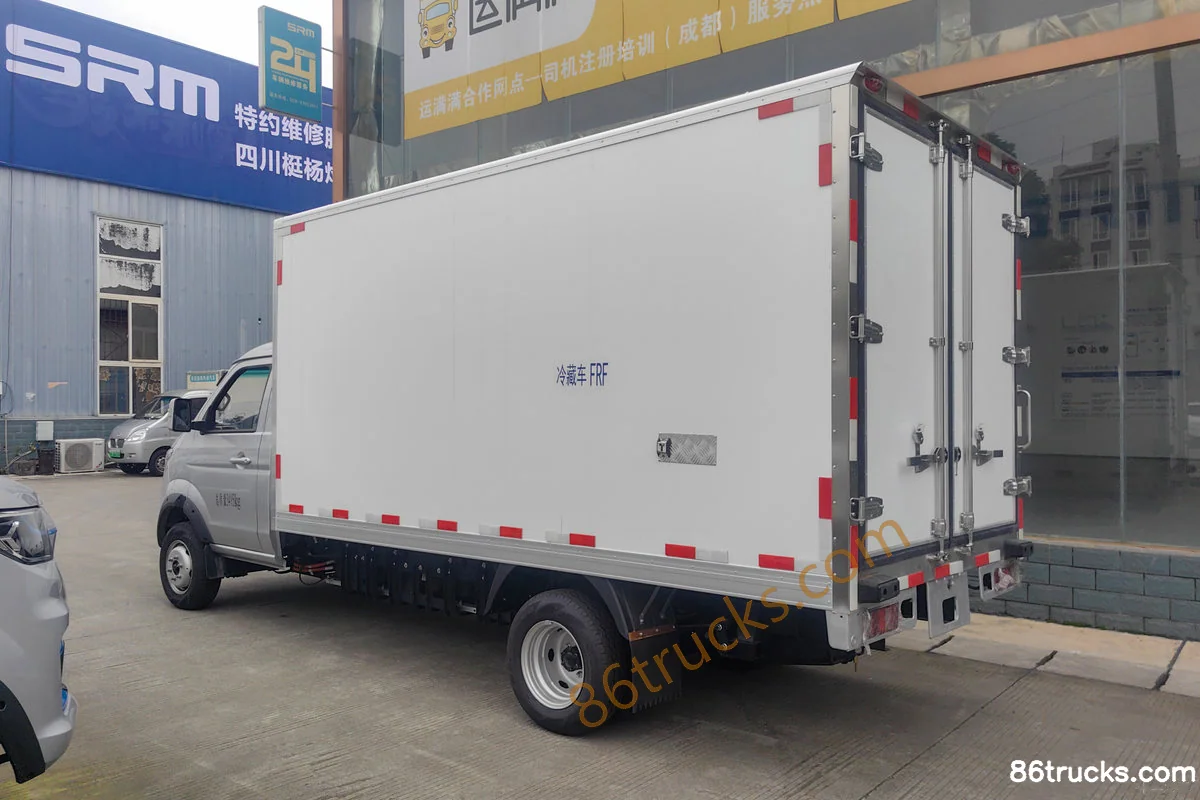

Exterior3

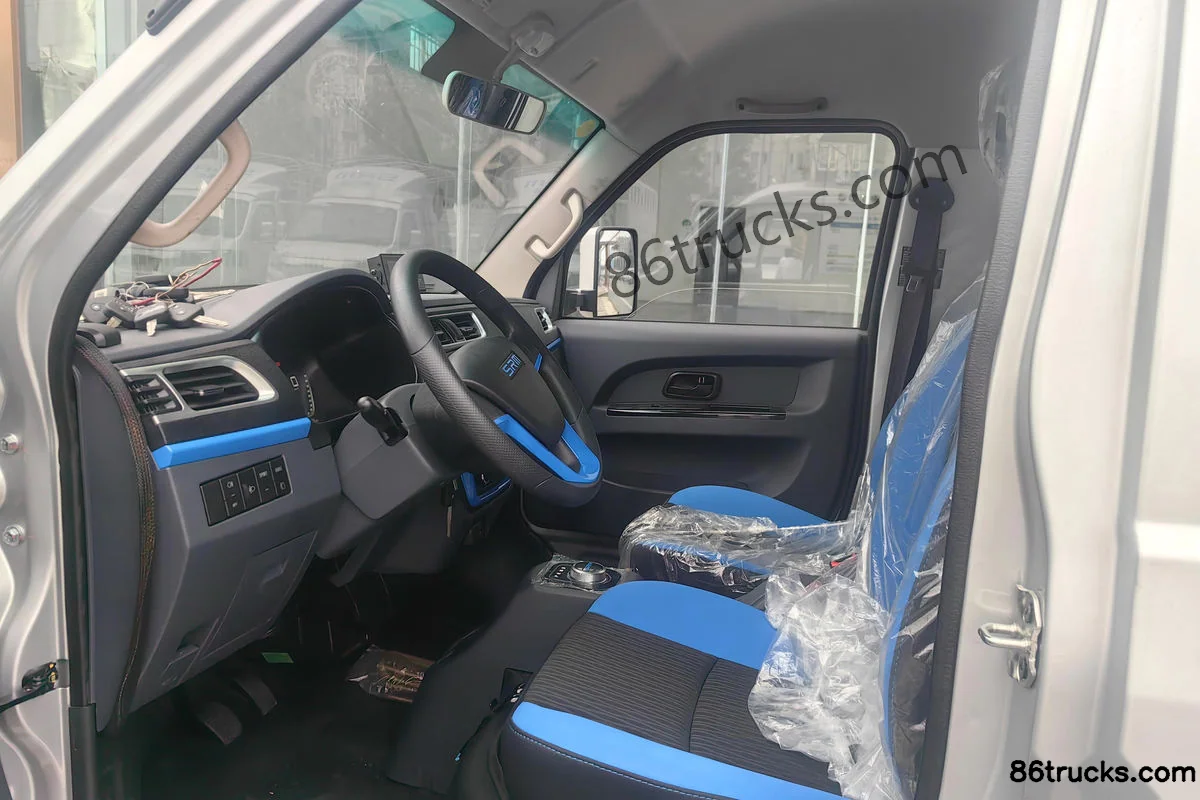

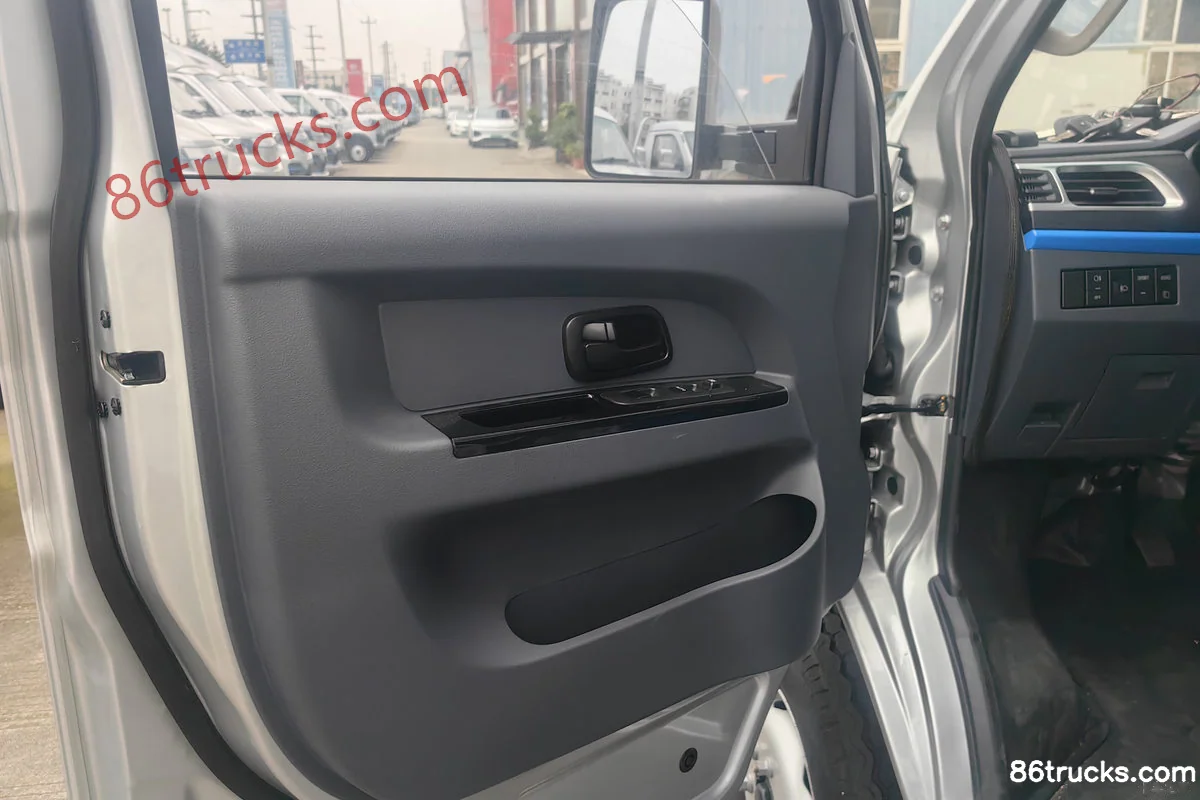

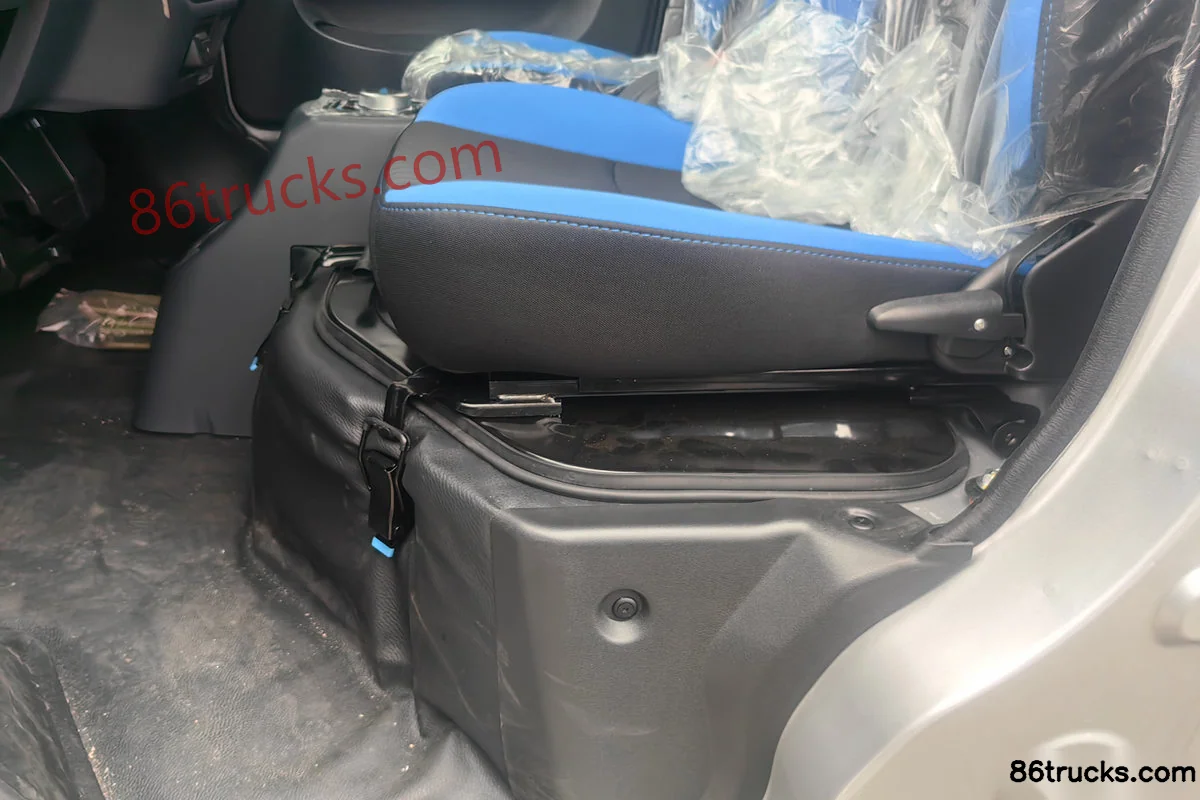

Cab3

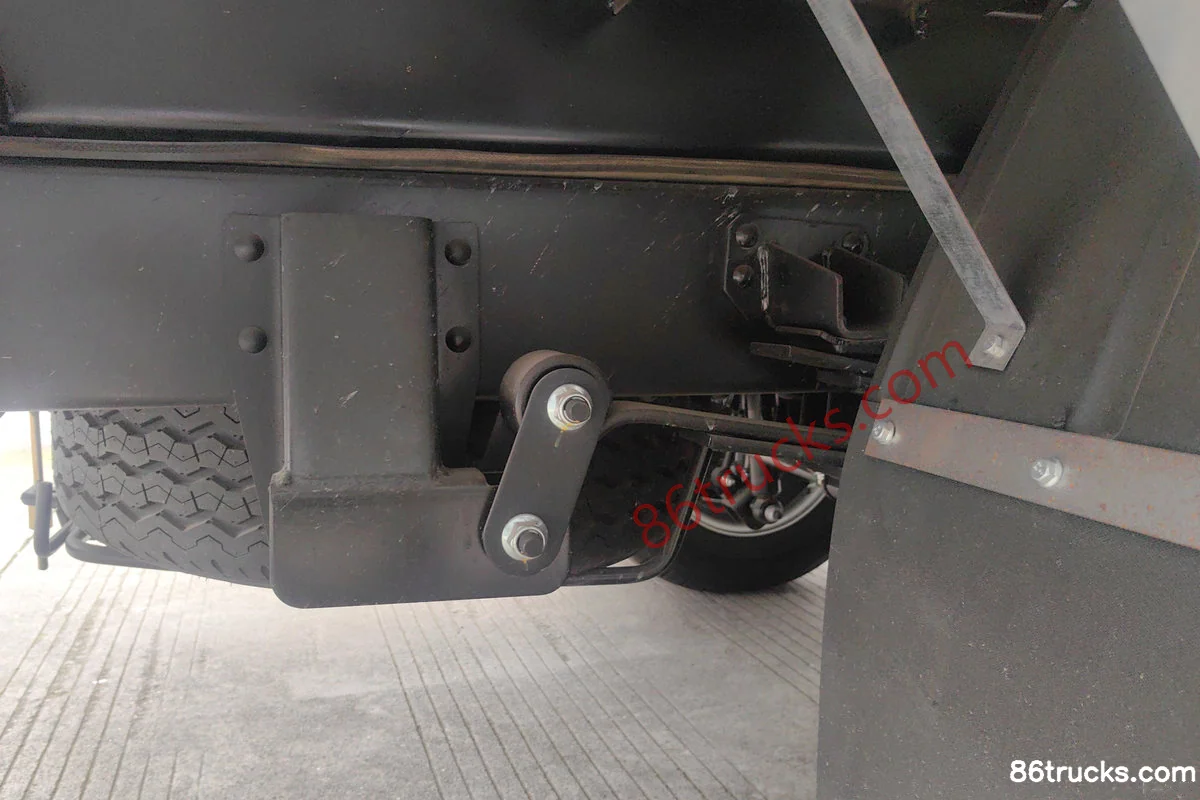

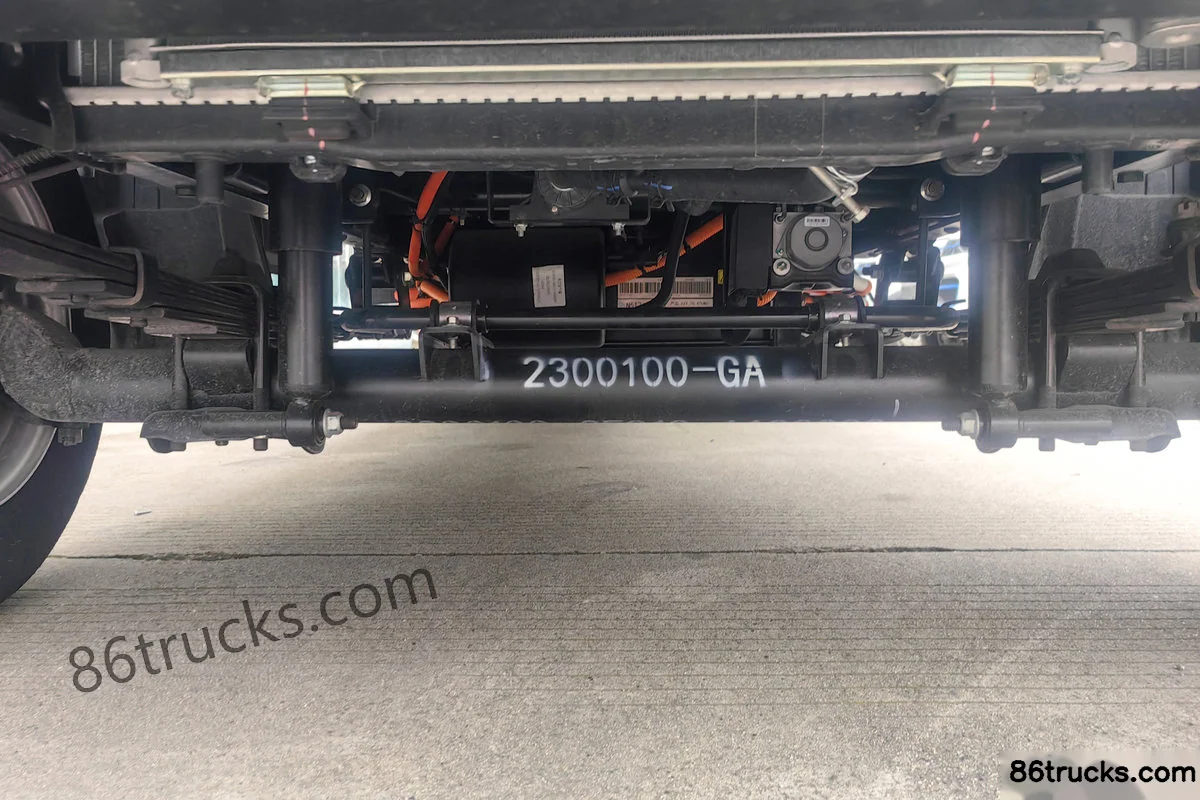

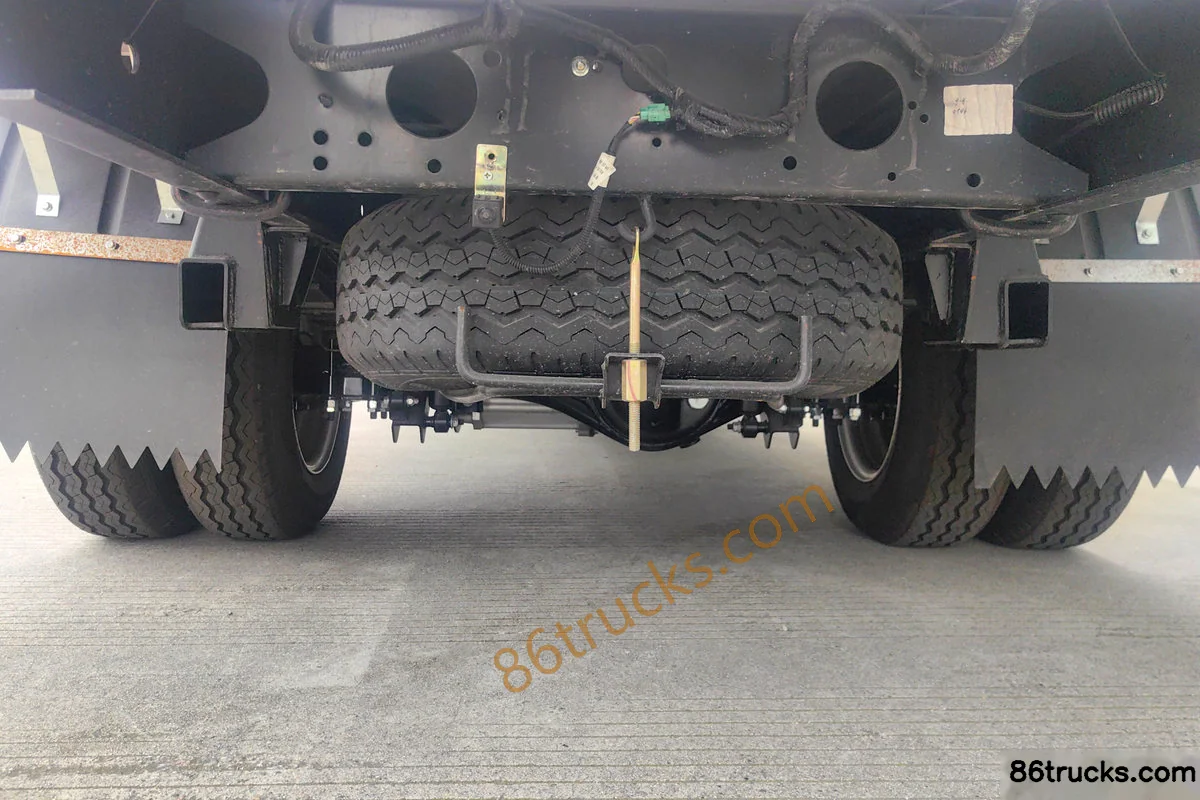

Chassis3

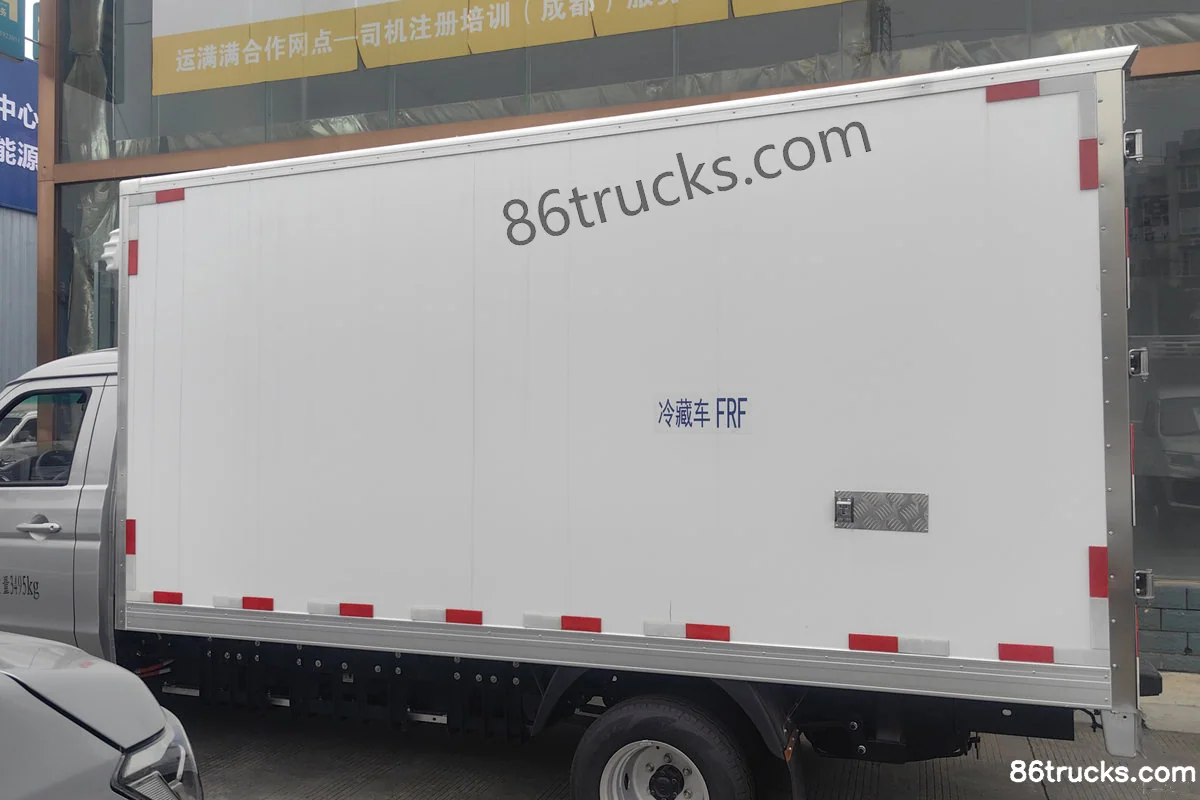

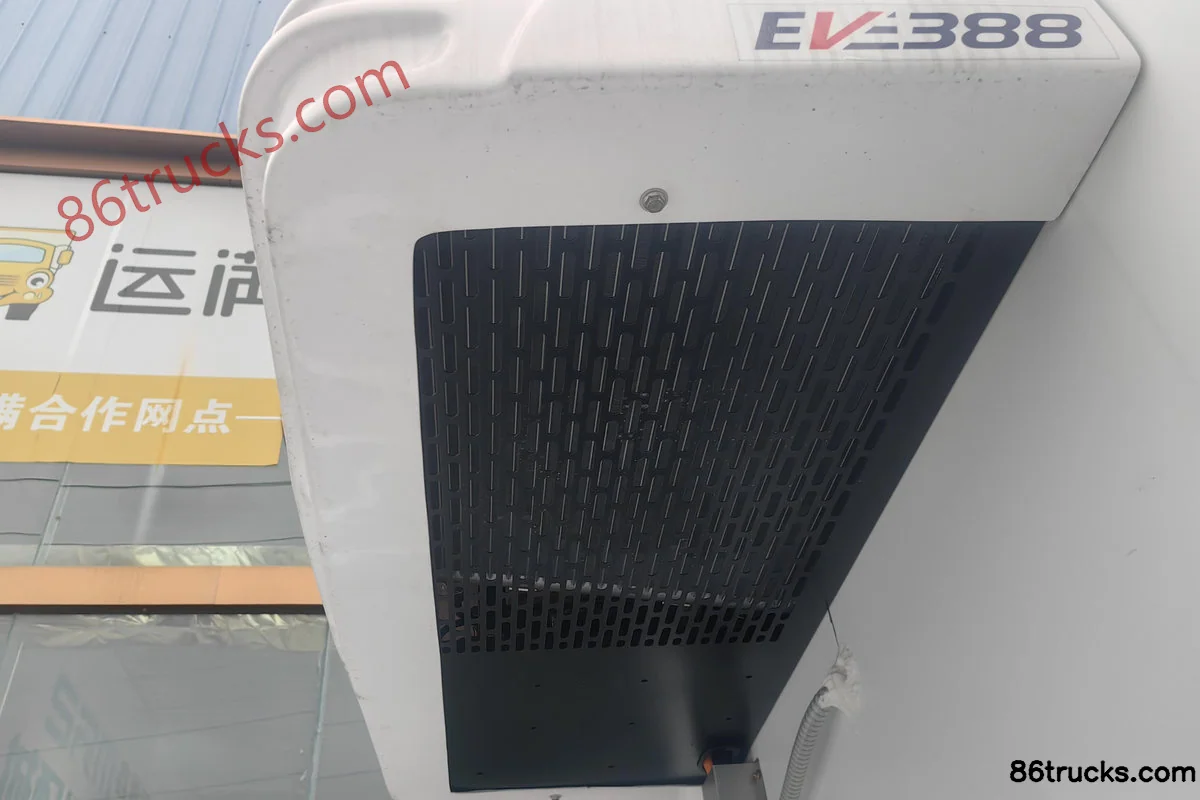

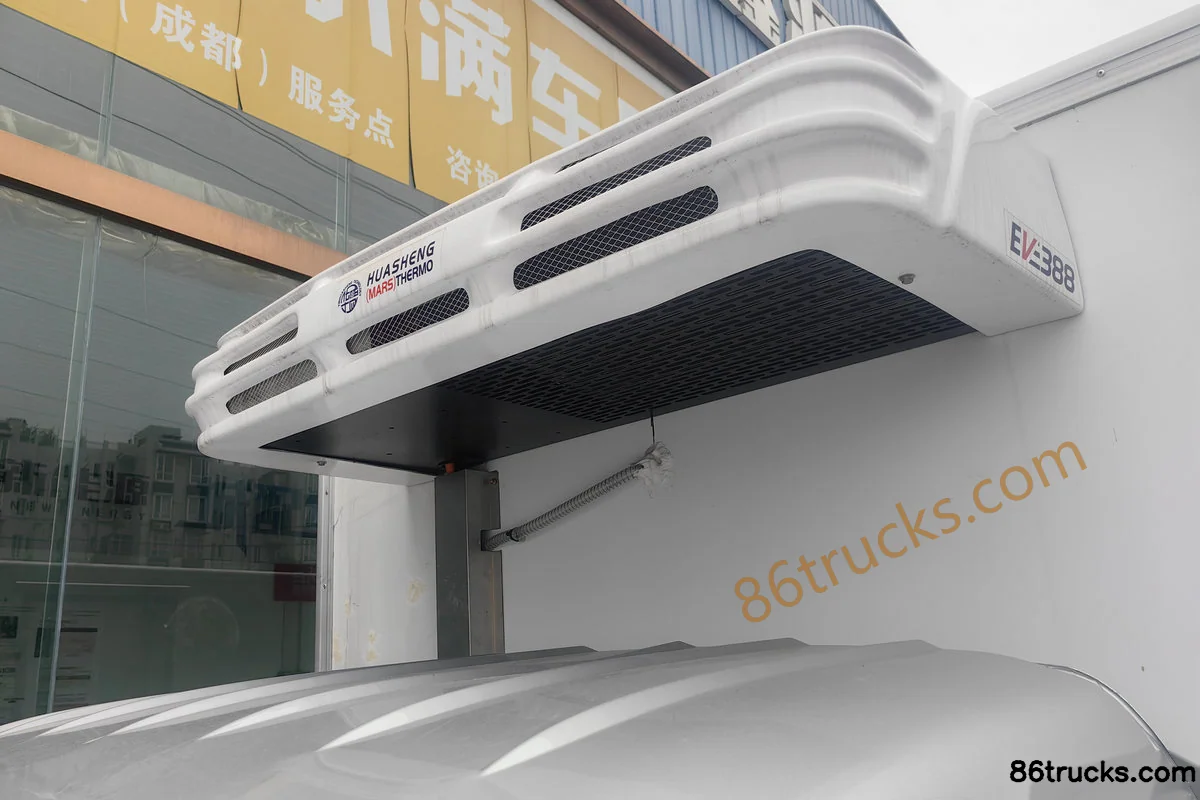

Body3

12 photos
