Shijun Skat Light Truck 130 hp 4X2(6 wheels) 4m Dump Truck

Export reference
MSRP N/A
Emission: China IV
Fuel: Diesel
Transmission: WLY
Curb Weight:: 3.29ton
Wheelbase:: 3500mm
Tire Size:: 8.25-16LT（10PR）
Shijun Skat Light Truck 130 hp 4X2(6 wheels) 4m Dump Truck exterior
View more photos (12)
Rated payload: 1.98ton
Drive 4X2 (6 wheels)
Horsepower 130
Cargo box type: Dump type

Overview

The Shijun Skat Light Truck 130 hp 4X2(6 wheels) 4m Dump Truck is a Light Truck featuring 1.98t payload, 5.465t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYC4D130-41 engine, 130 hp, China IV emissions and WLY transmission.

China IV 130 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): LFJ3055G6
Drive type: 4X2
Wheelbase: 3500mm
engine: YuchaiYC4D130-41
transmission: WLYWLY12T53
Rear Axle Ratio: 6.833
Cab length: 6.32m
Cab width: 2.3m
Cab height: 2.78m
Front track width: 1770mm
rear track: 1810mm
Curb Weight: 3.29ton
Rated payload: 1.98ton
GVWR: 5.465ton
Origin: Dali, Yunnan
tonnage class: Light Truck
Approach angle: 22°
departure angle: 26°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4D130-41
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.214L
Emission standard: China IV
Max output power: 96kW
Max hp: 130Horsepower
Max torque: 420N·m
Max torque speed: 1400-1800rpm
Rated speed: 2800rpm
Engine Type: Electronic unit pump SCR
Transmission Parameters
Transmission Model: WLYWLY12T53
Transmission Brand: WLY
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4m
Cargo box width: 2.1m
Cargo box height: 0.8m
fuel tank
Fuel tank capacity: 155L
Chassis Specs
rear axle allowable load: 3815kg
Axle ratio: 6.833
Leaf spring count: 9/11+8
Tire
Tire Size: 8.25-16LT（10PR）
Number of tires: 6pcs

Photos

Exterior3

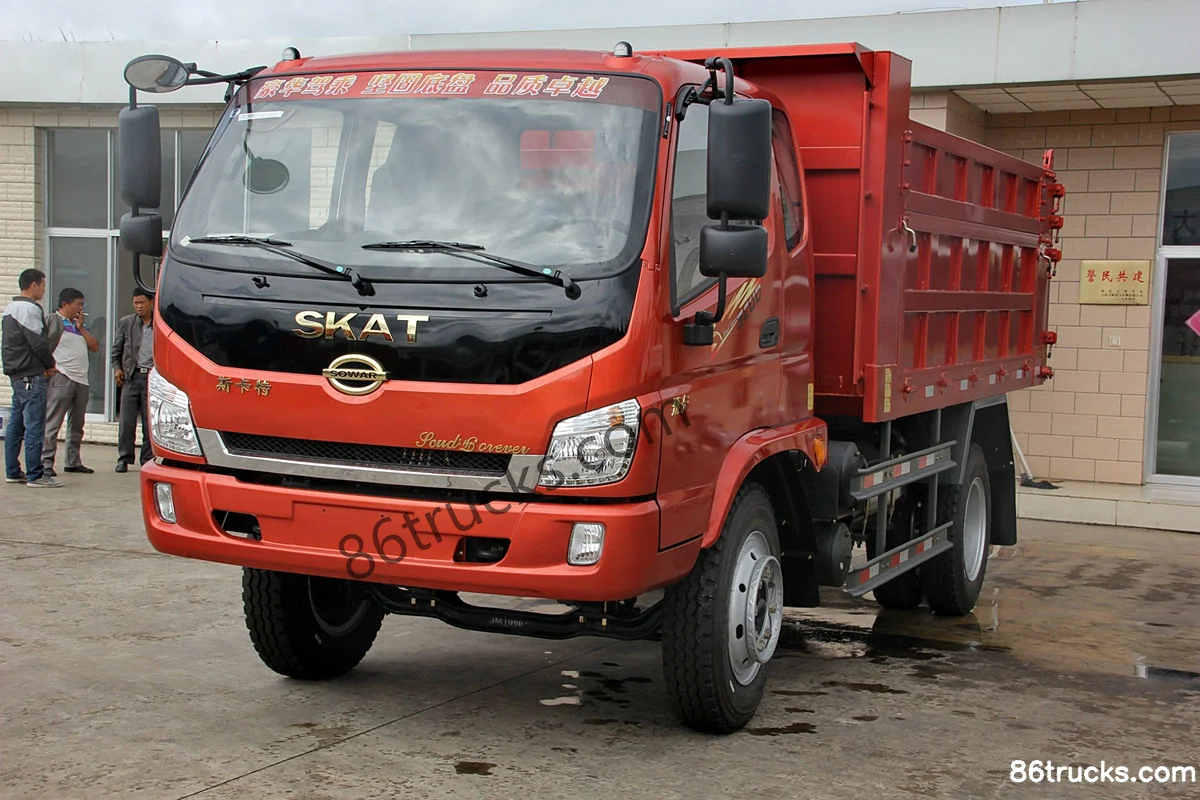

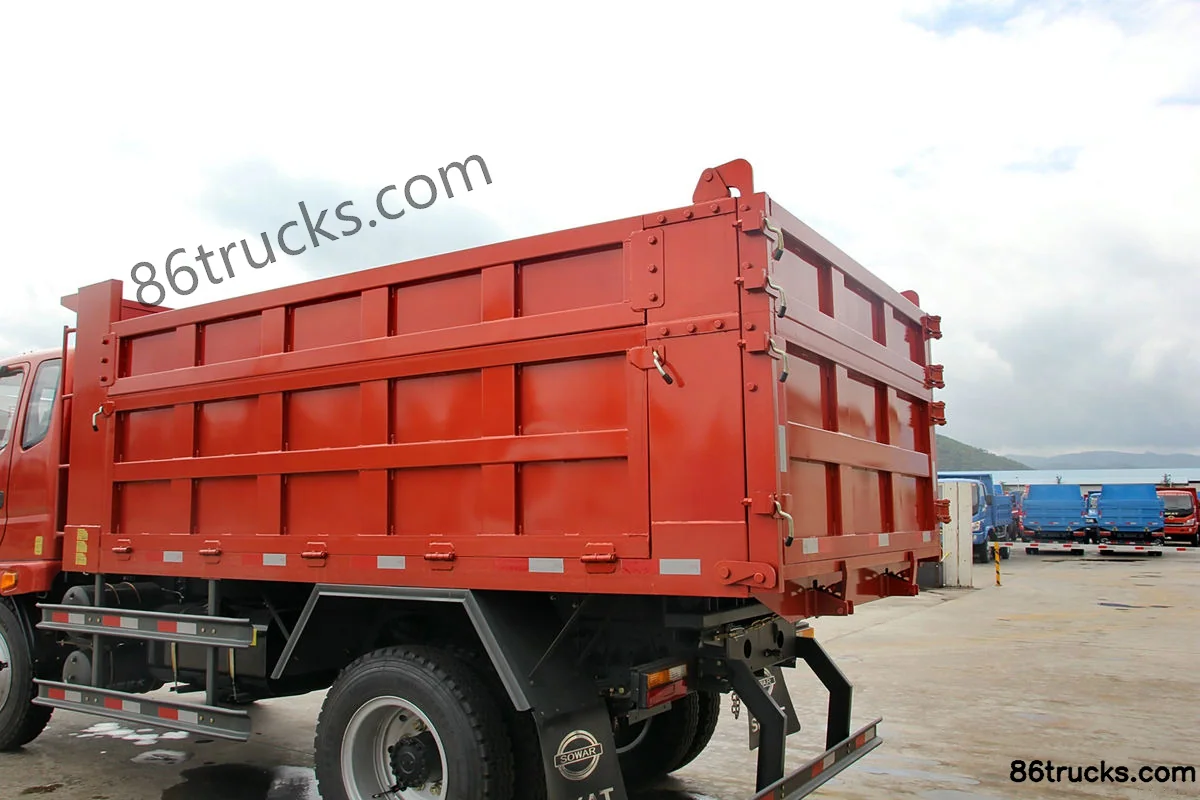

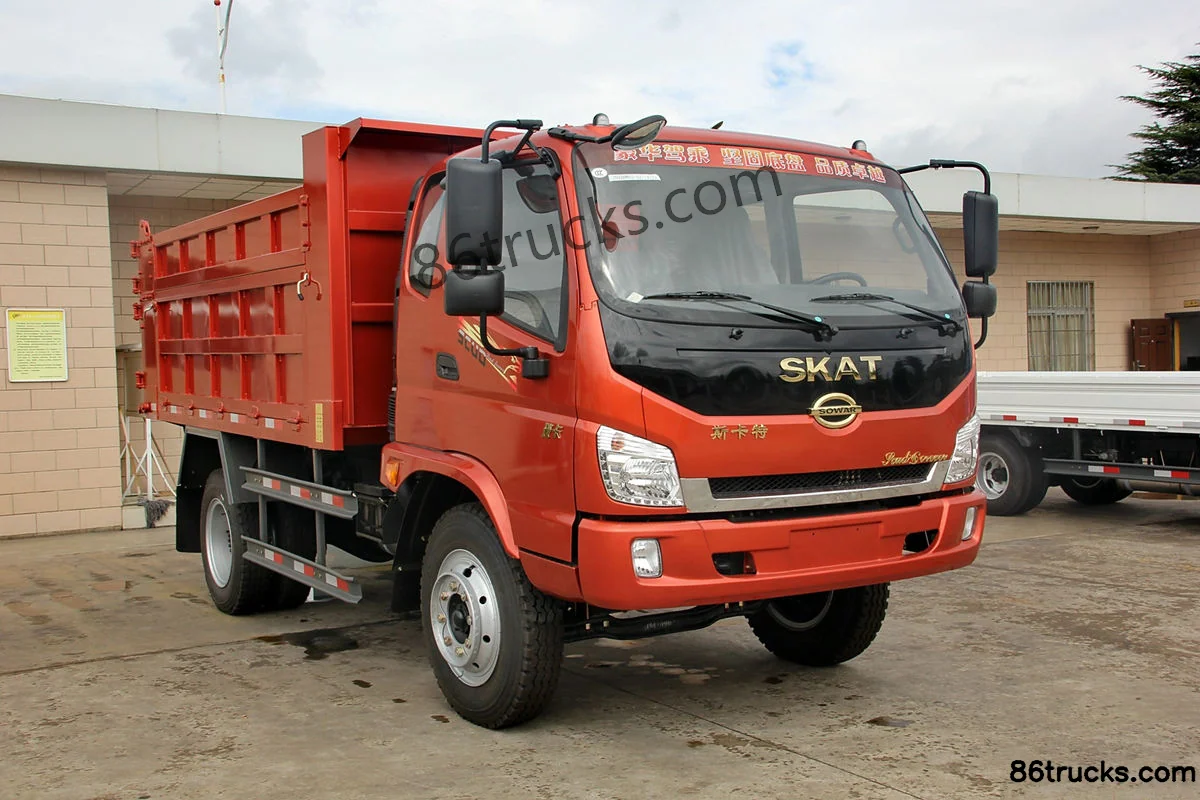

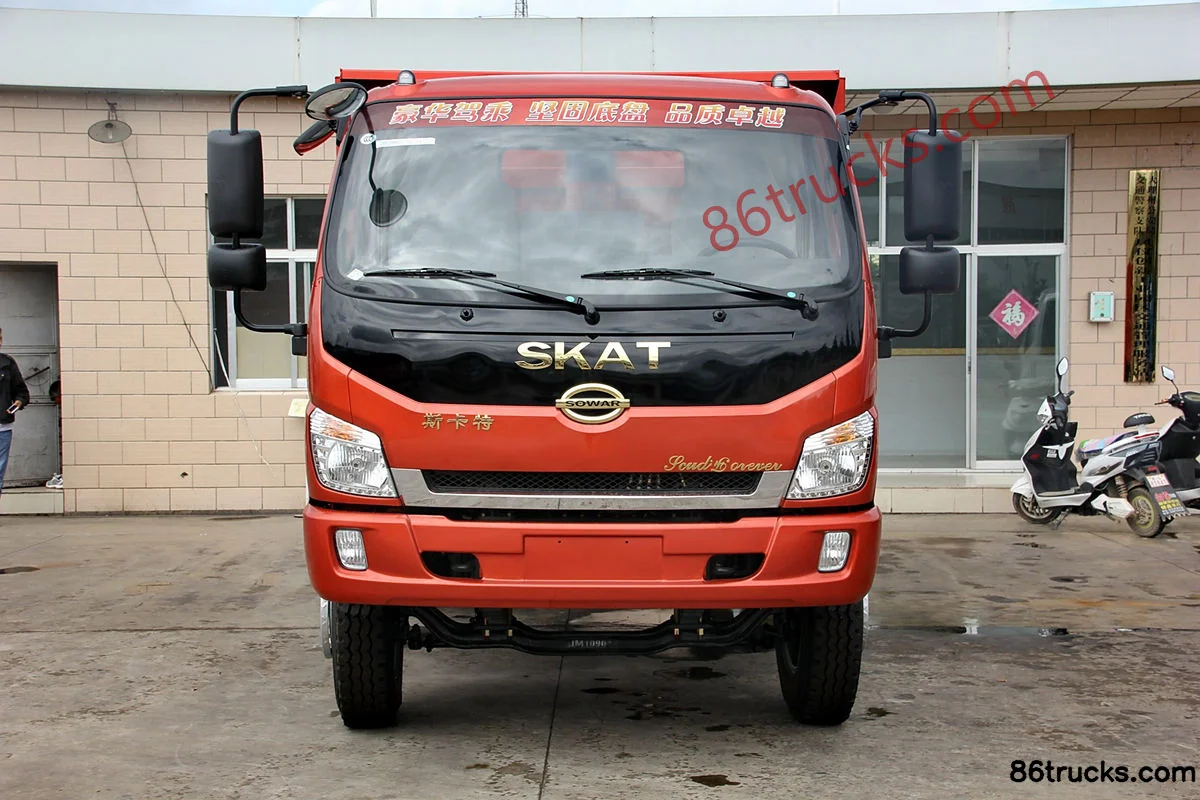

Shijun Skat Light Truck 130 hp 4X2(6 wheels) 4m Dump Truck Exterior (1) | 86Trucks Shijun Skat Light Truck 130 hp 4X2(6 wheels) 4m Dump Truck Exterior (2) | 86Trucks Shijun Skat Light Truck 130 hp 4X2(6 wheels) 4m Dump Truck Exterior (3) | 86Trucks

Cab3

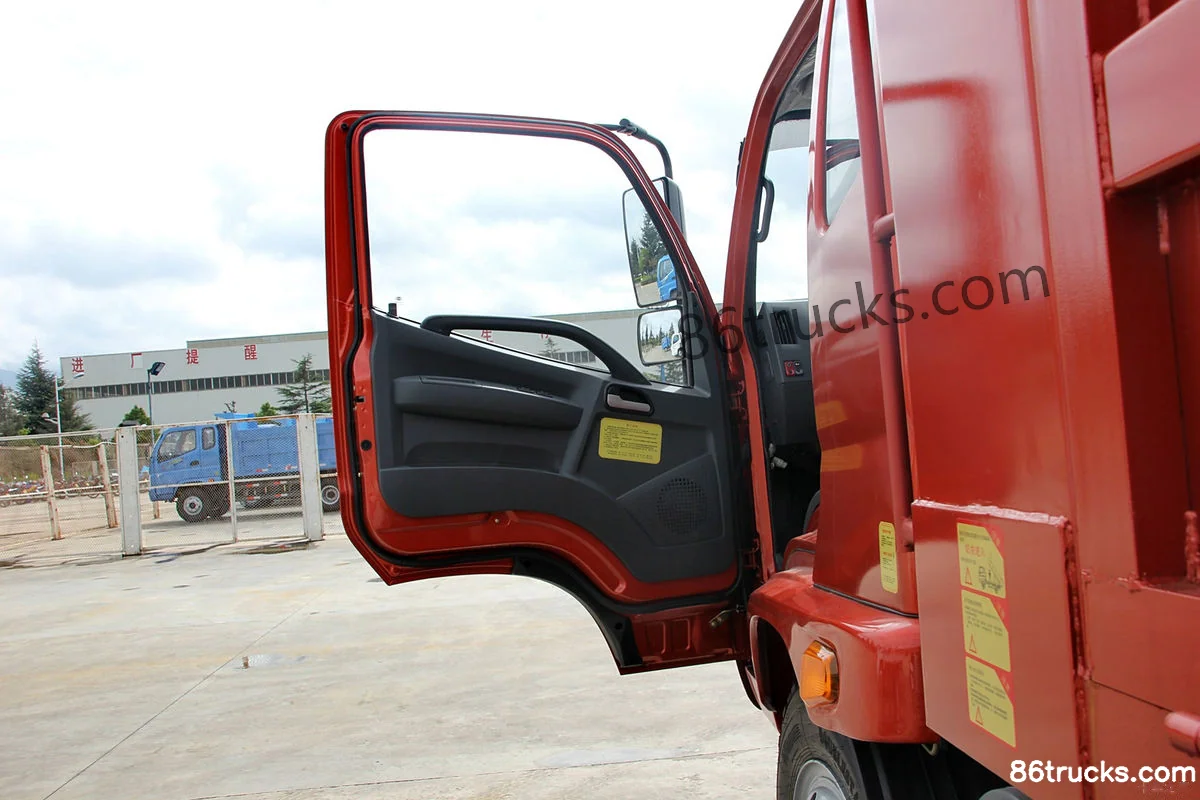

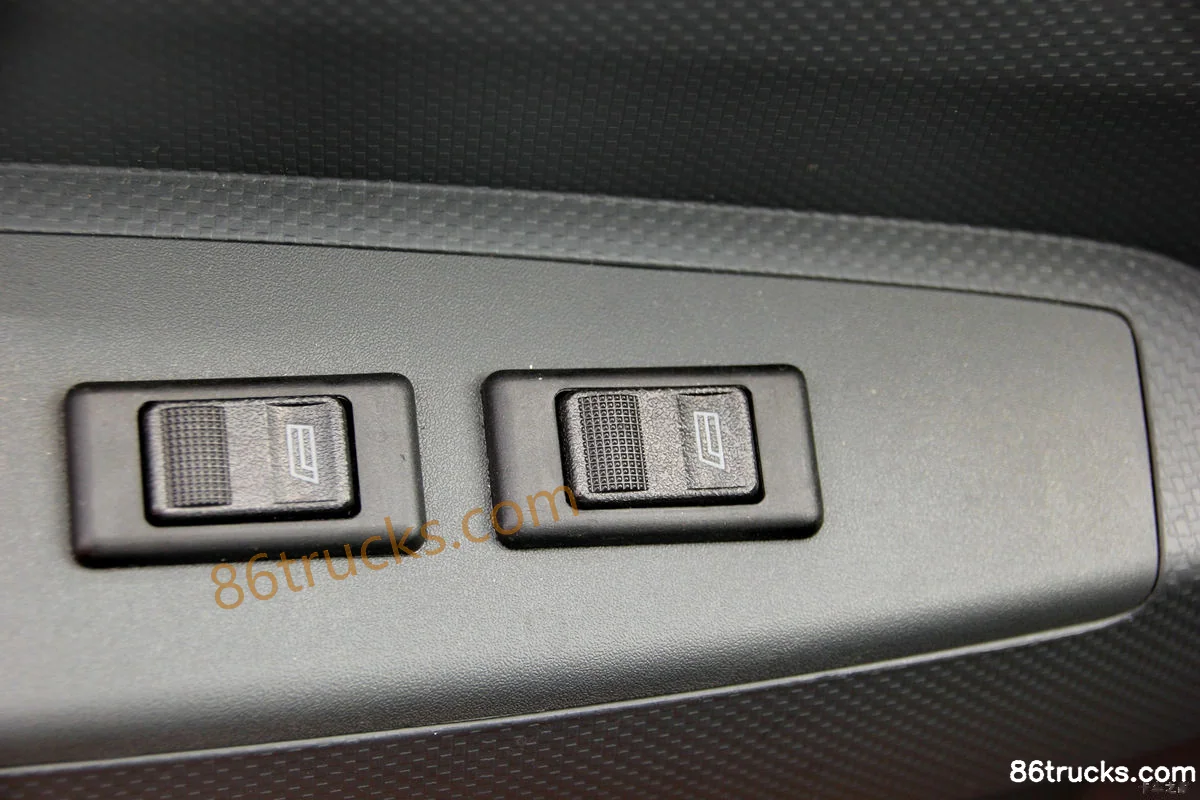

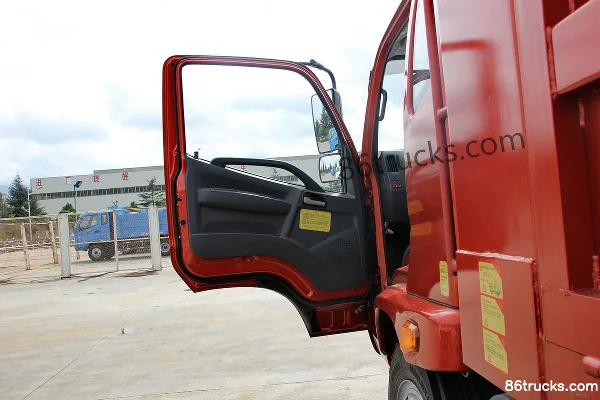

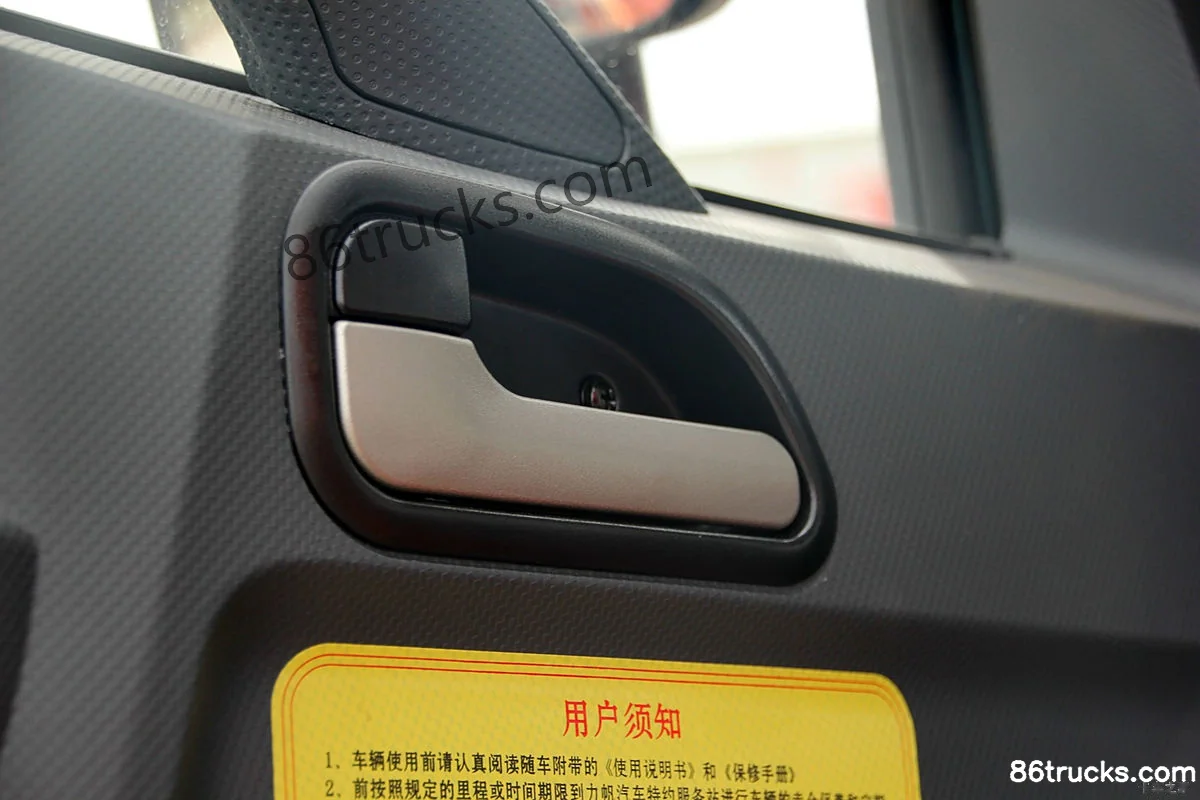

Shijun Skat Light Truck 130 hp 4X2(6 wheels) 4m Dump Truck Cab (1) | 86Trucks Shijun Skat Light Truck 130 hp 4X2(6 wheels) 4m Dump Truck Cab (2) | 86Trucks Shijun Skat Light Truck 130 hp 4X2(6 wheels) 4m Dump Truck Cab (3) | 86Trucks

Chassis3

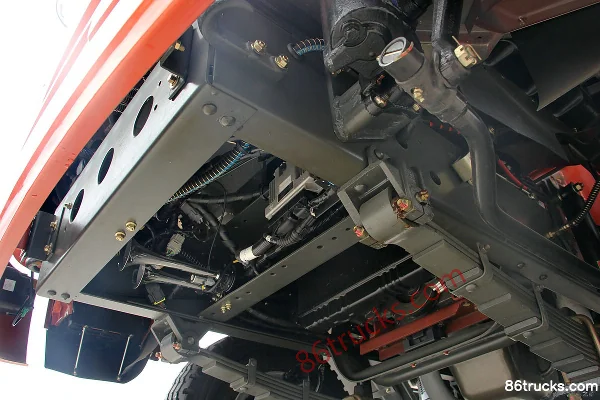

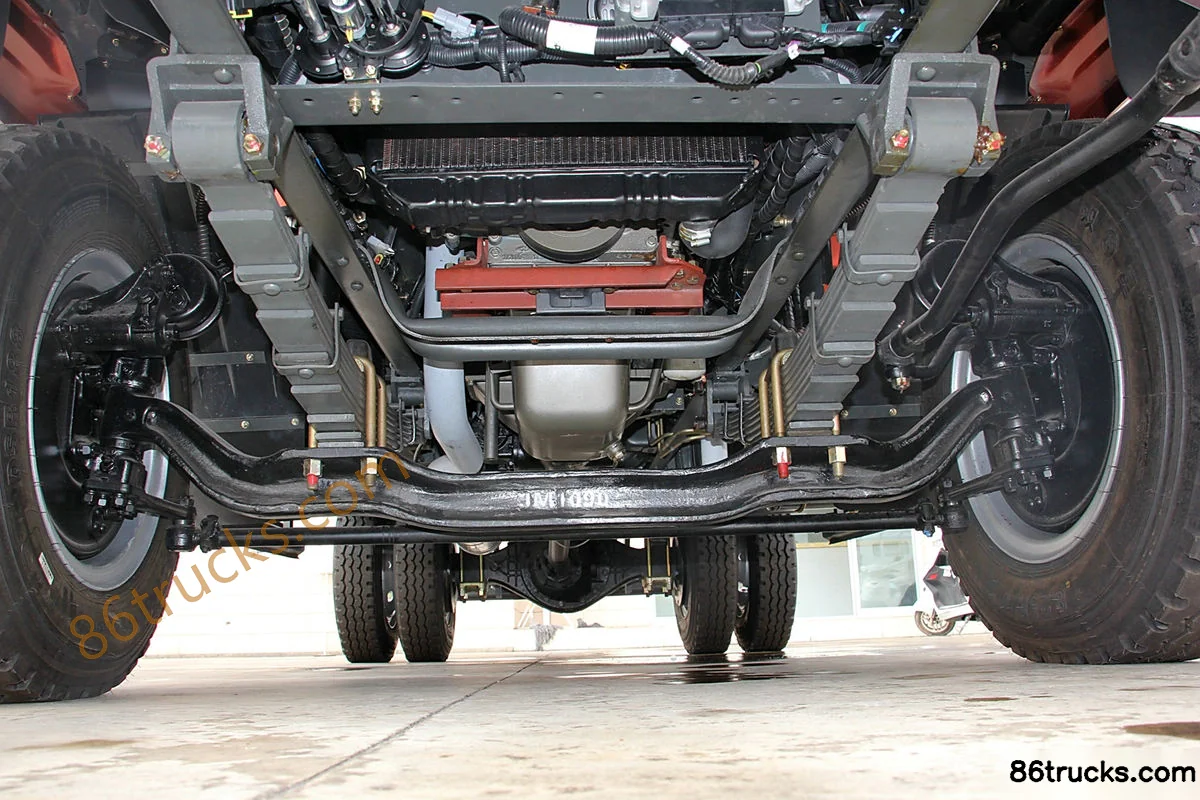

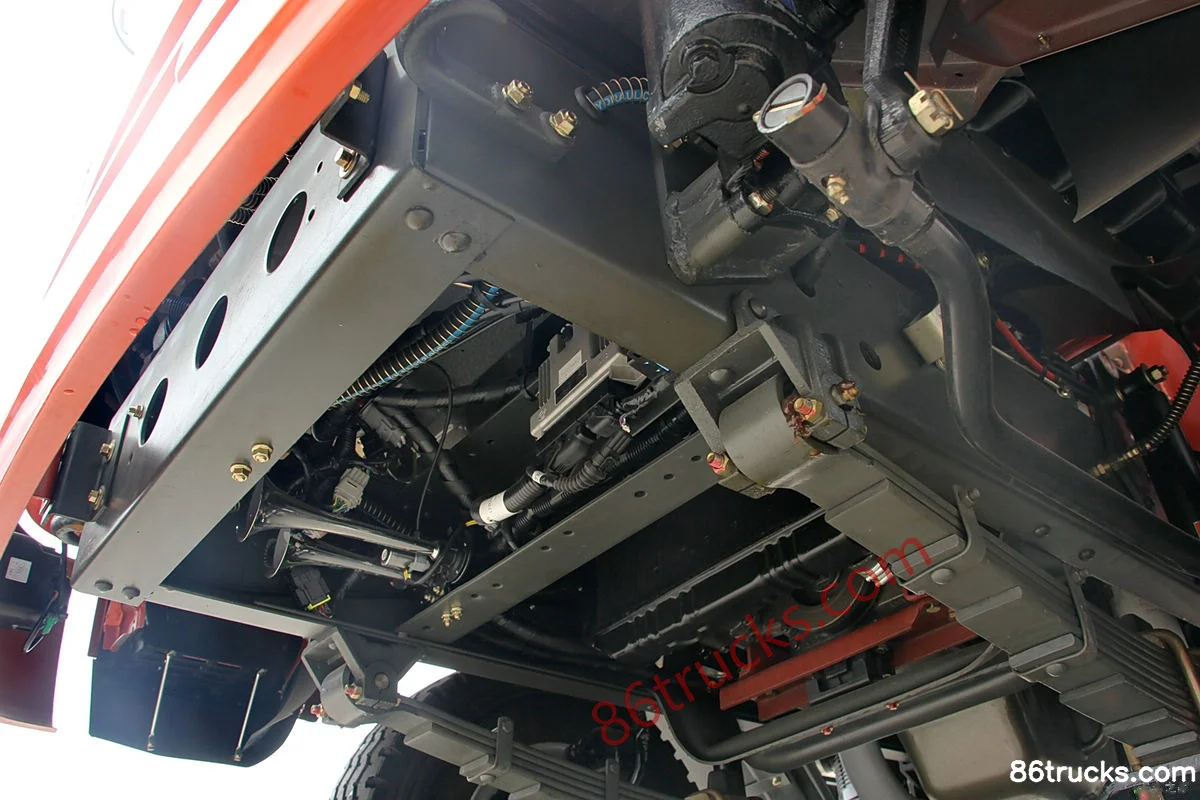

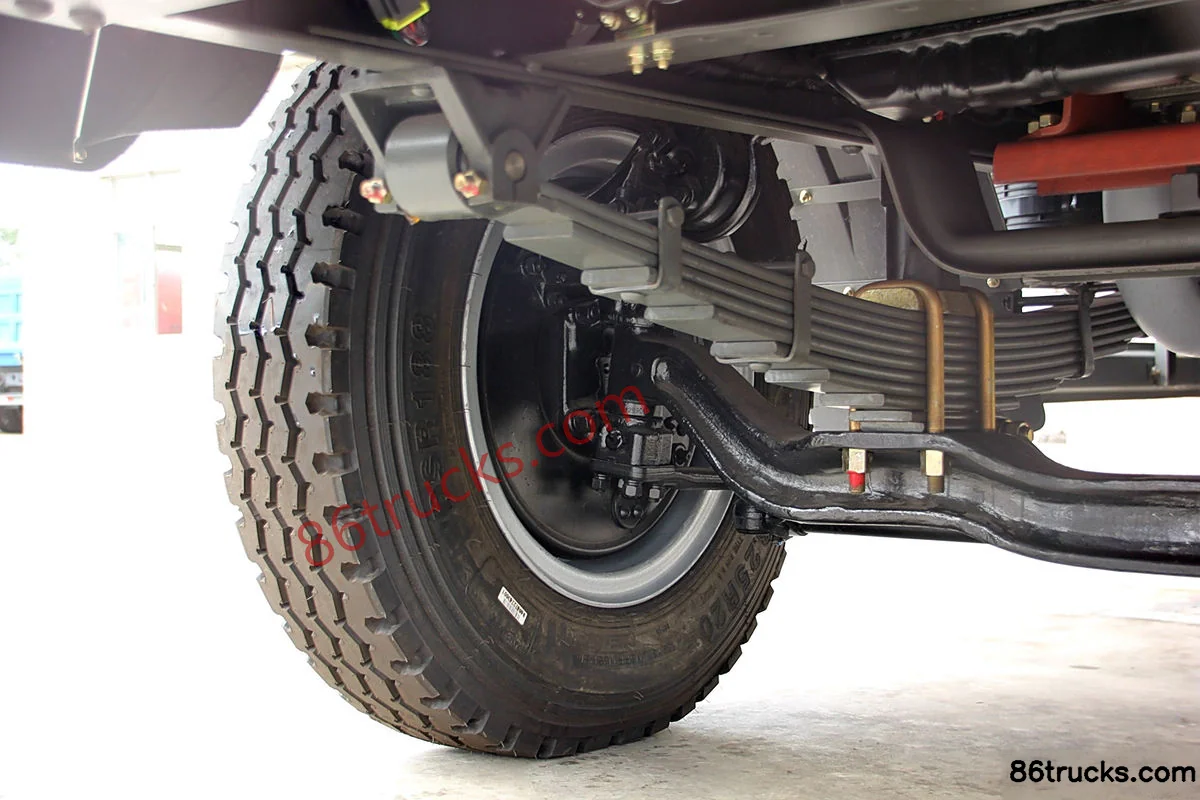

Shijun Skat Light Truck 130 hp 4X2(6 wheels) 4m Dump Truck Chassis (1) | 86Trucks Shijun Skat Light Truck 130 hp 4X2(6 wheels) 4m Dump Truck Chassis (2) | 86Trucks Shijun Skat Light Truck 130 hp 4X2(6 wheels) 4m Dump Truck Chassis (3) | 86Trucks

Body3

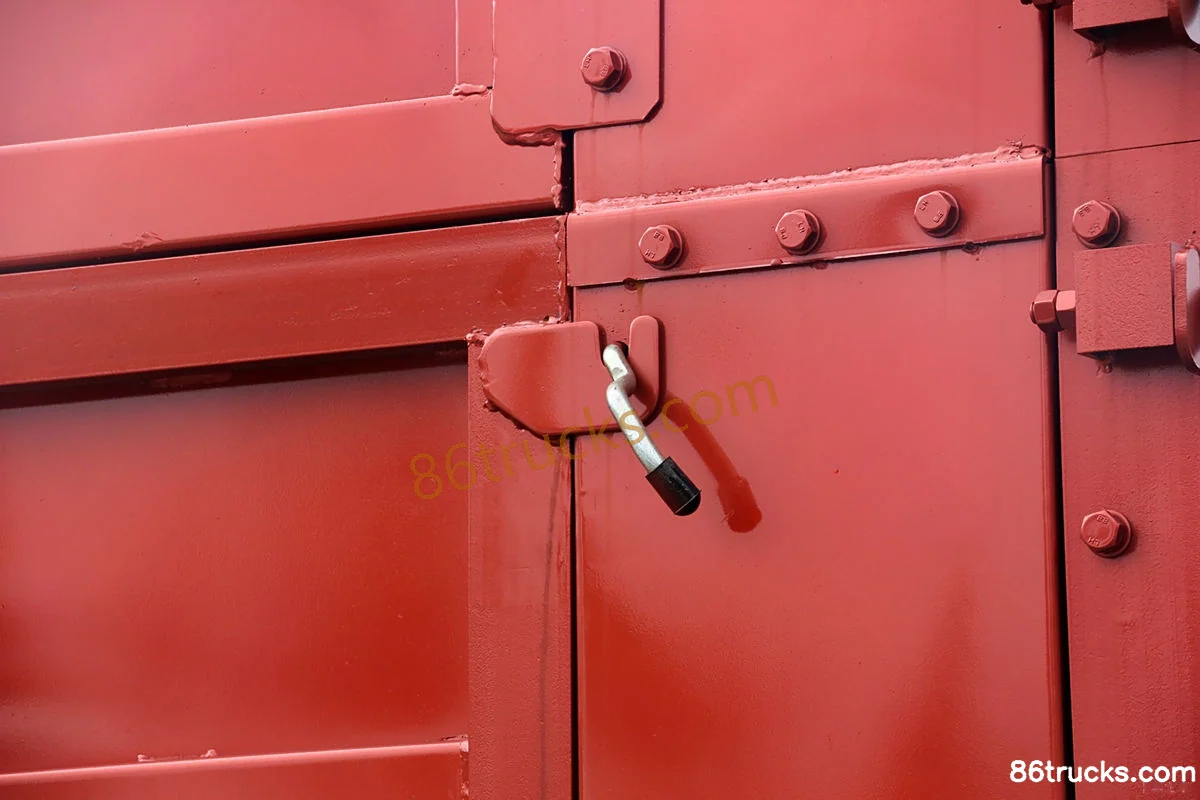

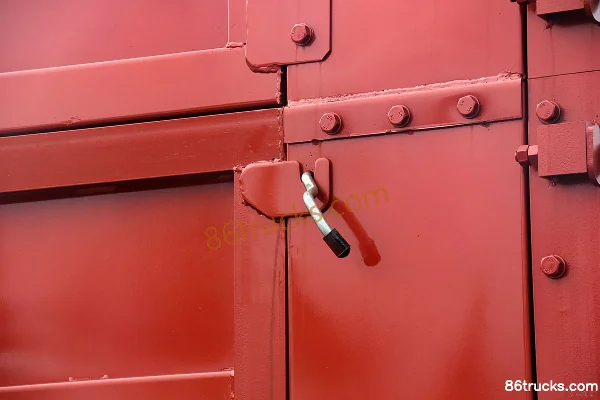

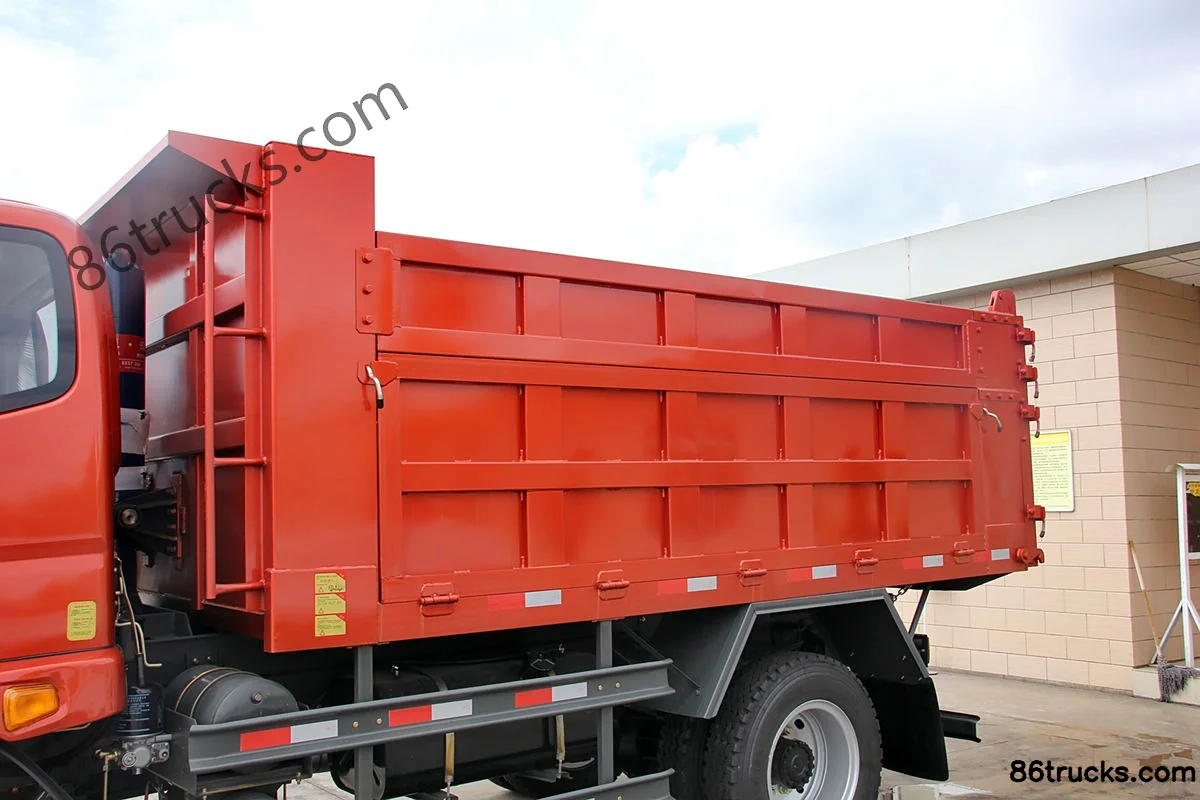

Shijun Skat Light Truck 130 hp 4X2(6 wheels) 4m Dump Truck Body (1) | 86Trucks Shijun Skat Light Truck 130 hp 4X2(6 wheels) 4m Dump Truck Body (2) | 86Trucks Shijun Skat Light Truck 130 hp 4X2(6 wheels) 4m Dump Truck Body (3) | 86Trucks

12 photos

FAQ

What emission standard does Shijun Skat Light Truck 130 hp 4X2(6 wheels) 4m Dump Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Shijun Skat Light Truck 130 hp 4X2(6 wheels) 4m Dump Truck?

Key specs of Shijun Skat Light Truck 130 hp 4X2(6 wheels) 4m Dump Truck: Drive: 4x2; Horsepower: 130 hp; Emission: China IV; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Shijun Skat Light Truck 130 hp 4X2(6 wheels) 4m Dump Truck suited for?

Shijun Skat Light Truck 130 hp 4X2(6 wheels) 4m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Shijun Skat Light Truck 130 hp 4X2(6 wheels) 4m Dump Truck differ from other variants in the same series?

Shijun Skat Light Truck 130 hp 4X2(6 wheels) 4m Dump Truck belongs to Shijun Sikate Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Shijun Skat Light Truck 130 hp 4X2(6 wheels) 4m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Shijun Skat Light Truck 130 hp 4X2(6 wheels) 4m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
