Chengshi X5 2.2T 3.05m single-row pure electric flatbed micro truck 17.305kWh 4X2(6 wheels)

Export reference
From $8,653
MSRP ¥6.23M CNY
Rated payload:: 0.97ton
Wheelbase:: 3150mm
Cargo box type:: stake body
Model code (announced):: HDY1022BEV03
Type:: Cargo Trucks
Box length class:: 3.1m
Drive 4X2 (6 wheels)
Battery Brand: Guoxuan High-Tech
Motor 1 Brand: Dadihe
Curb Weight: 1.1ton

Overview

The Chengshi X5 2.2T 3.05m single-row pure electric flatbed micro truck 17.305kWh 4X2(6 wheels) is a mini truck featuring Guoxuan High-Tech battery/range, Dadihe motor, 4X2 (6 wheels) drive and 0.97t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HDY1022BEV03
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3150mm
Box length class: 3.1m
Cab length: 4.96m
Cab width: 1.57m
Cab height: 1.765m
Curb Weight: 1.1ton
Rated payload: 0.97ton
GVWR: 2.2ton
Max. speed: 75km/h
Origin: Jinan, Shandong
tonnage class: mini truck
Energy Type: Electric
electric motor
Motor 1 Brand: Dadihe
Motor 1 Model: TZ190XK1F
Fuel Type: Electric
Peak power: 30kW
Battery/Charging
Battery Brand: Guoxuan High-Tech
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 17.305kWh
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.05m
Cargo box width: 1.49m
Cargo box height: 0.36m
Cab parameters
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 750kg
rear axle allowable load: 1450kg
Tire
Tire Size: 165/70 R13/175/70R14C
Number of tires: 4pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:

Photos

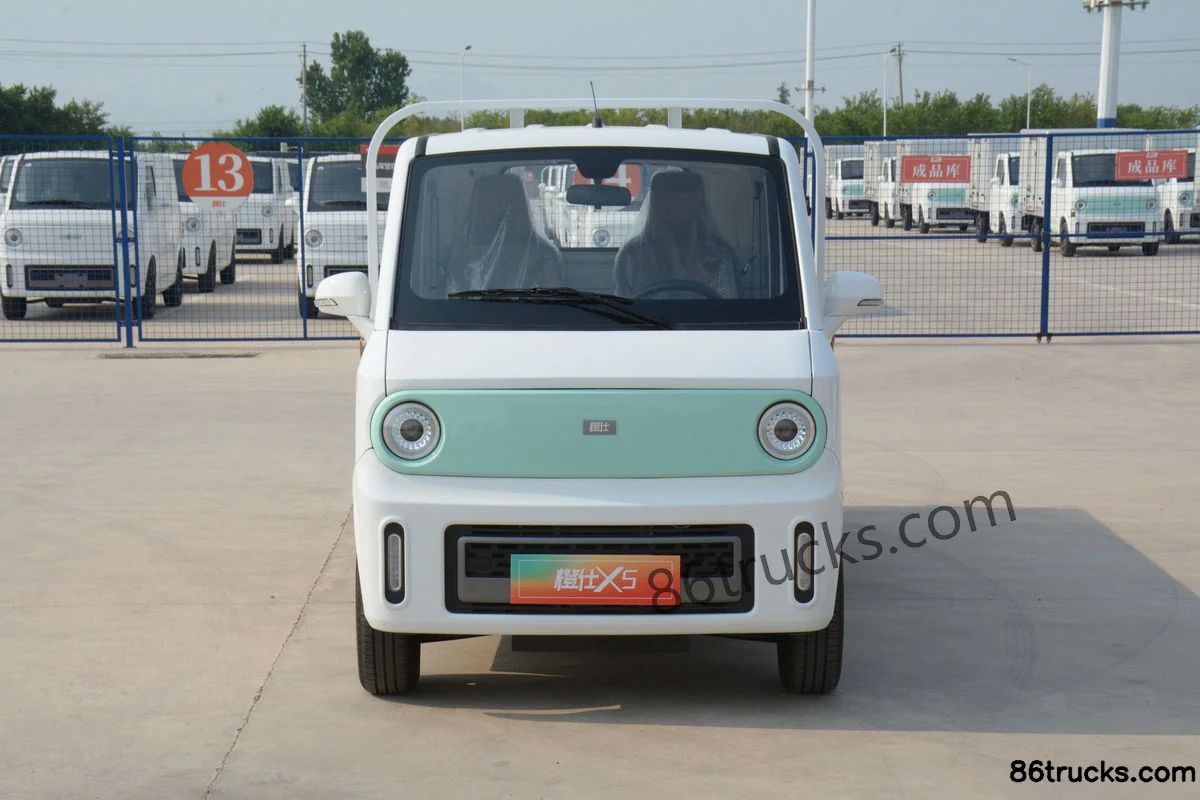

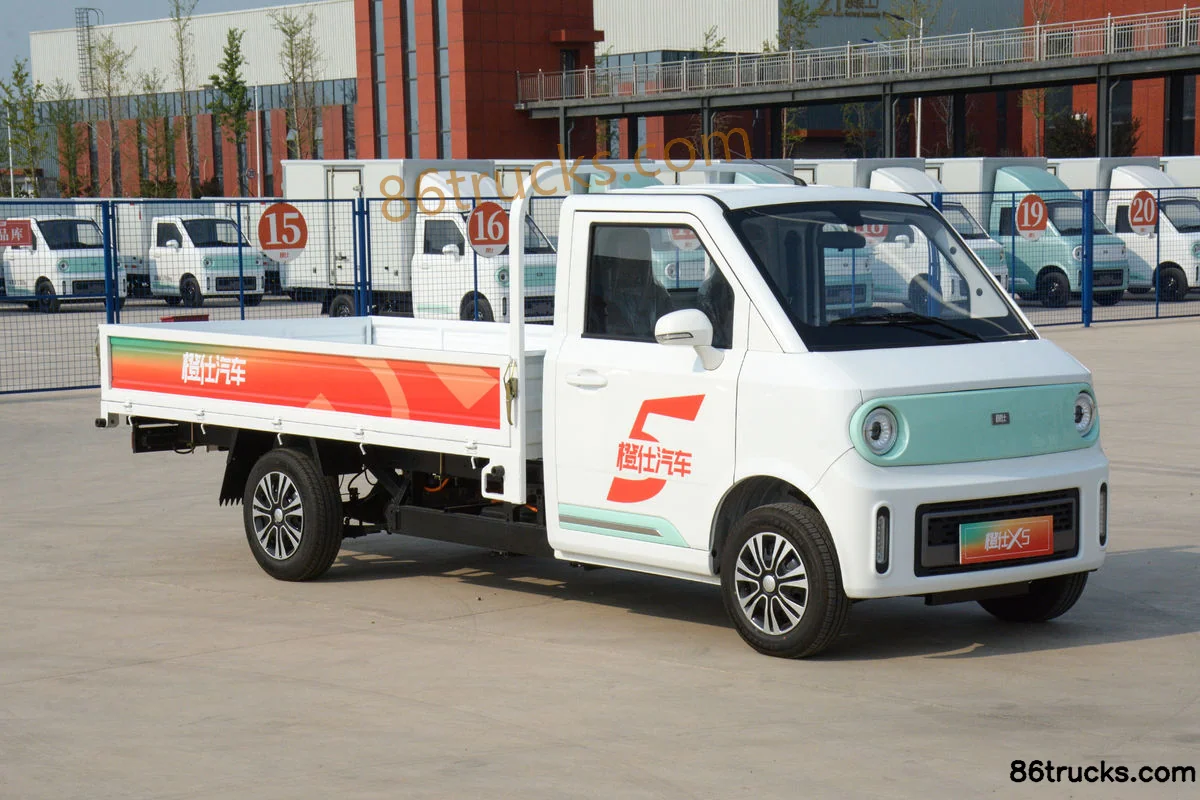

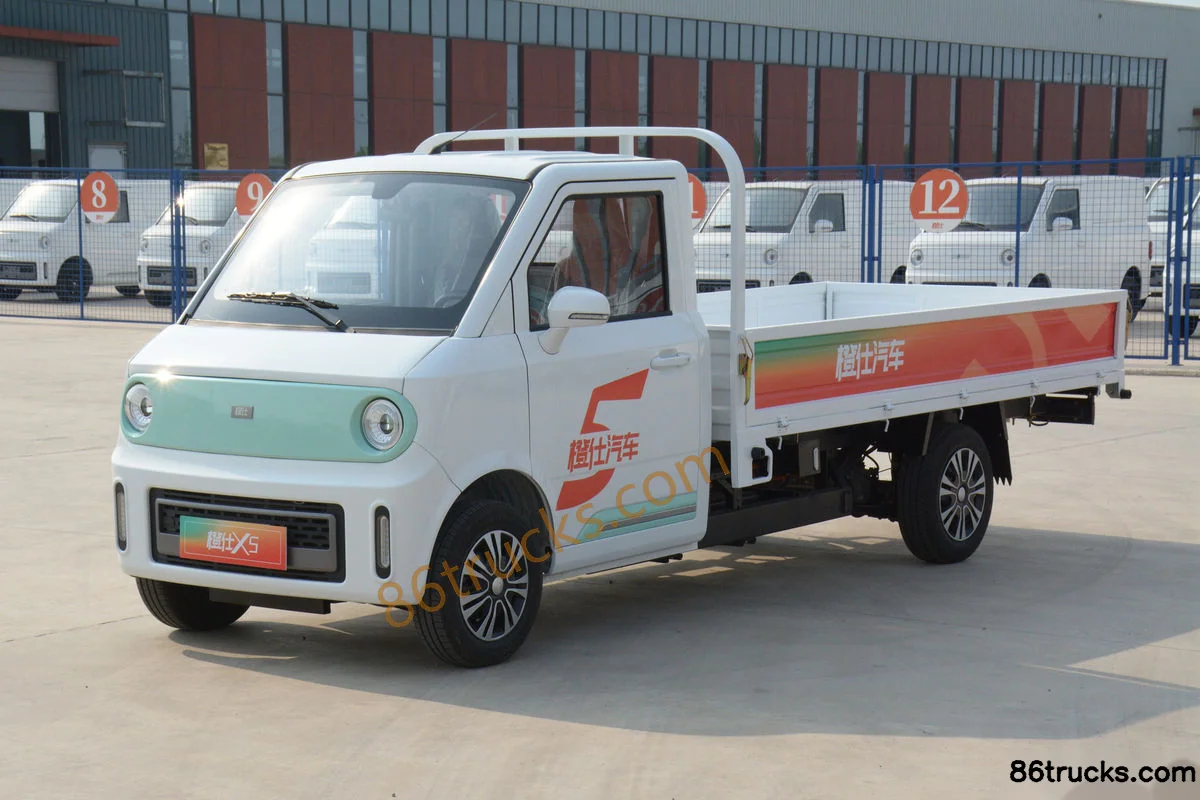

Exterior3

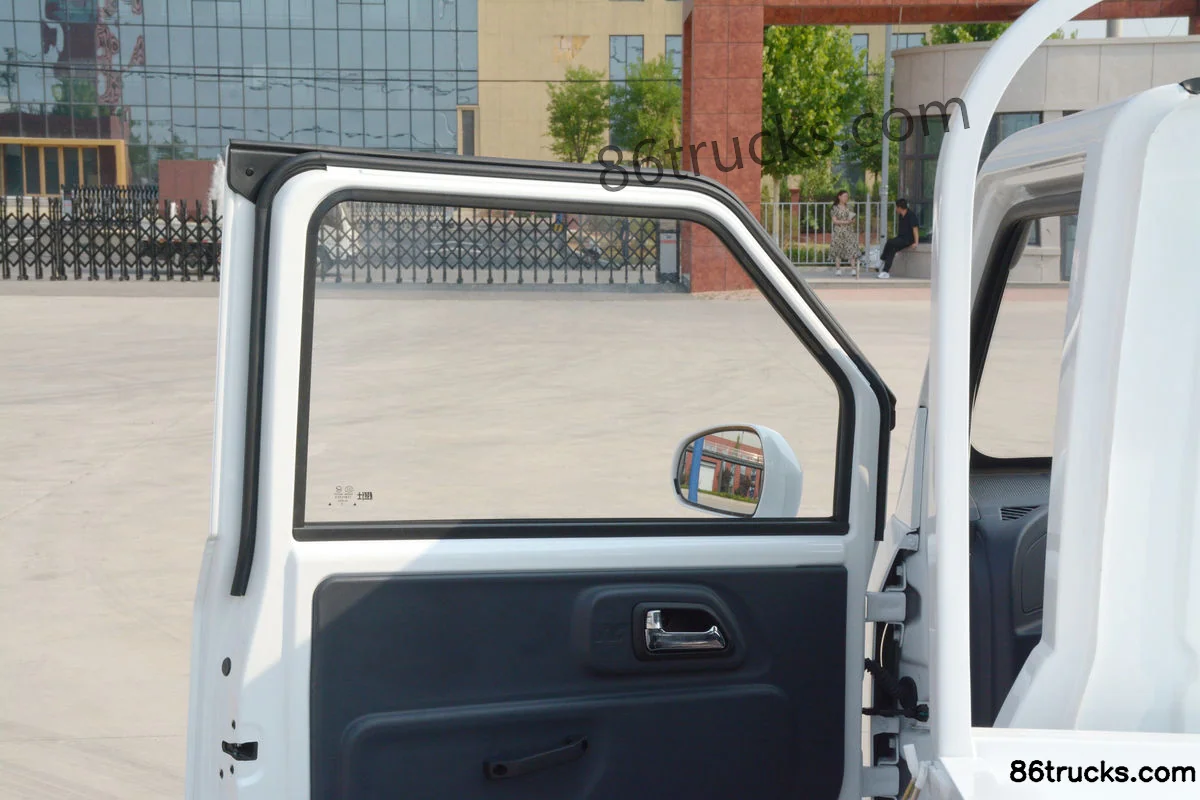

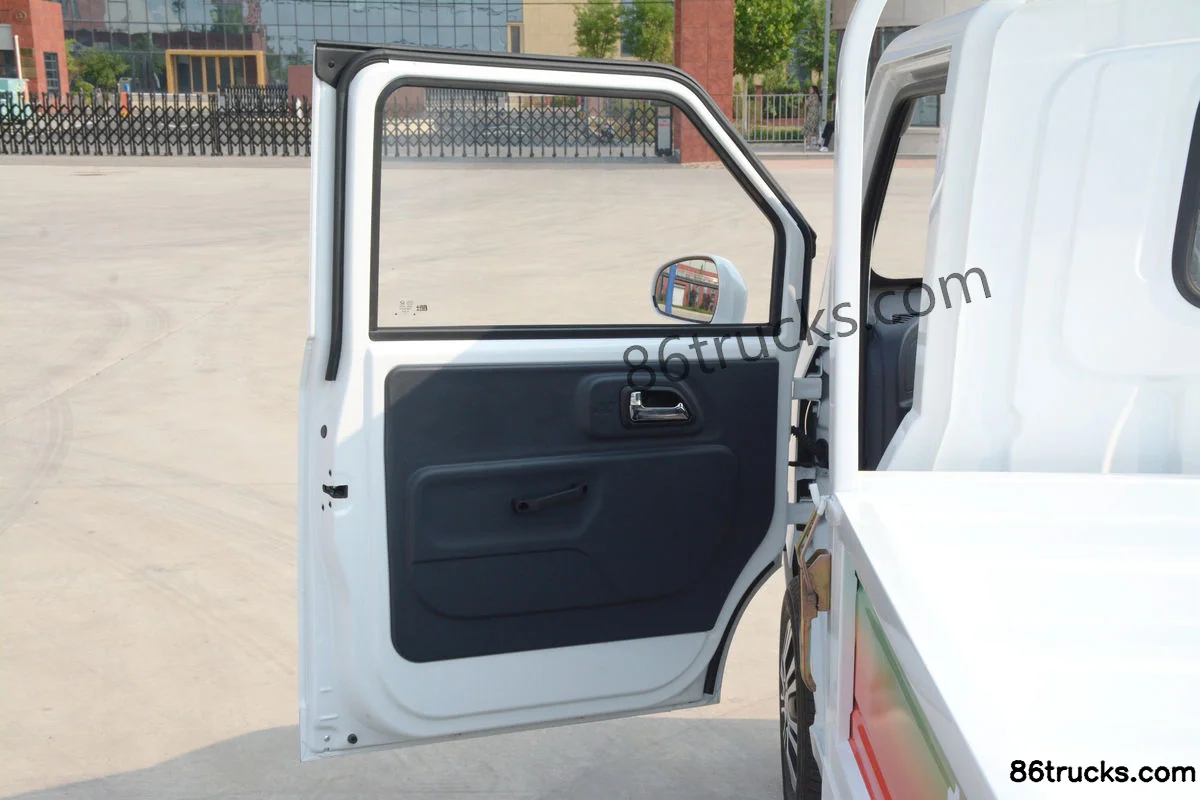

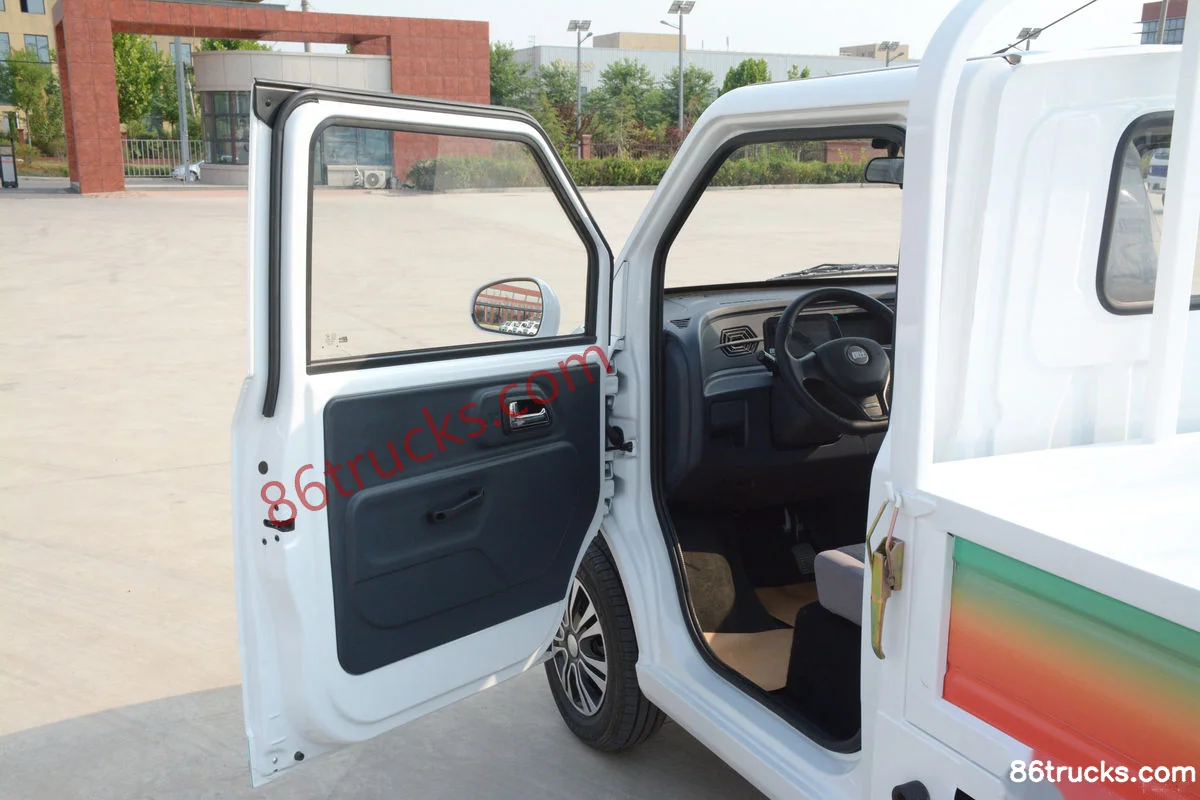

Interior3

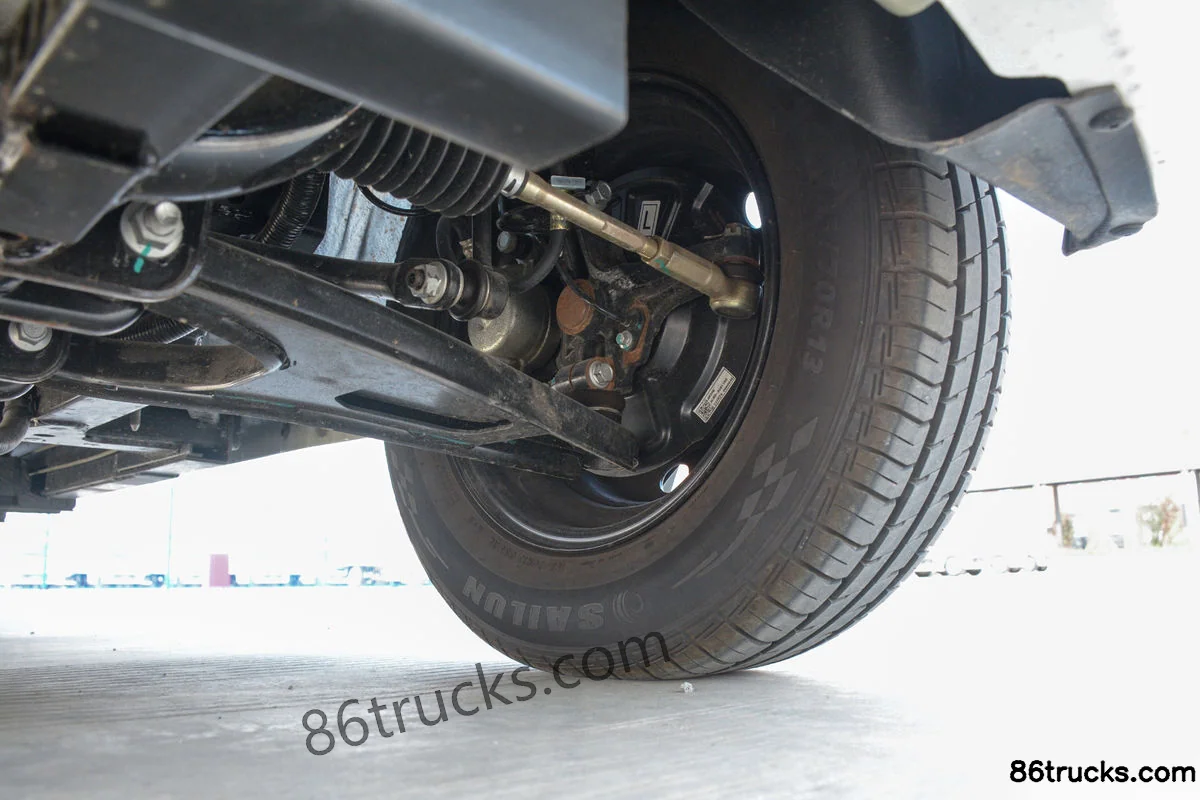

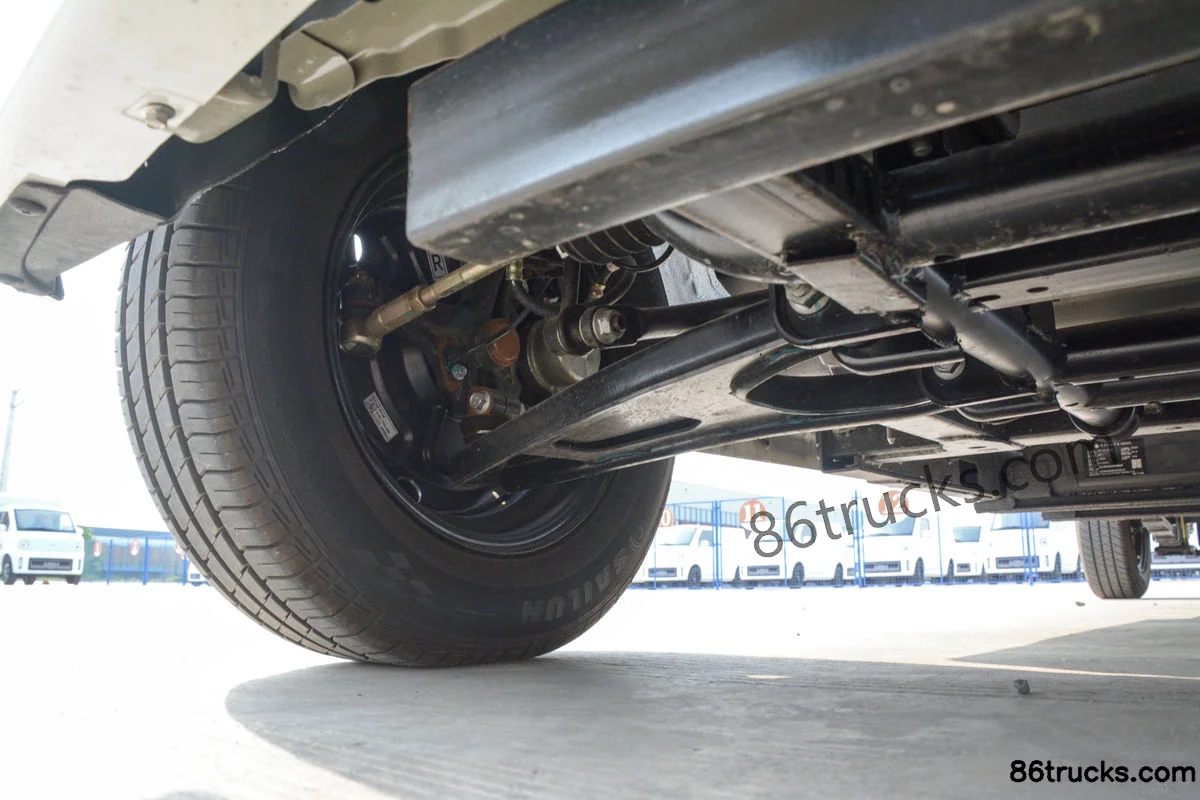

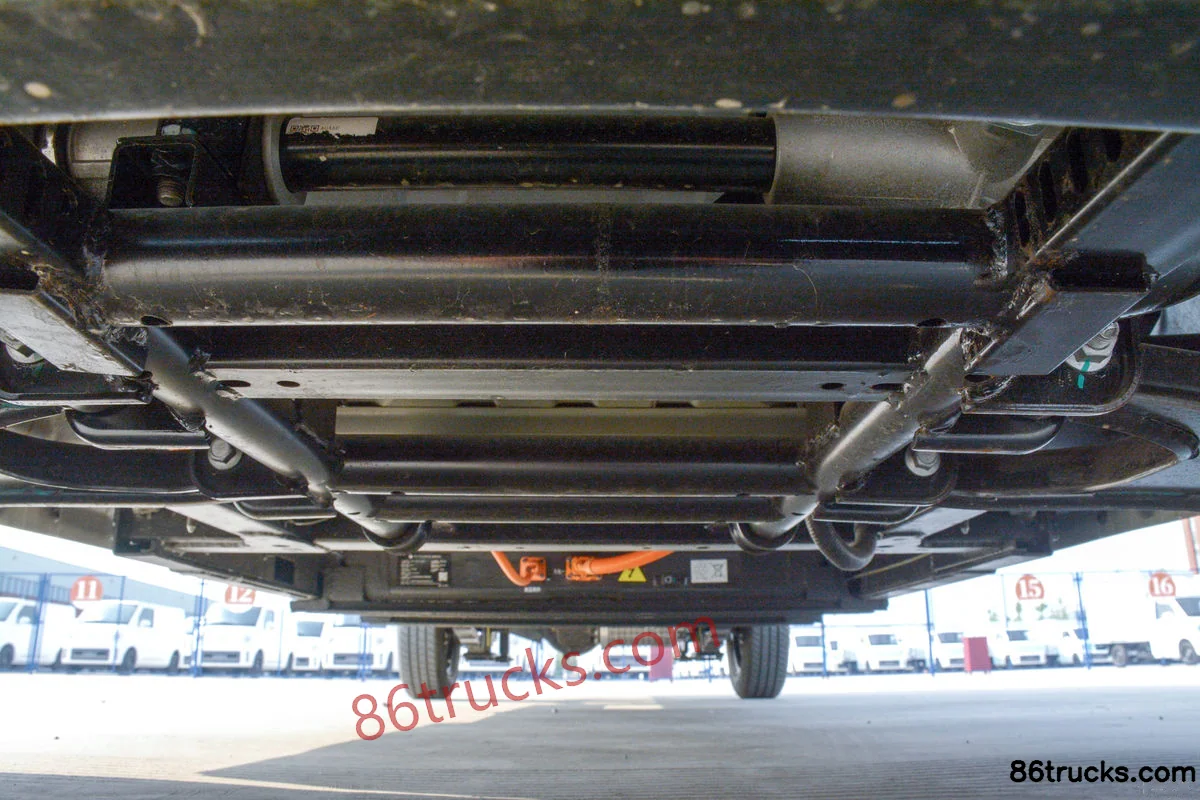

Chassis3

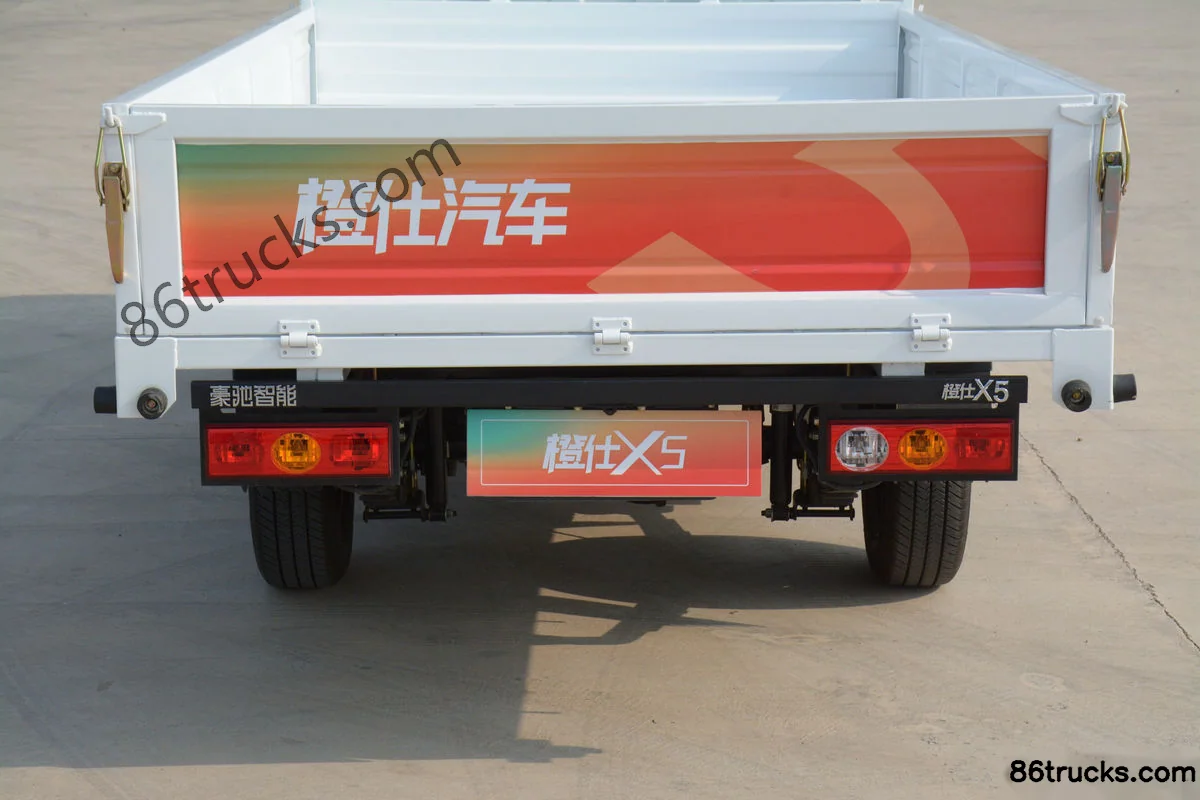

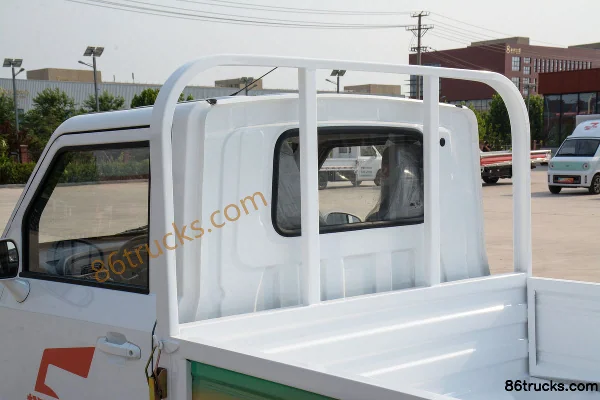

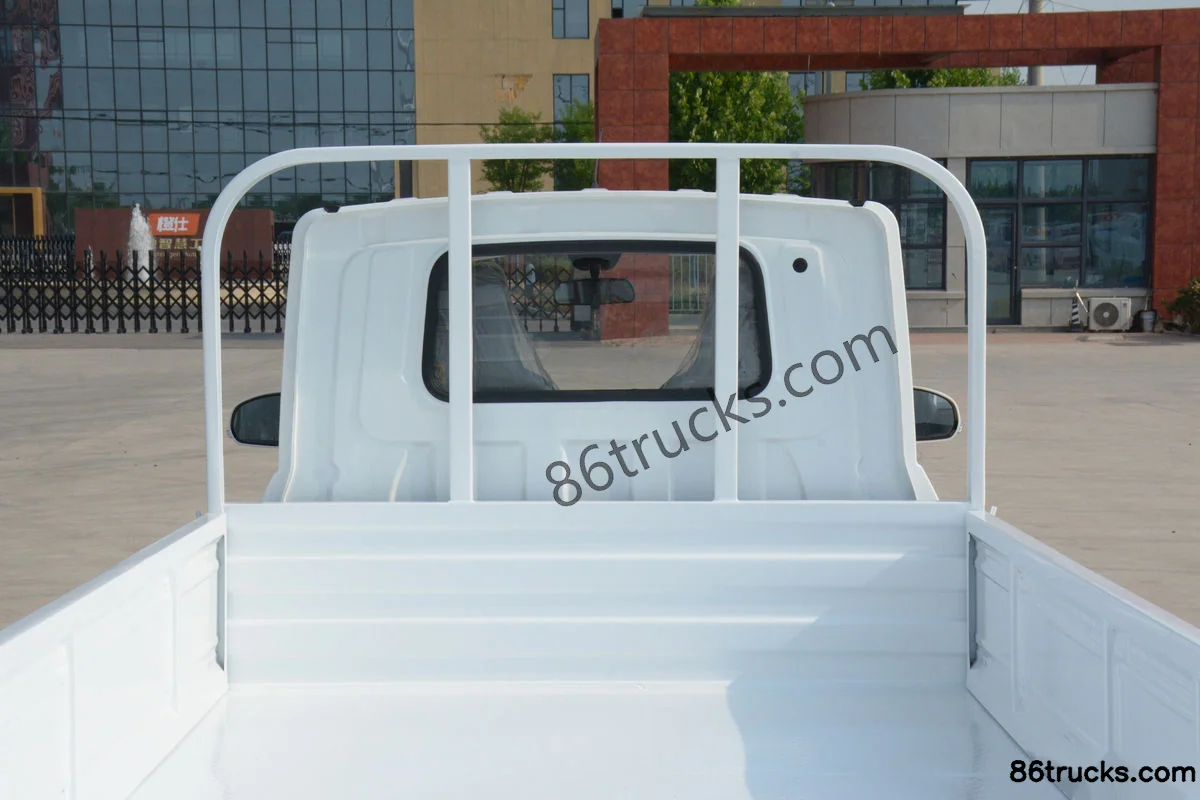

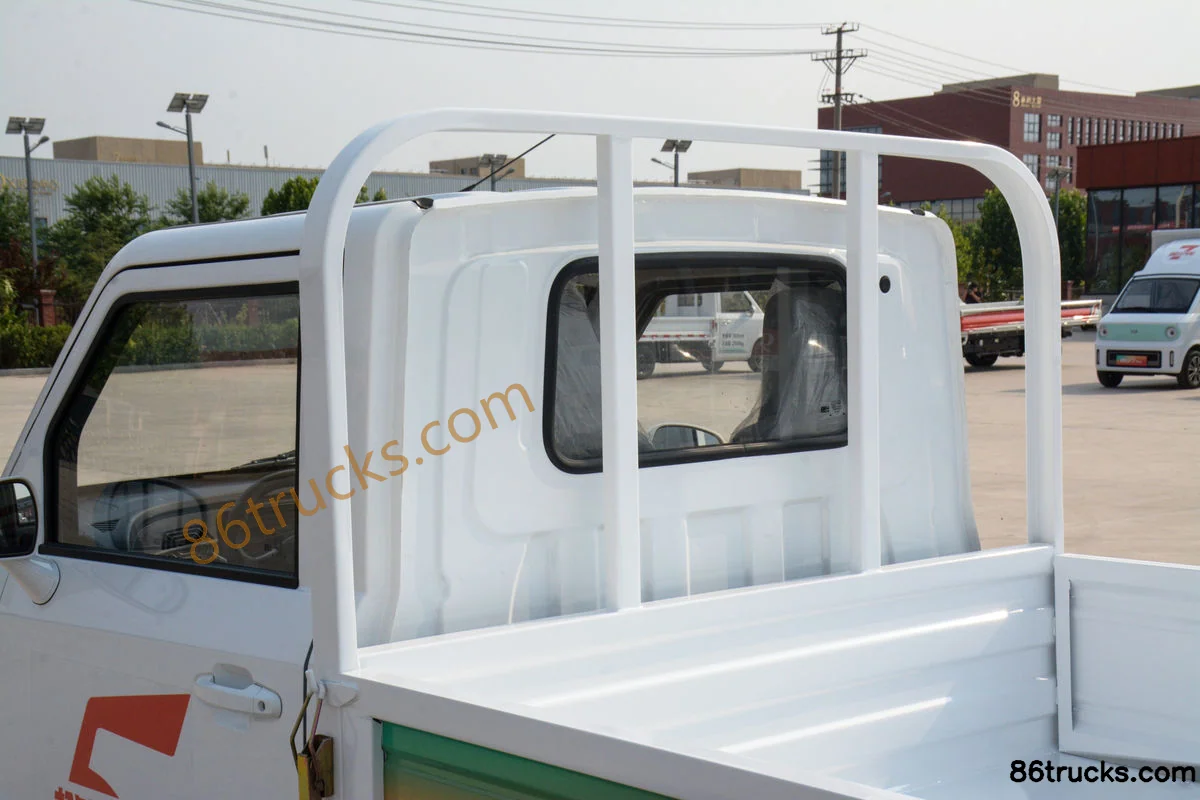

Body3

12 photos

FAQ

What is the export price of Chengshi X5 2.2T 3.05m single-row pure electric flatbed micro truck 17.305kWh 4X2(6 wheels), and what does it include?

Chengshi X5 2.2T 3.05m single-row pure electric flatbed micro truck 17.305kWh 4X2(6 wheels) export reference is about From $8,653; MSRP is ¥6.23M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of Chengshi X5 2.2T 3.05m single-row pure electric flatbed micro truck 17.305kWh 4X2(6 wheels)?

Key specs of Chengshi X5 2.2T 3.05m single-row pure electric flatbed micro truck 17.305kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Chengshi X5 2.2T 3.05m single-row pure electric flatbed micro truck 17.305kWh 4X2(6 wheels) suited for?

Chengshi X5 2.2T 3.05m single-row pure electric flatbed micro truck 17.305kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Chengshi X5 2.2T 3.05m single-row pure electric flatbed micro truck 17.305kWh 4X2(6 wheels) differ from other variants in the same series?

Chengshi X5 2.2T 3.05m single-row pure electric flatbed micro truck 17.305kWh 4X2(6 wheels) belongs to ChengshiX5 (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Chengshi X5 2.2T 3.05m single-row pure electric flatbed micro truck 17.305kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Chengshi X5 2.2T 3.05m single-row pure electric flatbed micro truck 17.305kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
