SHACMAN Delong F2000 290 hp 6X4(10 wheels) Truck Mounted Crane

Export reference
MSRP N/A
Emission: China III / Euro III
Fuel: Diesel
Wheelbase:: 5625+1350mm
Cab dimensions:: 11.75×2.5×3.72m
Type:: truck-mounted crane
GVWR:: 25ton
Lifting capacity: 5.405ton
Drive 6X4 (10 wheels)
Horsepower 290
Rated mass: 11.87ton

Overview

The SHACMAN Delong F2000 290 hp 6X4(10 wheels) Truck Mounted Crane is a truck-mounted crane featuring 5.405ton tank capacity, 25t GVW and 6X4 (10 wheels) drive. On the powertrain side, it comes with 290 hp, China III / Euro III emissions and Diesel fuel.

China III / Euro III 290 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 11.75×2.5×3.72m
Type: truck-mounted crane
Drive type: 6X4
Wheelbase: 5625+1350mm
Rated mass: 11.87ton
GVWR: 25ton
Front/rear suspension: 1.525/3.25m
Energy Type: Diesel
Body Parameters
Other special notes: Optional same-series low roof cab
Crane model: HB230,HB150
Lifting capacity: 5.405ton
crane self-weight: 9.62ton
Vehicle certification code: SX5255JSQNR564
Body Brand: SHACMAN
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP10.290E32
fuel type: Diesel
Displacement: 9.726L
Emission standard: China III / Euro III
Max output power: 213kW
Max hp: 290Horsepower
Max torque: 1160N·m
Max torque speed: 1200-1600rpm
Rated speed: 2200rpm
Chassis Specs
Chassis Brand: SHACMAN
Chassis Series: Delong F2000
Chassis Model: SX1255NR564
rear axle description: 7.5T/13T
Leaf spring count: 9/12,4/12,4/5,10/12
Transmission Parameters
Number of gears: 9Gear
Transmission Model: Fast Gear 9JS135
Tire
Tire Size: 12.00R20
Number of tires: 10pcs

Photos

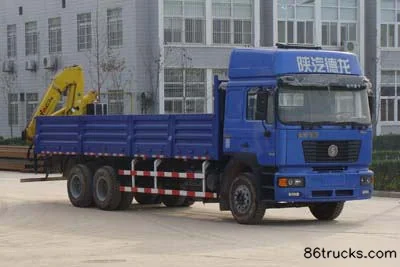

Exterior1

1 photos

FAQ

What emission standard does SHACMAN Delong F2000 290 hp 6X4(10 wheels) Truck Mounted Crane use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Delong F2000 290 hp 6X4(10 wheels) Truck Mounted Crane?

Key specs of SHACMAN Delong F2000 290 hp 6X4(10 wheels) Truck Mounted Crane: Drive: 6x4; Horsepower: 290 hp; Emission: China III / Euro III; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Delong F2000 290 hp 6X4(10 wheels) Truck Mounted Crane suited for?

SHACMAN Delong F2000 290 hp 6X4(10 wheels) Truck Mounted Crane is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does SHACMAN Delong F2000 290 hp 6X4(10 wheels) Truck Mounted Crane differ from other variants in the same series?

SHACMAN Delong F2000 290 hp 6X4(10 wheels) Truck Mounted Crane belongs to SHACMAN Delong F2000 Heavy Truck (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Delong F2000 290 hp 6X4(10 wheels) Truck Mounted Crane?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Delong F2000 290 hp 6X4(10 wheels) Truck Mounted Crane?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
