Hualing Lingma H3 185 hp 4X2(6 wheels) 3.84 m³ Concrete Mixer Truck

Export reference
MSRP N/A
Fuel: Diesel
Curb Weight:: 18ton
Wheelbase:: 4200mm
Tire Size:: 10.00R20
Cab dimensions:: 7.9×2.5×3.7m
Truck Type:: concrete mixer truck
Rated payload: 8.37ton
Drive 4X2 (6 wheels)
Horsepower 185
Emission China V

Overview

The Hualing Lingma H3 185 hp 4X2(6 wheels) 3.84 m³ Concrete Mixer Truck is a concrete mixer truck featuring 8.37t payload, 18ton GVW, 4X2 (6 wheels) drive and 7.9×2.5×3.7m cab. On the powertrain side, it comes with 185 hp, China V emissions and Diesel fuel.

China V 185 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 7.9×2.5×3.7m
Drive type: 4X2
Truck Type: concrete mixer truck
Wheelbase: 4200mm
Vehicle origin: Ma'anshan, Anhui
Front/rear track width: Front: 1960mm; Rear: 1860
Curb Weight: 18ton
Rated payload: 8.37ton
Max. speed: 90km/h
Front/rear suspension: 1.45/2.25m
Body Parameters
Mixing drum capacity: 3.84m³
Vehicle certification code: AH5180GJB2L5
Body Brand: Hualing
Engine parameters
Engine Model: YuchaiYC4EG185-50
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.73L
Emission standard: China V
Max output power: 136kW
Max hp: 185Horsepower
Rated speed: 2500rpm
Engine Type: BOSCH high-pressure common rail
Chassis Specs
Chassis Series: Lingma H3
Chassis Model: HN1180HC22E6M5J
Front axle description: 5.5T front axle
rear axle description: HL439
Axle ratio: 5.571
Leaf spring count: 10/9+6
Transmission Parameters
Number of gears: 8Gear
Transmission Model: Fast Gear8JS85E-C
Tire
Tire Size: 10.00R20
Number of tires: 6pcs

Photos

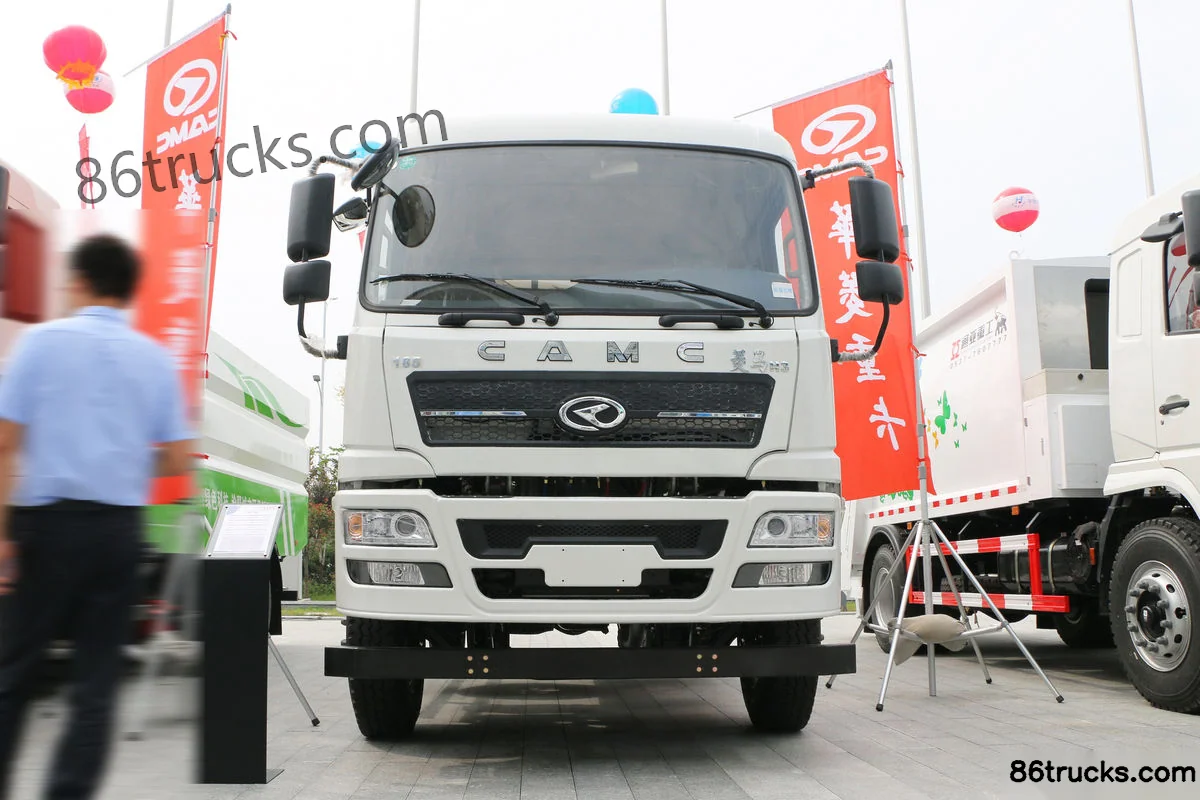

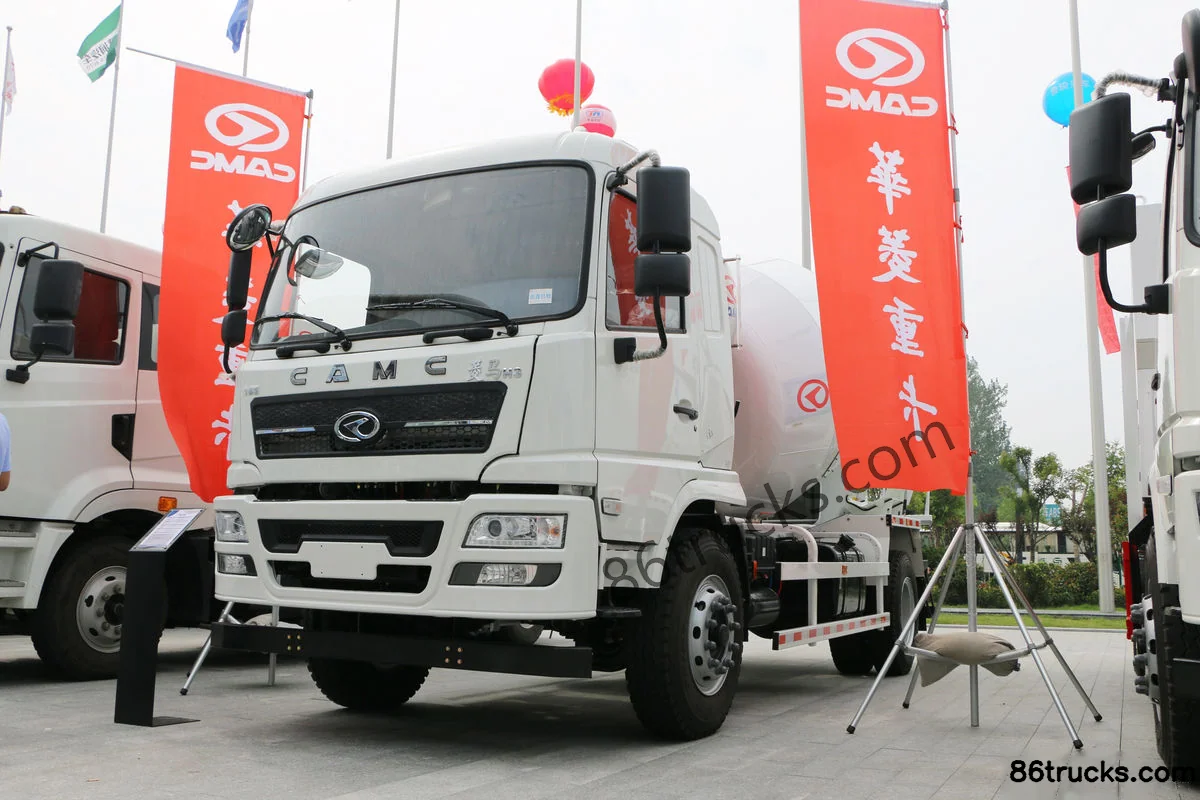

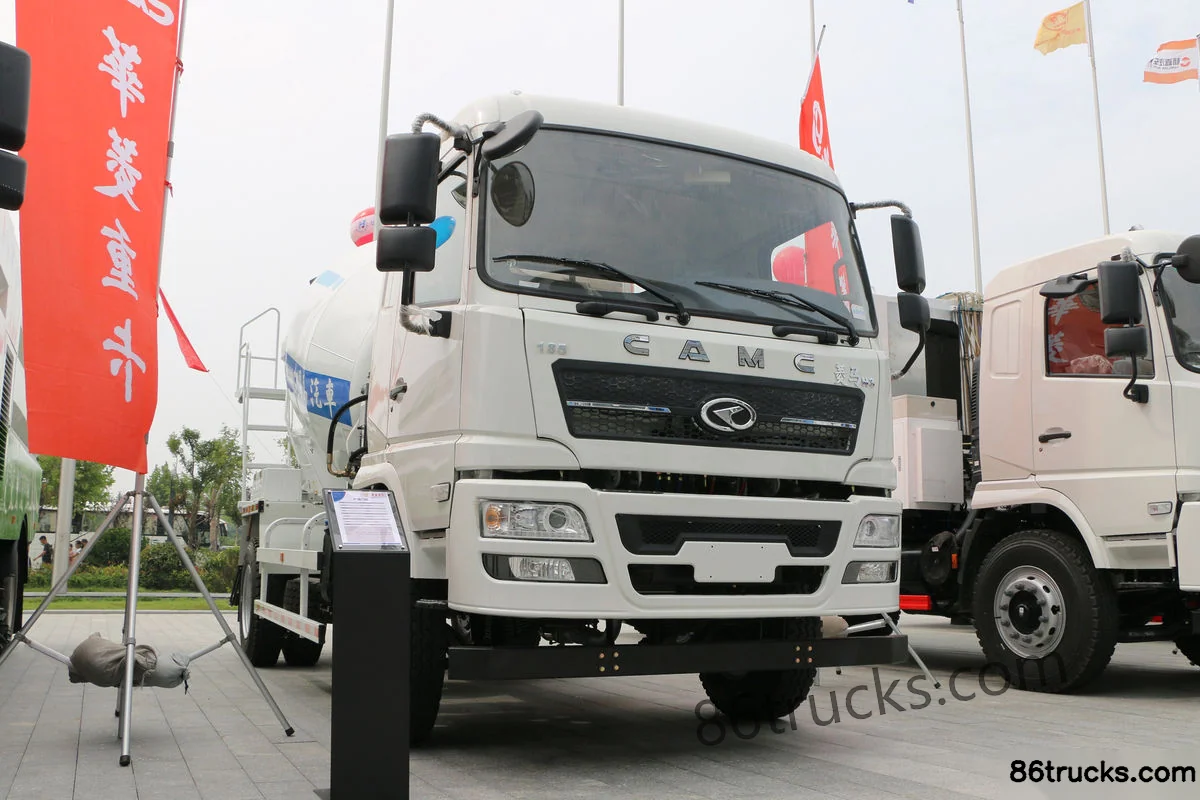

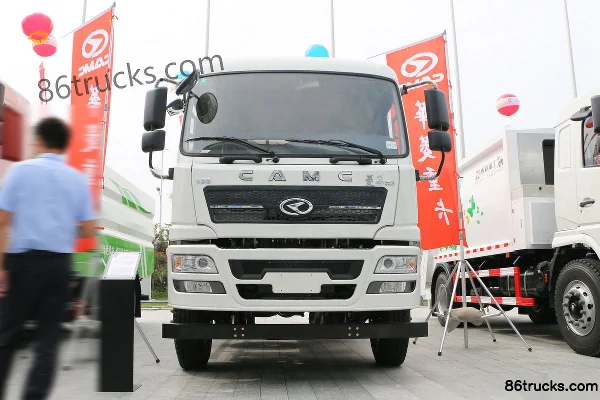

Exterior3

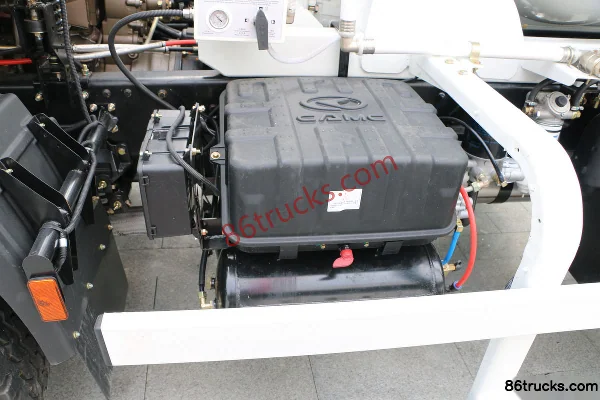

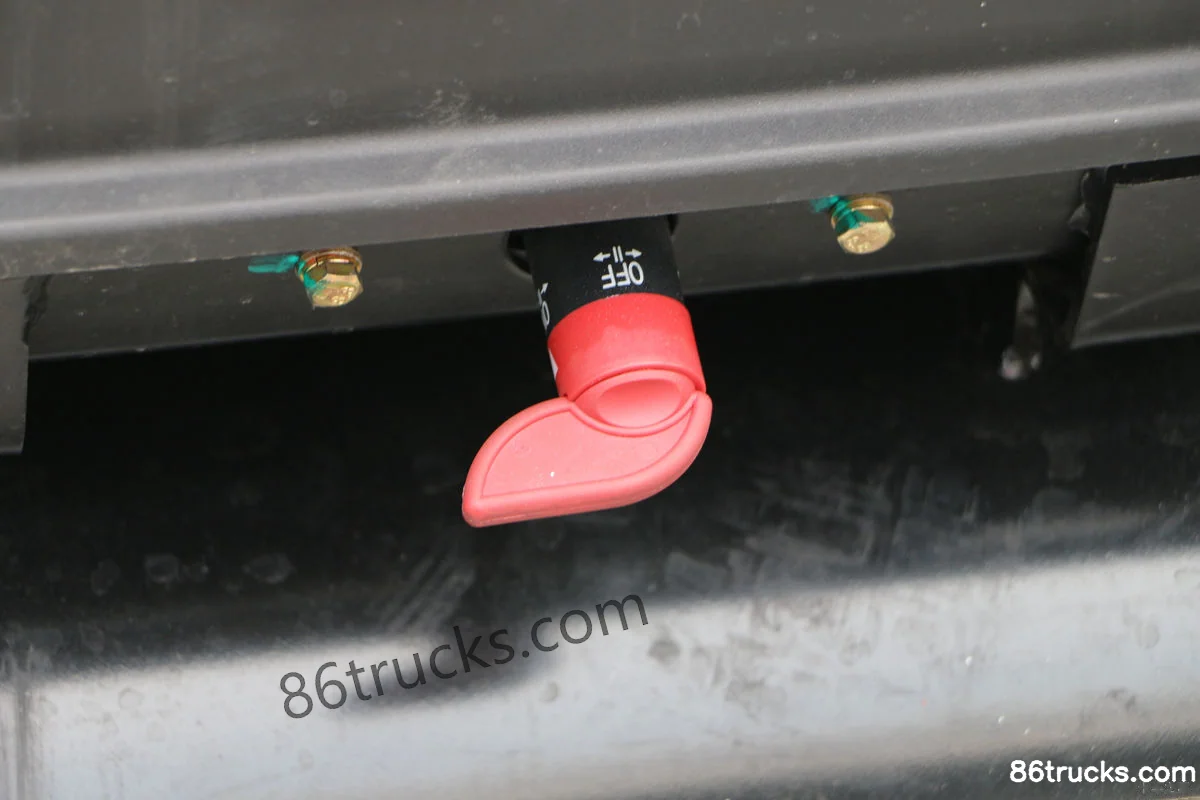

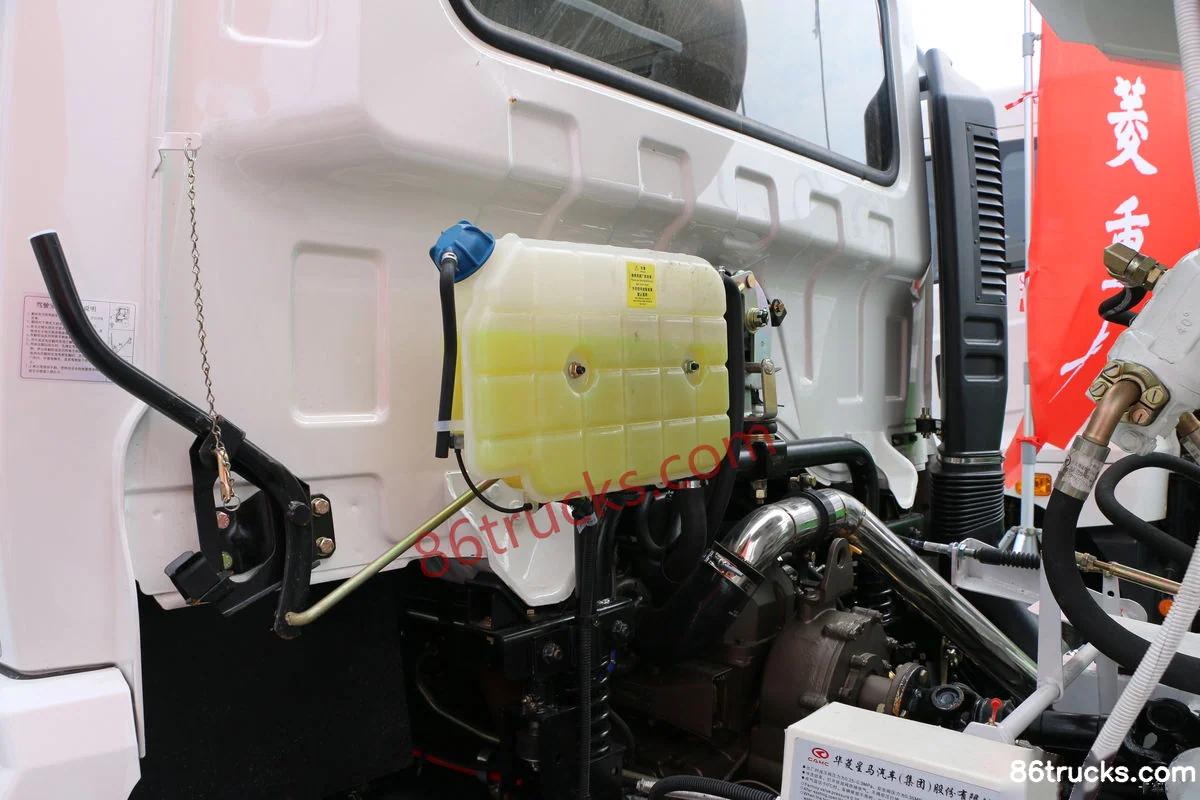

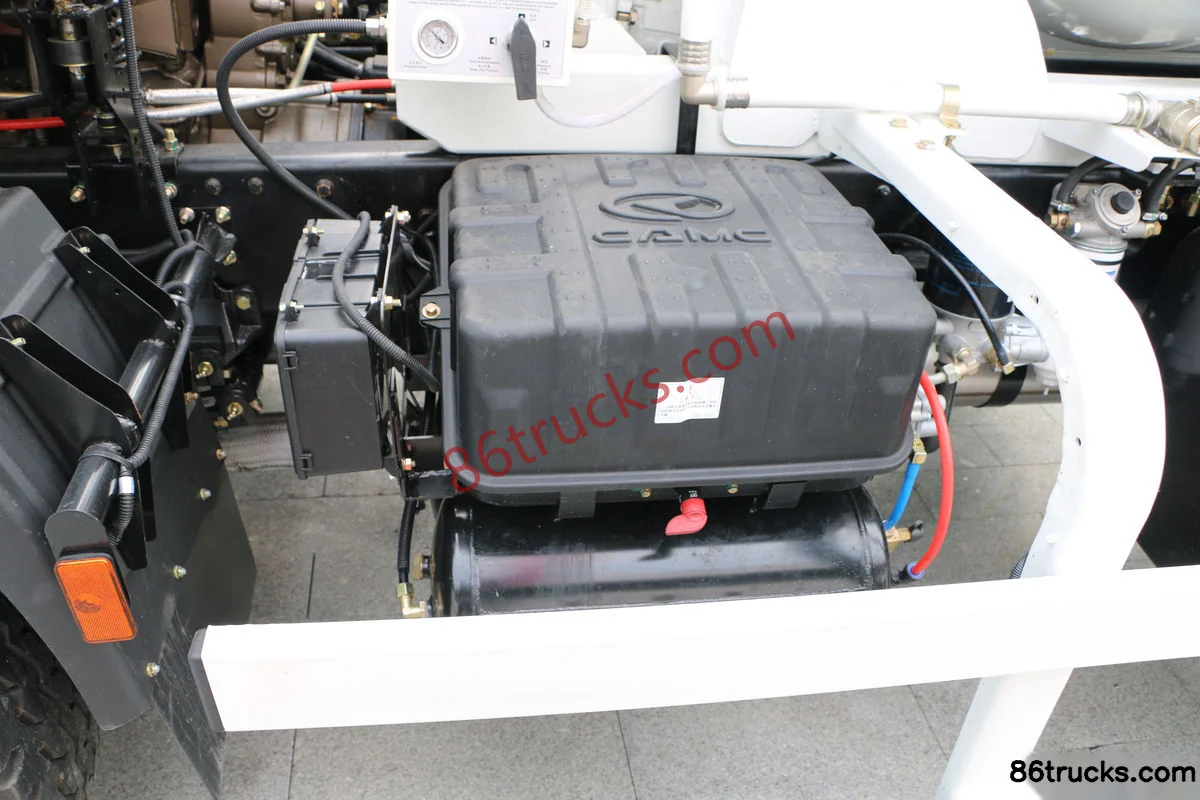

Chassis3

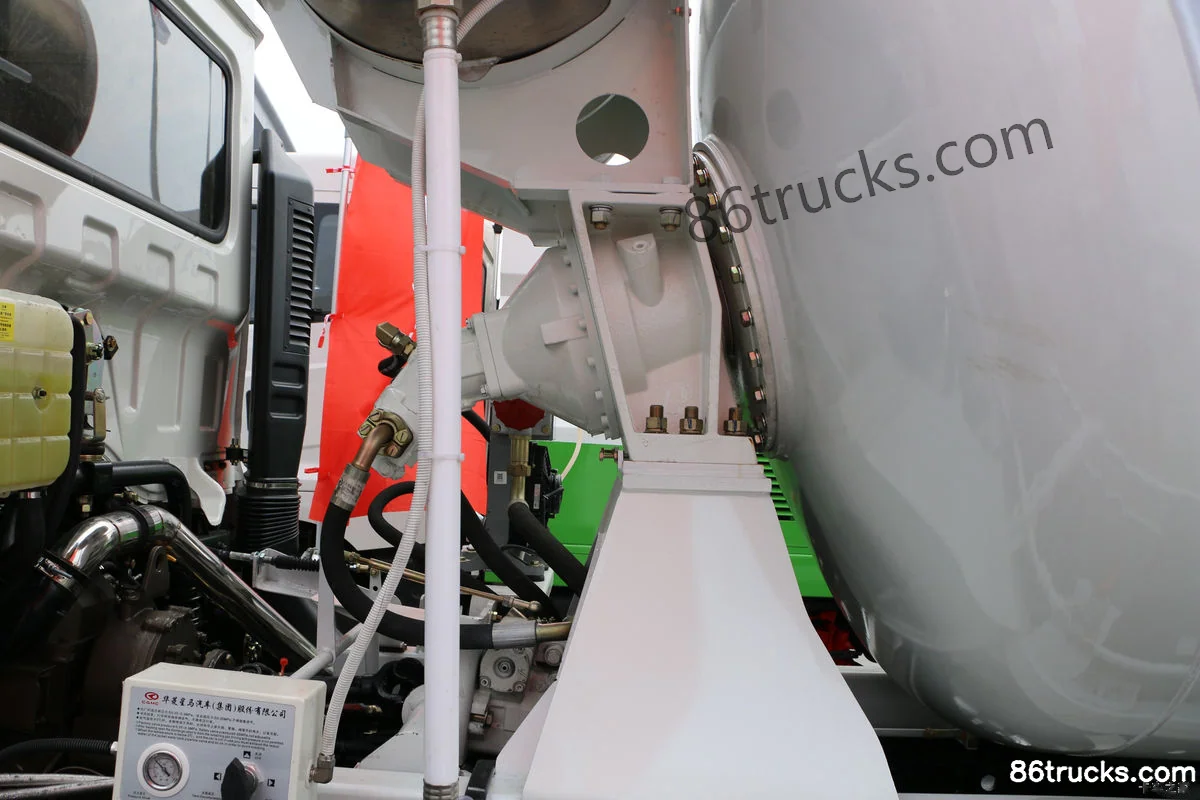

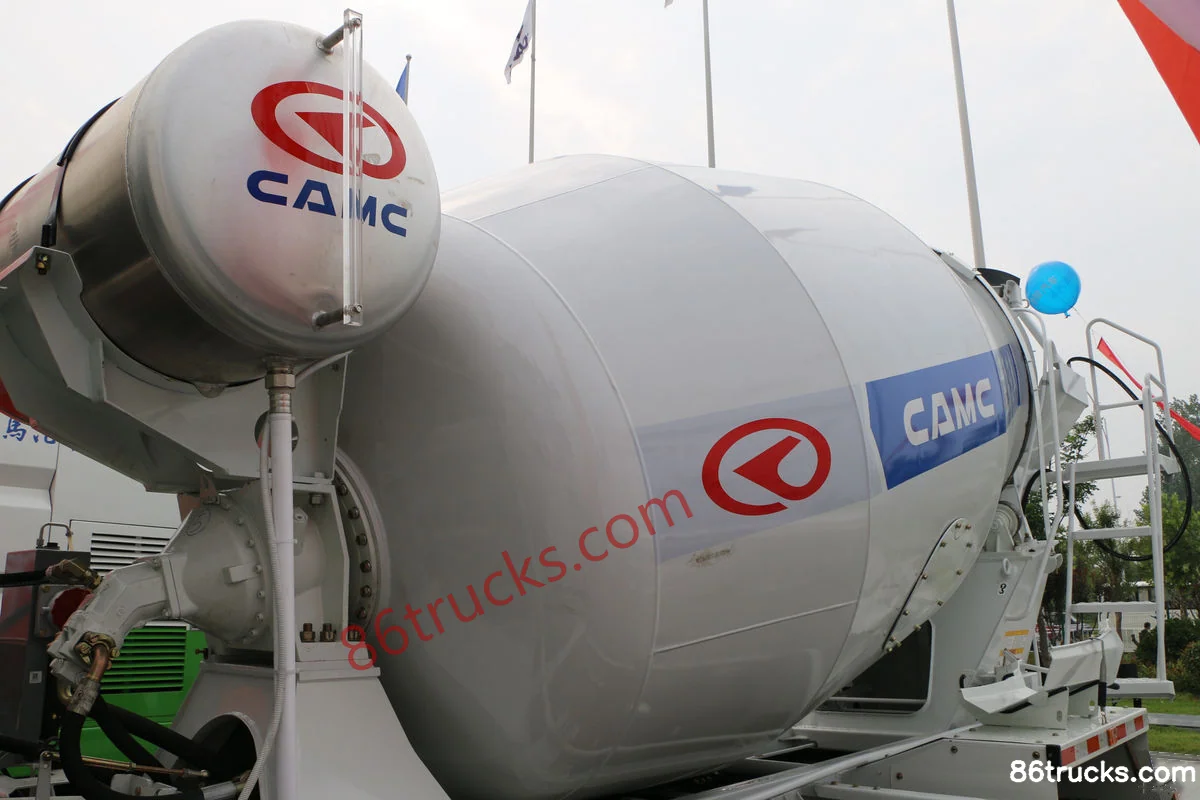

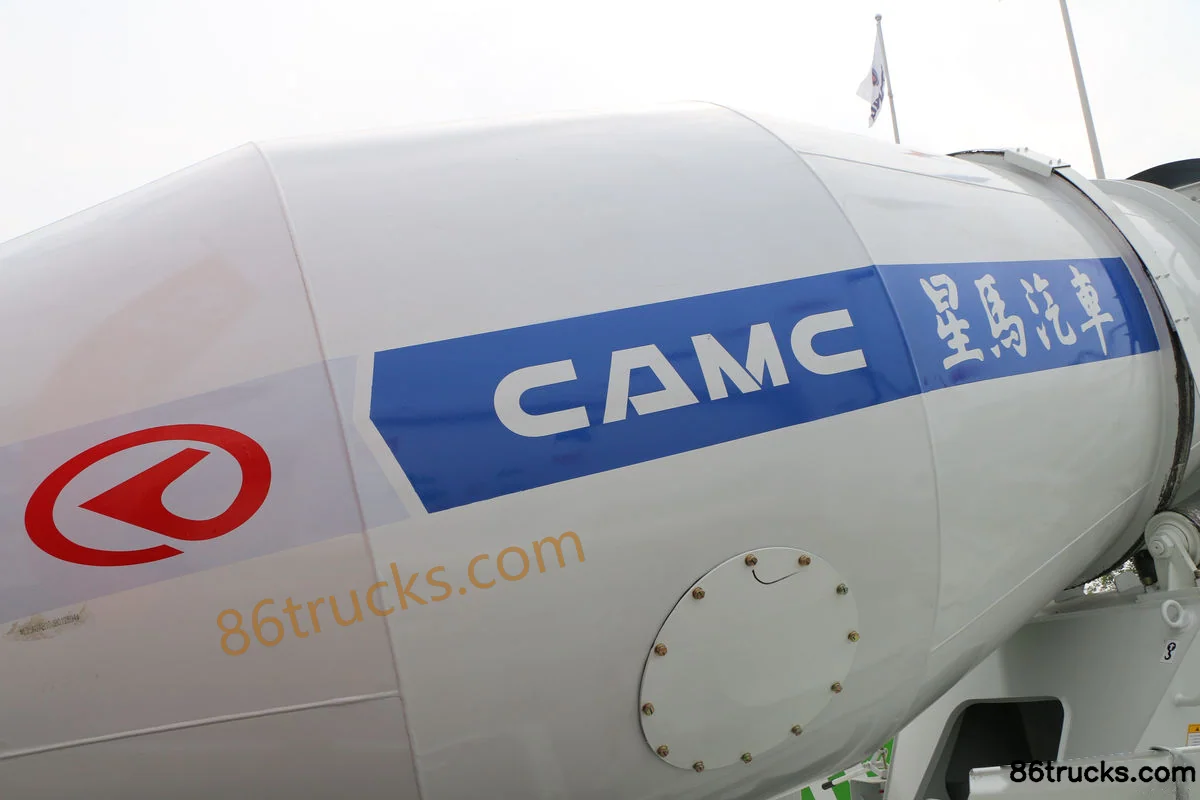

Body3

9 photos

FAQ

What emission standard does Hualing Lingma H3 185 hp 4X2(6 wheels) 3.84 m³ Concrete Mixer Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Hualing Lingma H3 185 hp 4X2(6 wheels) 3.84 m³ Concrete Mixer Truck?

Key specs of Hualing Lingma H3 185 hp 4X2(6 wheels) 3.84 m³ Concrete Mixer Truck: Drive: 4x2; Horsepower: 185 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Hualing Lingma H3 185 hp 4X2(6 wheels) 3.84 m³ Concrete Mixer Truck suited for?

Hualing Lingma H3 185 hp 4X2(6 wheels) 3.84 m³ Concrete Mixer Truck is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Hualing Lingma H3 185 hp 4X2(6 wheels) 3.84 m³ Concrete Mixer Truck differ from other variants in the same series?

Hualing Lingma H3 185 hp 4X2(6 wheels) 3.84 m³ Concrete Mixer Truck belongs to Hualing Lingma H3 Heavy Truck (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Hualing Lingma H3 185 hp 4X2(6 wheels) 3.84 m³ Concrete Mixer Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Hualing Lingma H3 185 hp 4X2(6 wheels) 3.84 m³ Concrete Mixer Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
