JMC Kaiyun+ Medium-Narrow Body 146hp 4X2(6 wheels) 4.2m Single Row Van Light Truck (China VI)

Export reference
From $16,778
MSRP ¥12.08M CNY
Horsepower: 146
Emission: China VI
Fuel: Diesel
Engine: JMC2.5L
Transmission: GETRAG
Curb Weight:: 2.805ton
seating capacity: 2Personnel
Rated payload: 1.555ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The JMC Kaiyun+ Medium-Narrow Body 146hp 4X2(6 wheels) 4.2m Single Row Van Light Truck (China VI) is a Light Truck featuring 4.2m cargo length, Van body cargo body, 2Personnel volume and 1.555t payload. On the powertrain side, it comes with a JMC2.5L engine, 146 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 146 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): JX5040XXYTGA26
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
engine: JMCJX4D25B6H
transmission: Getrag 5MTI280S
Rear Axle Ratio: 5.286
Cab length: 5.99m
Cab width: 2.18m
Cab height: 3.15m
Front track width: 1475mm
rear track: 1475mm
Curb Weight: 2.805ton
Rated payload: 1.555ton
GVWR: 4.49ton
Max. speed: 110km/h
Origin: Nanchang, Jiangxi
tonnage class: Light Truck
Approach angle: 18°
departure angle: 15°
Front/rear suspension: 1.115/1.515m
Version: Medium-narrow body
Energy Type: Diesel
Engine parameters
Engine Brand: JMC
Engine Model: JMCJX4D25B6H
Engine info: JMC2.5L
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.478L
Emission standard: China VI
Max output power: 107kW
Max hp: 146Horsepower
Max torque: 350N·m
Max torque speed: 1500-2800rpm
Rated speed: 3200rpm
Transmission Parameters
Transmission Model: Getrag 5MTI280S
Transmission Brand: GETRAG
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 4.2m
Cargo box width: 2.1m
Cargo box height: 2.1m
*Cargo box interior width: 2.0999999046326
Cab parameters
Cab width: 1780mm
seating capacity: 2Personnel
Seat rows: Single Row
fuel tank
Fuel tank capacity: 100L
Chassis Specs
Front axle allowable load: 1890kg
rear axle allowable load: 2600kg
Axle ratio: 5.286
Leaf spring count: 3/3+2
Aluminum wheels:
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
clutch booster:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Electric Heated Rearview Mirror:
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Multimedia features
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:
lighting configuration
Front fog lamp:
daytime running lights:
Service brake
Brake Type: Hydraulic brake
Parking brake: parking brake
Exhaust brake:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:
Cruise control (CCS):

Photos

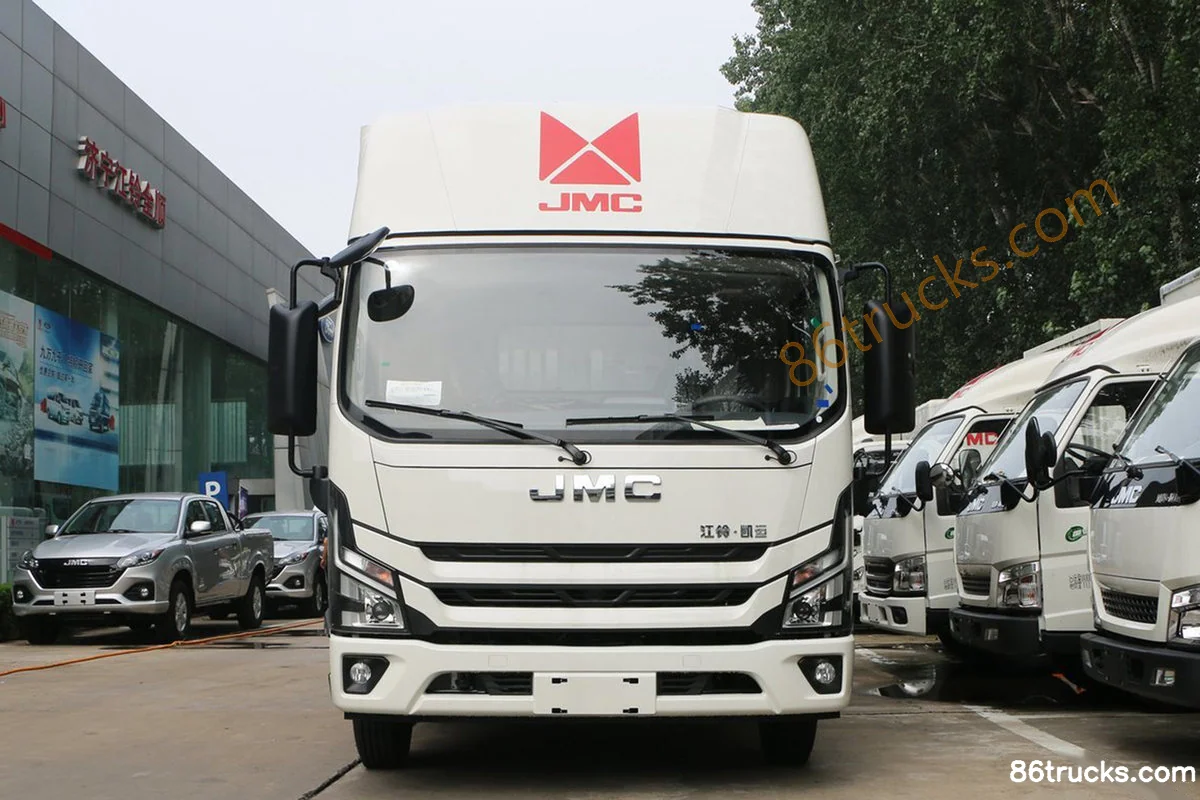

Exterior1

1 photos

FAQ

What is the export price of JMC Kaiyun+ Medium-Narrow Body 146hp 4X2(6 wheels) 4.2m Single Row Van Light Truck (China VI), and what does it include?

JMC Kaiyun+ Medium-Narrow Body 146hp 4X2(6 wheels) 4.2m Single Row Van Light Truck (China VI) export reference is about From $16,778; MSRP is ¥12.08M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JMC Kaiyun+ Medium-Narrow Body 146hp 4X2(6 wheels) 4.2m Single Row Van Light Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JMC Kaiyun+ Medium-Narrow Body 146hp 4X2(6 wheels) 4.2m Single Row Van Light Truck (China VI)?

Key specs of JMC Kaiyun+ Medium-Narrow Body 146hp 4X2(6 wheels) 4.2m Single Row Van Light Truck (China VI): Drive: 4x2; Horsepower: 146 hp; Emission: China VI; Fuel: Diesel; Engine: JMC2.5L; Transmission: GETRAG. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JMC Kaiyun+ Medium-Narrow Body 146hp 4X2(6 wheels) 4.2m Single Row Van Light Truck (China VI) suited for?

JMC Kaiyun+ Medium-Narrow Body 146hp 4X2(6 wheels) 4.2m Single Row Van Light Truck (China VI) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JMC Kaiyun+ Medium-Narrow Body 146hp 4X2(6 wheels) 4.2m Single Row Van Light Truck (China VI) differ from other variants in the same series?

JMC Kaiyun+ Medium-Narrow Body 146hp 4X2(6 wheels) 4.2m Single Row Van Light Truck (China VI) belongs to JMC Kaiyun+ (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JMC Kaiyun+ Medium-Narrow Body 146hp 4X2(6 wheels) 4.2m Single Row Van Light Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JMC Kaiyun+ Medium-Narrow Body 146hp 4X2(6 wheels) 4.2m Single Row Van Light Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
