Sinotruk HOWO T5G Heavy Truck 340hp 6X4(10 wheels) 5.6m dump truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: Sinotruk
Curb Weight:: 12.05ton
Wheelbase:: 3600+1350mm
Tire Size:: 12.00R20 16PR,11.00R20
Sinotruk HOWO T5G Heavy Truck 340hp 6X4(10 wheels) 5.6m dump truck exterior
View more photos (9)
Rated payload: 12.82ton
Drive 6X4 (10 wheels)
Horsepower 340
Cargo box type: Rear-dump body

Overview

The Sinotruk HOWO T5G Heavy Truck 340hp 6X4(10 wheels) 5.6m dump truck is a Heavy truck featuring 12.82t payload, 25t GVW, Rear-dump body cargo body and 6X4 (10 wheels) drive. On the powertrain side, it comes with a SinotrukMC07.34-50 engine, 340 hp, China V emissions and Sinotruk transmission.

China V 340 Diesel 6X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): ZZ3257N364GE1
Drive type: 6X4
Wheelbase: 3600+1350mm
engine: SinotrukMC07.34-50
transmission: SinotrukHW10
Rear Axle Ratio: 5.45
Cab length: 8.23m
Cab width: 2.496m
Cab height: 3.45m
Front track width: 2041mm
rear track: 1850/1850mm
Curb Weight: 12.05ton
Rated payload: 12.82ton
GVWR: 25ton
Origin: Jinan, Shandong
tonnage class: Heavy truck
Approach angle: 19°
departure angle: 17°
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukMC07.34-50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.87L
Emission standard: China V
Max output power: 248kW
Max hp: 340Horsepower
Max torque: 1250N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Engine Type: Inline, water-cooled, 4-stroke, turbocharged with intercooler
Transmission Parameters
Transmission Model: SinotrukHW10
Transmission Brand: Sinotruk
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 5.6m
Cargo box width: 2.3m
Cargo box height: 1.165m
Chassis Specs
Front axle allowable load: 7000kg
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 5.45
Leaf spring count: 11/12,11/10
Suspension (front/rear): leaf spring suspension
Tire
Tire Size: 12.00R20 16PR,11.00R20
Number of tires: 10pcs
Control configuration
ABS:

Photos

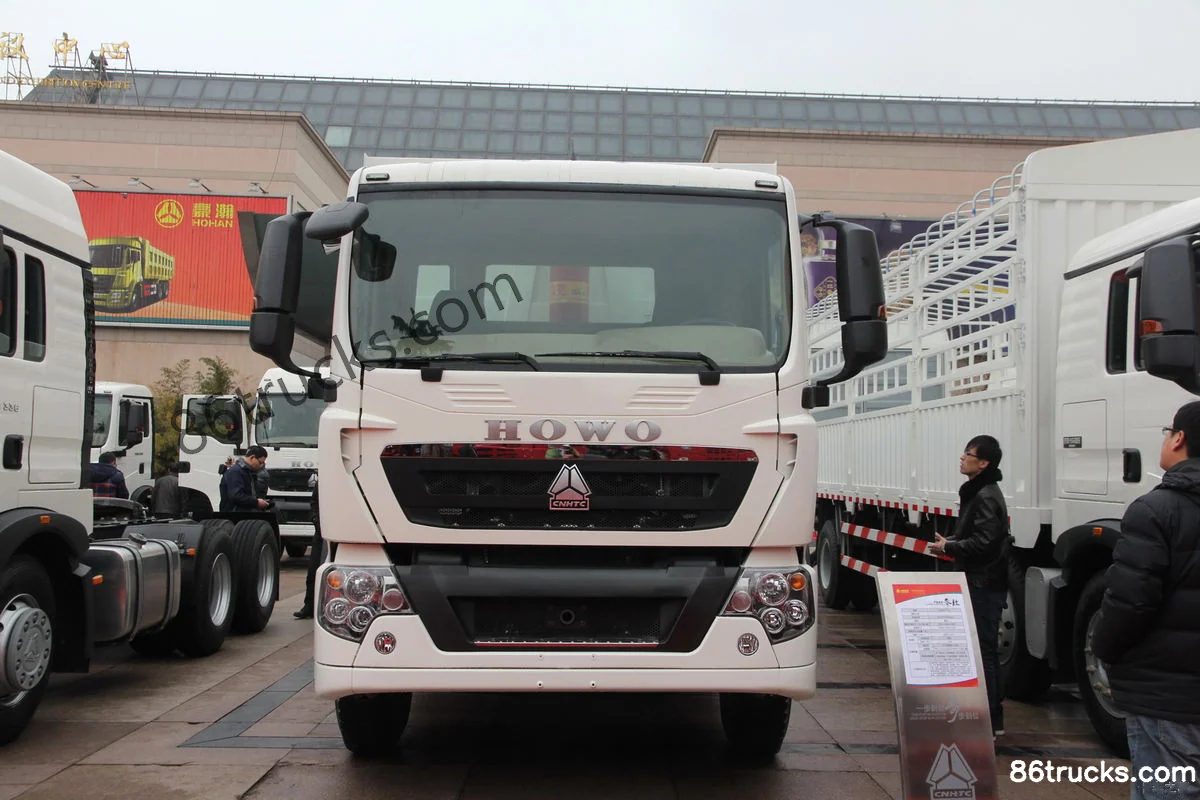

Exterior3

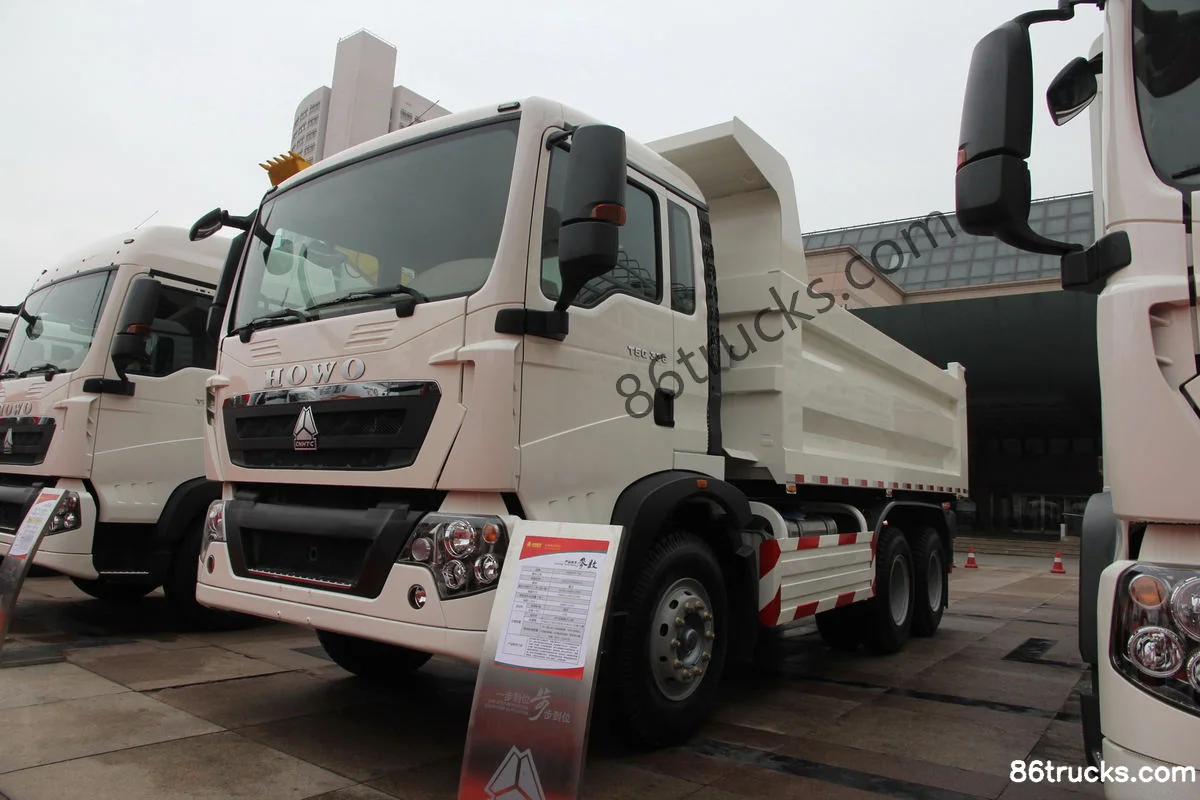

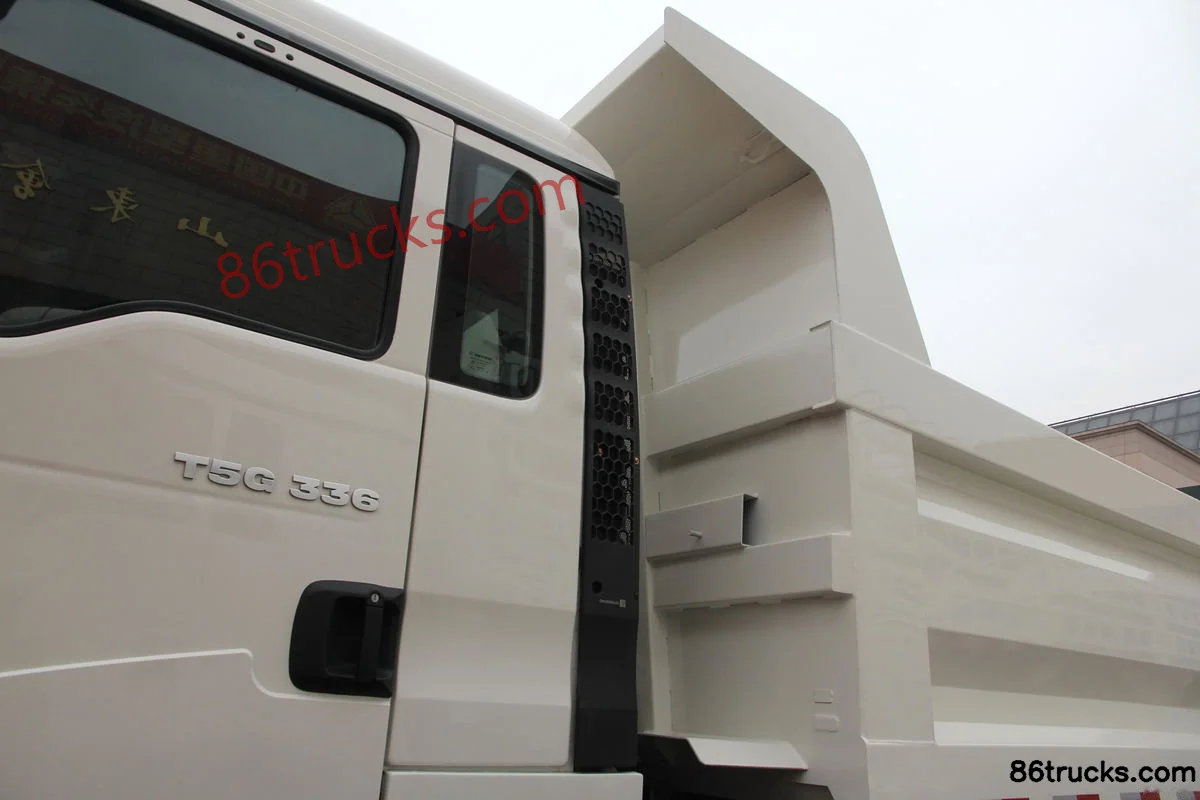

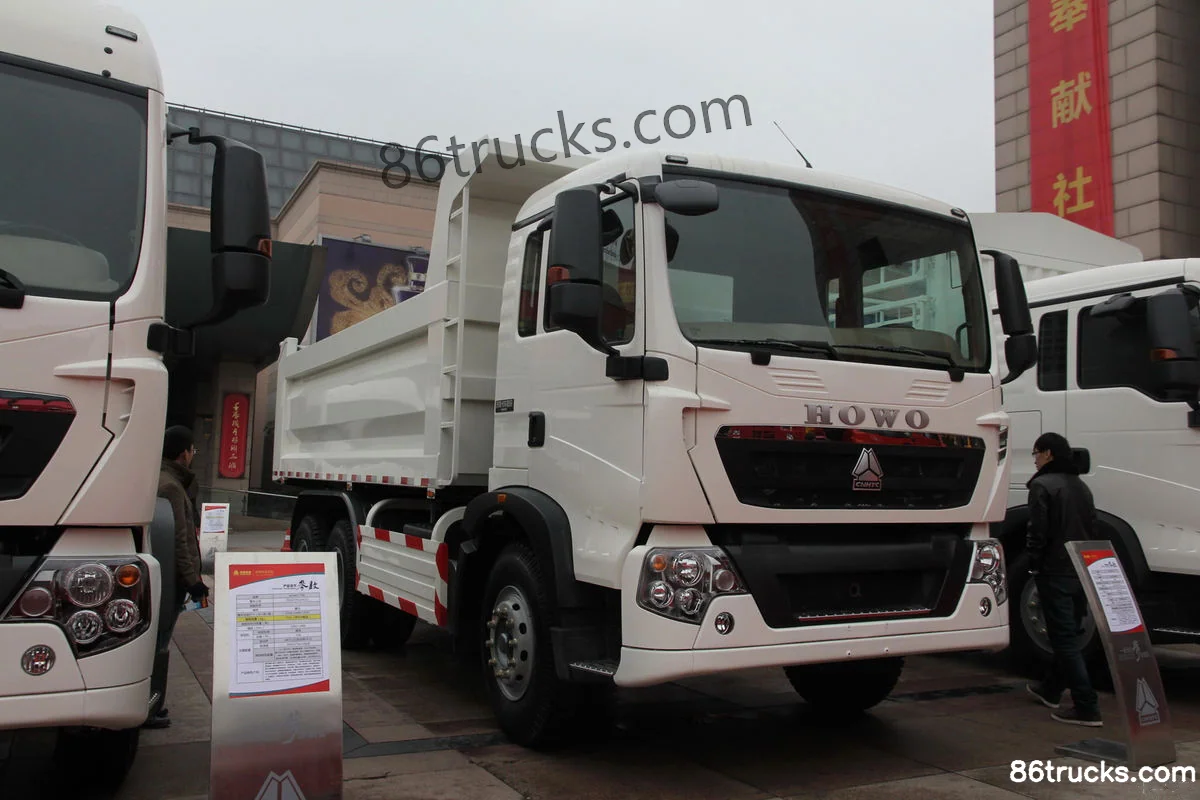

Sinotruk HOWO T5G Heavy Truck 340hp 6X4(10 wheels) 5.6m dump truck Exterior (1) | 86Trucks Sinotruk HOWO T5G Heavy Truck 340hp 6X4(10 wheels) 5.6m dump truck Exterior (2) | 86Trucks Sinotruk HOWO T5G Heavy Truck 340hp 6X4(10 wheels) 5.6m dump truck Exterior (3) | 86Trucks

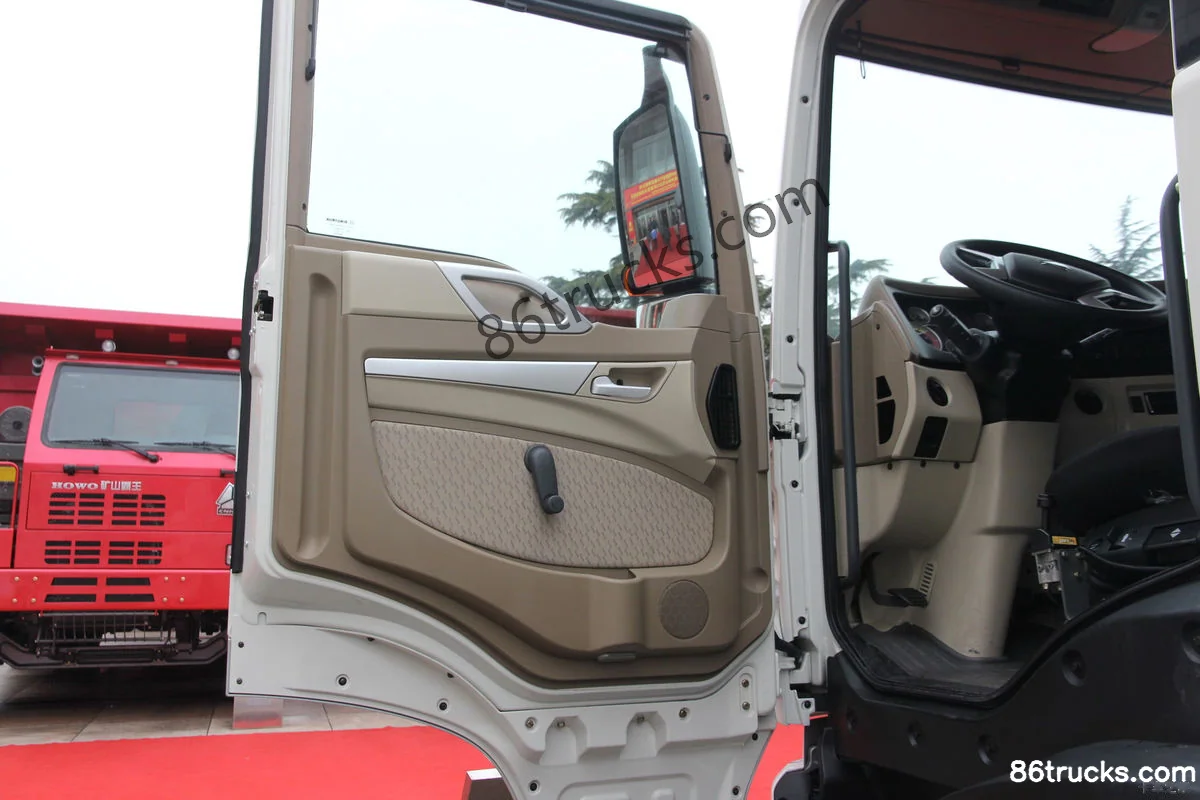

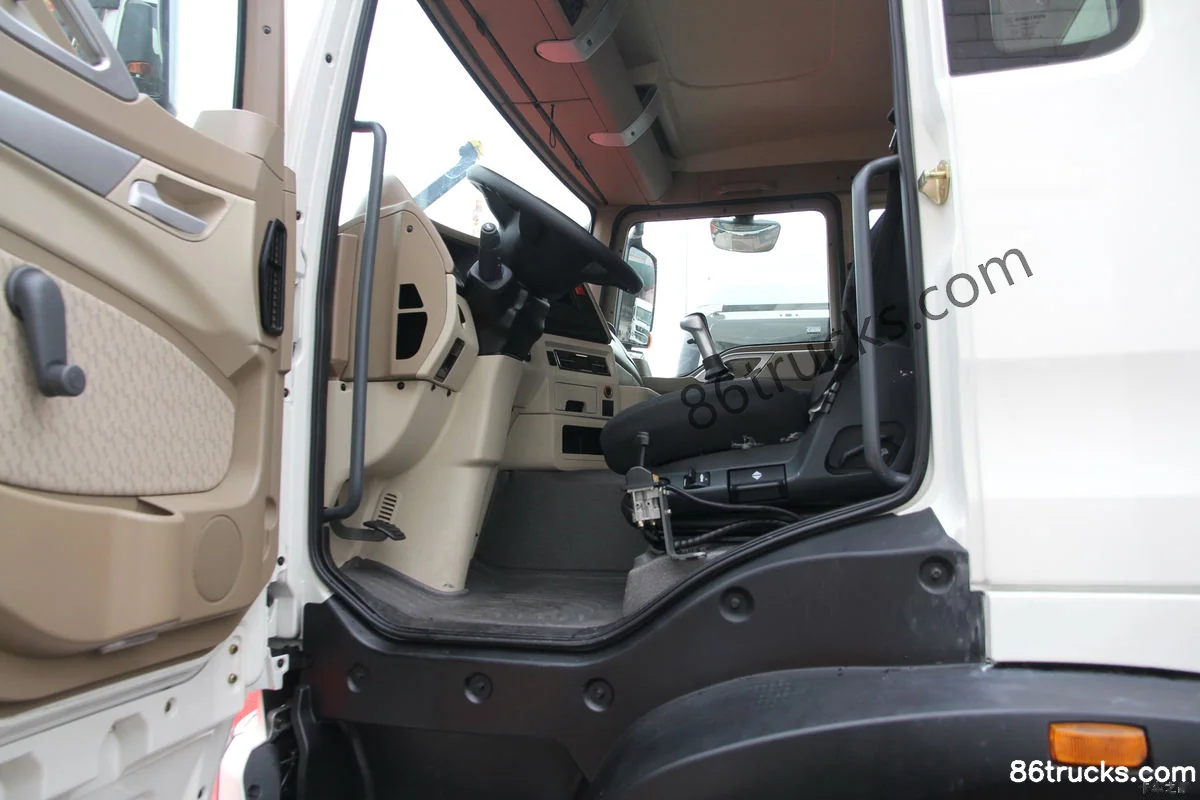

Cab3

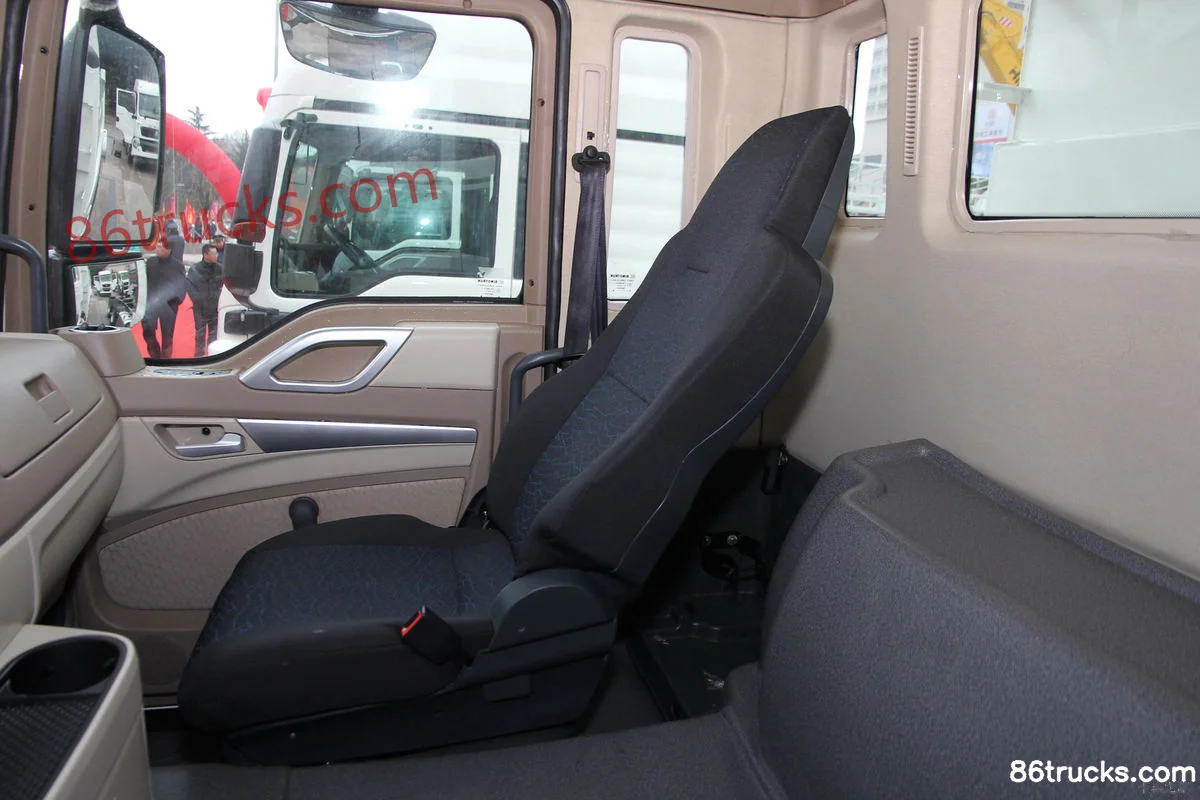

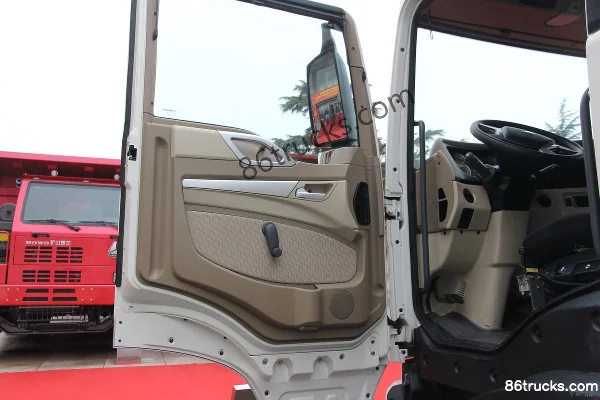

Sinotruk HOWO T5G Heavy Truck 340hp 6X4(10 wheels) 5.6m dump truck Cab (1) | 86Trucks Sinotruk HOWO T5G Heavy Truck 340hp 6X4(10 wheels) 5.6m dump truck Cab (2) | 86Trucks Sinotruk HOWO T5G Heavy Truck 340hp 6X4(10 wheels) 5.6m dump truck Cab (3) | 86Trucks

Chassis3

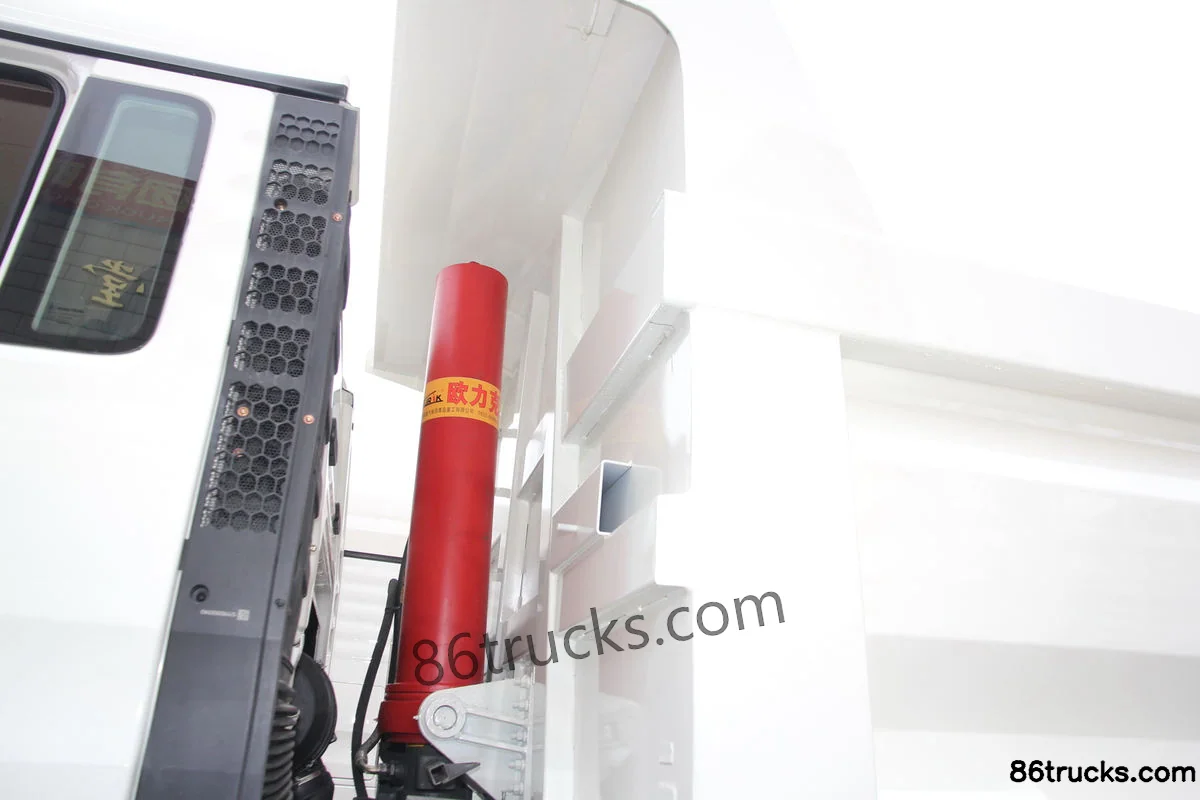

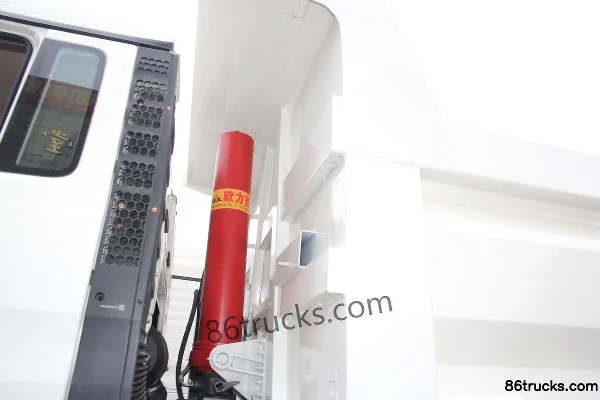

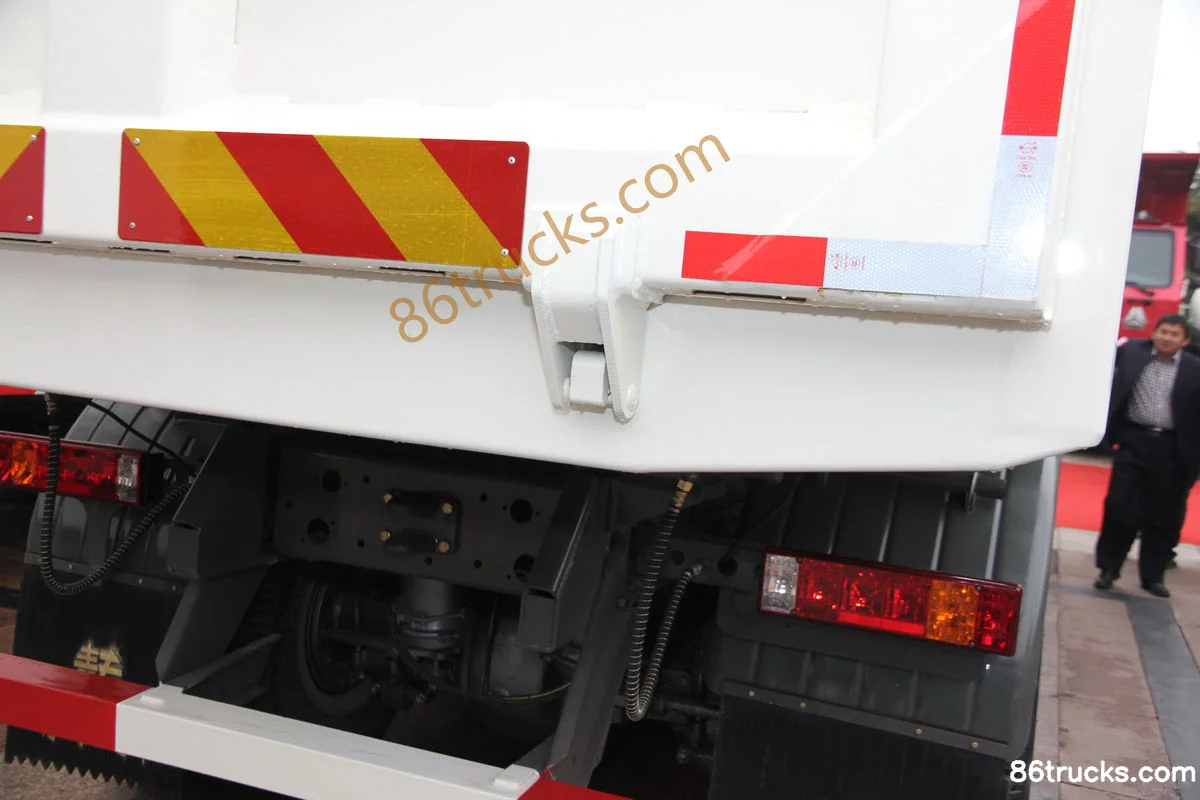

Sinotruk HOWO T5G Heavy Truck 340hp 6X4(10 wheels) 5.6m dump truck Chassis (1) | 86Trucks Sinotruk HOWO T5G Heavy Truck 340hp 6X4(10 wheels) 5.6m dump truck Chassis (2) | 86Trucks Sinotruk HOWO T5G Heavy Truck 340hp 6X4(10 wheels) 5.6m dump truck Chassis (3) | 86Trucks

9 photos

FAQ

What emission standard does Sinotruk HOWO T5G Heavy Truck 340hp 6X4(10 wheels) 5.6m dump truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO T5G Heavy Truck 340hp 6X4(10 wheels) 5.6m dump truck?

Key specs of Sinotruk HOWO T5G Heavy Truck 340hp 6X4(10 wheels) 5.6m dump truck: Drive: 6x4; Horsepower: 340 hp; Emission: China V; Fuel: Diesel; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO T5G Heavy Truck 340hp 6X4(10 wheels) 5.6m dump truck suited for?

Sinotruk HOWO T5G Heavy Truck 340hp 6X4(10 wheels) 5.6m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk HOWO T5G Heavy Truck 340hp 6X4(10 wheels) 5.6m dump truck differ from other variants in the same series?

Sinotruk HOWO T5G Heavy Truck 340hp 6X4(10 wheels) 5.6m dump truck belongs to Sinotruk HOWO T5G medium-duty truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO T5G Heavy Truck 340hp 6X4(10 wheels) 5.6m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO T5G Heavy Truck 340hp 6X4(10 wheels) 5.6m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
