Sinotruk HOWO T5G heavy truck 440hp 8X4(12 wheels) 5.6m dump truck
EXW
From $62,500
Export quote
Sinotruk HOWO T5G medium-duty truck Dump Trucks
Main model photos
606 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sinotruk HOWO T5G heavy truck 440hp 8X4(12 wheels) 5.6m dump truck | 8x4 / 440hp / China VI | From $62,500 | |
| Sinotruk HOWO T5G Heavy Truck 340 hp 8X4(12 wheels) 5.6m Dump Truck | 8x4 / 340hp / China V | ||
| Sinotruk HOWO T5G Heavy Truck 340hp 6X4(10 wheels) 5.6m dump truck | 6x4 / 340hp / China V | ||
| Sinotruk HOWO T5G Heavy Truck 340 hp 8X4(12 wheels) 7.6m Dump Truck (Sinotruk HW13710C2) | 8x4 / 340hp / China V | From $59,722 | |
| Sinotruk HOWO T5G Heavy Truck 350 hp 8X4(12 wheels) 7.6m Dump Truck | 8x4 / 350hp / China V | From $51,389 |
Sinotruk HOWO T5G Heavy Truck 340 hp 8X4(12 wheels) 5.6m Dump Truck
EXW
Export quote

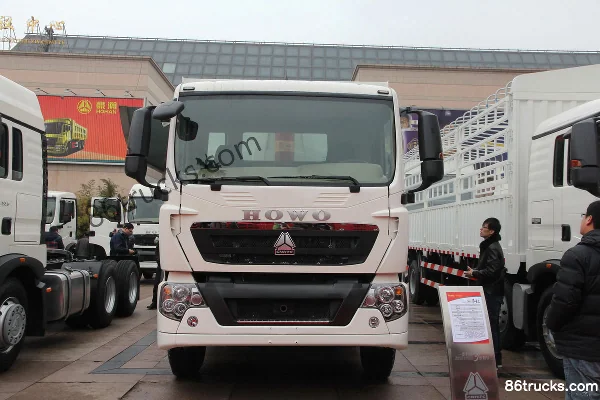

Sinotruk HOWO T5G Heavy Truck 340hp 6X4(10 wheels) 5.6m dump truck
EXW
Export quote
Sinotruk HOWO T5G Heavy Truck 340 hp 8X4(12 wheels) 7.6m Dump Truck (Sinotruk HW13710C2)
EXW
From $59,722
Export quote
Sinotruk HOWO T5G Heavy Truck 350 hp 8X4(12 wheels) 7.6m Dump Truck
EXW
From $51,389
Export quote
Series Specs
Basic Info
Model code (announced): ZZ3317V286GF1 / ZZ3317N286GE1 / ZZ3257N364GE1 / ZZ3317N386GE1 / ZZ3317N326GE1 / ZZ3257N384GD1 / ZZ3317M256GD1 / ZZ3317M386GE1L / ZZ3317N356GD1 / ZZ3257N414GD1 / ZZ3257N364GD1 / ZZ3257N364GC2
Drive type: 8X4 / 6X4
Wheelbase: 1800+2800+1400 / 1800+2800+1350 / 3600+1350 / 1800+3800+1350 / 1800+3500+1350 / 1800+3200+1350 / 3800+1350 / 1800+2500+1350 / 1350+3800+1400 / 4100+1350mm
Engine Model: SinotrukMC11.44-60 / SinotrukMC07.34-50 / SinotrukMC07.35-50 / SinotrukD07.34-50 / SinotrukMC07.34-40 / SinotrukMC07.28-40 / SinotrukMC07.24-40 / SinotrukMT07.29-50 / SinotrukMC07.31-40
Transmission Model: SinotrukHW25712XSL / SinotrukHW15710C / SinotrukHW10 / SinotrukHW13710C2 / SinotrukHW19712 / SinotrukHW19712C / SinotrukHW13710C / SinotrukHW13710 / SinotrukHW10707TC / SinotrukHW15710 / SinotrukHW25712XS
Rear Axle Ratio: 5.73 / 5.45 / 5.833 / 4.875 / 4.8 / 5.286 / 6.3 / 6.5
Cab length: 9.08 / 8.48 / 8.23 / 10.63 / 10.08 / 9.48 / 9.68 / 10.23 / 9.88 / 8.43 / 9.195 / 8.93 / 10.05 / 8.195m
Cab width: 2.55 / 2.496m
Cab height: 3.45 / 3.105 / 2.985m
Front track width: 2022/2022 / 2020/2020 / 2041 / 2022,2041 / 2022mm
rear track: 1860/1860 / 1830/1830 / 1850/1850mm
Curb Weight: 15.5 / 14.87 / 12.05 / 15.1 / 15.42 / 15.02 / 12.11 / 14.8 / 9.34 / 12.19ton
Rated payload: 15.37 / 16 / 12.82 / 15.77 / 15.45 / 15.85 / 12.76 / 16.07 / 12.68 / 15.7 / 12.78ton
GVWR: 31 / 25ton
Origin: Jinan, Shandong
tonnage class: Heavy truck
Approach angle: 17 / 19°
departure angle: 21 / 31 / 17 / 24 / 20 / 26 / 36 / 60 / 27 / 18 / 19°
Remarks: Intercooler protective grille / Hongchang Tianma upper body, domestic cylinder 175, chassis 3.5mm, side 2.5mm, rear 2.5mm high-strength plate, single door, front lift, with ladder. / Optional 4.875 ratio
Version: LNG Edition
Energy Type: Diesel / LNG (liquefied natural gas)
Engine parameters
Engine Brand: Sinotruk
Number of cylinders: 6cylinder
Displacement: 10.518 / 6.87L
Emission standard: China VI / China V / China IV
Max output power: 327 / 248 / 254 / 206 / 176 / 213 / 228kW
Max hp: 440 / 340 / 350 / 280 / 240 / 290 / 310Horsepower
Max torque: 2100 / 1250 / 1300 / 1100 / 925 / 1230N·m
Max torque speed: 1000-1400 / 1200-1800 / 1200-1500rpm
Rated speed: 1900 / 2300rpm
Engine Type: High-pressure common rail + EGR + SCR / Inline, water-cooled, 4-stroke, turbocharged with intercooler / Inline 6-cylinder, water-cooled, 4-stroke / Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, electronic premix, spark ignition, lean burn
Transmission Parameters
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 12 / 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body / Dump type
Cargo box type: U-shaped box / Rear-dump body / Dump type
Cargo box length: 5.6 / 7.6 / 7.4 / 6.8 / 7 / 7.2 / 5.8 / 6.3m
Cargo box width: 2.35 / 2.3m
Cargo box height: 1.5 / 0.9 / 1.165 / 1.1 / 1.19 / 1.16 / 1.435 / 1.07m
FAQ
What kind of truck is Sinotruk HOWO Sinotruk HOWO T5G medium-duty truck Dump Trucks?
Sinotruk HOWO Sinotruk HOWO T5G medium-duty truck is an export-oriented Dump Trucks lineup with about 30 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Sinotruk HOWO T5G medium-duty truck Dump Trucks?
Sinotruk HOWO T5G medium-duty truck Dump Trucks export reference is about $46,528 – $62,500. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Sinotruk HOWO T5G medium-duty truck Dump Trucks cover?
Sinotruk HOWO T5G medium-duty truck Dump Trucks mainly covers: Drive: 6x4 / 8x4; Horsepower: 340 hp / 350 hp / 440 hp; Emission: China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Sinotruk HOWO T5G medium-duty truck Dump Trucks?
For Sinotruk HOWO T5G medium-duty truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Sinotruk HOWO T5G medium-duty truck Dump Trucks include?
Sinotruk HOWO T5G medium-duty truck Dump Trucks currently lists about 30 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Sinotruk HOWO T5G medium-duty truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
