Sinotruk HOWO T5G Heavy Truck 340 hp 8X4(12 wheels) 5.6m Dump Truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: Sinotruk
Curb Weight:: 14.87ton
Wheelbase:: 1800+2800+1350mm
Tire Size:: 12R22.5 18PR,12.00R20 18PR,11.00R20 18PR,11.00-20 18PR
Rated payload: 16ton
Drive 8X4 (12 wheels)
Horsepower 340
Cargo box type: Rear-dump body

Overview

The Sinotruk HOWO T5G Heavy Truck 340 hp 8X4(12 wheels) 5.6m Dump Truck is a Heavy truck featuring 16t payload, 31t GVW, Rear-dump body cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a SinotrukMC07.34-50 engine, 340 hp, China V emissions and Sinotruk transmission.

China V 340 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ3317N286GE1
Drive type: 8X4
Wheelbase: 1800+2800+1350mm
engine: SinotrukMC07.34-50
transmission: SinotrukHW15710C
Rear Axle Ratio: 5.73
Cab length: 8.48m
Cab width: 2.496m
Cab height: 3.45m
Front track width: 2020/2020mm
rear track: 1830/1830mm
Curb Weight: 14.87ton
Rated payload: 16ton
GVWR: 31ton
Origin: Jinan, Shandong
tonnage class: Heavy truck
Approach angle: 19°
departure angle: 31°
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukMC07.34-50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.87L
Emission standard: China V
Max output power: 248kW
Max hp: 340Horsepower
Max torque: 1250N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Engine Type: Inline, water-cooled, 4-stroke, turbocharged with intercooler
Transmission Parameters
Transmission Model: SinotrukHW15710C
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 5.6m
Cargo box width: 2.3m
Cargo box height: 0.9m
Cab parameters
Cab: T5G-M Cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 400L
Chassis Specs
Front axle allowable load: 6500/7000kg
rear axle description: HC16 Steyr reinforced tandem rear axle (drum)
rear axle allowable load: 17500 (two-axle group)kg
Axle ratio: 5.73
Leaf spring count: 11/11/10,11/11/-
Tire
Tire Size: 12R22.5 18PR,12.00R20 18PR,11.00R20 18PR,11.00-20 18PR
Number of tires: 12pcs
Control configuration
ABS:

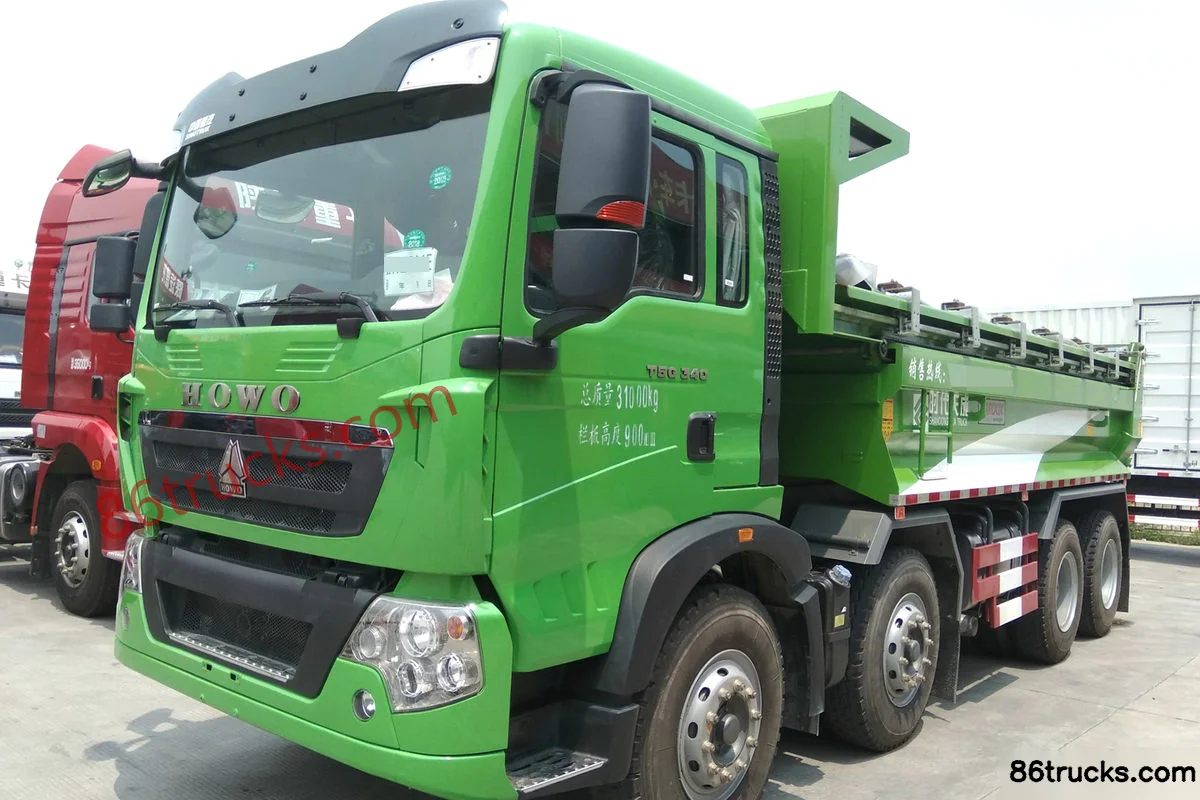

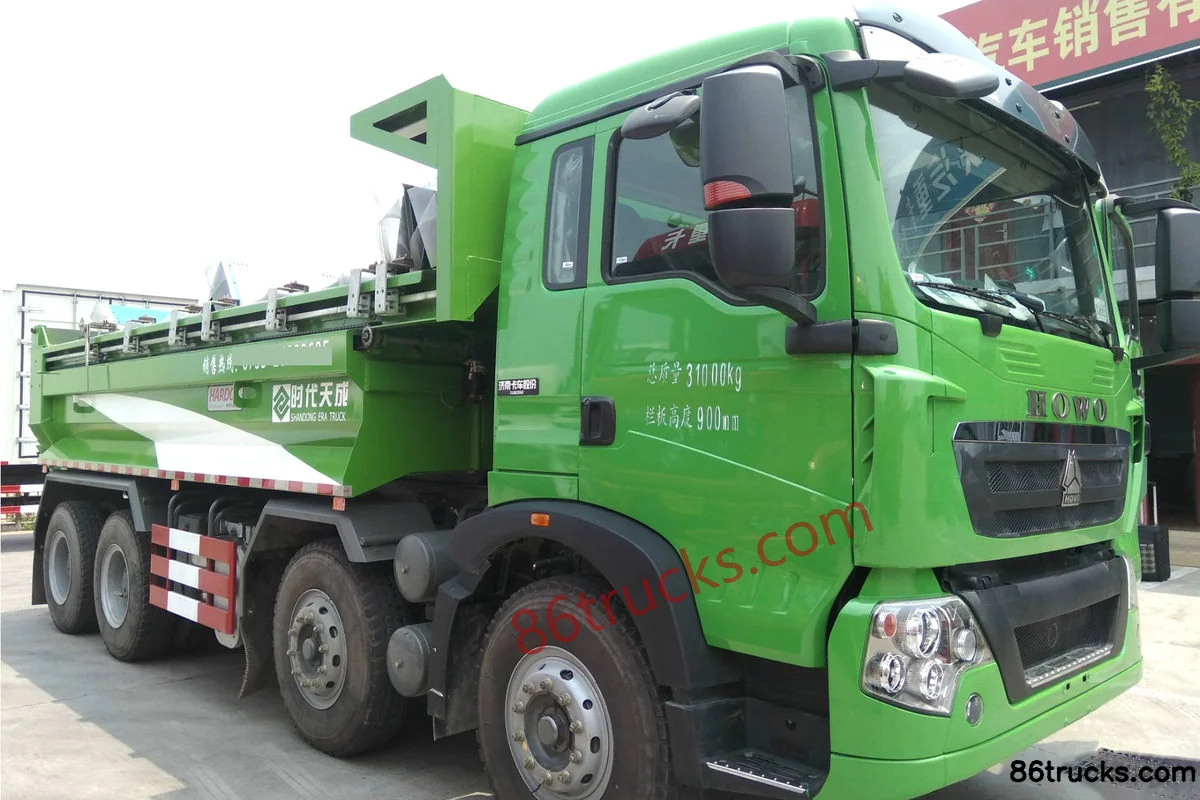

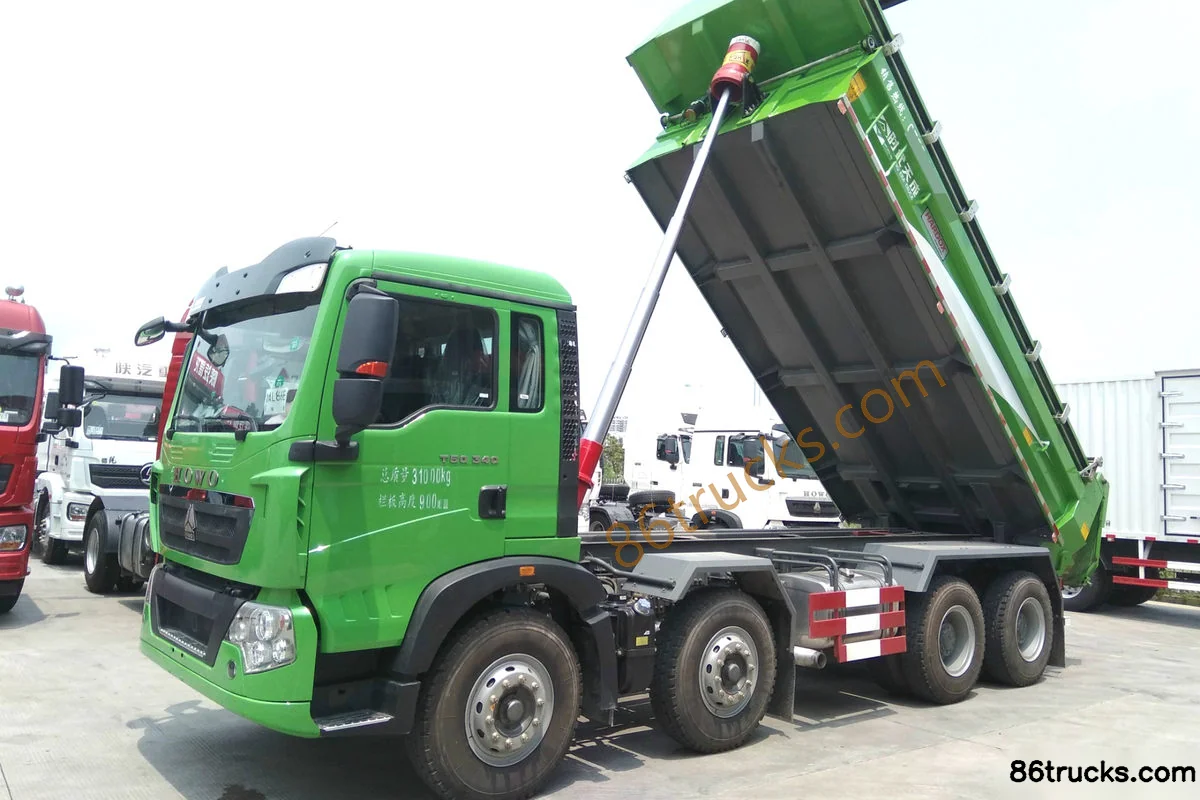

Photos

Exterior3

3 photos

FAQ

What emission standard does Sinotruk HOWO T5G Heavy Truck 340 hp 8X4(12 wheels) 5.6m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO T5G Heavy Truck 340 hp 8X4(12 wheels) 5.6m Dump Truck?

Key specs of Sinotruk HOWO T5G Heavy Truck 340 hp 8X4(12 wheels) 5.6m Dump Truck: Drive: 8x4; Horsepower: 340 hp; Emission: China V; Fuel: Diesel; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO T5G Heavy Truck 340 hp 8X4(12 wheels) 5.6m Dump Truck suited for?

Sinotruk HOWO T5G Heavy Truck 340 hp 8X4(12 wheels) 5.6m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk HOWO T5G Heavy Truck 340 hp 8X4(12 wheels) 5.6m Dump Truck differ from other variants in the same series?

Sinotruk HOWO T5G Heavy Truck 340 hp 8X4(12 wheels) 5.6m Dump Truck belongs to Sinotruk HOWO T5G medium-duty truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO T5G Heavy Truck 340 hp 8X4(12 wheels) 5.6m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO T5G Heavy Truck 340 hp 8X4(12 wheels) 5.6m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
