Sinotruk HOWO T5G 290hp 8X4(12 wheels) LNG Dump Truck Chassis

Export reference
MSRP N/A
Fuel: LNG (liquefied natural gas)
Transmission: Sinotruk
Curb Weight:: 9.34ton
Wheelbase:: 1800+3800+1350mm
Tire Size:: 11.00R20
Model code (announced):: ZZ3317M386GE1L
Drive 8X4 (12 wheels)
Horsepower 290
Cargo box type: Dump type
Emission China V

Overview

The Sinotruk HOWO T5G 290hp 8X4(12 wheels) LNG Dump Truck Chassis is a Heavy truck featuring 31t GVW, Dump type cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a SinotrukMT07.29-50 engine, 290 hp, China V emissions and Sinotruk transmission.

China V 290 LNG (liquefied natural gas) 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ3317M386GE1L
Drive type: 8X4
Wheelbase: 1800+3800+1350mm
engine: SinotrukMT07.29-50
transmission: SinotrukHW10707TC
Rear Axle Ratio: 5.286
Cab length: 9.195m
Cab width: 2.496m
Cab height: 3.105m
Front track width: 2020/2020mm
rear track: 1860/1860mm
Curb Weight: 9.34ton
GVWR: 31ton
Origin: Jinan, Shandong
tonnage class: Heavy truck
Approach angle: 19°
departure angle: 60°
Version: LNG Edition
Energy Type: LNG (liquefied natural gas)
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukMT07.29-50
Number of cylinders: 6cylinder
fuel type: LNG (liquefied natural gas)
Displacement: 6.87L
Emission standard: China V
Max output power: 213kW
Max hp: 290Horsepower
Max torque: 1100N·m
Max torque speed: 1200-1500rpm
Rated speed: 2300rpm
Engine Type: Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, electronic premix, spark ignition, lean burn
Transmission Parameters
Transmission Model: SinotrukHW10707TC
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Chassis Specs
rear axle description: 457 cast axle housing, single reduction
Steering gear: Domestic
Axle ratio: 5.286
Leaf spring count: 11/11
Tire
Tire Size: 11.00R20
Number of tires: 12pcs

Photos

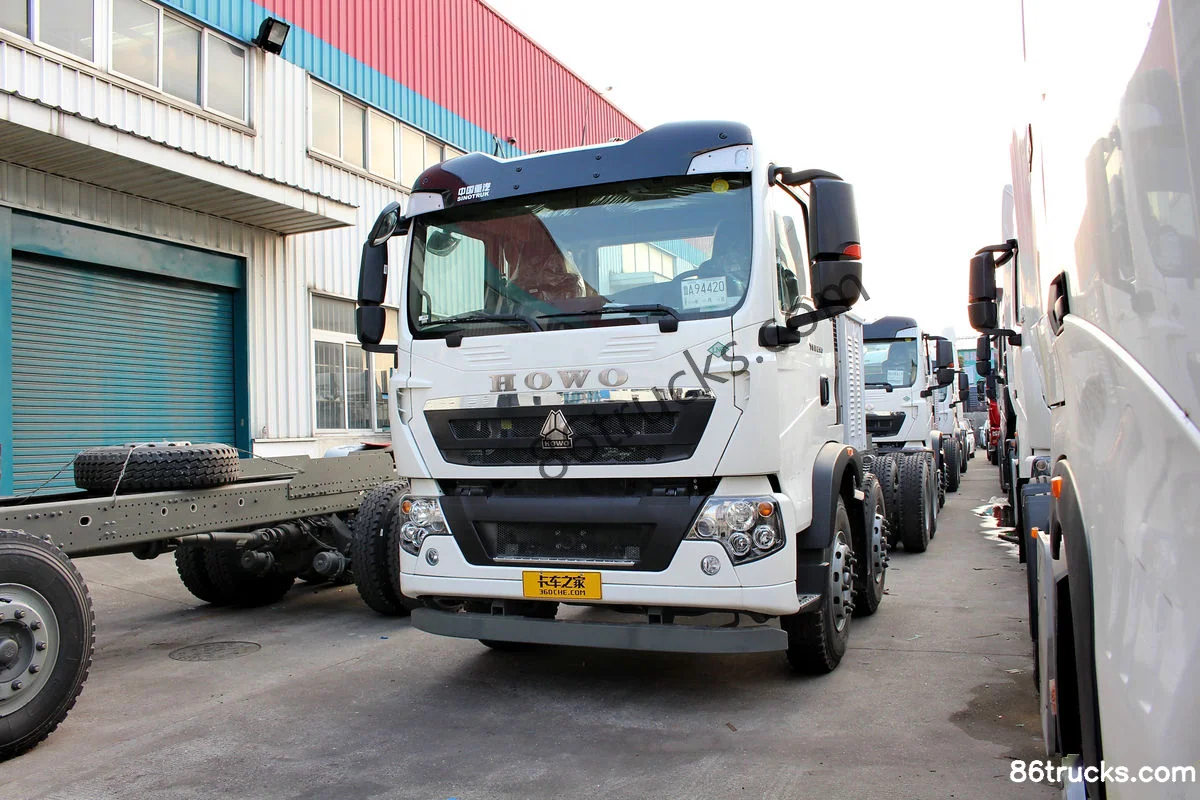

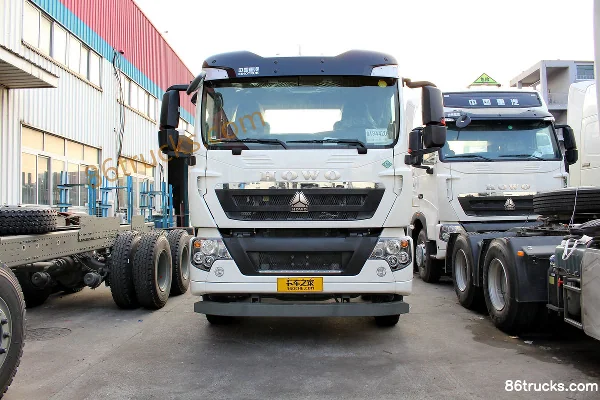

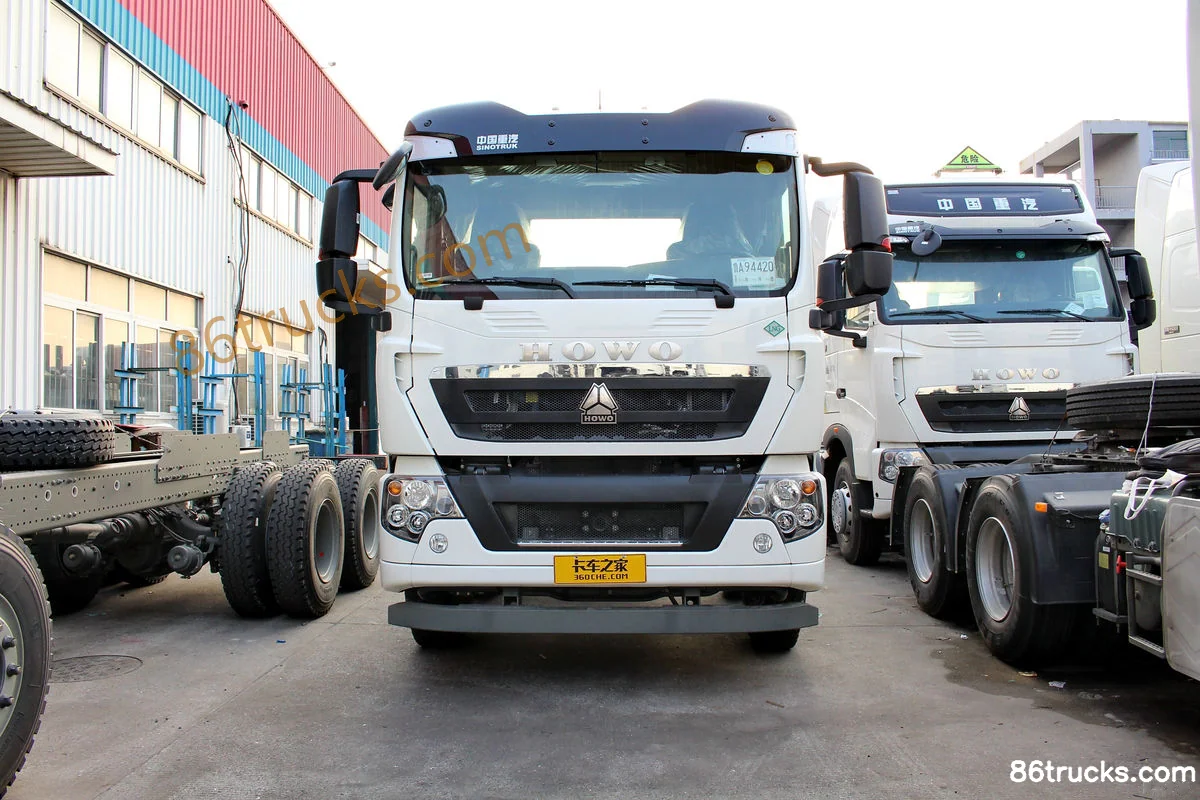

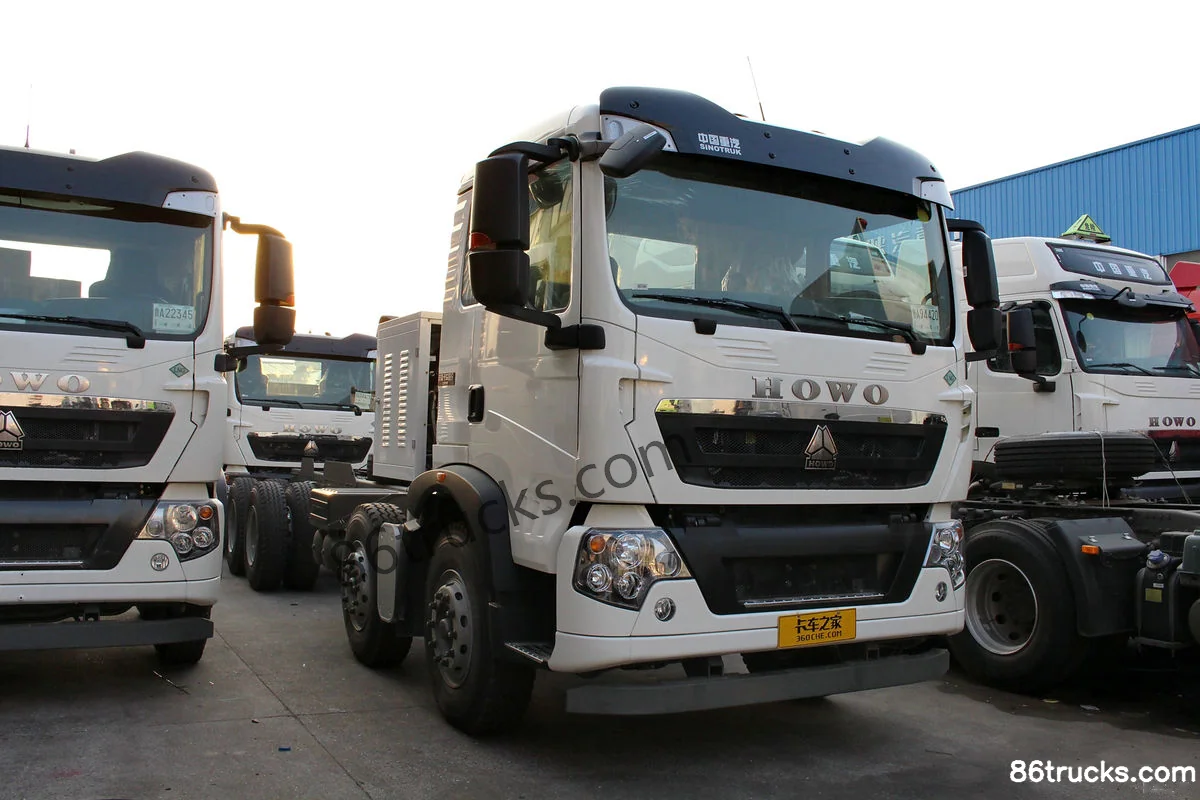

Exterior3

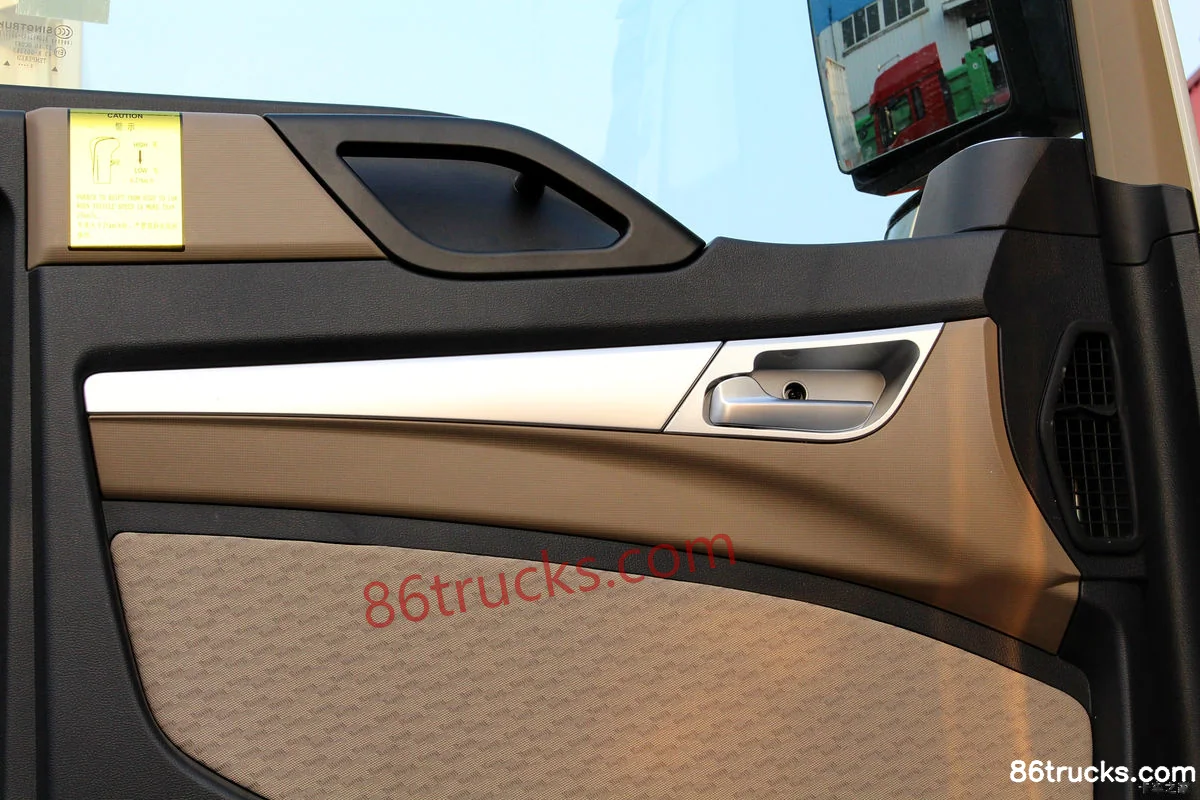

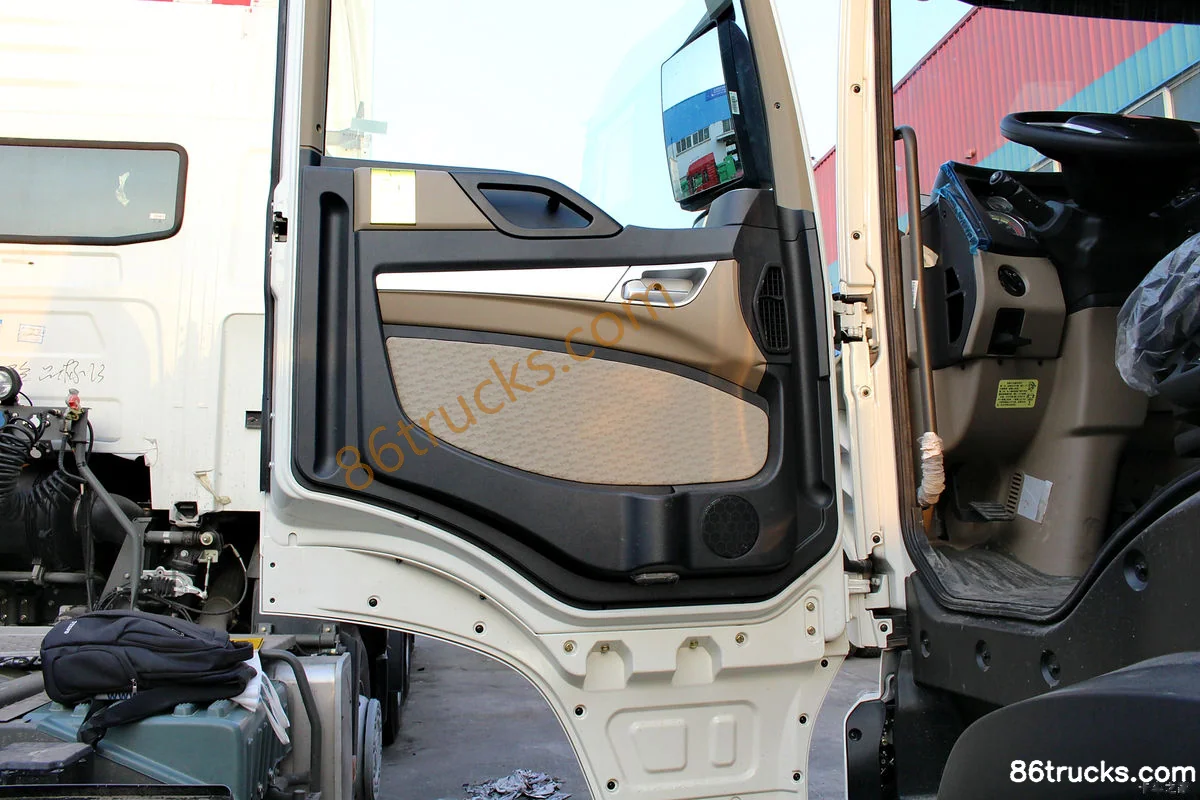

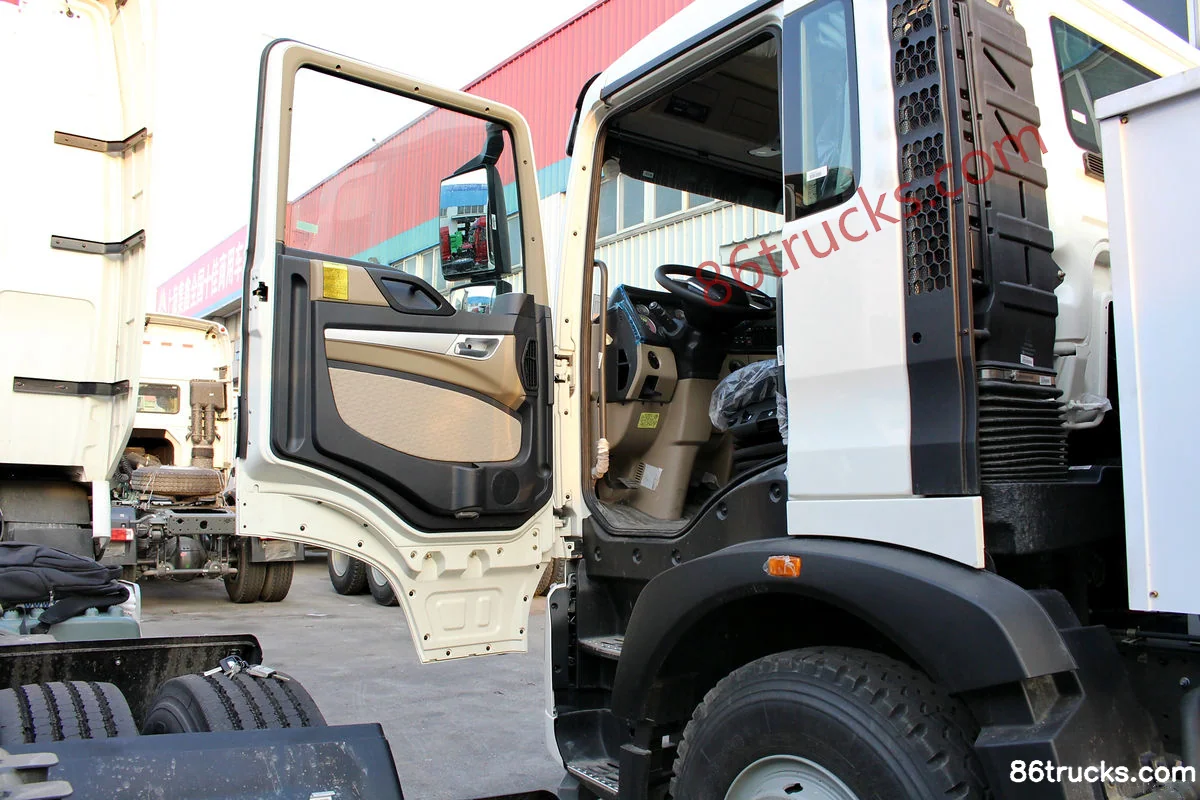

Cab3

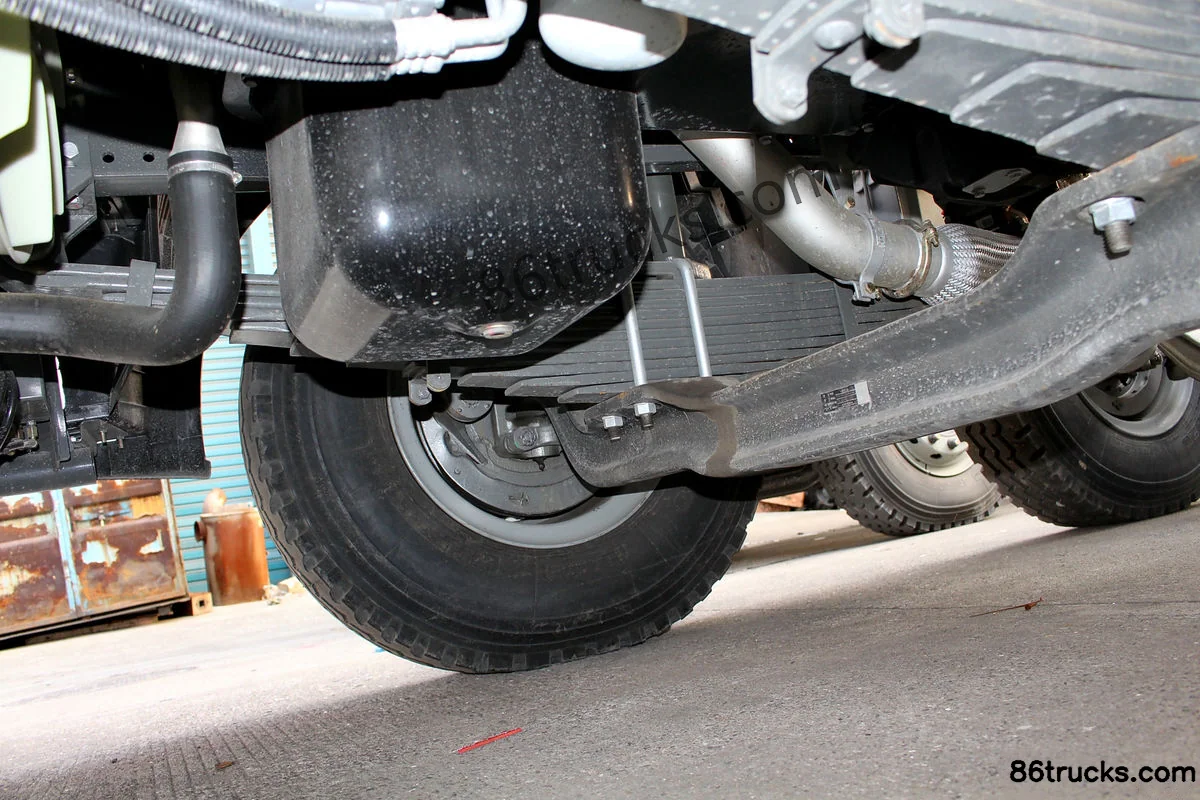

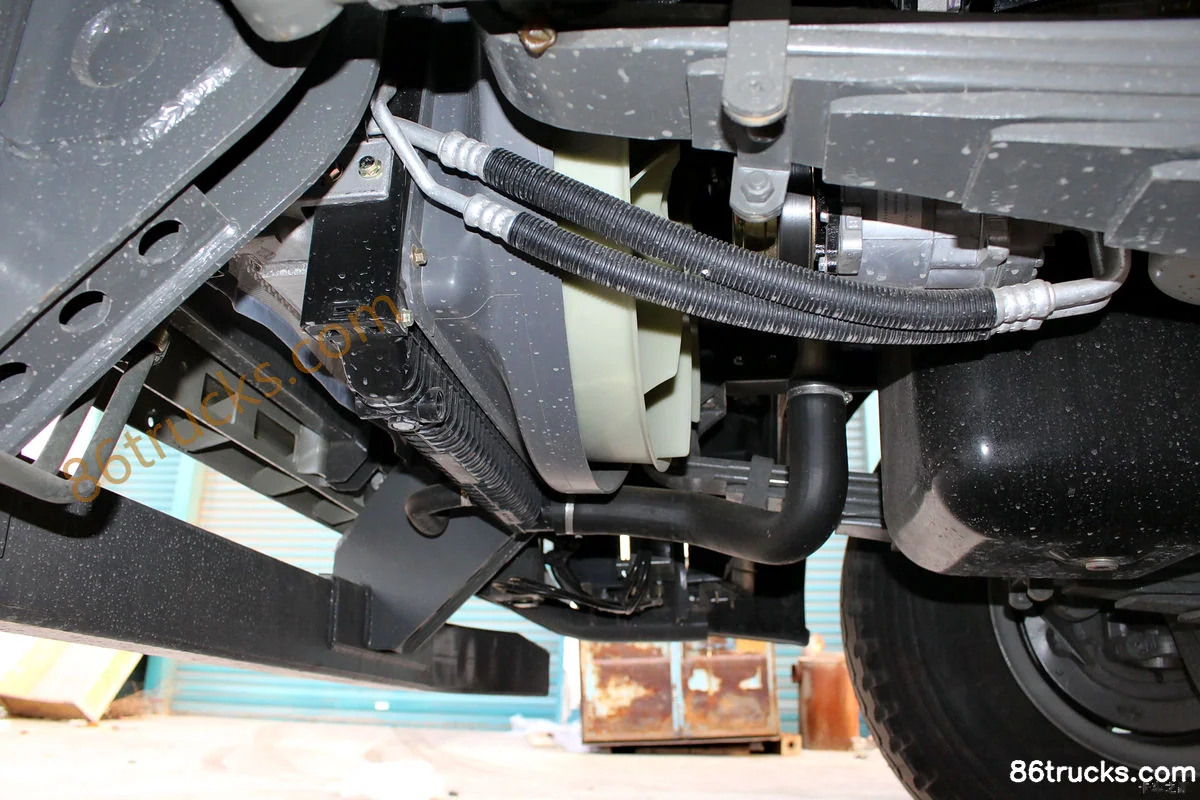

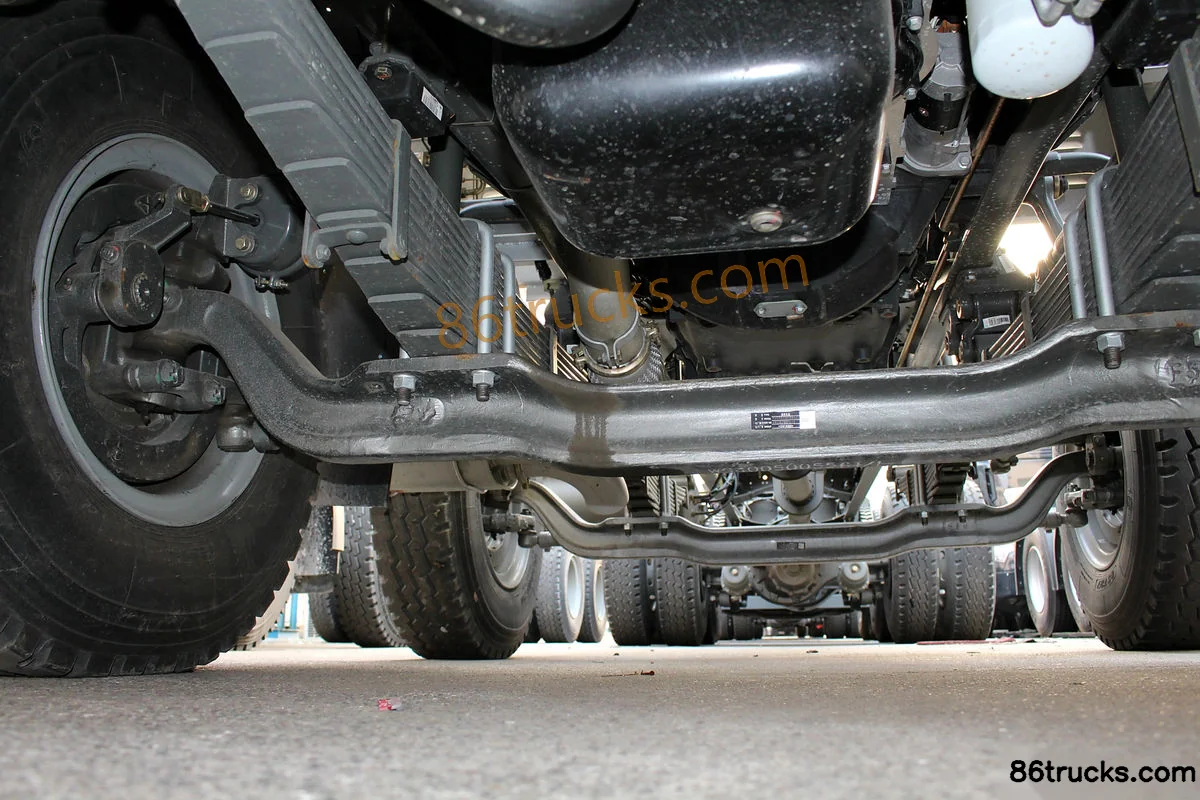

Chassis3

9 photos

FAQ

What emission standard does Sinotruk HOWO T5G 290hp 8X4(12 wheels) LNG Dump Truck Chassis use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO T5G 290hp 8X4(12 wheels) LNG Dump Truck Chassis?

Key specs of Sinotruk HOWO T5G 290hp 8X4(12 wheels) LNG Dump Truck Chassis: Drive: 8x4; Horsepower: 290 hp; Emission: China V; Fuel: LNG (liquefied natural gas); Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO T5G 290hp 8X4(12 wheels) LNG Dump Truck Chassis suited for?

Sinotruk HOWO T5G 290hp 8X4(12 wheels) LNG Dump Truck Chassis is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk HOWO T5G 290hp 8X4(12 wheels) LNG Dump Truck Chassis differ from other variants in the same series?

Sinotruk HOWO T5G 290hp 8X4(12 wheels) LNG Dump Truck Chassis belongs to Sinotruk HOWO T5G medium-duty truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO T5G 290hp 8X4(12 wheels) LNG Dump Truck Chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO T5G 290hp 8X4(12 wheels) LNG Dump Truck Chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
