JAC Lanmao M1 2023 Zhonghang Flagship Edition 2.7T 2-Seat 4.745m Electric Van 38.64kWh

Export reference
From $15,250
MSRP ¥10.98M CNY
Cargo box volume:: 6
Model code (announced):: HFC5030XXYEV5W
Cab length:: 4.745m
GVWR:: 2.68ton
Max. speed:: 80km/h
Front/rear suspension:: 0.705/0.99m
CLTC range: 260km
Motor 1 Brand: Hefei Sunshine
Curb Weight: 1.5ton
Wheelbase: 3050mm

Overview

The JAC Lanmao M1 2023 Zhonghang Flagship Edition 2.7T 2-Seat 4.745m Electric Van 38.64kWh is a Electric Panel Van featuring 260km battery/range, Hefei Sunshine motor, 1.5t payload and 6 cargo length.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5030XXYEV5W
Wheelbase: 3050mm
Cab length: 4.745m
Cab width: 1.76m
Cab height: 1.965m
CLTC range: 260km
Curb Weight: 1.5ton
Rated payload: 1.5ton
GVWR: 2.68ton
Max. speed: 80km/h
Front/rear suspension: 0.705/0.99m
Version: AVIC Flagship Edition
Energy Type: Electric
electric motor
Motor 1 Brand: Hefei Sunshine
Motor 1 Model: TZ185XS022
Max torque: 220N·m
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 30kW
Peak power: 60kW
total rated torque: 90N·m
total peak torque: 220N·m
Electronic Control
ECU Brand: Sungrow Power Supply
Battery/Charging
Charging method: DC fast charge, AC slow charge
Battery Brand: CALB
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 38.64kWh
fast charge time: 0.5h
Battery rated voltage: 309.1V
Energy Density: 137.6
Battery total voltage: 309.1V
Body parameters
Cargo box volume: 6
Max body depth: 2.785
Max body width: 1.595
Cargo Box Height: 1.31
Chassis Specs
steering assist type: Electric power steering
Front suspension type: Independent suspension
rear suspension type: Leaf spring
Body Parameters
Cab structure: enclosed van truck
Seat count: 2Seats
Door Parameters
Number of Doors: 4
side door type: Sliding side door
Tailgate type: top-hinged door
side door opening: 1007°
Wheel brake
Front brake type: Disc brake
rear brake type: drum brake
Front tire specification: 185/65R15LT 12PR
Rear Wheel Specification: 185/65R15LT 12PR
Cab parameters
Seat rows:
Safety features
Remote key:
Central door lock:
Control configuration
ABS:
interior configuration
steering wheel adjustment:
AC control type: Manual
Power Windows:
Reverse Radar:
Reverse Camera:
Multimedia features
GPS/Beidou driving recorder:
Bluetooth / hands-free calling:
lighting configuration
daytime running lights:

Photos

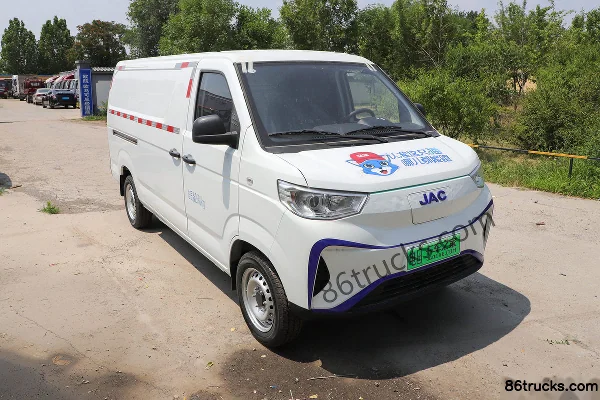

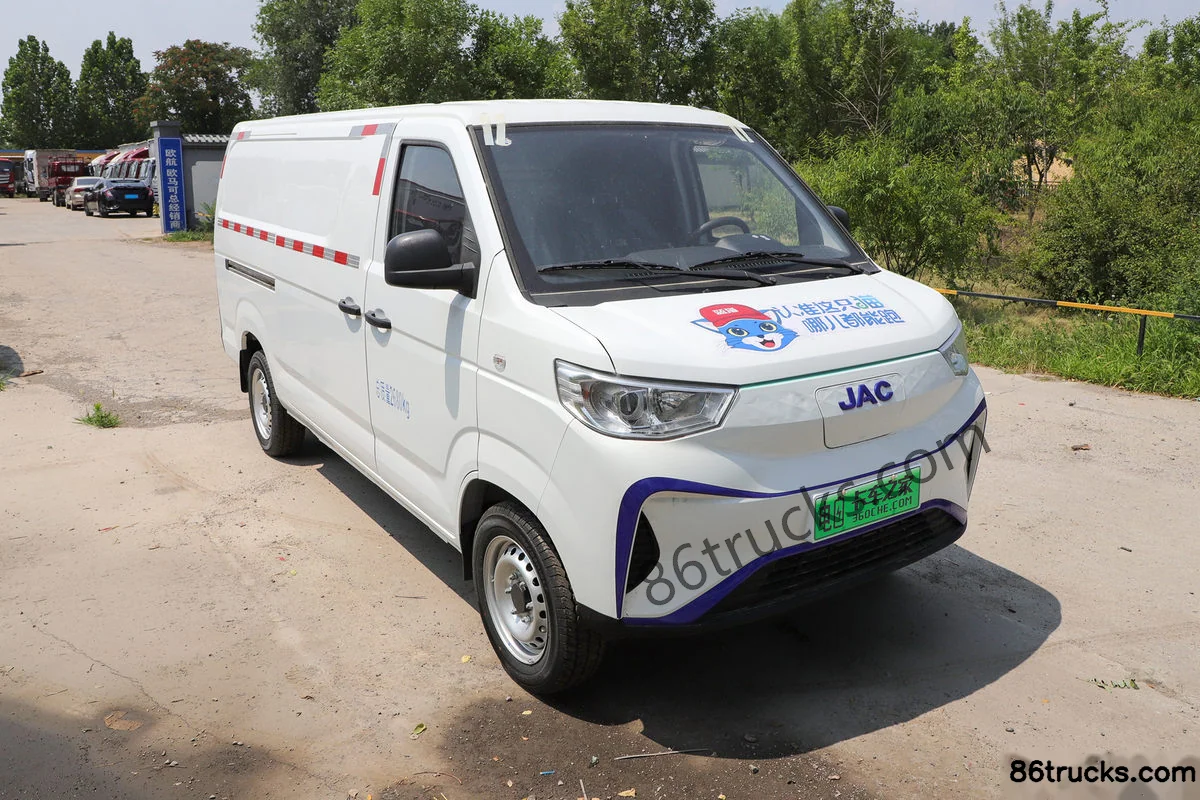

Exterior1

1 photos

FAQ

What is the export price of JAC Lanmao M1 2023 Zhonghang Flagship Edition 2.7T 2-Seat 4.745m Electric Van 38.64kWh, and what does it include?

JAC Lanmao M1 2023 Zhonghang Flagship Edition 2.7T 2-Seat 4.745m Electric Van 38.64kWh export reference is about From $15,250; MSRP is ¥10.98M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is JAC Lanmao M1 2023 Zhonghang Flagship Edition 2.7T 2-Seat 4.745m Electric Van 38.64kWh suited for?

JAC Lanmao M1 2023 Zhonghang Flagship Edition 2.7T 2-Seat 4.745m Electric Van 38.64kWh is a Electric Panel Van model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does JAC Lanmao M1 2023 Zhonghang Flagship Edition 2.7T 2-Seat 4.745m Electric Van 38.64kWh differ from other variants in the same series?

JAC Lanmao M1 2023 Zhonghang Flagship Edition 2.7T 2-Seat 4.745m Electric Van 38.64kWh belongs to JAC Lanmao M1 (Electric Panel Van). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Lanmao M1 2023 Zhonghang Flagship Edition 2.7T 2-Seat 4.745m Electric Van 38.64kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Lanmao M1 2023 Zhonghang Flagship Edition 2.7T 2-Seat 4.745m Electric Van 38.64kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
