SHACMAN Commercial Vehicle Xuande X6 220 hp 6X2(8 wheels) 4.5m dump truck

Export reference
From $30,389
MSRP ¥21.88M CNY
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 9ton
Wheelbase:: 1800+2600mm
Tire Size:: 10.00R20
Rated payload: 15.37ton
Drive 6X2 (8 wheels)
Horsepower 220
Cargo box length: 4.5m

Overview

The SHACMAN Commercial Vehicle Xuande X6 220 hp 6X2(8 wheels) 4.5m dump truck is a Medium-duty truck featuring 15.37t payload, 24.5t GVW, 4.5m cargo body and 6X2 (8 wheels) drive. On the powertrain side, it comes with a YuchaiYC6JA220-50 engine, 220 hp, China V emissions and Fast Gear transmission.

China V 220 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SX3255GP5269
Drive type: 6X2
Wheelbase: 1800+2600mm
engine: YuchaiYC6JA220-50
transmission: Fast Gear10JS90A
Rear Axle Ratio: 6.33
Cab length: 7.23m
Cab width: 2.55m
Cab height: 3.2m
Front track width: 1765/1765mm
rear track: 1750mm
Curb Weight: 9ton
Rated payload: 15.37ton
GVWR: 24.5ton
Origin: Baoji, Shaanxi
tonnage class: Medium-duty truck
Approach angle: 23°
departure angle: 18°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6JA220-50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.87L
Emission standard: China V
Max output power: 162kW
Max hp: 220Horsepower
Max torque: 860N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Transmission Parameters
Transmission Model: Fast Gear10JS90A
Transmission Brand: Fast Gear
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Housing Material: Steel shell
Cargo box parameters
Cargo box length: 4.5m
Cargo box width: 2.2m
Cargo box height:
Cab parameters
Cab: TJG201
Cab suspension: 4-point mechanical suspension
Driver seat type: air suspension seat
fuel tank
Fuel tank material: Iron
Fuel tank capacity: 160L
Chassis Specs
Front axle description: 153B+153B
Front axle allowable load: 6500/6500kg
Frame Dimensions: 280 (8+6) double-passmm
rear axle description: 457 shortened axle 13T
rear axle allowable load: 11500kg
Axle ratio: 6.33
Leaf spring count: 9/9/10+8,9/9/11+8,10/10/10+9
Tire
Tire Size: 10.00R20
Number of tires: 8pcs
Control configuration
ABS:
interior configuration
Electronic Central Lock:

Photos

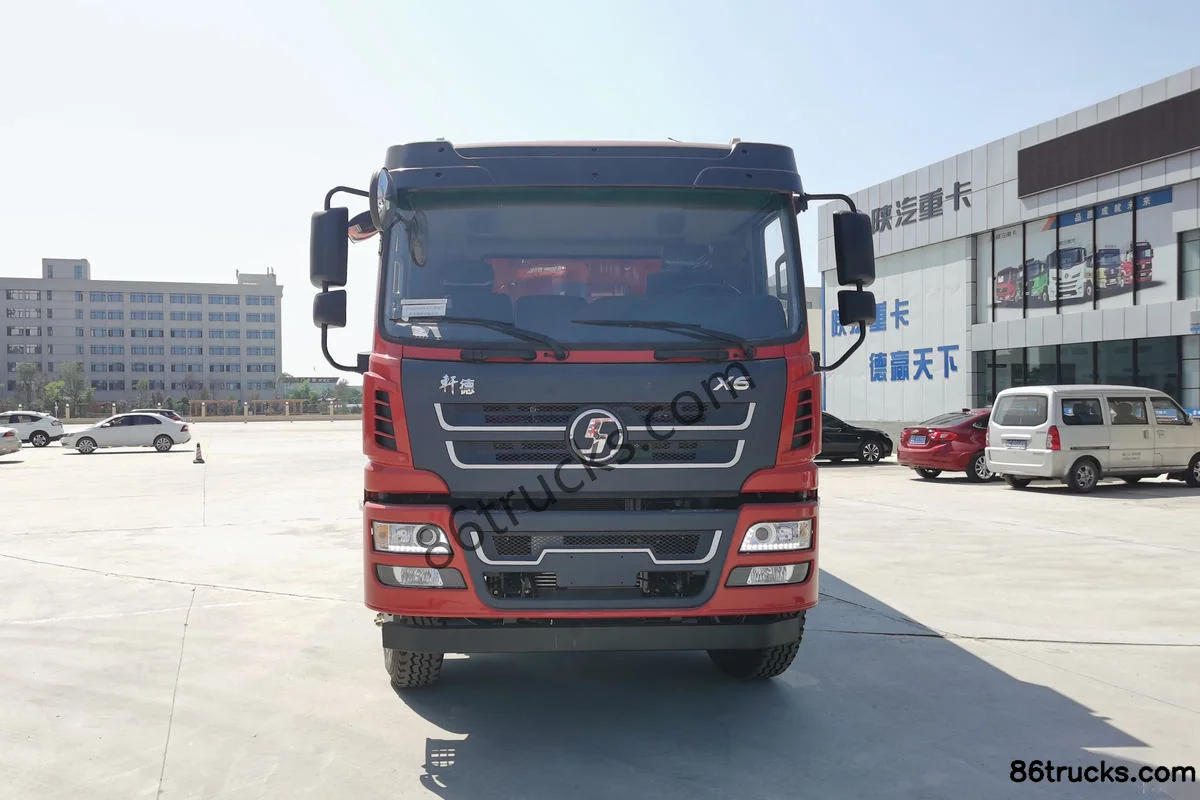

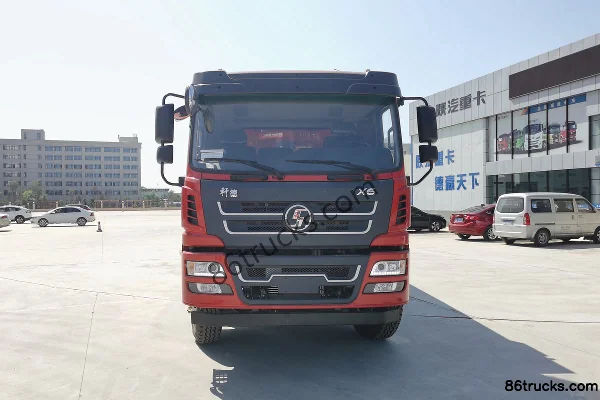

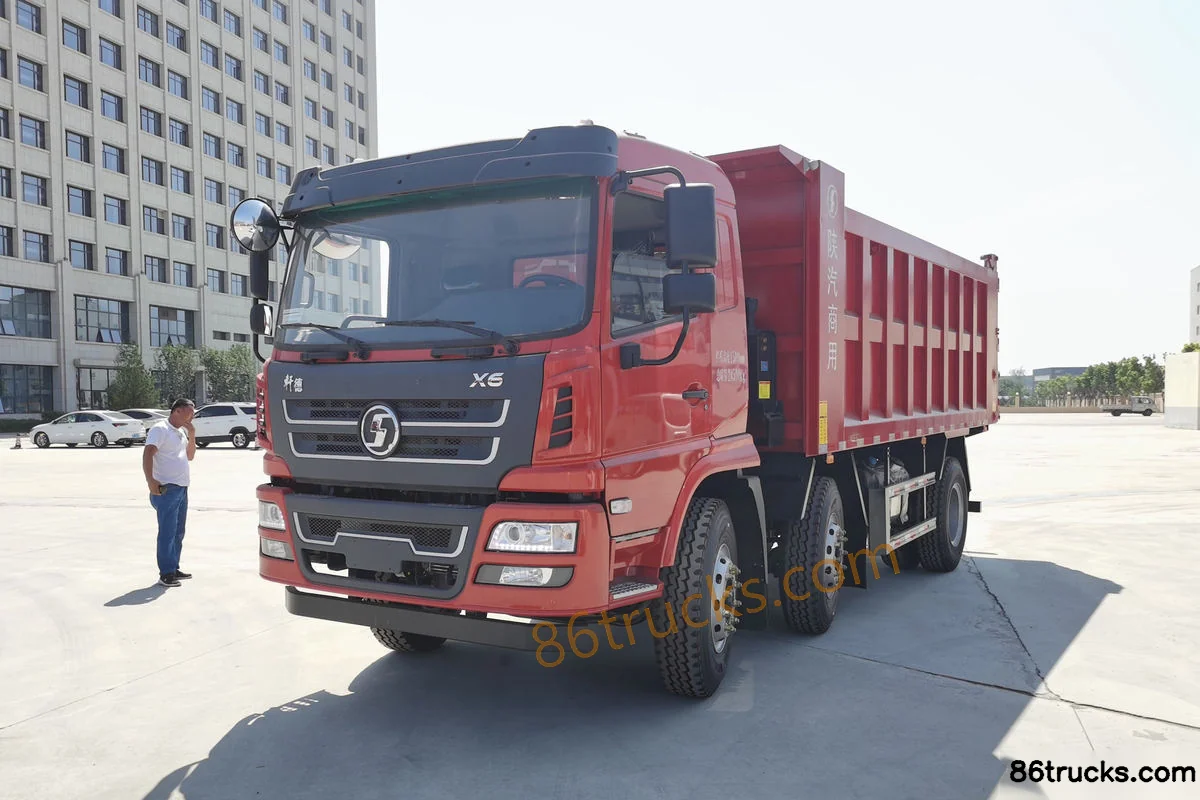

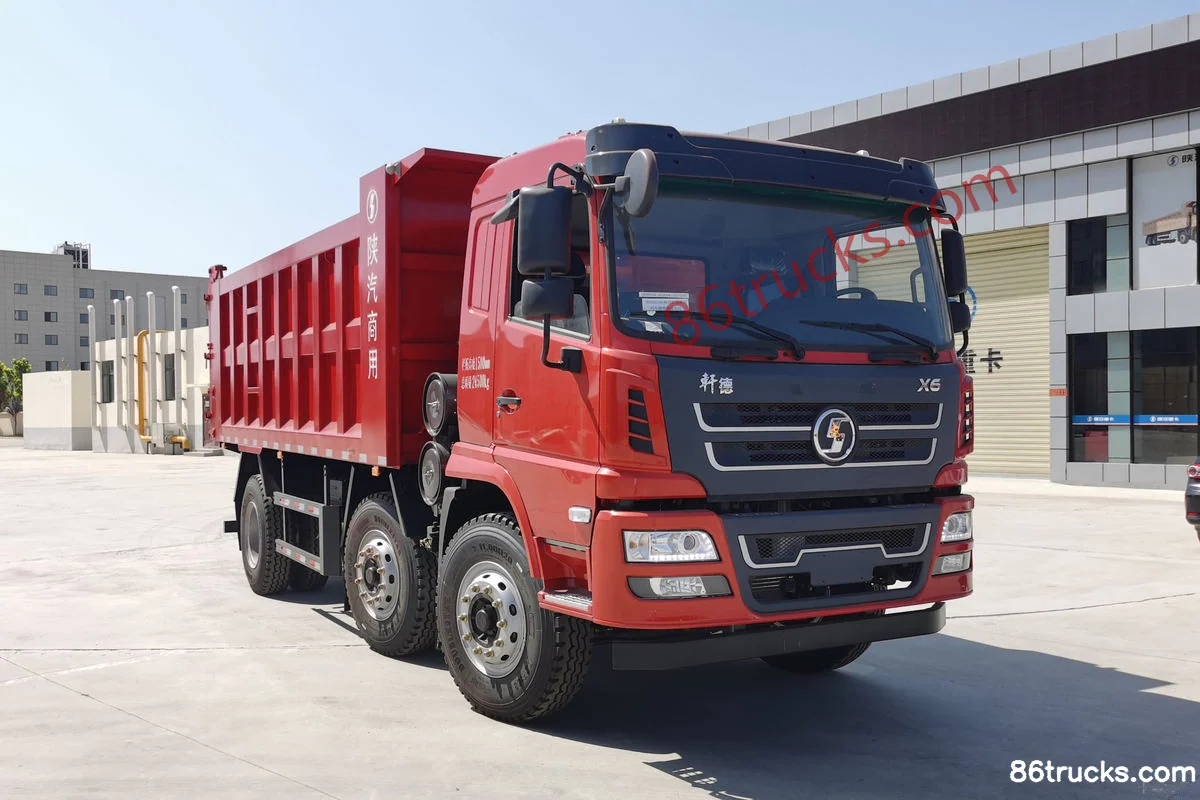

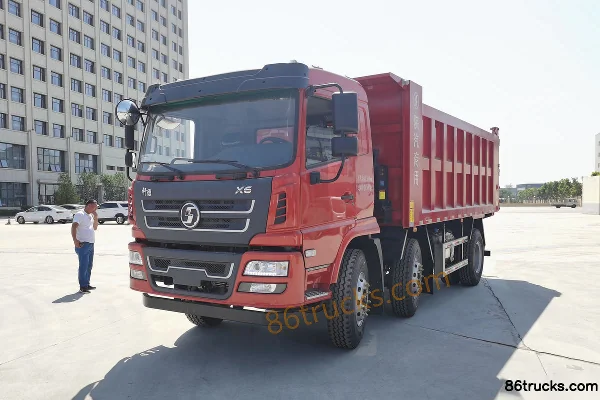

Exterior3

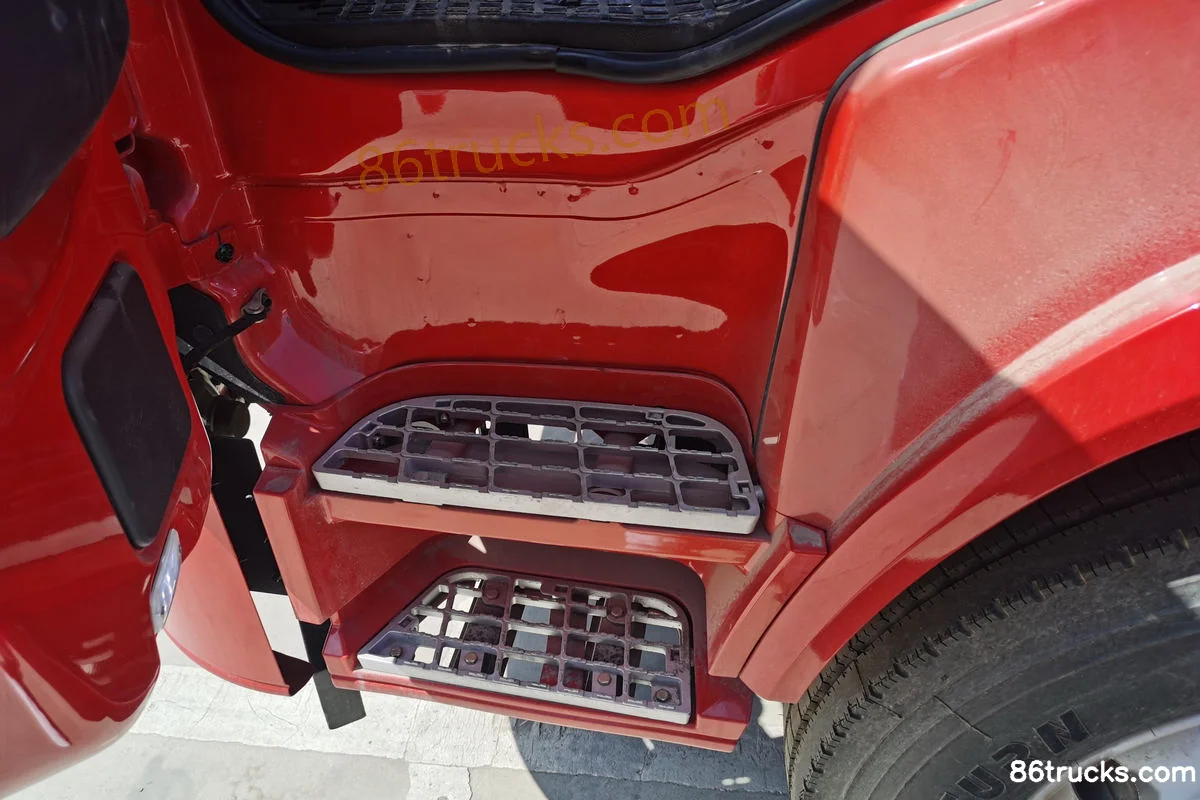

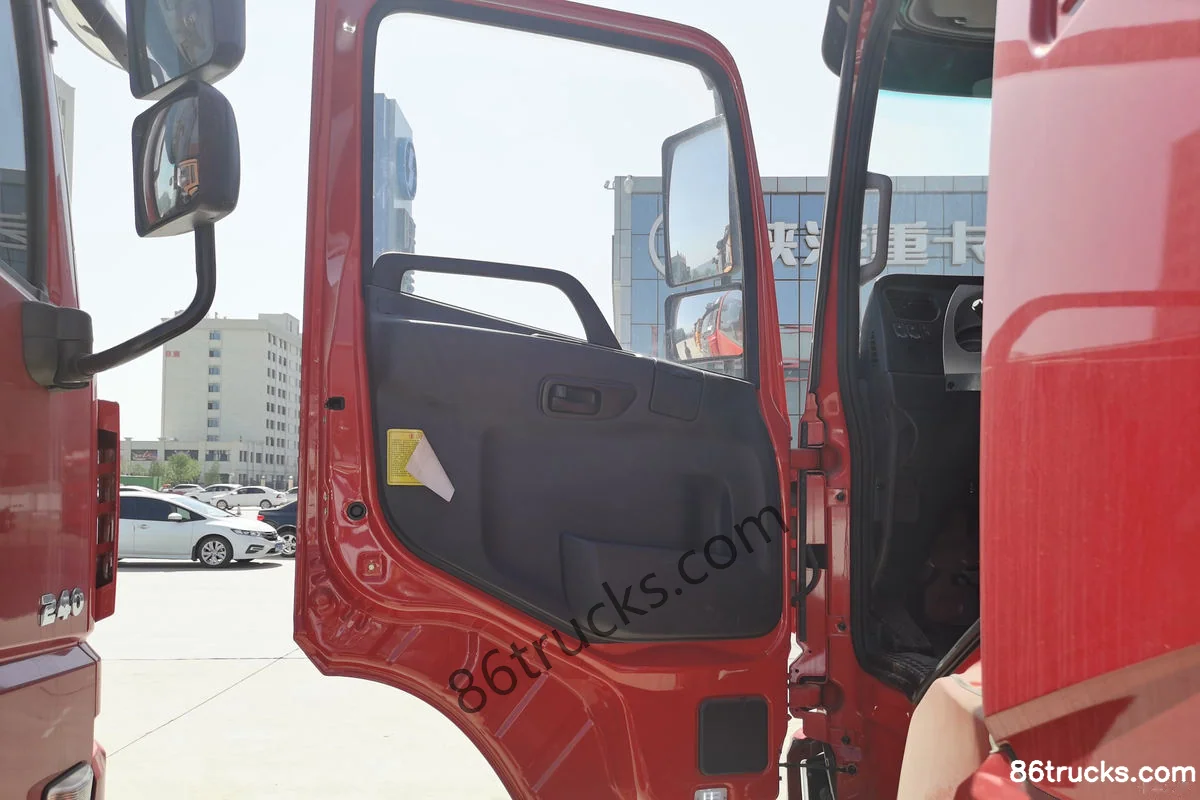

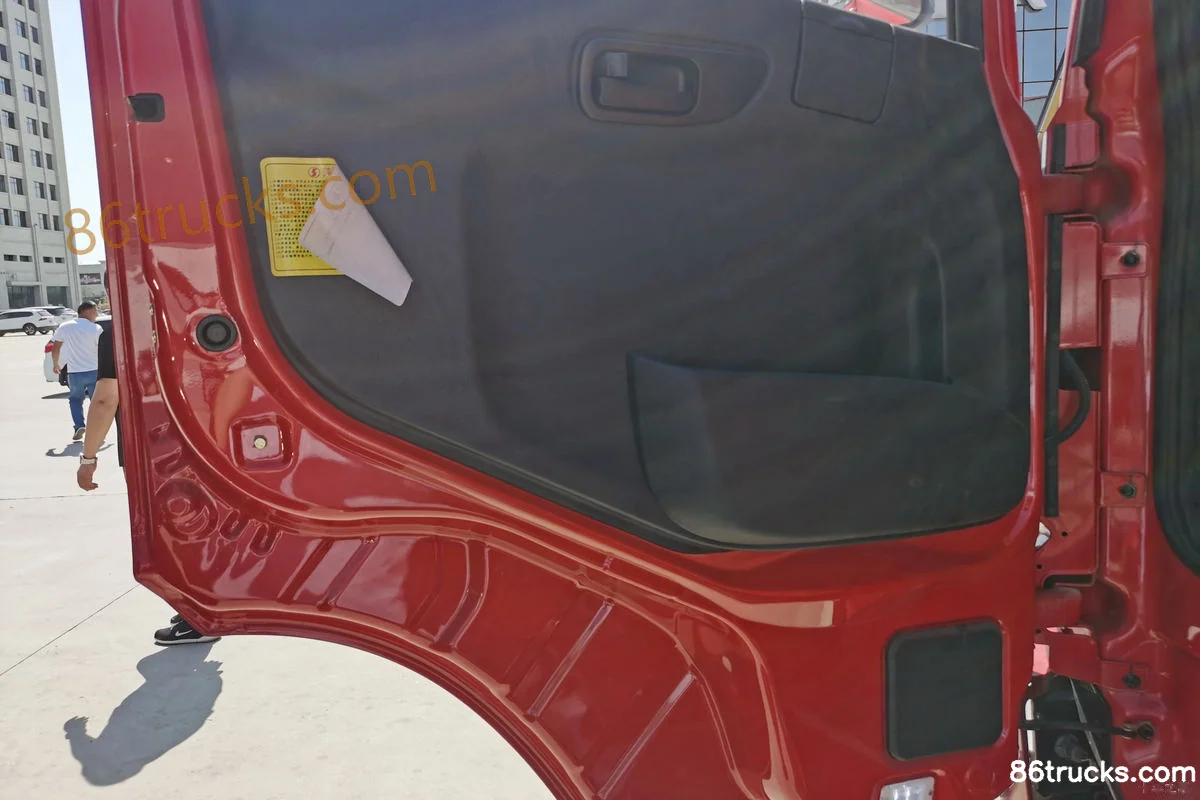

Cab3

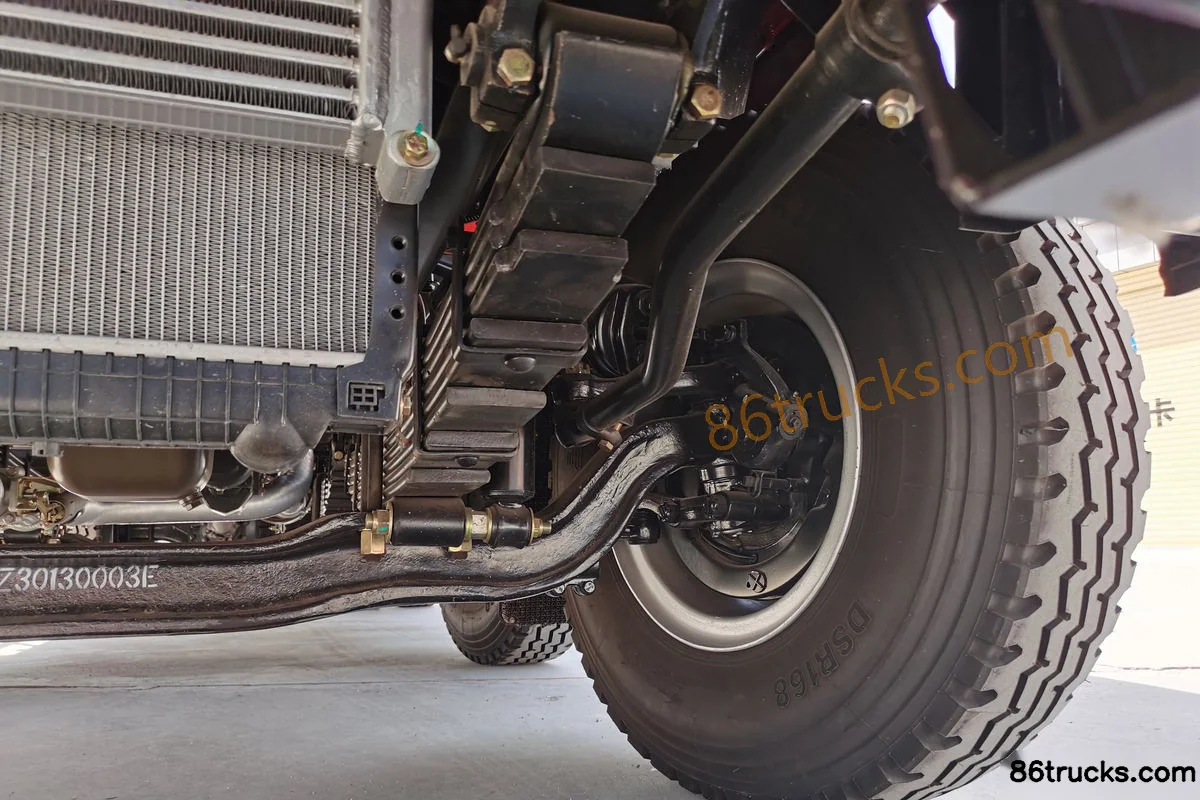

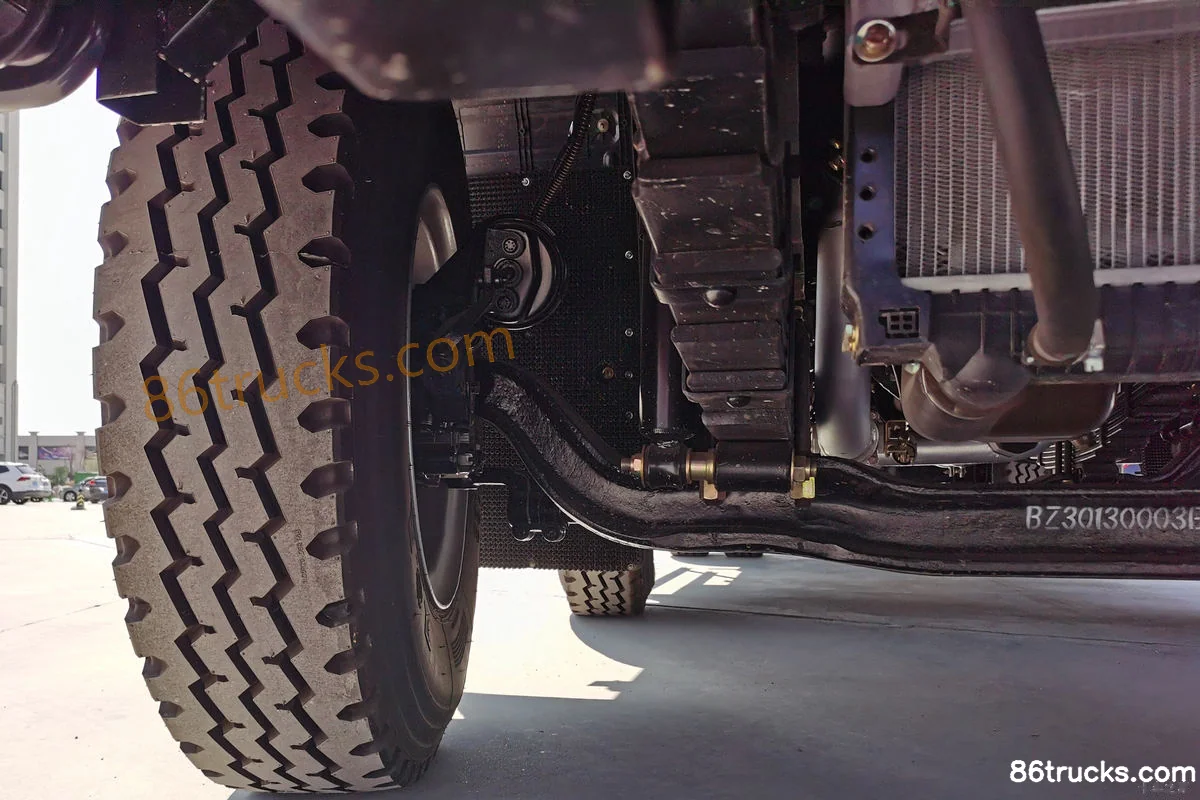

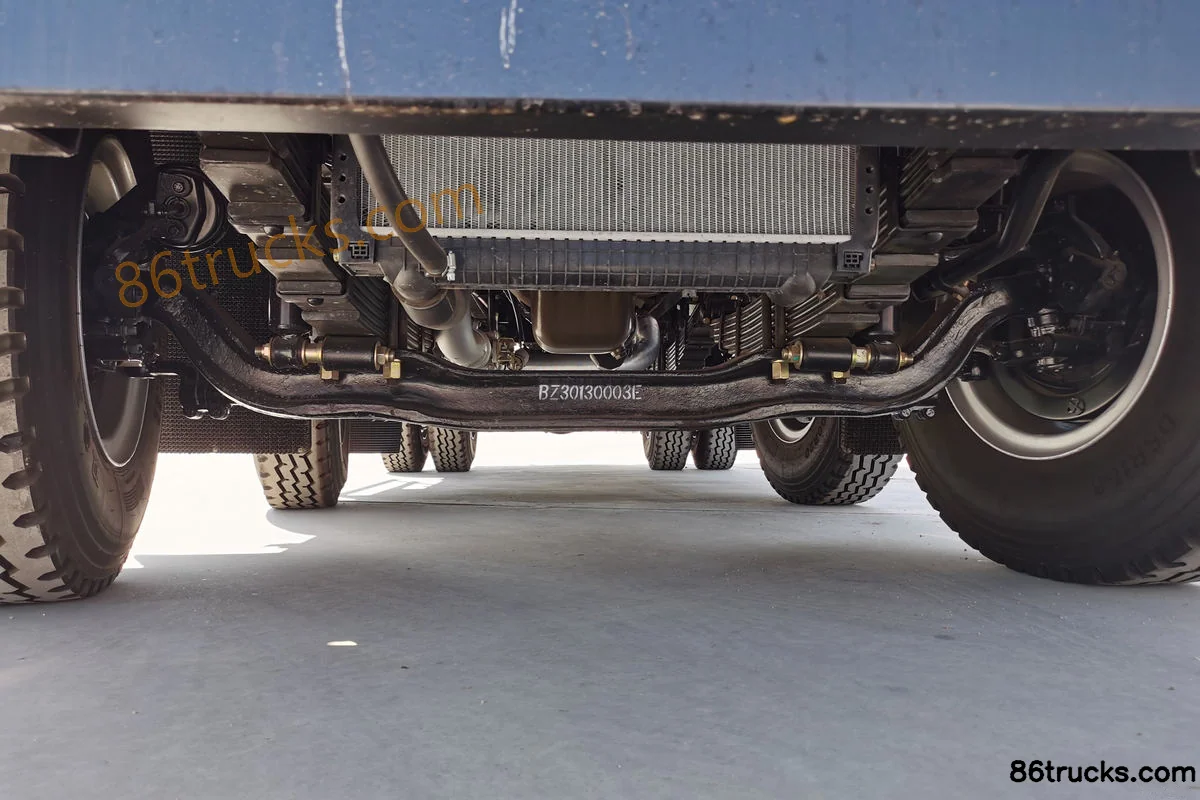

Chassis3

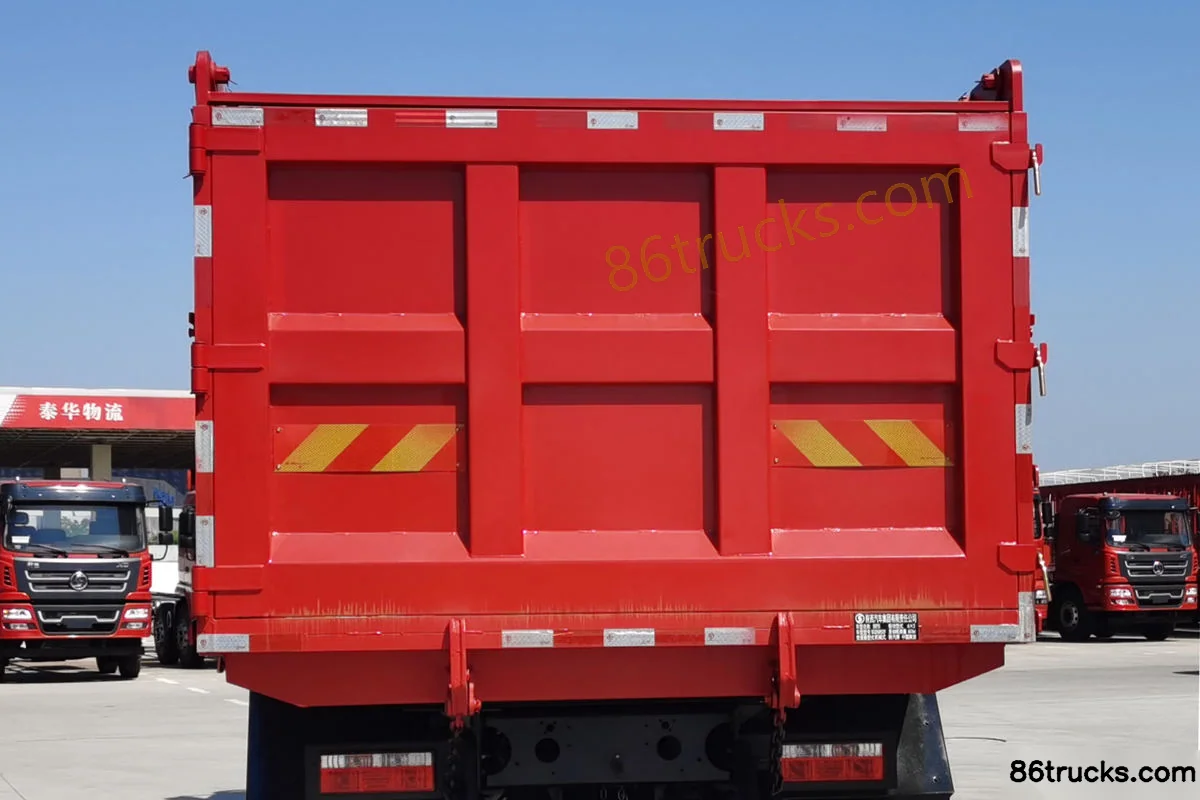

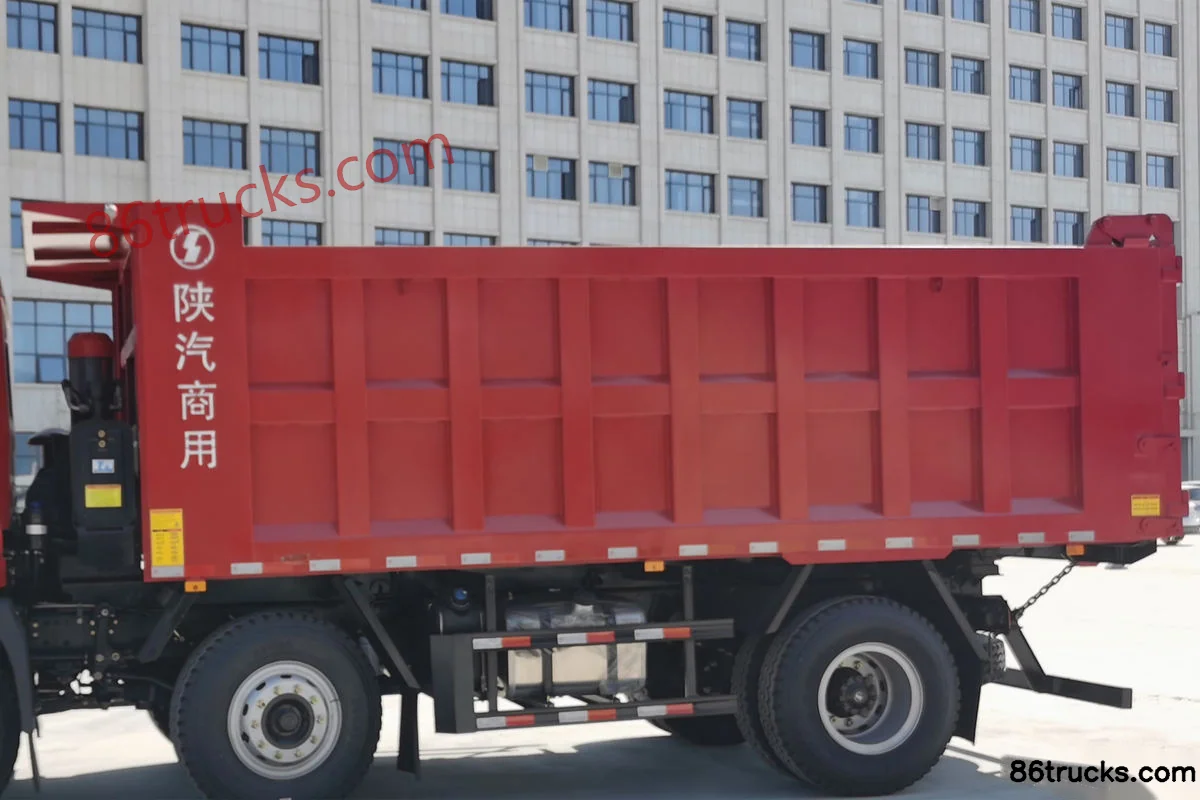

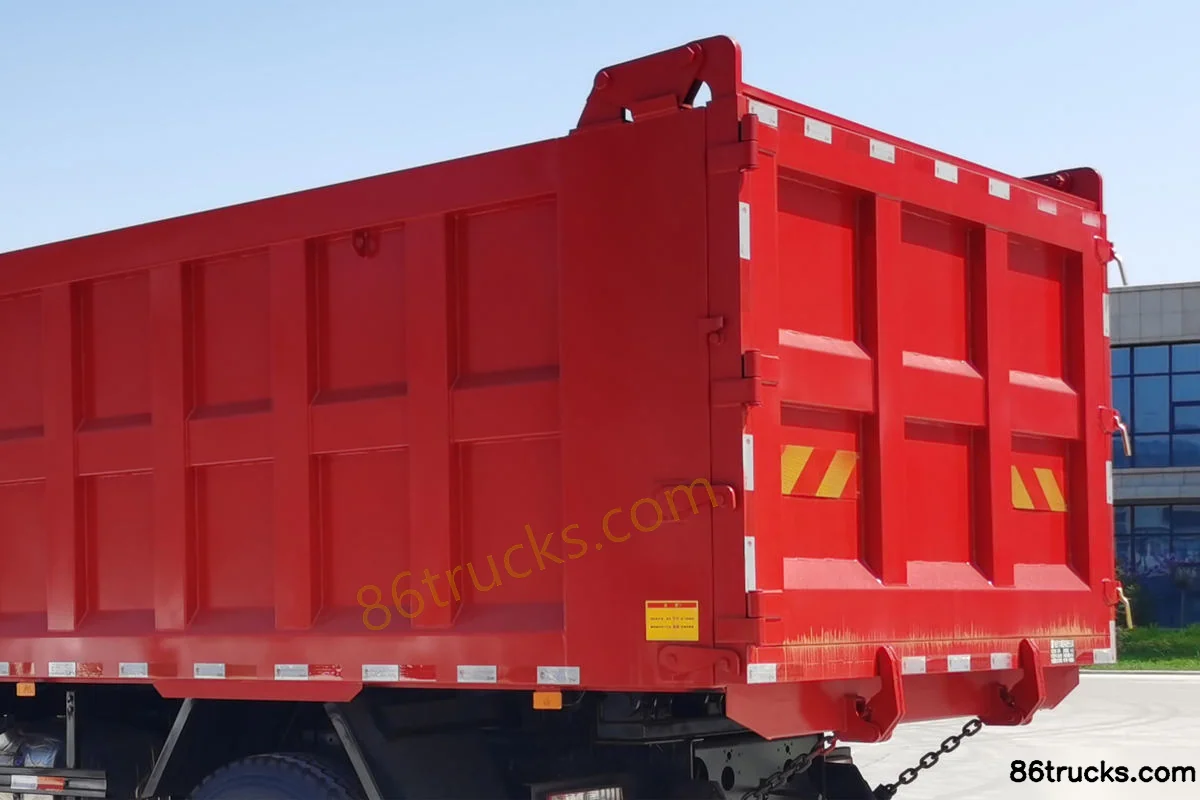

Body3

12 photos

FAQ

What is the export price of SHACMAN Commercial Vehicle Xuande X6 220 hp 6X2(8 wheels) 4.5m dump truck, and what does it include?

SHACMAN Commercial Vehicle Xuande X6 220 hp 6X2(8 wheels) 4.5m dump truck export reference is about From $30,389; MSRP is ¥21.88M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does SHACMAN Commercial Vehicle Xuande X6 220 hp 6X2(8 wheels) 4.5m dump truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Commercial Vehicle Xuande X6 220 hp 6X2(8 wheels) 4.5m dump truck?

Key specs of SHACMAN Commercial Vehicle Xuande X6 220 hp 6X2(8 wheels) 4.5m dump truck: Drive: 6x2; Horsepower: 220 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Commercial Vehicle Xuande X6 220 hp 6X2(8 wheels) 4.5m dump truck suited for?

SHACMAN Commercial Vehicle Xuande X6 220 hp 6X2(8 wheels) 4.5m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SHACMAN Commercial Vehicle Xuande X6 220 hp 6X2(8 wheels) 4.5m dump truck differ from other variants in the same series?

SHACMAN Commercial Vehicle Xuande X6 220 hp 6X2(8 wheels) 4.5m dump truck belongs to SHACMAN Xuande X6 Heavy-Duty Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Commercial Vehicle Xuande X6 220 hp 6X2(8 wheels) 4.5m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Commercial Vehicle Xuande X6 220 hp 6X2(8 wheels) 4.5m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
