JMC New Shunda Narrow Body 116 hp 4X2(6 wheels) 4.14 m dump truck (China VI)

Export reference
MSRP N/A
Emission: China VI
Fuel: Diesel
Transmission: GETRAG
Curb Weight:: 2.72ton
Wheelbase:: 3360mm
Tire Size:: 7.00R16LT 10PR
Rated payload: 1.645ton
Drive 4X2 (6 wheels)
Horsepower 116
Cargo box type: Dump type

Overview

The JMC New Shunda Narrow Body 116 hp 4X2(6 wheels) 4.14 m dump truck (China VI) is a Light Truck featuring 1.645t payload, 4.495t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a JMCJX4D30B6H engine, 116 hp, China VI emissions and GETRAG transmission.

China VI 116 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): JMT3040XG26
Drive type: 4X2
Wheelbase: 3360mm
engine: JMCJX4D30B6H
transmission: Getrag 5-speed
Cab length: 5.99m
Cab width: 1.88m
Cab height: 2.1m
Front track width: 1385mm
rear track: 1425mm
Curb Weight: 2.72ton
Rated payload: 1.645ton
GVWR: 4.495ton
Origin: Nanchang, Jiangxi
tonnage class: Light Truck
Approach angle: 20°
departure angle: 15°
Energy Type: Diesel
Engine parameters
Engine Brand: JMC
Engine Model: JMCJX4D30B6H
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.892L
Emission standard: China VI
Max output power: 85kW
Max hp: 116Horsepower
Transmission Parameters
Transmission Model: Getrag 5-speed
Transmission Brand: GETRAG
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4.14m
Cargo box width: 1.8m
Cargo box height: 0.4m
Cab parameters
Cab width: 1940mm
seating capacity: 2Personnel
Chassis Specs
Front axle allowable load: 1895kg
rear axle allowable load: 2600kg
Leaf spring count: 7/4+6
Tire
Tire Size: 7.00R16LT 10PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

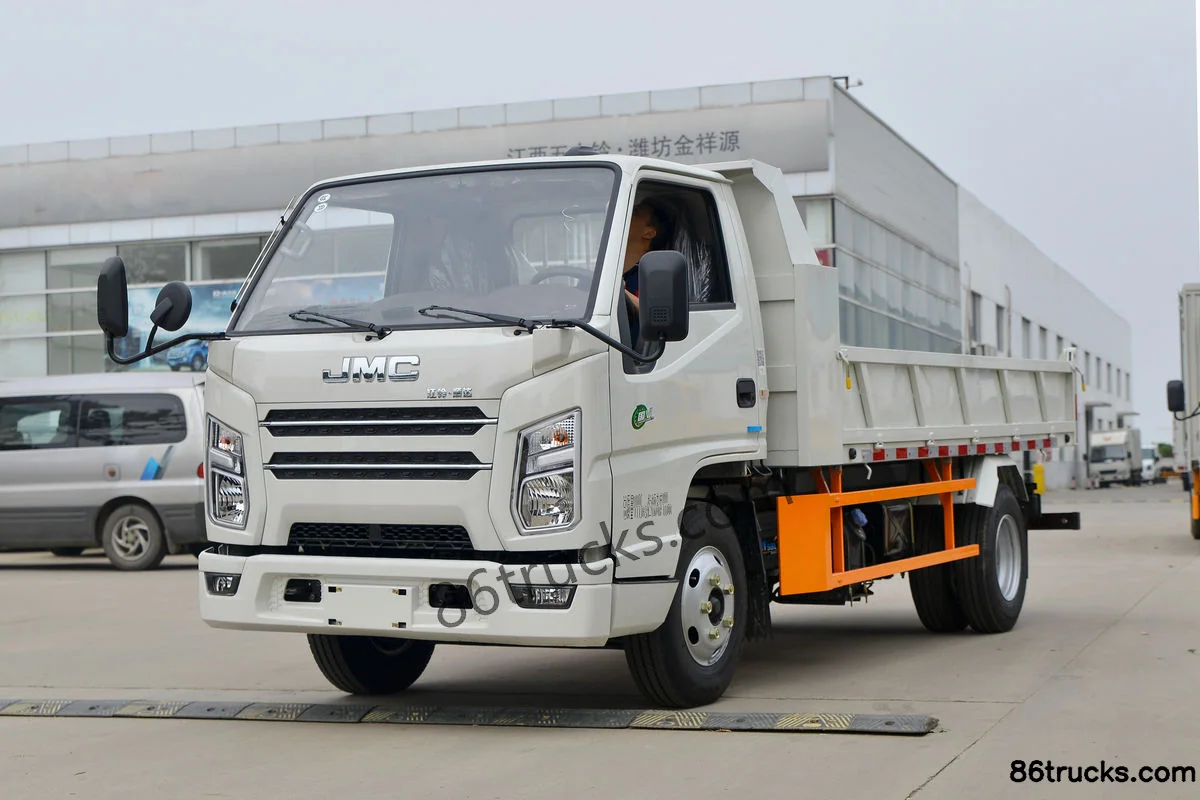

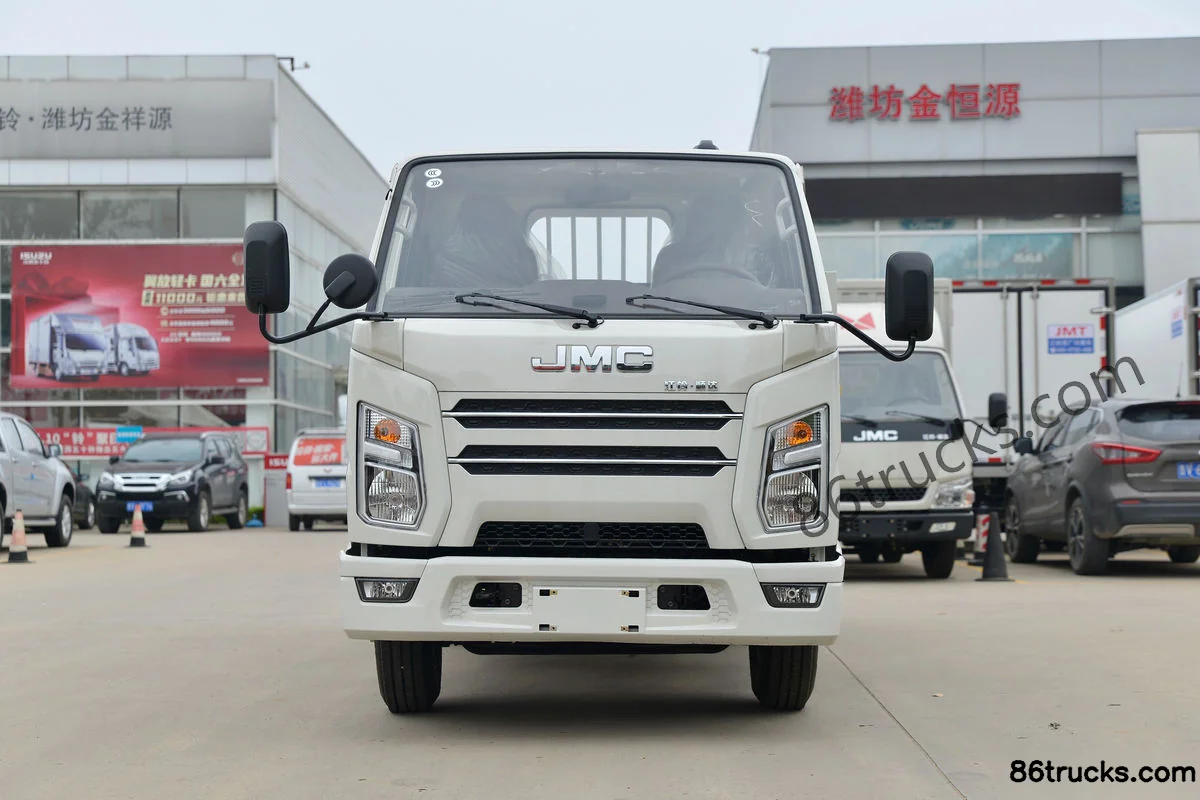

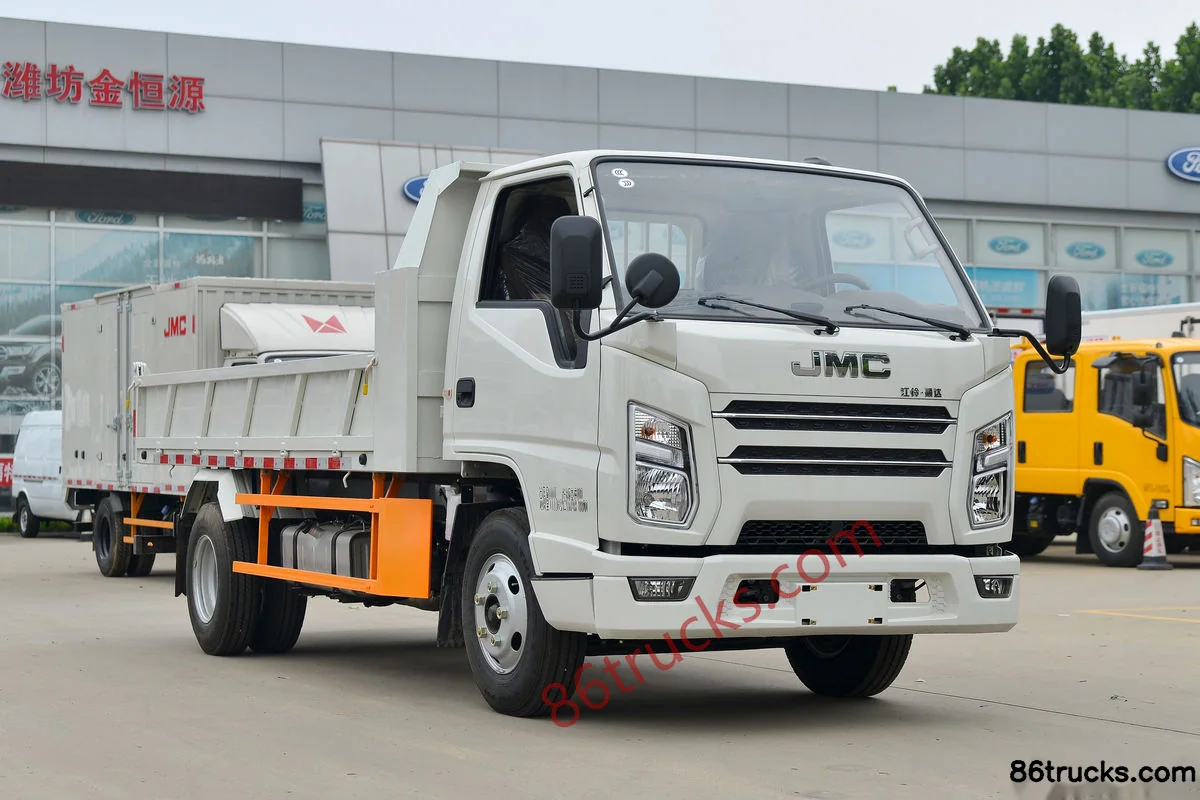

Exterior3

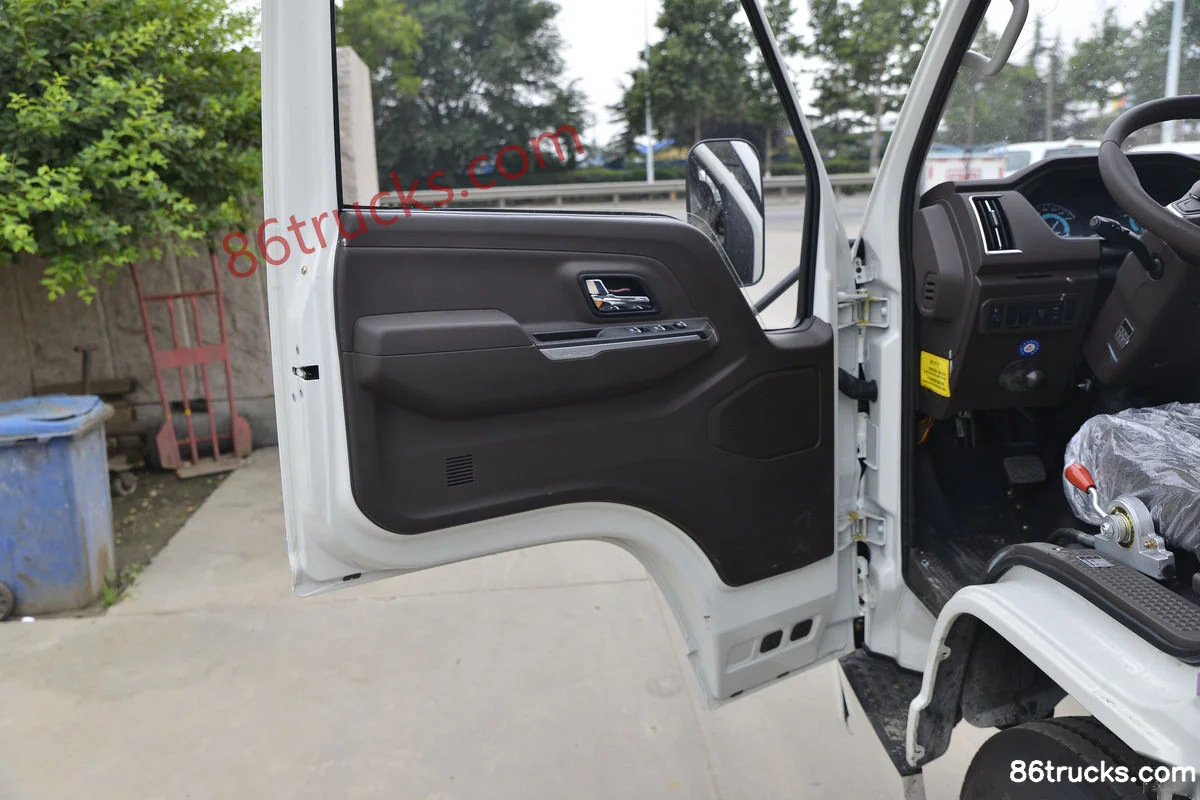

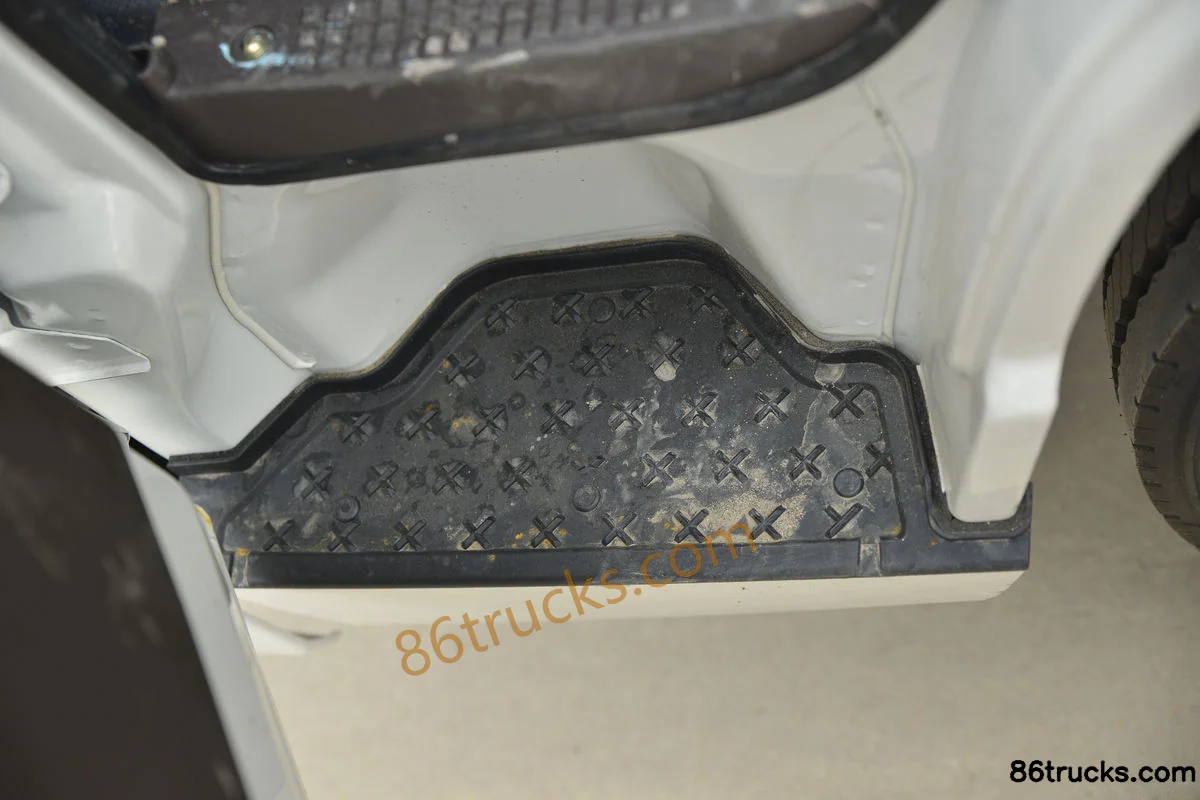

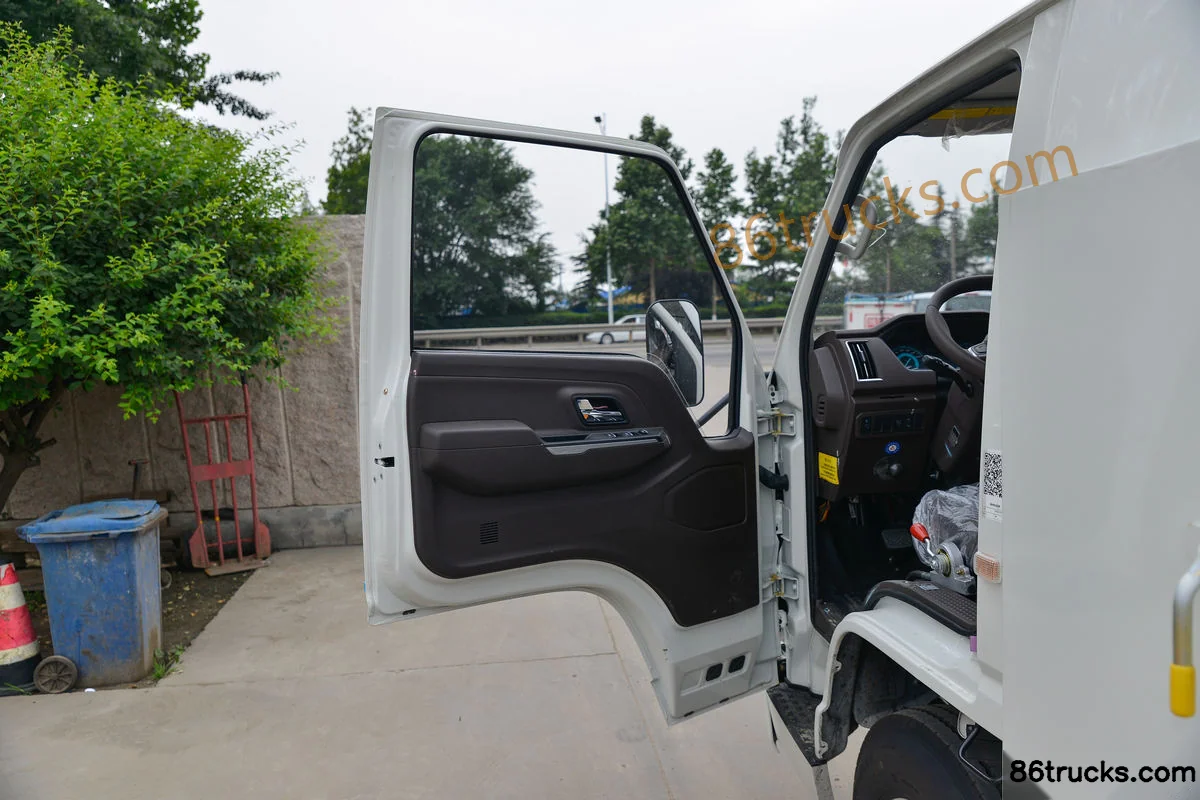

Cab3

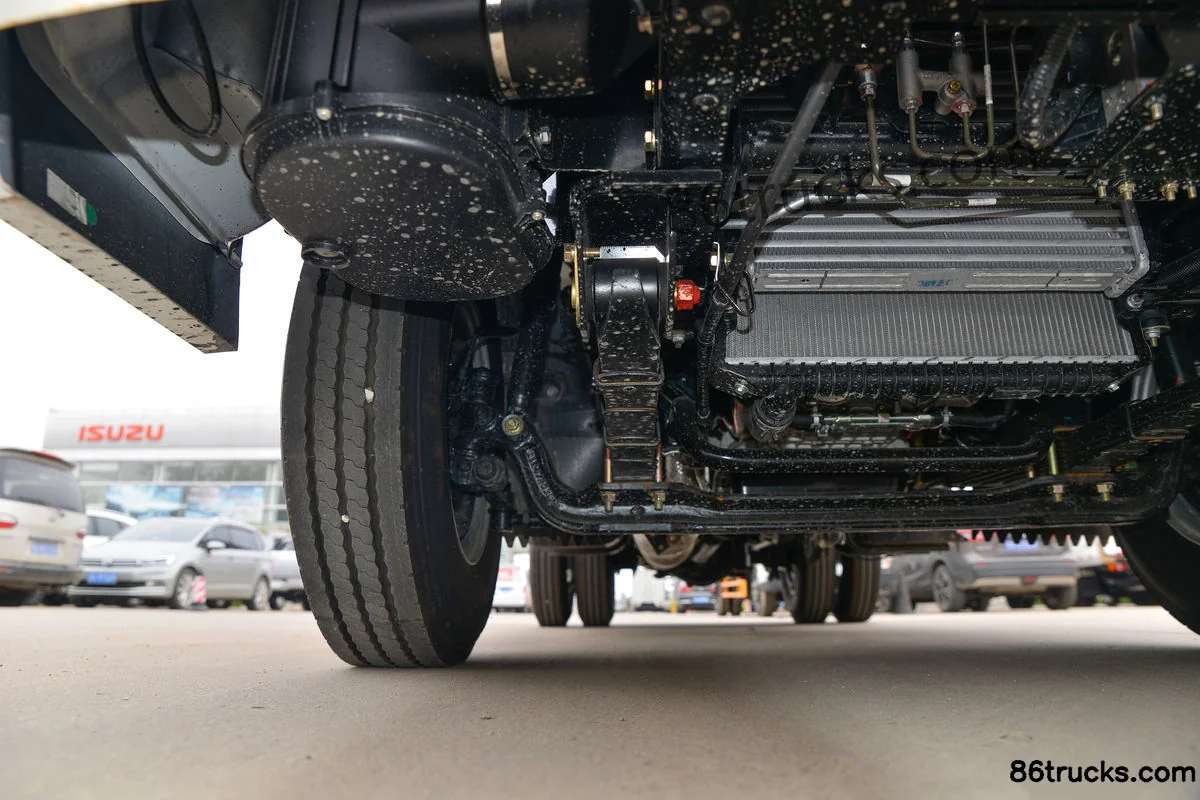

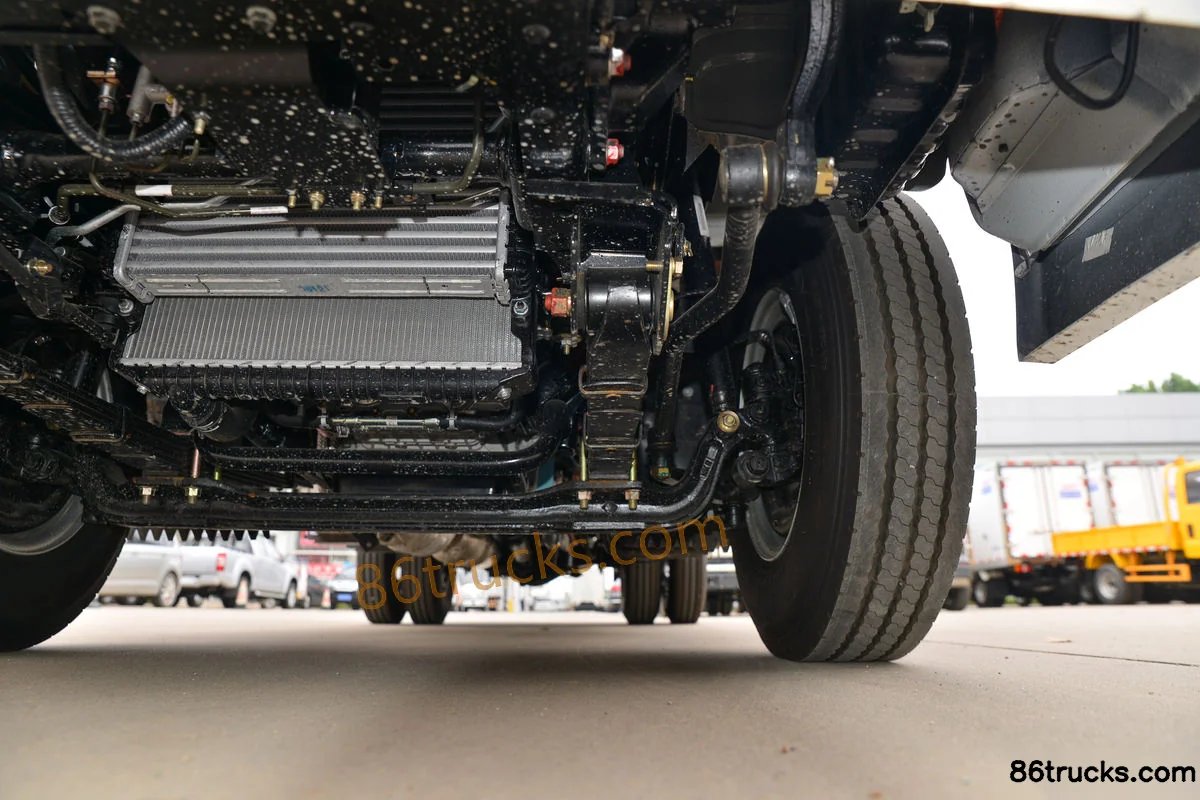

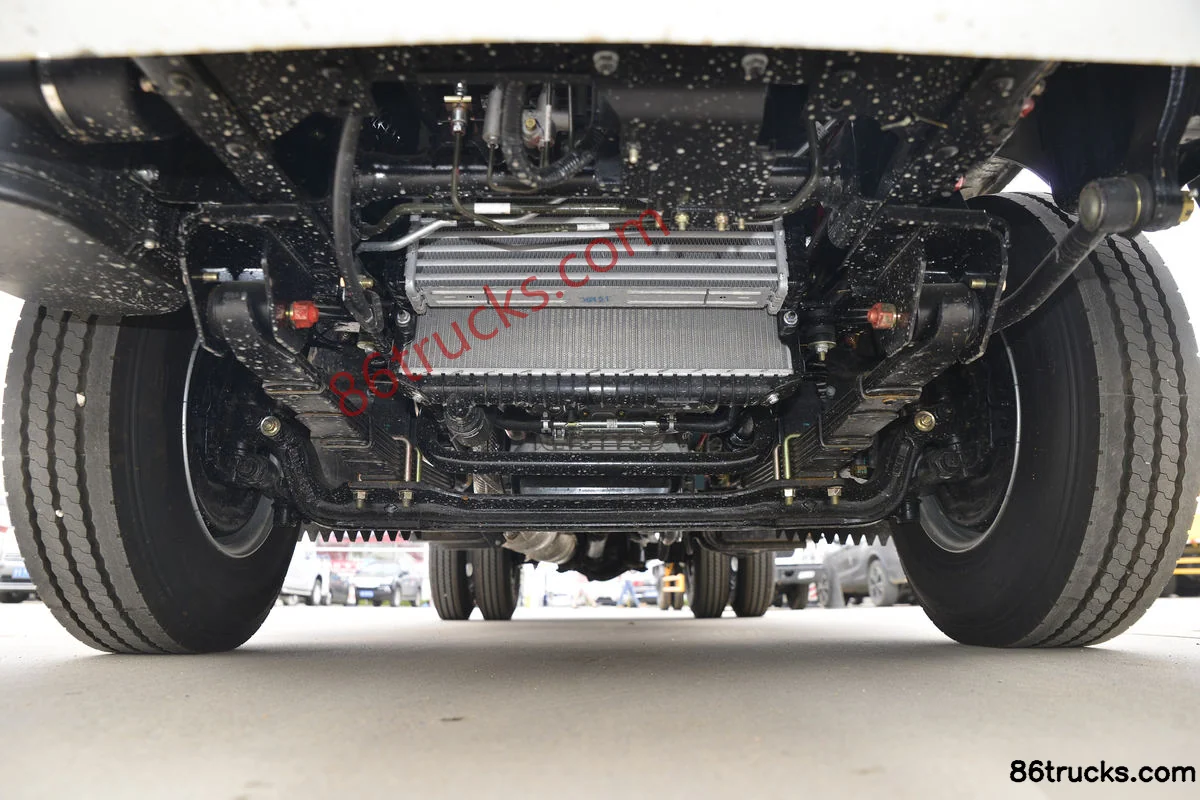

Chassis3

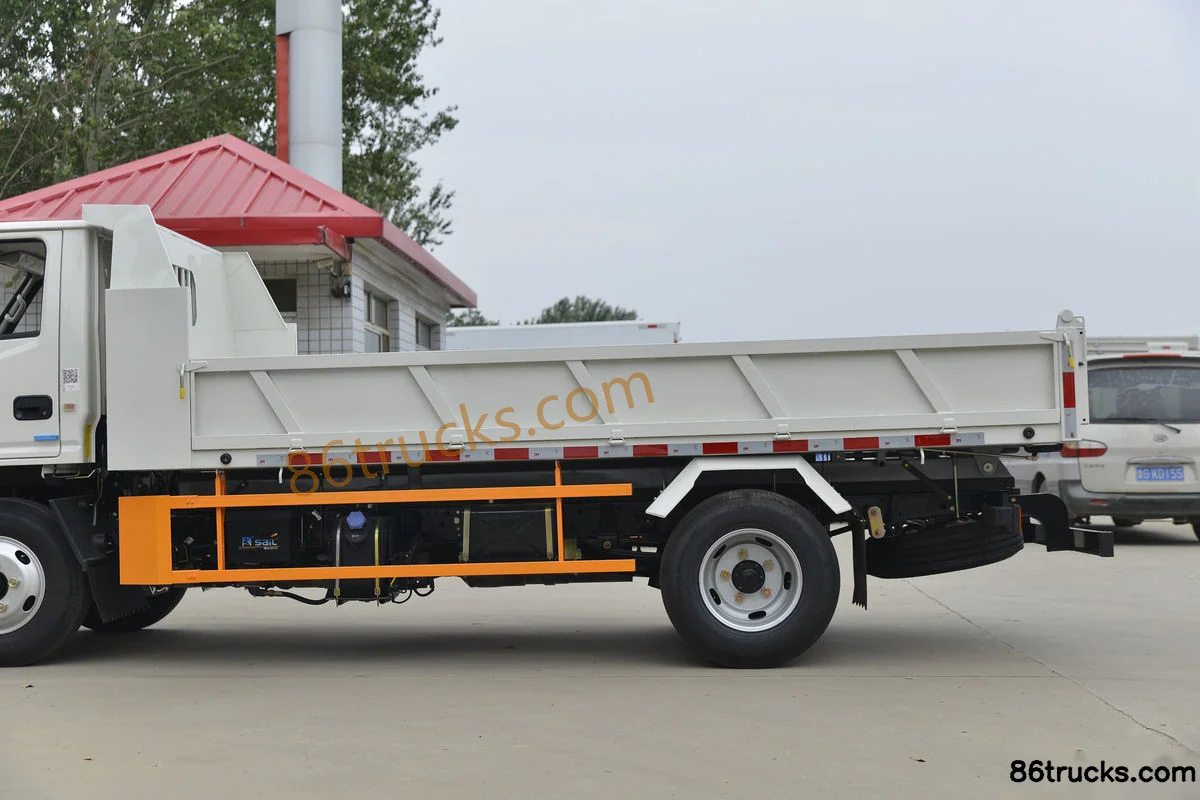

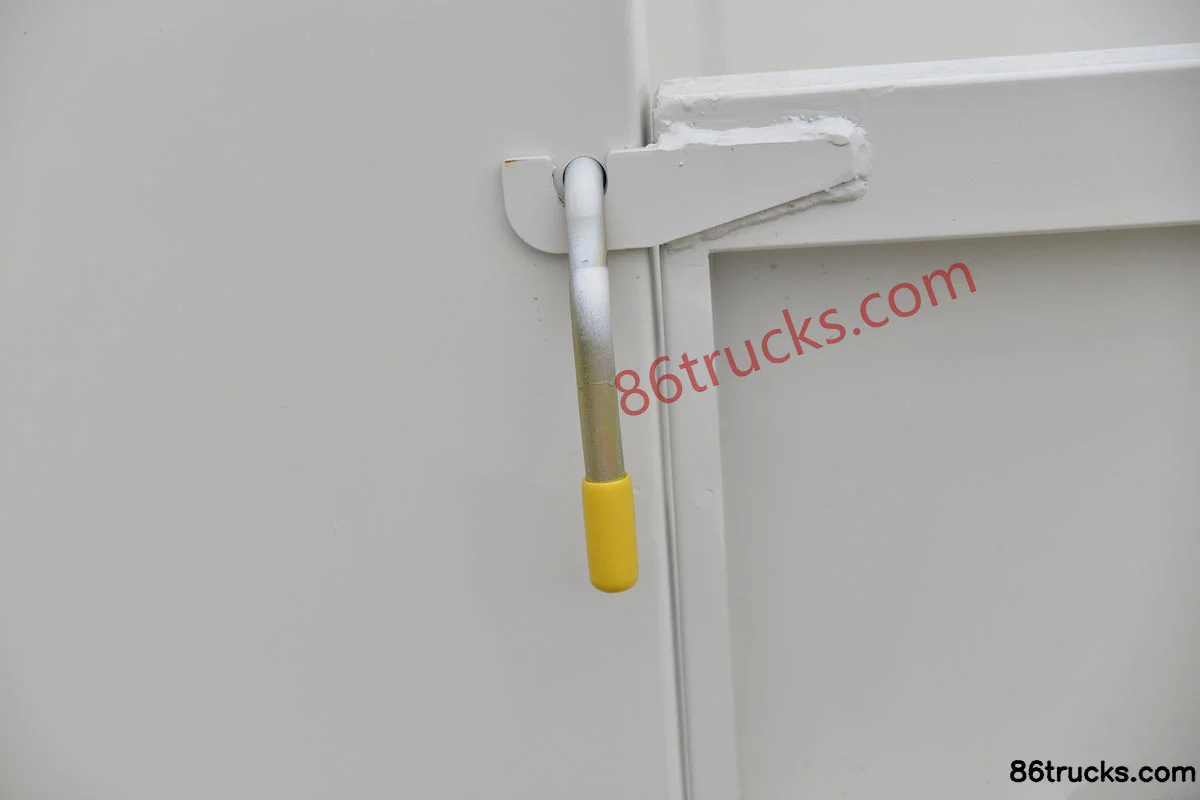

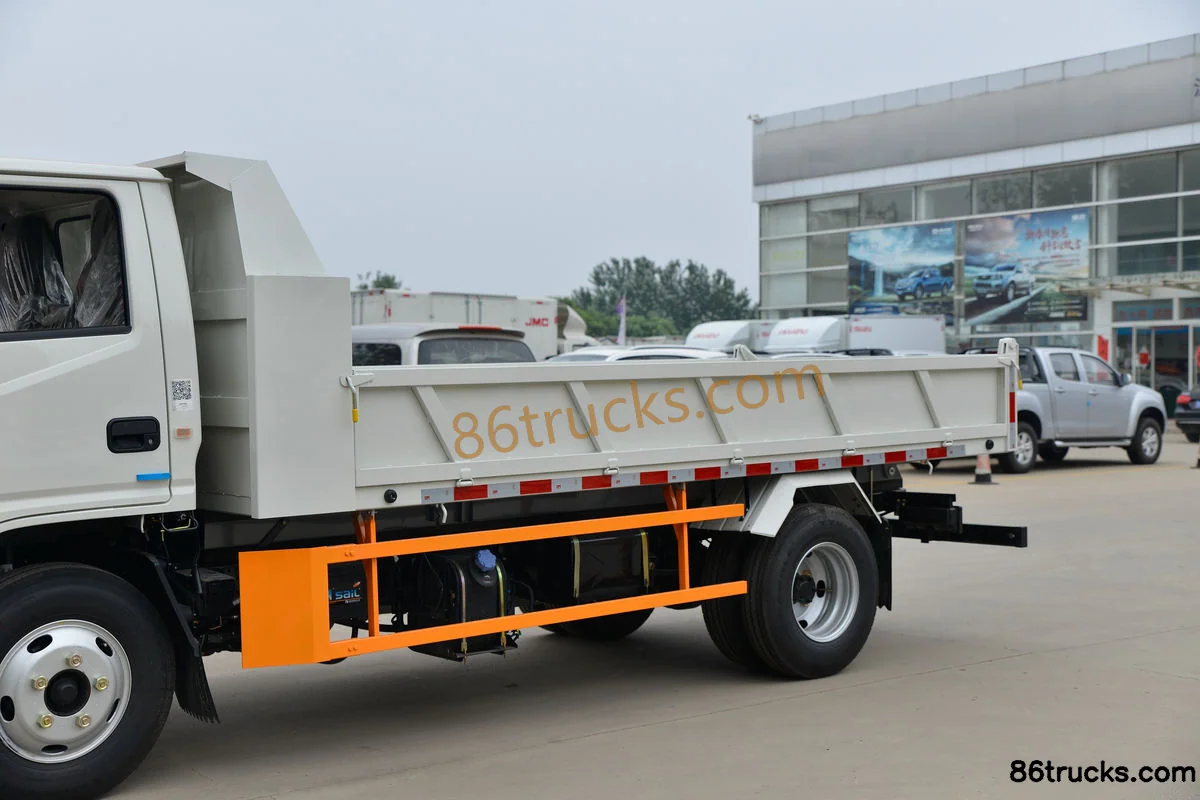

Body3

12 photos

FAQ

What emission standard does JMC New Shunda Narrow Body 116 hp 4X2(6 wheels) 4.14 m dump truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JMC New Shunda Narrow Body 116 hp 4X2(6 wheels) 4.14 m dump truck (China VI)?

Key specs of JMC New Shunda Narrow Body 116 hp 4X2(6 wheels) 4.14 m dump truck (China VI): Drive: 4x2; Horsepower: 116 hp; Emission: China VI; Fuel: Diesel; Transmission: GETRAG. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JMC New Shunda Narrow Body 116 hp 4X2(6 wheels) 4.14 m dump truck (China VI) suited for?

JMC New Shunda Narrow Body 116 hp 4X2(6 wheels) 4.14 m dump truck (China VI) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does JMC New Shunda Narrow Body 116 hp 4X2(6 wheels) 4.14 m dump truck (China VI) differ from other variants in the same series?

JMC New Shunda Narrow Body 116 hp 4X2(6 wheels) 4.14 m dump truck (China VI) belongs to JMC Shunda light truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JMC New Shunda Narrow Body 116 hp 4X2(6 wheels) 4.14 m dump truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JMC New Shunda Narrow Body 116 hp 4X2(6 wheels) 4.14 m dump truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
