Yuejin 103 hp 4X2(6 wheels) Water Sprinkler Truck (Jiangte)

Export reference
MSRP N/A
Curb Weight:: 2.81ton
Emission: China III / Euro III
Fuel: Diesel
Wheelbase:: 3308mm
Cab dimensions:: 5.995×1.95×2.22m
Truck Type:: Water Sprinkler Truck
Tank Dimensions (L×W×H): 3.5×1.1×0.6m
Rated payload: 1.49ton
Drive 4X2 (6 wheels)
Horsepower 103

Overview

The Yuejin 103 hp 4X2(6 wheels) Water Sprinkler Truck (Jiangte) is a water sprinkler truck featuring 3.5×1.1×0.6m tank capacity, 1.49t payload, 1.56m³ volume and 2.81ton GVW. On the powertrain side, it comes with 103 hp, 4X2 (6 wheels) drive, China III / Euro III emissions and Diesel fuel.

China III / Euro III 103 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 5.995×1.95×2.22m
Truck Type: Water Sprinkler Truck
Drive type: 4X2
Wheelbase: 3308mm
Vehicle origin: Suizhou, Hubei
Front track width: 1628mm
rear track: 1586mm
Curb Weight: 2.81ton
Rated payload: 1.49ton
Max. speed: 90km/h
Front/rear suspension: 1.035/1.652m
Energy Type: Diesel
Body Parameters
Tank Dimensions (L×W×H): 3.5×1.1×0.6m
Vehicle certification code: JDF5040GSSY
Body Brand: Jiangte Brand
Others: Product: Water; Density: 1000 kg/m³
Engine parameters
Engine Model: Dachai CA4DC2-10E3
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 3.168L
Emission standard: China III / Euro III
Max output power: 76kW
Max hp: 103Horsepower
Rated speed: 3200rpm
Engine Type: 4-cylinder inline, electronic common rail
Cargo box parameters
Box volume: 1.56m³
Chassis Specs
Chassis Brand: Yuejin
Chassis Model: NJ1042MDA3
Leaf spring count: 11/10+6
Tire
Tire Size: 7.00-16,7.00R16
Number of tires: 6pcs

Photos

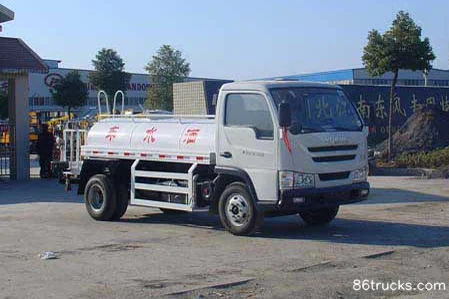

Exterior1

1 photos

FAQ

What emission standard does Yuejin 103 hp 4X2(6 wheels) Water Sprinkler Truck (Jiangte) use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Yuejin 103 hp 4X2(6 wheels) Water Sprinkler Truck (Jiangte)?

Key specs of Yuejin 103 hp 4X2(6 wheels) Water Sprinkler Truck (Jiangte): Drive: 4x2; Horsepower: 103 hp; Emission: China III / Euro III; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Yuejin 103 hp 4X2(6 wheels) Water Sprinkler Truck (Jiangte) suited for?

Yuejin 103 hp 4X2(6 wheels) Water Sprinkler Truck (Jiangte) is a water sprinkler truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Yuejin 103 hp 4X2(6 wheels) Water Sprinkler Truck (Jiangte) differ from other variants in the same series?

Yuejin 103 hp 4X2(6 wheels) Water Sprinkler Truck (Jiangte) belongs to Jiangte Yuejin chassis (water sprinkler truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Yuejin 103 hp 4X2(6 wheels) Water Sprinkler Truck (Jiangte)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Yuejin 103 hp 4X2(6 wheels) Water Sprinkler Truck (Jiangte)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
