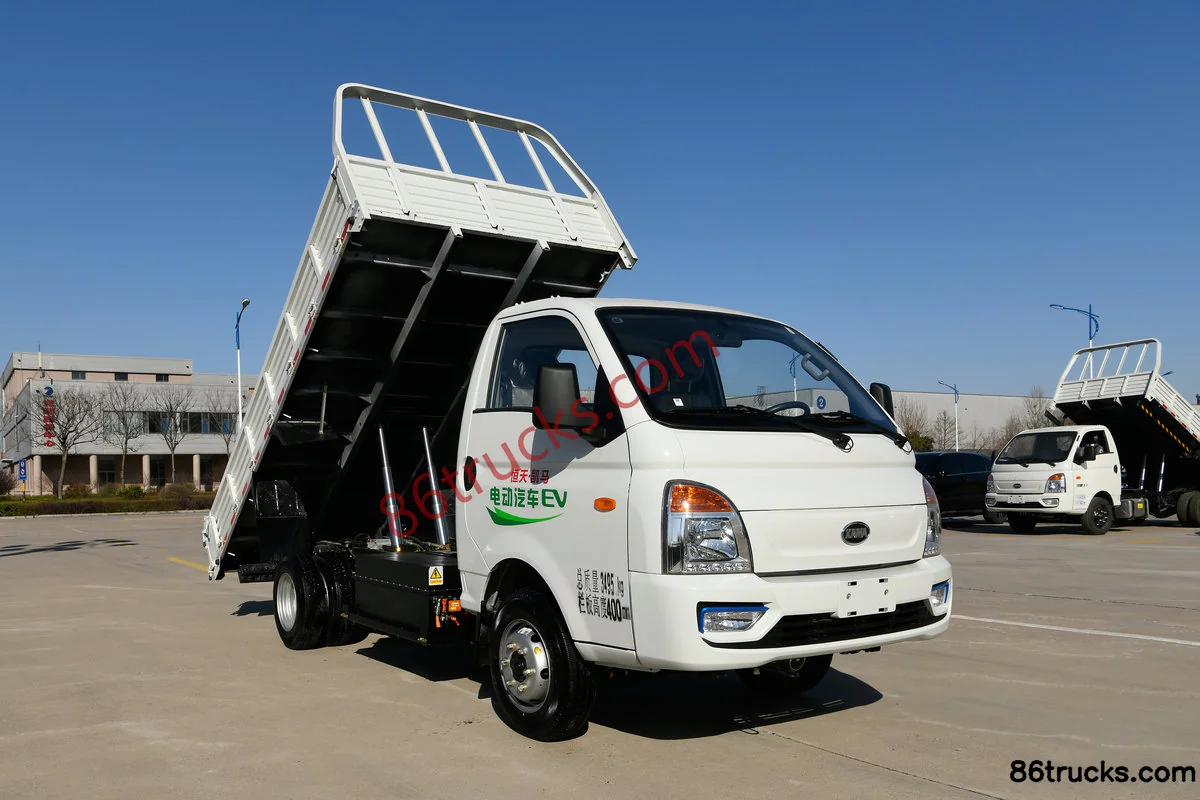

Kama Ruihang EV 3.5T 3.83m Single-row Pure Electric Dump Truck (Width 1.84m) 58.91kWh 4X2(6 wheels)

Export reference
From $24,972
MSRP ¥17.98M CNY
Rated payload:: 0.995ton
Wheelbase:: 3030mm
Cargo box type:: Dump type
Model code (announced):: KMC3033BEVB318X1
Cab length:: 5.88m
GVWR:: 3.495ton
Drive 4X2 (6 wheels)
CLTC range: 280km
Motor 1 Brand: Zhongke Shenjiang
Curb Weight: 2.37ton

Overview

The Kama Ruihang EV 3.5T 3.83m Single-row Pure Electric Dump Truck (Width 1.84m) 58.91kWh 4X2(6 wheels) is a mini truck featuring 280km battery/range, Zhongke Shenjiang motor, 4X2 (6 wheels) drive and 0.995t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): KMC3033BEVB318X1
Drive type: 4X2
Wheelbase: 3030mm
Cab length: 5.88m
Cab width: 1.84m
Cab height: 2.03m
CLTC range: 280km
Curb Weight: 2.37ton
Rated payload: 0.995ton
GVWR: 3.495ton
Max. speed: 80km/h
Origin: Shouguang, Shandong
tonnage class: mini truck
Energy Type: Electric
electric motor
Motor 1 Brand: Zhongke Shenjiang
Motor 1 Model: SJ2103P030-L1
Motor Type: Permanent magnet synchronous motor
total rated power: 30kW
Peak power: 60kW
total peak torque: 220N·m
Electronic Control
ECU Brand: Kama

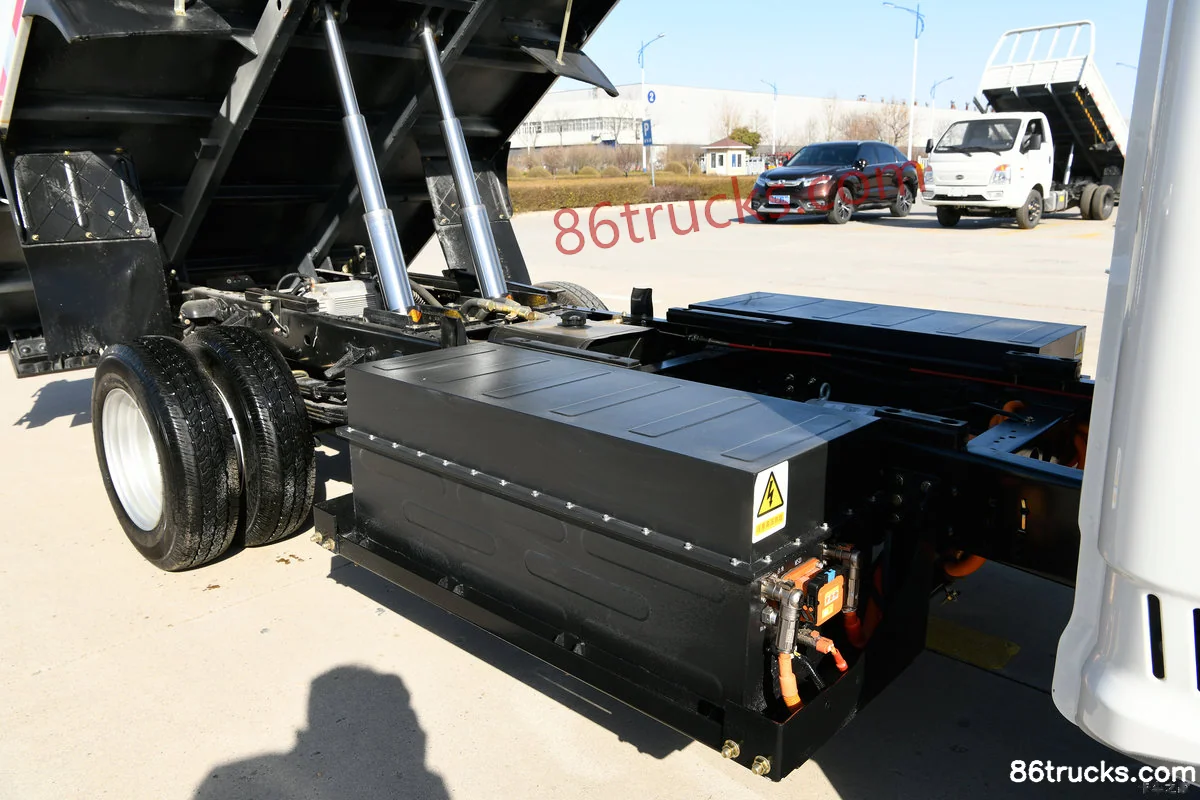

Battery/Charging
Battery Brand: Anchi
Battery type: Lithium-ion battery
Battery capacity: 58.9056kWh
Battery total voltage: 332.8V
Energy Density: 137.96
Battery Model: IFP23140160-59Ah
Cargo box parameters

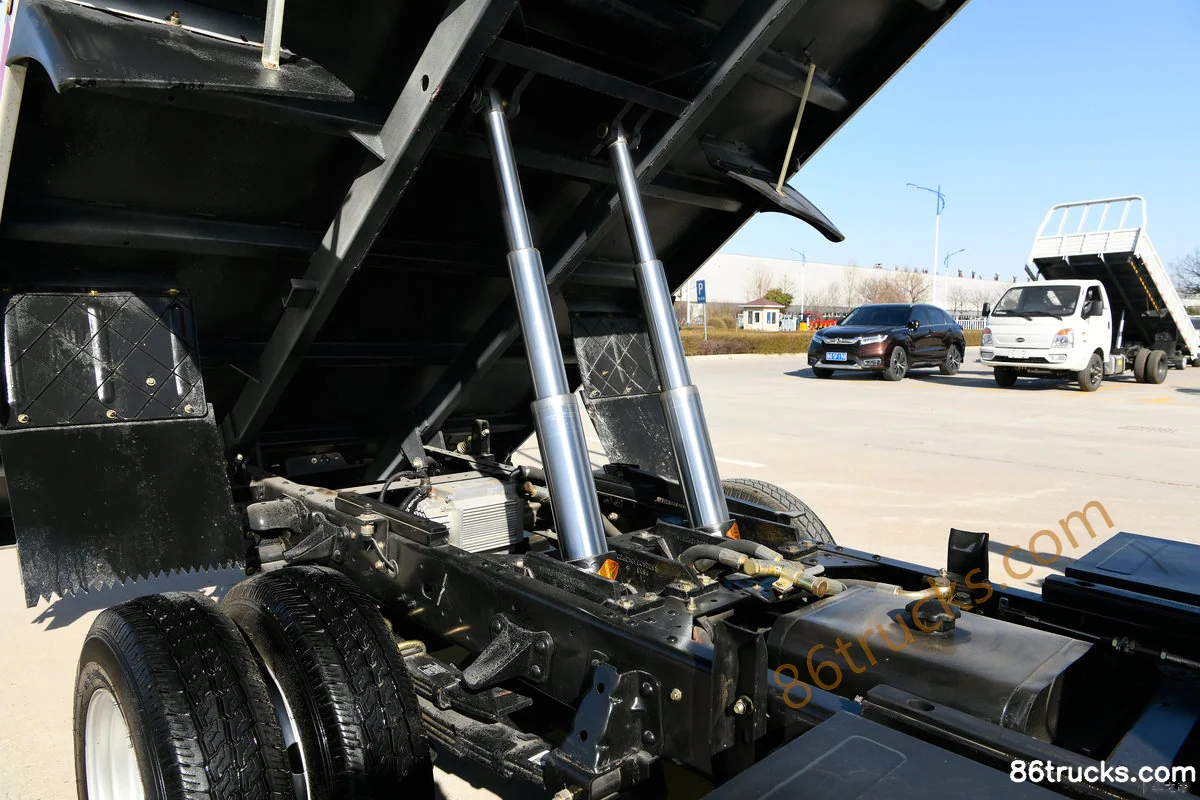

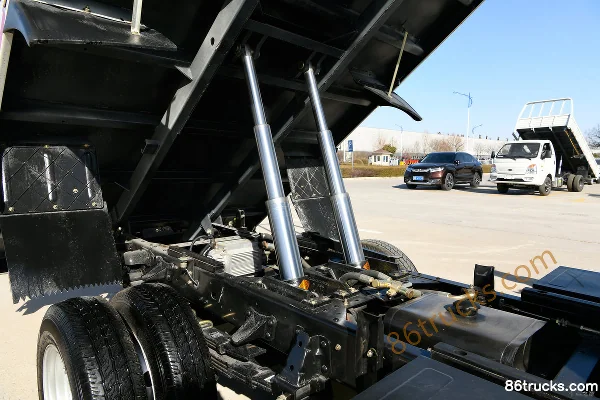

Cargo box type: Dump type
Cargo box length: 3.83m
Cargo box width: 1.86m
Cargo box height: 0.36m
Cab parameters
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1260kg
rear axle allowable load: 2235kg
Tire
Number of tires: 6pcs
Control configuration
ABS:

Photos

Exterior3

Cab2

5 photos

FAQ

What is the export price of Kama Ruihang EV 3.5T 3.83m Single-row Pure Electric Dump Truck (Width 1.84m) 58.91kWh 4X2(6 wheels), and what does it include?

Kama Ruihang EV 3.5T 3.83m Single-row Pure Electric Dump Truck (Width 1.84m) 58.91kWh 4X2(6 wheels) export reference is about From $24,972; MSRP is ¥17.98M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of Kama Ruihang EV 3.5T 3.83m Single-row Pure Electric Dump Truck (Width 1.84m) 58.91kWh 4X2(6 wheels)?

Key specs of Kama Ruihang EV 3.5T 3.83m Single-row Pure Electric Dump Truck (Width 1.84m) 58.91kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Kama Ruihang EV 3.5T 3.83m Single-row Pure Electric Dump Truck (Width 1.84m) 58.91kWh 4X2(6 wheels) suited for?

Kama Ruihang EV 3.5T 3.83m Single-row Pure Electric Dump Truck (Width 1.84m) 58.91kWh 4X2(6 wheels) is a electric dump truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Kama Ruihang EV 3.5T 3.83m Single-row Pure Electric Dump Truck (Width 1.84m) 58.91kWh 4X2(6 wheels) differ from other variants in the same series?

Kama Ruihang EV 3.5T 3.83m Single-row Pure Electric Dump Truck (Width 1.84m) 58.91kWh 4X2(6 wheels) belongs to Kama Ruihang EV (electric dump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Kama Ruihang EV 3.5T 3.83m Single-row Pure Electric Dump Truck (Width 1.84m) 58.91kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Kama Ruihang EV 3.5T 3.83m Single-row Pure Electric Dump Truck (Width 1.84m) 58.91kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
