JMC New Shunda 116hp 4X2(6 wheels) 4.13m refrigerated truck

Export reference
MSRP N/A
Emission: China VI
Fuel: Diesel
Curb Weight:: 3.12ton
Wheelbase:: 3360mm
Tire Size:: 7.00R16LT 10PR
Cab dimensions:: 5.995×2.05×3.05m
Rated payload: 1.245ton
Drive 4X2 (6 wheels)
Cargo box dimensions: 4.13×1.88×1.86m
Horsepower 116

Overview

The JMC New Shunda 116hp 4X2(6 wheels) 4.13m refrigerated truck is a Refrigerated Truck featuring 4.13×1.88×1.86m cargo body, 1.245t payload, 5.995×2.05×3.05m cab and 3360mm wheelbase. On the powertrain side, it comes with 116 hp, 4X2 (6 wheels) drive, China VI emissions and Diesel fuel.

China VI 116 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 5.995×2.05×3.05m
Drive type: 4X2
Vehicle origin: Nanchang, Jiangxi
Wheelbase: 3360mm
Front track width: 1400mm
rear track: 1425mm
Curb Weight: 3.12ton
Rated payload: 1.245ton
Max. speed: 100km/h
Front/rear suspension: 1.075/1.56m
Energy Type: Diesel
Engine parameters
Engine Model: JMCJX4D30B6H
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.892L
Emission standard: China VI
Max output power: 85kW
Max hp: 116Horsepower
Cargo box parameters
Cargo box dimensions: 4.13×1.88×1.86m
Cargo box width: 1.88m
Cargo box height: 1.86m
Body Parameters
Vehicle certification code: JX5041XLCTG26
Chassis Specs
Chassis Brand: JMC
Chassis Series: New Shunda
Chassis Model: JX1041TG26
Leaf spring count: 5/3+4
Transmission Parameters
Number of gears: 5Gear
Transmission Model: Getrag 5MT1280S
Tire
Tire Size: 7.00R16LT 10PR
Number of tires: 6pcs

Photos

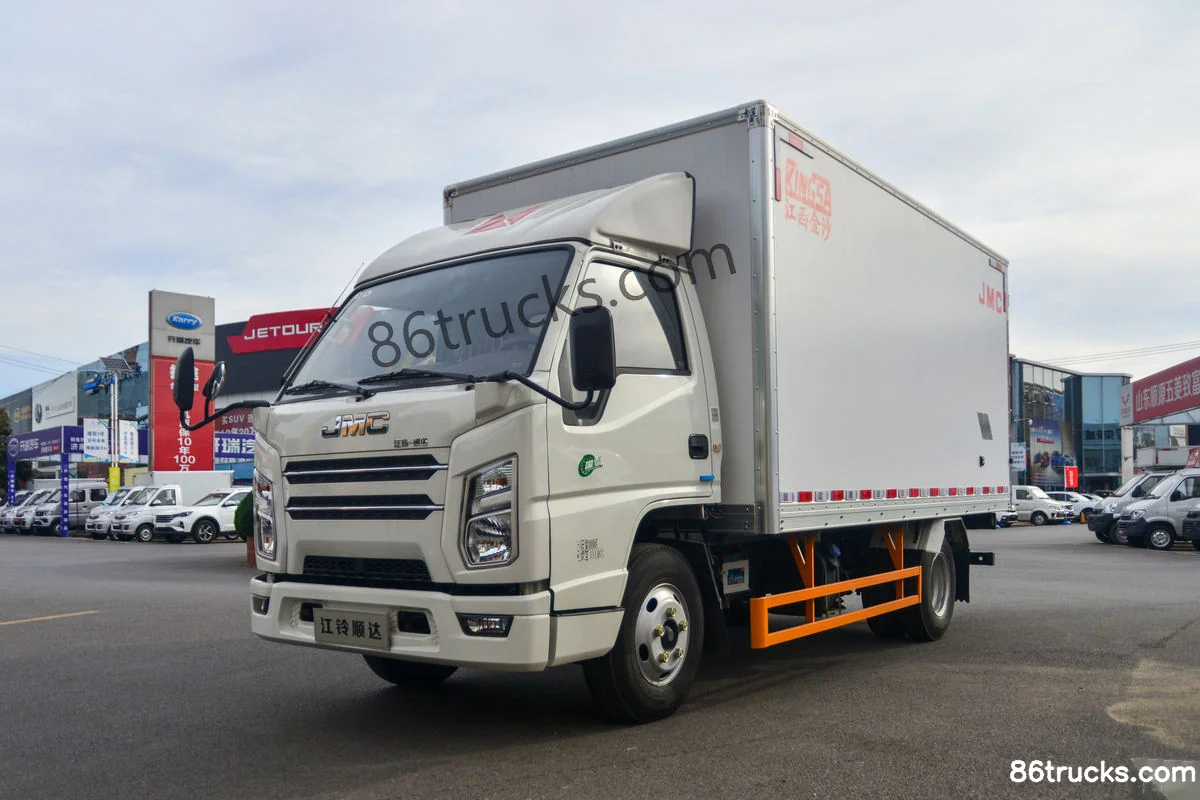

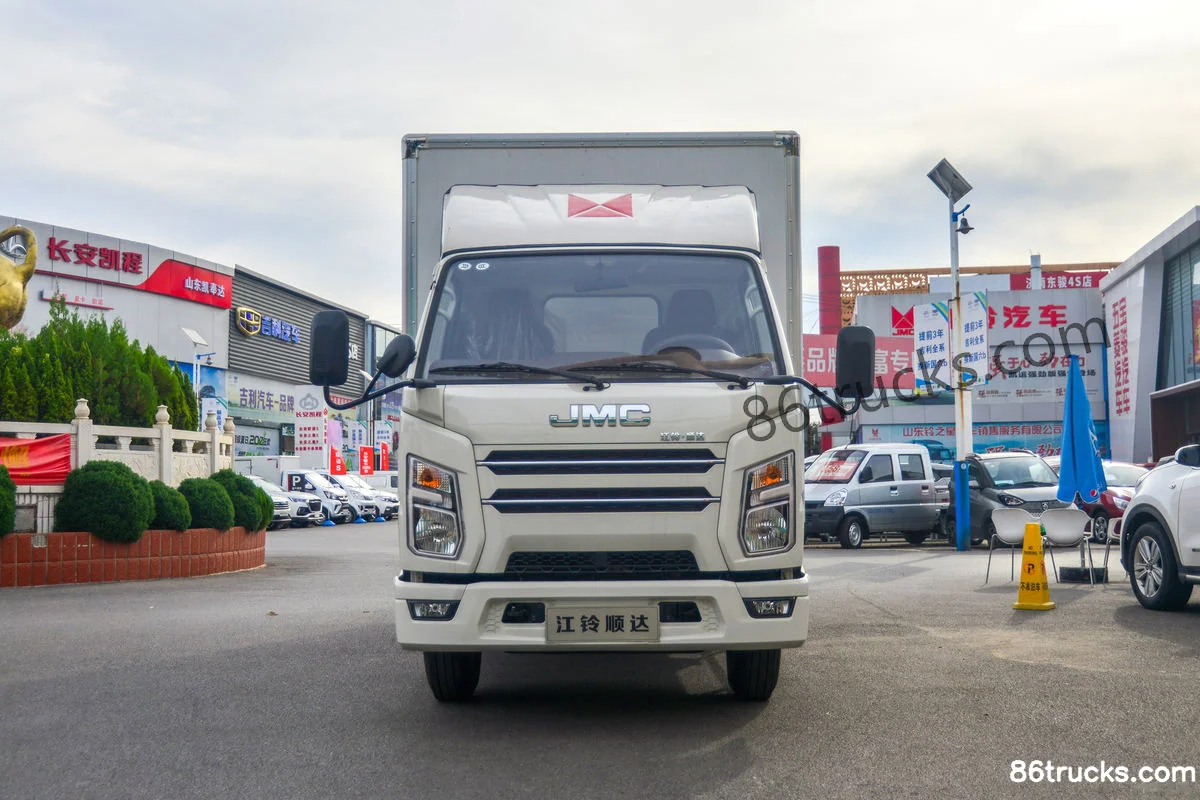

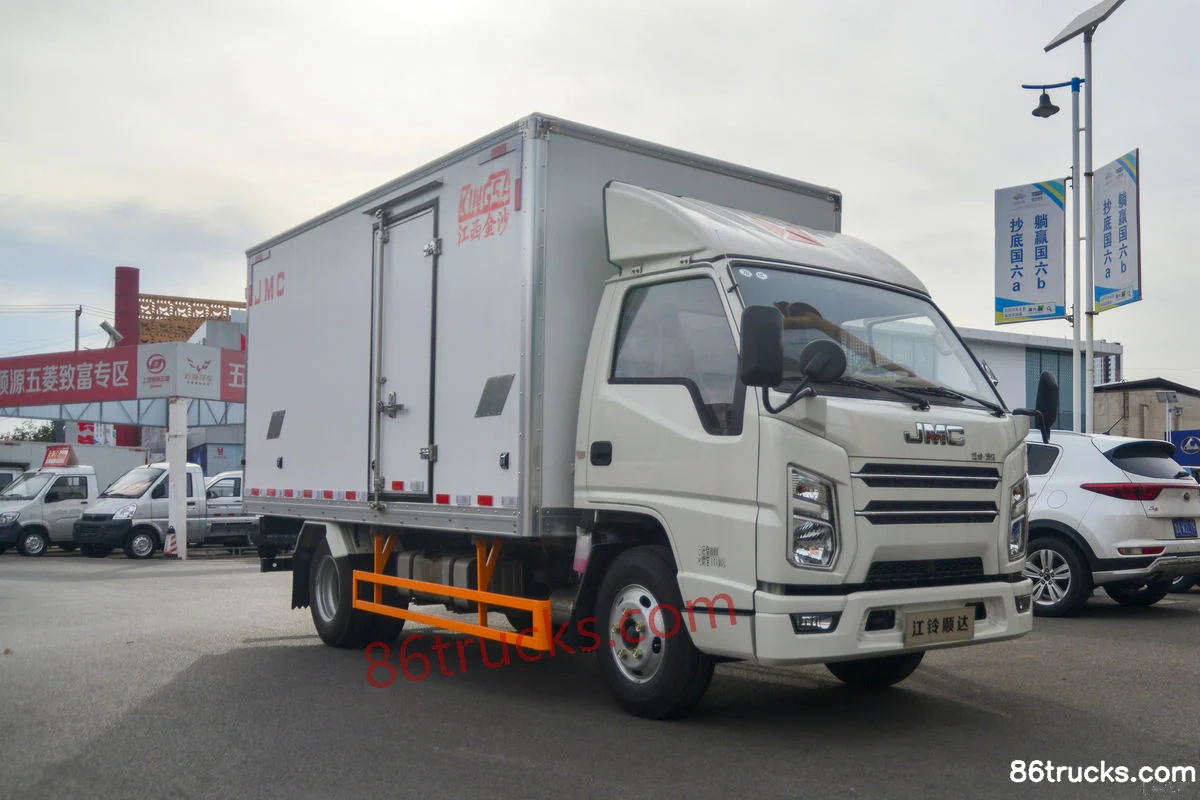

Exterior3

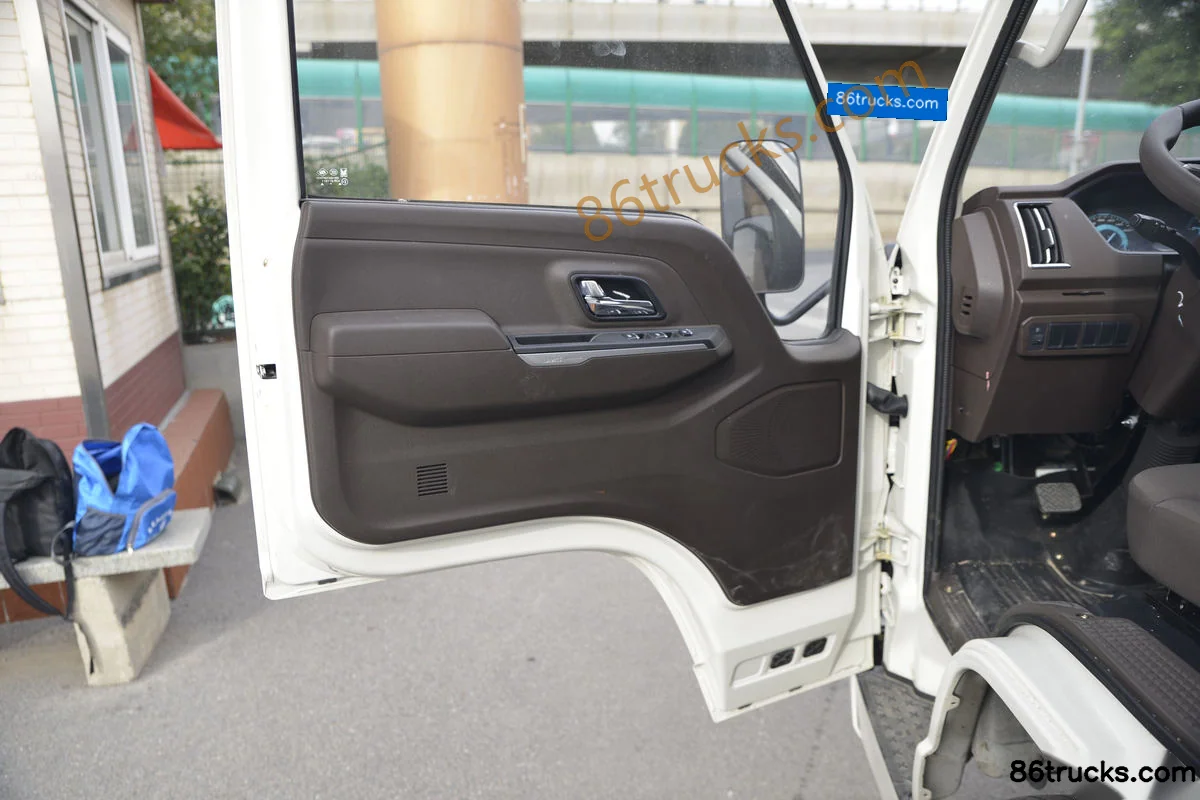

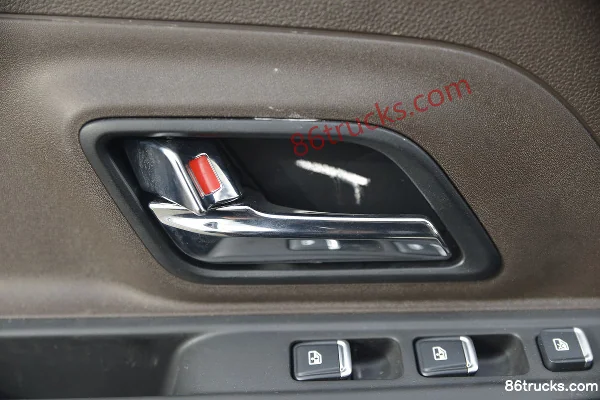

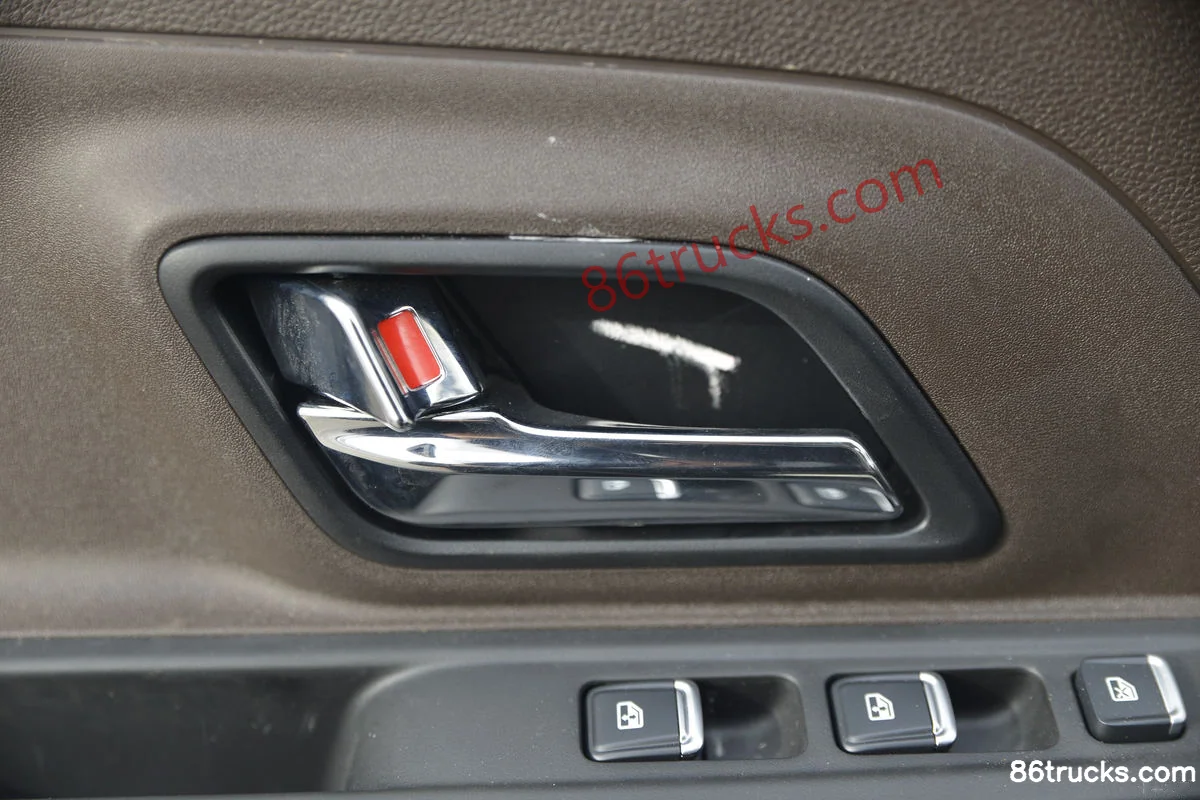

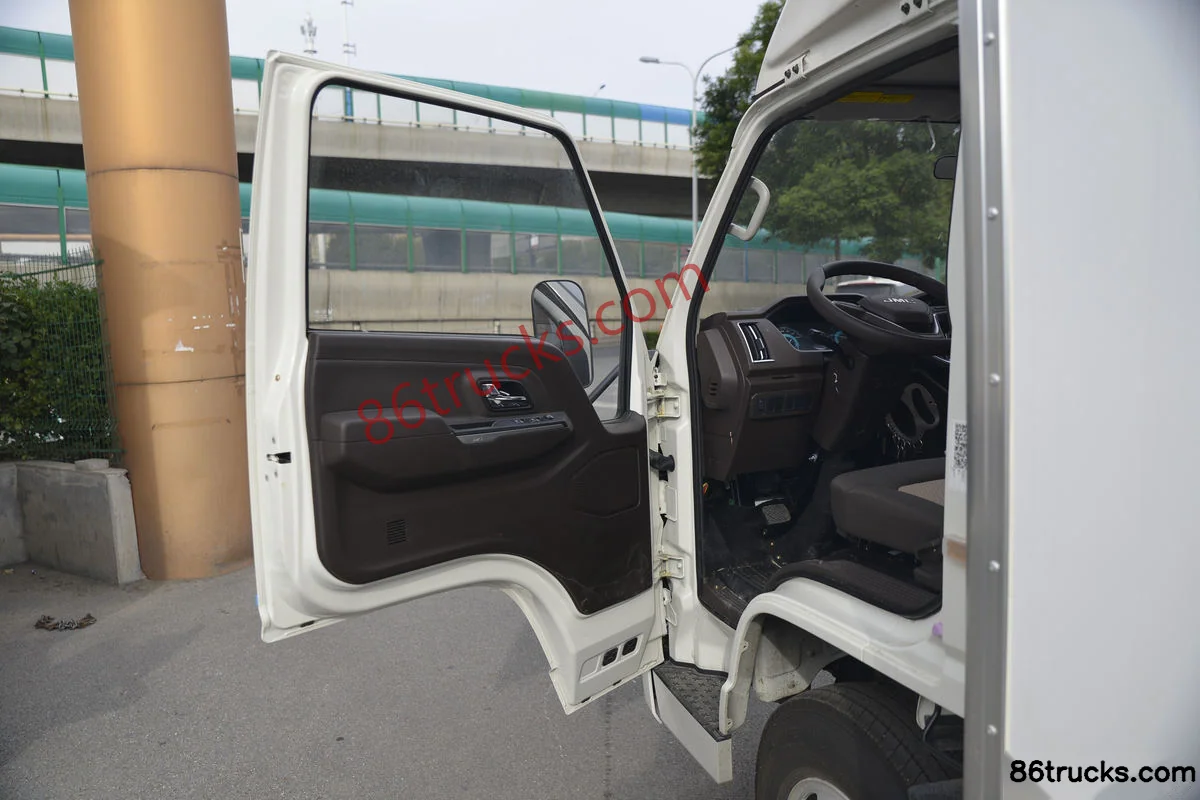

Cab3

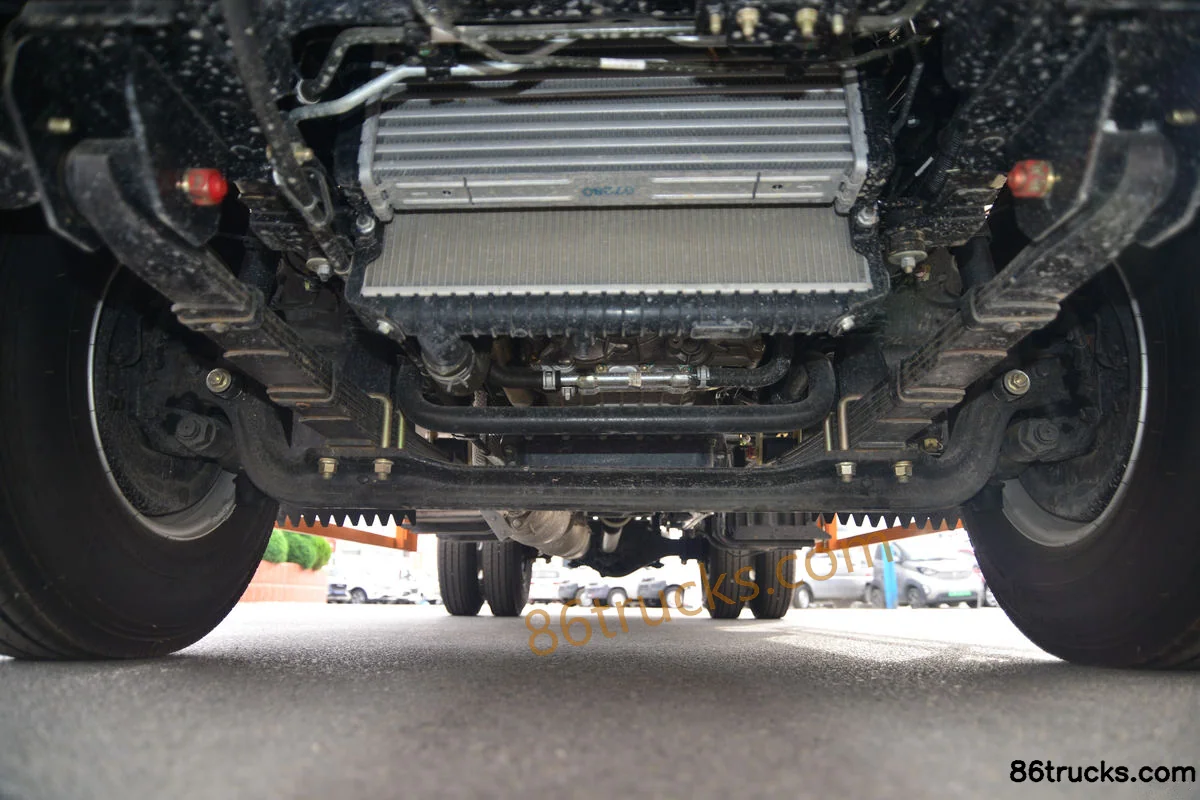

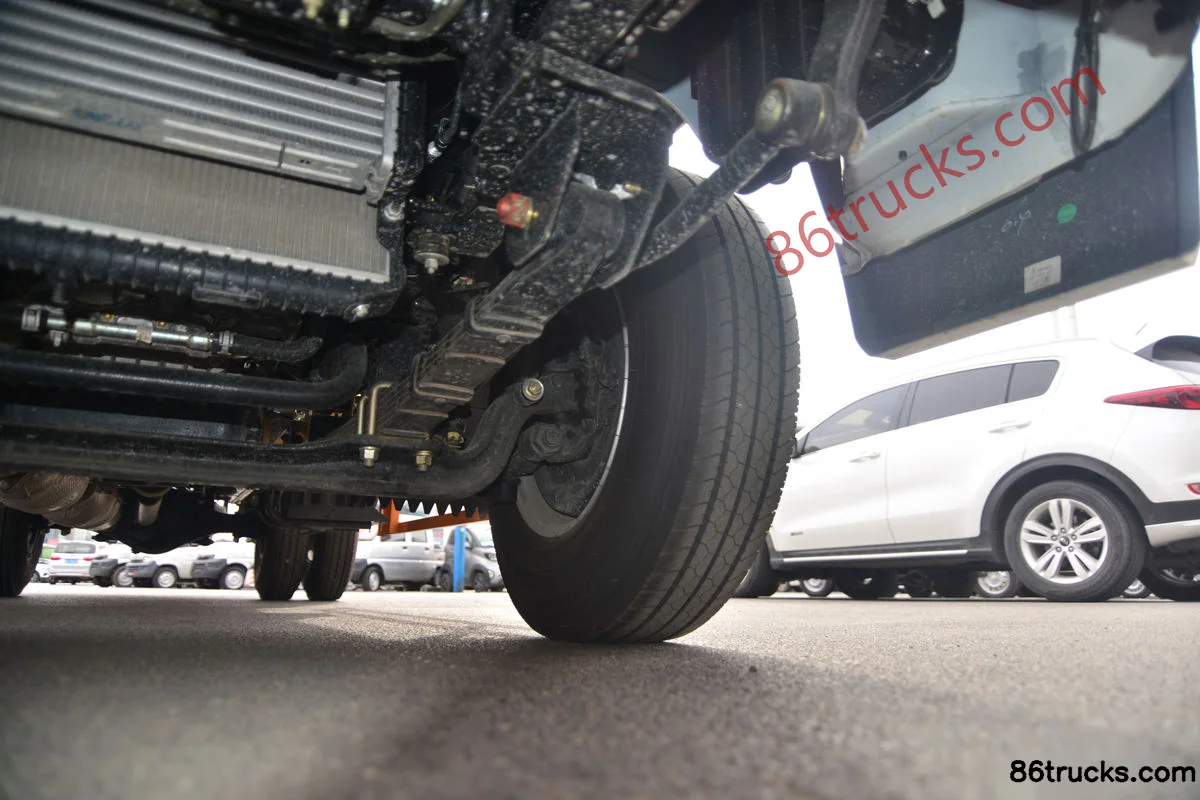

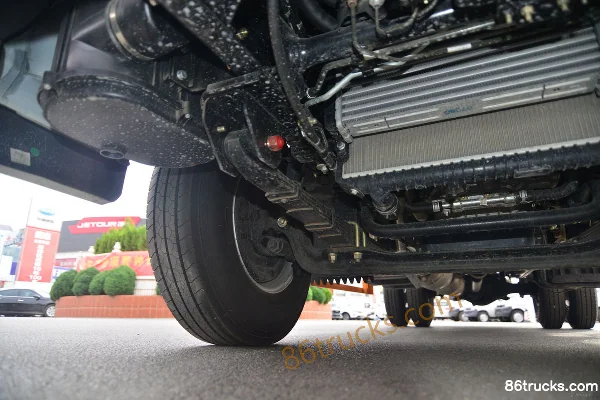

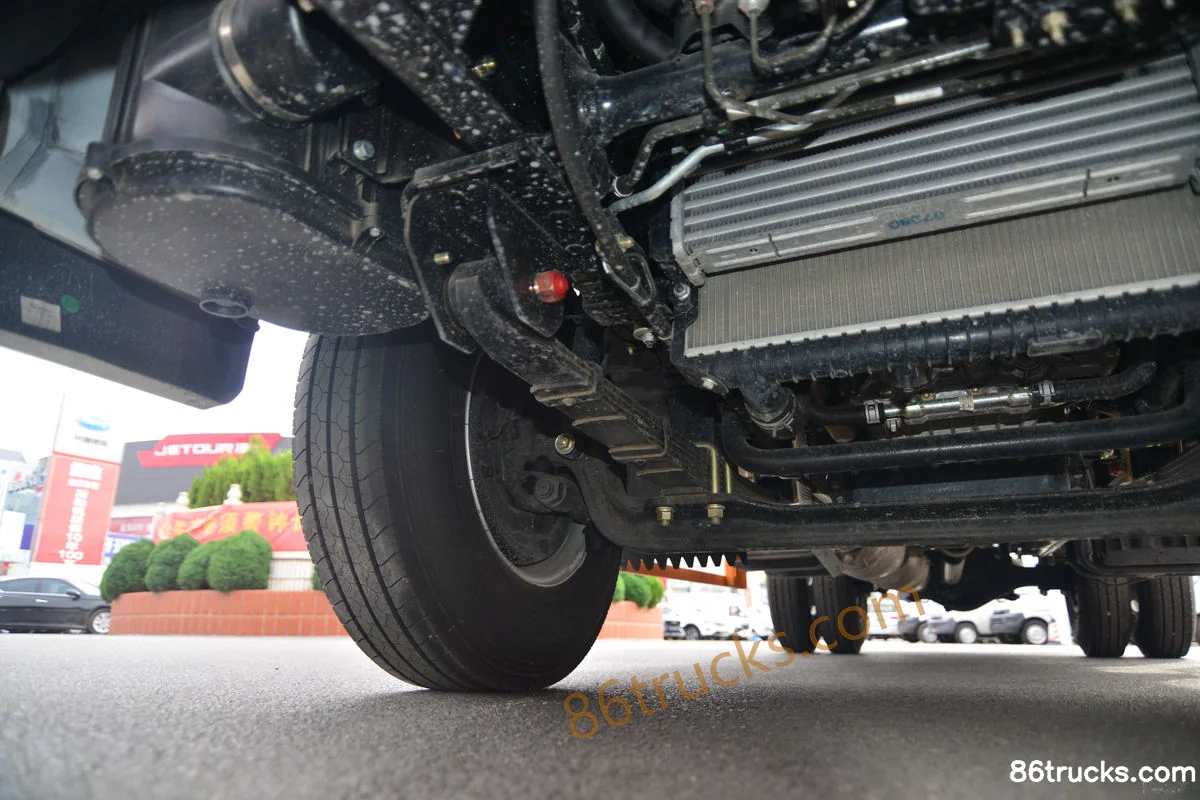

Chassis3

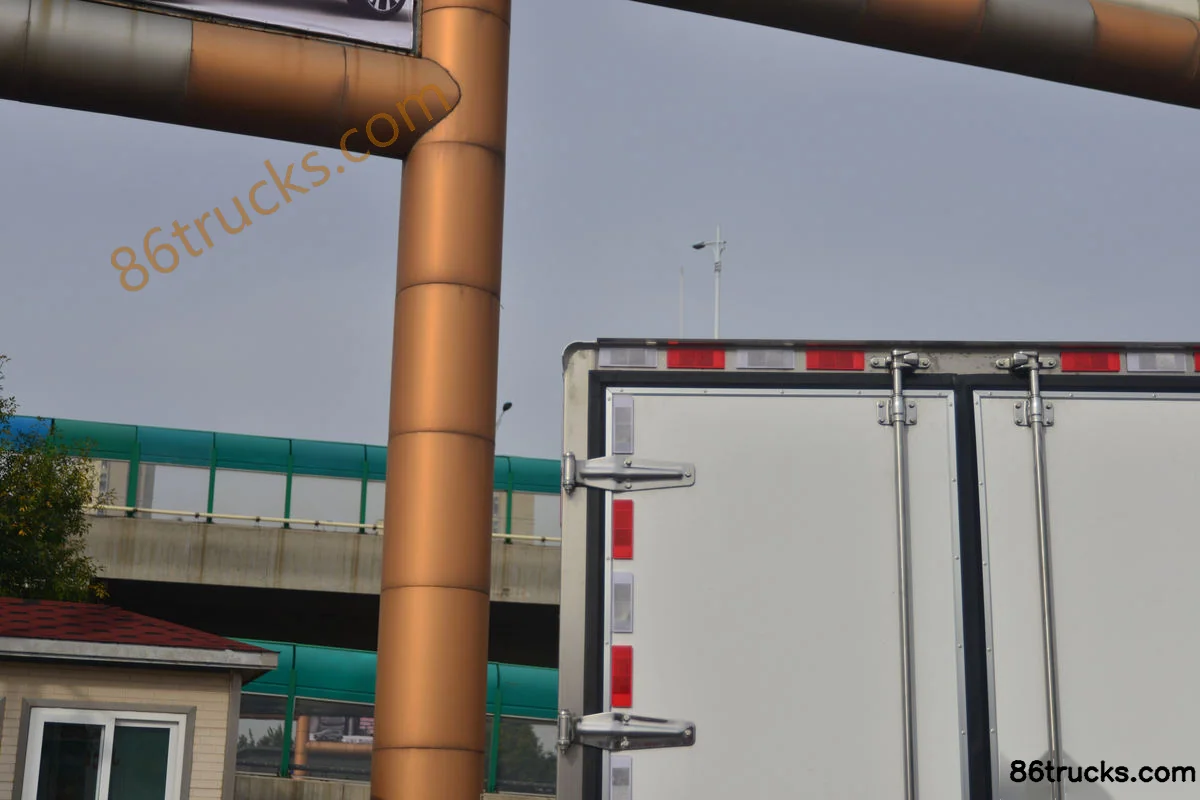

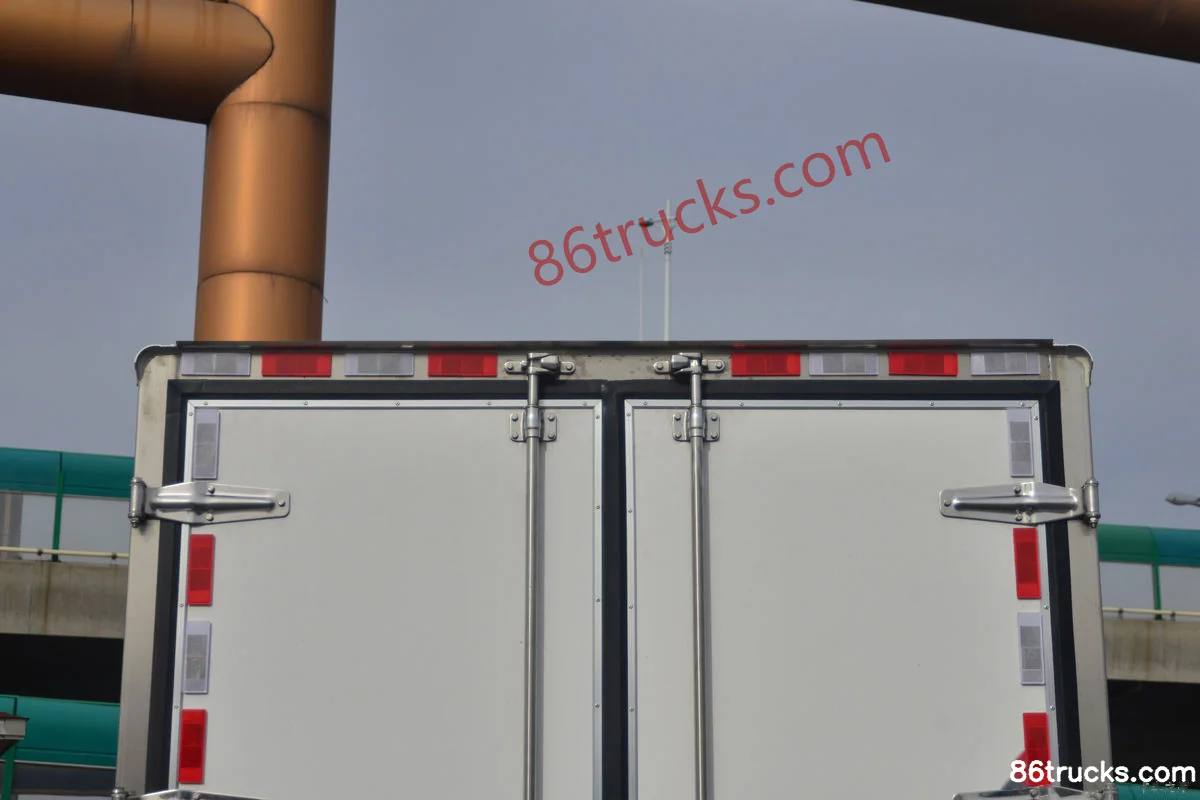

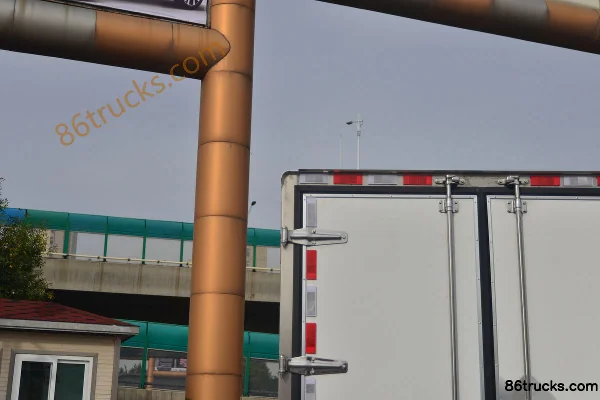

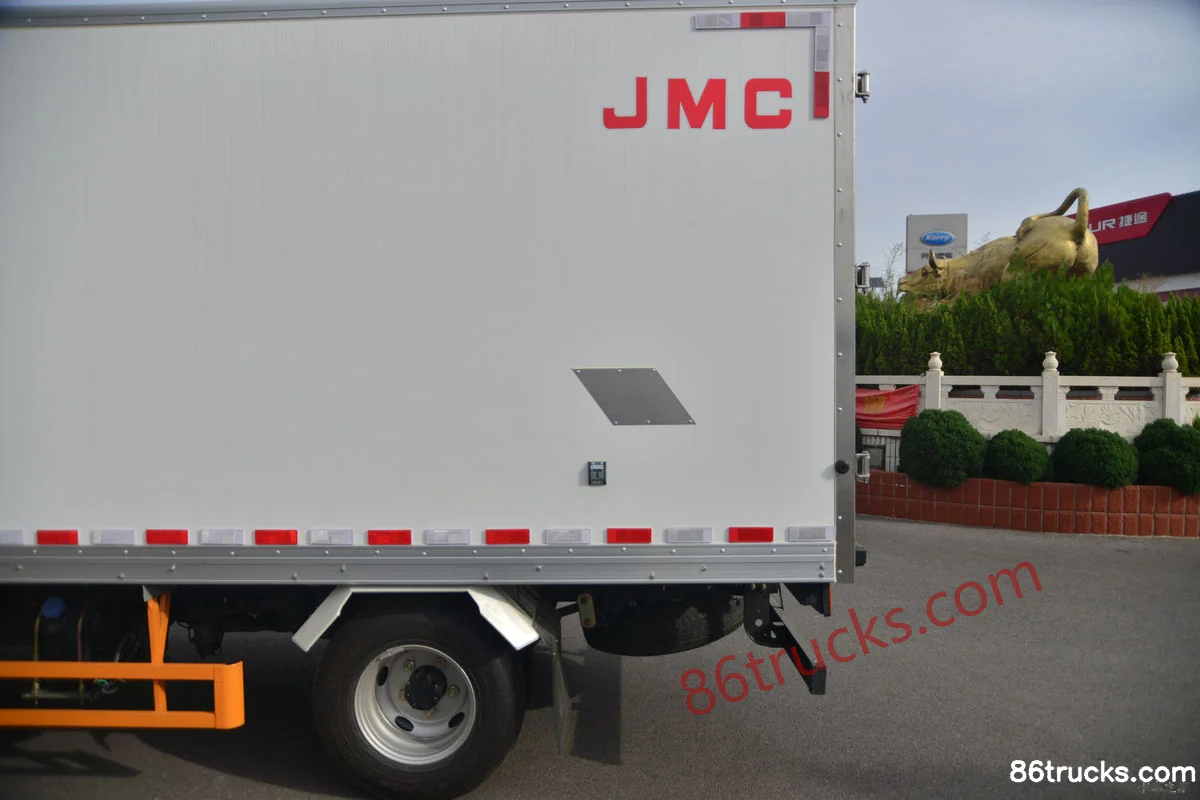

Body3

12 photos

FAQ

What emission standard does JMC New Shunda 116hp 4X2(6 wheels) 4.13m refrigerated truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JMC New Shunda 116hp 4X2(6 wheels) 4.13m refrigerated truck?

Key specs of JMC New Shunda 116hp 4X2(6 wheels) 4.13m refrigerated truck: Drive: 4x2; Horsepower: 116 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JMC New Shunda 116hp 4X2(6 wheels) 4.13m refrigerated truck suited for?

JMC New Shunda 116hp 4X2(6 wheels) 4.13m refrigerated truck is a Refrigerated Truck model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JMC New Shunda 116hp 4X2(6 wheels) 4.13m refrigerated truck differ from other variants in the same series?

JMC New Shunda 116hp 4X2(6 wheels) 4.13m refrigerated truck belongs to JMC Shunda light truck (Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JMC New Shunda 116hp 4X2(6 wheels) 4.13m refrigerated truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JMC New Shunda 116hp 4X2(6 wheels) 4.13m refrigerated truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
