SHACMAN Delong X3000 336hp 8X4(12 wheels) fuel tank truck (Chusheng brand)

Export reference
From $45,694
MSRP ¥32.9M CNY
Curb Weight:: 14.035ton
Emission: China V
Fuel: Diesel
Wheelbase:: 1800+4375+1350mm
Cab dimensions:: 11.99×2.5×3.72m
Truck Type:: Fuel tanker truck
Tank Size: 9×2.2×1.58m
Rated payload: 16.835ton
Drive 8X4 (12 wheels)
Horsepower 336

Overview

The SHACMAN Delong X3000 336hp 8X4(12 wheels) fuel tank truck (Chusheng brand) is a fuel tanker truck featuring 9×2.2×1.58m tank capacity, 16.835t payload, 27.2m³ volume and 14.035ton GVW. On the powertrain side, it comes with 336 hp, 8X4 (12 wheels) drive, China V emissions and Diesel fuel.

China V 336 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 11.99×2.5×3.72m
Truck Type: Fuel tanker truck
Drive type: 8X4
Wheelbase: 1800+4375+1350mm
Vehicle origin: Suizhou, Hubei
Front track width: 2011/2011mm
rear track: 1860/1860mm
Curb Weight: 14.035ton
Rated payload: 16.835ton
Max. speed: 80km/h
Front/rear suspension: 1.525/2.94m
Energy Type: Diesel
Body Parameters
Tank Size: 9×2.2×1.58m
Tank Volume: 27.2m3
Transport medium: Diesel/Kerosene/Gasoline
Medium Density: 0.83ton/cubic meter
Vehicle certification code: CSC5310GYYSX5A
Body Brand: Chusheng Brand
Others: Density: 830/800/700 kg/m³
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP9H336E50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 8.8L
Emission standard: China V
Max output power: 247kW
Max hp: 336Horsepower
Max torque: 1600N·m
Max torque speed: 1000-1400rpm
Rated speed: 1900rpm
Engine Type: Electronic high-pressure common rail + SCR
Chassis Specs
Chassis Brand: SHACMAN
Chassis Series: Delong X3000
Chassis Model: SX5310GYYXB6
Axle ratio: 4.111
Leaf spring count: 3/3/5
Transmission Parameters
Number of gears: 12Gear
Transmission Model: Fast Gear12JSD160T
Tire
Tire Size: 12R22.5,295/80R22.5
Number of tires: 12pcs

Photos

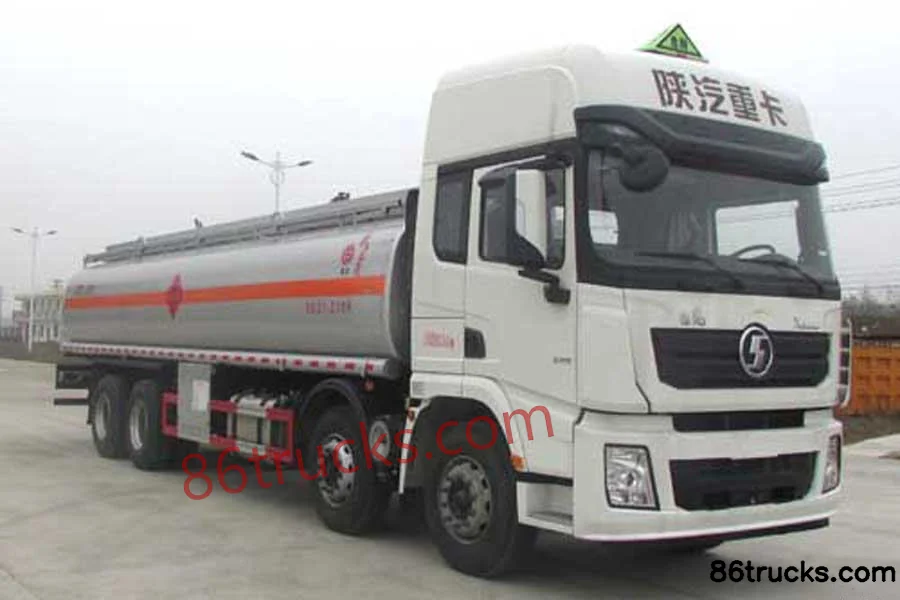

Exterior1

1 photos

FAQ

What is the export price of SHACMAN Delong X3000 336hp 8X4(12 wheels) fuel tank truck (Chusheng brand), and what does it include?

SHACMAN Delong X3000 336hp 8X4(12 wheels) fuel tank truck (Chusheng brand) export reference is about From $45,694; MSRP is ¥32.9M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does SHACMAN Delong X3000 336hp 8X4(12 wheels) fuel tank truck (Chusheng brand) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Delong X3000 336hp 8X4(12 wheels) fuel tank truck (Chusheng brand)?

Key specs of SHACMAN Delong X3000 336hp 8X4(12 wheels) fuel tank truck (Chusheng brand): Drive: 8x4; Horsepower: 336 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Delong X3000 336hp 8X4(12 wheels) fuel tank truck (Chusheng brand) suited for?

SHACMAN Delong X3000 336hp 8X4(12 wheels) fuel tank truck (Chusheng brand) is a fuel tanker truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does SHACMAN Delong X3000 336hp 8X4(12 wheels) fuel tank truck (Chusheng brand) differ from other variants in the same series?

SHACMAN Delong X3000 336hp 8X4(12 wheels) fuel tank truck (Chusheng brand) belongs to Chusheng SHACMAN chassis (fuel tanker truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Delong X3000 336hp 8X4(12 wheels) fuel tank truck (Chusheng brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Delong X3000 336hp 8X4(12 wheels) fuel tank truck (Chusheng brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
