SHACMAN Delong New M3000 340 hp 8X4(12 wheels) Aluminum Alloy Oil Tank Truck (Chusheng Brand)
EXW
From $47,792
Export quote
Chusheng SHACMAN chassis fuel tanker truck
Main model photos
43 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| SHACMAN Delong New M3000 340 hp 8X4(12 wheels) Aluminum Alloy Oil Tank Truck (Chusheng Brand) | 8x4 / 340hp / China V | From $47,792 | |
| SHACMAN Delong New M3000 336 hp 8X4(12 wheels) Aluminum Alloy Oil Tank Truck (Chusheng Brand) | 8x4 / 336hp / China V | From $50,764 | |
| SHACMAN Delong X3000 336hp 8X4(12 wheels) fuel tank truck (Chusheng brand) | 8x4 / 336hp / China V | From $45,694 | |
| SHACMAN Delong New M3000 336hp 8X4(12 wheels) Oil Tanker Truck (Chusheng Brand) | 8x4 / 336hp / China V | From $42,917 | |
| SHACMAN Delong X3000 336hp 8X4(12 wheels) fuel tank truck (Chusheng brand) | 8x4 / 336hp / China V | From $45,694 |
SHACMAN Delong New M3000 336 hp 8X4(12 wheels) Aluminum Alloy Oil Tank Truck (Chusheng Brand)
EXW
From $50,764
Export quote

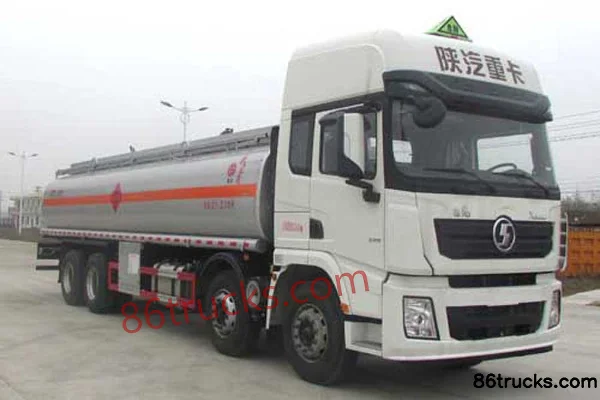

SHACMAN Delong X3000 336hp 8X4(12 wheels) fuel tank truck (Chusheng brand)
EXW
From $45,694
Export quote

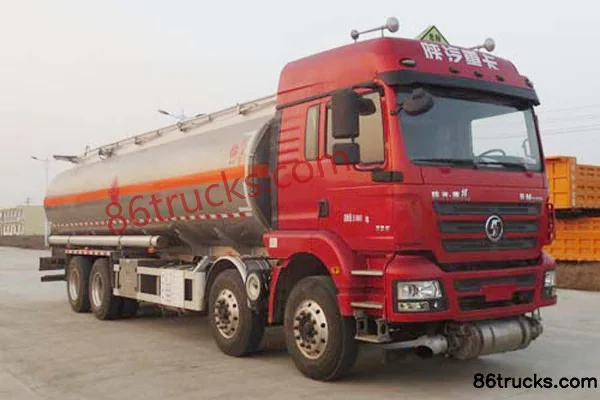

SHACMAN Delong New M3000 336hp 8X4(12 wheels) Oil Tanker Truck (Chusheng Brand)
EXW
From $42,917
Export quote
SHACMAN Delong X3000 336hp 8X4(12 wheels) fuel tank truck (Chusheng brand)
EXW
From $45,694
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| SHACMAN Delong New M3000 220hp 6X2(8 wheels) Oil Tank Truck (Chusheng Brand) | 6x2 / 220hp / China IV |
Series Specs
Basic Info
Cab dimensions: 11.71×2.55×3.5 / 11.99×2.5×3.72 / 11.99×2.5×3.66 / 11.99×2.5×3.5 / 9.99×2.49×3.36 / 10.5×2.5×3.3 / 11.99×2.49×3.66 / 8.5×2.48×3.25 / 10.3×2.49×3.36m
Truck Type: aluminum fuel tanker truck / Fuel tanker truck
Drive type: 8X4 / 6X4 / 6X2 / 4X2
Wheelbase: 1800+4575+1350 / 1800+4375+1350 / 4375+1350 / 1800+4600 / 3800mm
Vehicle origin: Suizhou, Hubei
Front track width: 2070/2070 / 2011/2011 / 2011 / 2050/2050 / 1927mm
rear track: 1860/1860 / 1860mm
Curb Weight: 11.665 / 14.035 / 11.47 / 12.67 / 10.105 / 25 / 11.8 / 7ton
Rated payload: 20.205 / 16.835 / 19.4 / 18.2 / 14.765 / 15.67 / 19.07 / 10.87 / 13.4ton
Max. speed: 80 / 79km/h
Front/rear suspension: 1.525/2.46 / 1.525/2.94 / 1.525/2.74 / 1.485/2.615 / 1.34/2.46 / 1.485/2.415m
Energy Type: Diesel
Body Parameters
Tank Size: 8.8×2.45×1.75 / 9×2.2×1.58 / 9.2×2.45×1.7 / 9.2×2.46×1.76 / 7.2×2.45×1.75 / 7.5×2.45×1.75 / 9×2.46×1.76 / 5.8×2.45×1.65m
Tank Volume: 30.3 / 27.2 / 29 / 22 / 23.4 / 28.5 / 16.2m3
Transport medium: gasoline / Diesel/Kerosene/Gasoline
Medium Density: 0.7 / 0.83ton/cubic meter
Vehicle certification code: CSC5320GYYLSMV / CSC5310GYYSX5A / CSC5310GYYLS5 / CSC5310GYYSX5 / CSC5250GYYS5 / CSC5256GYYLS / CSC5310GYYS5 / CSC5180GYYLS / CSC5251GYYS
Body Brand: Chusheng Brand
Others: Density: 830/800/700 kg/m³
Engine parameters
Engine Brand: Weichai / Yuchai
Engine Model: WeichaiWP8.340E51 / WeichaiWP9H336E50 / WeichaiWP7.300E51 / WeichaiWP6.220E50 / YuchaiYC4EG185-50 / WeichaiWP6.220E40
Number of cylinders: 6 / 4cylinder
Displacement: 7.8 / 8.8 / 7.47 / 6.75 / 4.73L
Emission standard: China V / China IV
Max output power: 250 / 247 / 220 / 162 / 136kW
Max hp: 340 / 336 / 300 / 220 / 185Horsepower
Max torque: 1400 / 1600 / 1250 / 850 / 700N·m
Max torque speed: 1200-1700 / 1000-1400 / 1200-1600 / 1300-1800 / 1400-1600rpm
Rated speed: 2100 / 1900 / 2300 / 2500rpm
Engine Type: High-pressure common rail+EGR / Electronic high-pressure common rail + SCR / BOSCH high-pressure common rail
Chassis Specs
Chassis Brand: SHACMAN
Chassis Series: Delong New M3000 / Delong X3000 / Delong M3000 / Delong L3000
Chassis Model: SX5320GYYMB6 / SX5310GYYXB6 / SX5310GYYMB6 / SX5250GYYMB4 / SX5256GYYMJ469 / SX1180LA1 / SX1256GK549
Frame Dimensions: 850×270(8)mm
rear axle description: MAN 11T single-reduction
Axle ratio: 4.875 / 4.111 / 4.625 / 4.266
Leaf spring count: 3/3/-/-,2/2/-/-,10/10/-/-,14/14/-/- / 3/3/5 / 10/12 / 3/3/4+3 / 10/9+6 / 3/3/10+6
Transmission Parameters
Number of gears: 10 / 12 / 8 / 9Gear
Transmission Model: Fast Gear10JSD140TB / Fast Gear12JSD160TA / Fast Gear12JSD160T / Fast Gear8JS85E / Fast Gear9JS135A
Cab parameters
Cab: Delong New M3000 Standard Narrow Cab
FAQ
What kind of truck is Chusheng Chusheng SHACMAN chassis fuel tanker truck?
Chusheng Chusheng SHACMAN chassis is an export-oriented fuel tanker truck lineup with about 12 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Chusheng SHACMAN chassis fuel tanker truck?
Chusheng SHACMAN chassis fuel tanker truck export reference is about $23,611 – $50,764. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Chusheng SHACMAN chassis fuel tanker truck cover?
Chusheng SHACMAN chassis fuel tanker truck mainly covers: Drive: 6x2 / 8x4; Horsepower: 220 hp / 336 hp / 340 hp; Emission: China IV / China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Chusheng SHACMAN chassis fuel tanker truck?
For Chusheng SHACMAN chassis fuel tanker truck: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is fuel tanker truck typically used for?
fuel tanker truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Chusheng SHACMAN chassis fuel tanker truck include?
Chusheng SHACMAN chassis fuel tanker truck currently lists about 12 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Chusheng SHACMAN chassis fuel tanker truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
