King Long Kaiwo New D10 2022 Model 3.2T 2-Seat 5.3m Electric Cargo Van 41.86kWh

Export reference
From $27,500
MSRP ¥19.8M CNY
Wheelbase:: 2890mm
Cargo Box Height:: 1.375
Model code (announced):: NJL5036XXYEV1
Cab length:: 5.3m
GVWR:: 3.16ton
Max. speed:: 90km/h
CLTC range: 245km
Motor 1 Brand: King Long
Curb Weight: 1.7ton
Rated payload: 1.135ton

Overview

The King Long Kaiwo New D10 2022 Model 3.2T 2-Seat 5.3m Electric Cargo Van 41.86kWh is a Electric Panel Van featuring 245km battery/range, King Long motor, 1.135t payload and 1.375 cargo length.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): NJL5036XXYEV1
Wheelbase: 2890mm
Cab length: 5.3m
Cab width: 1.7m
Cab height: 1.98m
CLTC range: 245km
Curb Weight: 1.7ton
Rated payload: 1.135ton
GVWR: 3.16ton
Max. speed: 90km/h
Energy Type: Electric
electric motor
Motor 1 Brand: King Long
Motor 1 Model: TZ180XSH23
Max torque: 230N·m
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 35kW
Peak power: 70kW
Battery/Charging
Charging method: DC fast charge / 3.3kW AC slow charge
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 41.86kWh
Chassis Specs
steering assist type: Electric power steering
Front suspension type: Independent suspension
rear suspension type: Leaf spring
Body Parameters
Cab structure: Load-bearing
Seat count: 2Seats
Door Parameters
Number of Doors: 4
side door type: Single-side manual center sliding door
Body parameters
Max body depth: 3.275
Max body width: 1.565
Cargo Box Height: 1.375
Wheel brake
Front brake type: Disc brake
rear brake type: drum brake
Front tire specification: 195/70R15LT 10PR
Rear Wheel Specification: 195/70R15LT 10PR
Cab parameters
Seat rows:
Safety features
Seat belt reminder:
Remote key:
Central door lock:
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Seat material: Fabric
Multimedia features
Radio:
lighting configuration
Front fog lamp:
Headlight height adjustment:

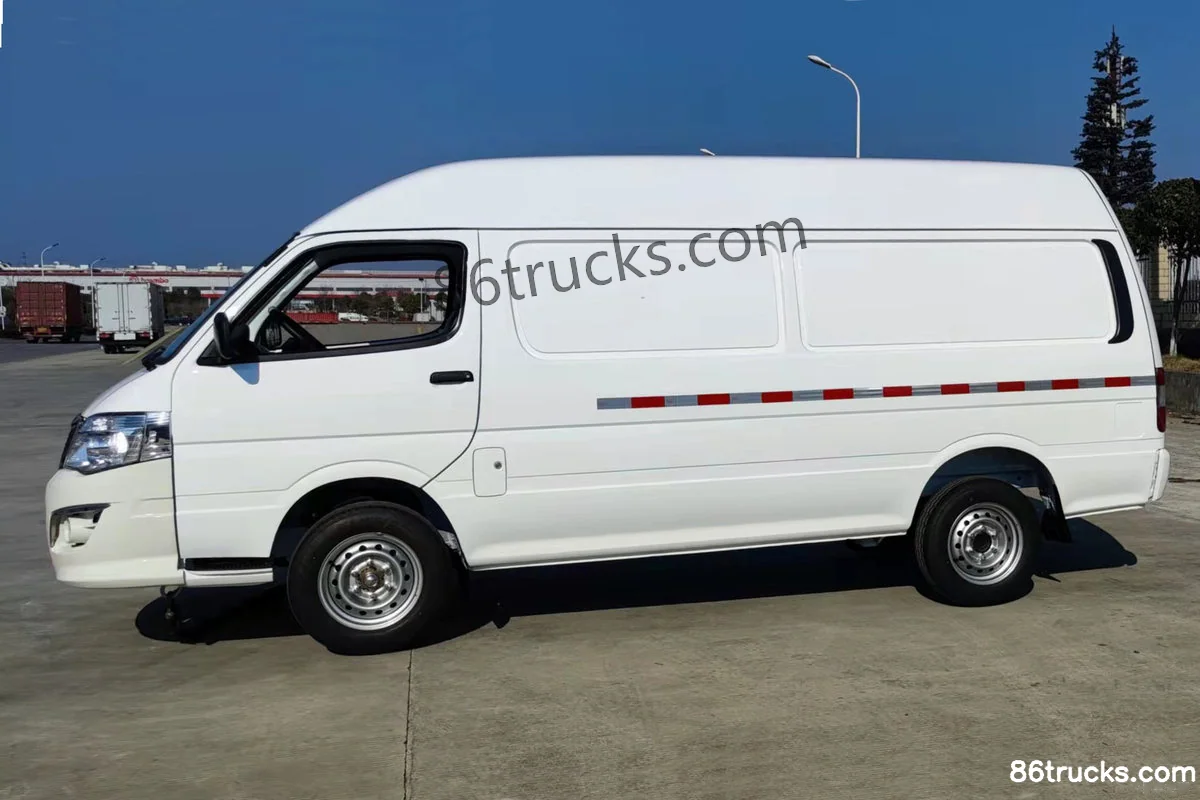

Photos

Exterior3

3 photos

FAQ

What is the export price of King Long Kaiwo New D10 2022 Model 3.2T 2-Seat 5.3m Electric Cargo Van 41.86kWh, and what does it include?

King Long Kaiwo New D10 2022 Model 3.2T 2-Seat 5.3m Electric Cargo Van 41.86kWh export reference is about From $27,500; MSRP is ¥19.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is King Long Kaiwo New D10 2022 Model 3.2T 2-Seat 5.3m Electric Cargo Van 41.86kWh suited for?

King Long Kaiwo New D10 2022 Model 3.2T 2-Seat 5.3m Electric Cargo Van 41.86kWh is a Electric Panel Van model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does King Long Kaiwo New D10 2022 Model 3.2T 2-Seat 5.3m Electric Cargo Van 41.86kWh differ from other variants in the same series?

King Long Kaiwo New D10 2022 Model 3.2T 2-Seat 5.3m Electric Cargo Van 41.86kWh belongs to King Long Skyworth D10 (Electric Panel Van). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for King Long Kaiwo New D10 2022 Model 3.2T 2-Seat 5.3m Electric Cargo Van 41.86kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export King Long Kaiwo New D10 2022 Model 3.2T 2-Seat 5.3m Electric Cargo Van 41.86kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
