Hyundai Commercial Vehicle Hongtu EV 4.5T 4.13m Single Row Pure Electric Box Van 89kWh 4X2(6 wheels)

Export reference
MSRP N/A
Rated payload:: 1.39ton
Wheelbase:: 3300mm
Cargo box type:: Van body
Model code (announced):: CHM5041XXYZDC33BEV
Type:: enclosed cargo truck
Box length class:: 4.2m
Hyundai Commercial Vehicle Hongtu EV 4.5T 4.13m Single Row Pure Electric Box Van 89kWh 4X2(6 wheels) exterior
View more photos (12)
Drive 4X2 (6 wheels)
CLTC range: 230km
Motor 1 Brand: Inovance
Curb Weight: 2.91ton

Overview

The Hyundai Commercial Vehicle Hongtu EV 4.5T 4.13m Single Row Pure Electric Box Van 89kWh 4X2(6 wheels) is a Light Truck featuring 230km battery/range, Inovance motor, 4X2 (6 wheels) drive and 1.39t payload.

4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): CHM5041XXYZDC33BEV
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3300mm
Box length class: 4.2m
Cab length: 5.995m
Cab width: 2/2.16/2.24/2.28/2.04m
Cab height: 2.8/3.1/3.2m
CLTC range: 230km
Curb Weight: 2.91ton
Rated payload: 1.39ton
GVWR: 4.495ton
Max. speed: 92km/h
Origin: Ziyang, Sichuan
tonnage class: Light Truck
Energy Type: Electric
electric motor
Motor 1 Brand: Inovance
Motor 1 Model: TZ230XSIN101
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 60kW
Peak power: 120kW
total peak torque: 320N·m
Electronic Control
ECU Brand: Hyundai Truck & Bus (Sichuan)
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 89kWh
Energy Density: 154
Battery Model: L173TB1
Cargo box parameters
Cargo box type: Van body
Cargo box length: 4.13m
Cargo box width: 194/21/218/2.22/2m
Cargo box height: 2/1.7/1.45m
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1990kg
rear axle allowable load: 2505kg
Tire
Tire Size: 6.50R16 10PR,7.00R16 12PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

Exterior3

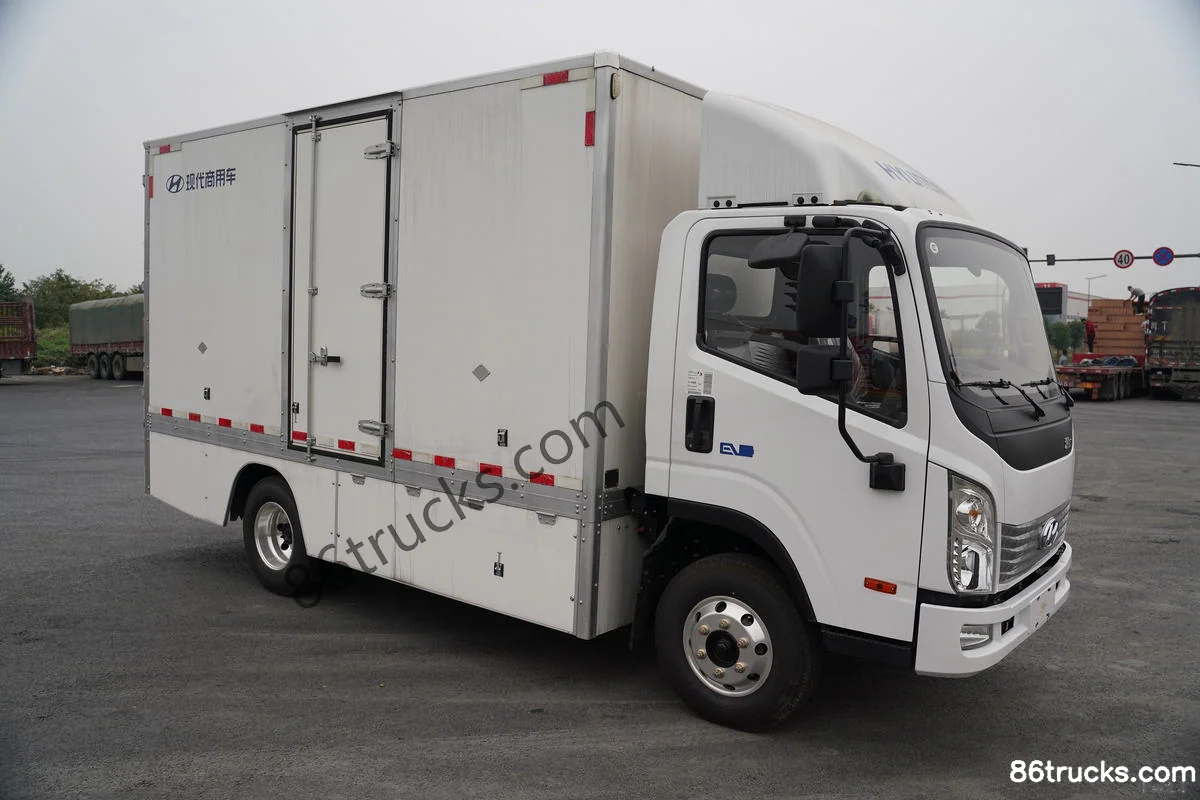

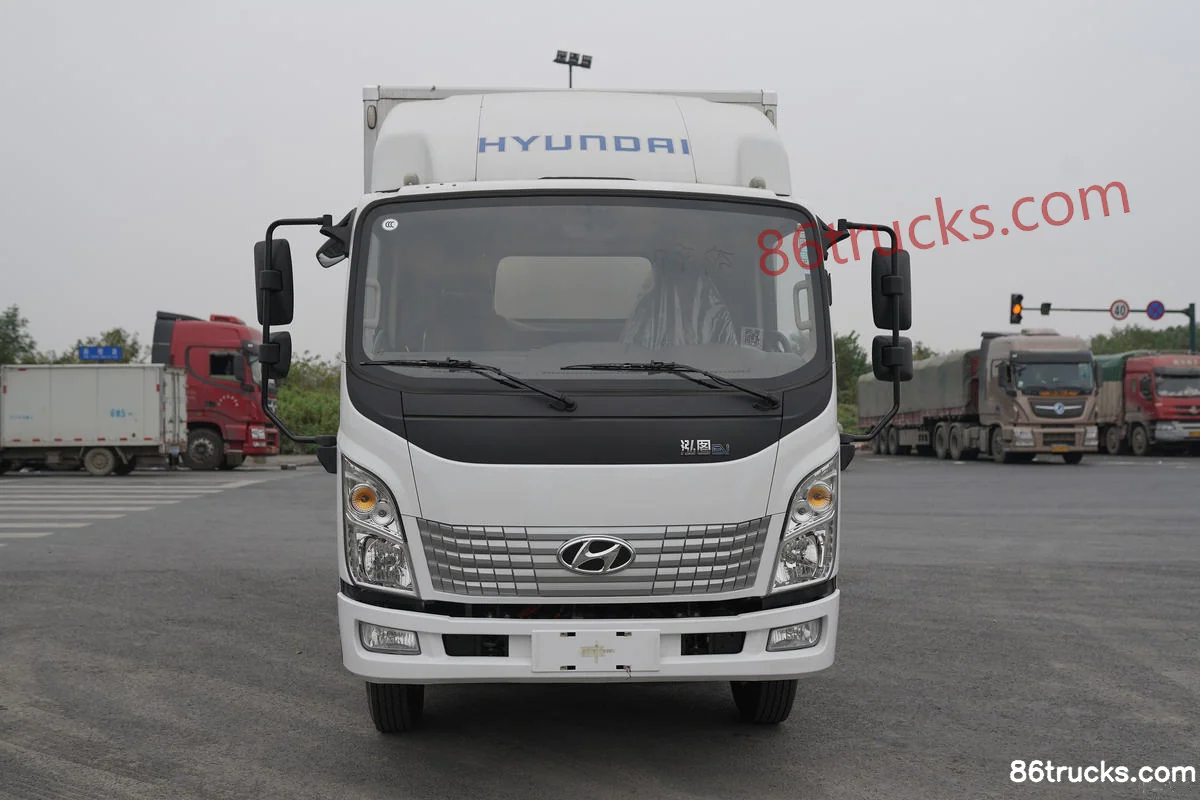

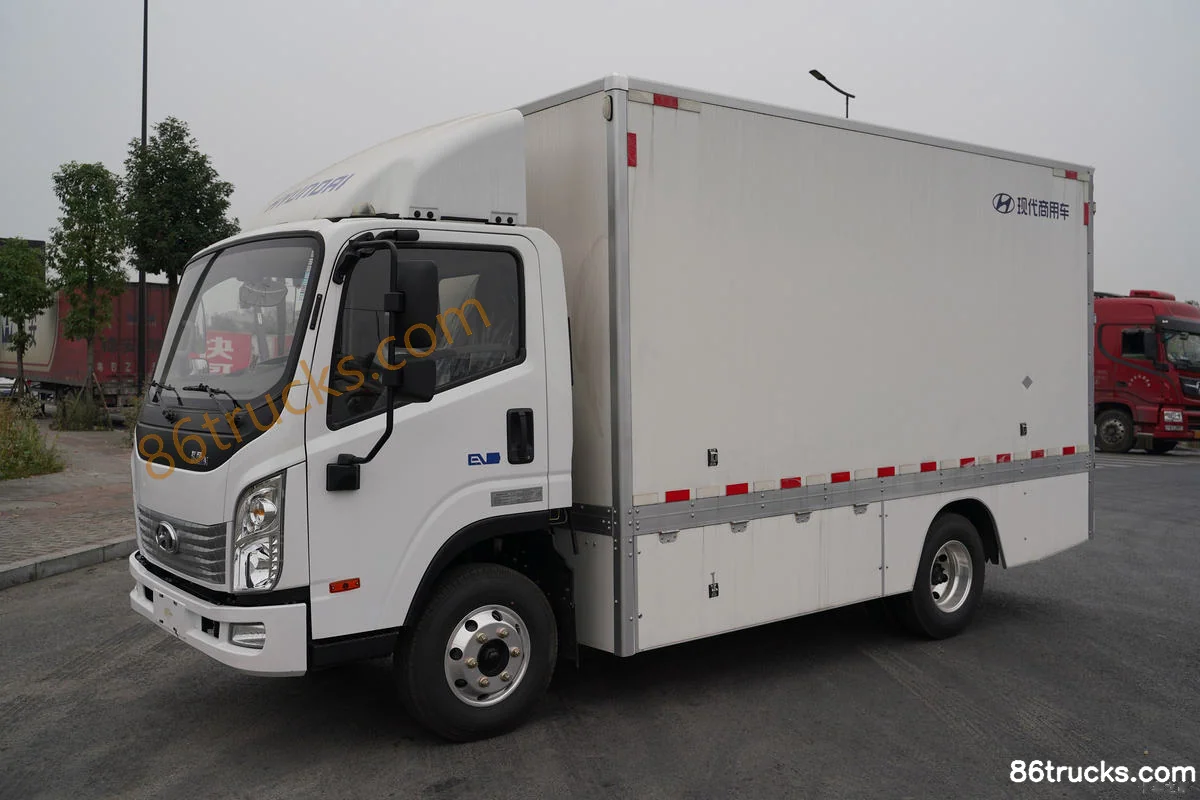

Hyundai Commercial Vehicle Hongtu EV 4.5T 4.13m Single Row Pure Electric Box Van 89kWh 4X2(6 wheels) Exterior (1) | 86Trucks Hyundai Commercial Vehicle Hongtu EV 4.5T 4.13m Single Row Pure Electric Box Van 89kWh 4X2(6 wheels) Exterior (2) | 86Trucks Hyundai Commercial Vehicle Hongtu EV 4.5T 4.13m Single Row Pure Electric Box Van 89kWh 4X2(6 wheels) Exterior (3) | 86Trucks

Interior3

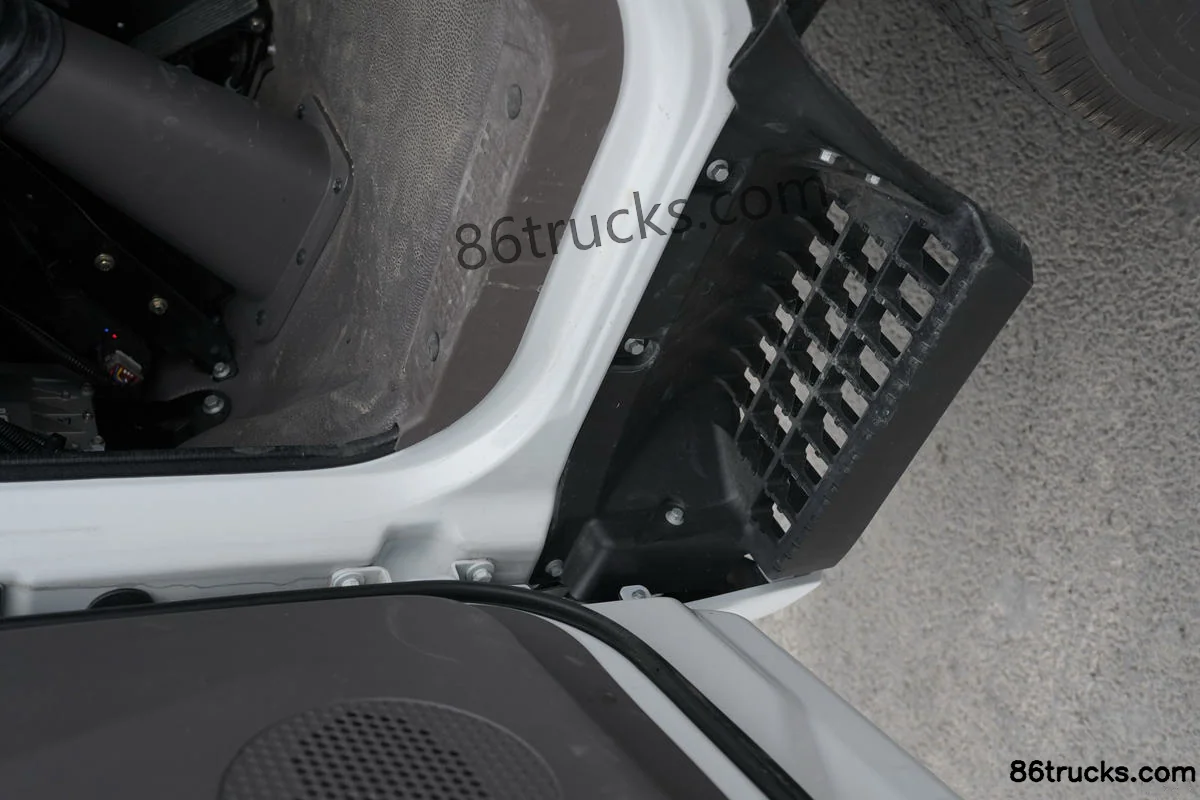

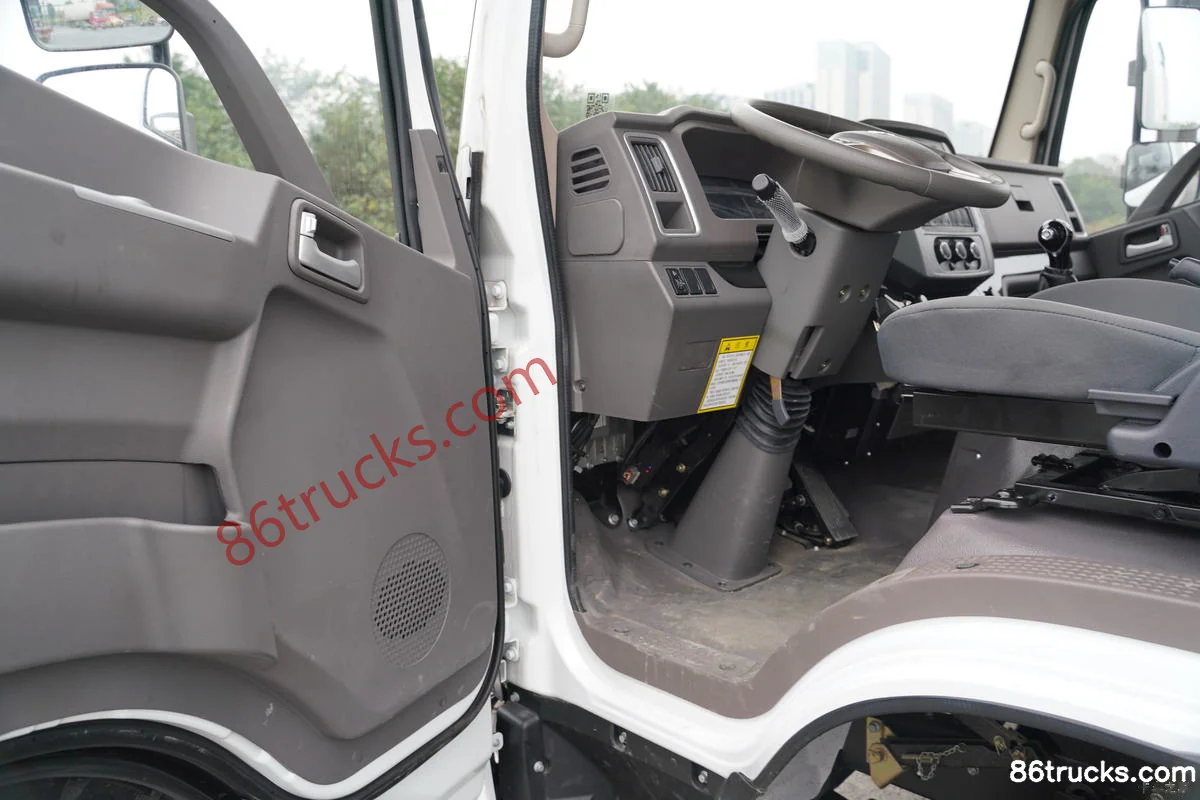

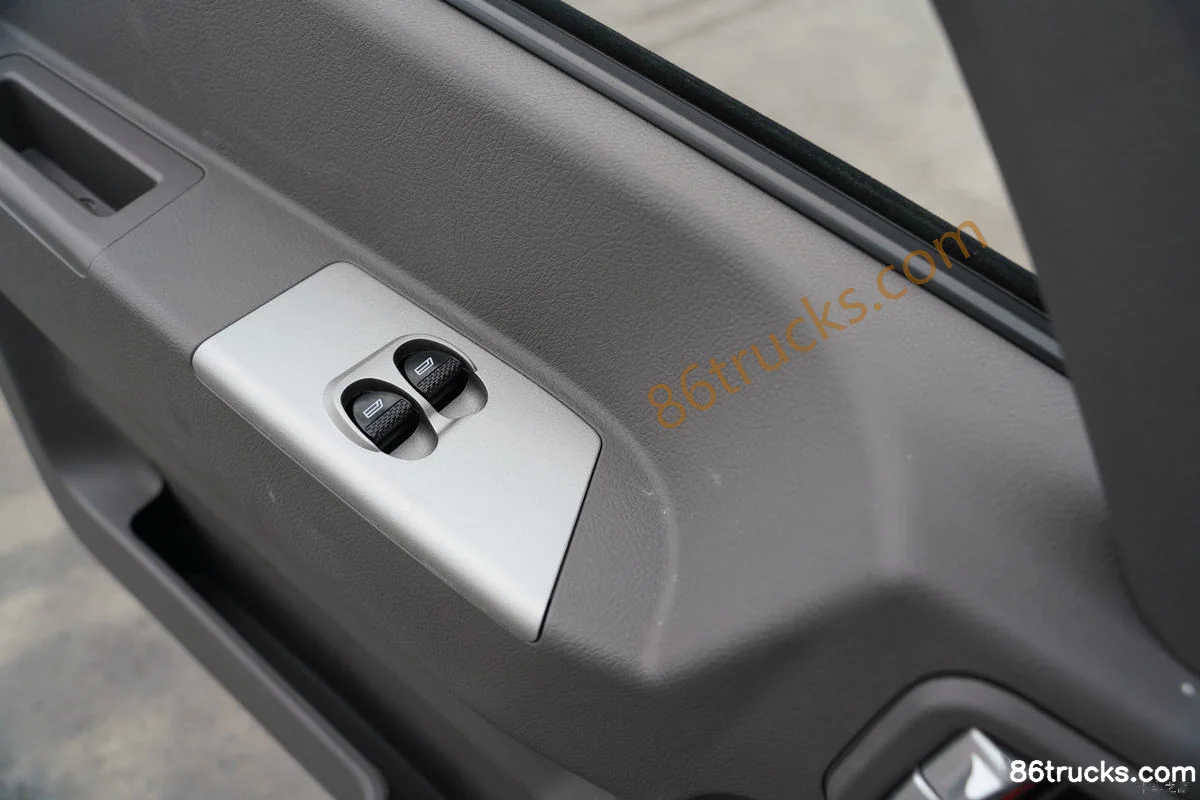

Hyundai Commercial Vehicle Hongtu EV 4.5T 4.13m Single Row Pure Electric Box Van 89kWh 4X2(6 wheels) Interior (1) | 86Trucks Hyundai Commercial Vehicle Hongtu EV 4.5T 4.13m Single Row Pure Electric Box Van 89kWh 4X2(6 wheels) Interior (2) | 86Trucks Hyundai Commercial Vehicle Hongtu EV 4.5T 4.13m Single Row Pure Electric Box Van 89kWh 4X2(6 wheels) Interior (3) | 86Trucks

Chassis3

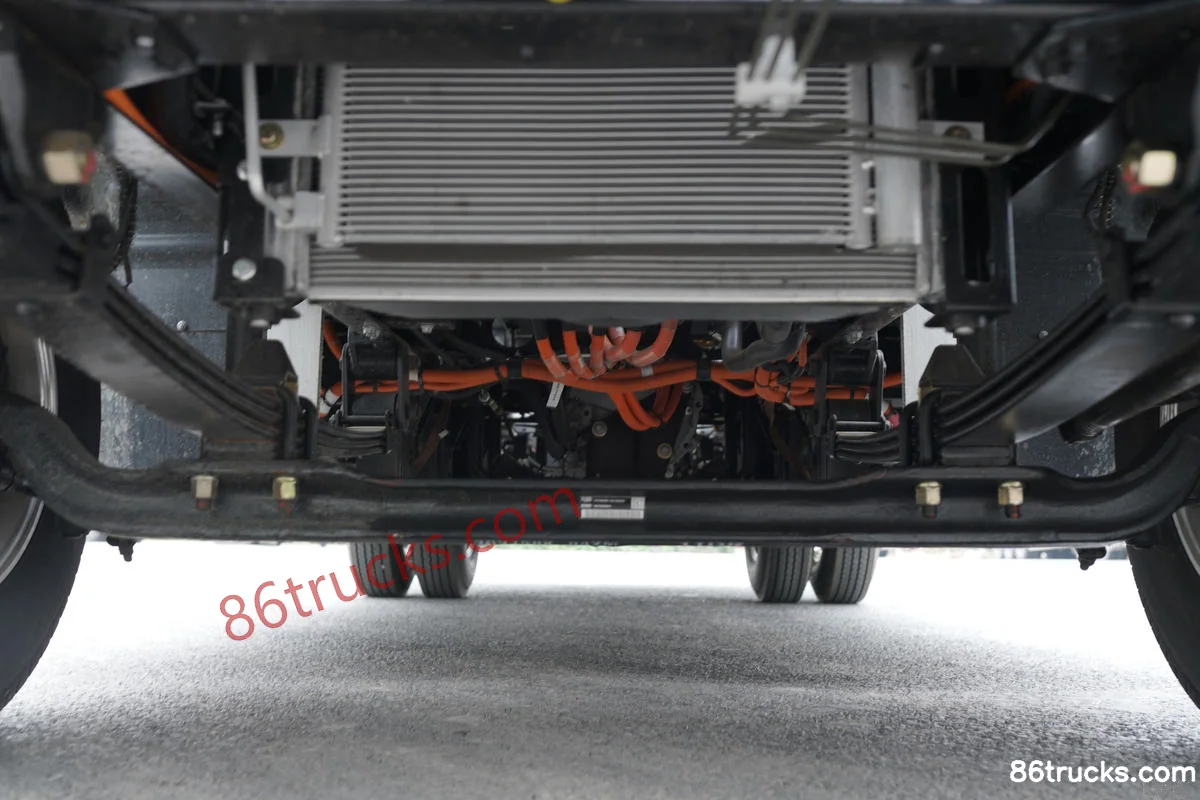

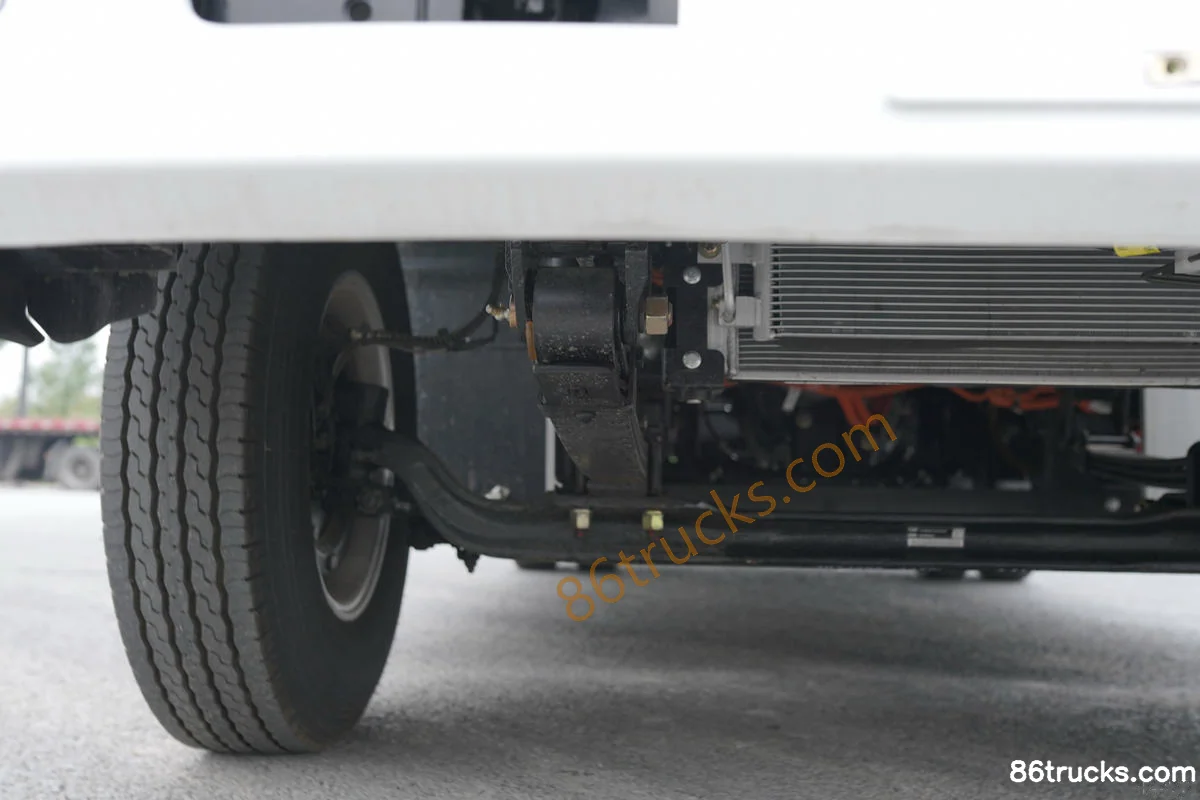

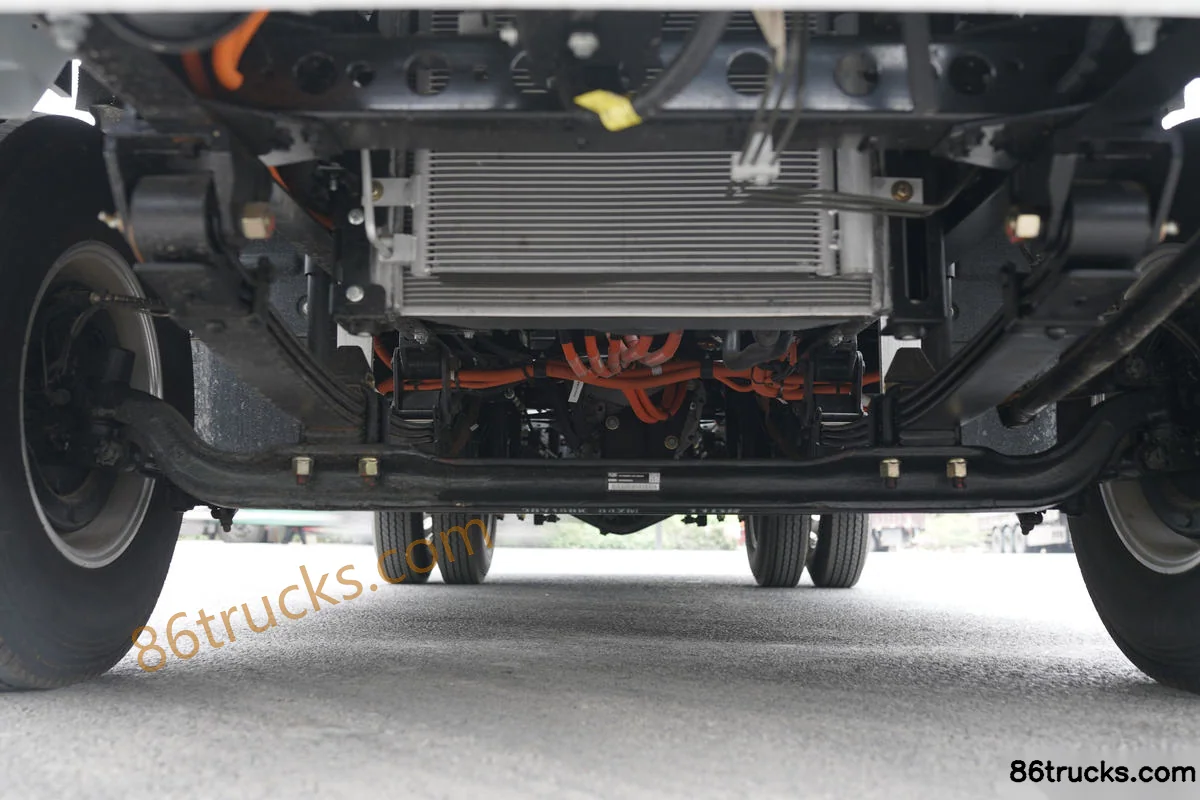

Hyundai Commercial Vehicle Hongtu EV 4.5T 4.13m Single Row Pure Electric Box Van 89kWh 4X2(6 wheels) Chassis (1) | 86Trucks Hyundai Commercial Vehicle Hongtu EV 4.5T 4.13m Single Row Pure Electric Box Van 89kWh 4X2(6 wheels) Chassis (2) | 86Trucks Hyundai Commercial Vehicle Hongtu EV 4.5T 4.13m Single Row Pure Electric Box Van 89kWh 4X2(6 wheels) Chassis (3) | 86Trucks

Body3

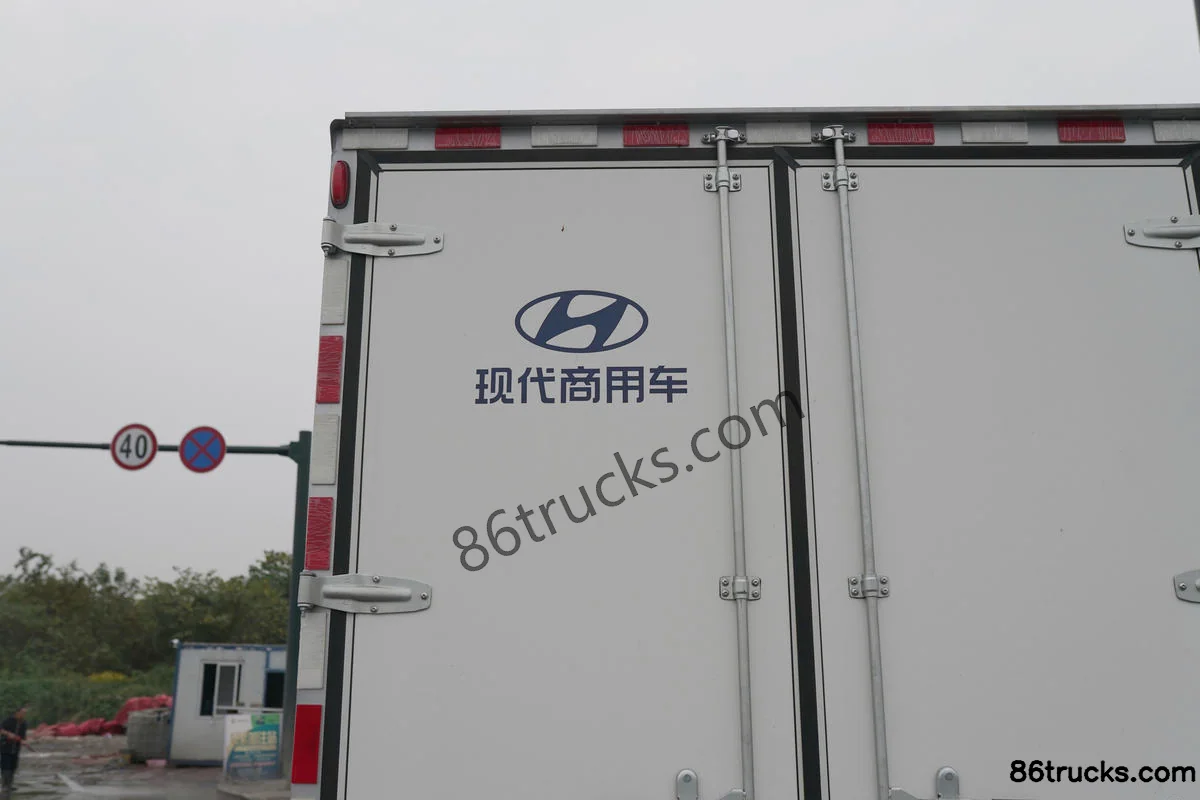

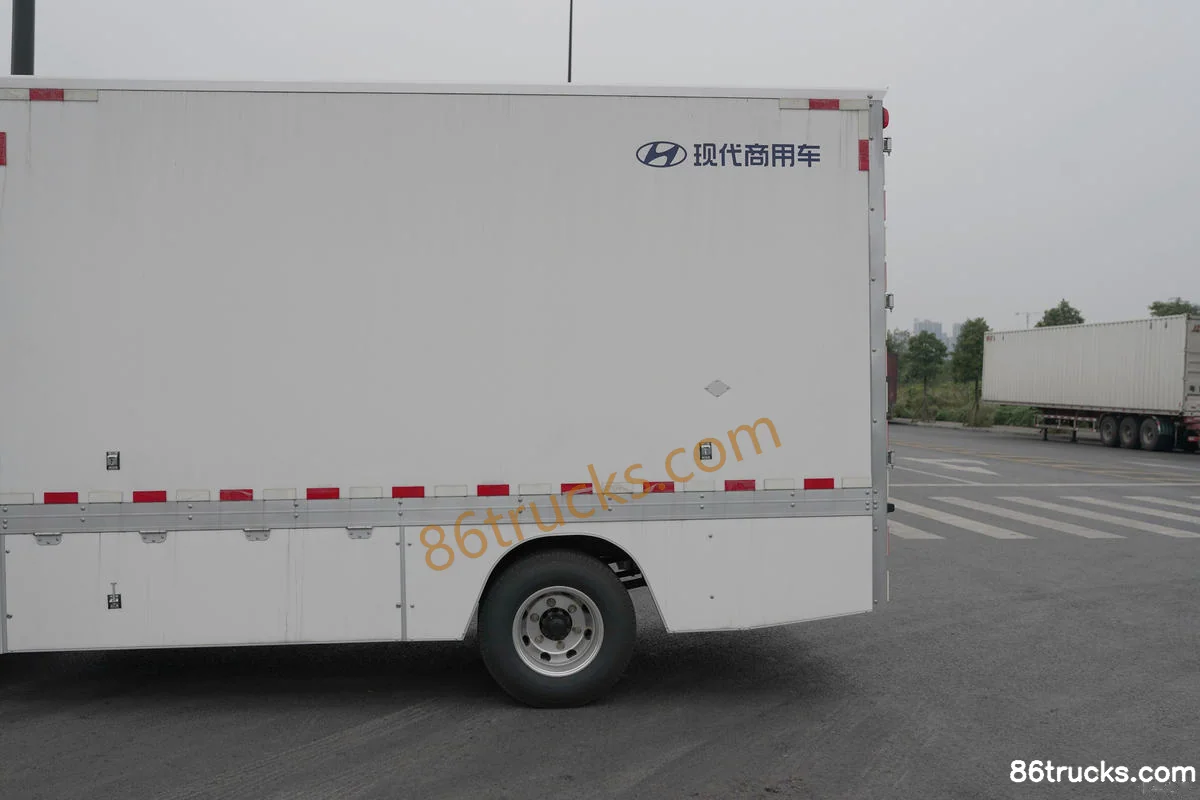

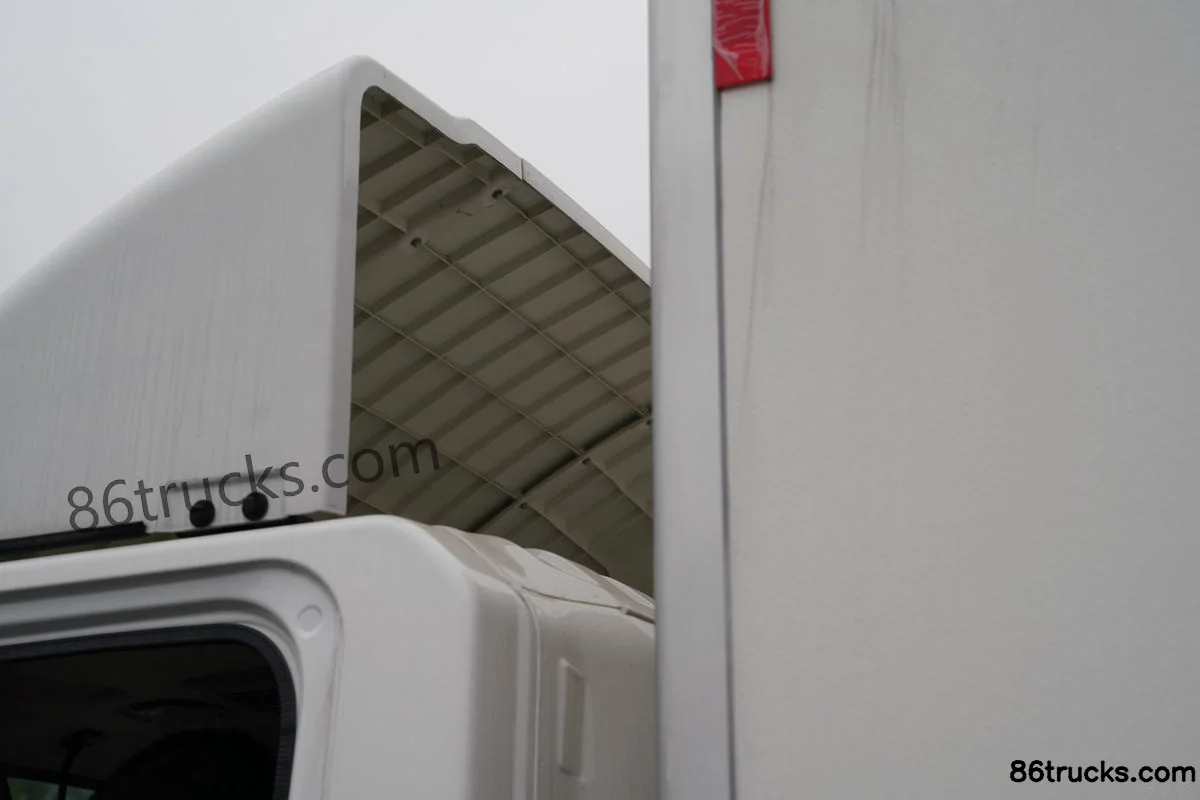

Hyundai Commercial Vehicle Hongtu EV 4.5T 4.13m Single Row Pure Electric Box Van 89kWh 4X2(6 wheels) Body (1) | 86Trucks Hyundai Commercial Vehicle Hongtu EV 4.5T 4.13m Single Row Pure Electric Box Van 89kWh 4X2(6 wheels) Body (2) | 86Trucks Hyundai Commercial Vehicle Hongtu EV 4.5T 4.13m Single Row Pure Electric Box Van 89kWh 4X2(6 wheels) Body (3) | 86Trucks

12 photos

FAQ

What are the key specs of Hyundai Commercial Vehicle Hongtu EV 4.5T 4.13m Single Row Pure Electric Box Van 89kWh 4X2(6 wheels)?

Key specs of Hyundai Commercial Vehicle Hongtu EV 4.5T 4.13m Single Row Pure Electric Box Van 89kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Hyundai Commercial Vehicle Hongtu EV 4.5T 4.13m Single Row Pure Electric Box Van 89kWh 4X2(6 wheels) suited for?

Hyundai Commercial Vehicle Hongtu EV 4.5T 4.13m Single Row Pure Electric Box Van 89kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Hyundai Commercial Vehicle Hongtu EV 4.5T 4.13m Single Row Pure Electric Box Van 89kWh 4X2(6 wheels) differ from other variants in the same series?

Hyundai Commercial Vehicle Hongtu EV 4.5T 4.13m Single Row Pure Electric Box Van 89kWh 4X2(6 wheels) belongs to Hyundai Commercial Vehicle Hongtu EV light truck (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Hyundai Commercial Vehicle Hongtu EV 4.5T 4.13m Single Row Pure Electric Box Van 89kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Hyundai Commercial Vehicle Hongtu EV 4.5T 4.13m Single Row Pure Electric Box Van 89kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
