Kama Kaijie M3 Classic Edition 130hp 4X2(6 wheels) 4.16m single-row flatbed light truck (China VI)(Quanchai)

Export reference
MSRP N/A
Horsepower: 130
Emission: China VI
Fuel: Diesel
Engine: Quanchai2.8L
Transmission: WLY
Curb Weight:: 2.56ton
Kama Kaijie M3 Classic Edition 130hp 4X2(6 wheels) 4.16m single-row flatbed light truck (China VI)(Quanchai) exterior
View more photos (12)
seating capacity: 3Personnel
Rated payload: 1.74ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Kama Kaijie M3 Classic Edition 130hp 4X2(6 wheels) 4.16m single-row flatbed light truck (China VI)(Quanchai) is a Light Truck featuring 4.16m cargo length, stake body cargo body, 3Personnel volume and 1.74t payload. Its segment focus covers Urban Distribution, matching those duty cycles. On the powertrain side, it comes with a Quanchai2.8L engine, 130 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 130 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): KMC1042A336DP6
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
engine: QuanchaiQ28-130E60
transmission: WLYWLY6G40
Rear Axle Ratio: 4.333
Cab length: 5.995m
Cab width: 2.21m
Cab height: 2.39m
Front track width: 1570mm
rear track: 1590mm
Curb Weight: 2.56ton
Rated payload: 1.74ton
GVWR: 4.495ton
Max. speed: 100km/h
Origin: Shouguang, Shandong
tonnage class: Light Truck
Approach angle: 19°
departure angle: 17°
market segment: Urban Distribution
Front/rear suspension: 1.125/1.51m
Version: Classic Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Quanchai
Engine Model: QuanchaiQ28-130E60
Engine info: Quanchai2.8L
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.8L
Emission standard: China VI
Max output power: 96kW
Max hp: 130Horsepower
Max torque: 405N·m
Max torque speed: 2000rpm
Rated speed: 3000rpm
Engine Type: Inline 4-cylinder, water-cooled, 4-stroke, turbocharged with intercooler, high-pressure common rail
Transmission Parameters
Transmission Model: WLYWLY6G40
Transmission Brand: WLY
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 4.16m
Cargo box width: 2.11m
Cargo box height: 0.4m
*Cargo box interior width: 2.1099998950958
Cab parameters
Cab width: 1900mm
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle description: 1064
Front axle allowable load: 1860kg
rear axle description: 101063
rear axle allowable load: 2635kg
Axle ratio: 4.333
Leaf spring count: 7/9+5
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
Service brake
Parking brake: Spring brake
smart configuration
Cruise control (CCS):

Photos

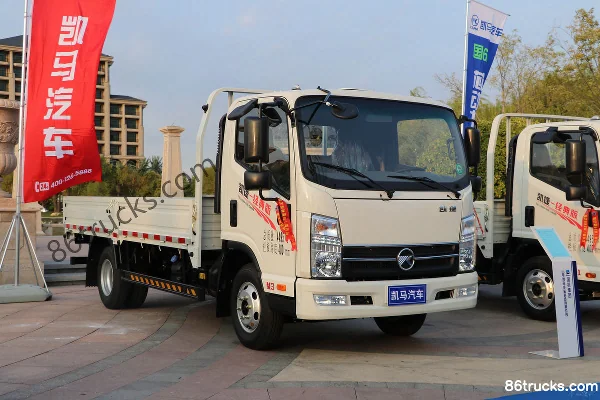

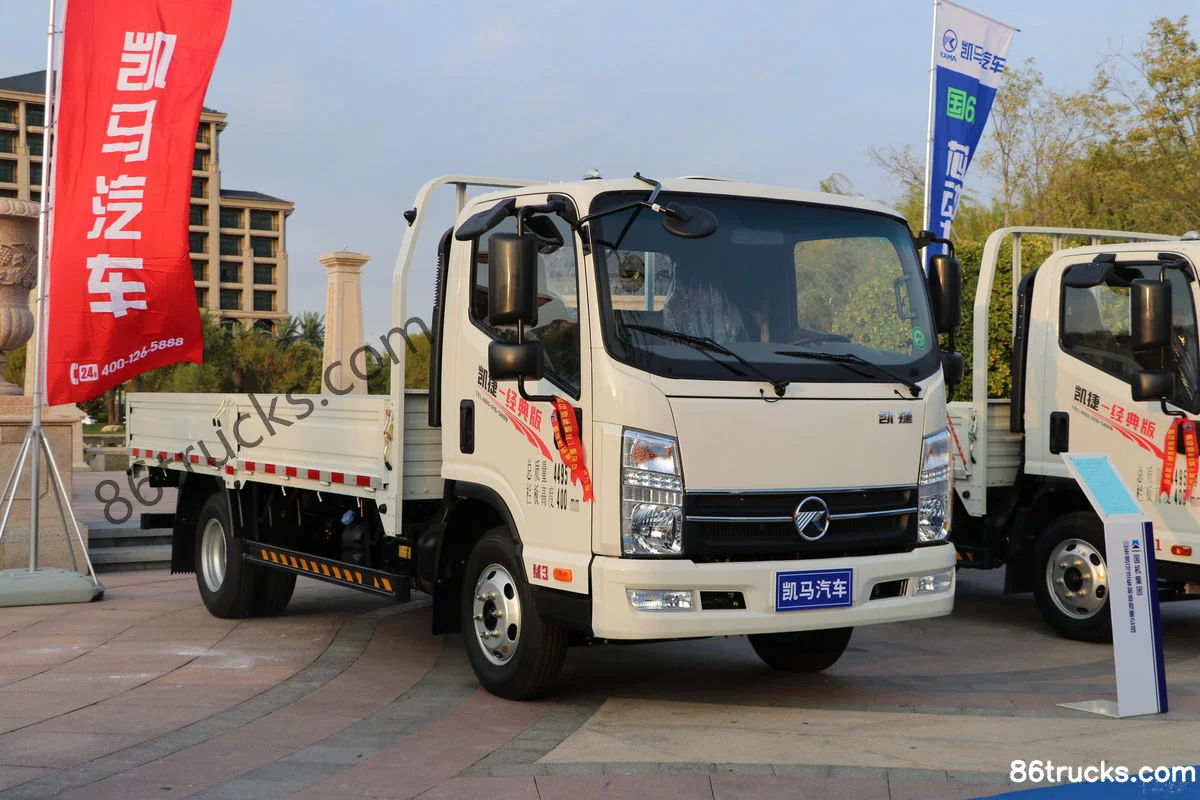

Exterior3

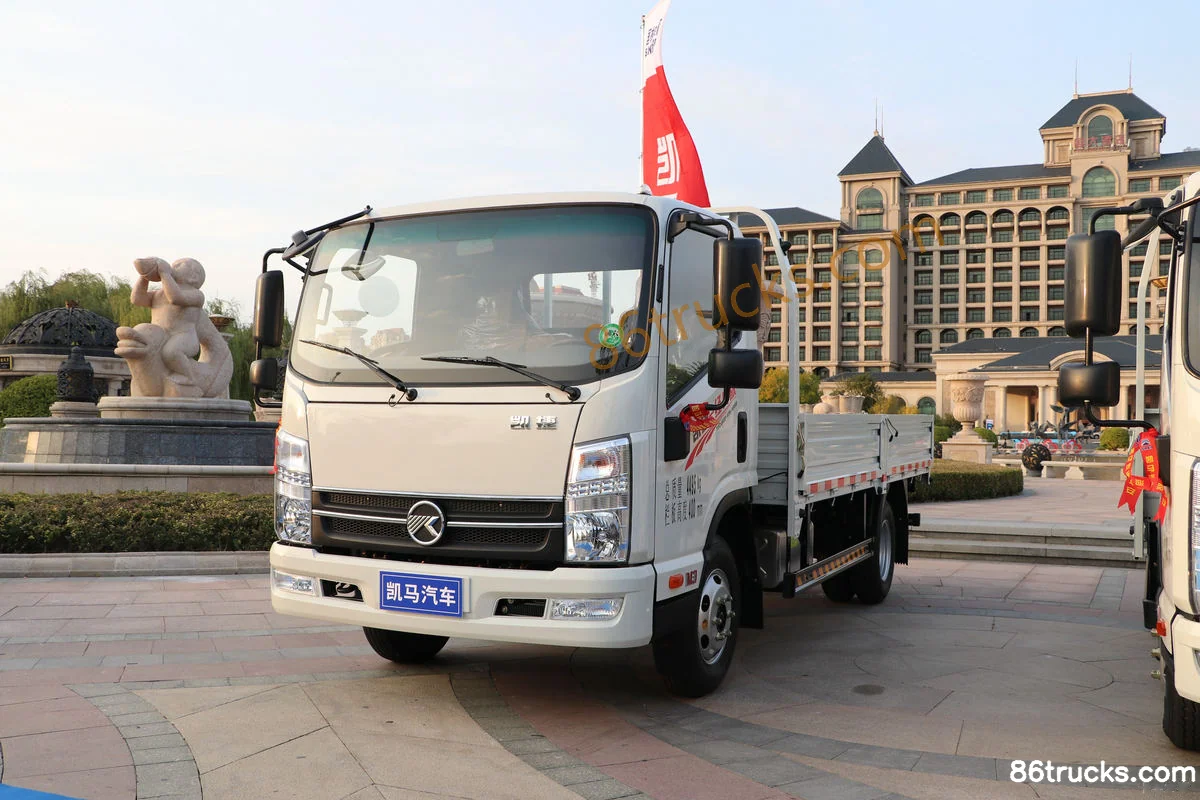

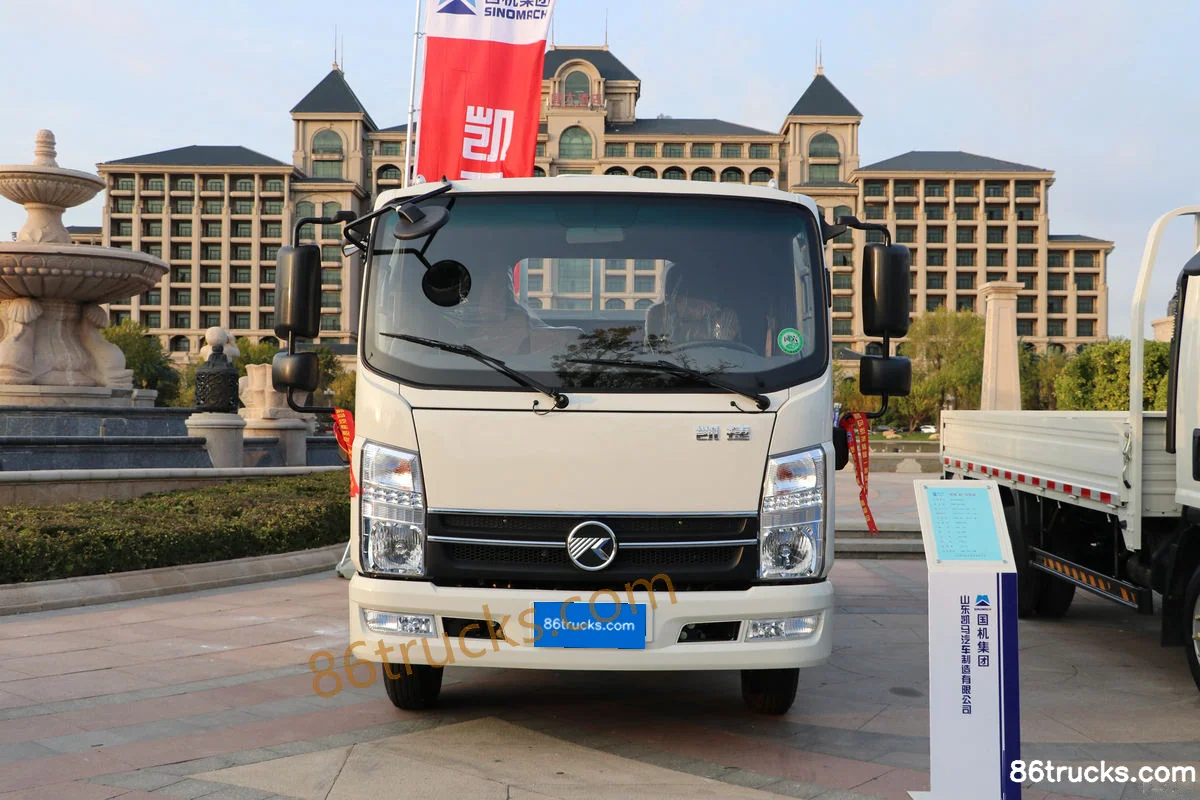

Kama Kaijie M3 Classic Edition 130hp 4X2(6 wheels) 4.16m single-row flatbed light truck (China VI)(Quanchai) Exterior (1) | 86Trucks Kama Kaijie M3 Classic Edition 130hp 4X2(6 wheels) 4.16m single-row flatbed light truck (China VI)(Quanchai) Exterior (2) | 86Trucks Kama Kaijie M3 Classic Edition 130hp 4X2(6 wheels) 4.16m single-row flatbed light truck (China VI)(Quanchai) Exterior (3) | 86Trucks

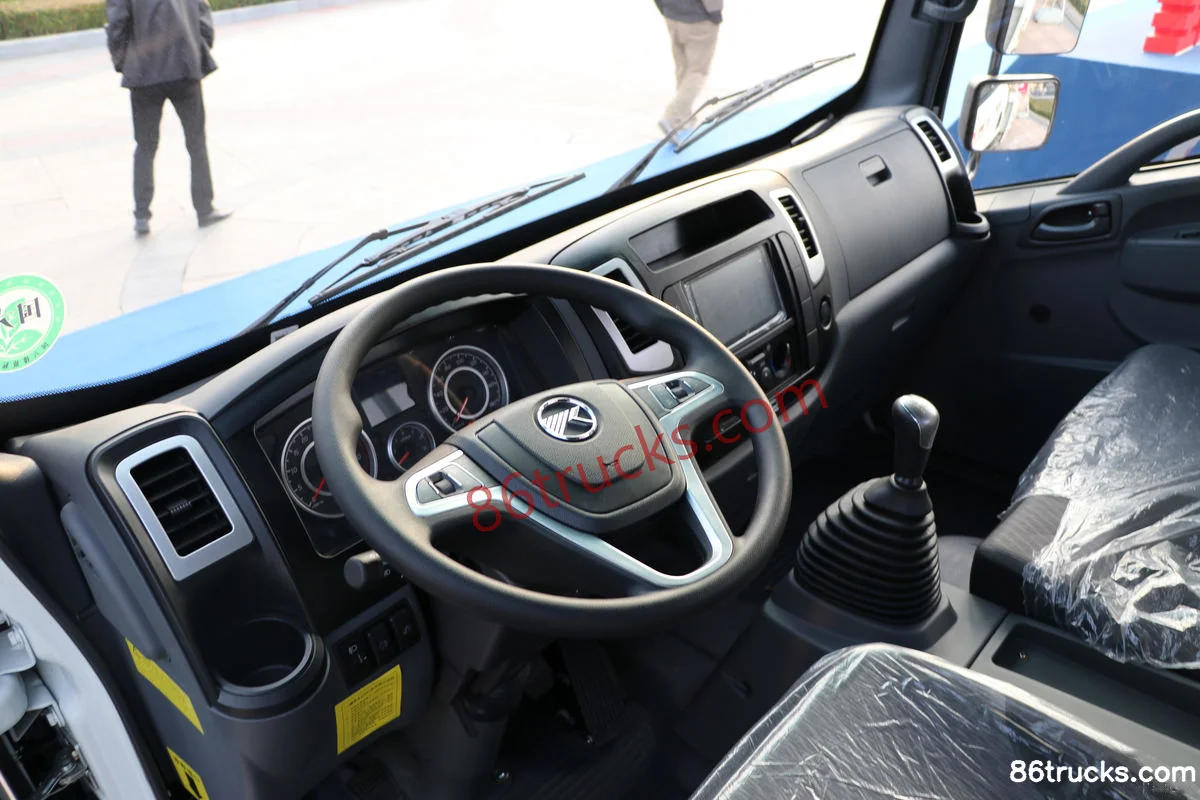

Cab3

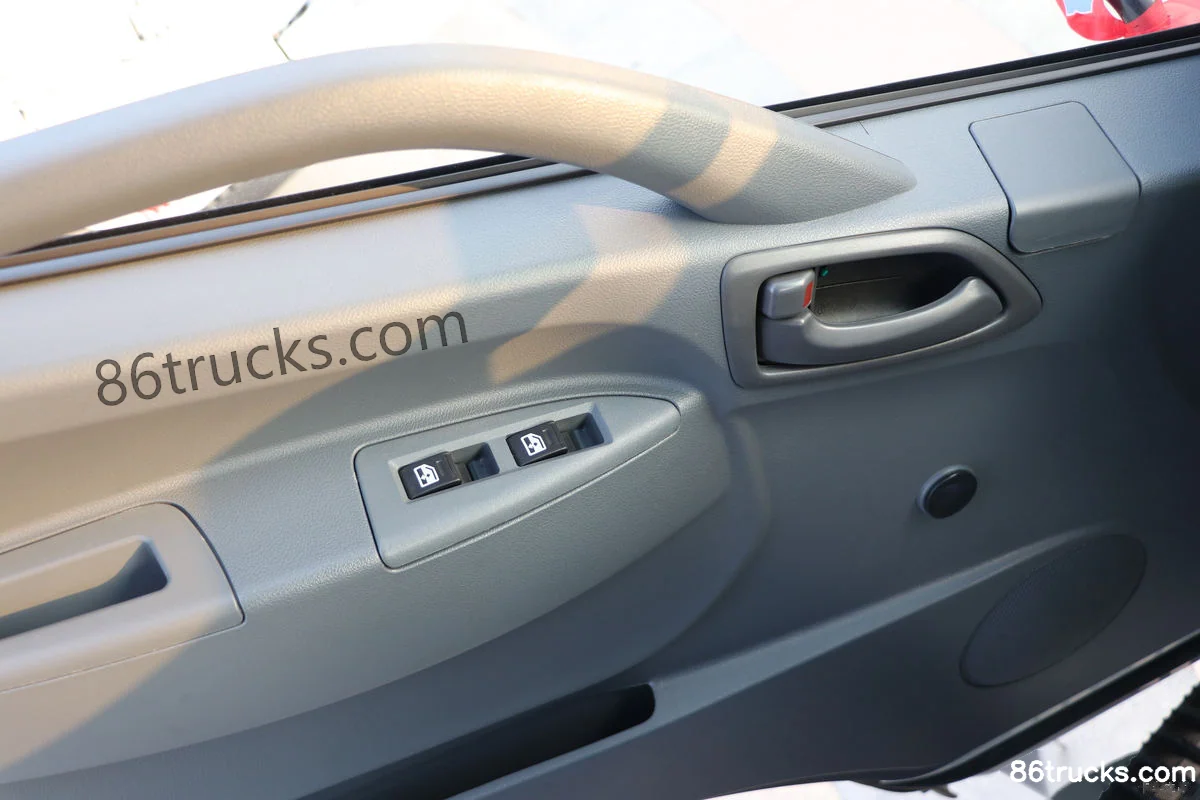

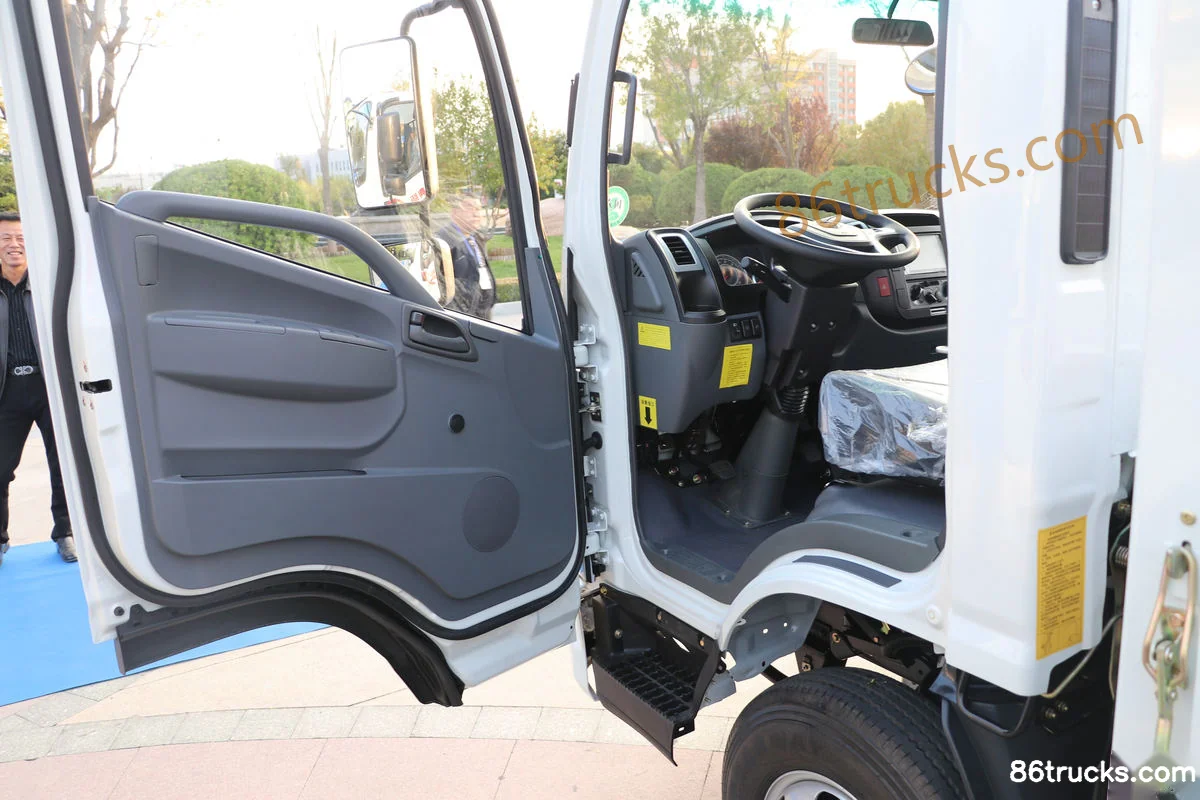

Kama Kaijie M3 Classic Edition 130hp 4X2(6 wheels) 4.16m single-row flatbed light truck (China VI)(Quanchai) Cab (1) | 86Trucks Kama Kaijie M3 Classic Edition 130hp 4X2(6 wheels) 4.16m single-row flatbed light truck (China VI)(Quanchai) Cab (2) | 86Trucks Kama Kaijie M3 Classic Edition 130hp 4X2(6 wheels) 4.16m single-row flatbed light truck (China VI)(Quanchai) Cab (3) | 86Trucks

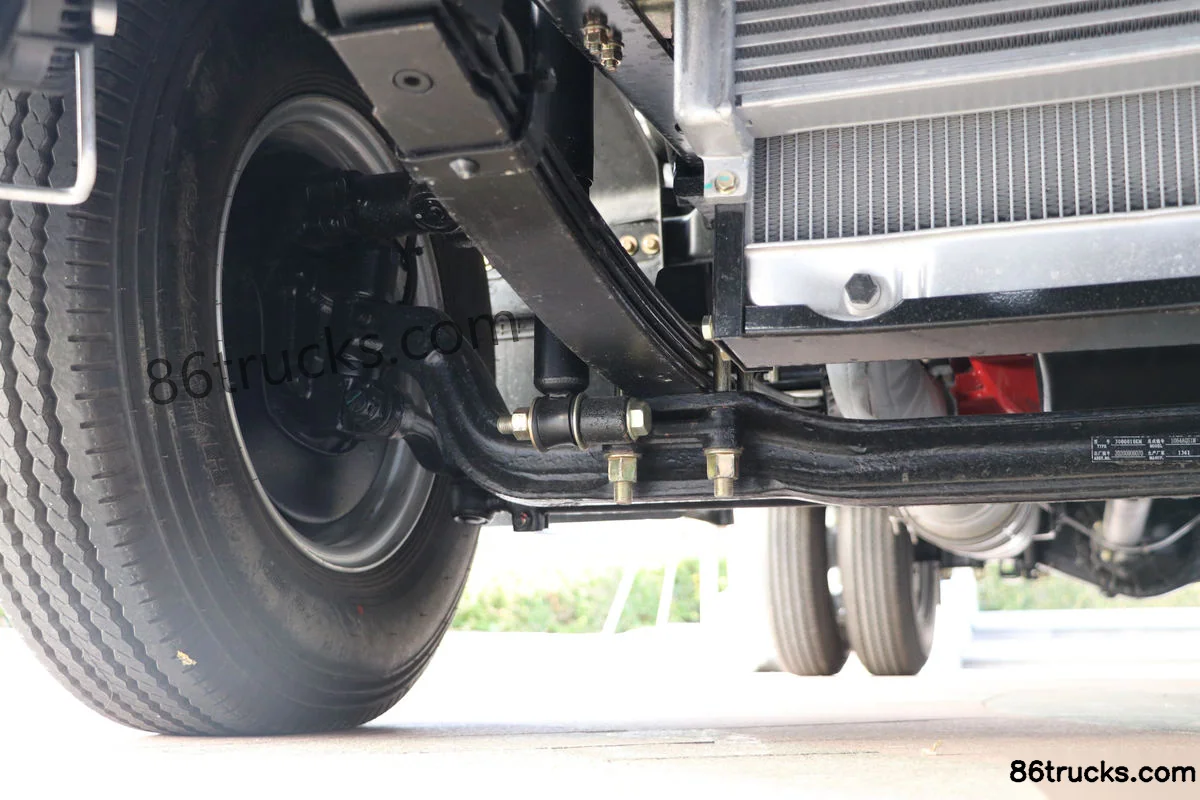

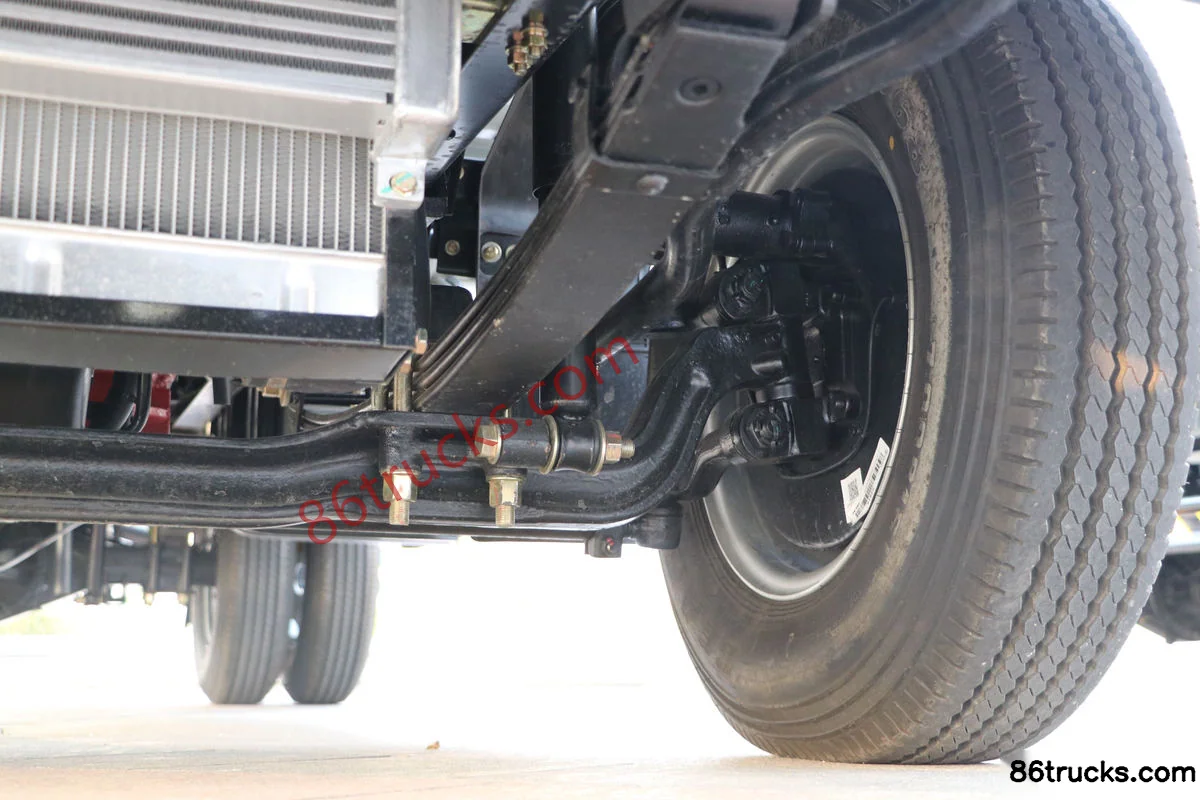

Chassis3

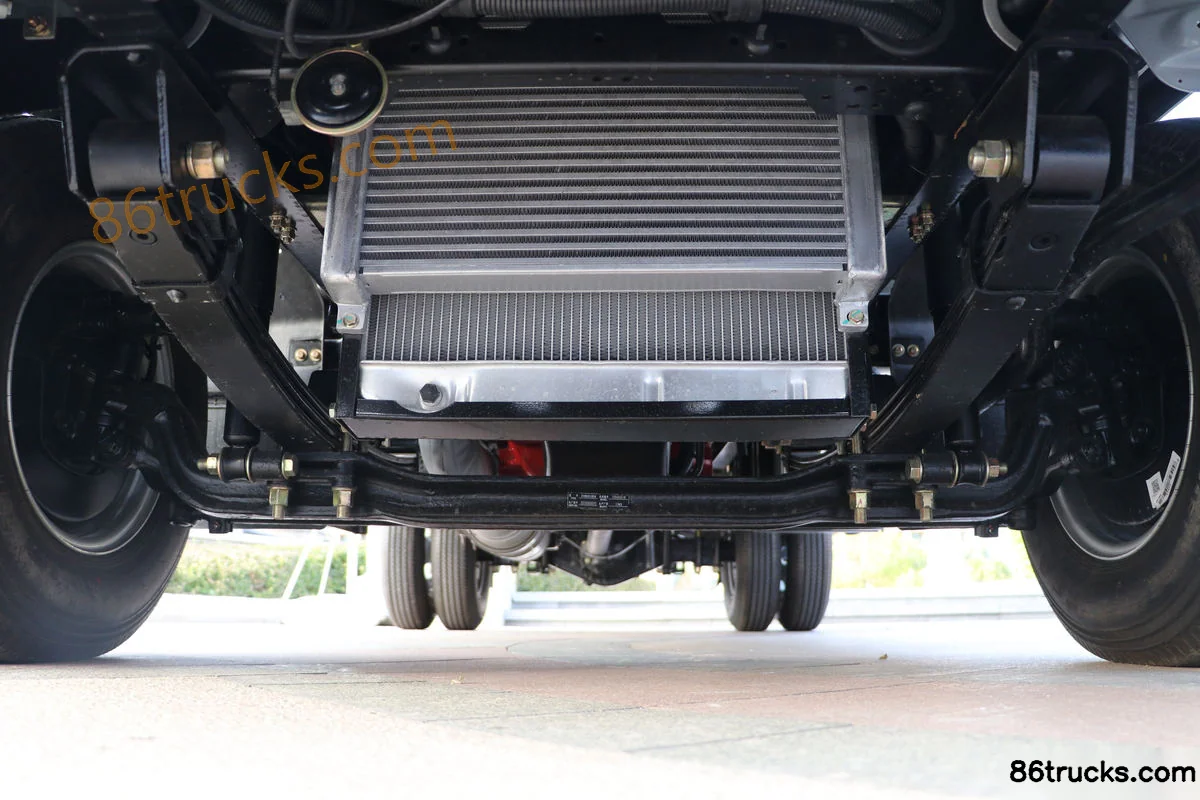

Kama Kaijie M3 Classic Edition 130hp 4X2(6 wheels) 4.16m single-row flatbed light truck (China VI)(Quanchai) Chassis (1) | 86Trucks Kama Kaijie M3 Classic Edition 130hp 4X2(6 wheels) 4.16m single-row flatbed light truck (China VI)(Quanchai) Chassis (2) | 86Trucks Kama Kaijie M3 Classic Edition 130hp 4X2(6 wheels) 4.16m single-row flatbed light truck (China VI)(Quanchai) Chassis (3) | 86Trucks

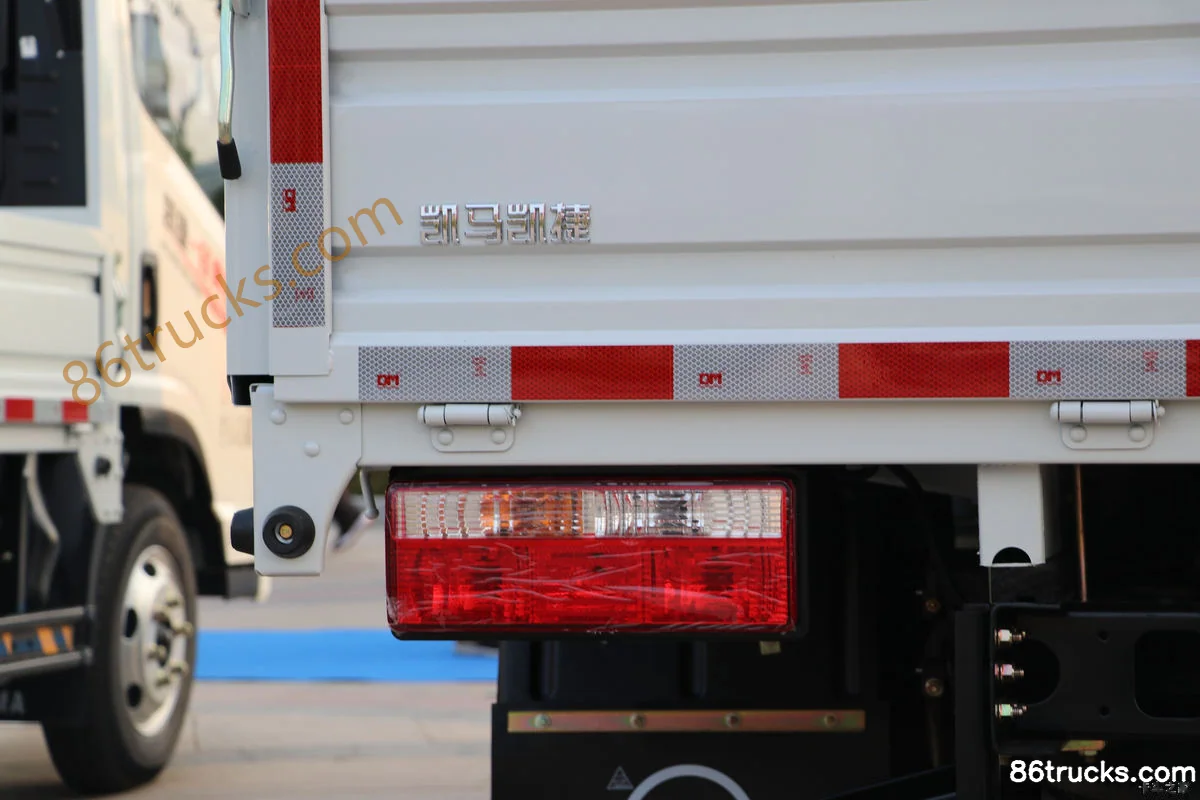

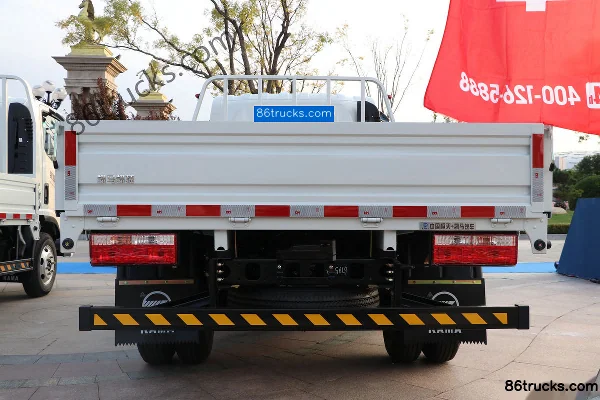

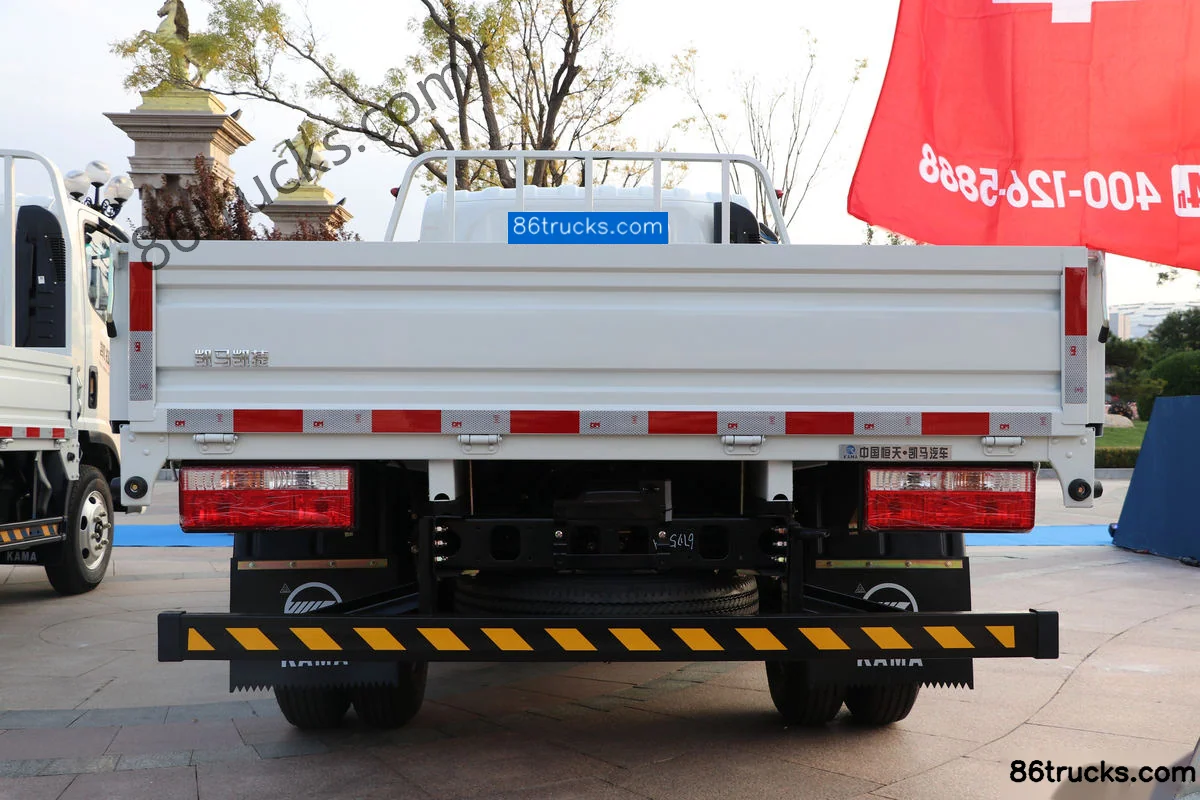

Body3

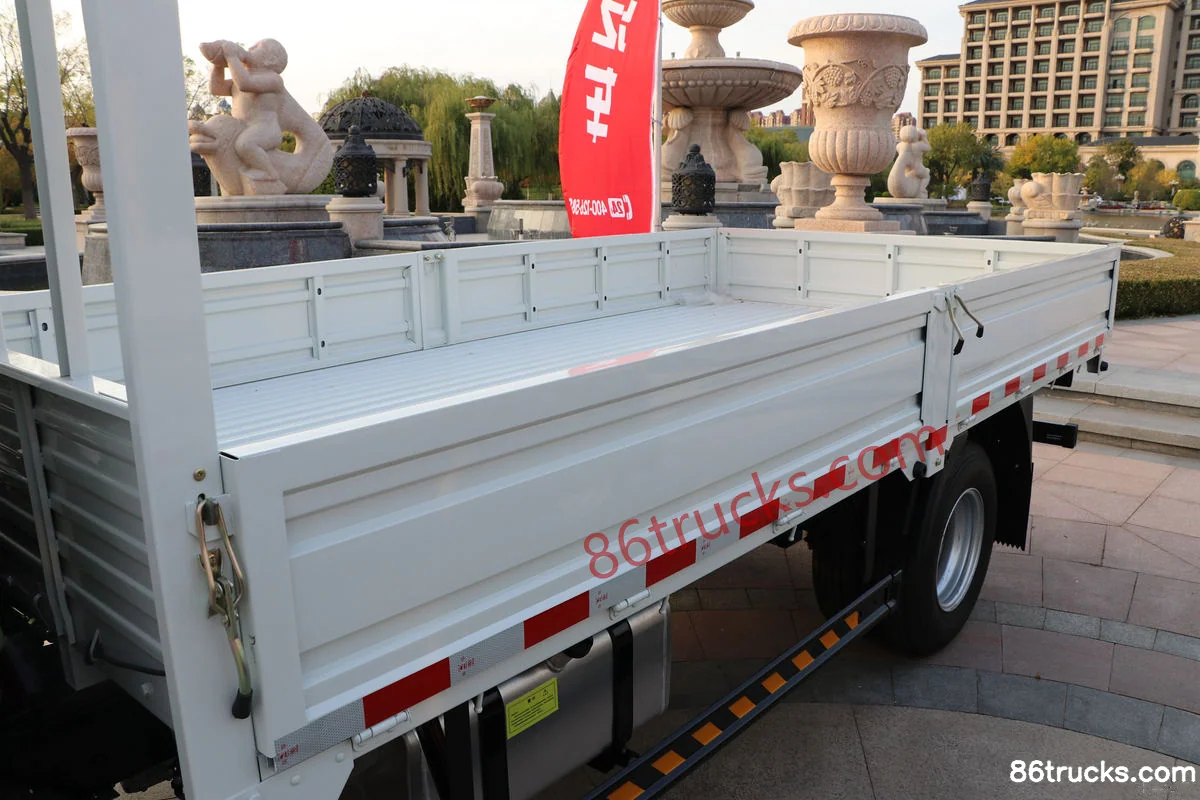

Kama Kaijie M3 Classic Edition 130hp 4X2(6 wheels) 4.16m single-row flatbed light truck (China VI)(Quanchai) Body (1) | 86Trucks Kama Kaijie M3 Classic Edition 130hp 4X2(6 wheels) 4.16m single-row flatbed light truck (China VI)(Quanchai) Body (2) | 86Trucks Kama Kaijie M3 Classic Edition 130hp 4X2(6 wheels) 4.16m single-row flatbed light truck (China VI)(Quanchai) Body (3) | 86Trucks

12 photos

FAQ

What emission standard does Kama Kaijie M3 Classic Edition 130hp 4X2(6 wheels) 4.16m single-row flatbed light truck (China VI)(Quanchai) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Kama Kaijie M3 Classic Edition 130hp 4X2(6 wheels) 4.16m single-row flatbed light truck (China VI)(Quanchai)?

Key specs of Kama Kaijie M3 Classic Edition 130hp 4X2(6 wheels) 4.16m single-row flatbed light truck (China VI)(Quanchai): Drive: 4x2; Horsepower: 130 hp; Emission: China VI; Fuel: Diesel; Engine: Quanchai2.8L; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Kama Kaijie M3 Classic Edition 130hp 4X2(6 wheels) 4.16m single-row flatbed light truck (China VI)(Quanchai) suited for?

Kama Kaijie M3 Classic Edition 130hp 4X2(6 wheels) 4.16m single-row flatbed light truck (China VI)(Quanchai) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Kama Kaijie M3 Classic Edition 130hp 4X2(6 wheels) 4.16m single-row flatbed light truck (China VI)(Quanchai) differ from other variants in the same series?

Kama Kaijie M3 Classic Edition 130hp 4X2(6 wheels) 4.16m single-row flatbed light truck (China VI)(Quanchai) belongs to Kama Kaijie M3 Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Kama Kaijie M3 Classic Edition 130hp 4X2(6 wheels) 4.16m single-row flatbed light truck (China VI)(Quanchai)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Kama Kaijie M3 Classic Edition 130hp 4X2(6 wheels) 4.16m single-row flatbed light truck (China VI)(Quanchai)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
