Sichuan Hyundai Ruiyue 109hp 4X2(6 wheels) 4.18m Single Row Flatbed Light Truck Chassis

Export reference
From $13,056
MSRP ¥9.4M CNY
Horsepower: 109
Emission: China IV
Fuel: Diesel
Engine: Isuzu493
Transmission: Lu'an
Curb Weight:: 2.565ton
seating capacity: 3Personnel
Rated payload: 1.735ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Hyundai Commercial Vehicle Sichuan Hyundai Ruiyue 109hp 4X2(6 wheels) 4.18m Single Row Flatbed Light Truck Chassis is a Light Truck featuring 4.18m cargo length, stake body cargo body, 3Personnel volume and 1.735t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Isuzu493 engine, 109 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 109 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CNJ1041ZDB33M
Type: Chassis
Drive type: 4X2
Wheelbase: 3300mm
Box length class: 4.2m
engine: IsuzuJE493ZLQ4
transmission: Lu'an LC5T35
Cab length: 5.995m
Cab width: 2.17m
Cab height: 2.33m
Front track width: 1620mm
rear track: 1540mm
Curb Weight: 2.565ton
Rated payload: 1.735ton
GVWR: 4.495ton
Max. speed: 110km/h
Origin: Ziyang, Sichuan
tonnage class: Light Truck
Approach angle: 21°
departure angle: 14°
market segment: Building materials, agricultural products
Front/rear suspension: 1.11/1.585m
Energy Type: Diesel
Engine parameters
Engine Brand: Jiangxi Isuzu
Engine Model: IsuzuJE493ZLQ4
Engine info: Isuzu493
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.771L
Emission standard: China IV
Max output power: 80kW
Max hp: 109Horsepower
Max torque: 260N·m
Max torque speed: 2000rpm
Rated speed: 3600rpm
Engine Type: Inline, water-cooled, common rail, turbocharged intercooled, four-stroke
Transmission Parameters
Transmission Model: Lu'an LC5T35
Transmission Brand: Lu'an
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 4.18m
Cargo box width: 2.05m
Cargo box height: 0.4m
*Cargo box interior width: 2.0499999523163
Cab parameters
Cab: Flat roof
seating capacity: 3Personnel
Seat rows: Single Row
fuel tank
Fuel tank material: Iron
Chassis Specs
Front axle allowable load: 1700kg
rear axle allowable load: 2795kg
Leaf spring count: 3/9+7
Suspension (front/rear): Leaf spring
Tire
Tire Size: 7.00R16 12PR LT
Number of tires: 6pcs
Control configuration
ABS:

Photos

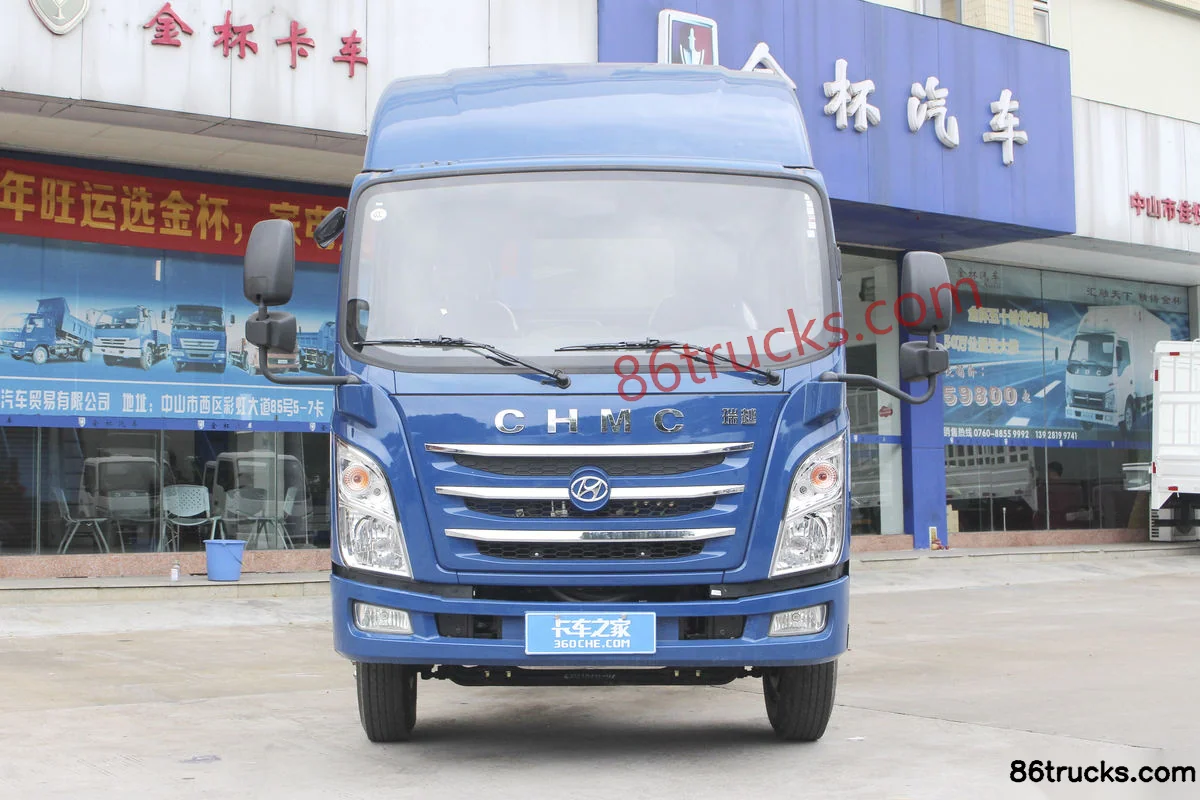

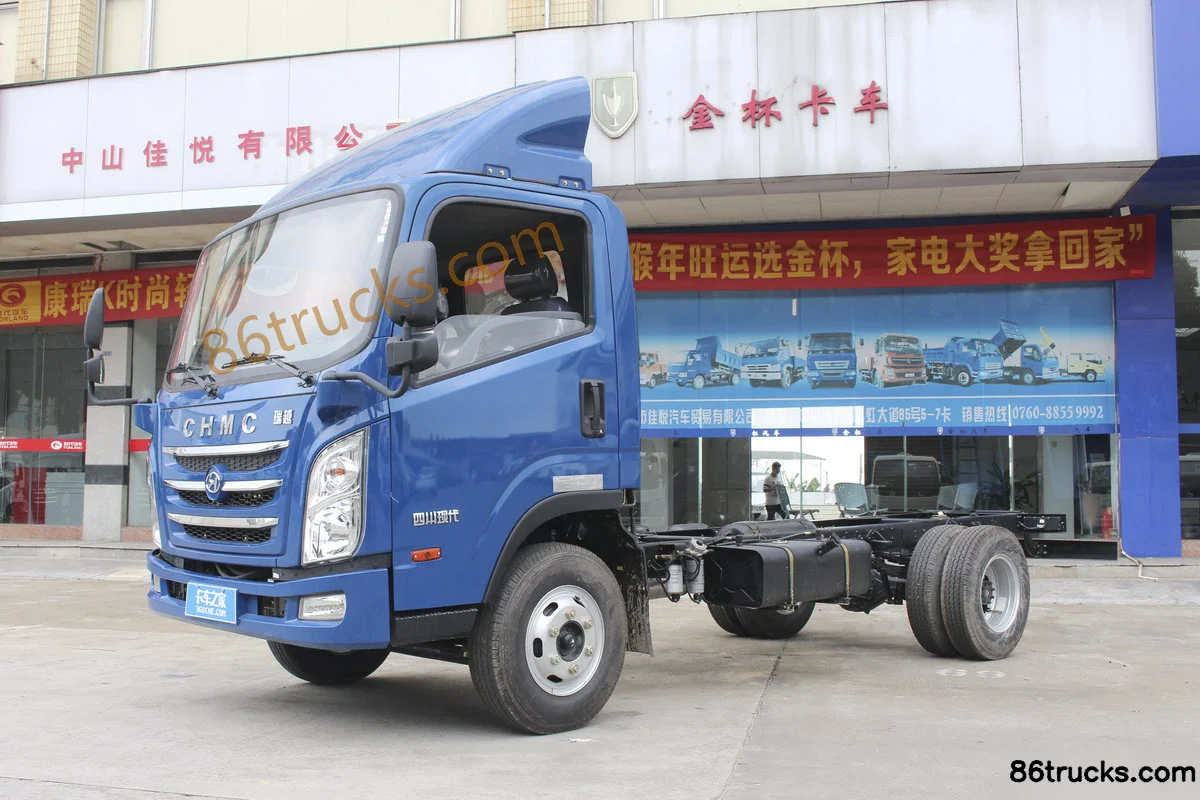

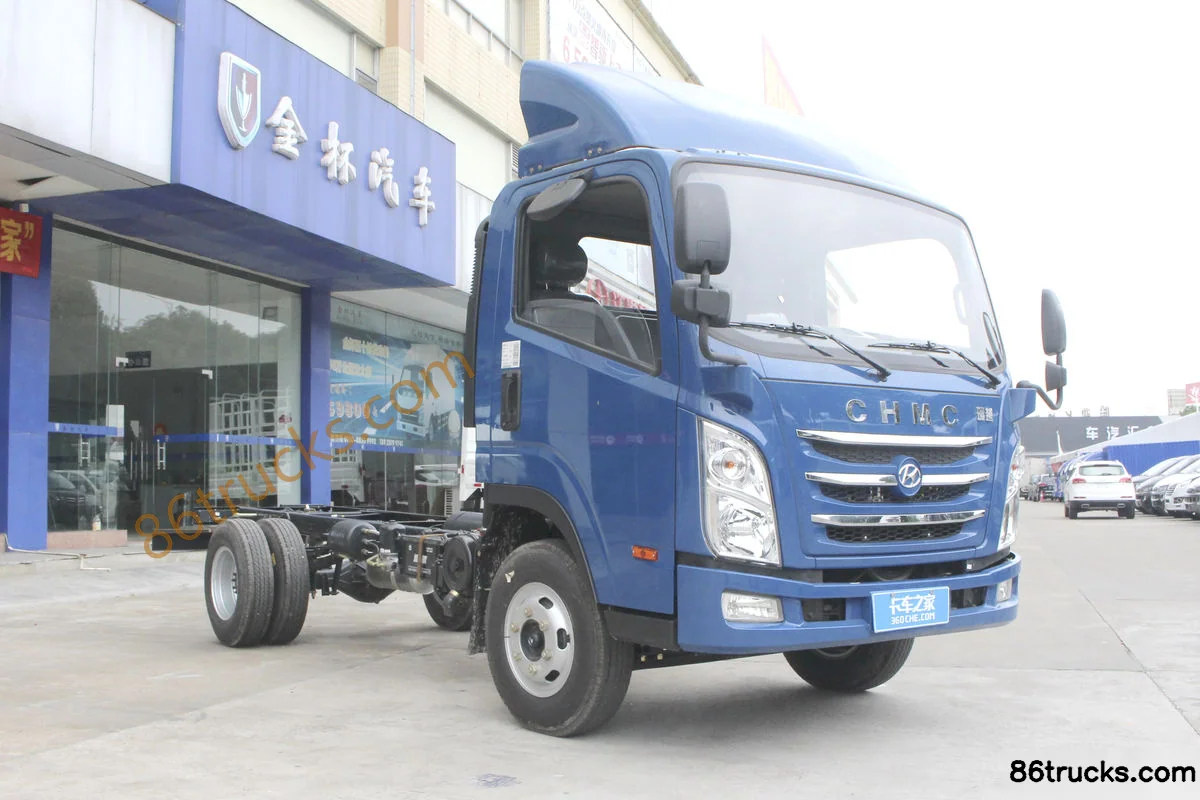

Exterior3

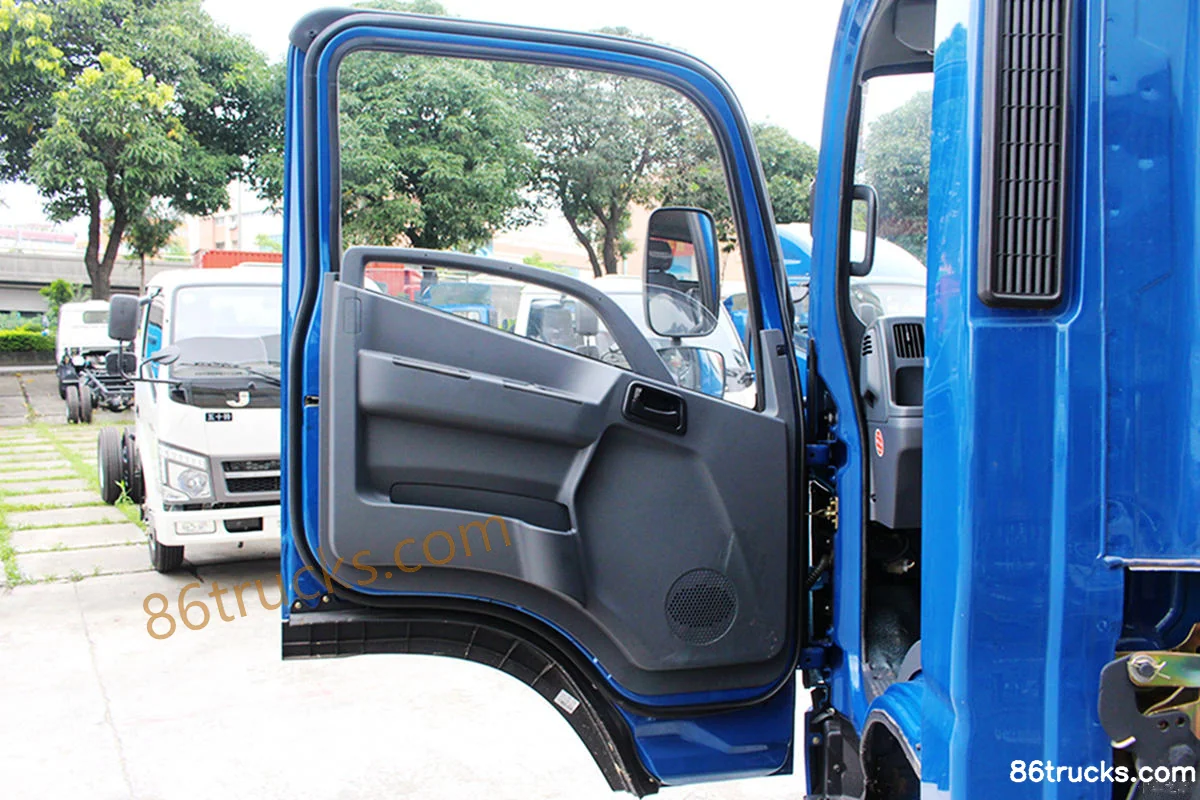

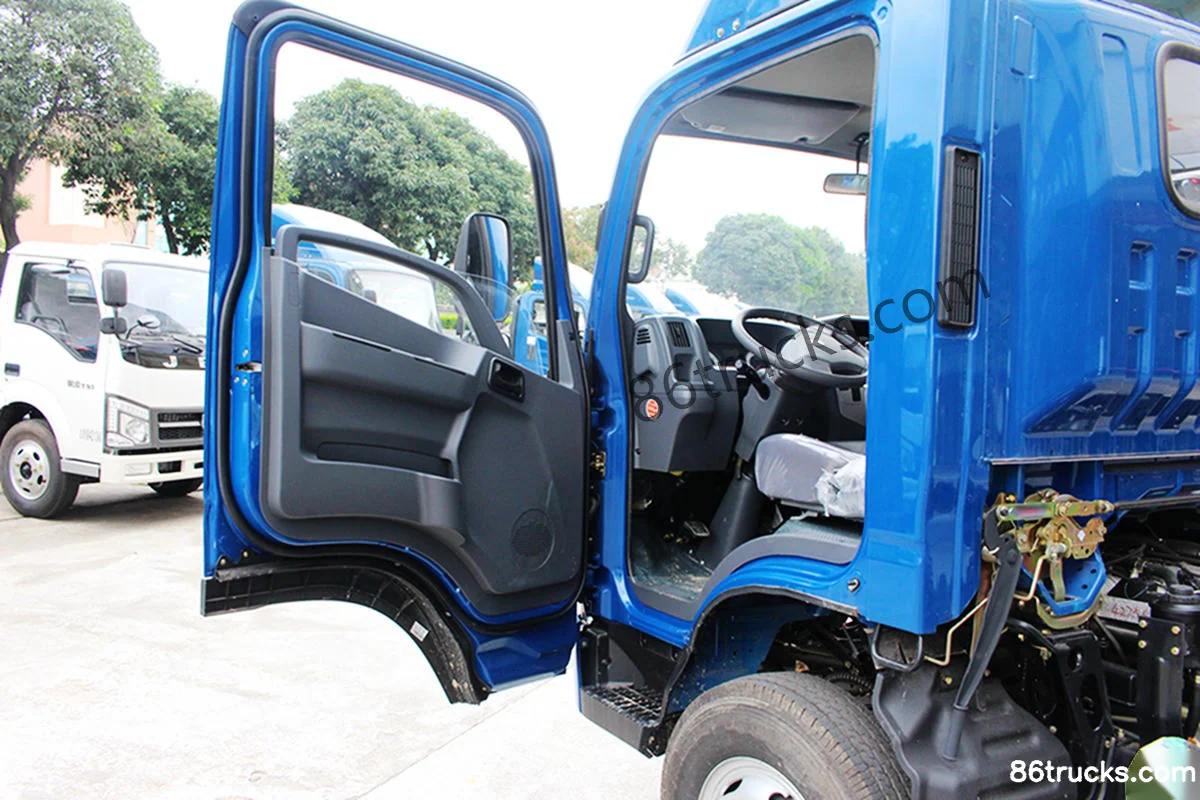

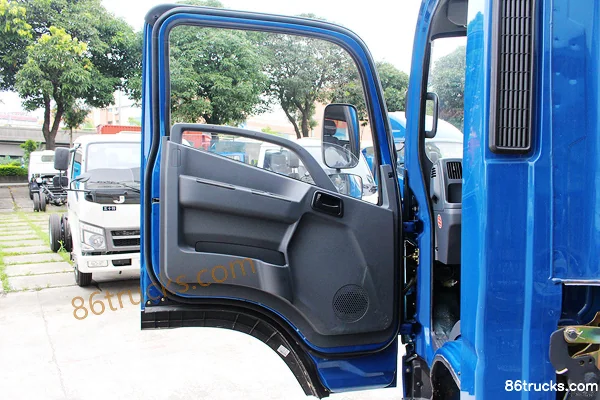

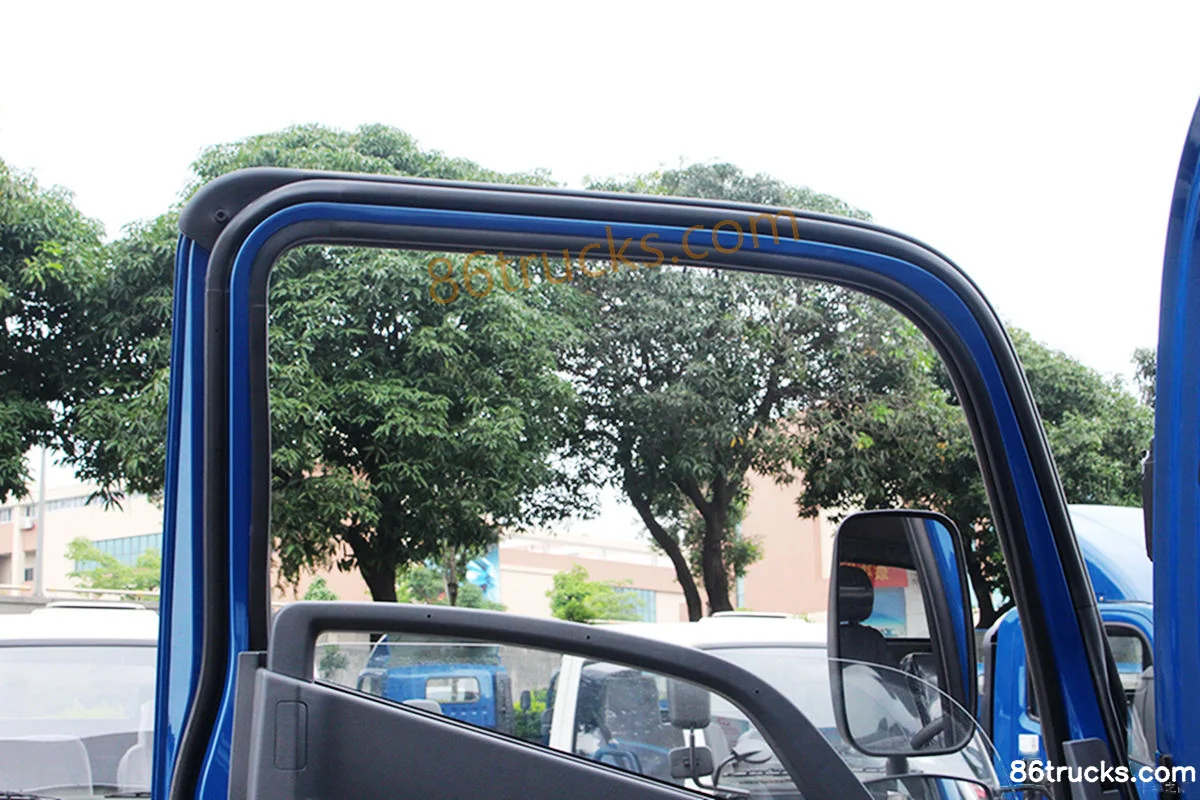

Cab3

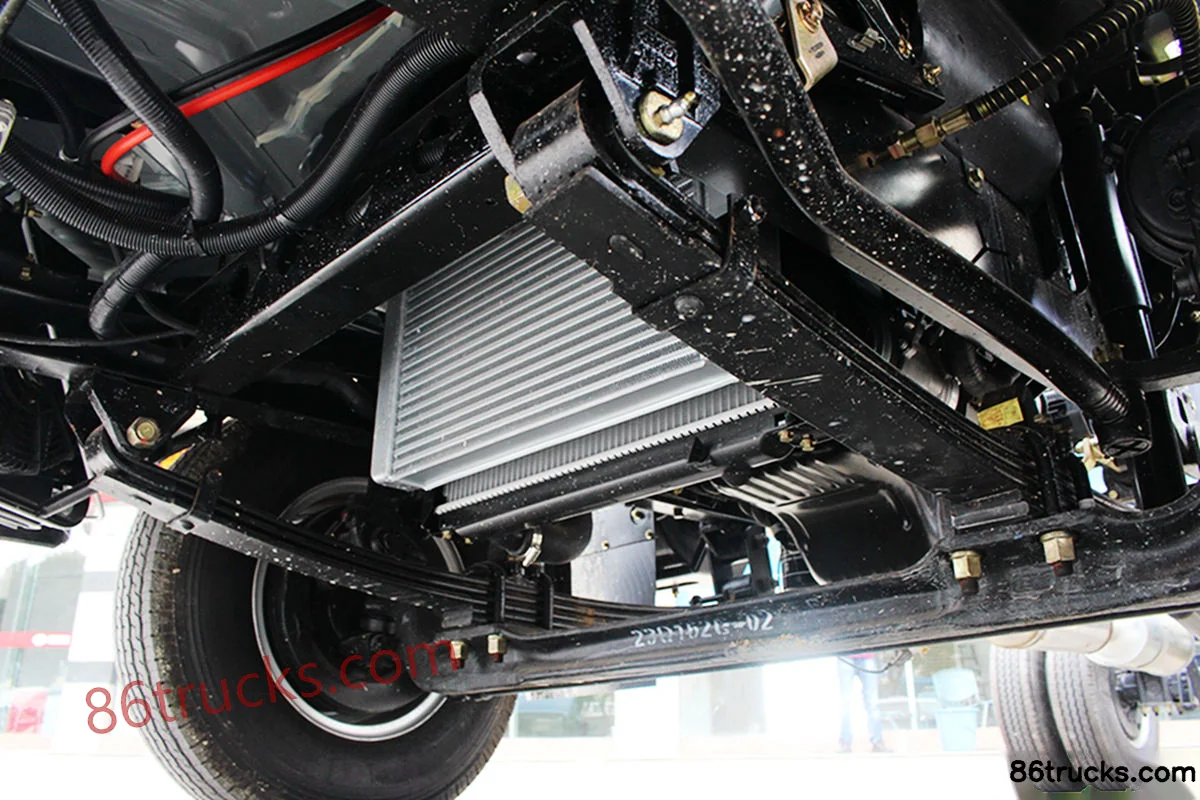

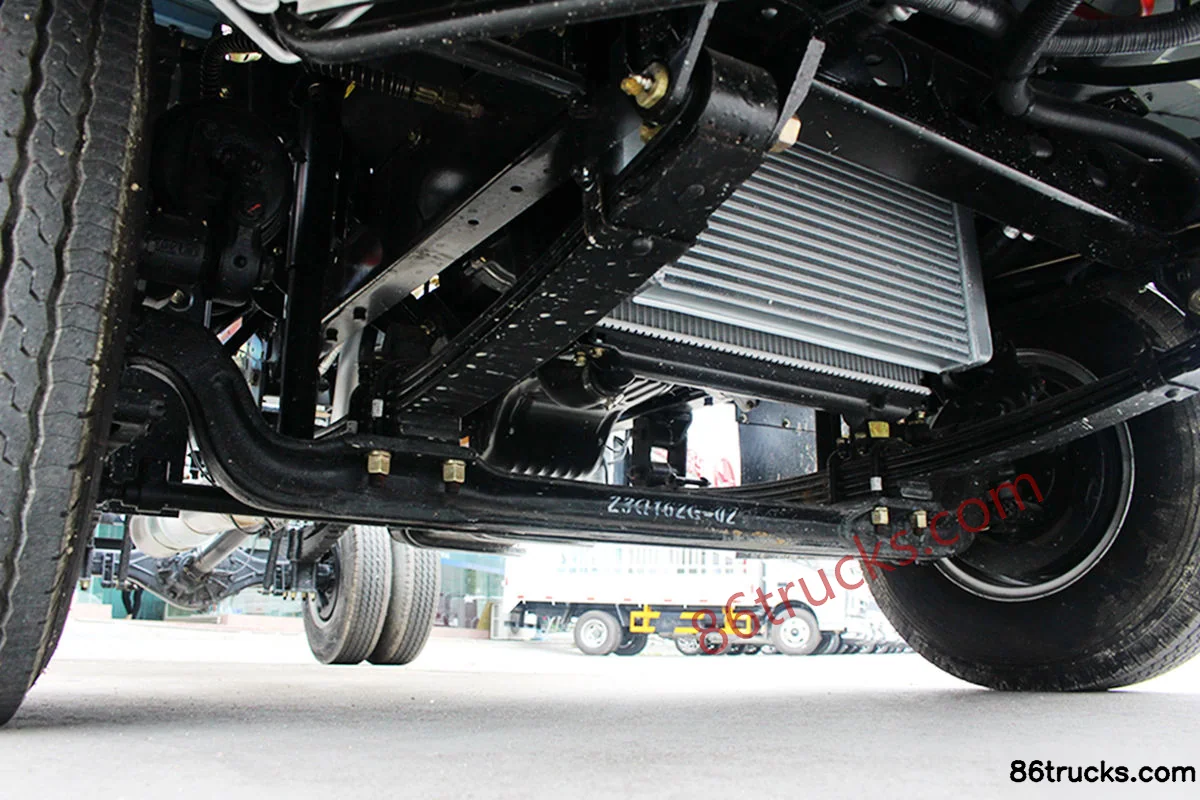

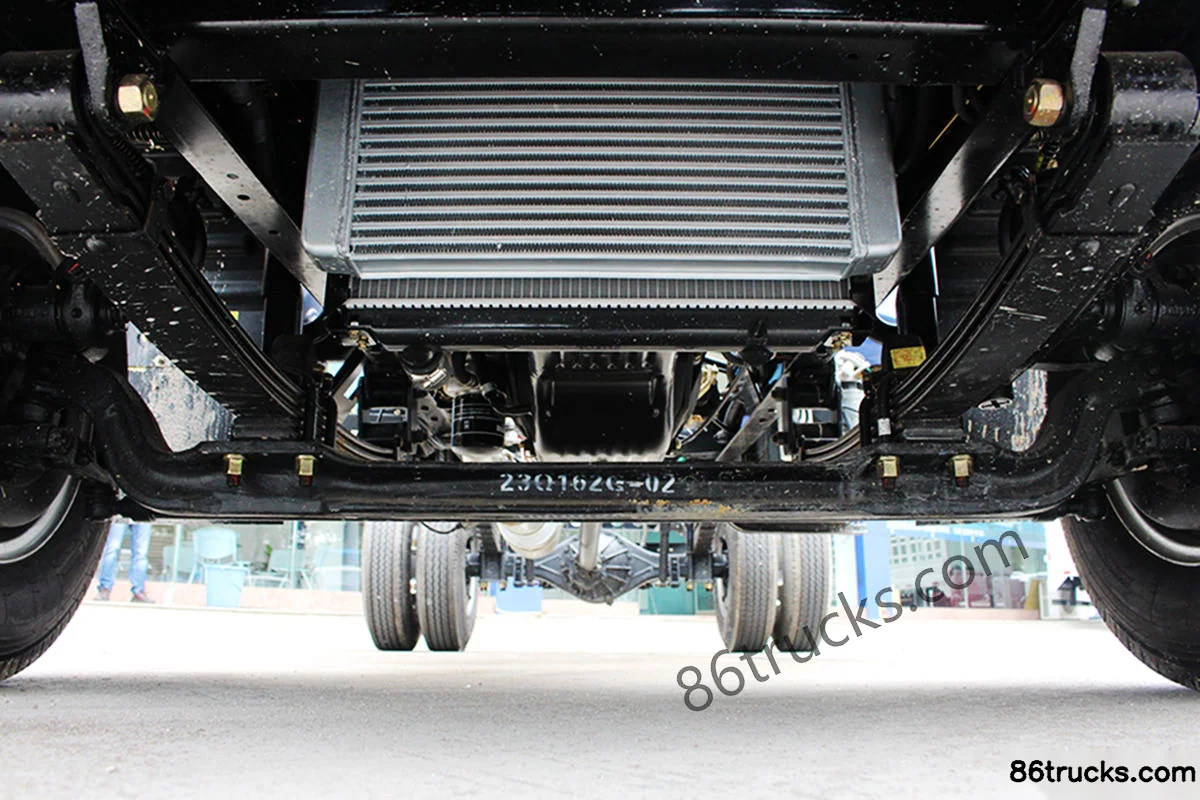

Chassis3

9 photos

FAQ

What is the export price of Sichuan Hyundai Ruiyue 109hp 4X2(6 wheels) 4.18m Single Row Flatbed Light Truck Chassis, and what does it include?

Sichuan Hyundai Ruiyue 109hp 4X2(6 wheels) 4.18m Single Row Flatbed Light Truck Chassis export reference is about From $13,056; MSRP is ¥9.4M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sichuan Hyundai Ruiyue 109hp 4X2(6 wheels) 4.18m Single Row Flatbed Light Truck Chassis use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sichuan Hyundai Ruiyue 109hp 4X2(6 wheels) 4.18m Single Row Flatbed Light Truck Chassis?

Key specs of Sichuan Hyundai Ruiyue 109hp 4X2(6 wheels) 4.18m Single Row Flatbed Light Truck Chassis: Drive: 4x2; Horsepower: 109 hp; Emission: China IV; Fuel: Diesel; Engine: Isuzu493; Transmission: Lu'an. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sichuan Hyundai Ruiyue 109hp 4X2(6 wheels) 4.18m Single Row Flatbed Light Truck Chassis suited for?

Sichuan Hyundai Ruiyue 109hp 4X2(6 wheels) 4.18m Single Row Flatbed Light Truck Chassis is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sichuan Hyundai Ruiyue 109hp 4X2(6 wheels) 4.18m Single Row Flatbed Light Truck Chassis differ from other variants in the same series?

Sichuan Hyundai Ruiyue 109hp 4X2(6 wheels) 4.18m Single Row Flatbed Light Truck Chassis belongs to Sichuan Hyundai Ruiyue Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sichuan Hyundai Ruiyue 109hp 4X2(6 wheels) 4.18m Single Row Flatbed Light Truck Chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sichuan Hyundai Ruiyue 109hp 4X2(6 wheels) 4.18m Single Row Flatbed Light Truck Chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
