FAW Hongta FAW Jiefang Gongshi 124hp 4X2(6 wheels) 3360mm wheelbase single-row light truck chassis

Export reference
From $16,389
MSRP ¥11.8M CNY
Horsepower: 124
Emission: China IV
Fuel: Diesel
Engine: Dachai498
Transmission: FAW Jiefang
Curb Weight:: 2.13ton
seating capacity: 3Personnel
Rated payload: 1.99ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The FAW Hongta FAW Jiefang Gongshi 124hp 4X2(6 wheels) 3360mm wheelbase single-row light truck chassis is a Light Truck featuring 4.21m cargo length, Van body cargo body, 3Personnel volume and 1.99t payload. Its segment focus covers Urban Distribution, matching those duty cycles. On the powertrain side, it comes with a Dachai498 engine, 124 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 124 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA1044PK26L2E4
Type: Chassis
Drive type: 4X2
Wheelbase: 3360mm
engine: DachaiCA4DC2-12E4
transmission: FAW JiefangCATS5-32
Rear Axle Ratio: 4.875
Cab length: 5.995m
Cab width: 2.05m
Cab height: 2.38m
Front track width: 1580mm
rear track: 1525mm
Curb Weight: 2.13ton
Rated payload: 1.99ton
GVWR: 4.315ton
Max. speed: 115km/h
Origin: Qujing, Yunnan
tonnage class: Light Truck
Approach angle: 17°
departure angle: 16°
market segment: Urban Distribution
Front/rear suspension: 1.135/1.5m
Energy Type: Diesel
Engine parameters
Engine Brand: Dachai
Engine Model: DachaiCA4DC2-12E4
Engine info: Dachai498
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.168L
Emission standard: China IV
Max output power: 91kW
Max hp: 124Horsepower
Max torque: 320N·m
Max torque speed: 2000rpm
Rated speed: 3200rpm
Engine Type: 4-cylinder inline, electronic common rail
Transmission Parameters
Transmission Model: FAW JiefangCATS5-32
Transmission Brand: FAW Jiefang
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 4.21m
Cargo box width: 2.01m
Cargo box height: 0.4m
*Cargo box interior width: 2.0099999904633
Cab parameters
seating capacity: 3Personnel
Seat rows: Double cab
Chassis Specs
Front axle allowable load: 1910kg
rear axle allowable load: 2405kg
Axle ratio: 4.875
Leaf spring count: 4/8+8

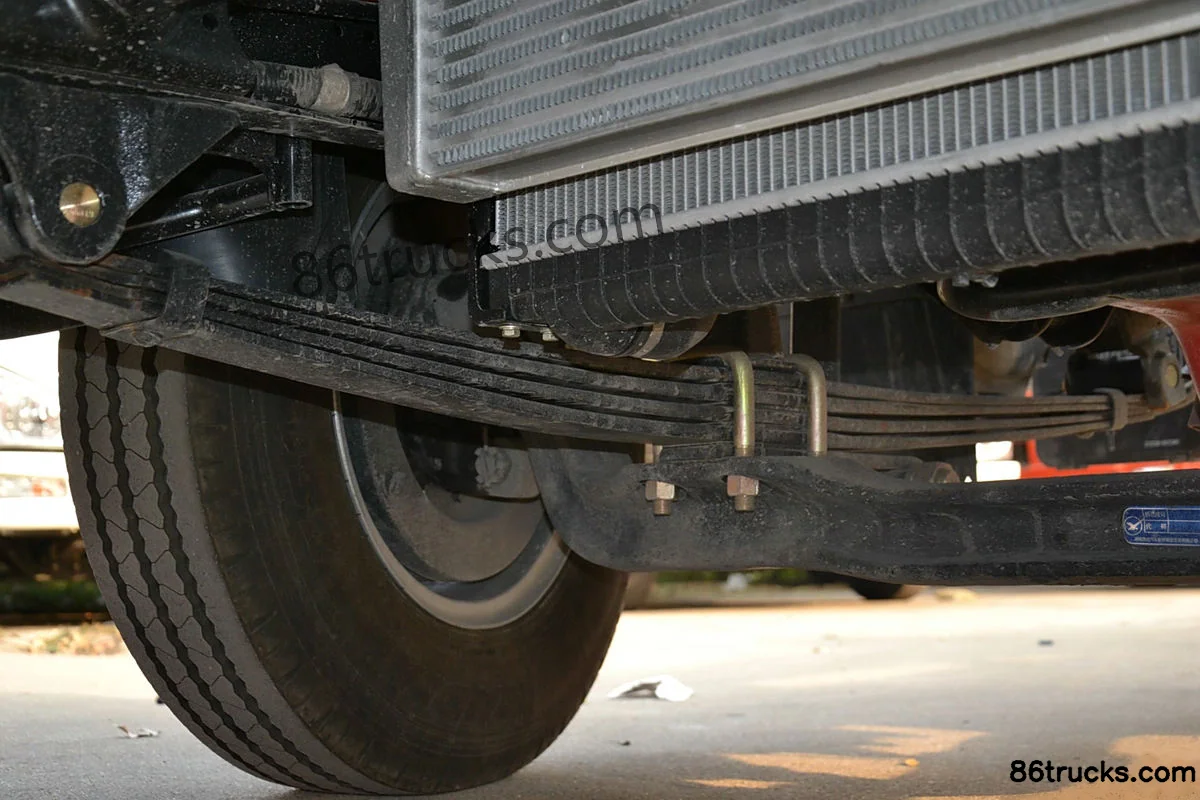

Suspension (front/rear): Leaf spring
Tire
Tire Size: 7.00R16
Number of tires: 6pcs
Control configuration
ABS:

Photos

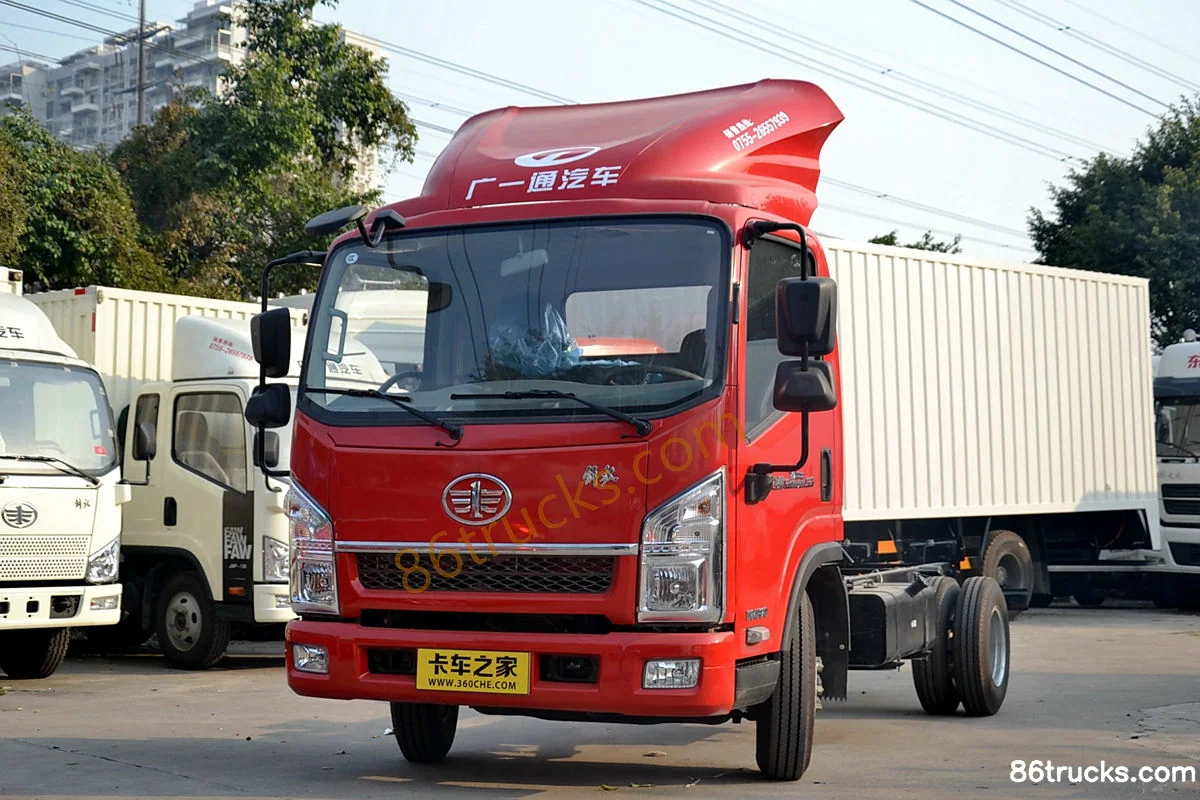

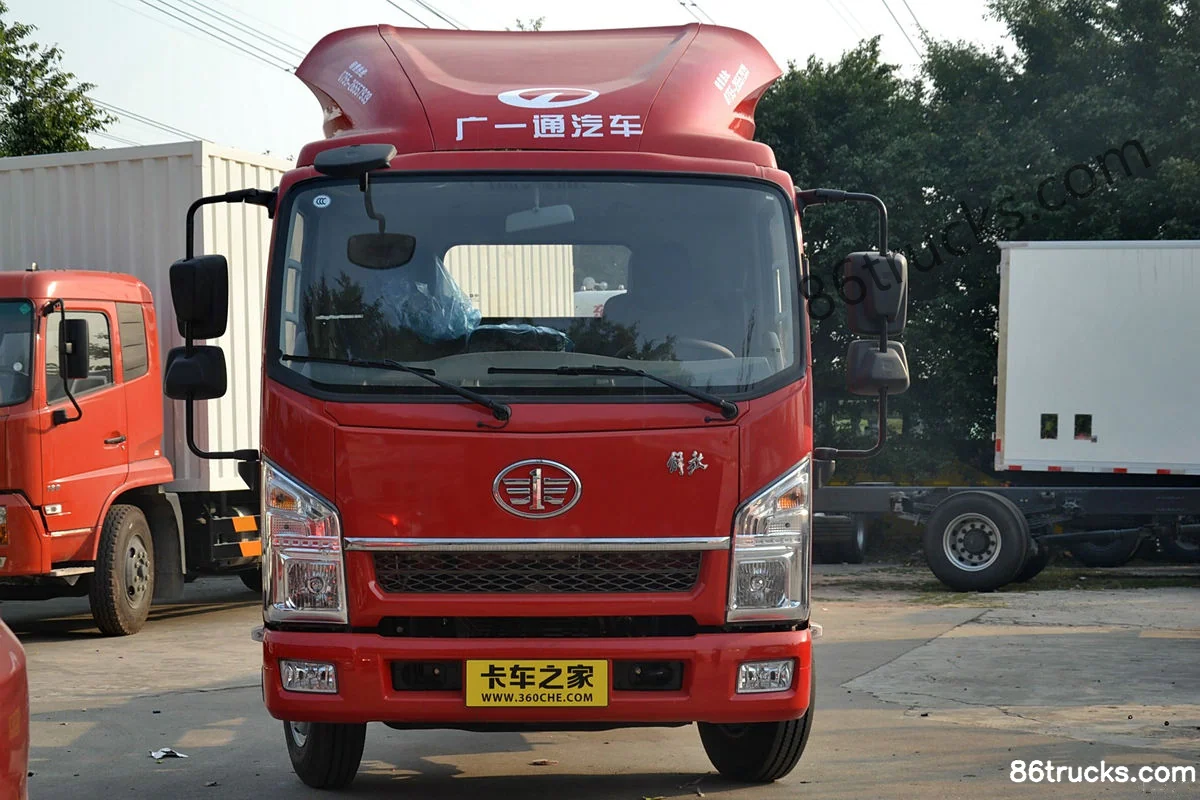

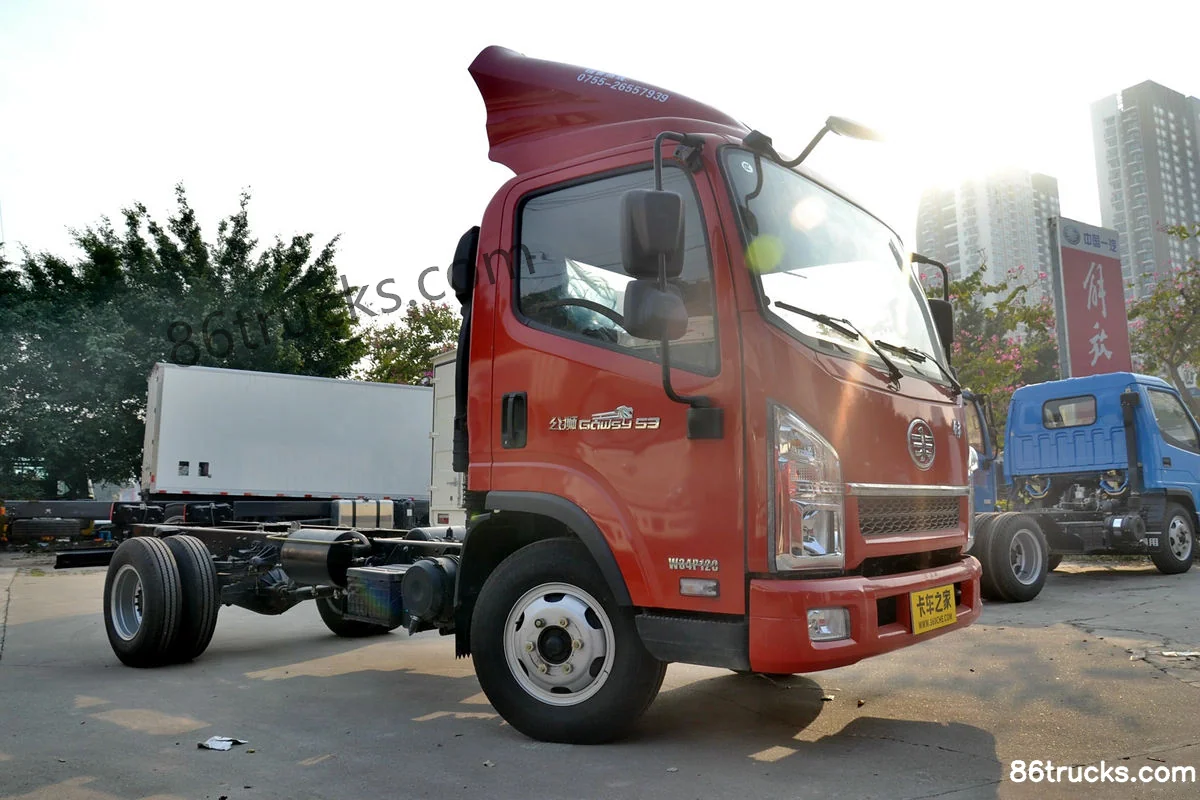

Exterior3

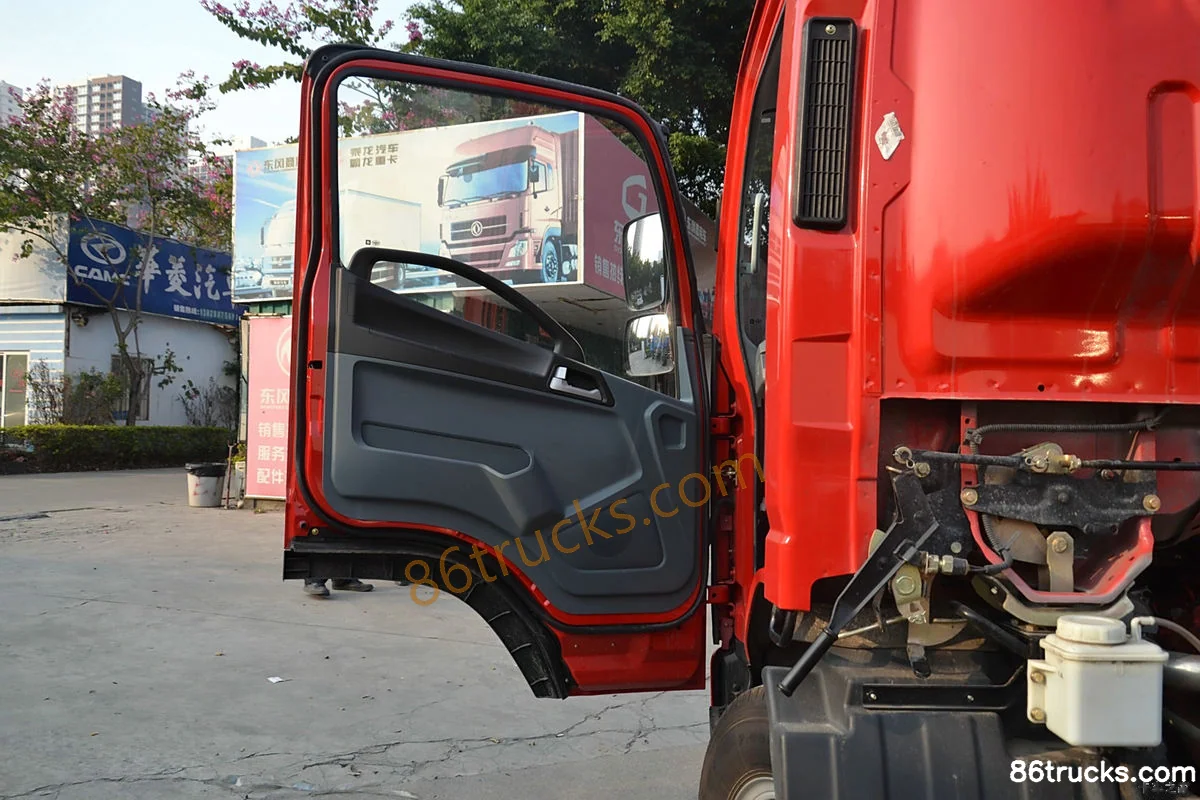

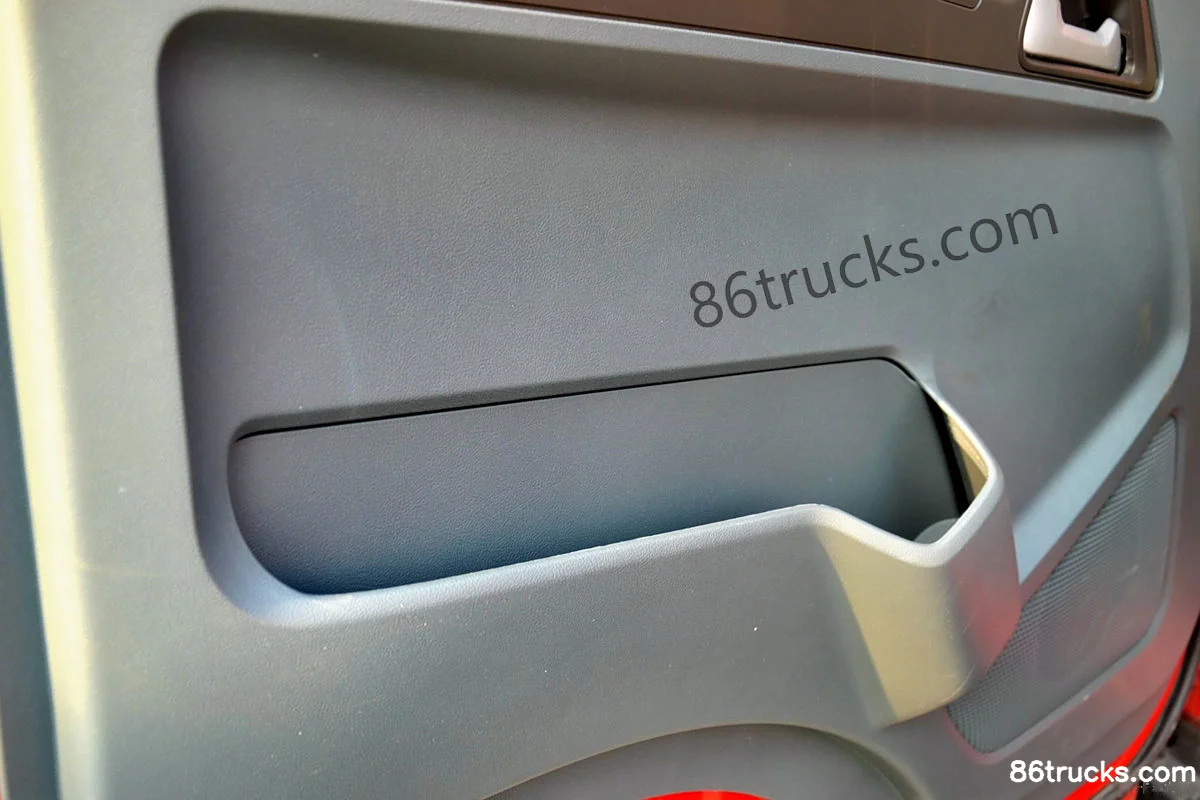

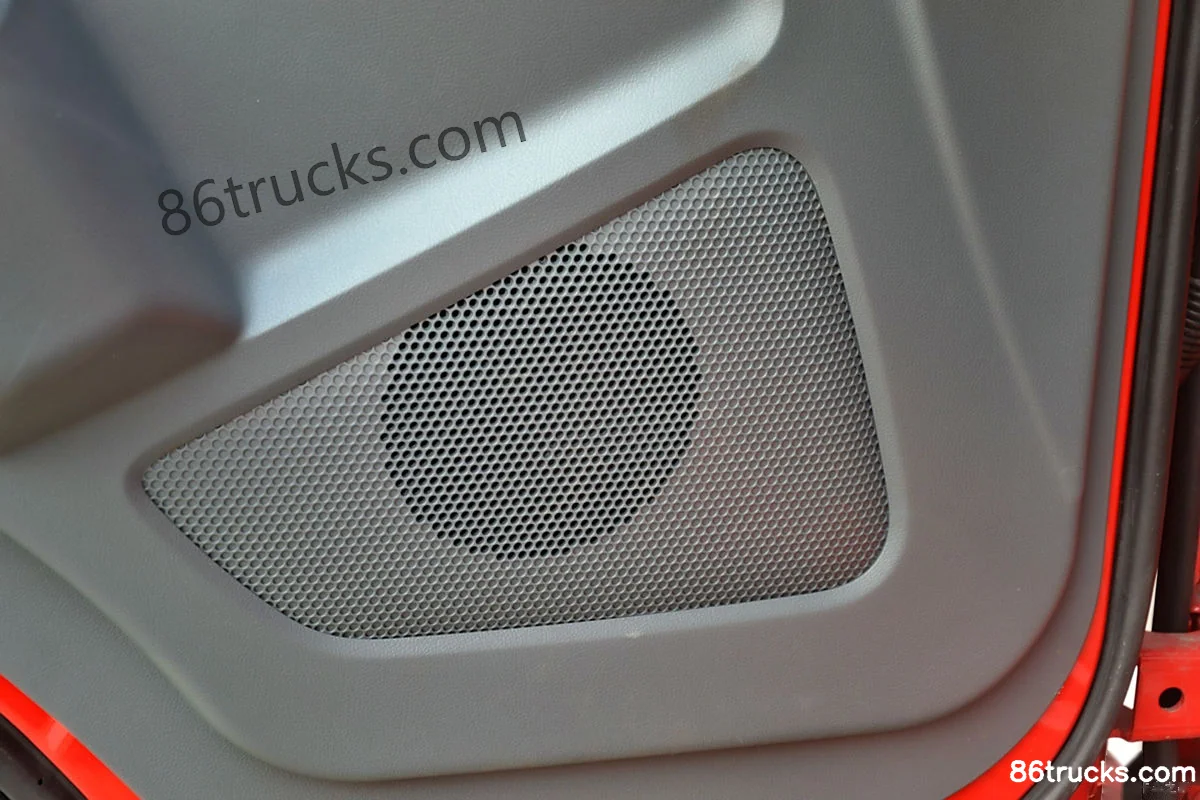

Cab3

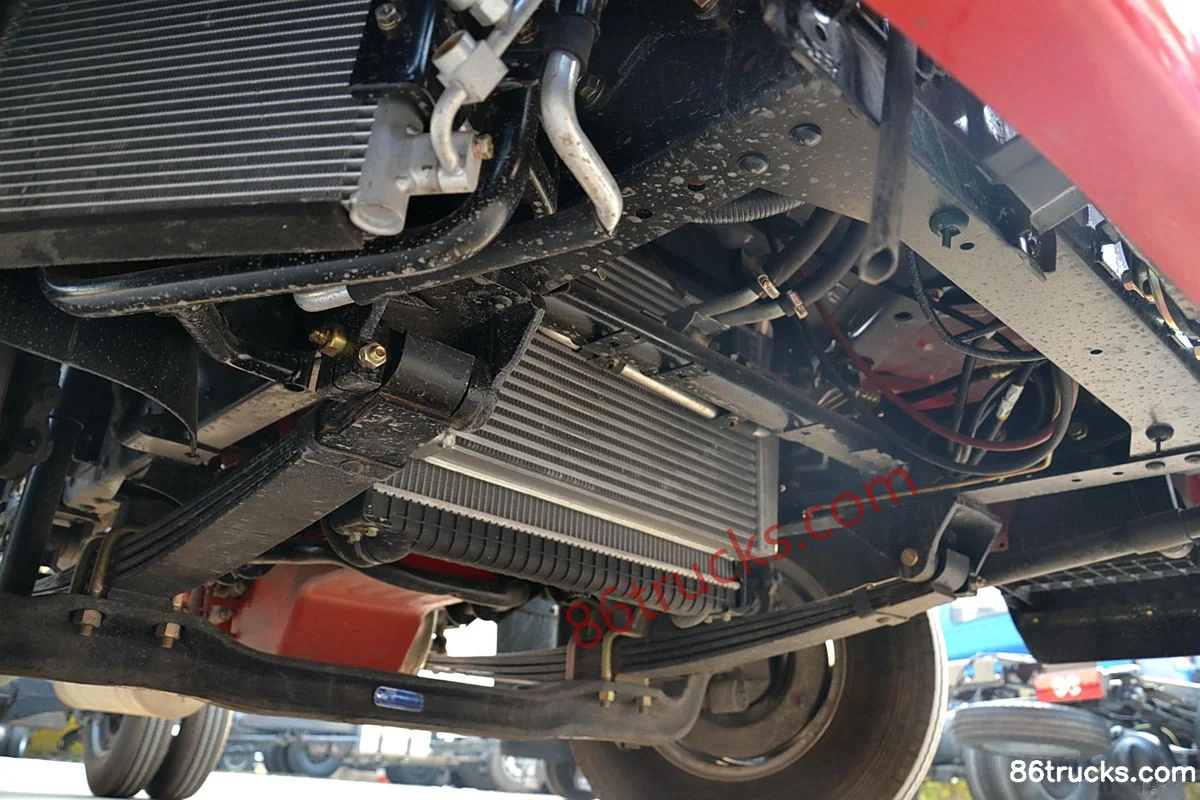

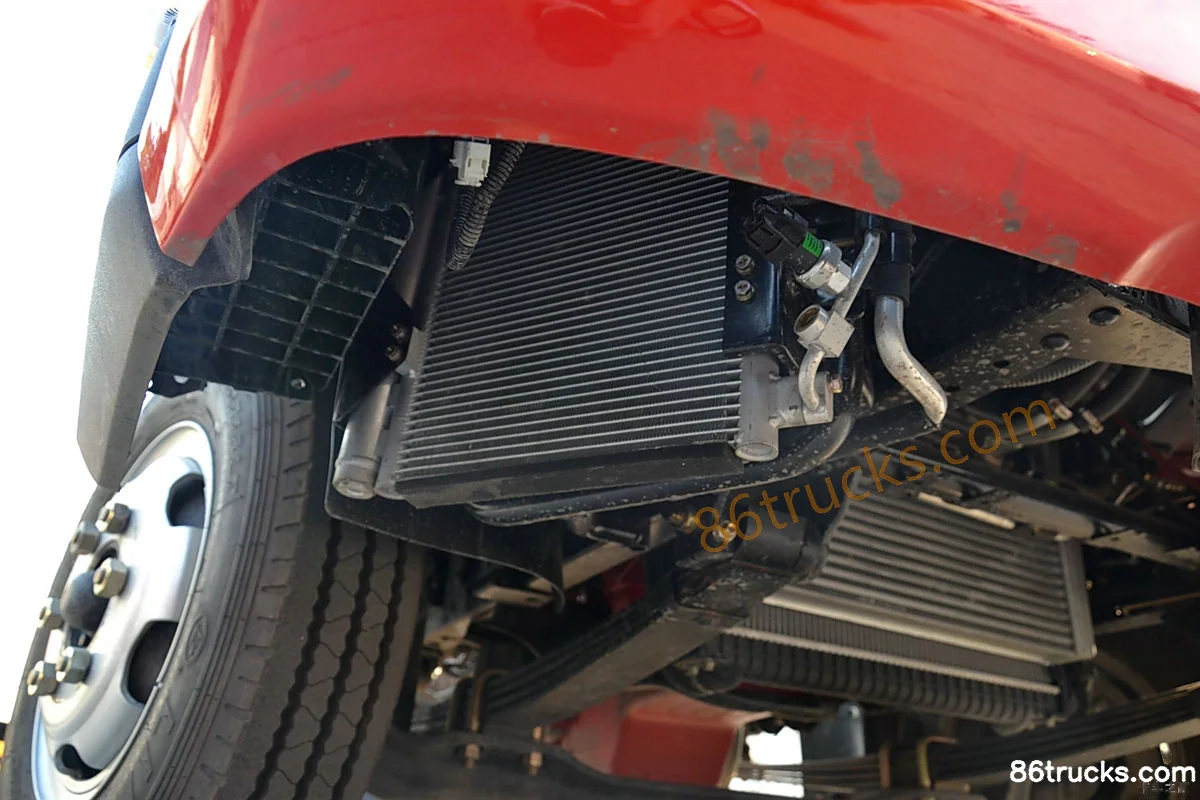

Chassis3

9 photos

FAQ

What is the export price of FAW Hongta FAW Jiefang Gongshi 124hp 4X2(6 wheels) 3360mm wheelbase single-row light truck chassis, and what does it include?

FAW Hongta FAW Jiefang Gongshi 124hp 4X2(6 wheels) 3360mm wheelbase single-row light truck chassis export reference is about From $16,389; MSRP is ¥11.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Hongta FAW Jiefang Gongshi 124hp 4X2(6 wheels) 3360mm wheelbase single-row light truck chassis use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Hongta FAW Jiefang Gongshi 124hp 4X2(6 wheels) 3360mm wheelbase single-row light truck chassis?

Key specs of FAW Hongta FAW Jiefang Gongshi 124hp 4X2(6 wheels) 3360mm wheelbase single-row light truck chassis: Drive: 4x2; Horsepower: 124 hp; Emission: China IV; Fuel: Diesel; Engine: Dachai498; Transmission: FAW Jiefang. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Hongta FAW Jiefang Gongshi 124hp 4X2(6 wheels) 3360mm wheelbase single-row light truck chassis suited for?

FAW Hongta FAW Jiefang Gongshi 124hp 4X2(6 wheels) 3360mm wheelbase single-row light truck chassis is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Hongta FAW Jiefang Gongshi 124hp 4X2(6 wheels) 3360mm wheelbase single-row light truck chassis differ from other variants in the same series?

FAW Hongta FAW Jiefang Gongshi 124hp 4X2(6 wheels) 3360mm wheelbase single-row light truck chassis belongs to FAW Hongta FAW Jiefang Gongshi Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Hongta FAW Jiefang Gongshi 124hp 4X2(6 wheels) 3360mm wheelbase single-row light truck chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Hongta FAW Jiefang Gongshi 124hp 4X2(6 wheels) 3360mm wheelbase single-row light truck chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
