JAC Gallop K3X Heavy Truck 290hp 8X2(10 wheels) 9.5m Flatbed Cargo Truck

Export reference
MSRP N/A
Horsepower: 290
Emission: China V
Fuel: Diesel
Engine: Yuchai7.5L
Transmission: Fast Gear
Curb Weight:: 10.9ton
seating capacity: 3Personnel
Rated payload: 19.905ton
Drive 8X2 (10 wheels)
Cargo box type: stake body

Overview

The JAC Gallop K3X Heavy Truck 290hp 8X2(10 wheels) 9.5m Flatbed Cargo Truck is a Heavy-duty cargo trucks featuring 9.5m cargo length, stake body cargo body, 3Personnel volume and 19.905t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Yuchai7.5L engine, 290 hp, 8X2 (10 wheels) drive and China V emissions.

China V 290 Diesel 8X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC1311P2K4G43S2V
Type: Cargo Trucks
Drive type: 8X2
Wheelbase: 1900+4300+1350mm
Box length class: 9.5m
engine: YuchaiYC6A290-50
transmission: Fast Gear8JS118A
Rear Axle Ratio: 4.3
Cab length: 12m
Cab width: 2.55m
Cab height: 3.715m
Front track width: 2040/2040mm
rear track: 1955/1840mm
Curb Weight: 10.9ton
Rated payload: 19.905ton
GVWR: 31ton
Max. speed: 95km/h
Origin: Hefei, Anhui
tonnage class: Heavy-duty cargo trucks
Approach angle: 17°
departure angle: 11°
market segment: Building materials, agricultural products
Remarks: Optional ratio 4.875
Front/rear suspension: 1.495/2.955m
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6A290-50
Engine info: Yuchai7.5L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 7.52L
Emission standard: China V
Max output power: 213kW
Max hp: 290Horsepower
Max torque: 1150N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Transmission Parameters
Transmission Model: Fast Gear8JS118A
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 9.5m
Cargo box width: 2.46m
Cargo box height: 0.8m
*Cargo box interior width: 2.460000038147
Cab parameters
Cab: K3X High Roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 400L
Chassis Specs
Front axle allowable load: 6500/6500kg
Frame Dimensions: 280×80×(8+4)mm
rear axle description: 459
rear axle allowable load: 6500/11500kg
Axle ratio: 4.3
Leaf spring count: 9/9/6+-/11+9
Tire
Tire Size: 11.00R20,12R22.5
Number of tires: 10pcs
Control configuration
ABS:

Photos

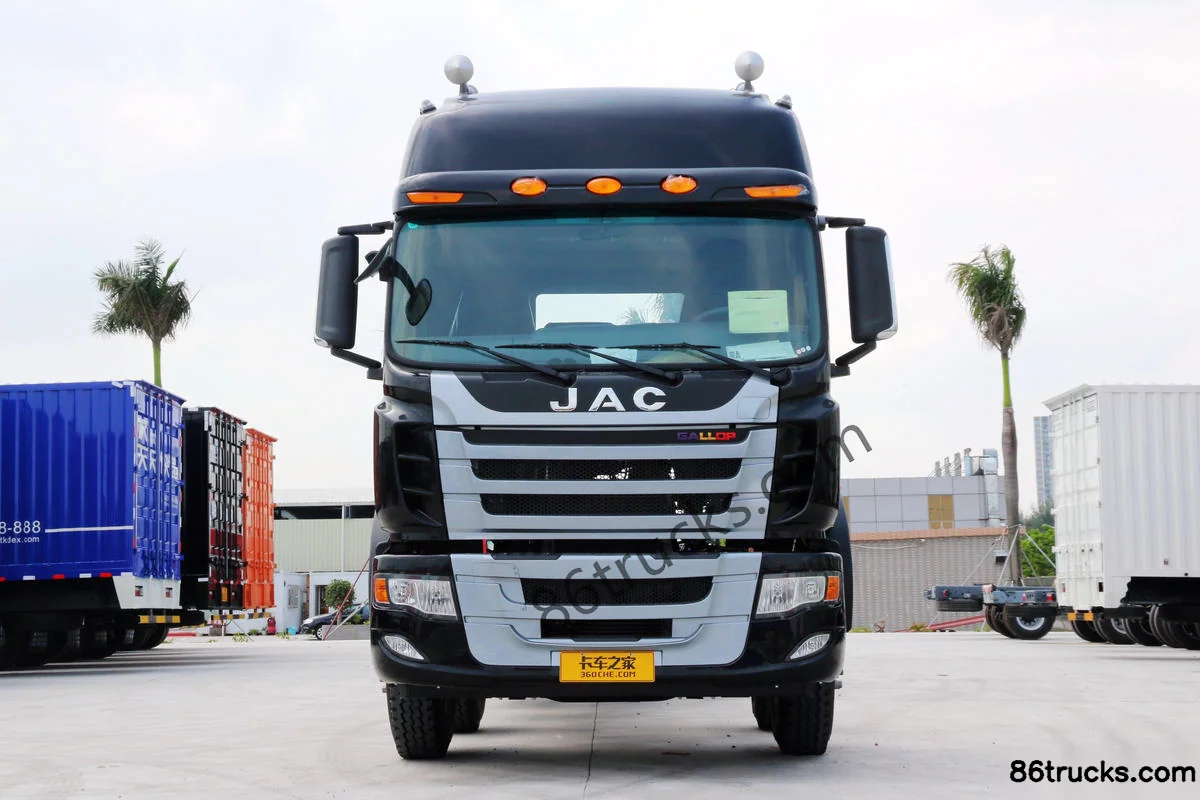

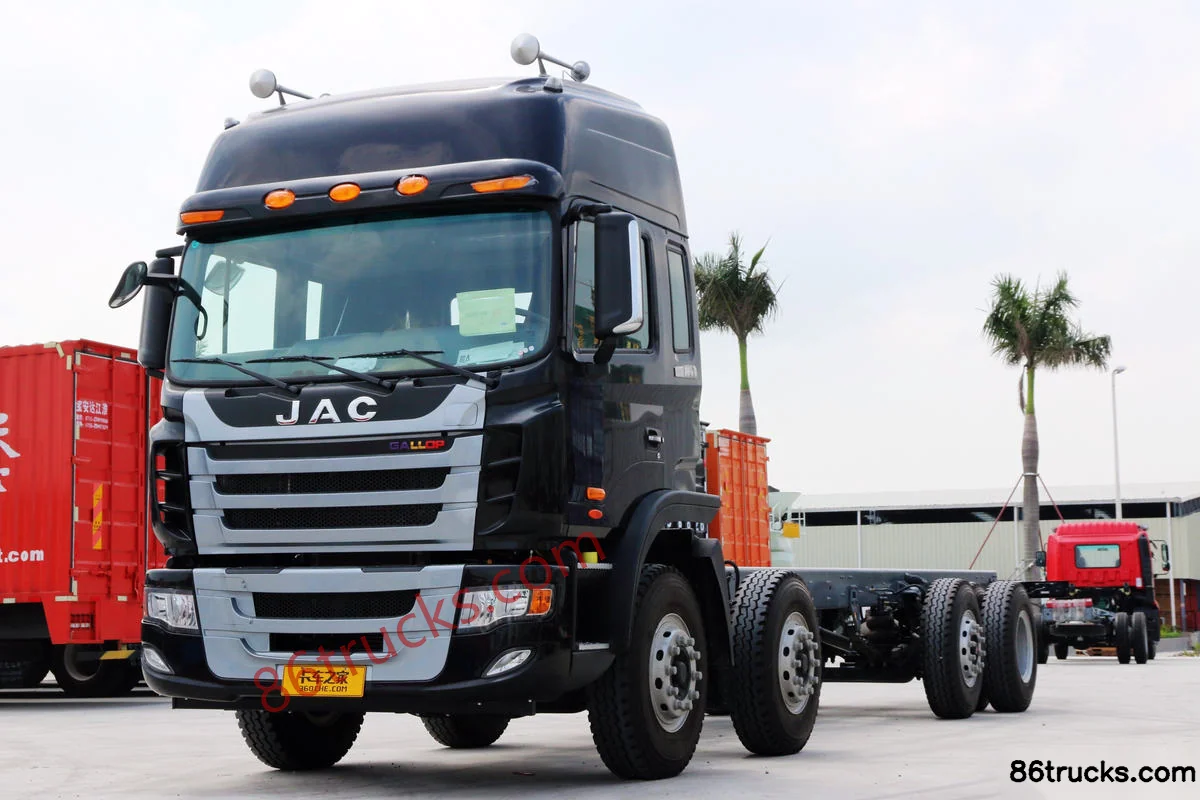

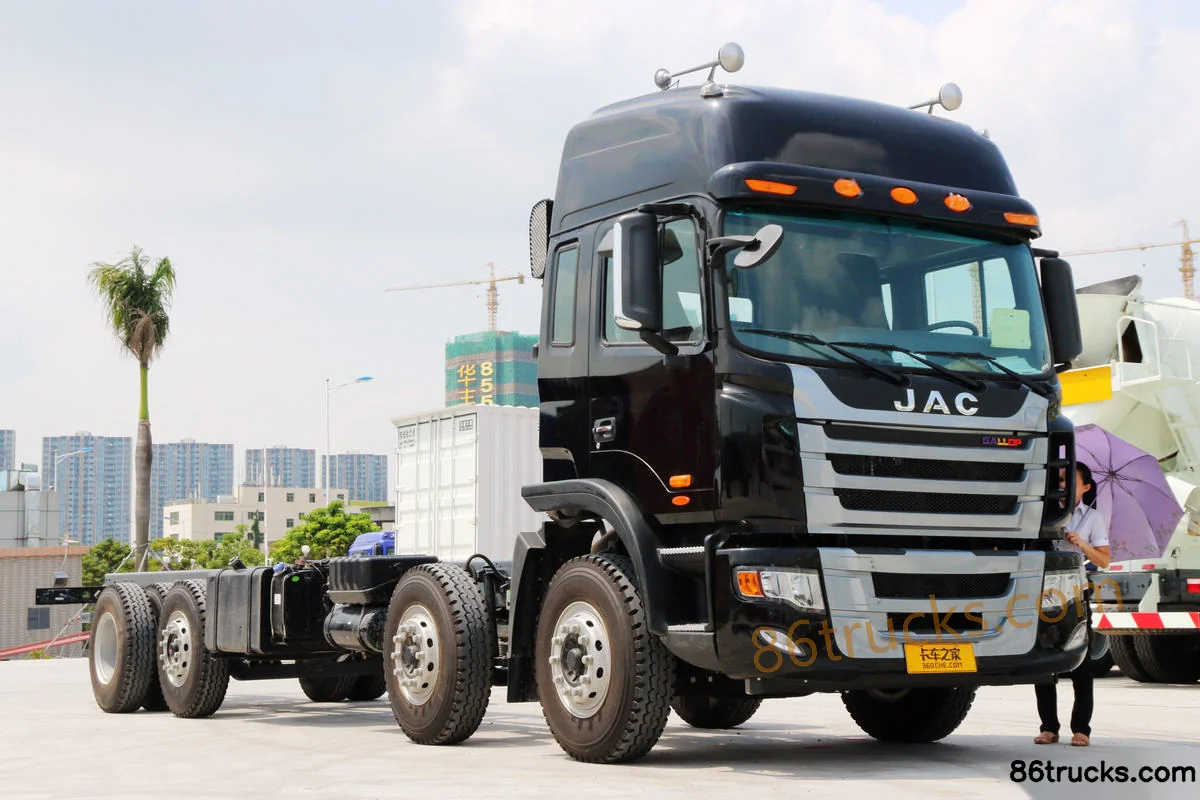

Exterior3

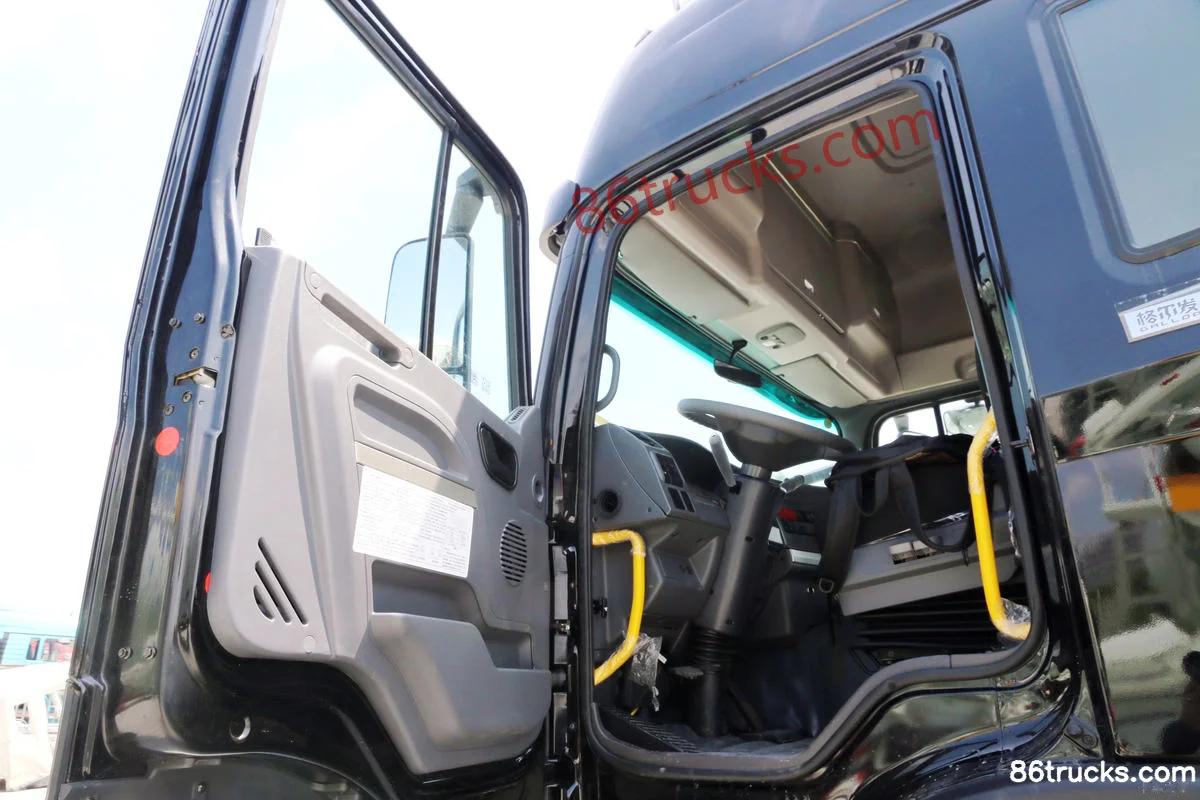

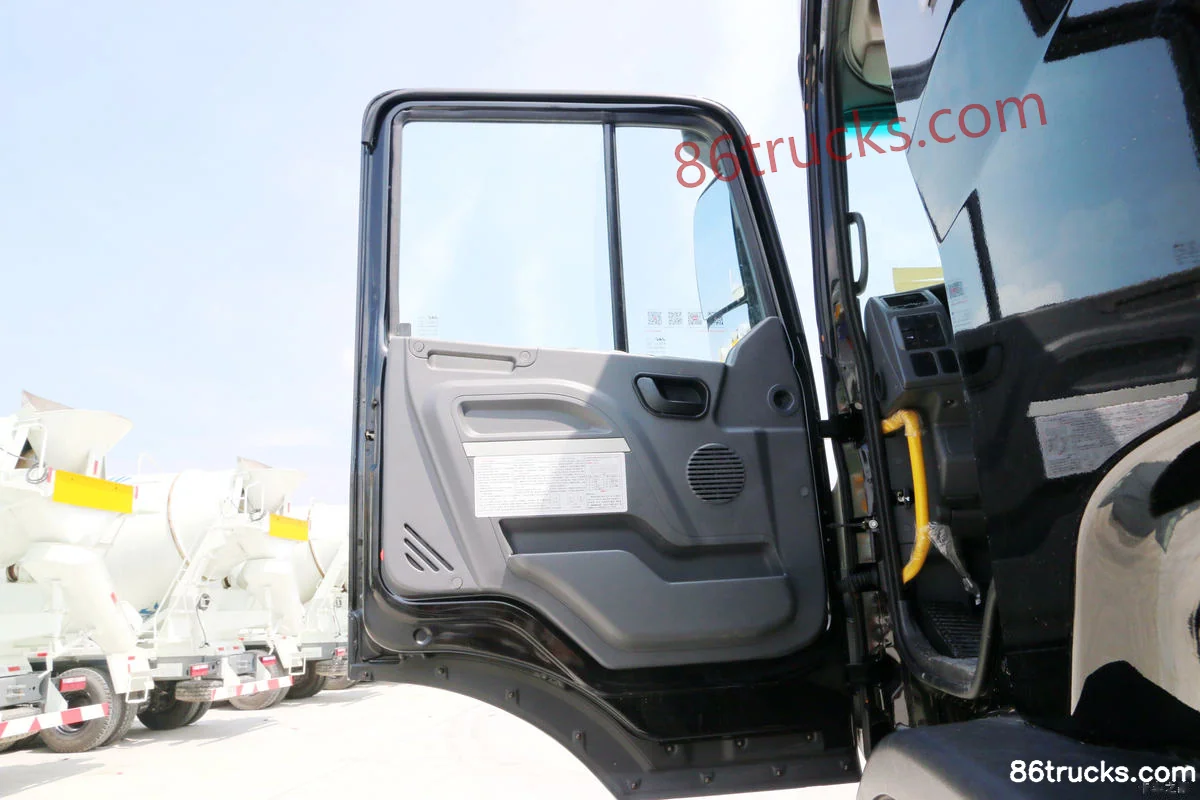

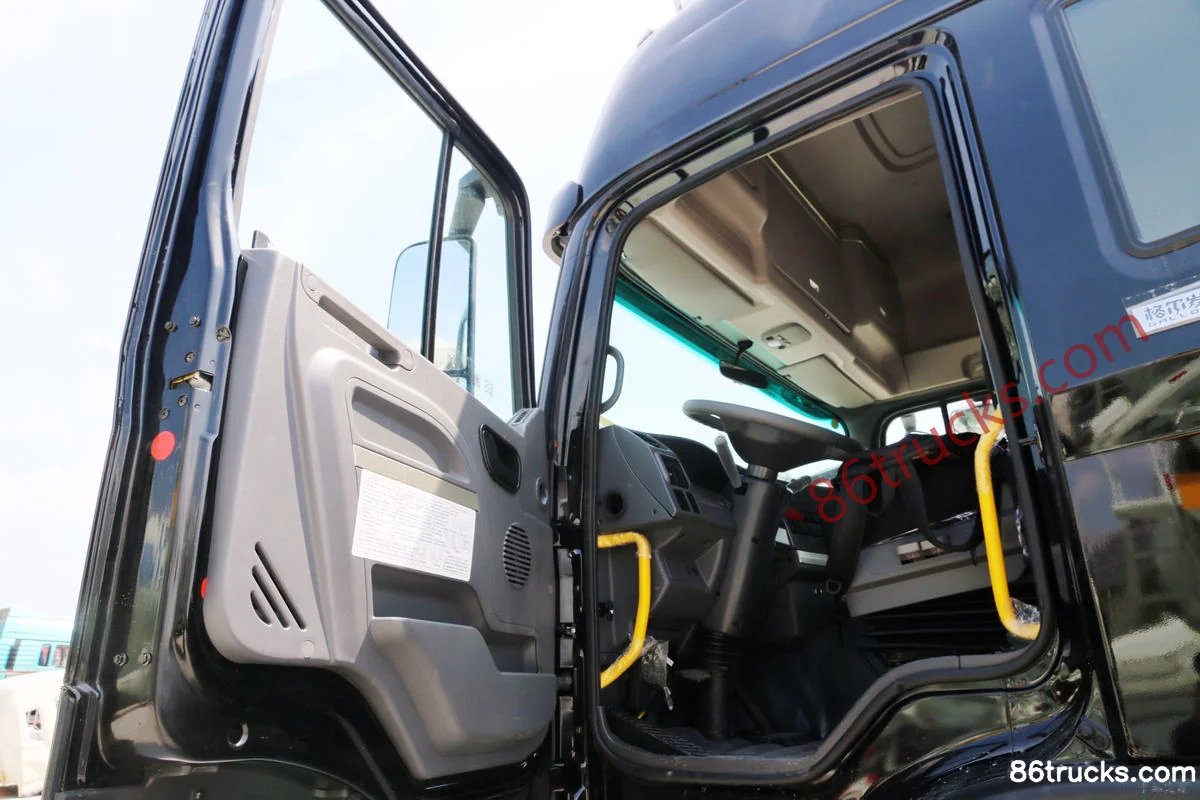

Cab3

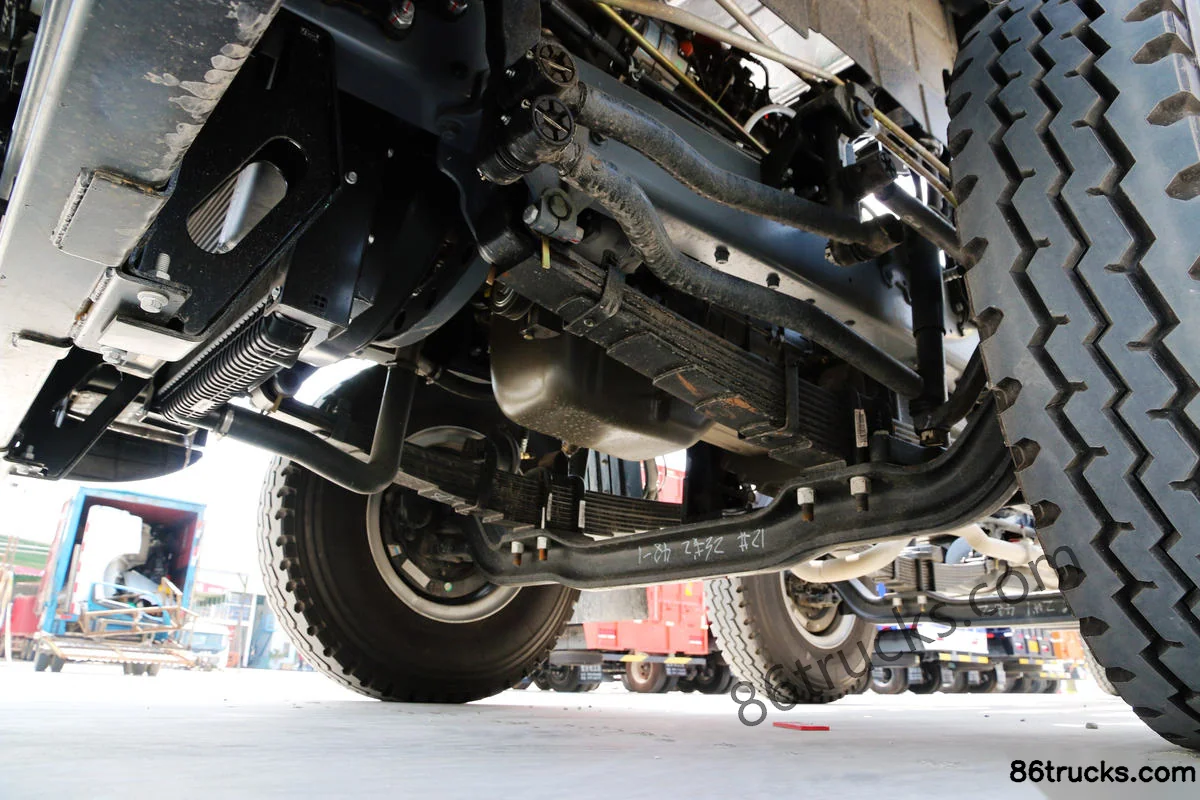

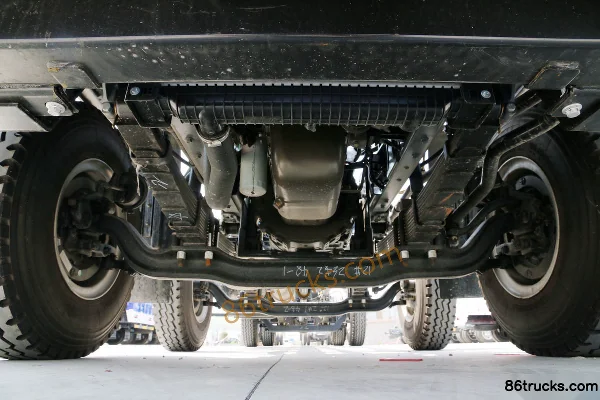

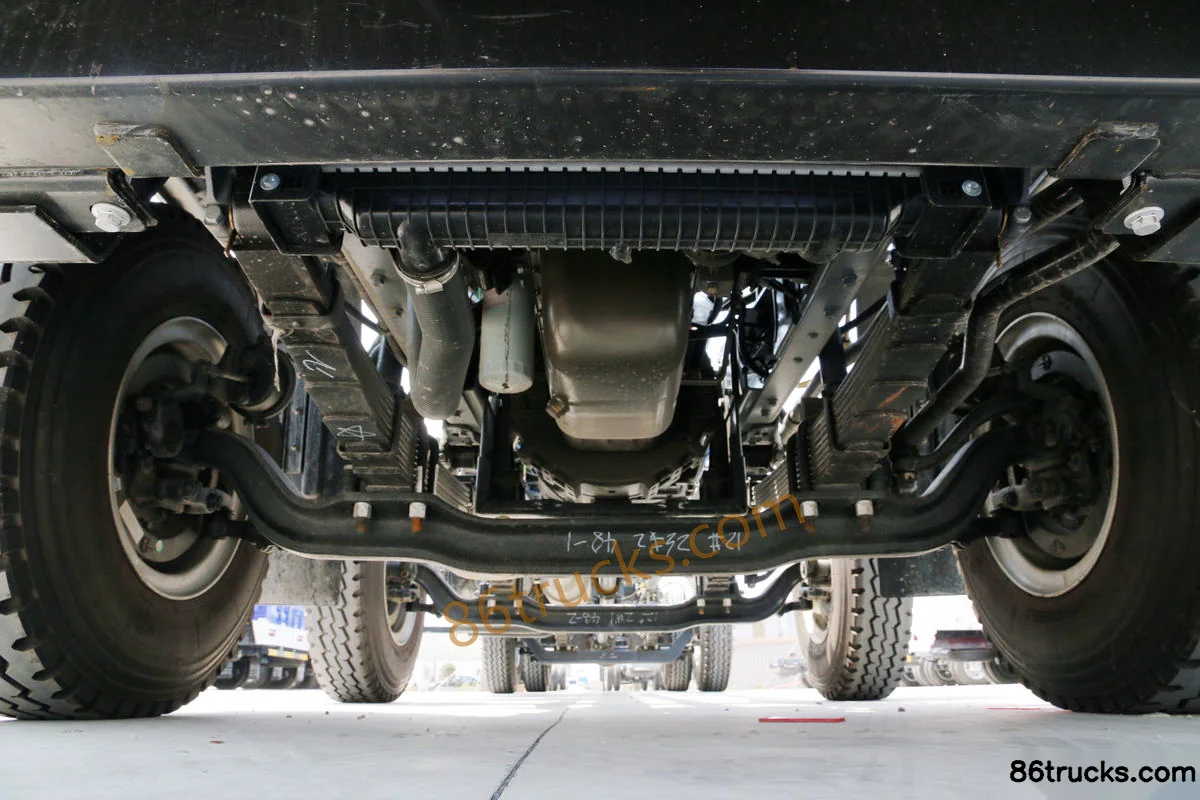

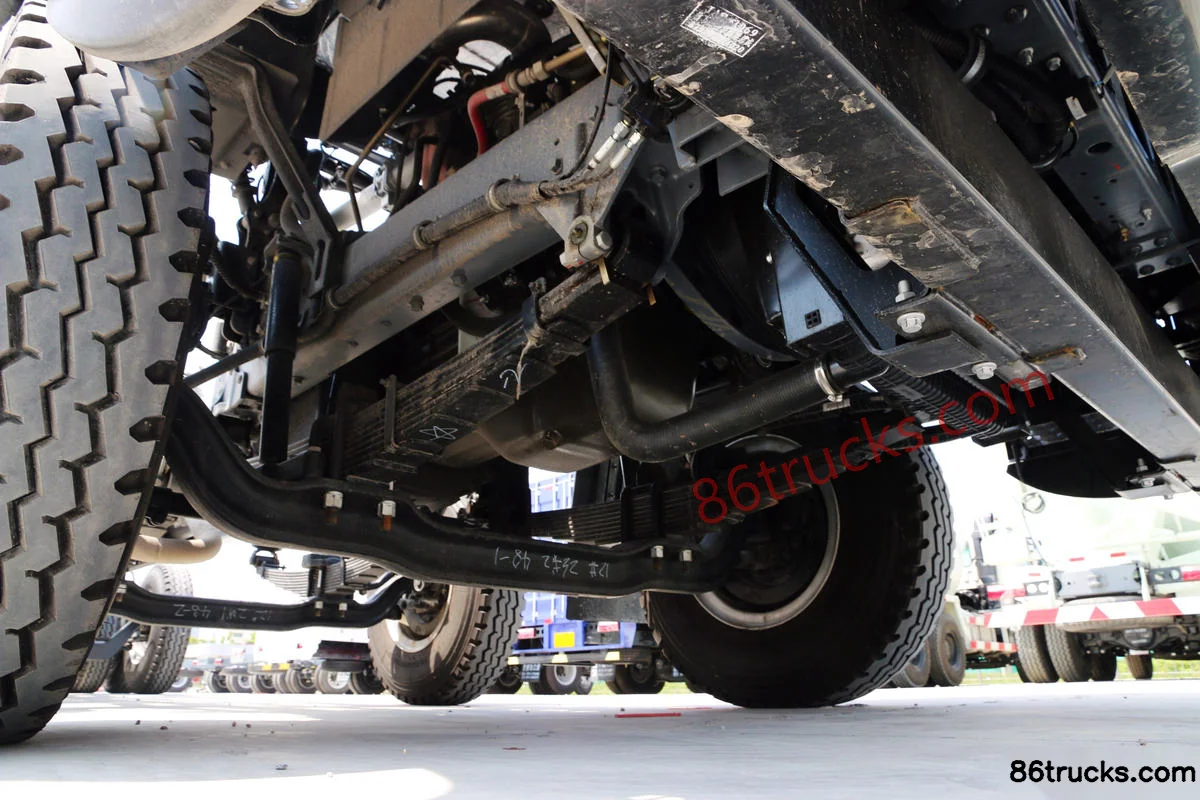

Chassis3

9 photos

FAQ

What emission standard does JAC Gallop K3X Heavy Truck 290hp 8X2(10 wheels) 9.5m Flatbed Cargo Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Gallop K3X Heavy Truck 290hp 8X2(10 wheels) 9.5m Flatbed Cargo Truck?

Key specs of JAC Gallop K3X Heavy Truck 290hp 8X2(10 wheels) 9.5m Flatbed Cargo Truck: Drive: 8x2; Horsepower: 290 hp; Emission: China V; Fuel: Diesel; Engine: Yuchai7.5L; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Gallop K3X Heavy Truck 290hp 8X2(10 wheels) 9.5m Flatbed Cargo Truck suited for?

JAC Gallop K3X Heavy Truck 290hp 8X2(10 wheels) 9.5m Flatbed Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Gallop K3X Heavy Truck 290hp 8X2(10 wheels) 9.5m Flatbed Cargo Truck differ from other variants in the same series?

JAC Gallop K3X Heavy Truck 290hp 8X2(10 wheels) 9.5m Flatbed Cargo Truck belongs to JAC Gallop K3 Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Gallop K3X Heavy Truck 290hp 8X2(10 wheels) 9.5m Flatbed Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Gallop K3X Heavy Truck 290hp 8X2(10 wheels) 9.5m Flatbed Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
