SANY 428 Electric 8X4(12 wheels) 8m Dump Truck CATL 600.92kWh

Export reference
MSRP N/A
Rated payload:: 6.37ton
Wheelbase:: 2000+4400+1400mm
Cargo box length:: 8m
Model code (announced):: SYM3311ZH6BEV4
Cab length:: 11.18m
GVWR:: 31ton
Drive 8X4 (12 wheels)
CLTC range: 350km
Motor 1 Brand: SANY
Curb Weight: 24.5ton

Overview

The SANY 428 Electric 8X4(12 wheels) 8m Dump Truck CATL 600.92kWh is a Heavy truck featuring 350km battery/range, SANY motor, 8X4 (12 wheels) drive and 6.37t payload.

8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SYM3311ZH6BEV4
Drive type: 8X4
Wheelbase: 2000+4400+1400mm
Cab length: 11.18m
Cab width: 2.54m
Cab height: 3.58m
CLTC range: 350km
Curb Weight: 24.5ton
Rated payload: 6.37ton
GVWR: 31ton
Max. speed: 85km/h
Origin: Changsha, Hunan
tonnage class: Heavy truck
Energy Type: Electric
electric motor
Motor 1 Brand: SANY
Motor 1 Model: TZ460XS-SYM2901
Motor Type: Permanent magnet synchronous motor
total rated power: 315kW
Peak power: 460kW
total rated torque: 1650N·m
total peak torque: 2900N·m
Motor 2 Peak Power: 460kW
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 600.92kWh
Cargo box parameters
Cargo box length: 8m
Cargo box width: 2.4m
Cargo box height: 1.1m
Cab parameters
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 6500/6500kg
rear axle description: 23T reinforced rear axle
rear axle allowable load: 18000 (tandem axle group)kg
Tire
Tire Size: 12.00R20 18PR
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
lighting configuration
daytime running lights:
Headlight height adjustment:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

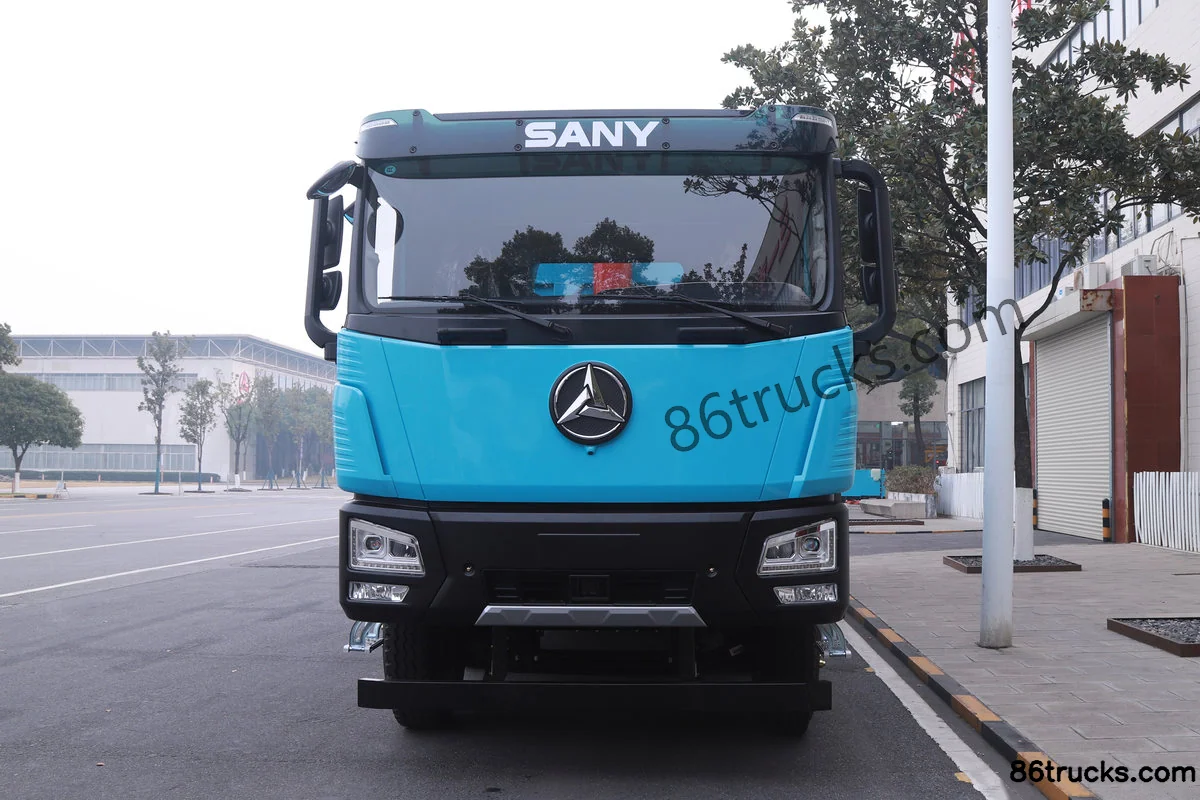

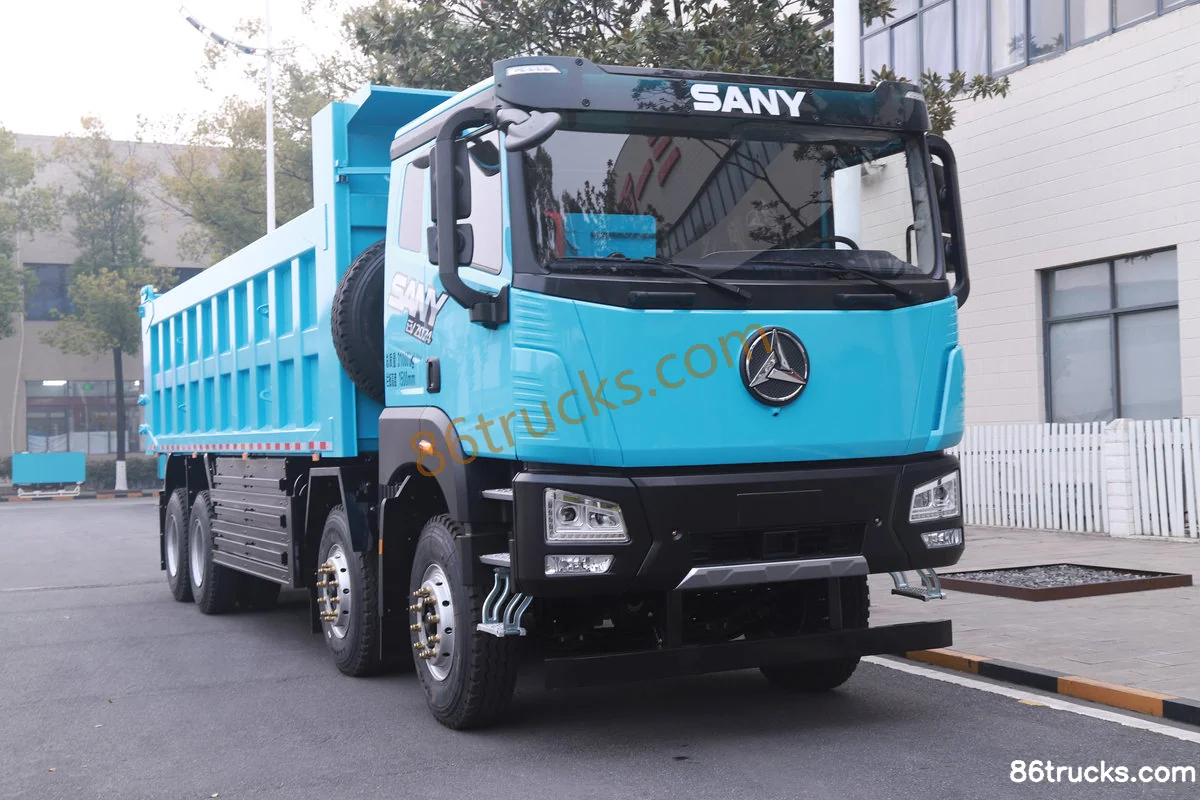

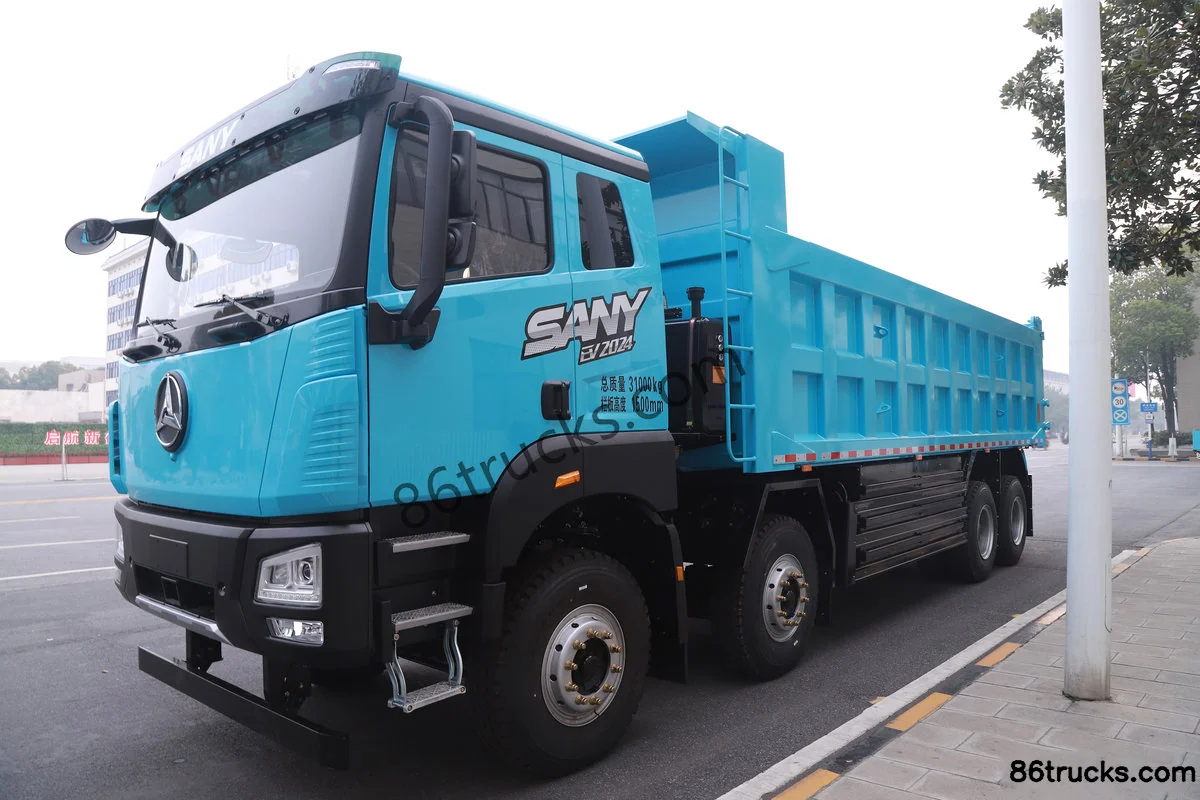

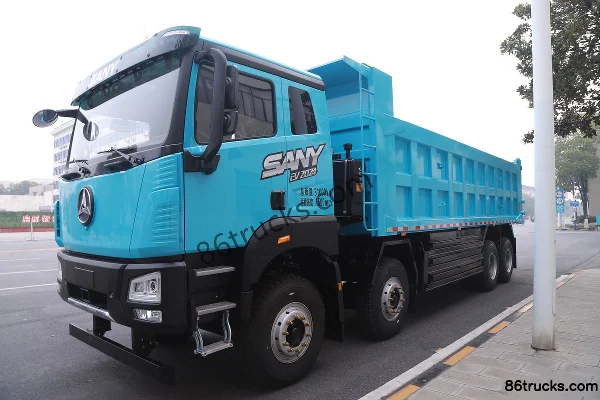

Exterior3

3 photos

FAQ

What are the key specs of SANY 428 Electric 8X4(12 wheels) 8m Dump Truck CATL 600.92kWh?

Key specs of SANY 428 Electric 8X4(12 wheels) 8m Dump Truck CATL 600.92kWh: Drive: 8x4. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SANY 428 Electric 8X4(12 wheels) 8m Dump Truck CATL 600.92kWh suited for?

SANY 428 Electric 8X4(12 wheels) 8m Dump Truck CATL 600.92kWh is a electric dump truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SANY 428 Electric 8X4(12 wheels) 8m Dump Truck CATL 600.92kWh differ from other variants in the same series?

SANY 428 Electric 8X4(12 wheels) 8m Dump Truck CATL 600.92kWh belongs to SANY428 (electric dump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SANY 428 Electric 8X4(12 wheels) 8m Dump Truck CATL 600.92kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SANY 428 Electric 8X4(12 wheels) 8m Dump Truck CATL 600.92kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
