Foton Aoling New Jieyun 170hp 4X2(6 wheels) 5m flammable liquid van truck

Export reference
From $23,333
MSRP ¥16.8M CNY
Emission: China VI
Fuel: Diesel
Wheelbase:: 3800mm
Cab dimensions:: 7×2.45×3.15m
Type:: Flammable liquid van truck
Front/rear track width:: Front: 1730mm; Rear: 1680mm
Fuel tank material: aluminum alloy
Drive 4X2 (6 wheels)
Horsepower 170
Rated mass: 6.7ton

Overview

The Foton Aoling New Jieyun 170hp 4X2(6 wheels) 5m flammable liquid van truck is a Explosives Transport Truck featuring aluminum alloy tank capacity, 11.955t GVW and 4X2 (6 wheels) drive. On the powertrain side, it comes with 170 hp, China VI emissions and Diesel fuel.

China VI 170 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 7×2.45×3.15m
Type: Flammable liquid van truck
Drive type: 4X2
Wheelbase: 3800mm
Front/rear track width: Front: 1730mm; Rear: 1680mm
Rated mass: 6.7ton
Curb weight: 5.1ton
GVWR: 11.955ton
Max. speed: 80km/h
Front/rear suspension: 1.225/2.075m
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: Yunnei PowerD30TCIF1
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 3L
Emission standard: China VI
Max output power: 125kW
Max hp: 170Horsepower
Max torque: 500N·m
Max torque speed: 1200-2200rpm
Rated speed: 2800rpm
Cargo box parameters
Cargo box dimensions: 5×2.3×2m
Cargo box length: 5m
Cargo box width: 2.3m
Cargo box height: 2m
Body Parameters
Vehicle certification code: YZZ5128XRYBJ6
Body Brand: Foton
Chassis Specs
Chassis Brand: Foton
Chassis Series: Aoling New Jieyun
Chassis Model: BJ1128VGJEA-AC1
Leaf spring count: 9/8+6
Transmission Parameters
Number of gears: 8Gear
shift type: Manual
Transmission Model: Fast Gear8JS75C
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 80L
Tire
Tire Size: 9R22.5 14PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Remote key:
Electronic Central Lock:
smart configuration
Cruise control (CCS):

Photos

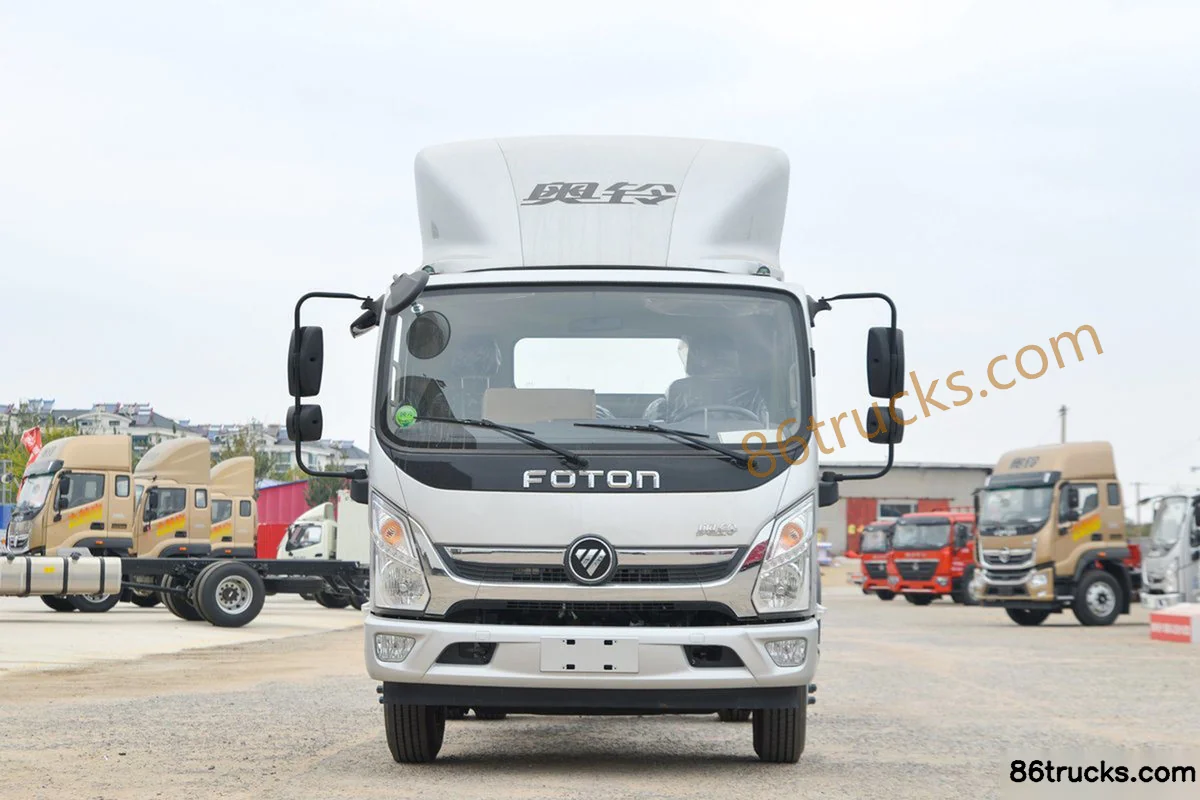

Exterior1

1 photos

FAQ

What is the export price of Foton Aoling New Jieyun 170hp 4X2(6 wheels) 5m flammable liquid van truck, and what does it include?

Foton Aoling New Jieyun 170hp 4X2(6 wheels) 5m flammable liquid van truck export reference is about From $23,333; MSRP is ¥16.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Aoling New Jieyun 170hp 4X2(6 wheels) 5m flammable liquid van truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Aoling New Jieyun 170hp 4X2(6 wheels) 5m flammable liquid van truck?

Key specs of Foton Aoling New Jieyun 170hp 4X2(6 wheels) 5m flammable liquid van truck: Drive: 4x2; Horsepower: 170 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Aoling New Jieyun 170hp 4X2(6 wheels) 5m flammable liquid van truck suited for?

Foton Aoling New Jieyun 170hp 4X2(6 wheels) 5m flammable liquid van truck is a Explosives Transport Truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Foton Aoling New Jieyun 170hp 4X2(6 wheels) 5m flammable liquid van truck differ from other variants in the same series?

Foton Aoling New Jieyun 170hp 4X2(6 wheels) 5m flammable liquid van truck belongs to Foton New Jieyun Light Truck (Explosives Transport Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Aoling New Jieyun 170hp 4X2(6 wheels) 5m flammable liquid van truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Aoling New Jieyun 170hp 4X2(6 wheels) 5m flammable liquid van truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
