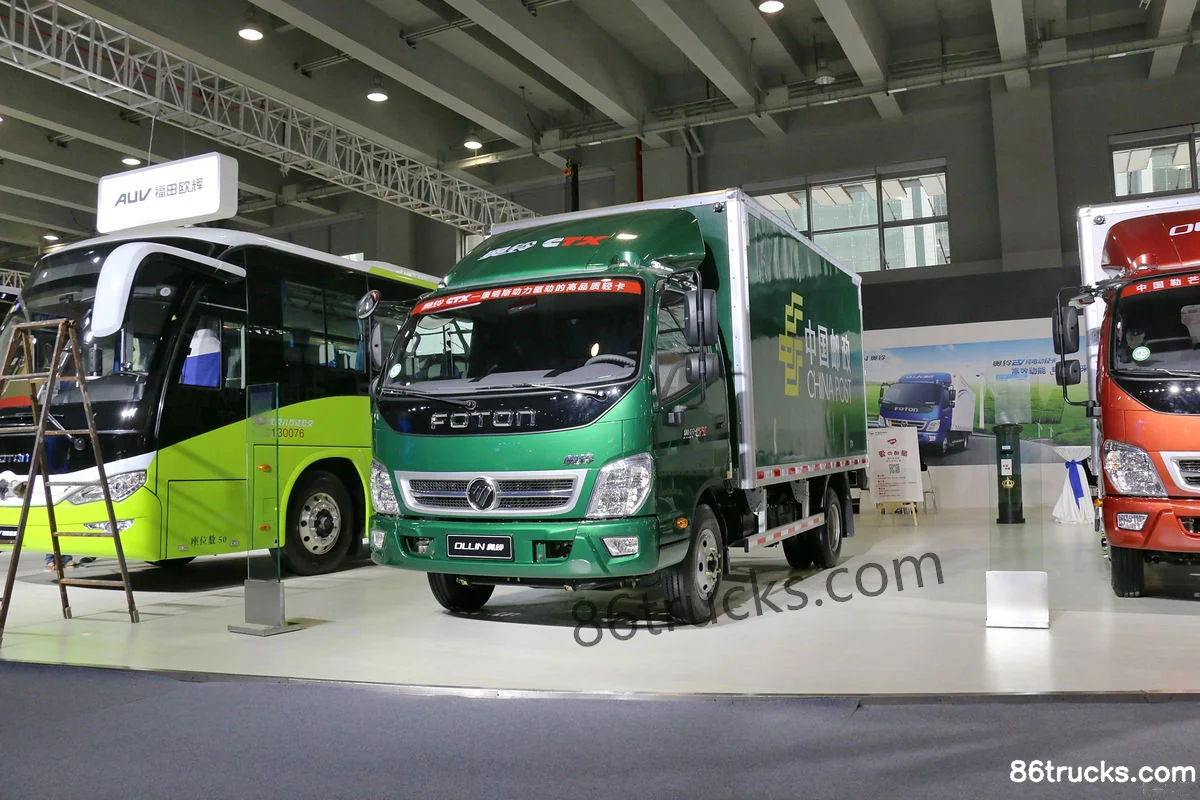

Foton Ollin CTX Tech Edition 143hp 4X2(6 wheels) 4.165m single-row van light truck (China V)

Export reference
From $17,778
MSRP ¥12.8M CNY
Horsepower: 143
Emission: China V
Fuel: Diesel
Engine: Fukang 3.8
Transmission: ZF
Curb Weight:: 3.3ton
seating capacity: 3Personnel
Rated payload: 4.85ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The Foton Ollin CTX Tech Edition 143hp 4X2(6 wheels) 4.165m single-row van light truck (China V) is a Light Truck featuring 4.165m cargo length, Van body cargo body, 3Personnel volume and 4.85t payload. Its segment focus covers Logistics Freight and City Distribution, matching those duty cycles. On the powertrain side, it comes with a Fukang 3.8 engine, 143 hp, 4X2 (6 wheels) drive and China V emissions.

China V 143 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ5089XXY-F6
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
engine: FotonISF3.8s5141
transmission: ZFZF651B
Rear Axle Ratio: 4.11
Cab length: 5.995m
Cab width: 2.2m
Cab height: 2.95m
Front track width: 1730mm
rear track: 1590mm
Curb Weight: 3.3ton
Rated payload: 4.85ton
GVWR: 8.28ton
Max. speed: 110km/h
Origin: Beijing
tonnage class: Light Truck
Approach angle: 22°
departure angle: 21°
market segment: Logistics Freight, City Distribution
Front/rear suspension: 1.12/1.515m
Version: Tech Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonISF3.8s5141
Engine info: Fukang 3.8
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.76L
Emission standard: China V
Max output power: 105kW
Max hp: 143Horsepower
Max torque: 440N·m
Max torque speed: 1200-2200rpm
Rated speed: 2600rpm
Engine Type: Turbocharged Air-to-Air Intercooling Bosch High-Pressure Common Rail Direct Injection SCR
Transmission Parameters
Transmission Model: ZFZF651B
Transmission Brand: ZF
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 4.165m
Cargo box width: 2.05m
Cargo box height: 2.1m
*Cargo box interior width: 2.0499999523163
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
Driver seat type: Rigid connection seat
fuel tank
Fuel tank material: Plastic
Fuel tank capacity: 120L
Chassis Specs
Front axle allowable load: 3000kg
rear axle description: 5280
rear axle allowable load: 5280kg
Axle ratio: 4.11
Leaf spring count: 3+1/6+7
Tire
Tire Size: 7.50R16
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
clutch booster:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Multimedia features
External audio input (AUX/USB/iPod etc.):
Radio:
lighting configuration
Front fog lamp:
daytime running lights:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Exhaust brake:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

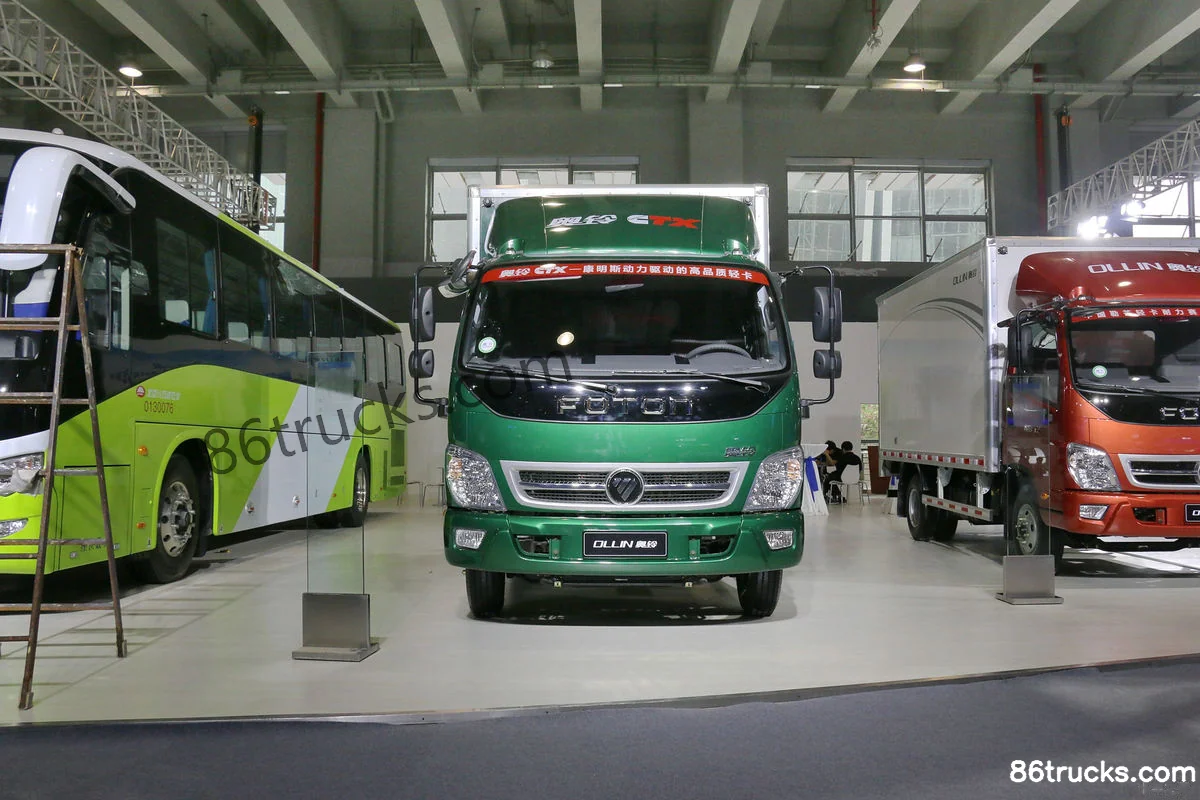

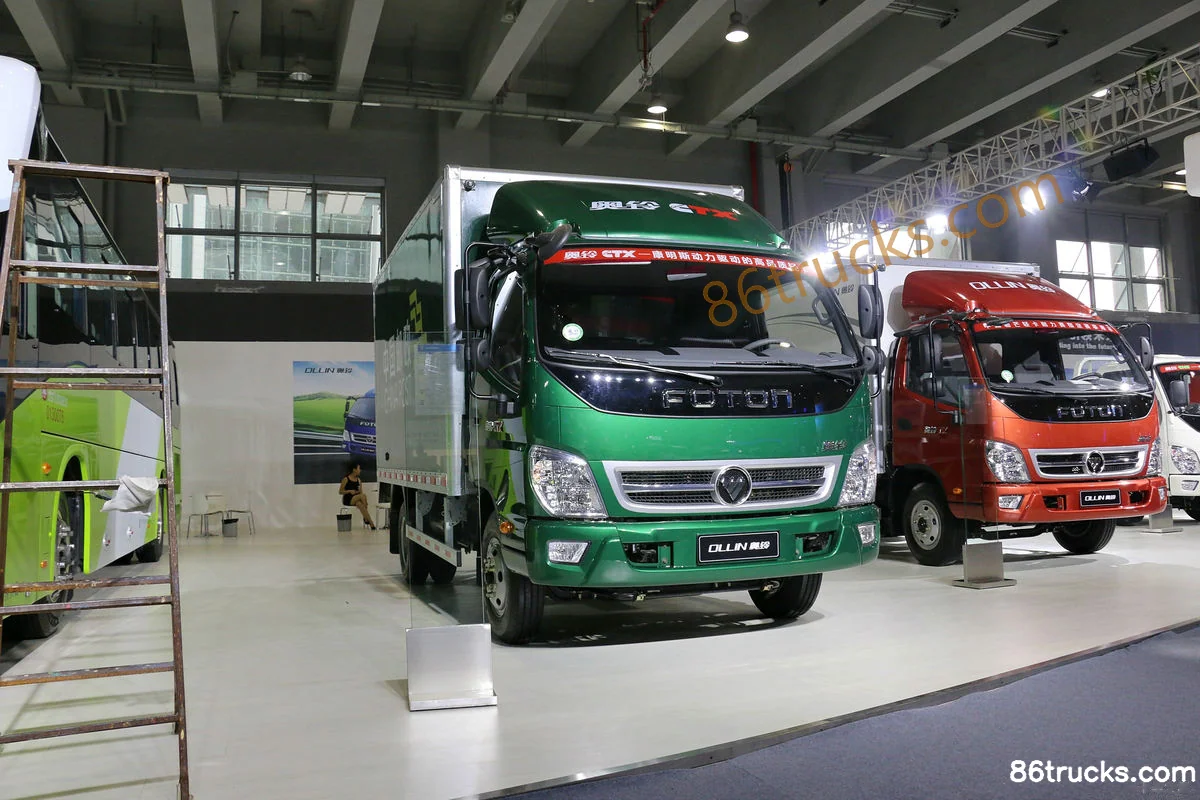

Exterior3

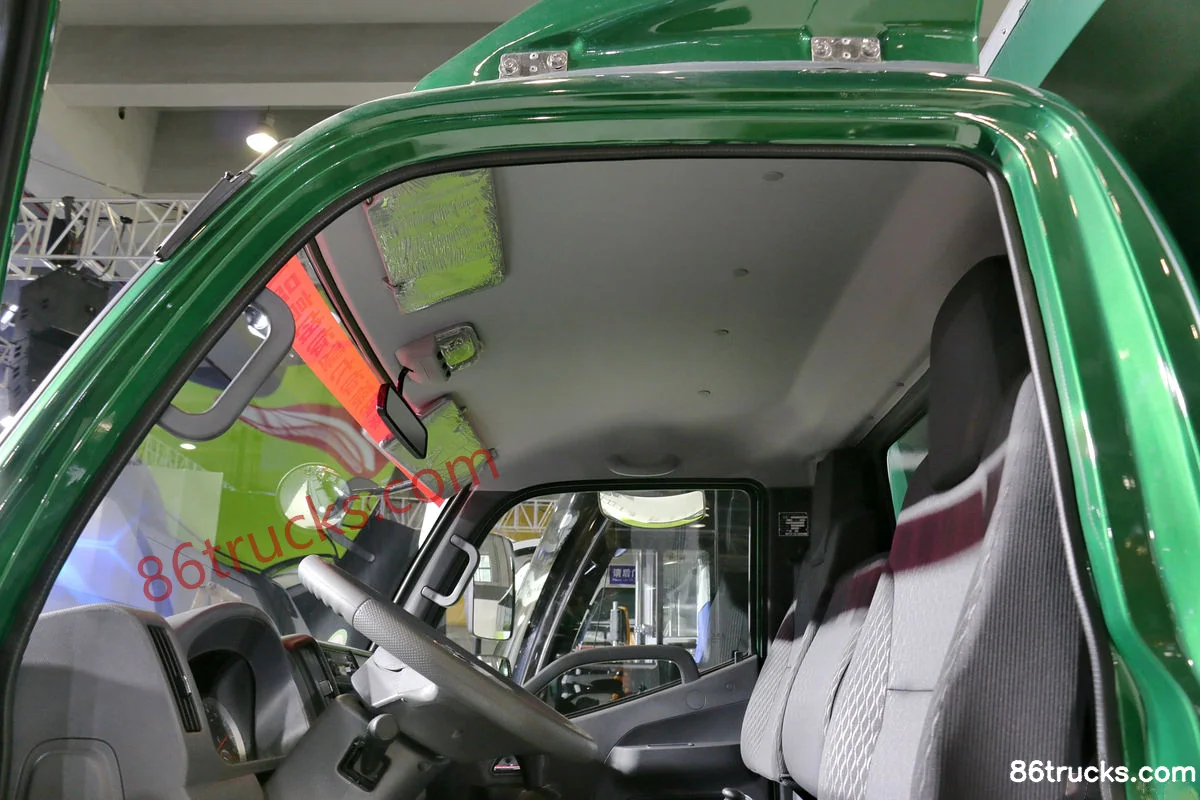

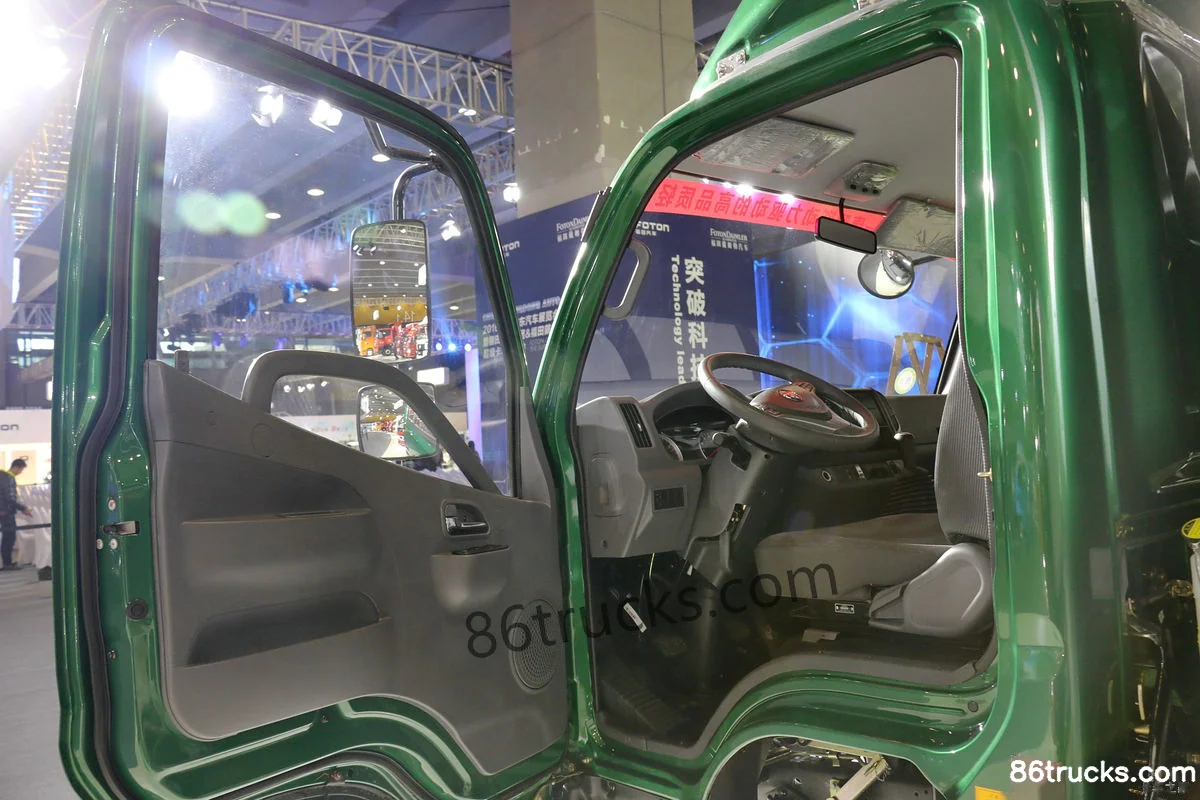

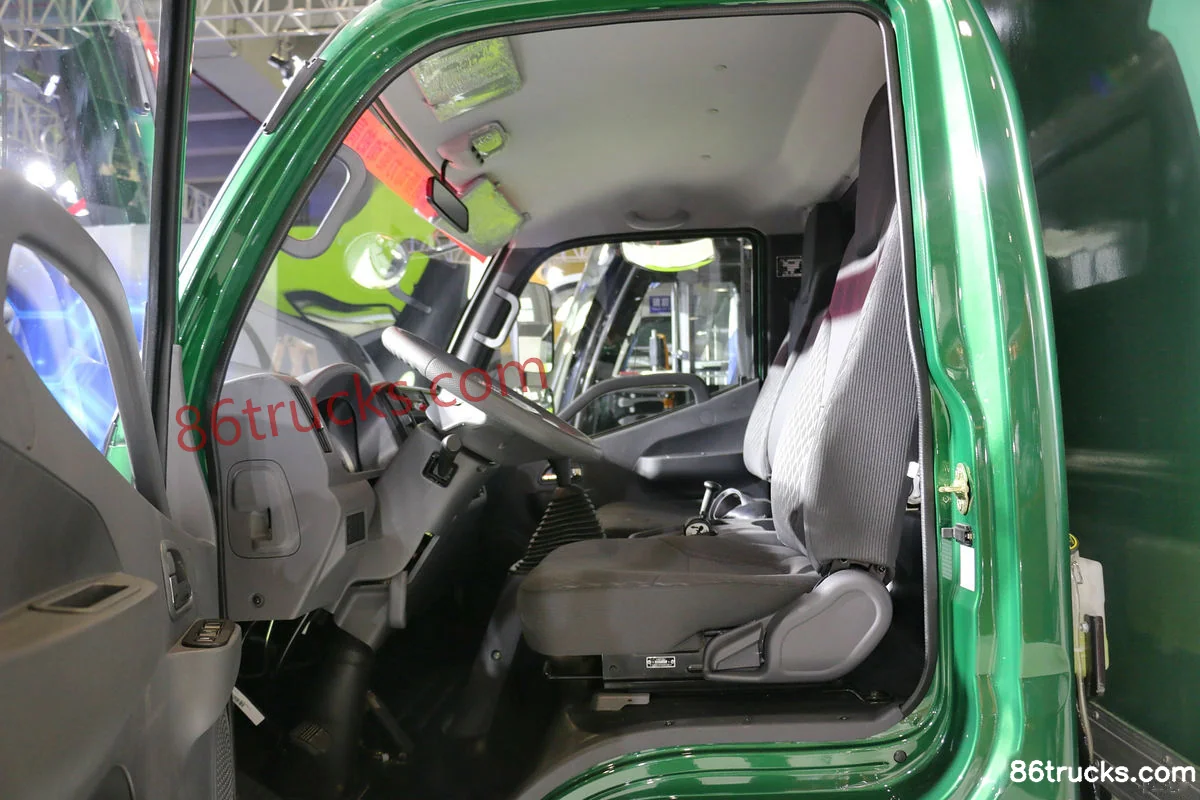

Cab3

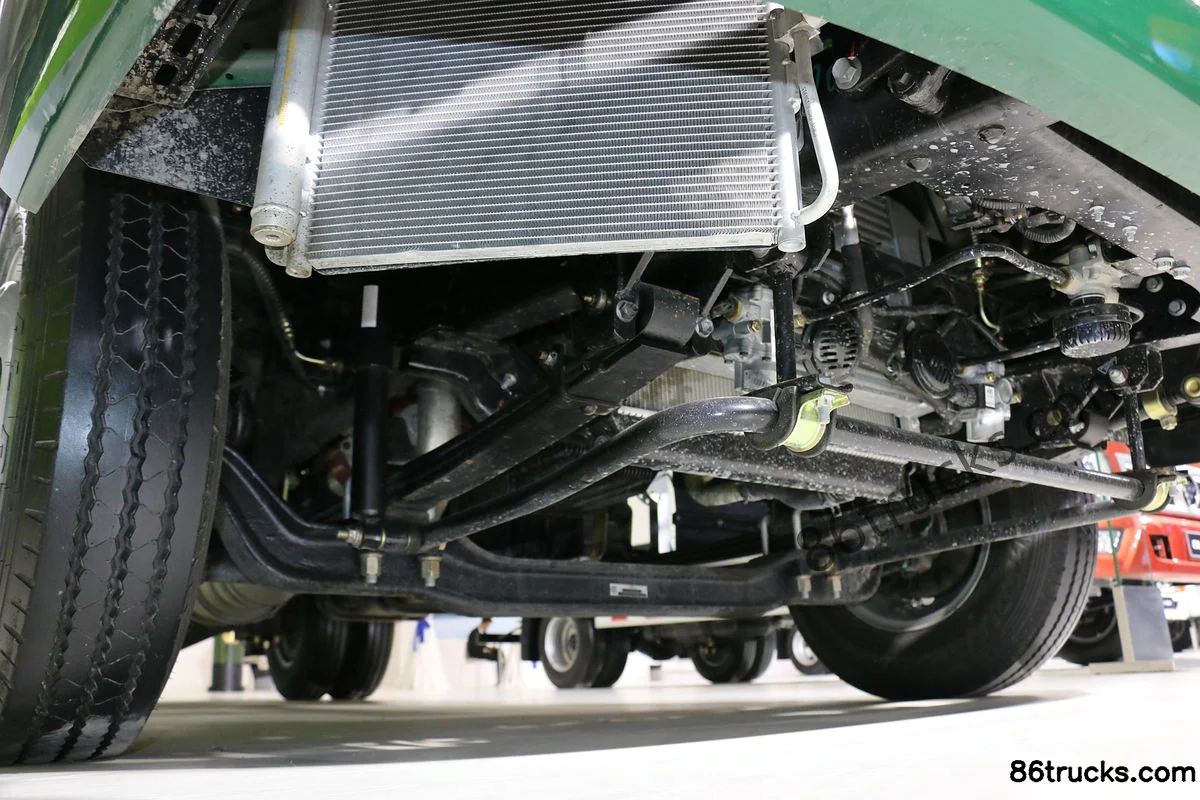

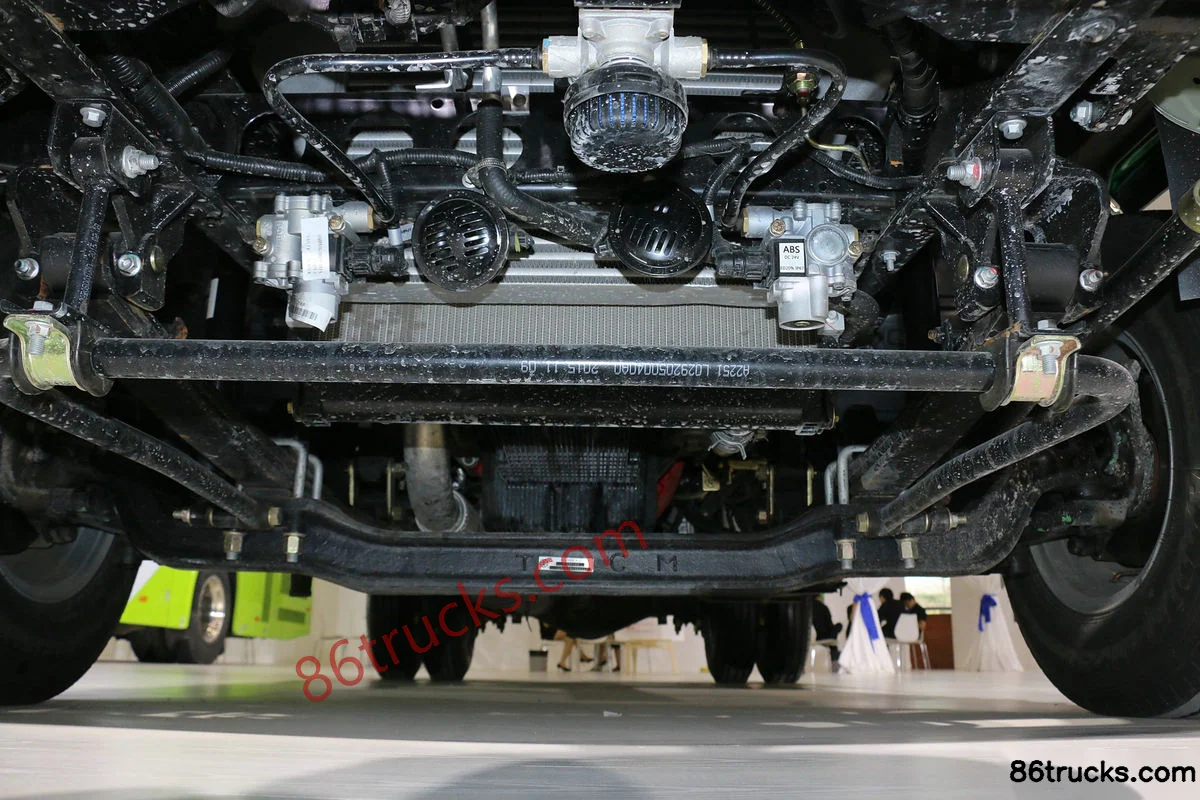

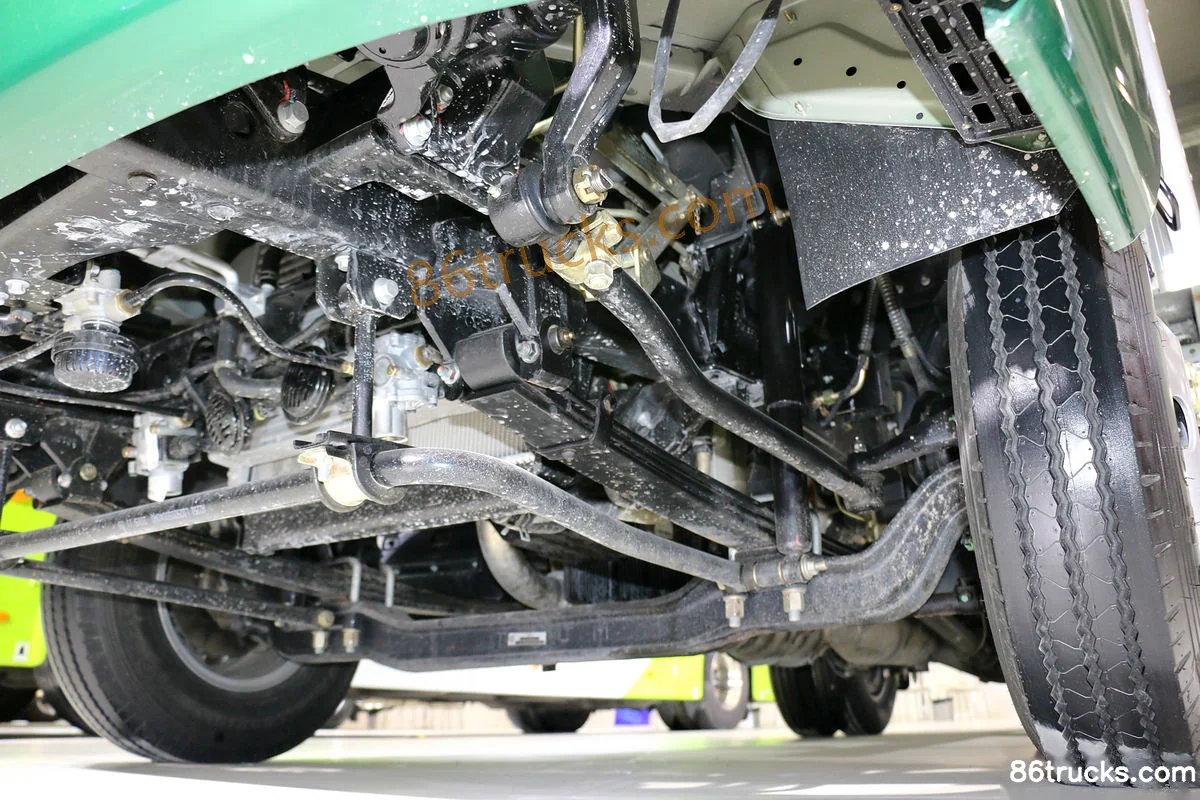

Chassis3

9 photos

FAQ

What is the export price of Foton Ollin CTX Tech Edition 143hp 4X2(6 wheels) 4.165m single-row van light truck (China V), and what does it include?

Foton Ollin CTX Tech Edition 143hp 4X2(6 wheels) 4.165m single-row van light truck (China V) export reference is about From $17,778; MSRP is ¥12.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Ollin CTX Tech Edition 143hp 4X2(6 wheels) 4.165m single-row van light truck (China V) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Ollin CTX Tech Edition 143hp 4X2(6 wheels) 4.165m single-row van light truck (China V)?

Key specs of Foton Ollin CTX Tech Edition 143hp 4X2(6 wheels) 4.165m single-row van light truck (China V): Drive: 4x2; Horsepower: 143 hp; Emission: China V; Fuel: Diesel; Engine: Fukang 3.8; Transmission: ZF. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Ollin CTX Tech Edition 143hp 4X2(6 wheels) 4.165m single-row van light truck (China V) suited for?

Foton Ollin CTX Tech Edition 143hp 4X2(6 wheels) 4.165m single-row van light truck (China V) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Ollin CTX Tech Edition 143hp 4X2(6 wheels) 4.165m single-row van light truck (China V) differ from other variants in the same series?

Foton Ollin CTX Tech Edition 143hp 4X2(6 wheels) 4.165m single-row van light truck (China V) belongs to Foton CTX Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Ollin CTX Tech Edition 143hp 4X2(6 wheels) 4.165m single-row van light truck (China V)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Ollin CTX Tech Edition 143hp 4X2(6 wheels) 4.165m single-row van light truck (China V)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
