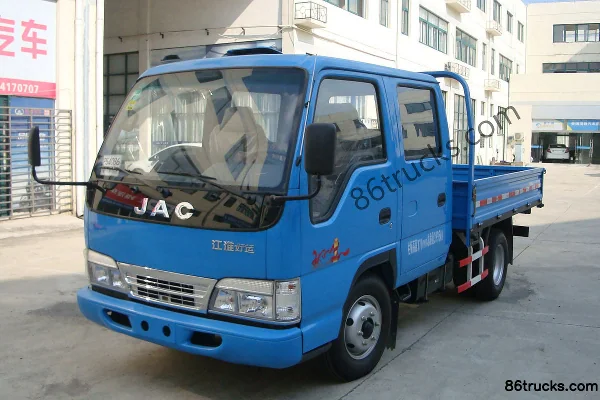

JAC Haoyun 100hp 4X2(6 wheels) 3.2m Double Row Flatbed Light Truck

Export reference
From $8,056
MSRP ¥5.8M CNY
Horsepower: 100
Emission: China III / Euro III
Fuel: Diesel
Engine: Chaochai4100
Transmission: Lu'an
Curb Weight:: 2.4ton
seating capacity: 5Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The JAC Haoyun 100hp 4X2(6 wheels) 3.2m Double Row Flatbed Light Truck is a Light Truck featuring 3.2m cargo length, stake body cargo body, 5Personnel volume and 1.495t payload. On the powertrain side, it comes with a Chaochai4100 engine, 100 hp, 4X2 (6 wheels) drive and China III / Euro III emissions.

China III / Euro III 100 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC1041K5RT
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3308mm
Box length class: 3.2m
engine: ChaochaiCY4100-E3F
transmission: Lu'an MSC-5S
Cab length: 5.98m
Cab width: 1.91m
Cab height: 2.25m
Front track width: 1420mm
rear track: 1395mm
Curb Weight: 2.4ton
Rated payload: 1.495ton
GVWR: 4.22ton
Max. speed: 90km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
Remarks: tilt cab, heater, I-beam front axle; optional 4D25F engine
Energy Type: Diesel
Engine parameters
Engine Brand: Chaochai
Engine Model: CY4100-E3F
Engine info: Chaochai4100
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.707L
Emission standard: China III / Euro III
Max output power: 73kW
Max hp: 100Horsepower
Max torque speed: 1800-2000rpm
Rated speed: 3200rpm
Engine Type: Vertical inline, water-cooled, 4-stroke, turbocharged intercooled
Transmission Parameters
Transmission Model: Lu'an MSC-5S
Transmission Brand: Lu'an
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.2m
Cargo box width: 1.81m
Cargo box height: 0.4m
*Cargo box interior width: 1.8099999427795
Cab parameters
seating capacity: 5Personnel
Seat rows: Double cab
fuel tank
Fuel tank capacity: 80L
Chassis Specs
rear axle description: 2700
Leaf spring count: 11/9+7
Tire
Tire Size: 6.50-16/7.00-16
Number of tires: 6pcs

Photos

0 photos

FAQ

What is the export price of JAC Haoyun 100hp 4X2(6 wheels) 3.2m Double Row Flatbed Light Truck, and what does it include?

JAC Haoyun 100hp 4X2(6 wheels) 3.2m Double Row Flatbed Light Truck export reference is about From $8,056; MSRP is ¥5.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Haoyun 100hp 4X2(6 wheels) 3.2m Double Row Flatbed Light Truck use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Haoyun 100hp 4X2(6 wheels) 3.2m Double Row Flatbed Light Truck?

Key specs of JAC Haoyun 100hp 4X2(6 wheels) 3.2m Double Row Flatbed Light Truck: Drive: 4x2; Horsepower: 100 hp; Emission: China III / Euro III; Fuel: Diesel; Engine: Chaochai4100; Transmission: Lu'an. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Haoyun 100hp 4X2(6 wheels) 3.2m Double Row Flatbed Light Truck suited for?

JAC Haoyun 100hp 4X2(6 wheels) 3.2m Double Row Flatbed Light Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Haoyun 100hp 4X2(6 wheels) 3.2m Double Row Flatbed Light Truck differ from other variants in the same series?

JAC Haoyun 100hp 4X2(6 wheels) 3.2m Double Row Flatbed Light Truck belongs to JAC Haoyun light truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Haoyun 100hp 4X2(6 wheels) 3.2m Double Row Flatbed Light Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Haoyun 100hp 4X2(6 wheels) 3.2m Double Row Flatbed Light Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
